| Model No. | SKX3+1-CNC-3000 |
| Condition | New |
| Certification | CE |
| Automatic Grade | Semi-Automatic / CNC |

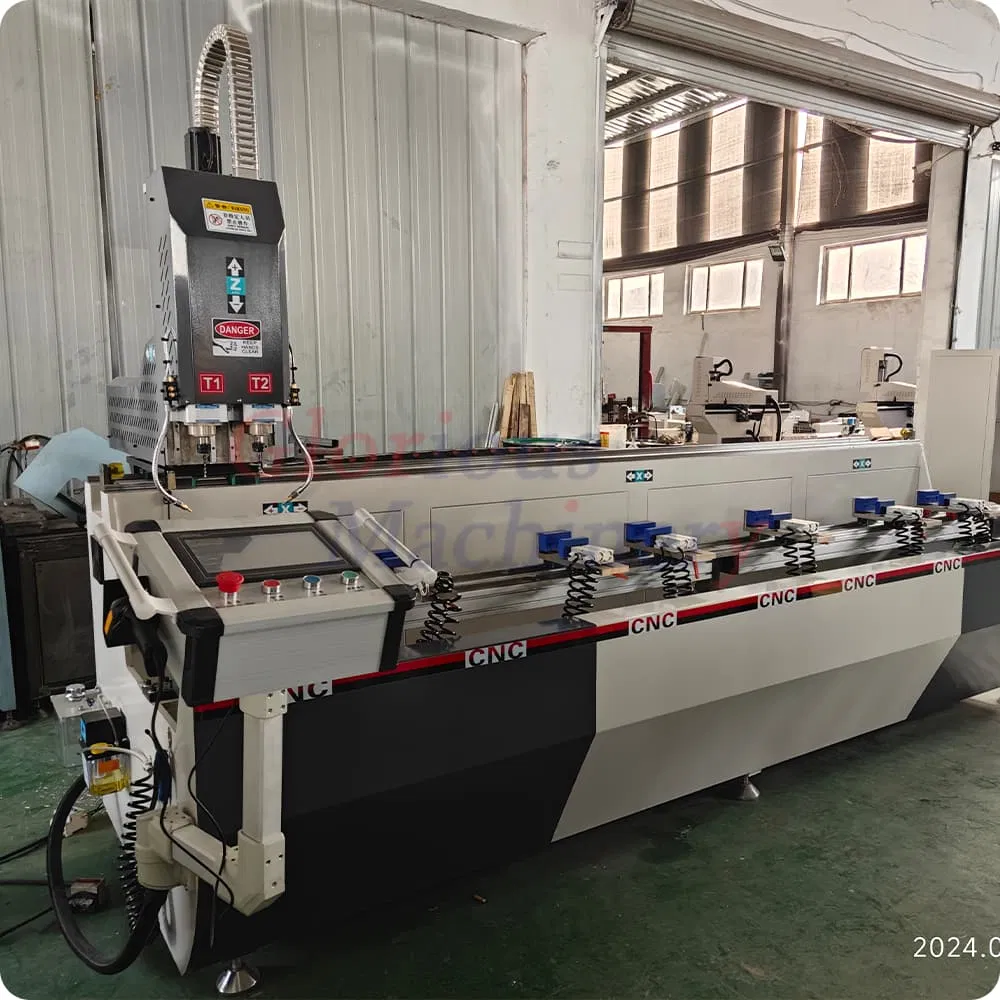

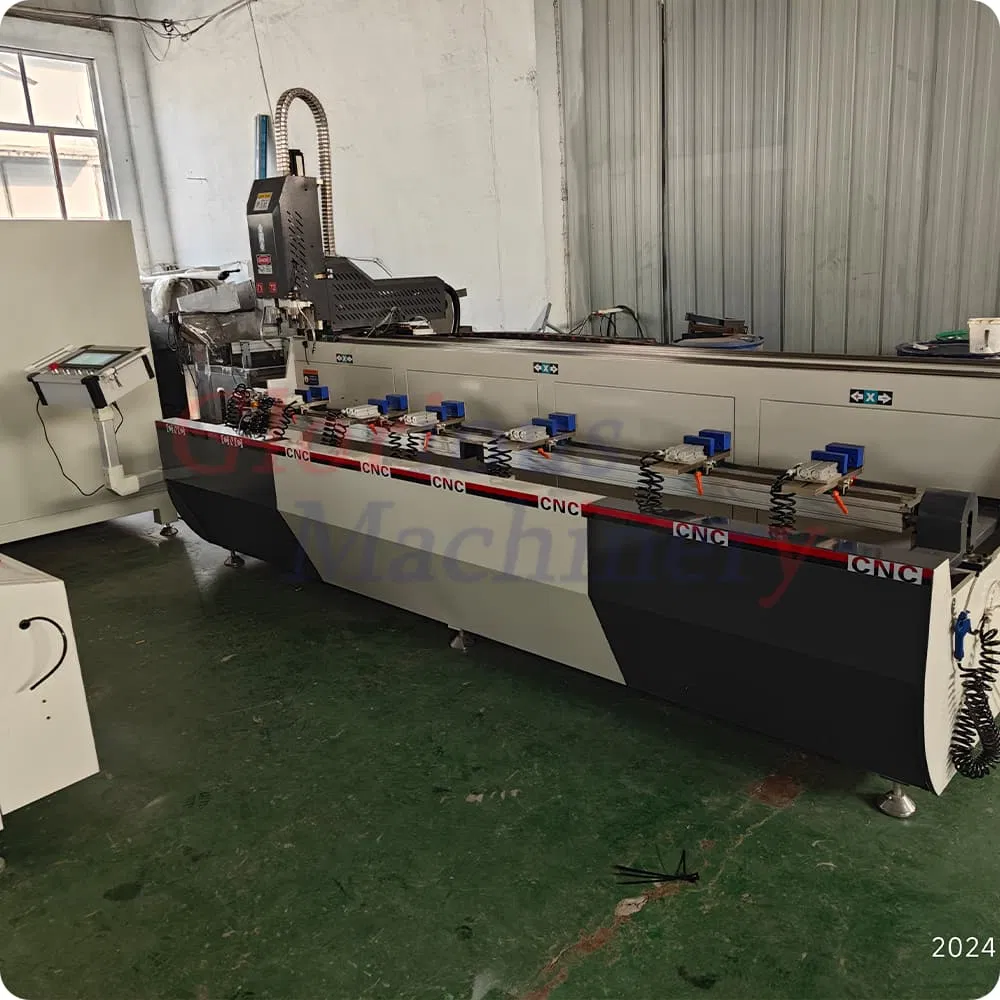

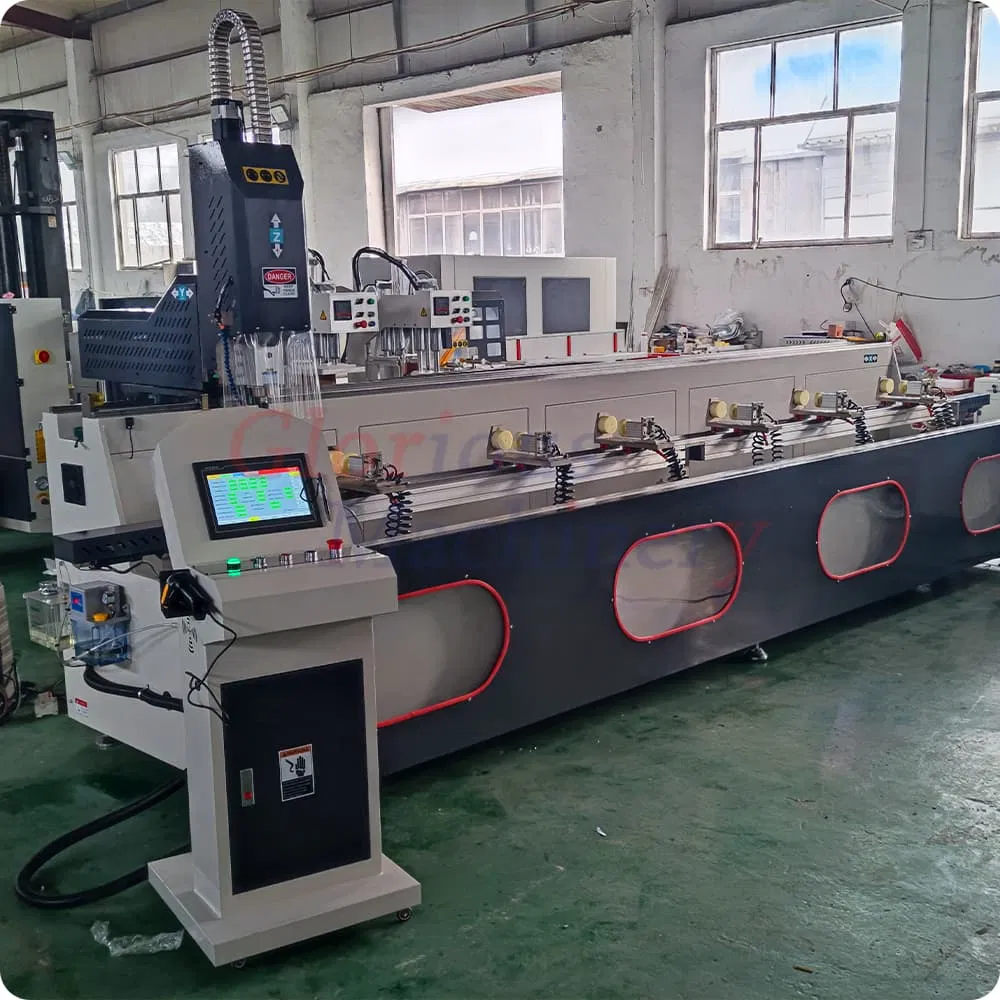

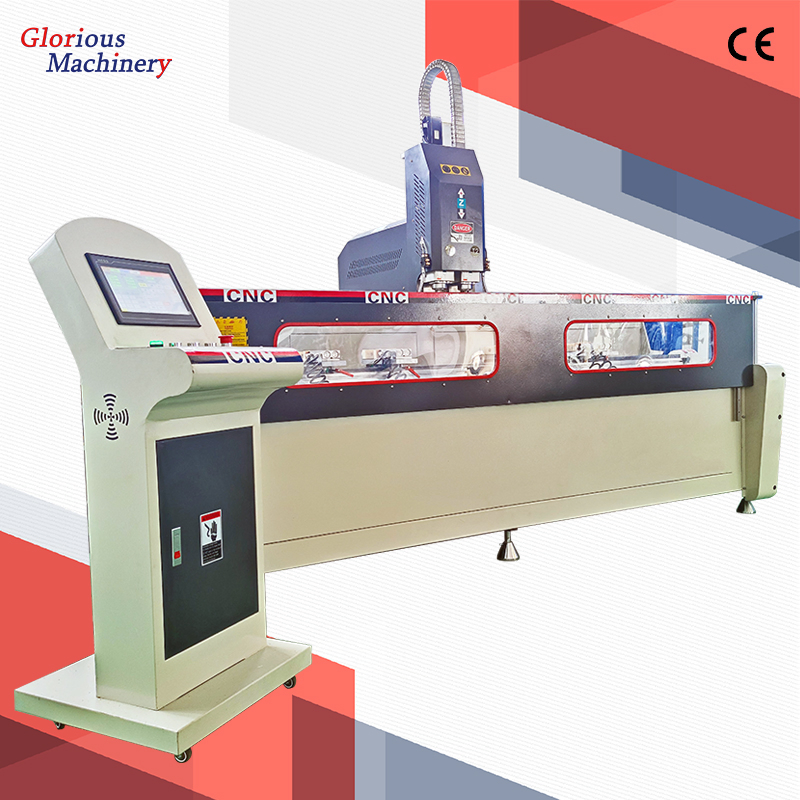

| Product Name | Window Profile Milling Drilling Machine |
| Application | Aluminum & PVC Window Door Frame Hole Making |
| Suitable Material | Aluminum PVC Window Door Profile |
| X-Axis Travel | 3000mm |
| Y-Axis Travel | 360mm |
| Z-Axis Travel | 300mm |
| Total Power | 5.75kw |
| Spindle Power | 3.5kw |
| Voltage | 220-380V/50Hz 3p |
This machine is suitable for milling, drilling and other machining operations of lightweight alloys such as 120mm×120mm aluminum profiles, industrial aluminum profiles, as well as PVC profiles, meeting various profile processing requirements.
It adopts high-precision linear motion pairs and ball screws, ensuring stable operation, high positioning accuracy and high machining precision, which effectively guarantees the processing quality of profiles.
Equipped with a high-quality high-speed variable-frequency spindle motor, it runs smoothly with low noise and strong cutting capacity. The worktable supports automatic three-sided turning, including 90° inward and outward flipping and 180° horizontal flipping.

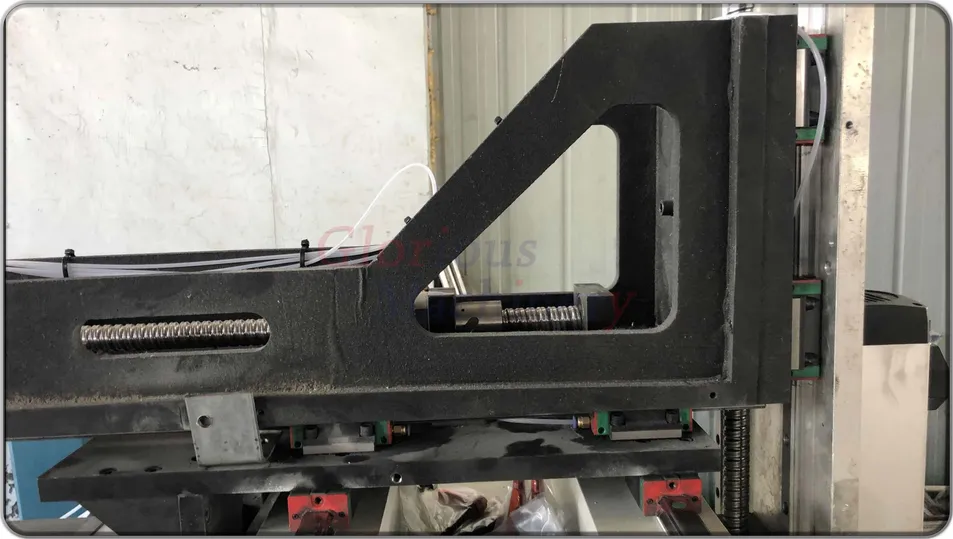

Transmission System

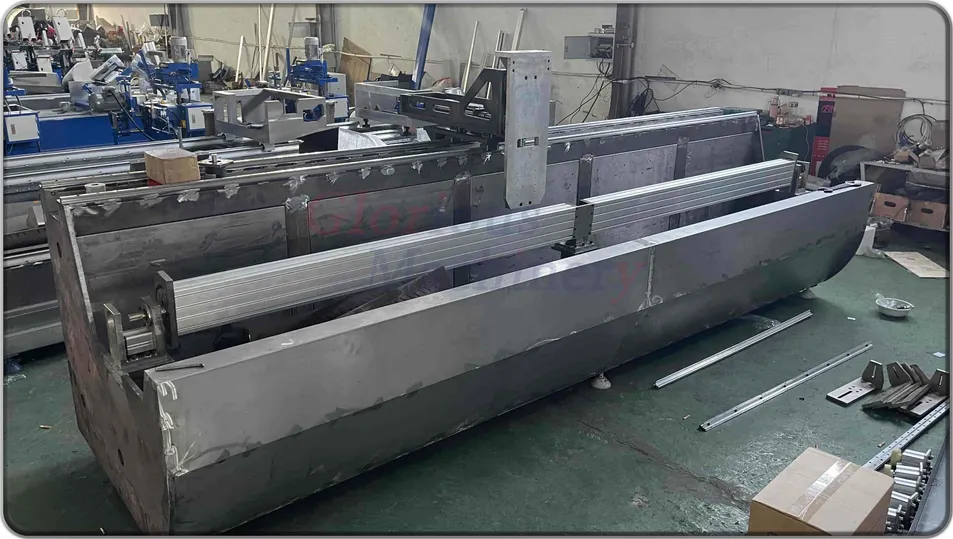

Structural Frame

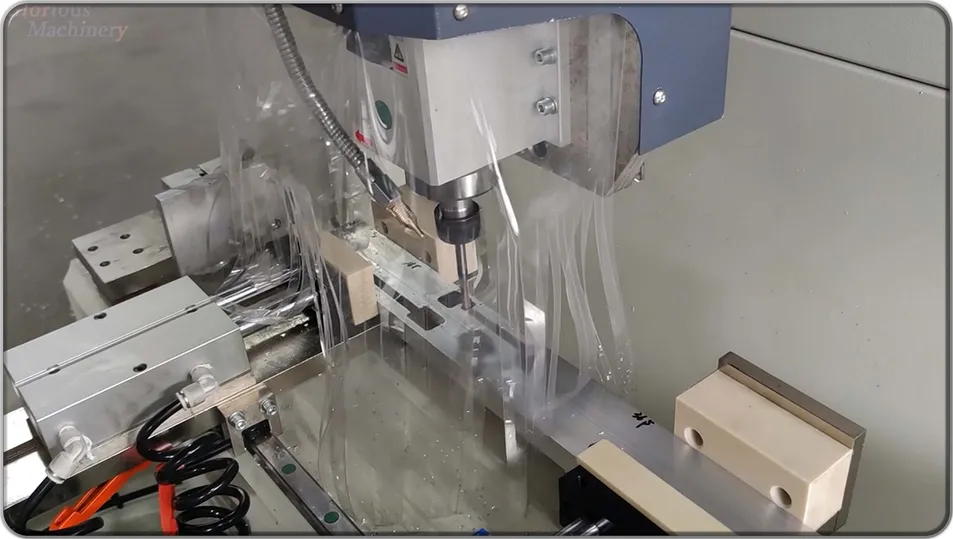

Machining Quality

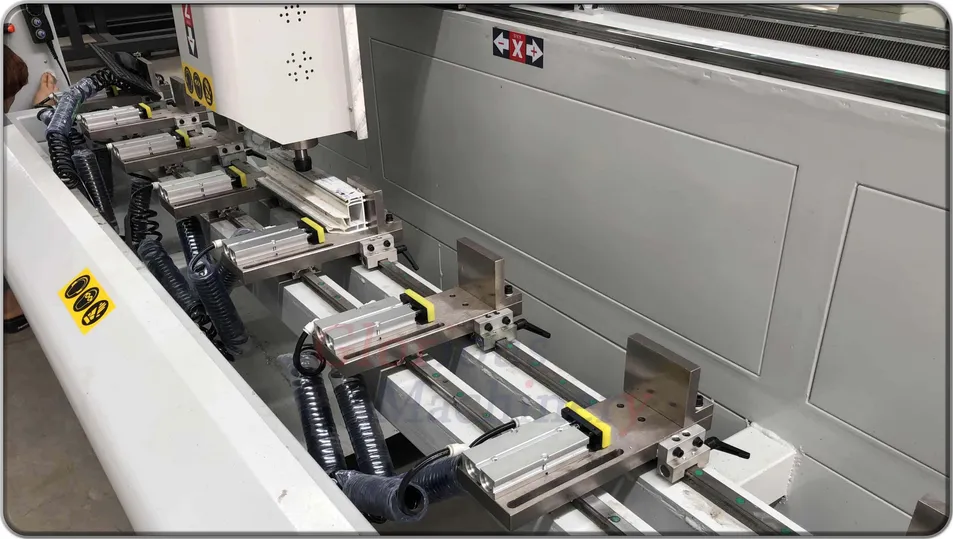

Work Fixture
X-Axis: 3000 mm | Y-Axis: 360 mm | Z-Axis: 300 mm
Generous travel enables high-precision machining of large-section profiles and complex holes in one clamping, improving efficiency and precision.
Material Versatility:
| 1. Precision Cutting | Aluminum profiles are cut to exact dimensions for seamless compatibility. |
| 2. Milling & Drilling | Functional holes and slots (drainage, hardware) are processed. |
| 3. Structural End Milling | Mullion profile ends are processed for load-bearing connection points. |
| 4. Cleat Cutting | Small metal cleats are cut for internal corner reinforcement. |
| 5. Corner Crimping | Profiles and cleats are bonded into rigid 90-degree corners. |
| 6. Finished Frame | The robust window frame unit is ready for installation. |

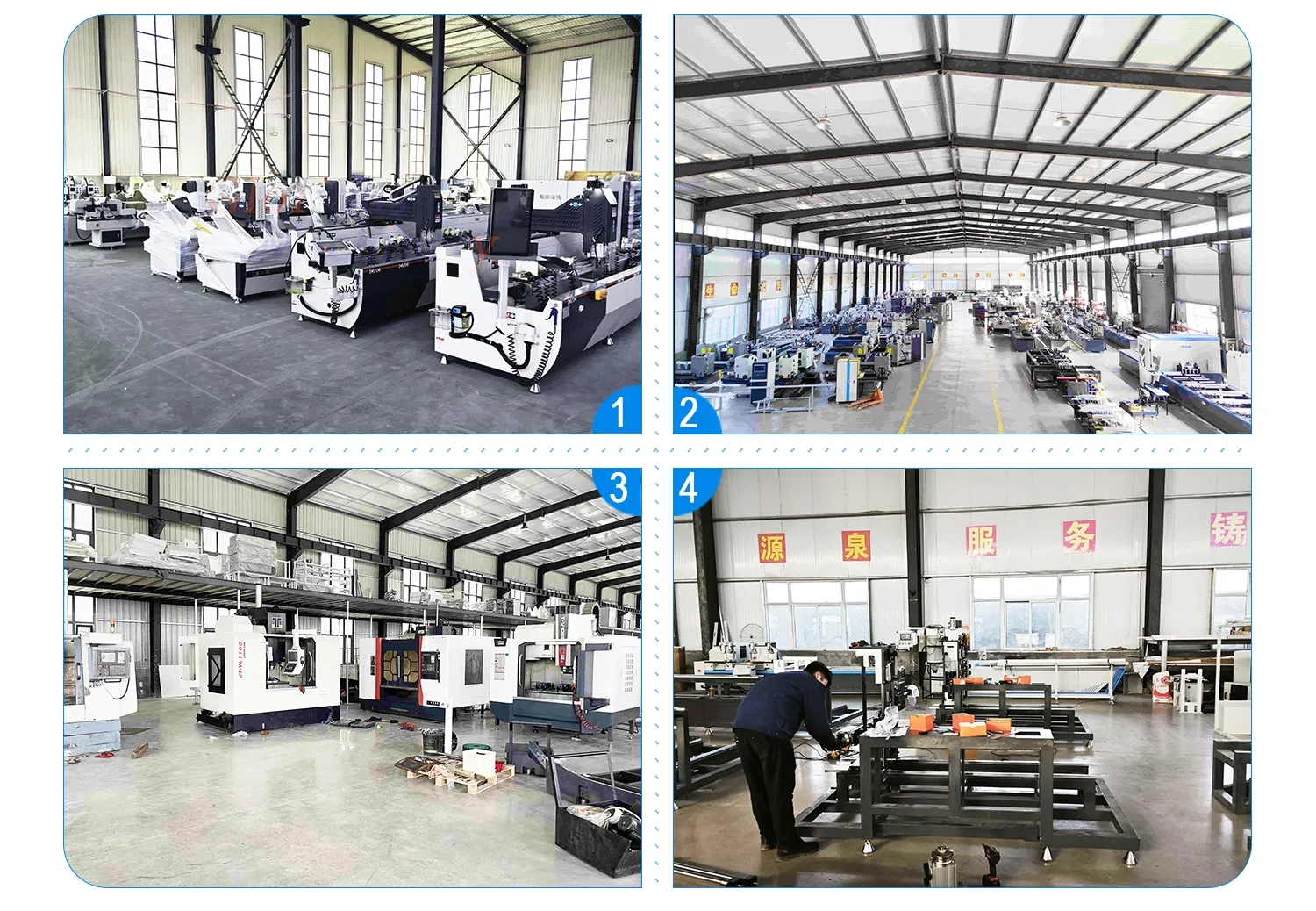

As an innovative manufacturing enterprise with independent R&D and professional design capabilities, we focus on middle and high-end aluminum & PVC window processing equipment. Our core mission is to provide global customers with practical, innovative, and reliable machinery solutions.
