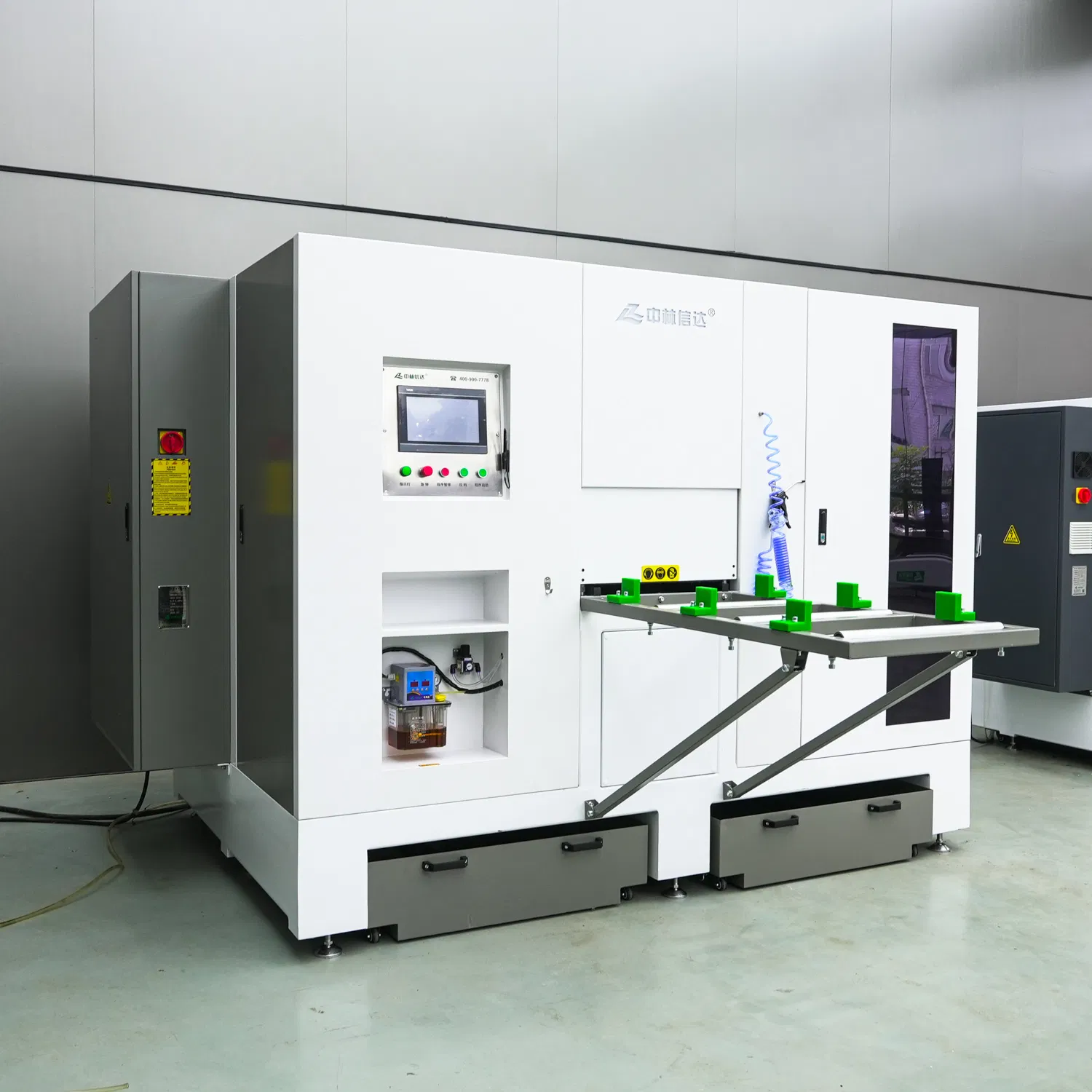

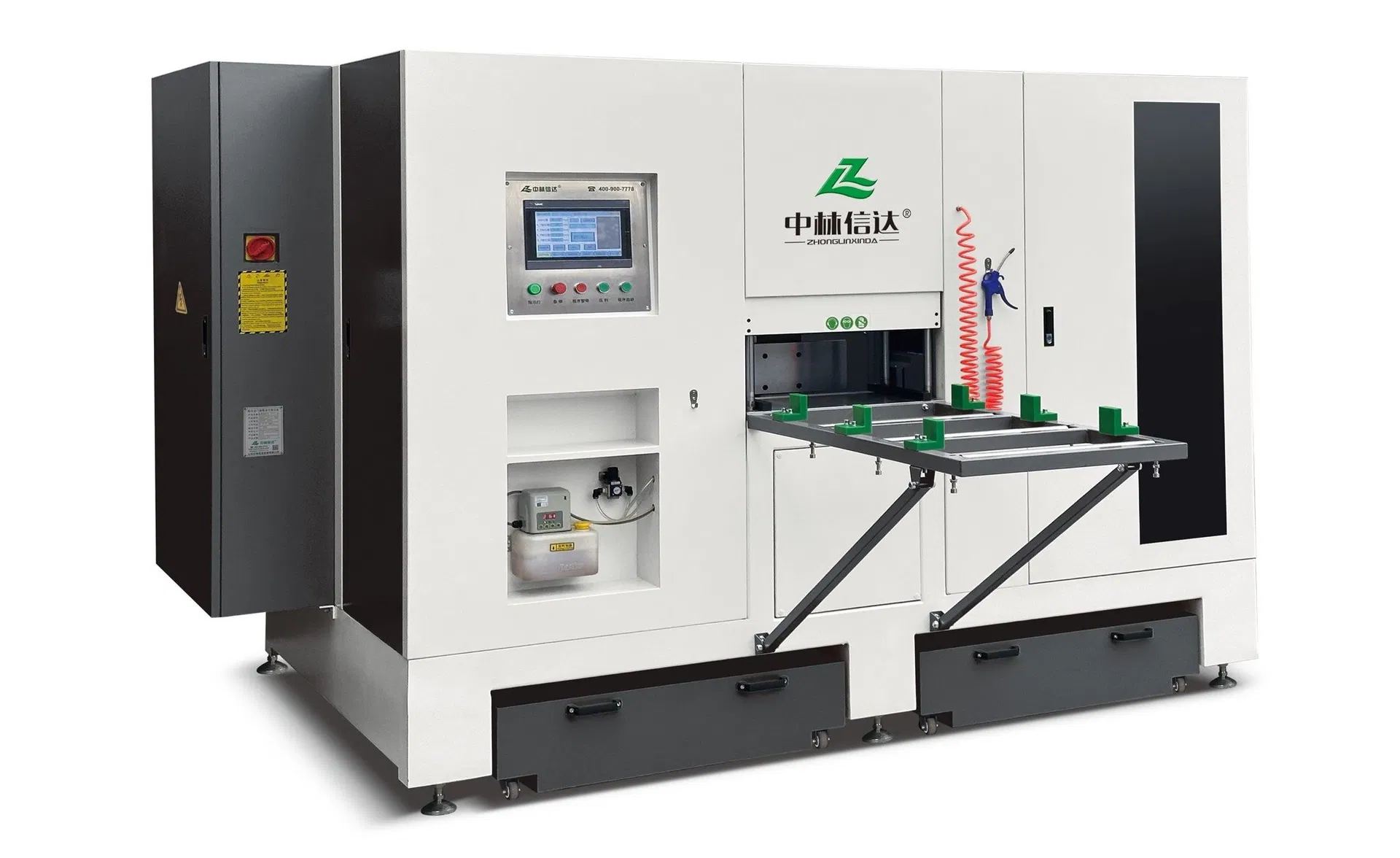

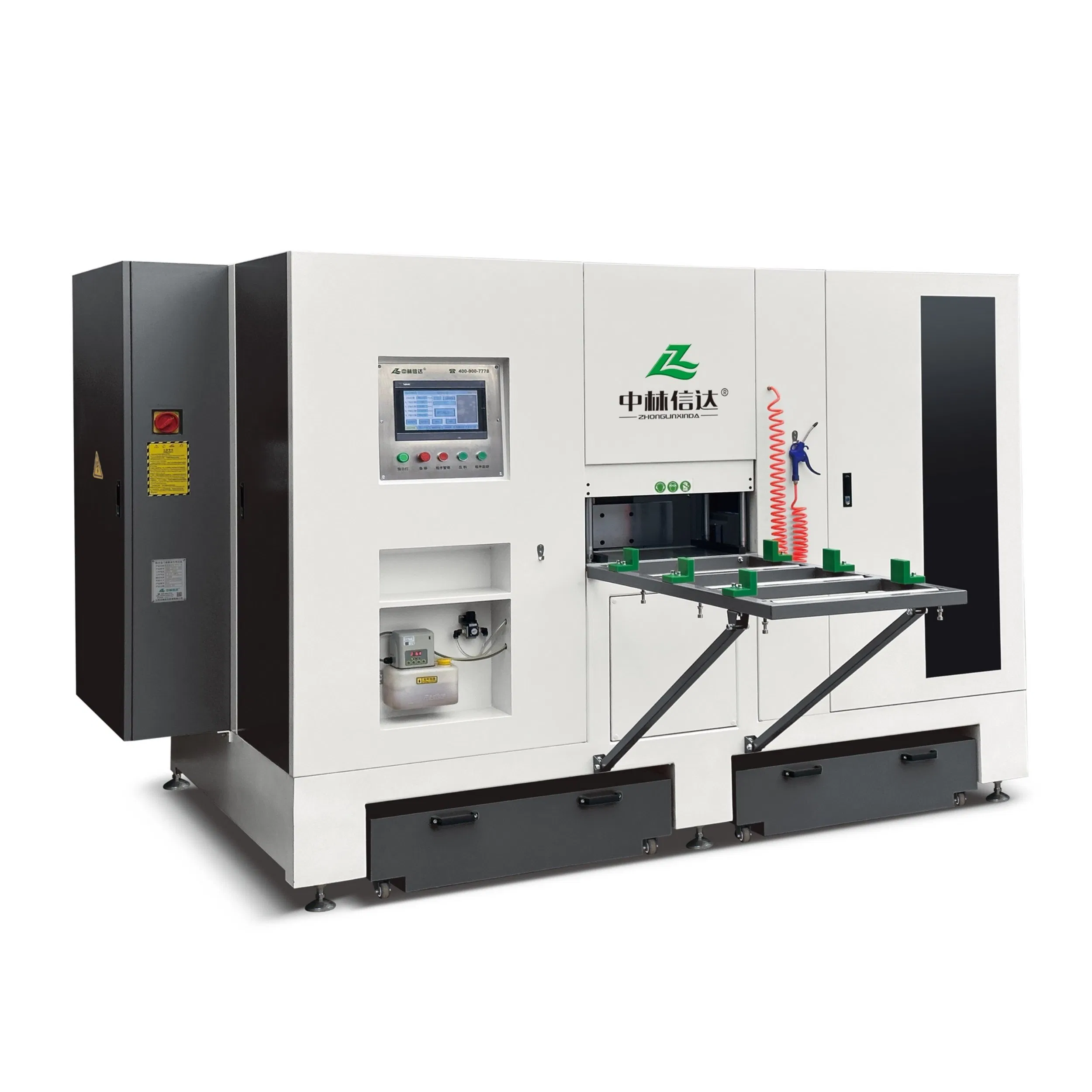

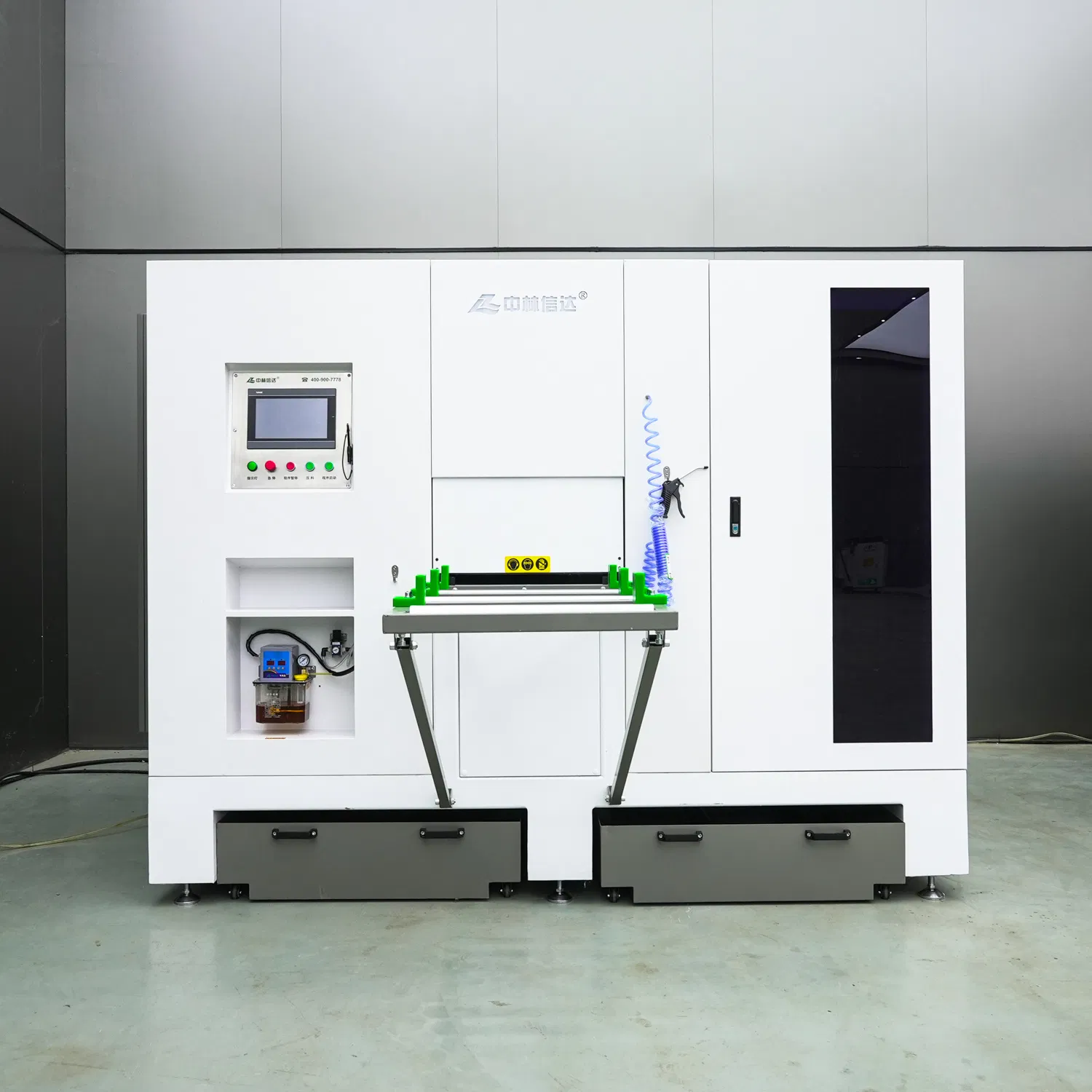

High-Precision 5-Axis System
Designed for professional Window, Door and Curtain Wall fabrication. It processes Aluminum Alloy, Thermal Break Aluminum, and PVC profiles with an advanced 5-axis system and 4 high-efficiency cutters.
| Power supply 380V/50Hz |
Group A horizontal milling depth 100mm |
| Total motor power 13kW |
Group A vertical milling depth 90mm |
| Spindle motor power 3.0kW×2 |
Group B horizontal milling depth 80mm |
| Working air pressure 0.5~0.8MPa |
Press table dimensions 459×360mm |
| Diameter of milling cutter 350×5.0/6.5/8.0×30mm |
Overall weight About 2250kg |
Visual Operation Interface: Can remember more than 100 groups of programs for direct profile processing.
Fully Enclosed Design: Effectively reduces noise during milling operations for a better work environment.

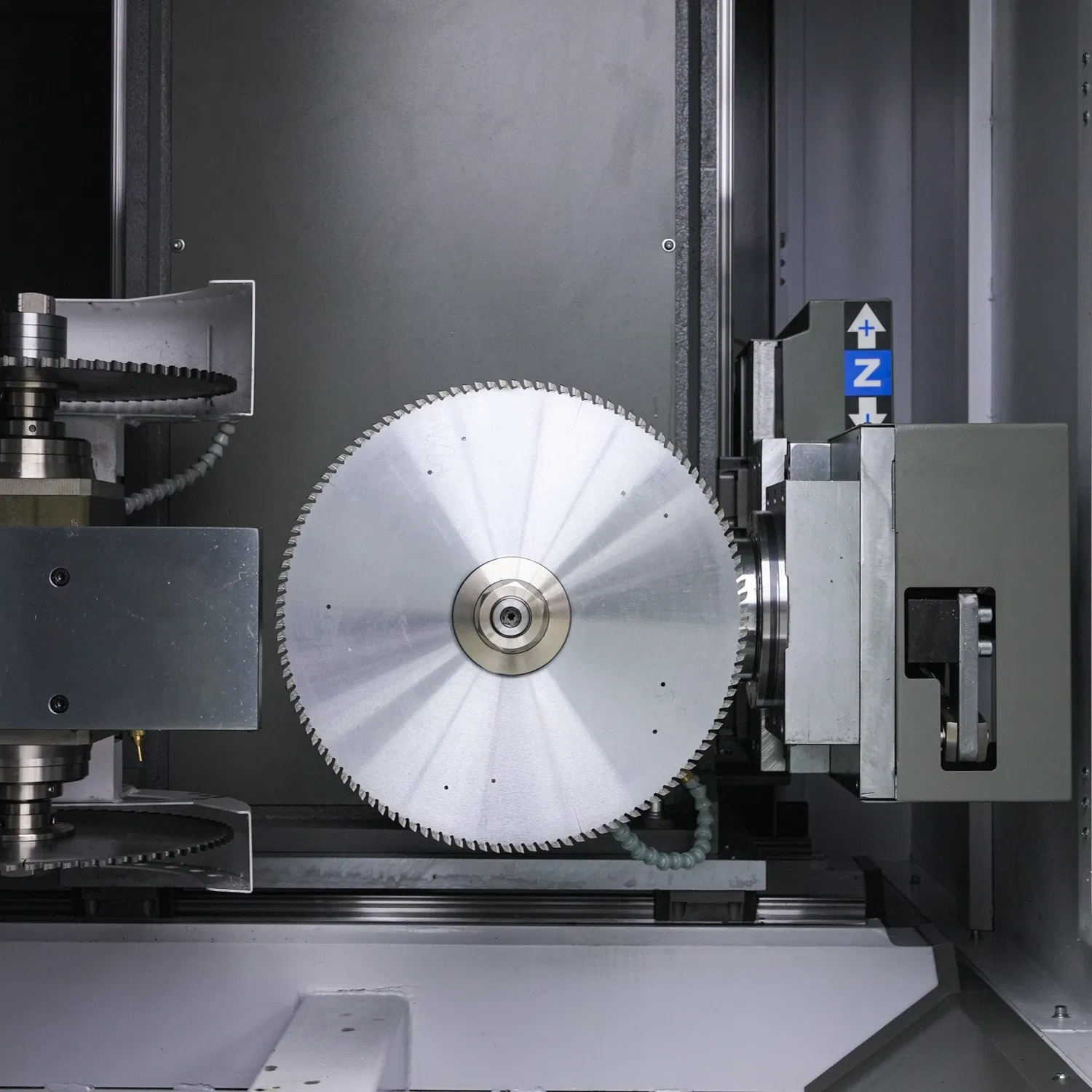

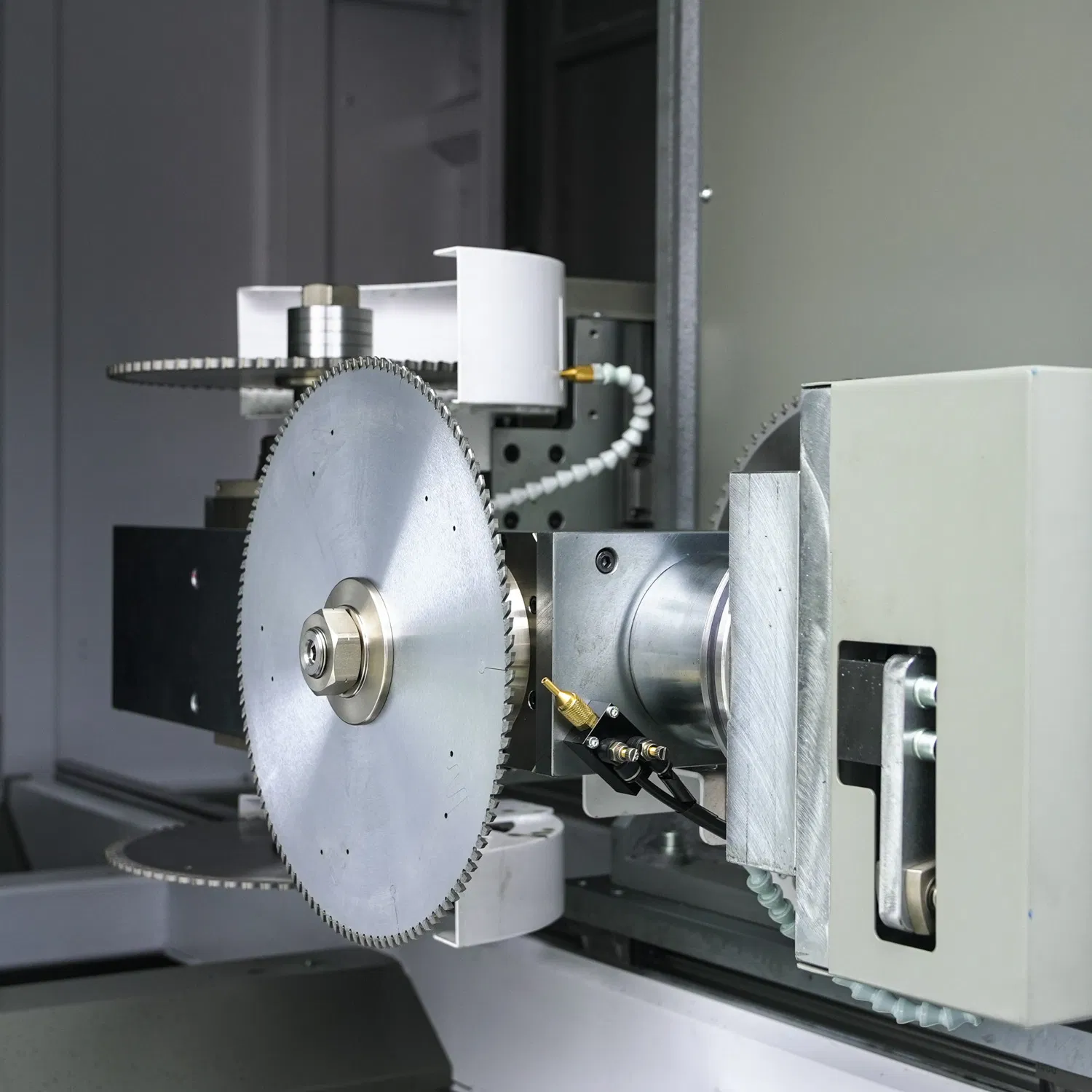

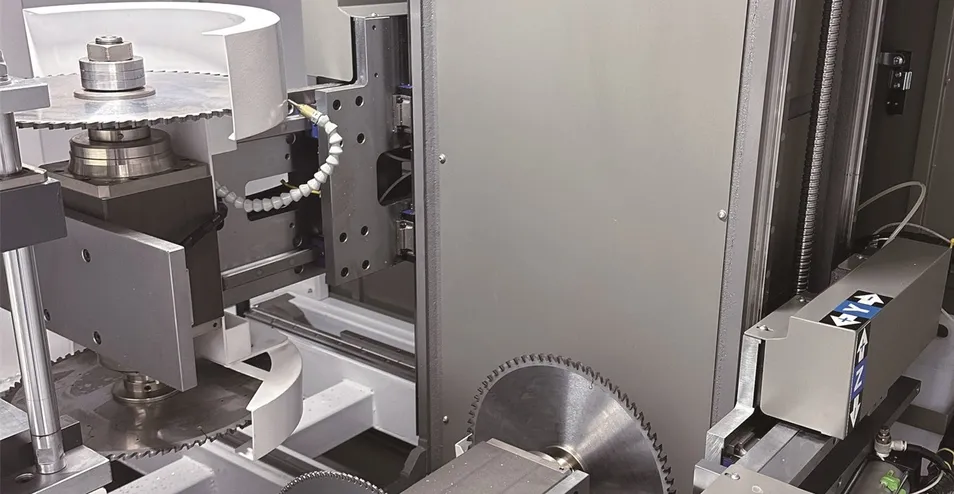

Double Spindle Structure: Group A milling can switch between horizontal and vertical directions automatically.

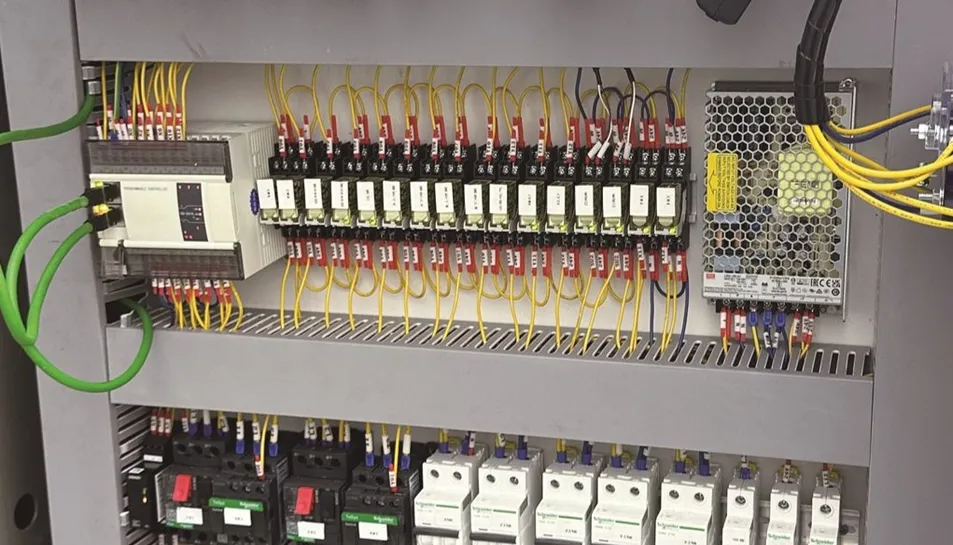

Servo Drive System: Driven by bus absolute value servo motors for stable and uniform cutting feed.

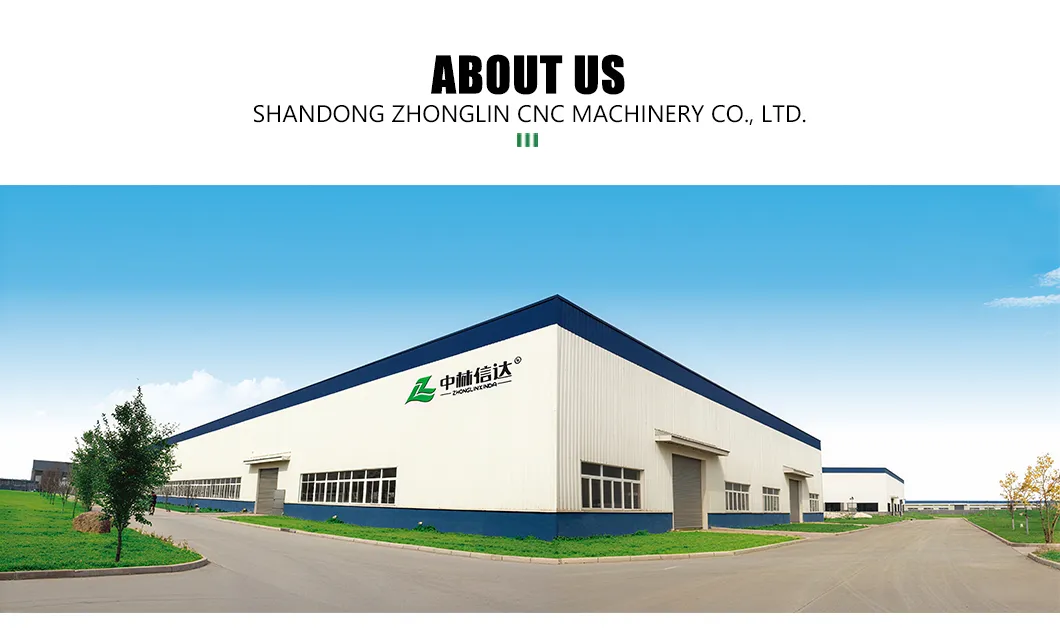

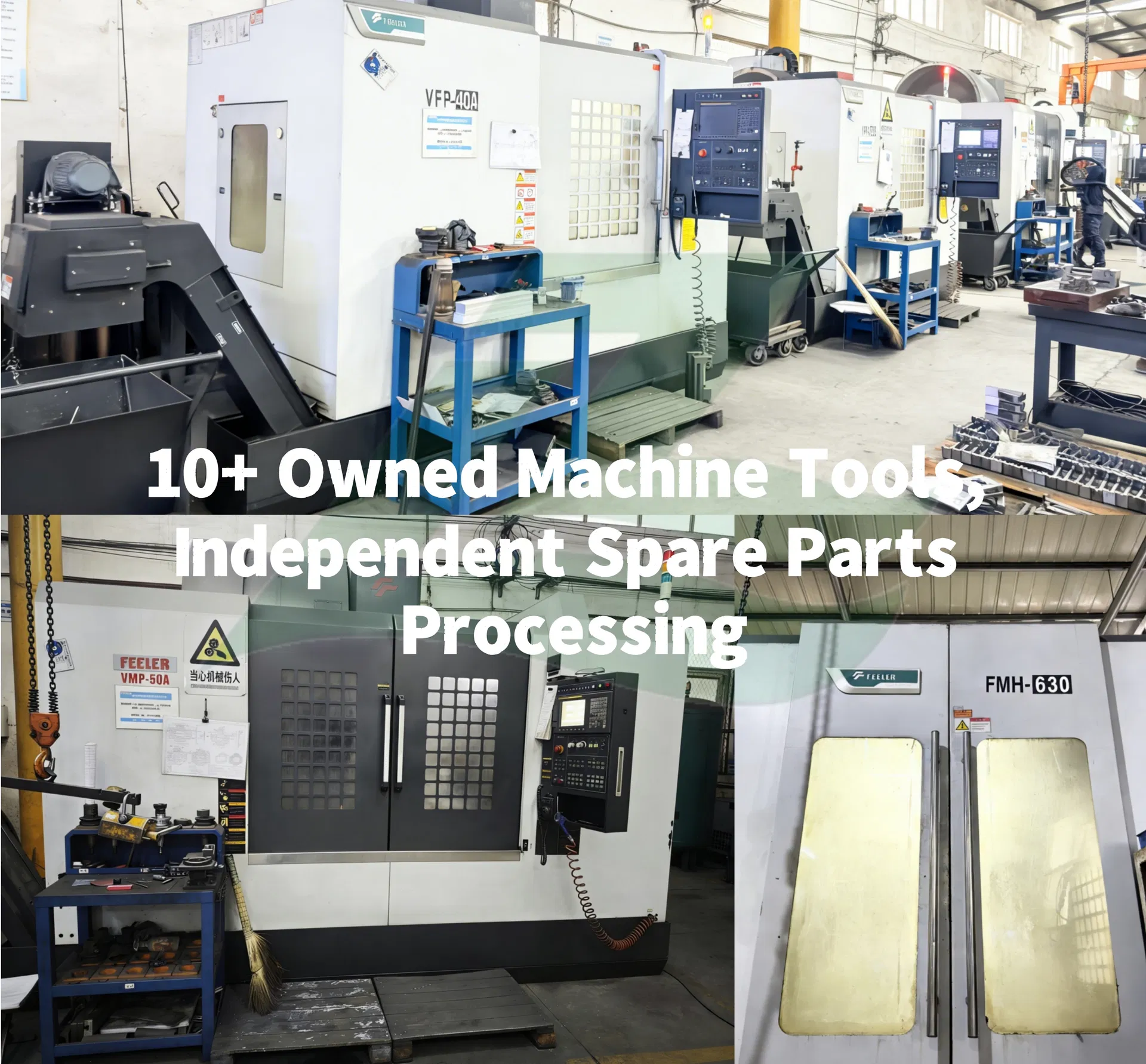

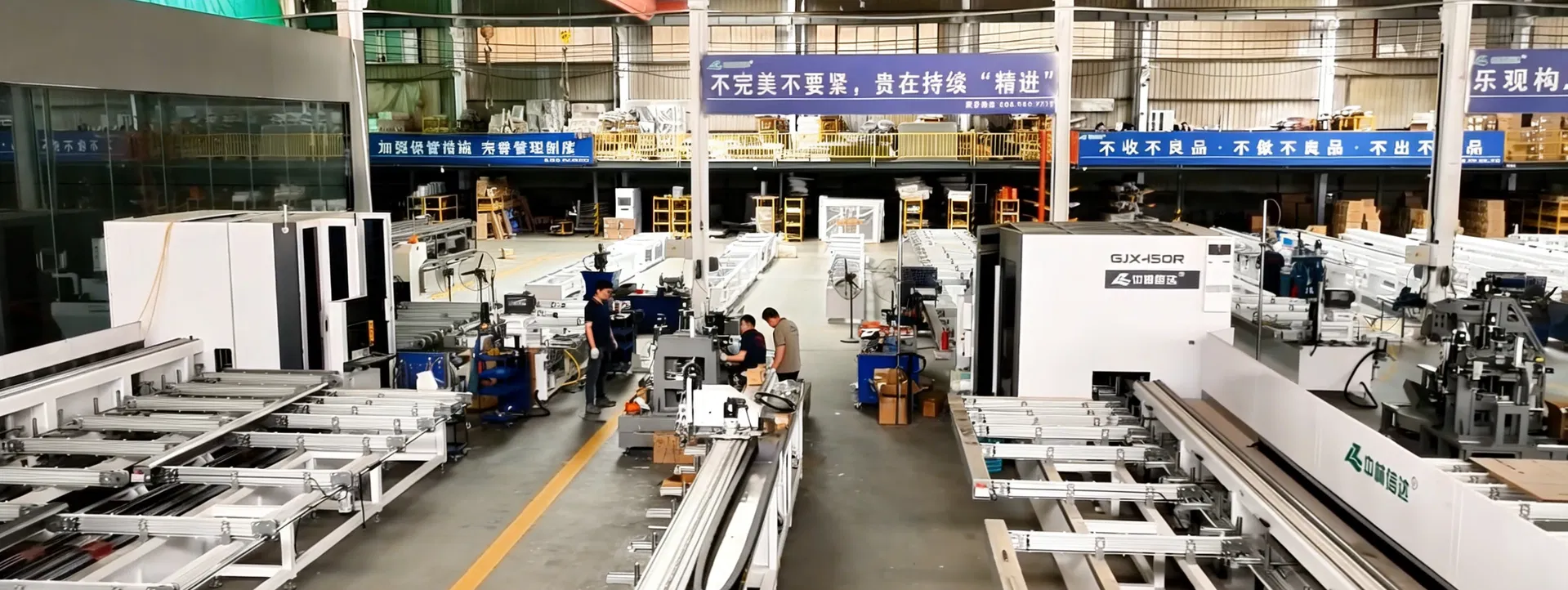

Based in the "Heavy Machinery Capital," we integrate R&D, production, and sales with over 10 years of experience in door/window and aluminum curtain wall equipment. We focus on intelligent production lines using 100+ sets of high-end machining centers.
