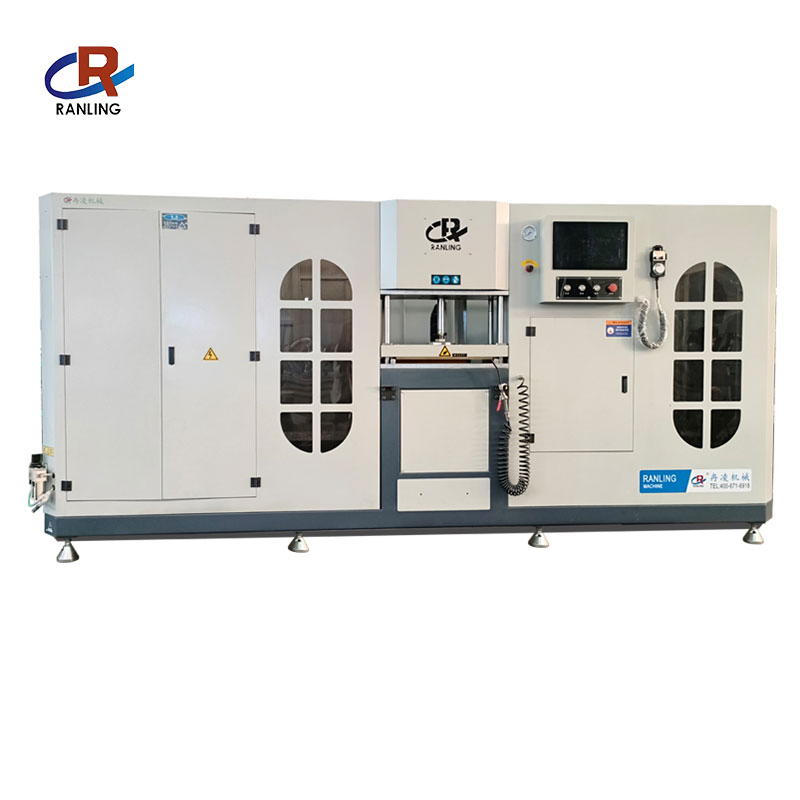

CNC-350 Aluminum Window Making Macnc End Milling Machine for Aluminum Profiles 3-Axis Milling Machine Milling End Face and Drill

Customization: Available
After-sales Service: 24 Hours
Warranty: 2 Years

Product Description

📊 Basic Info.
Condition New Certification ISO, CE
Automatic Grade Automatic CNC or Not CNC
Voltage 380V Model Lxd5-CNC-350
Gas Consumption 30L/Min Milling Speed 2800r/Min
Cutter Specification D350mm D30mm Milling Height 200mm
Milling Depth 80mm Transport Package Film Package
Specification 3800x1600x1800mm Production Capacity 50 Sets/Month
⚙️ Product Description

CNC Aluminium Profile End Milling Machine for Aluminum Window Door Curtain Wall

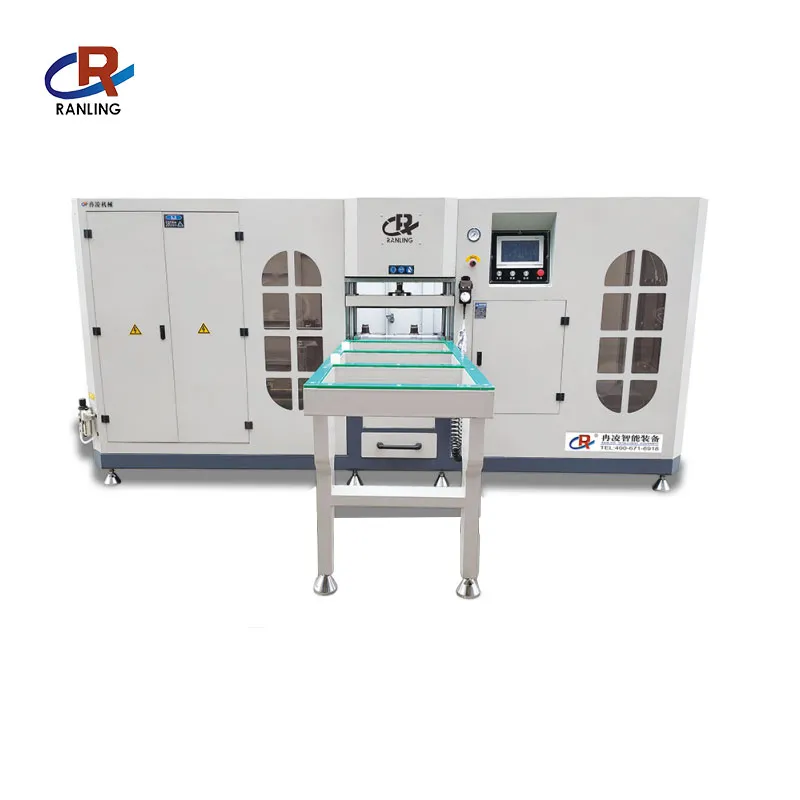

CNC Aluminium Profile End Milling Machine

This machine is suitable for end face milling of door and window sills, with a milling cutter with a diameter of 300 mm, to achieve horizontal and heavy straight cutting. Simple operation, reliable performance, advanced technology and easy maintenance. Diamond tools, fast milling speed, high productivity, high machining accuracy. The widened workbench can process multiple profiles at the same time.

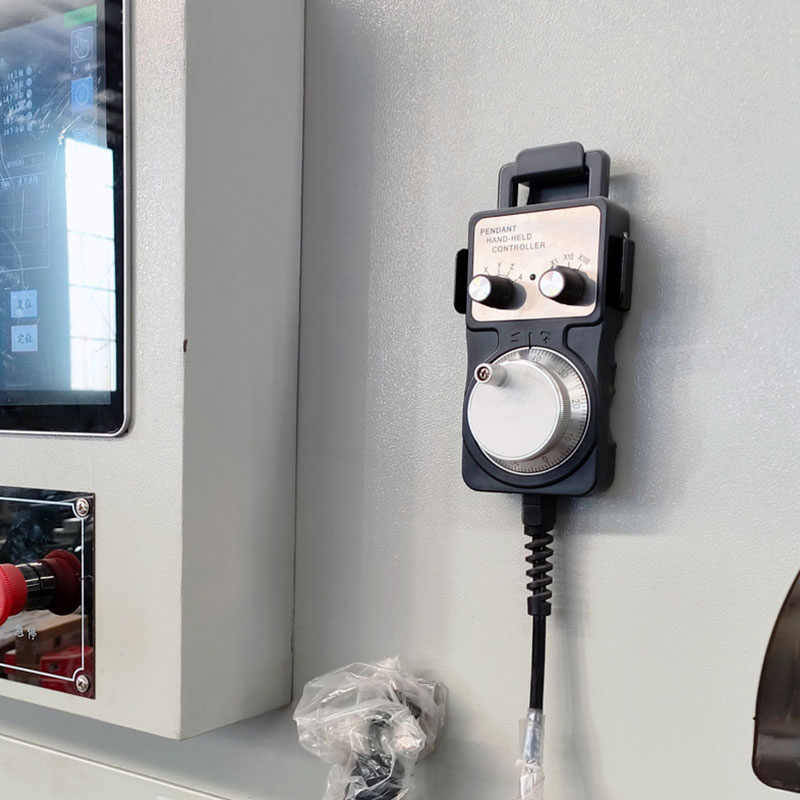

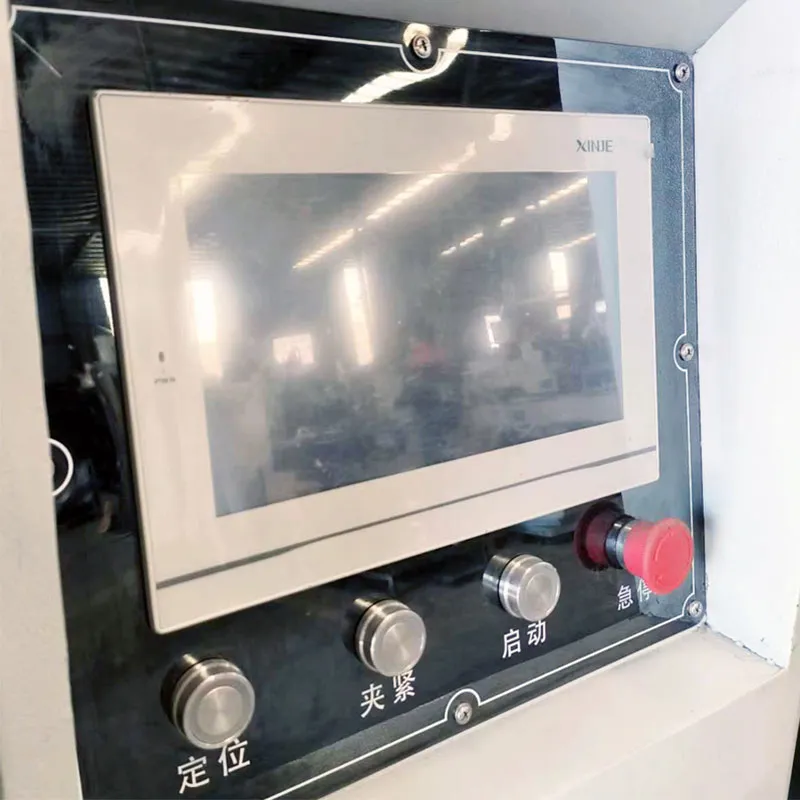

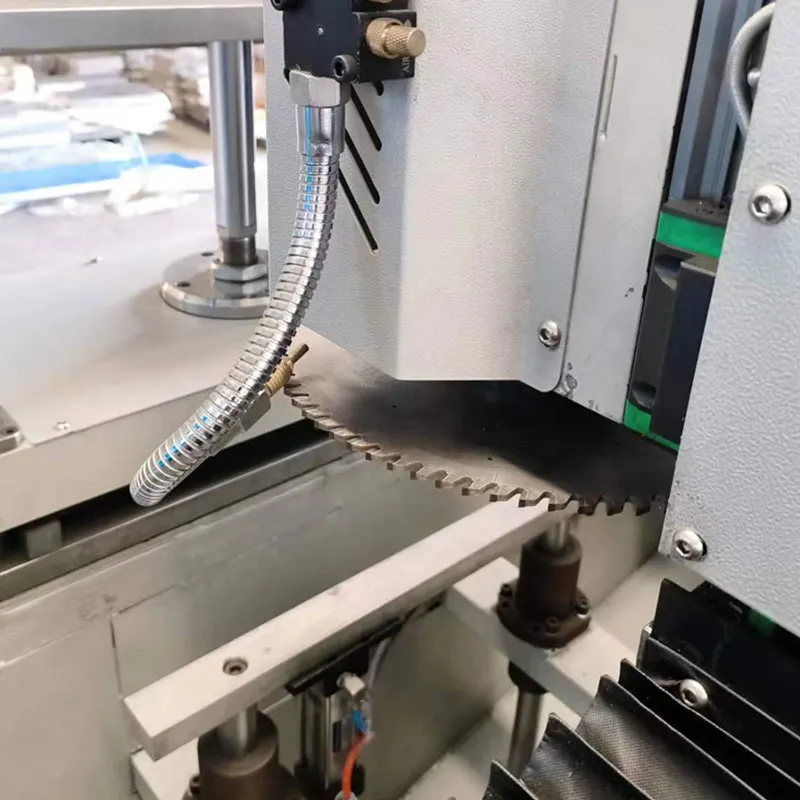

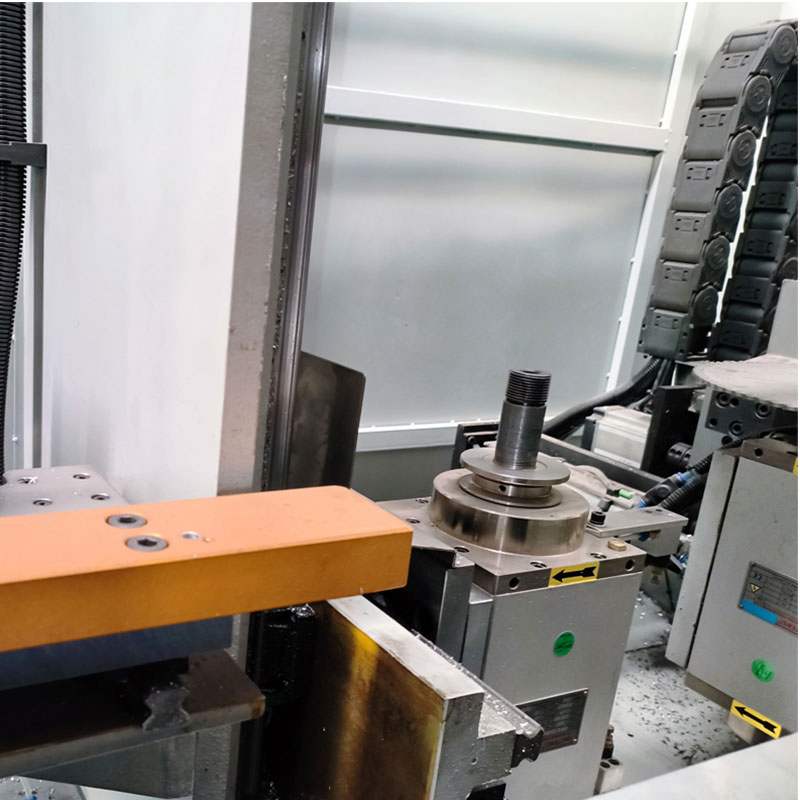

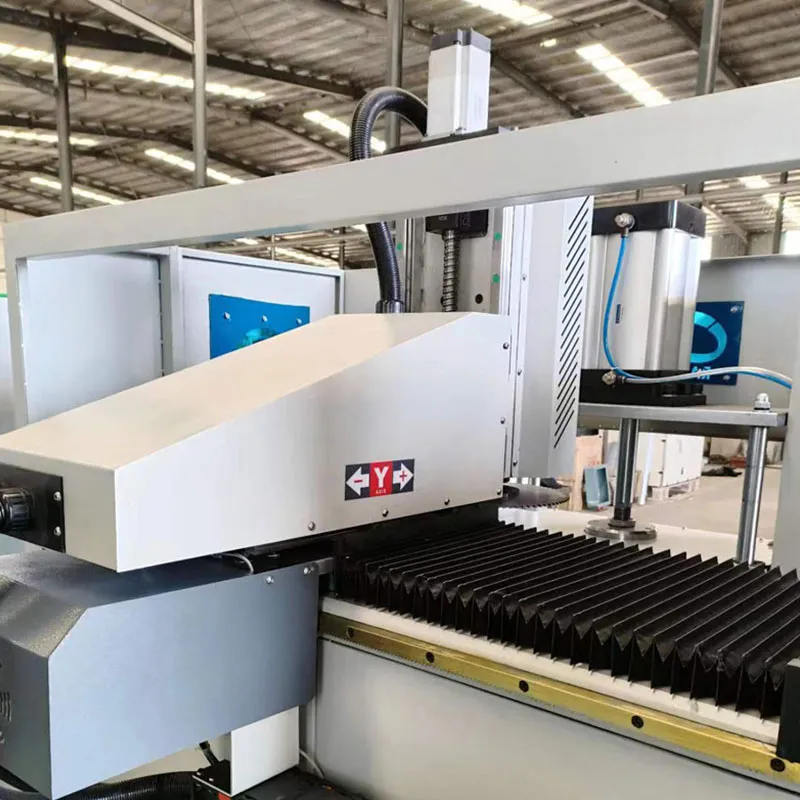

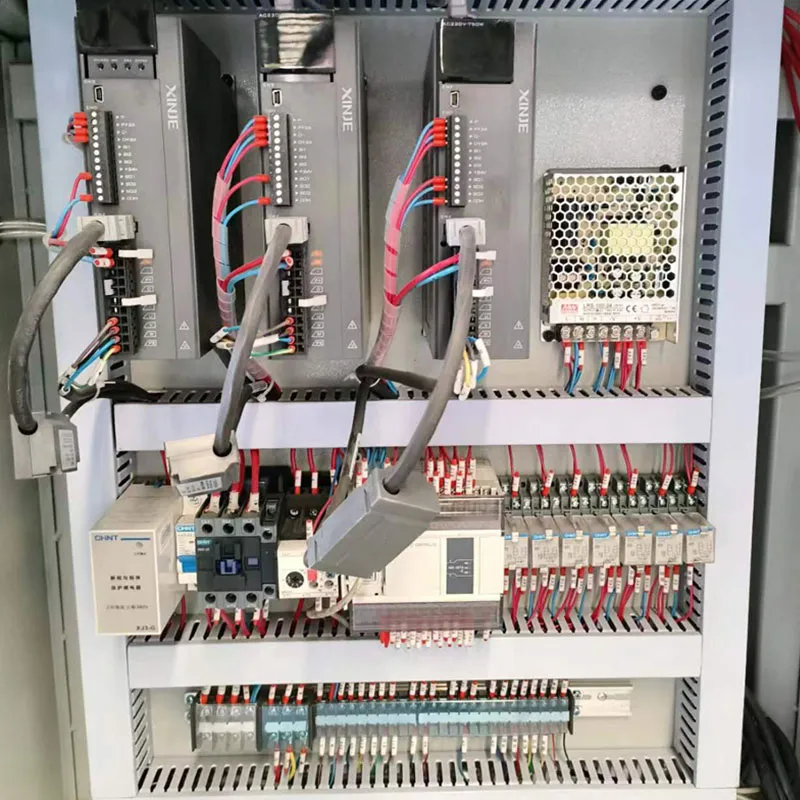

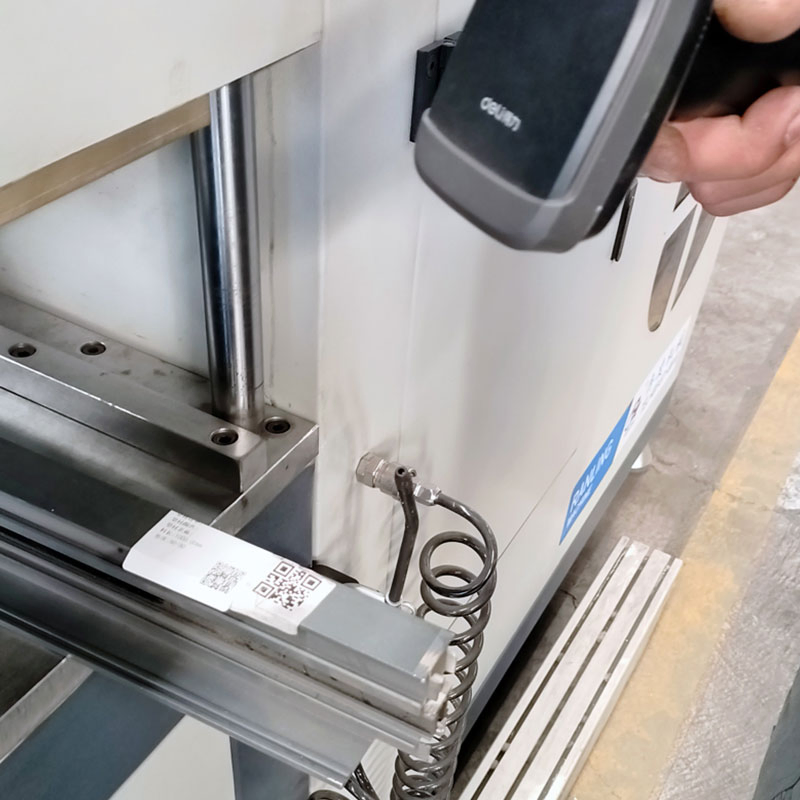

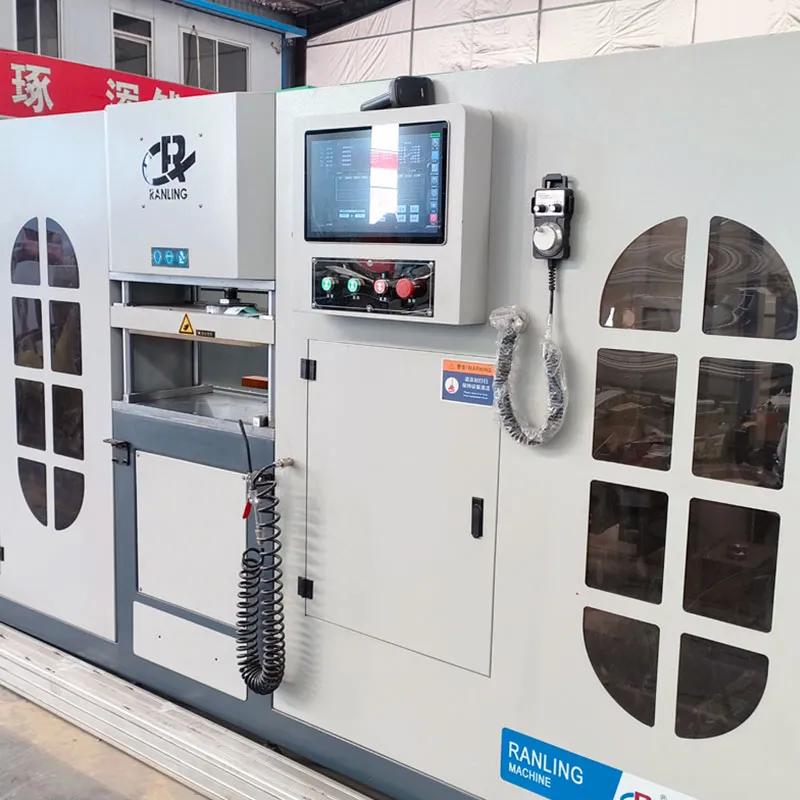

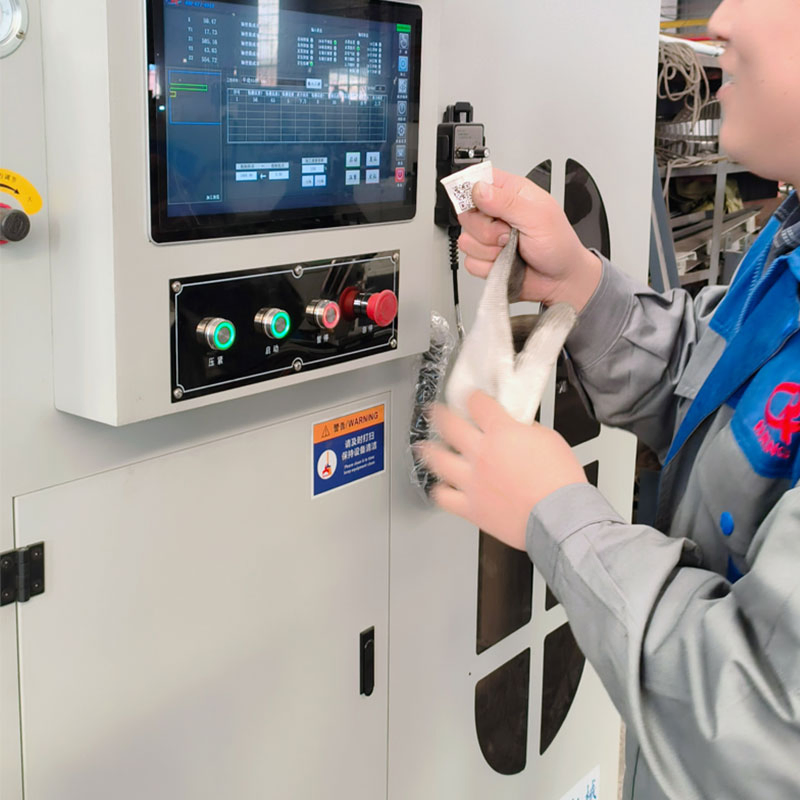

📷 Detailed Photos
📝 Product Parameters
Power supply380v 50hz
Input Power/Saw Blade Speed14KW/2800r/min
Working pressure0.5~ 0.8MPa
Air consumption30L/min
Cutting Height200mm
Saw Blade SpecificationD=300mm d=30mm
Cutting Depth80mm
🌟 Equipment Features
Suitable for end milling of door, window and curtain wall profiles.
One clamping can complete the end face processing of multiple profiles, improving production efficiency.
The sawing machine adopts a high-precision double-head spindle motor, which makes the milling cutter run more stably.
X, Y, Z three-axis CNC system, no need for customized tools, allowing horizontal or vertical milling.
Using a milling cutter with a diameter of 300mm, the machining accuracy is exceptionally high.

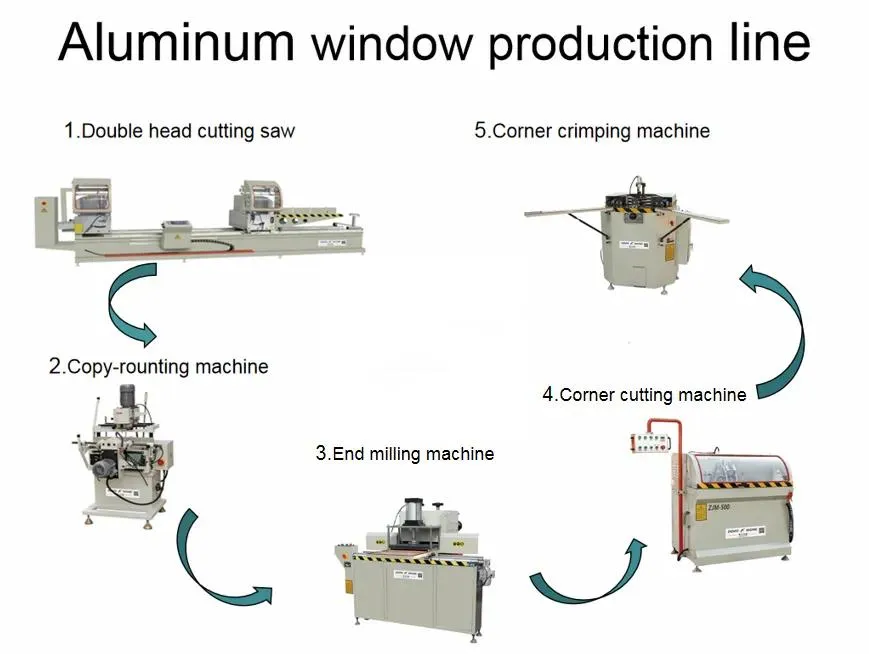

Equipment Display
🏆 Certifications & Exhibitions

Adhering to a customer-centered approach, we follow a business policy of honesty, quality first, and perfect service. Our products have passed international system standard certifications and obtained national patent certificates for numerous innovations.

Certificates

With precise processing technology and highly integrated intelligent automation technology, our mechanical solutions are widely recognized globally at major exhibitions and technology seminars.

Exhibition
🏢 Company Profile
Banner

Since 2011, we have been adhering to the quality concept that product quality is first designed and then manufactured. Quality control is advanced from the manufacturing stage to the design stage, ensuring stable operation in more than 150 countries and regions around the world.

We are an intelligent equipment manufacturing enterprise integrating research and development, production, sales, and service. Our purpose is to use science and technology as the driving force and quality for survival. Our product range covers over 100 types in 10 fields, including laser machines, intelligent storage, and automated production lines.

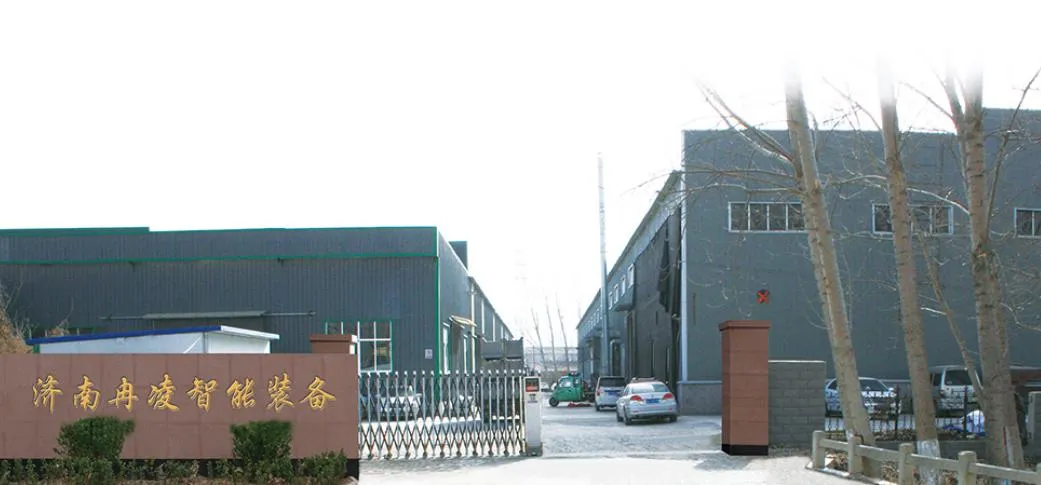

Workshop
📦 Packaging & Shipping
Packaging
Frequently Asked Questions
1. What materials can this CNC End Milling Machine process?
This machine is specifically designed for the end-face milling of aluminum profiles used in doors, windows, and curtain wall systems.
2. How does the 3-axis CNC system benefit production?
The X, Y, Z three-axis system eliminates the need for custom-made tools. The cutter can move horizontally or vertically to create different tenons, which reduces production costs and cycles.
3. Can it process multiple profiles at the same time?
Yes, the machine features a widened workbench and a clamping system that allows for the simultaneous processing of multiple profiles, significantly boosting efficiency.
4. What is the precision level of the milling?
The machine utilizes a high-precision double-head spindle motor and 300mm diameter diamond cutters to ensure stable operation and high machining accuracy.
5. What kind of quality control do you implement?
We perform a pre-production sample check before mass production and a final inspection before every shipment to ensure international standards are met.
6. What are the accepted delivery and payment terms?
We accept various delivery terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, Credit Card, and PayPal in multiple currencies like USD, EUR, and CNY.
