Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
1 / 5
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine
Four Corner Automatic Windows and Door Crimping Machine

Four Corner Automatic Windows and Door Crimping Machine

Customization: Available
Condition: New
Certification: CE
Send Inquiry

Product Description

📋 Basic Information
Model NO.
LM4S-1800X3000
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Product Name
Four Corner Automatic Windows and Door Crimping Machine
Transport Package
Plywood Case
Origin
Shandong, China
HS Code
84778000
Production Capacity
60 sets/Month
🛠️ Product Description & Features

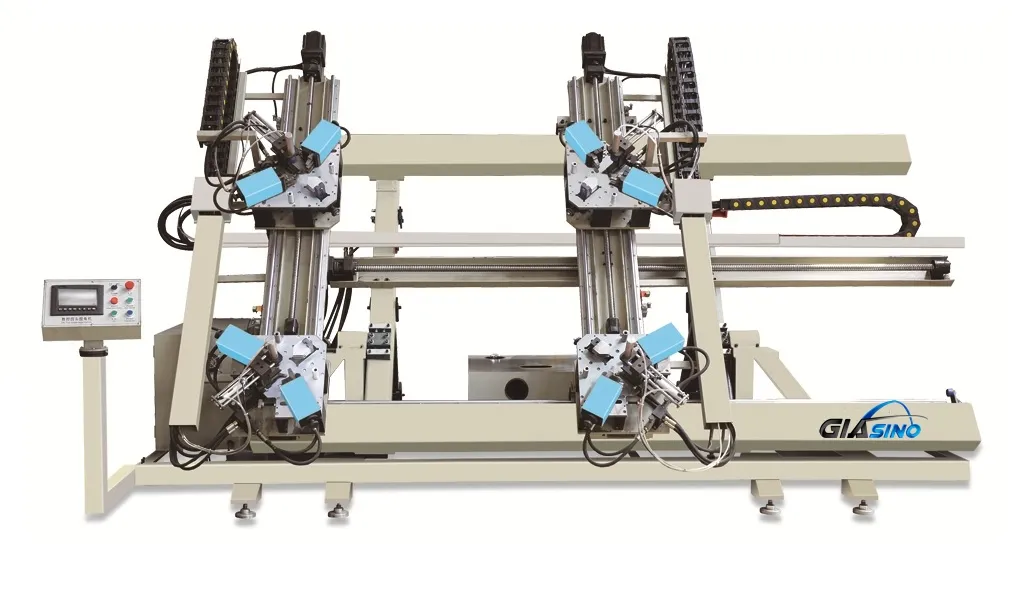

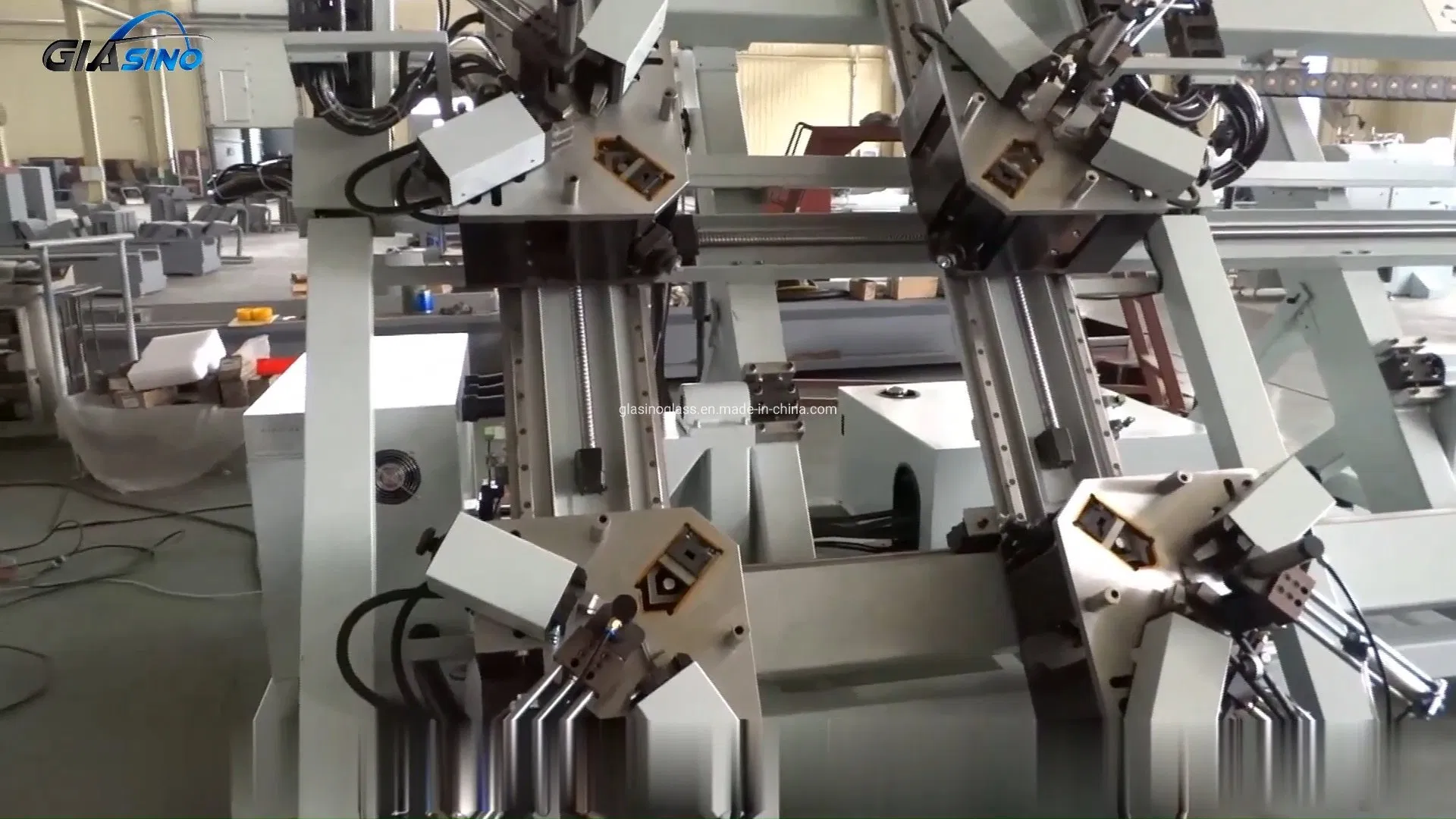

Four corner automatic windows and door crimping machine

Four Corner Automatic Windows and Door Crimping Machine
  • Automatic CNC four heads corner crimping/corner combining machine is used for fabricating of aluminum window.
  • Can assemble one window at one time, significantly increasing production efficiency.
  • Hydraulic system ensures easy operation and convenient maintenance.

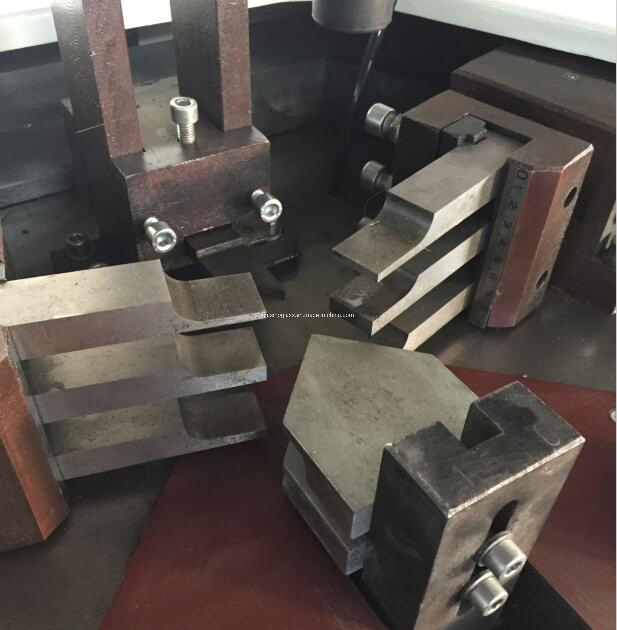

  • Corner crimping blades can be adjusted in four directions, suitable for processing various profiles.
  • The control system features position control and momental feedback to prevent location errors.
  • Maximum window size fabricated: 1800x3000mm. Customized 2200x3000mm available.
📸 Detail Display

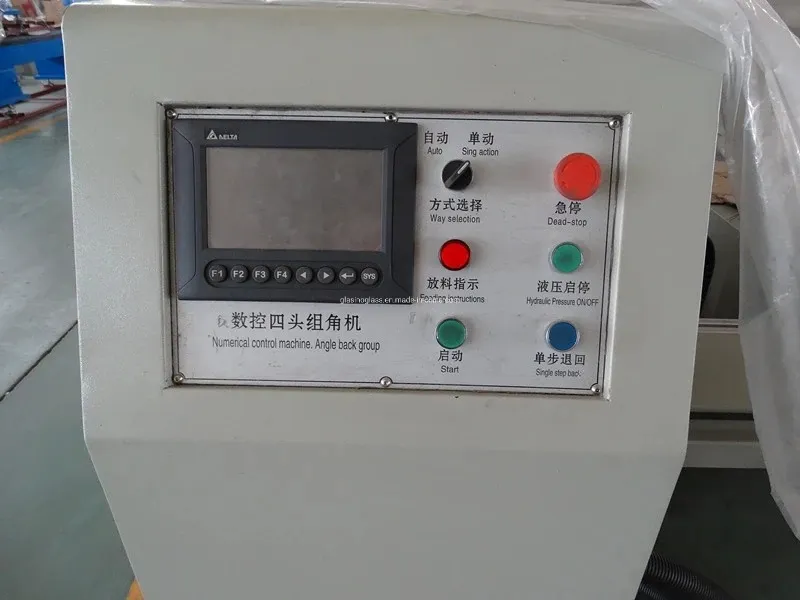

Machine Detail 1

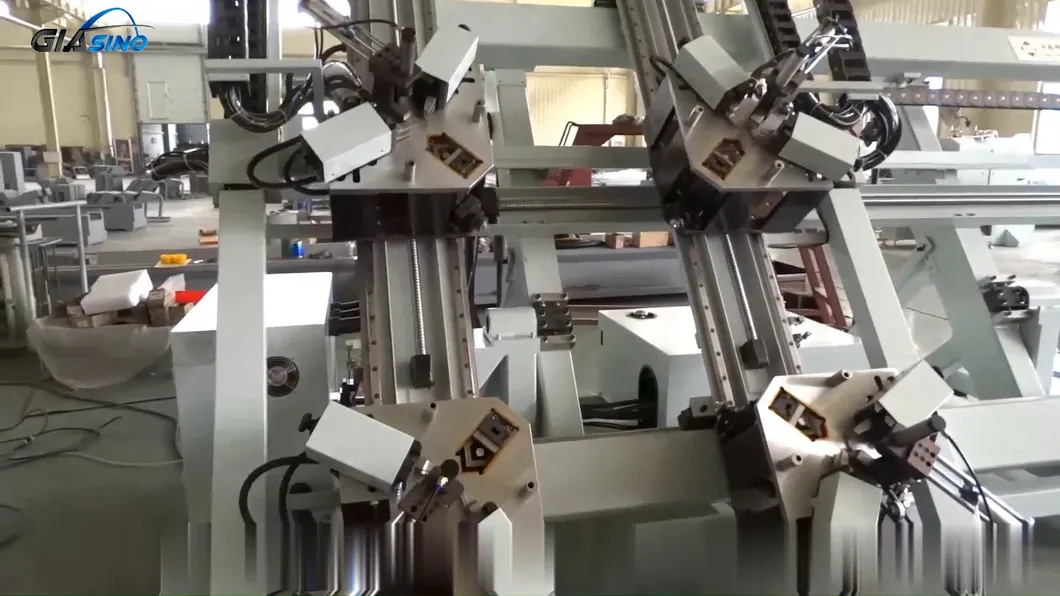

Machine Detail 2

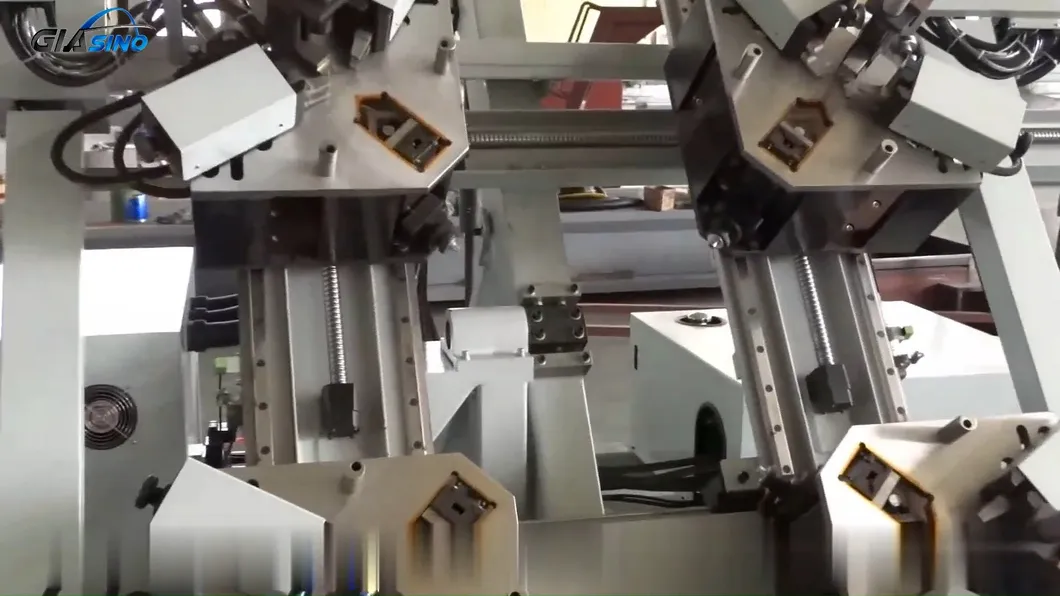

Machine Detail 3

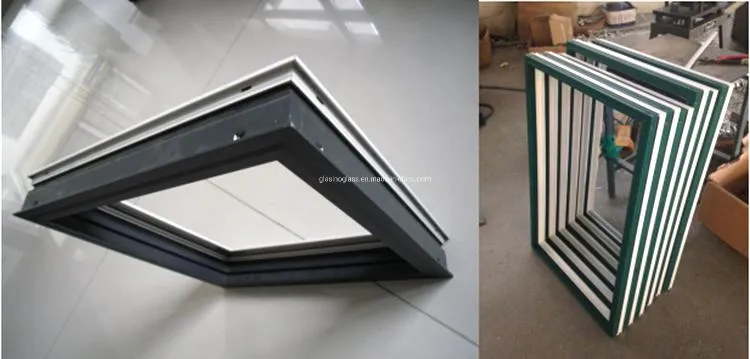

Machine Detail 4

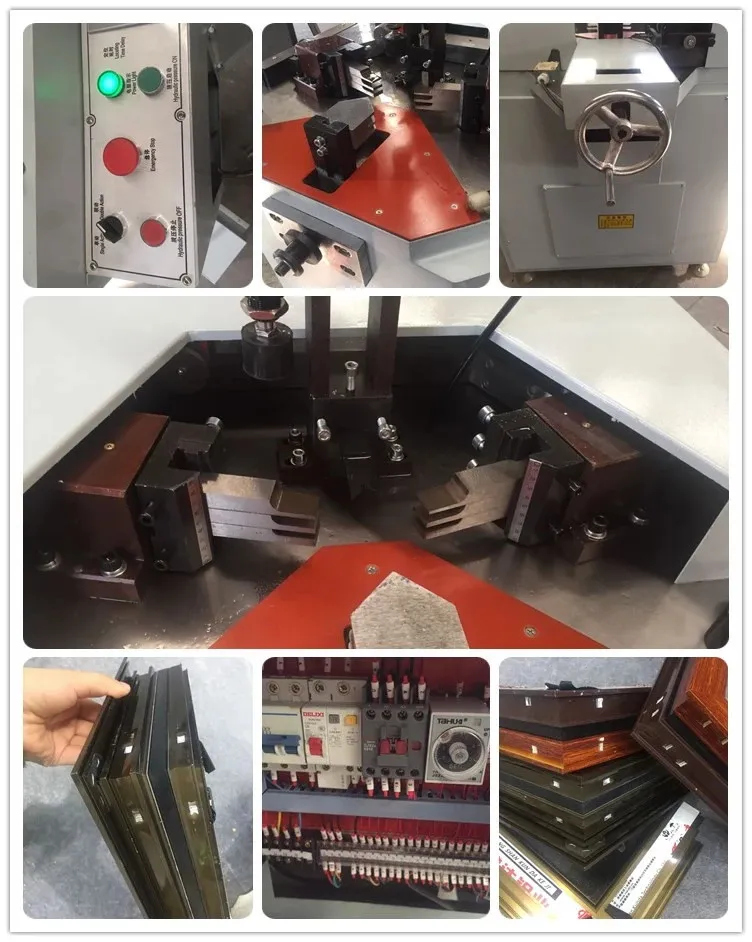

Single head corner combining machine
📊 Technical Parameters

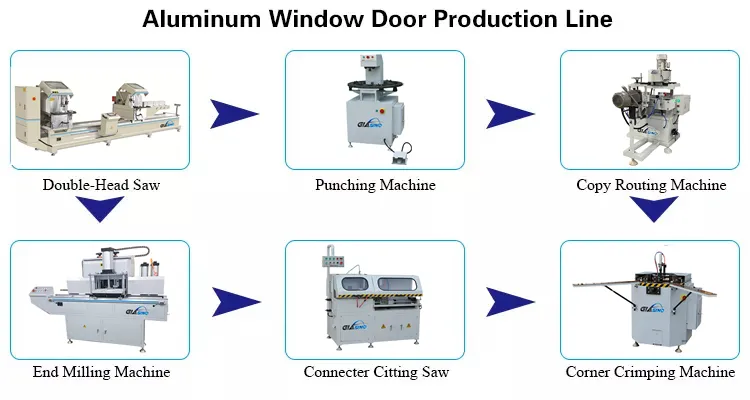

Technical Drawing
Input power380V 50HZ
Rating power5KW
Working pressure0.5-0.8Mpa
Air consumption60L/min
Max. Welding frame1800x3000mm / 2200x3000mm
Min. Welding frame480×480mm
Welding height100mm
Welding width90mm
Weight2500KG
Overall dimensionAbout 4700mm×2200mm×2600mm
🏭 Workshop & Exhibition

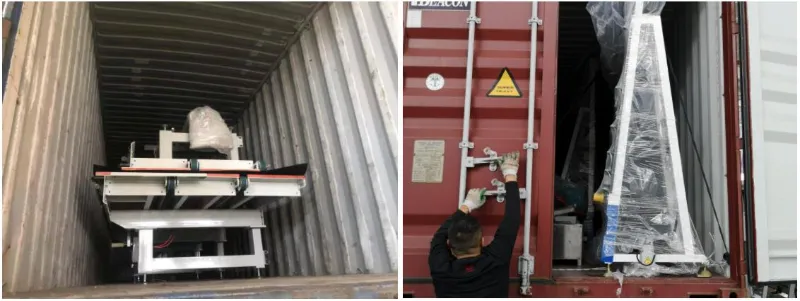

Packaging

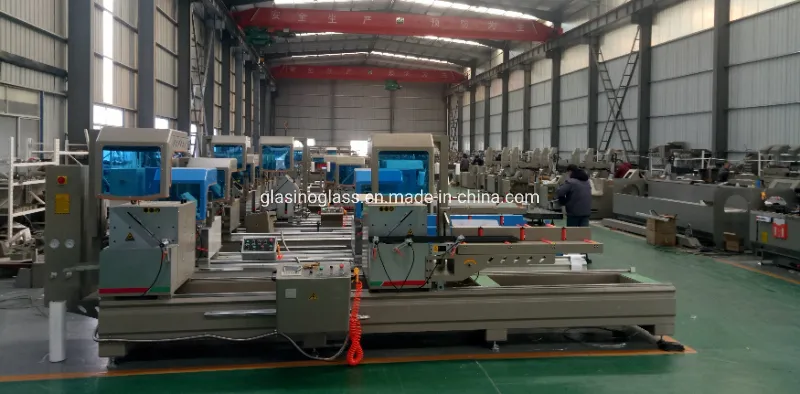

Workshop 1

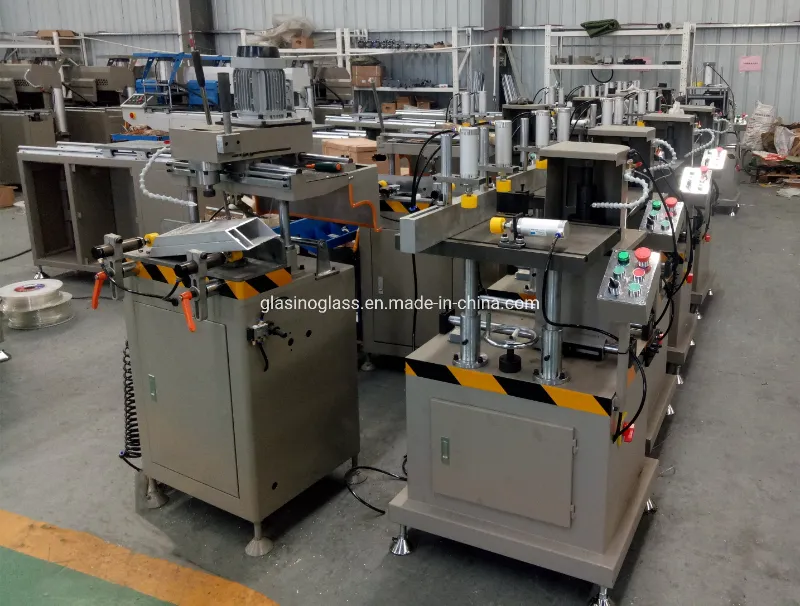

Workshop 2
Exhibition
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional factory specializing in window and door machinery manufacturing.
How long is the equipment warranty?
The equipment comes with a one-year warranty.
How do you provide after-sales service?
We provide on-site installation, commissioning, and training. Free accessories are provided within one year, along with remote service and video guidance.
How long is the delivery time?
Delivery usually takes 10-20 days after receiving the deposit.
What materials can this machine process?
This machine is specifically designed for the high-precision corner crimping of aluminum window and door profiles.
Is the machine easy to operate for new workers?
Yes, the CNC control system and hydraulic operation make it user-friendly, and we provide full training and guidance.
