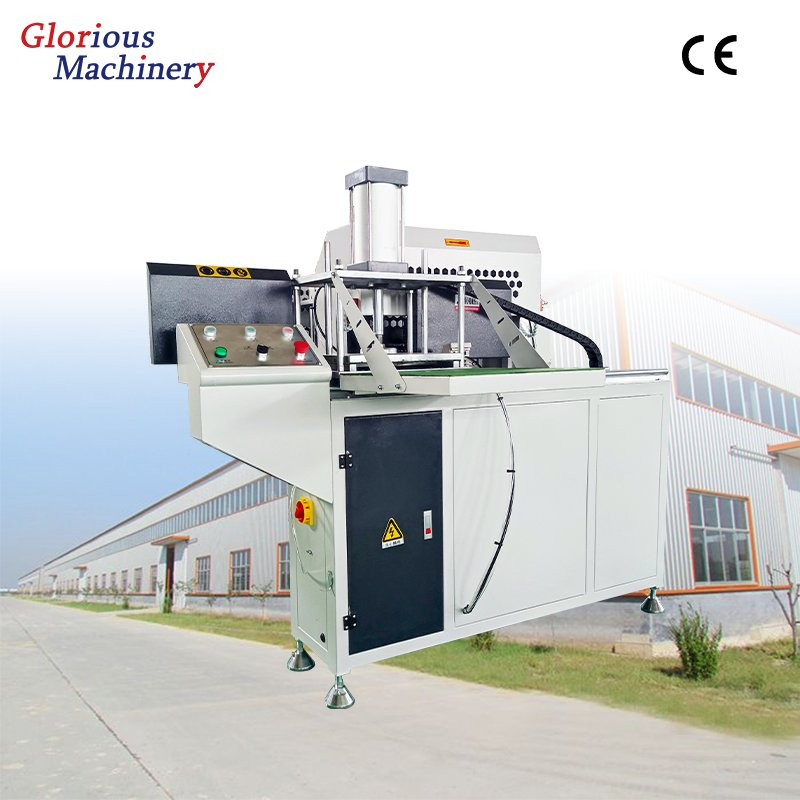

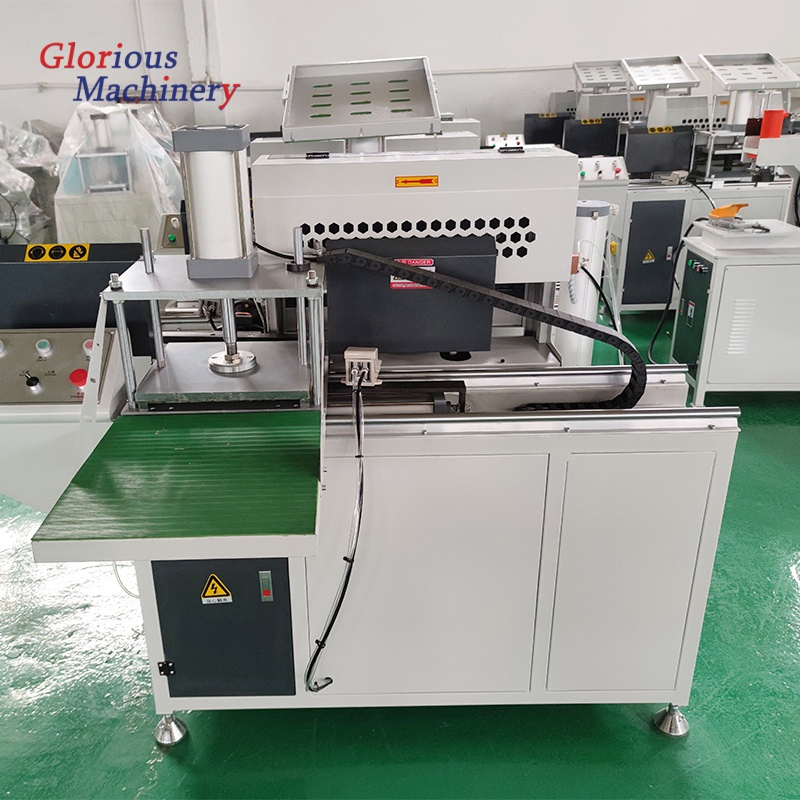

| Product Name | End Face Milling Machine For Aluminum & PVC Window And Door |
| Machine Model | DX03-200 |
| Color | Customize |
| Working Air Pressure | 0.5 ~ 0.8MPa |
| Milling Cutter Speed | 2800r / min |
| Dimension (L*W*H) | 740*700*1550mm |
| Spindle Speed | 2.2kW |
| Air Consumption | 20L/min |
DX03-200 is specialized equipment designed for end face processing of aluminum and plastic door and window profiles. It is suitable for milling end steps, rectangular grooves, tenons, and other different shaped end faces of profiles within the angle range of -55°~55°.

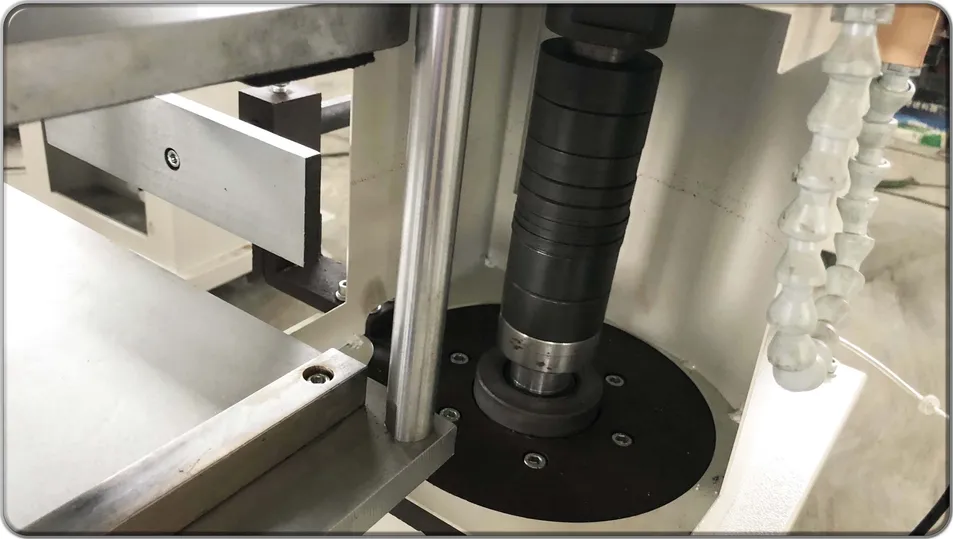

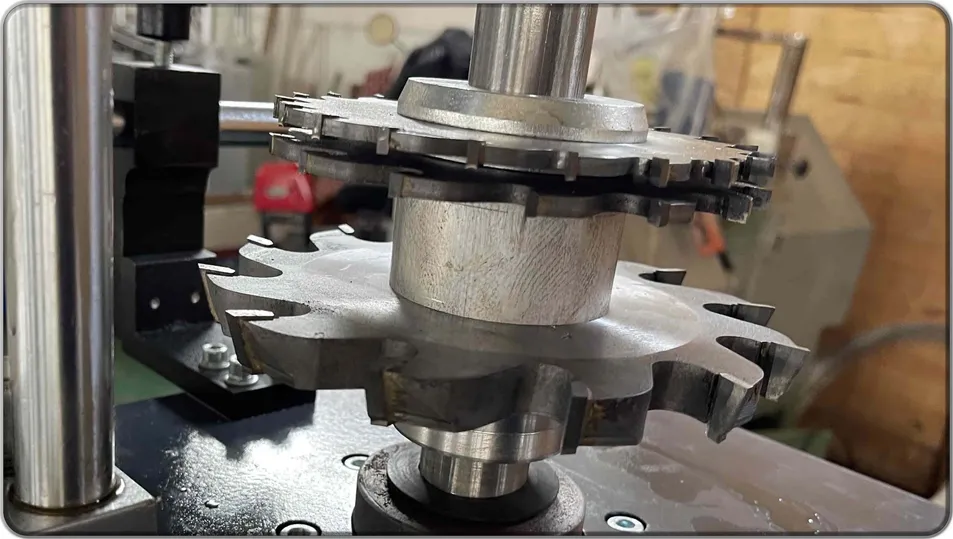

By selecting different milling cutters, the machine can process corresponding profile grooves as needed. All required shapes can be completed in one milling operation, featuring high processing efficiency and stable forming quality.
Max. Processing Range: Specifically designed for aluminum and V-PVC profiles up to 120mm×120mm.
Compatible Materials: Suitable for various architectural alloys (6063-T5, 6061-T6) and V-PVC frames. Ensures precision and flatness for smooth subsequent assembly.

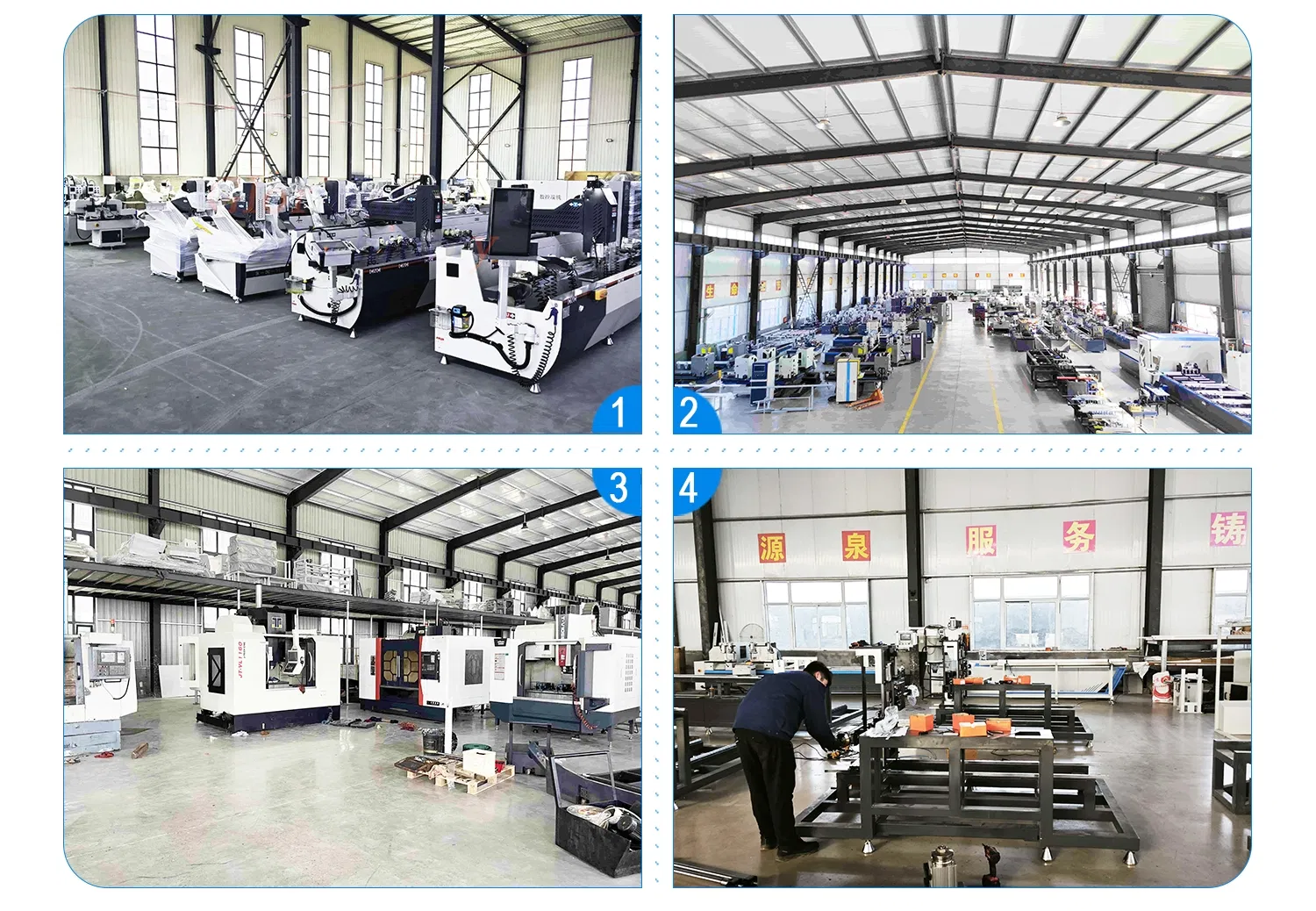

We are an innovative manufacturing enterprise with independent R&D, professional design, and large-scale production capabilities. We focus on middle and high-end aluminum & PVC window and door processing equipment, providing global customers with practical and reliable mechanical solutions.
With high-quality standards and an advanced technical level, our equipment has been successfully exported to many countries and regions, including the United States, Canada, Russia, India, and Malaysia.
