| Model NO. | LBZ3360 | Guarantee | 1 Year |
| Installation | Engineer Included | Step Igu | Curtain Wall |
| Argon | Online Gas | Standard | Gbt11944-2012 |
| Type | Insulating Glass Production Line | Structure | Vertical |
| Glass Washing Machine Type | Ultrasonic | Condition | New |
| Transport Package | Seaworthy Package | Specification | 3300*6000mm |
| Origin | China | HS Code | 84649019 |

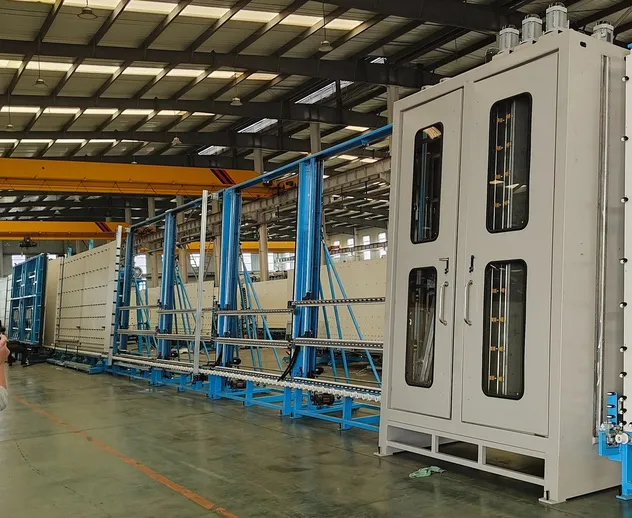

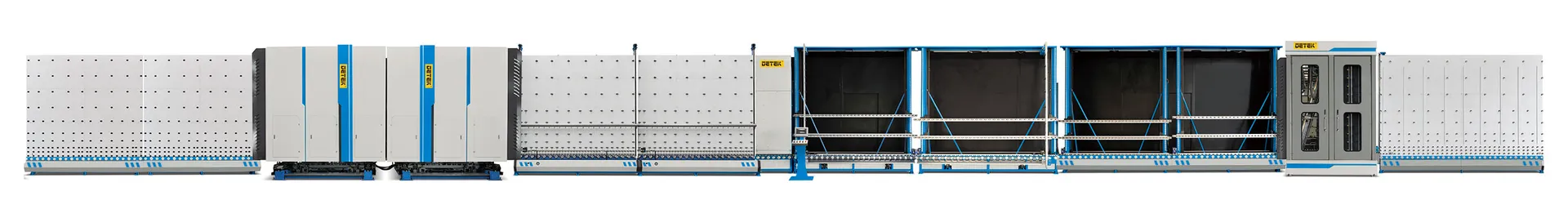

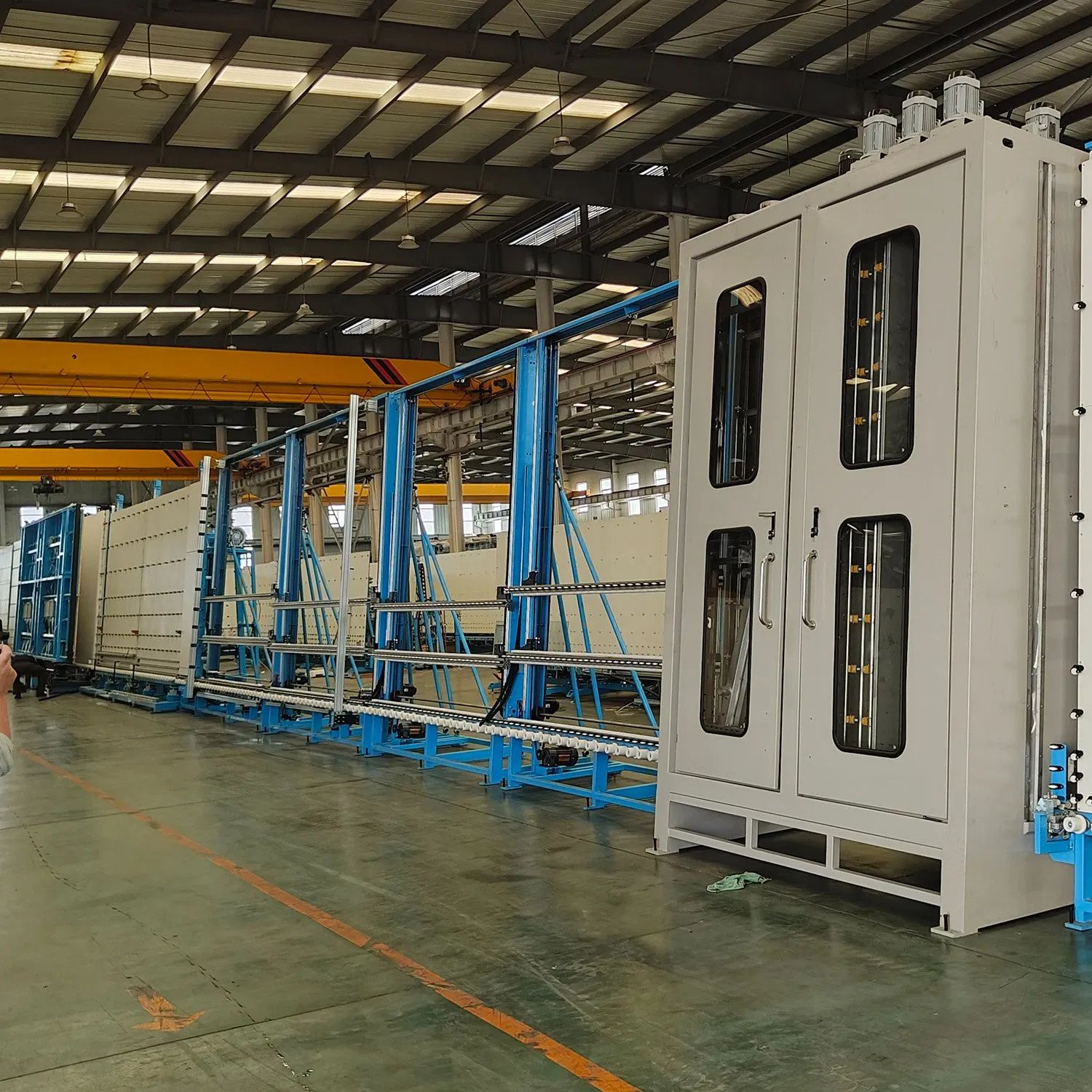

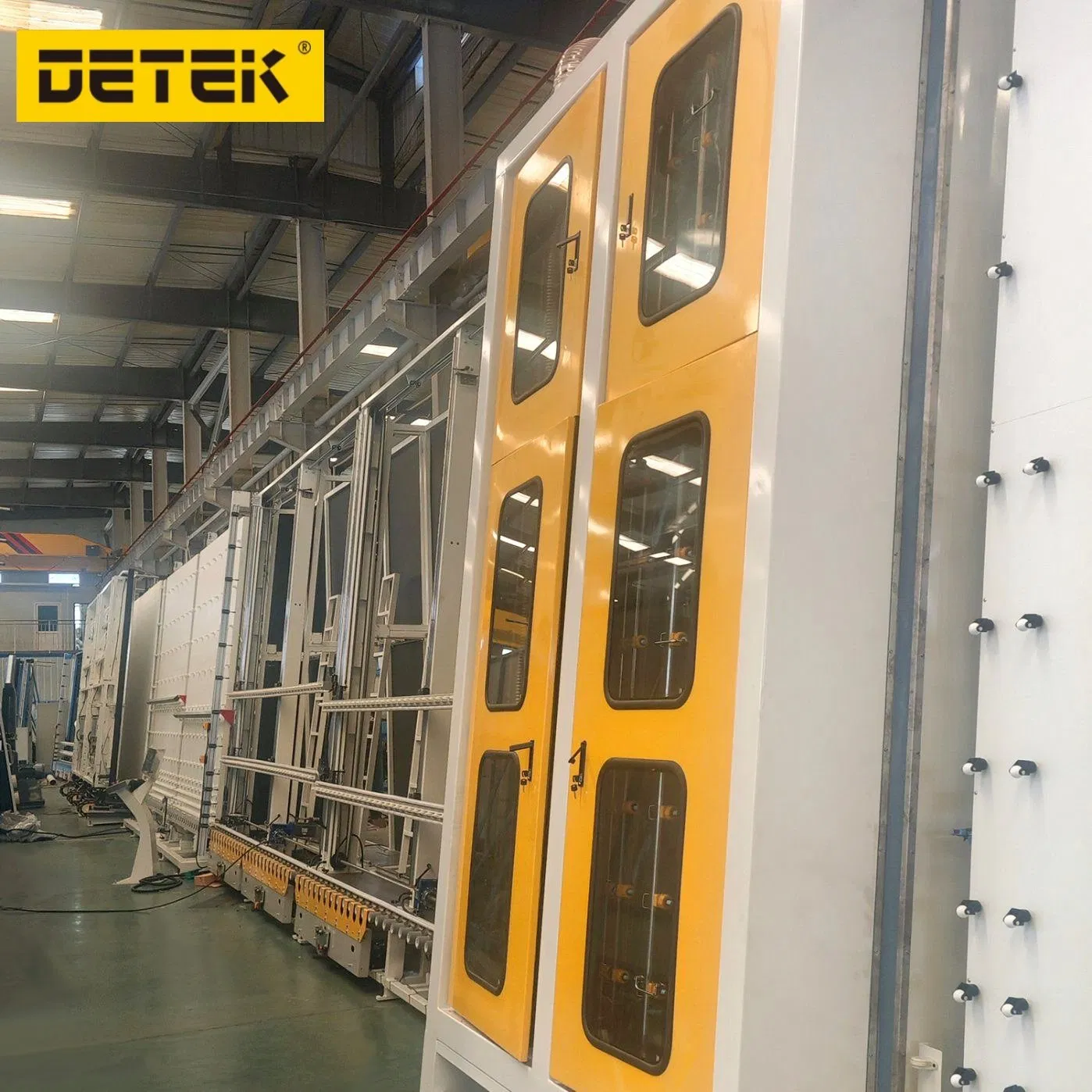

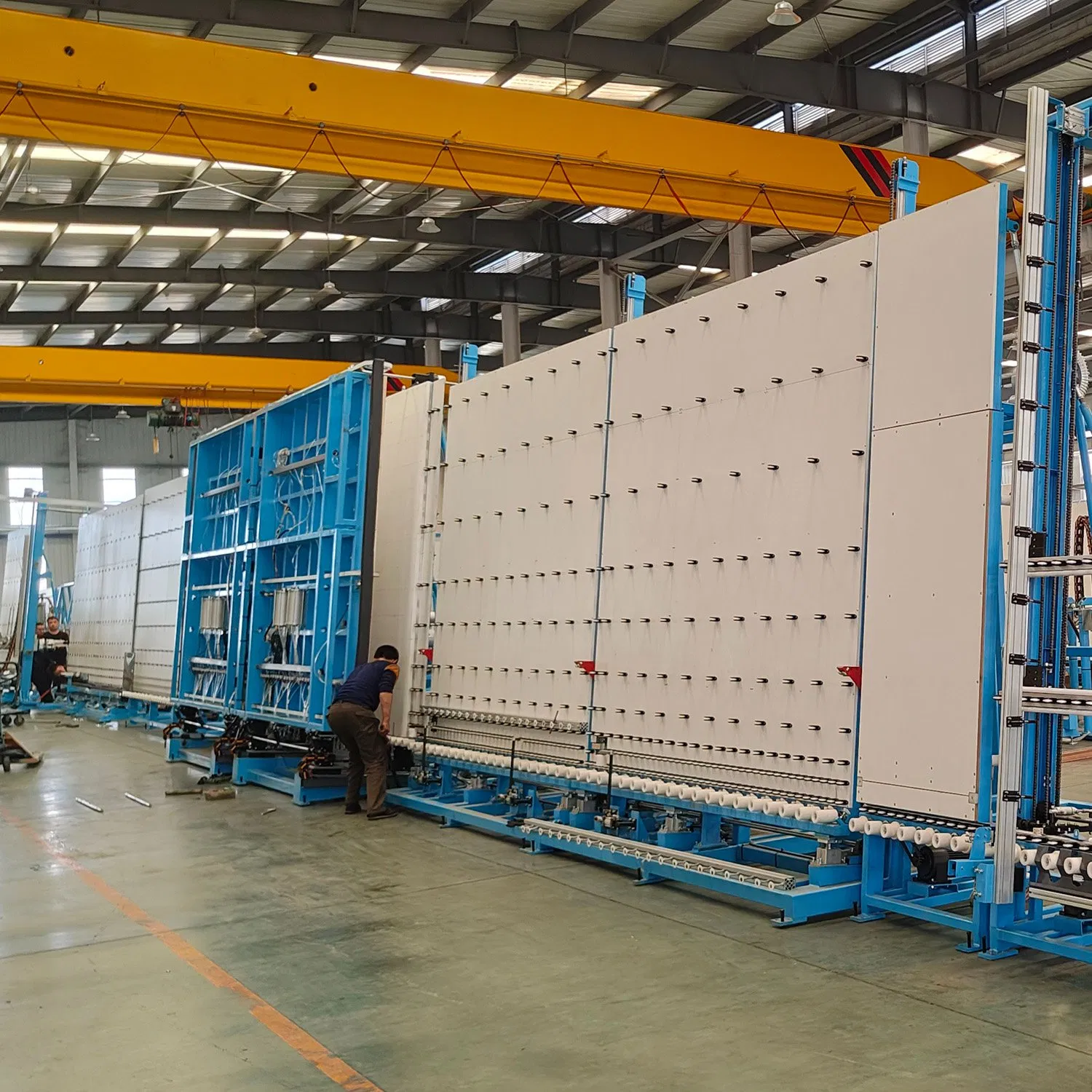

LBZ3360 Vertical Automatic insulating glass production line
Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (also known as double glazing glass, or double glaze) production. This model applies for glass processing company, and windows & doors processor/fabricator. Fully automatic glass sheet transportation through the whole line, automated Low-E coating detection, auto glass washing and drying, fully automatic IGU assembly and pressing with optional gas filling on line, and finally automatic secondary sealant sealing assure high quality insulating glass unit, which guarantees the long life top performance.

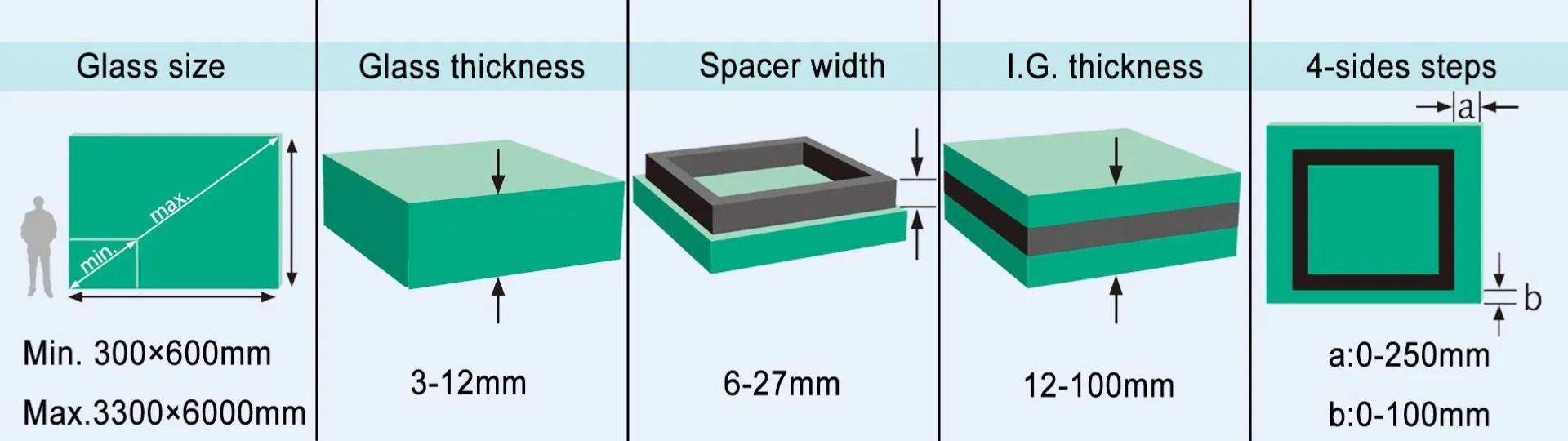

| Max. IG size | 3300×6000mm |
| Min. IG size | 300×600mm |
| Single glass thickness | 3-12mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Washing brushes | 3 pairs |
| Glass conveyor speed | 45m/min |
| Conveyor wheel height | 520mm |
| Power | 3P 380V 50HZ 55kw |
| Weight | 10000Kg |
| Name | Brand | Country |
|---|---|---|
| PLC / Servo Driver / Motor | Siemens | Germany |
| Touching Screen | MCGS | China |
| Inverter | Siemens | Germany |
| Breaker / Contactor / Relay | Schneider | France |
| Sensor | Omron | Japan |
| Solenoid / Air Cylinder | Airtag | Taiwan |
| Power Supply | MW | Taiwan |
| Guider | TBI | Taiwan |

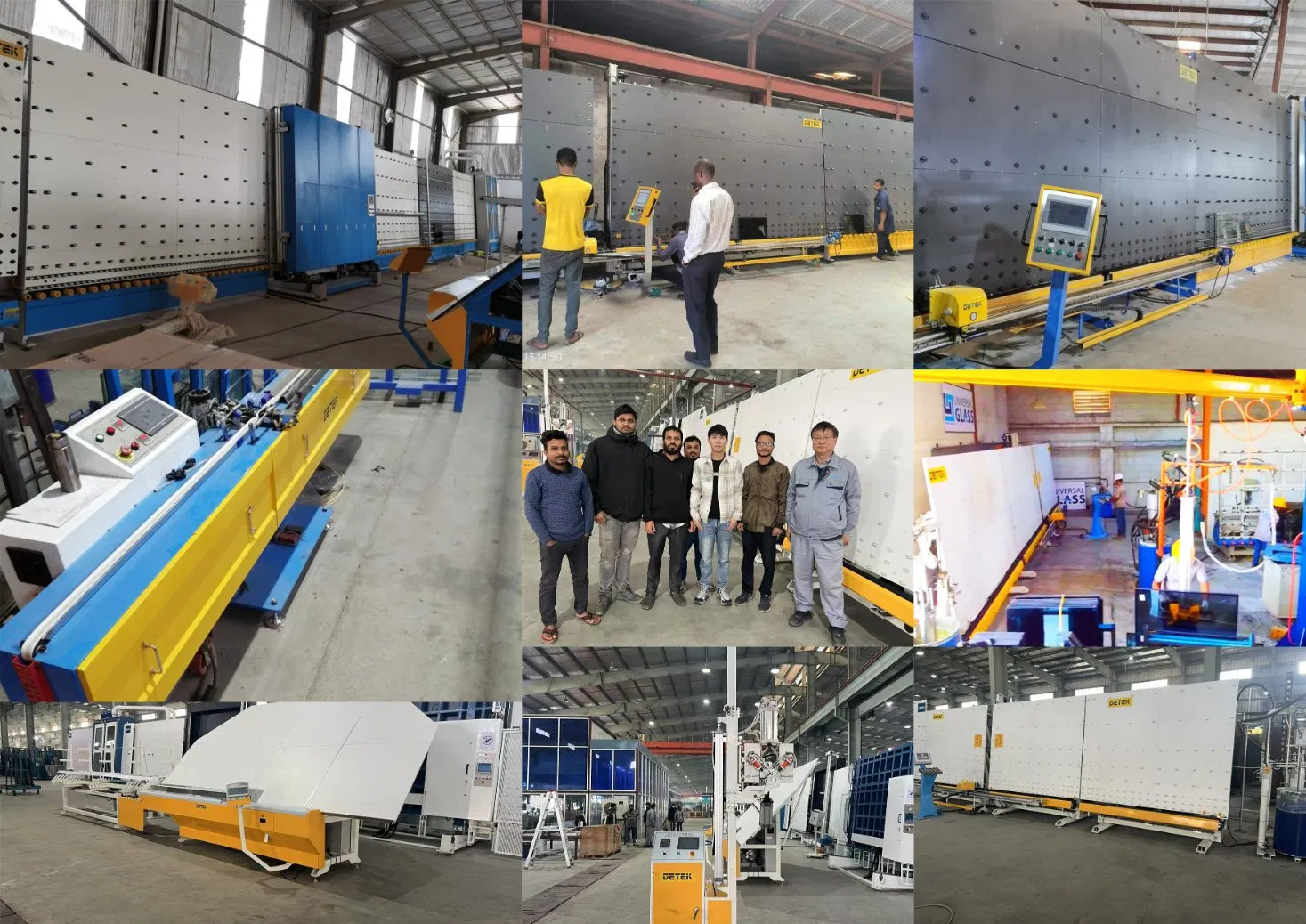

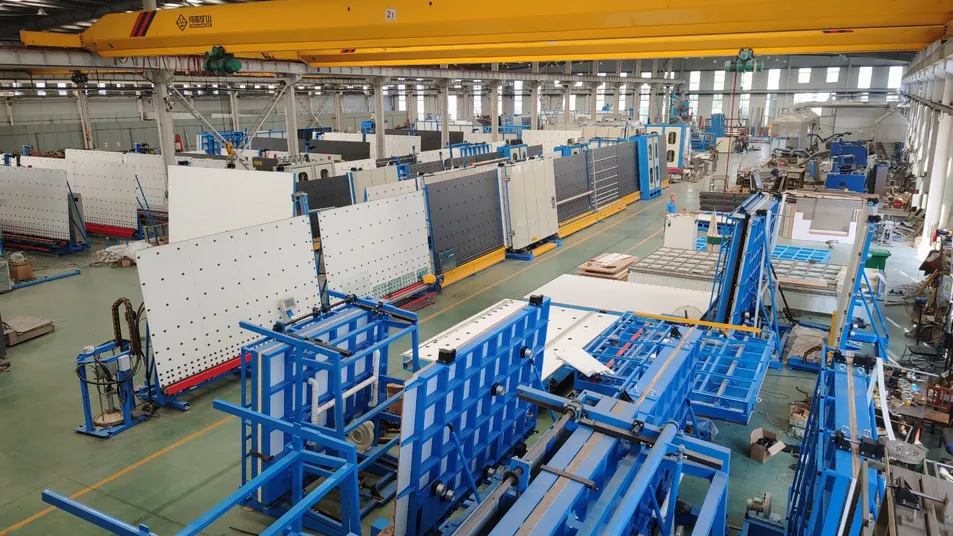

Assembly workshop for insulating glass production line

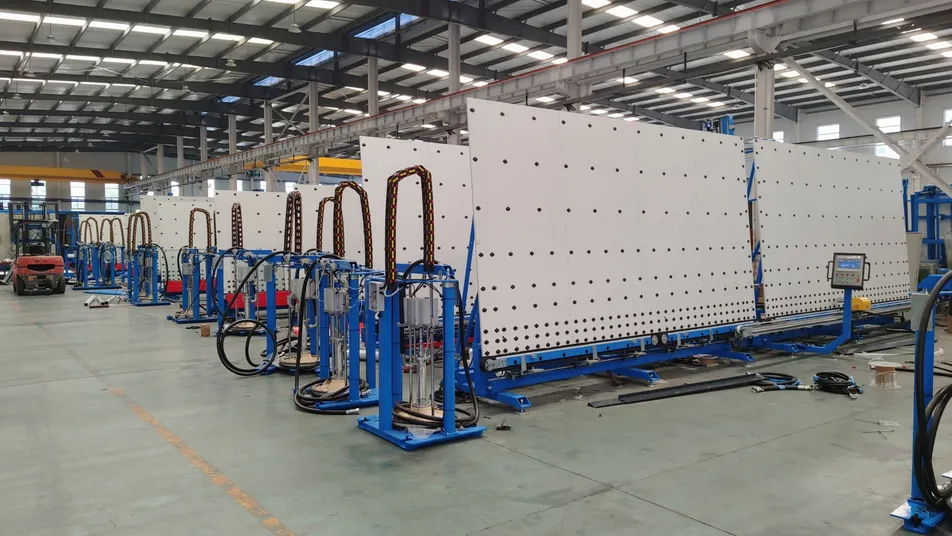

Assembly workshop for auto sealing robot.

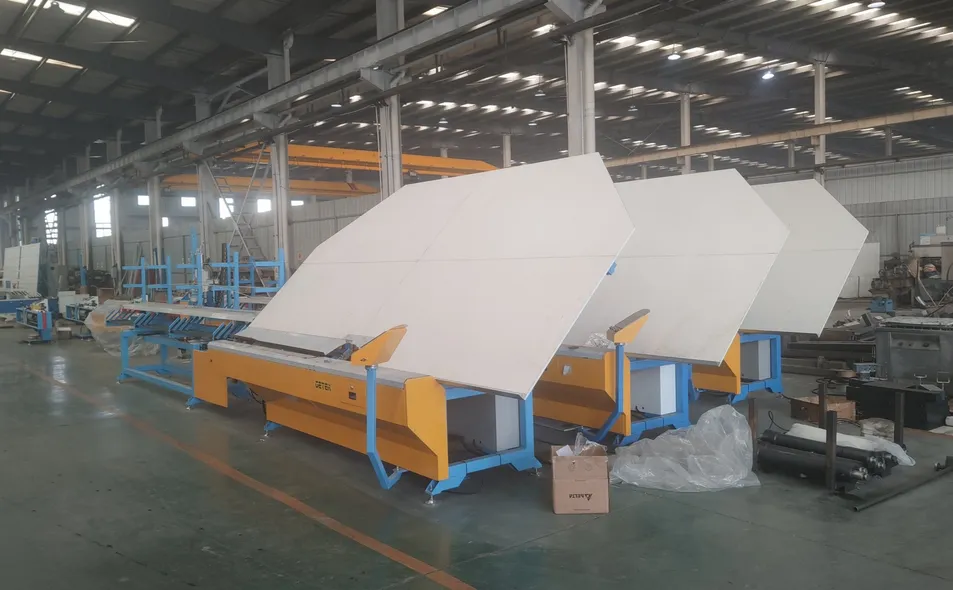

Auto spacer bending machine

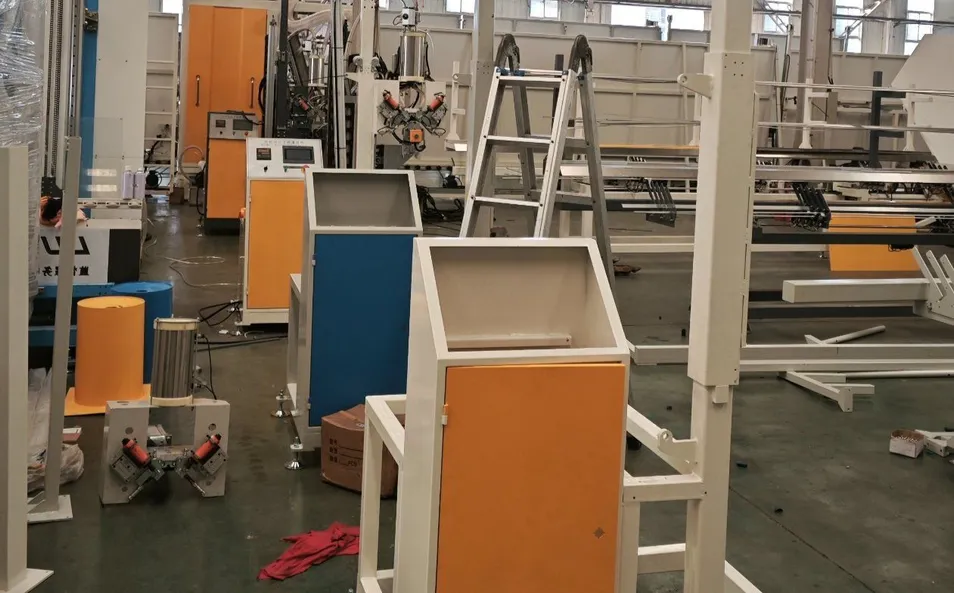

Auto desiccant filling machine
A professional manufacturer of insulating glass processing machinery, focusing on design, research and development. Instant after service with tens of service engineers to care for your glass processing.
