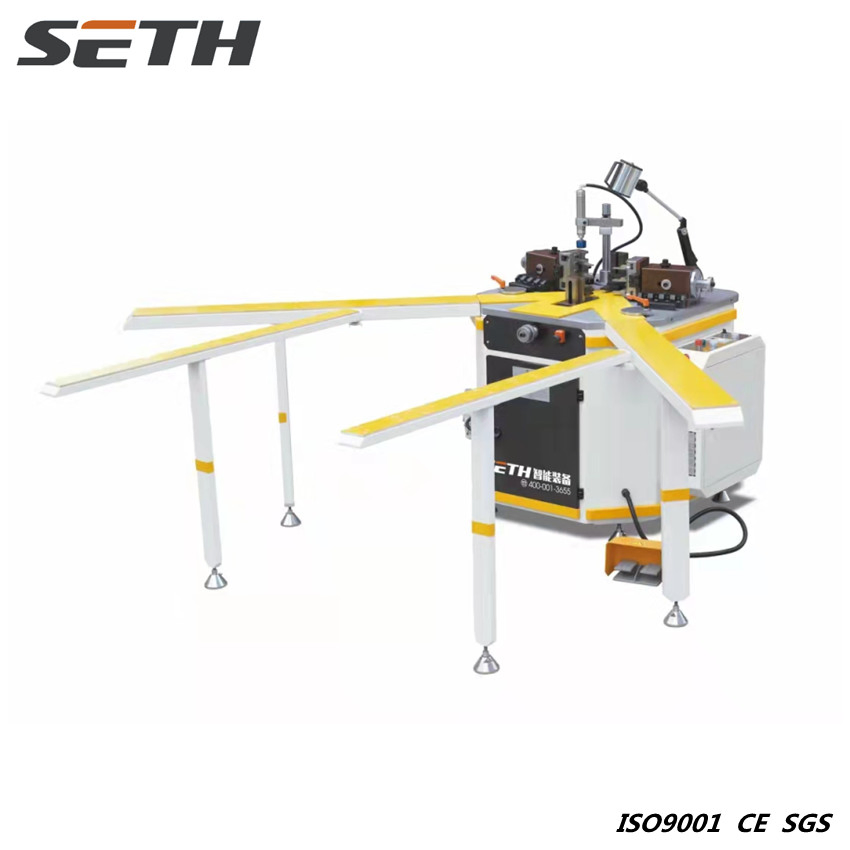

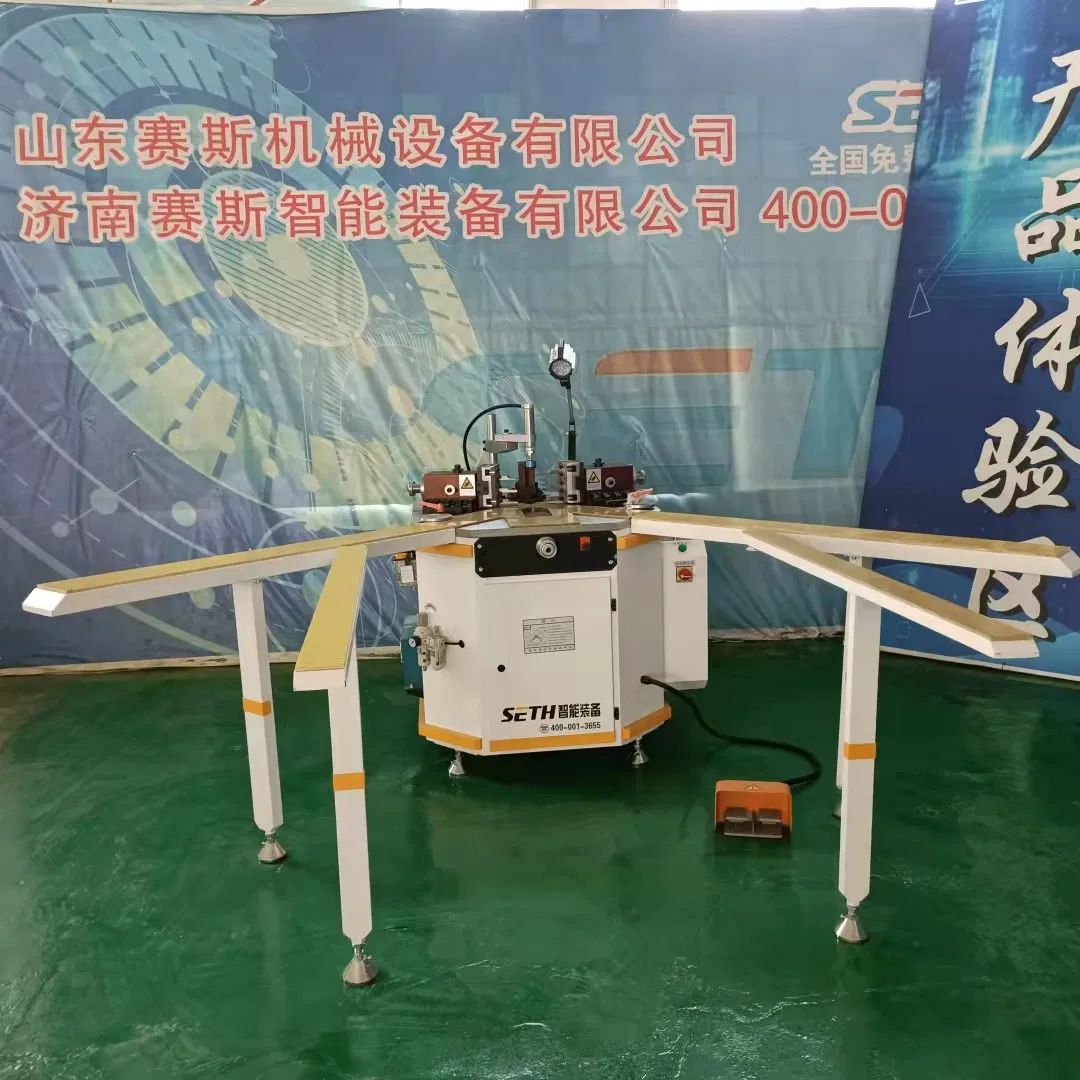

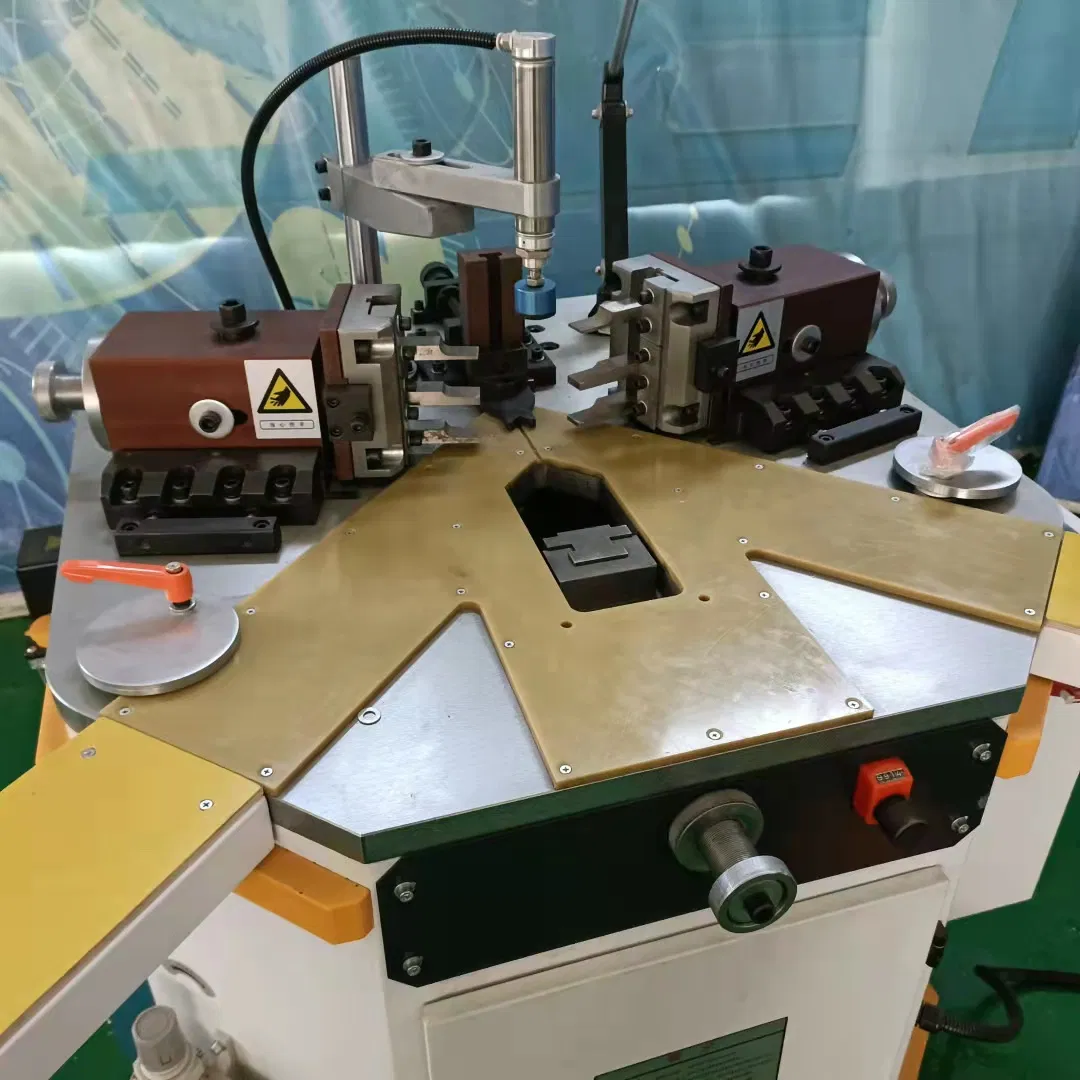

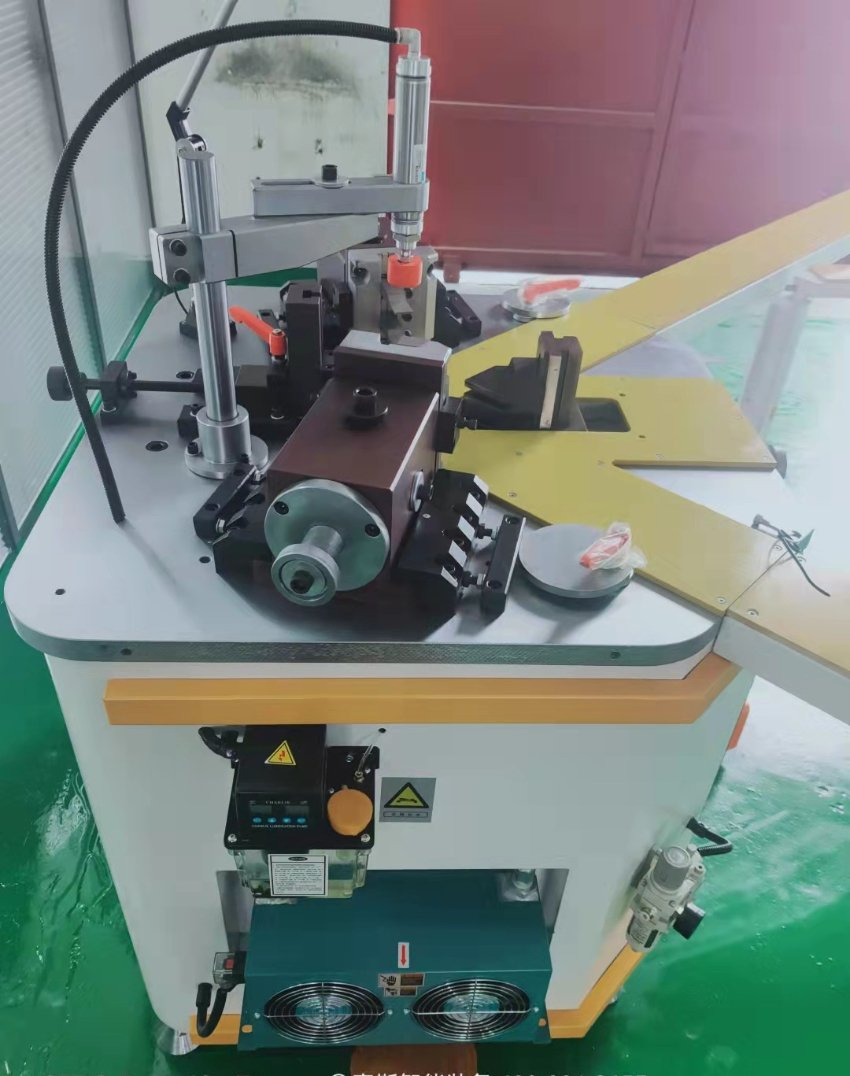

Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
1 / 5
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine
Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine

Aluminium Machinery for Window and Doors/Aluminum Window Frame Corner Crimping Machine

Customization: Available
After-sales Service: Video Instruction
Warranty: 12 Months
Send Inquiry

Product Description

💡 Basic Info.
Condition
New
Certification
ISO, CE, SGS
Automatic Grade
Semi-Automatic
CNC or Not
Hydraulic
Voltage
380V
Input Power
3.0kw
Rated Pressure
20MPa
Air Consumption
5L/Min
Weight
700kgs
Operating Pressure
0.6-0.8MPa
Fuel Tank Capacity
40L
Oil Pump Size
10"
🛠️ Product Description

Heavy duty single-head Hydraulic-pressure Corner Combining Machine

Aluminum Window Frame Corner Crimping Machine
🚀 Product Features
✔
It is suitable for corner-code punching and riveting connection of aluminum door and window curtain wall.
✔
Latest R&D and design model with stable performance, high precision and high efficiency.
✔
Controlled by program, hydraulic system provides angular power with high punching and riveting force.
✔
Wide adjustment range of the angle setting knife adapts to higher and thicker profiles.
✔
Front positioning adopts lifting type for convenient material placement.
✔
Double-point knife and step knife configuration for higher angle strength.
Machine Detail View
🔍 Product Details

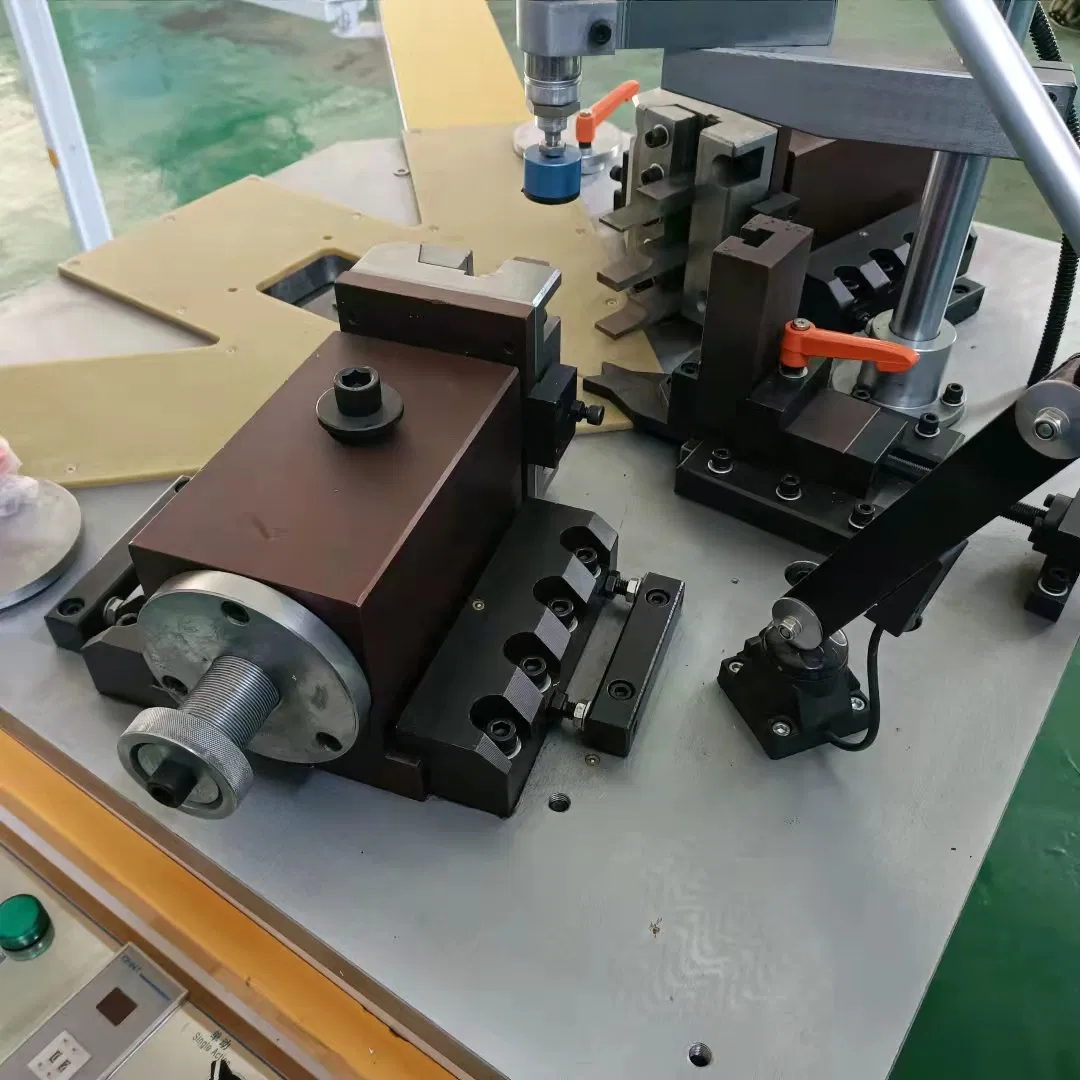

Detail 1

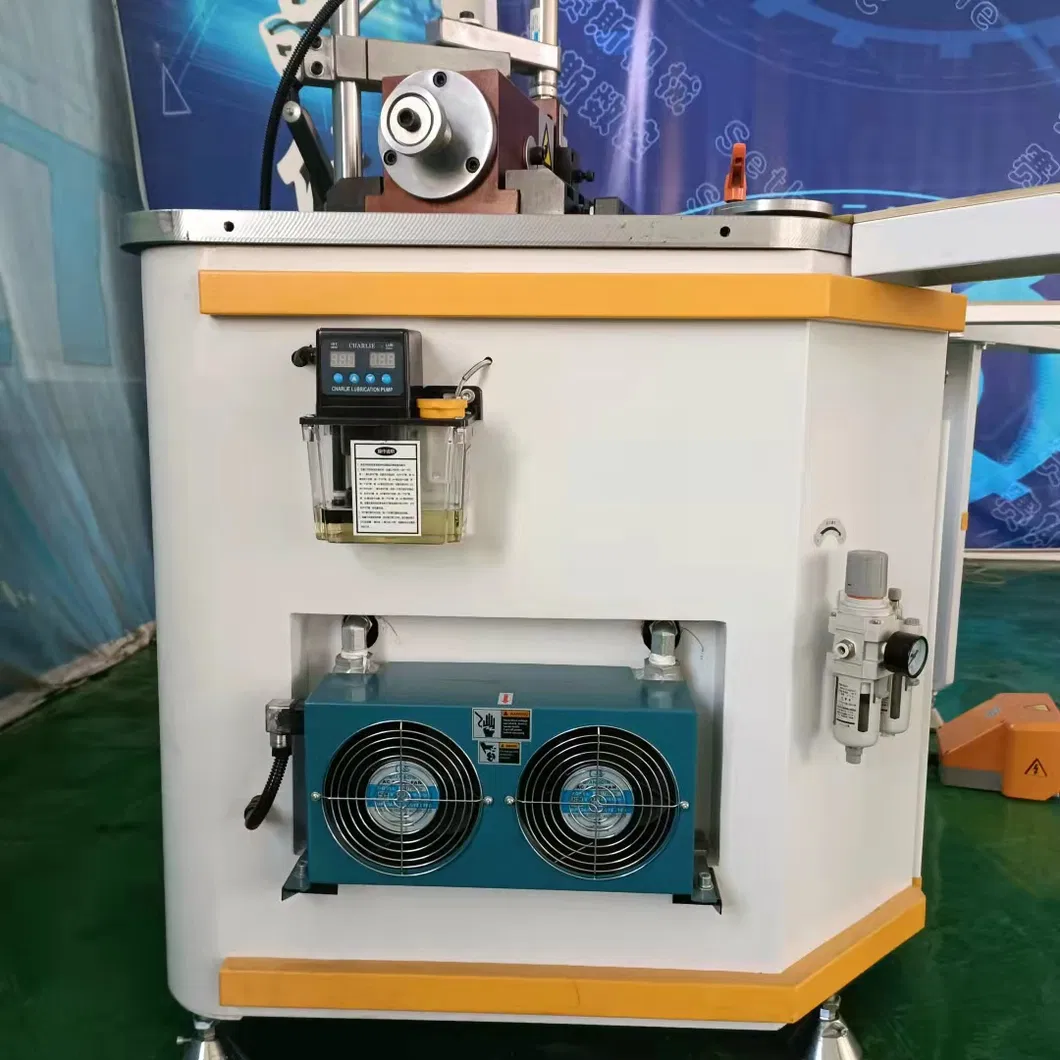

Detail 2

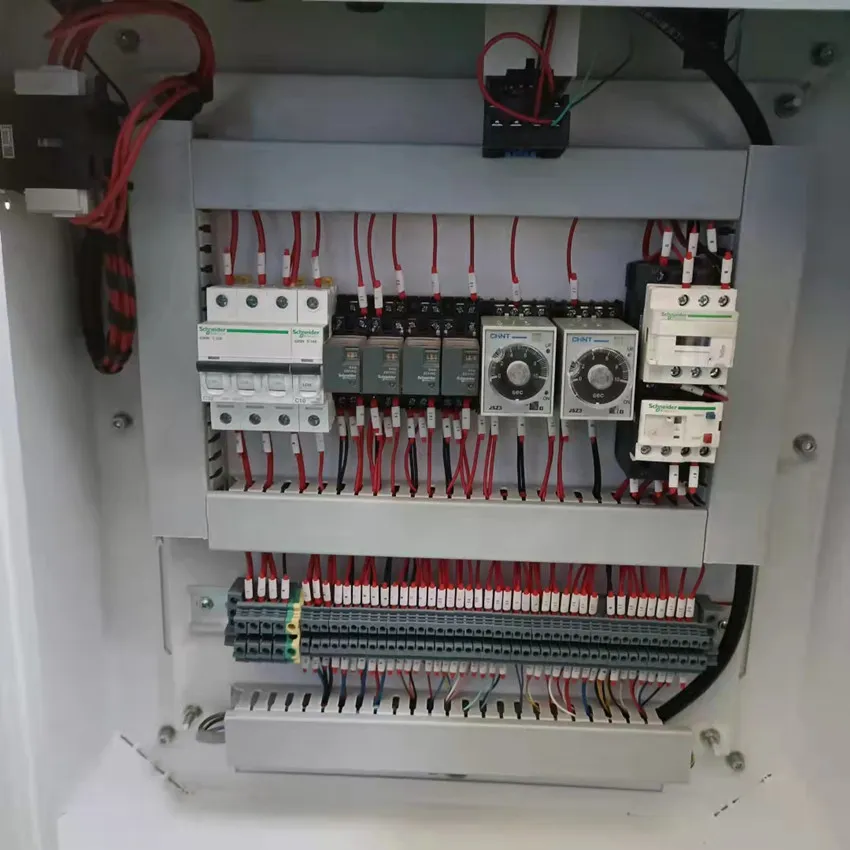

Detail 3

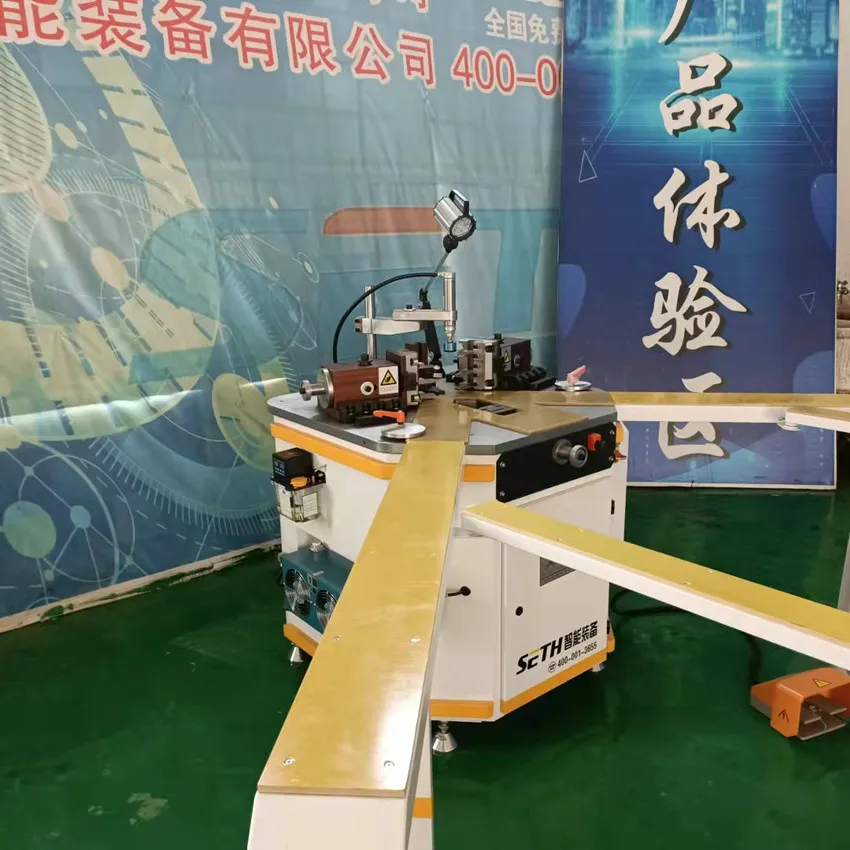

Detail 4
📊 Technical Parameters
Power supply380V 50Hz
Total motor power3.0Kw
Rated pressure20MPa
Operating pressure0.6~0.8MPa
Air consumption5L/min
Front positioning stroke170mm
Backward cutter stroke120mm
Adjustment range of front positioning140mm
Adjustment range of angle cutter160mm
Height of machined profile160mm
Fuel tank capacity40L
Oil pump size10 "
Overall dimension870×1200×1100mm
Weight700kg
⭐ Related Equipment

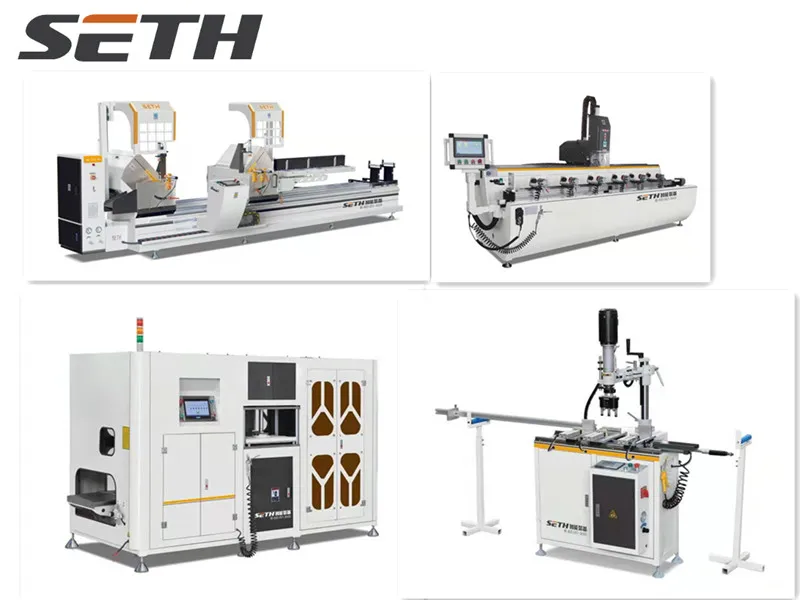

Hot product 1

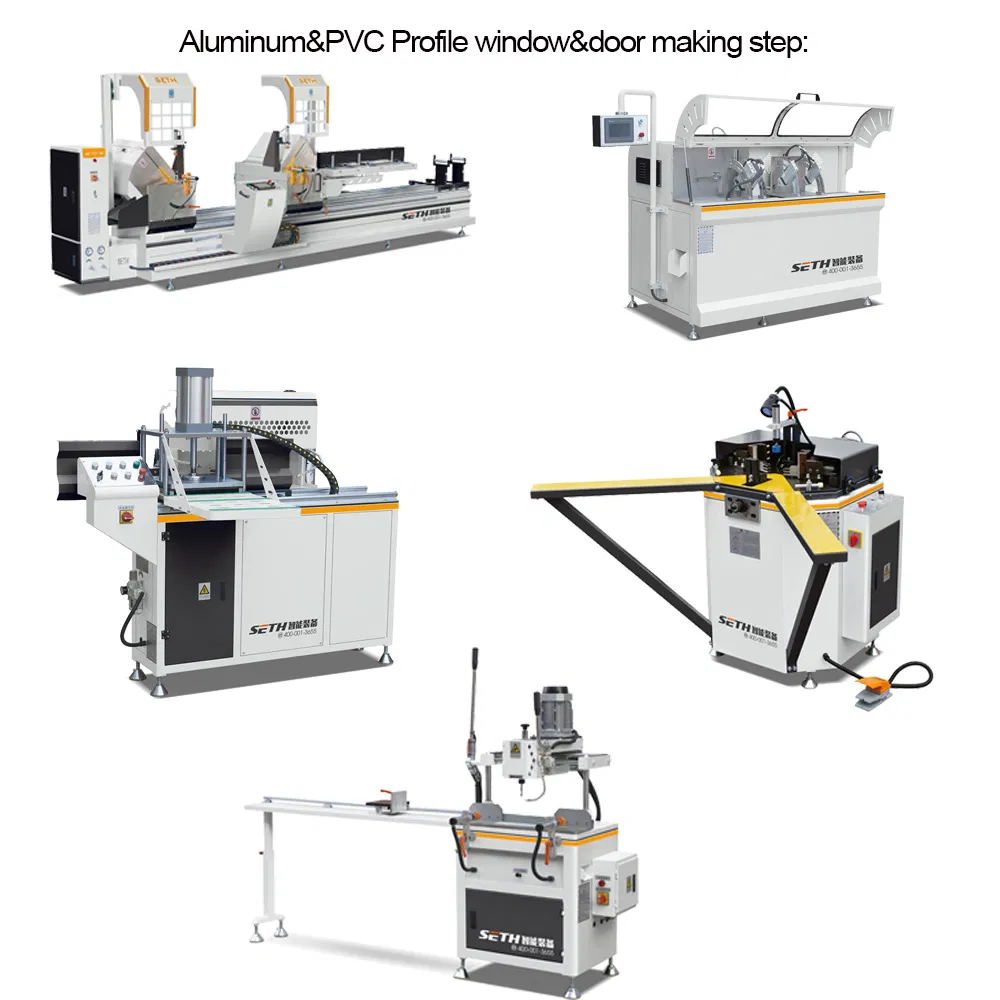

Hot product 2
🏭 Manufacturing Excellence

Specializing in the production of aluminum and UPVC window and door machines, curtain wall, and hollow glass processing equipment. Meeting diverse client needs with customized high-grade products.

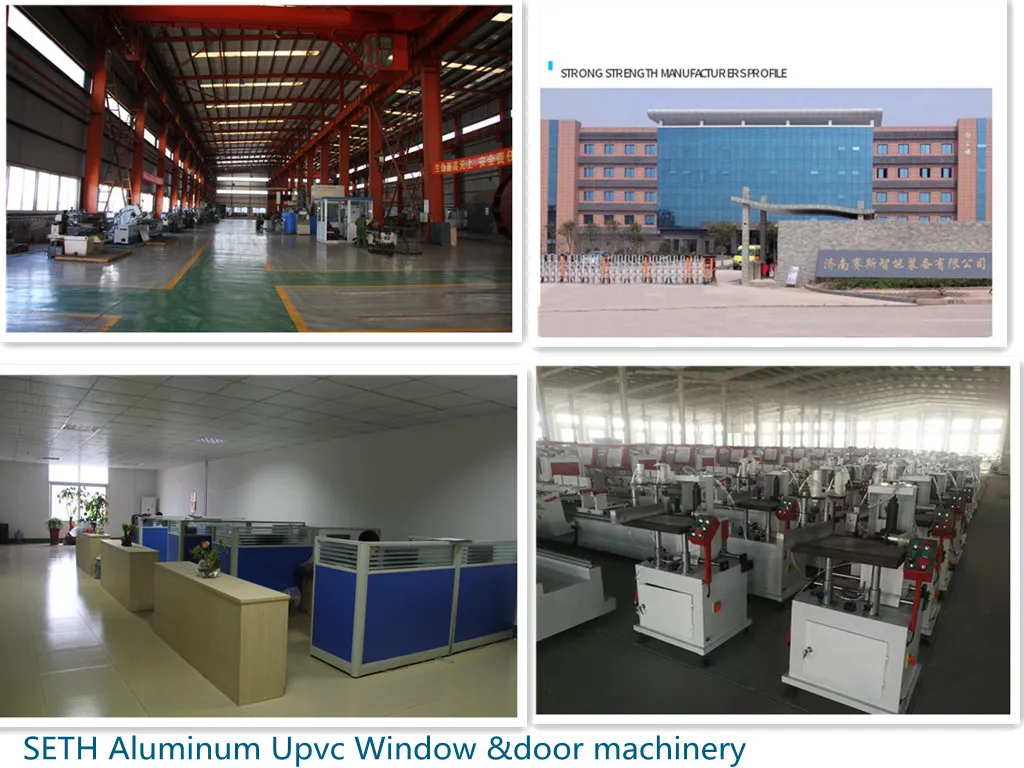

Workshop
Packaging
Certificates
❓ Frequently Asked Questions
What are your primary window manufacturing products?
We offer a full range of aluminum and UPVC window machines, including CNC cutting centers, double miter saws, corner crimping machines, welding machines, and end milling equipment.
Do you provide technical support and after-sales service?
Yes, we offer both on-site engineer installation and training, as well as comprehensive online support with documentation and video tutorials for operation and maintenance.
Is the corner crimping machine suitable for heavy-duty profiles?
Absolutely. Our heavy-duty single-head hydraulic machines are designed with high punching and riveting force, specifically for aluminum door and window curtain wall connections.
What certifications do your machines carry?
Our equipment is manufactured under strict quality standards and has passed ISO9001, SGS, and CE certifications.
Can the equipment be customized for specific needs?
Yes, we can customize equipment according to specific customer requirements for different grades and specialized production needs.
What is the standard power supply for these machines?
Most of our industrial-grade machines, including the corner combining unit, operate on a 380V 50Hz power supply.
