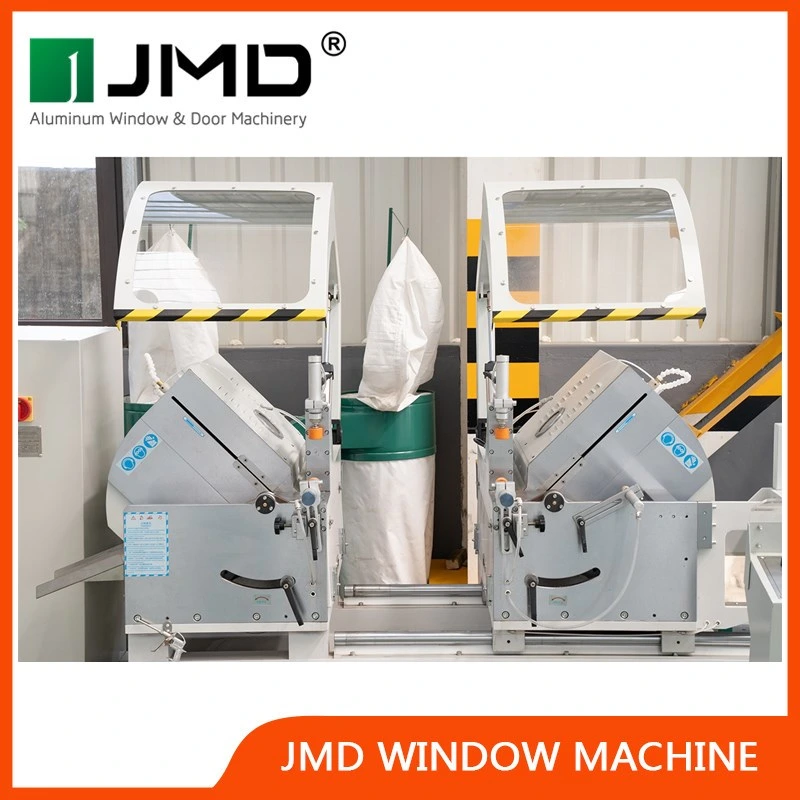

Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
1 / 5
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine
Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine

Jmd Aluminum Window Double Head Cutting Saw Machine/UPVC Double Head Welding Machine

Customization: Available
Condition: New
Certification: ISO, CE, SGS, BV,
Send Inquiry

Product Description

📋 Basic Information
Automatic Grade
Semi-Automatic
CNC or Not
CNC
Voltage
380V
Usage
Aluminum Cutting
Type
Cutting Machine
Blade Diameter
500mm
Color
White/Customizable
Weight
1.9tons
Size
5560*1750*1900mm
Cutting Angle
45/90
Cutting Height
300mm
Cutting Width
135mm
Power
6kw
Transport Package
Wooden Case or Steel Pallet
Specification
500*4200
Origin
Shandong, China
HS Code
8461500090
Production Capacity
3000sets/Year
🚀 Product Description

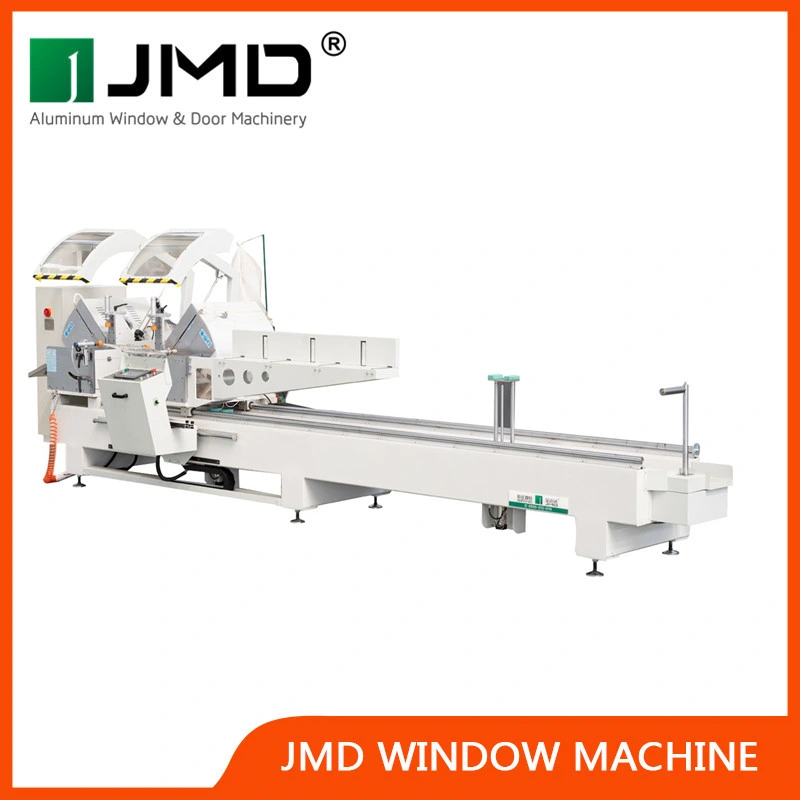

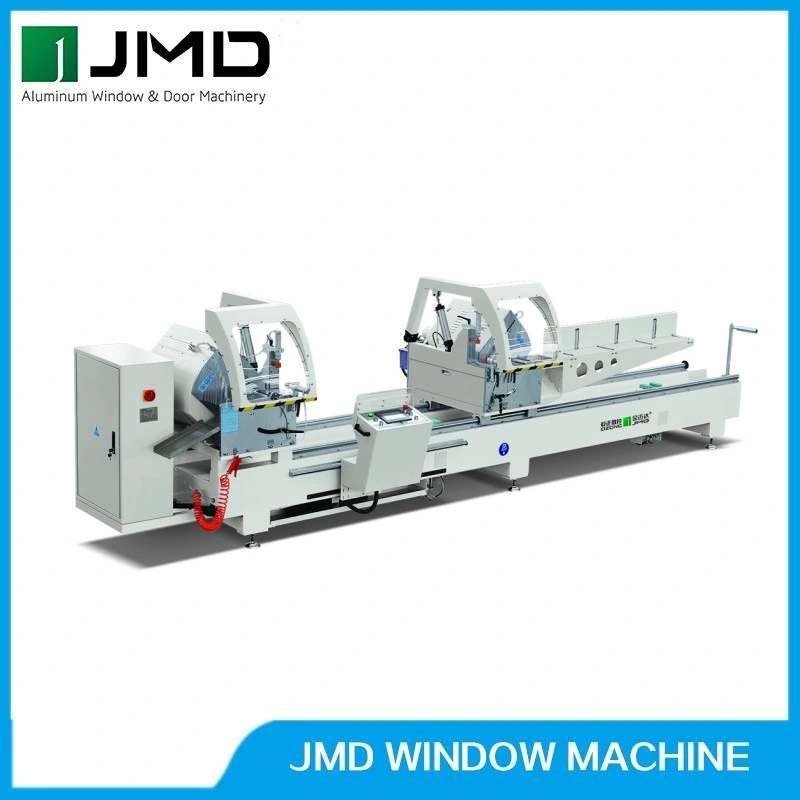

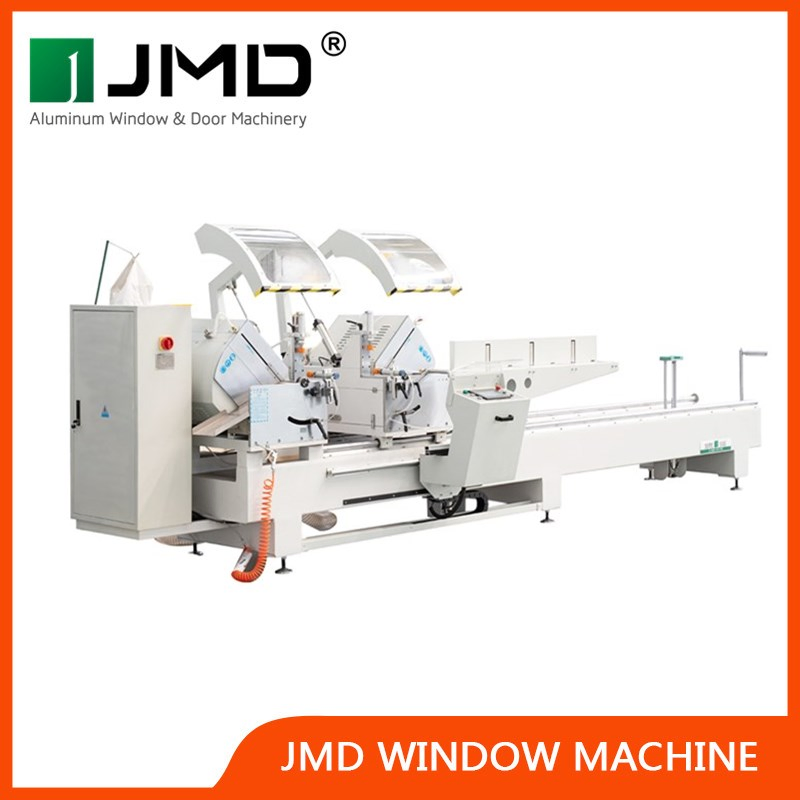

CNC Aluminum Cutting Machine LJ2AS-500*4200

1. Machine Introduction

  • The imported digital control system ensures the precise cutting size.
  • The imported ball screw rod drives the machine to move horizontally with precise repeat orientation.
  • You can set a series of data to realize the continuous cutting according to the preset programme.
  • Adopt imported carbide saw blade and cutting feed motion guide rail is imported linear guide rail pair.
  • The blade feed is powered by the hydraulic damping cylinder.
  • Wide cutting range max length up to 4200mm three cutting angle 90°/45°.

2. Technical Parameter

Parameter Item Specifications
Power supply380V/3Phase/50Hz
Input power6kW
Air pressure0.5~0.8Mpa
Saw blade rotating speed2875r/min
Saw blade specification500*4.4*3.3*30*120p
Cutting length320~4200mm
Max cutting width/height135mm/ 300mm
Overall dimension5560*1750*1900mm
Cutting angles90°, 45°
Weight1900Kg
📸 Product & Factory Showcase

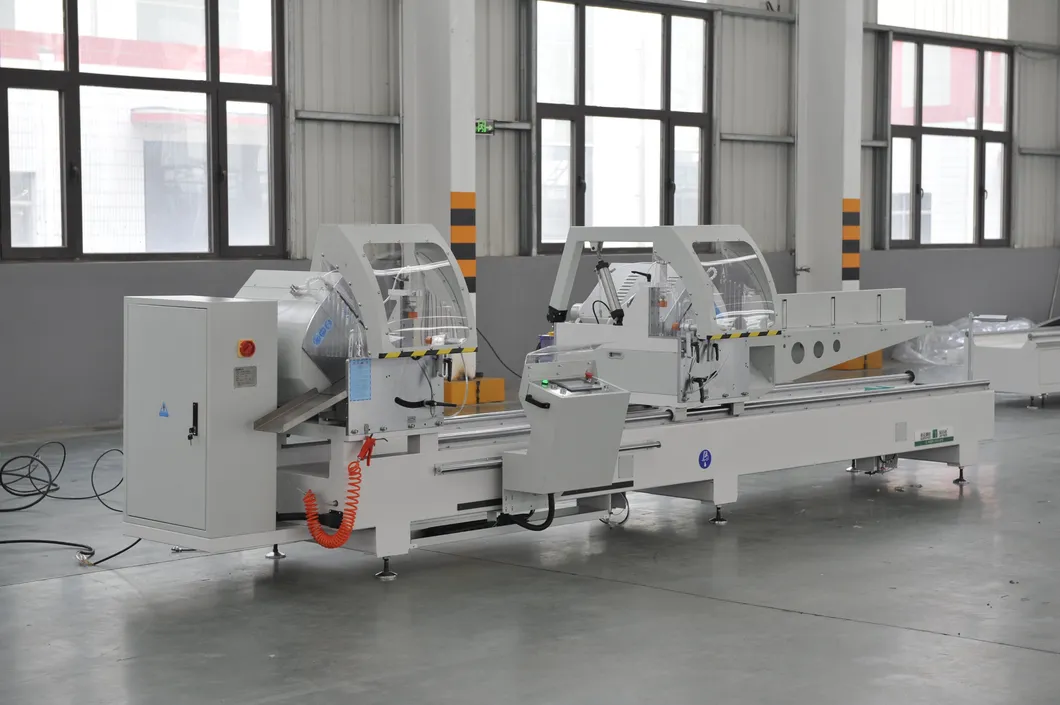

CNC Aluminum Cutting Machine

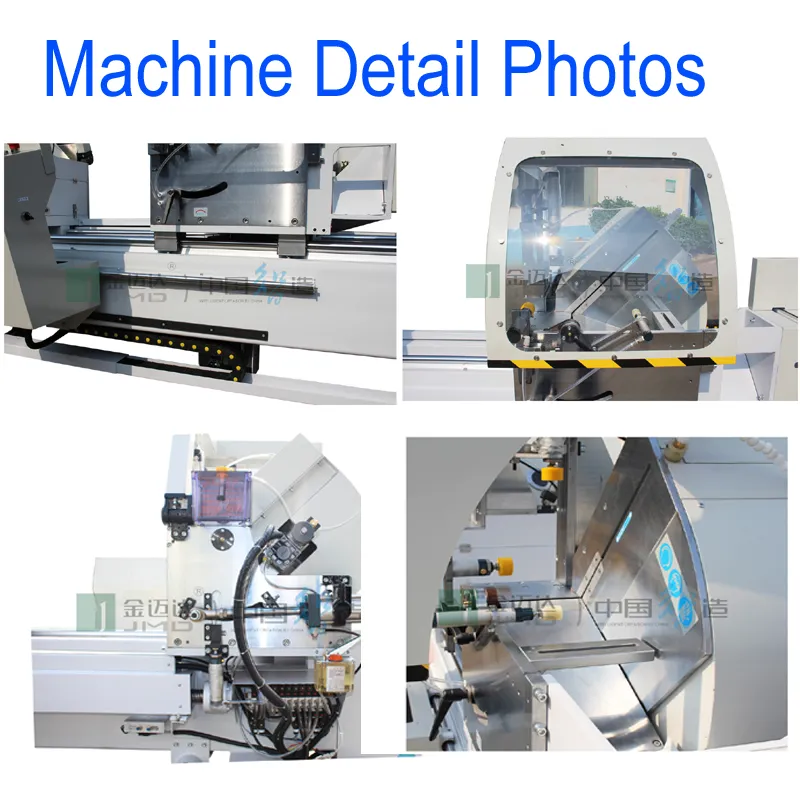

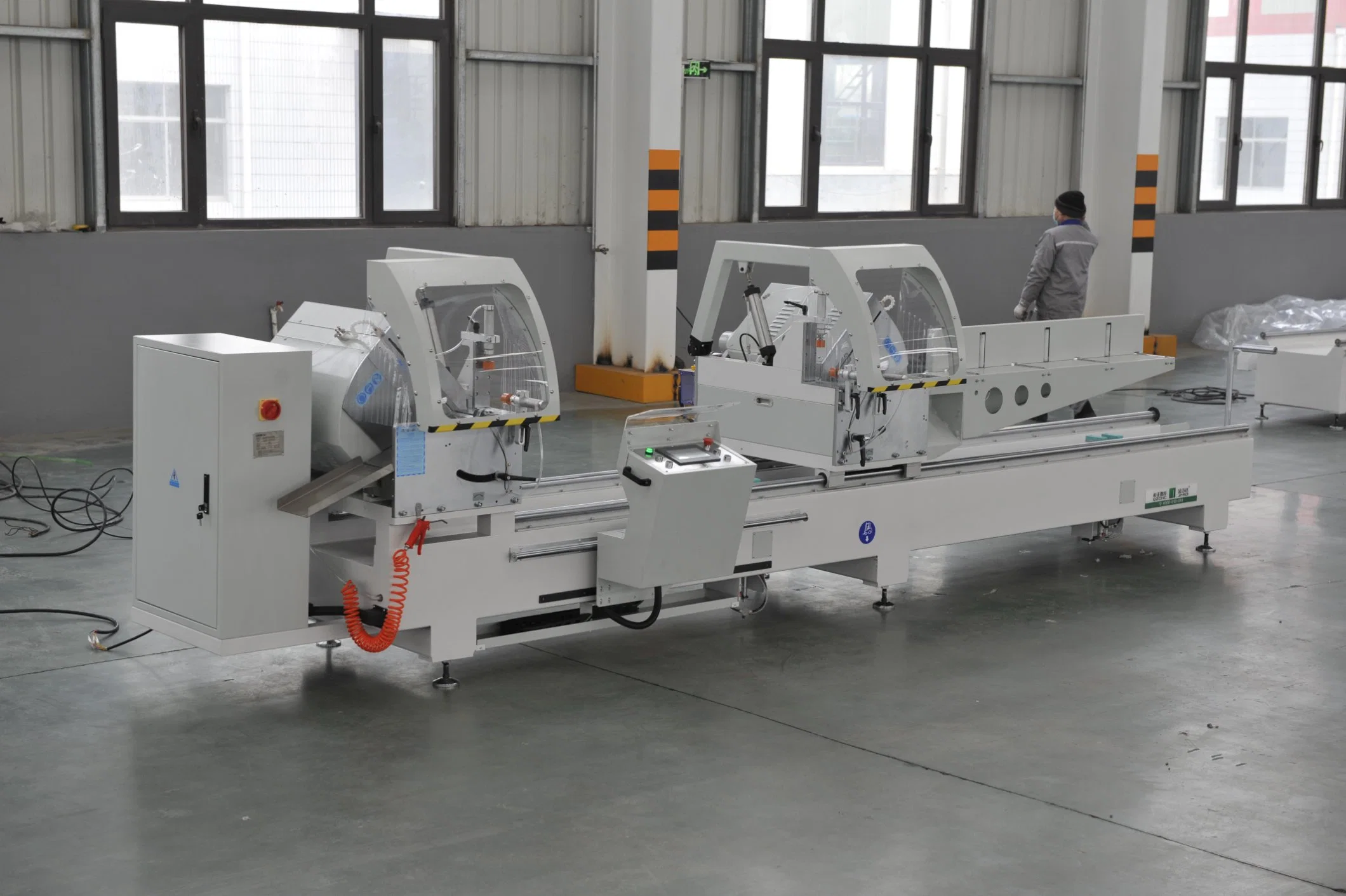

Detail Cutting Machine Photo

Associated Equipment

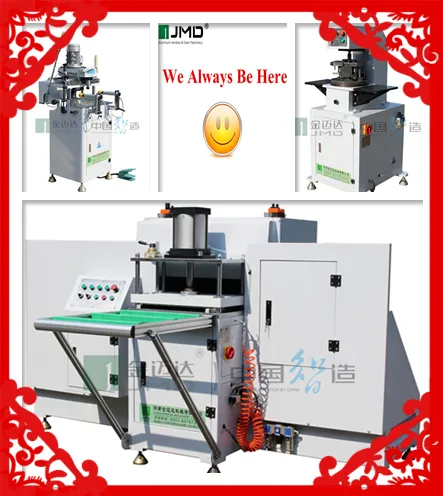

Associated Machine 1

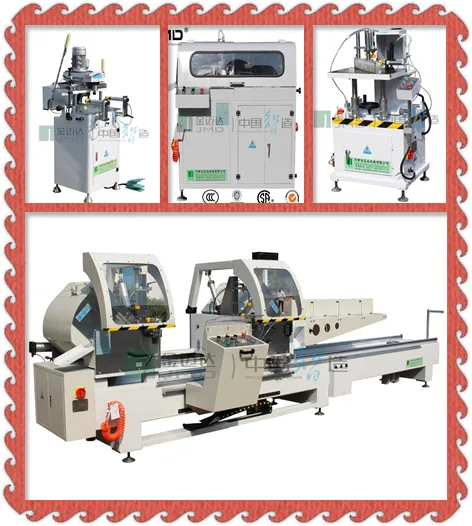

Associated Machine 2

Professional Team & Factory

Our Team

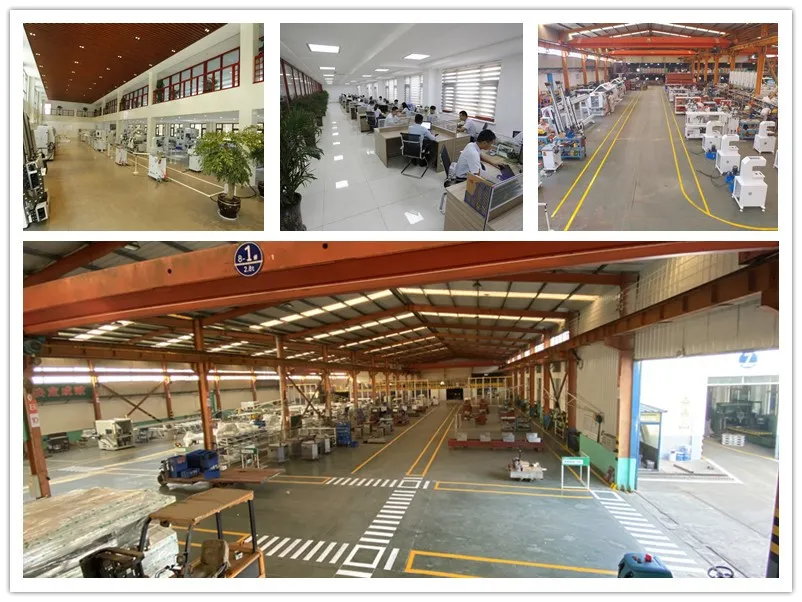

Factory View 1

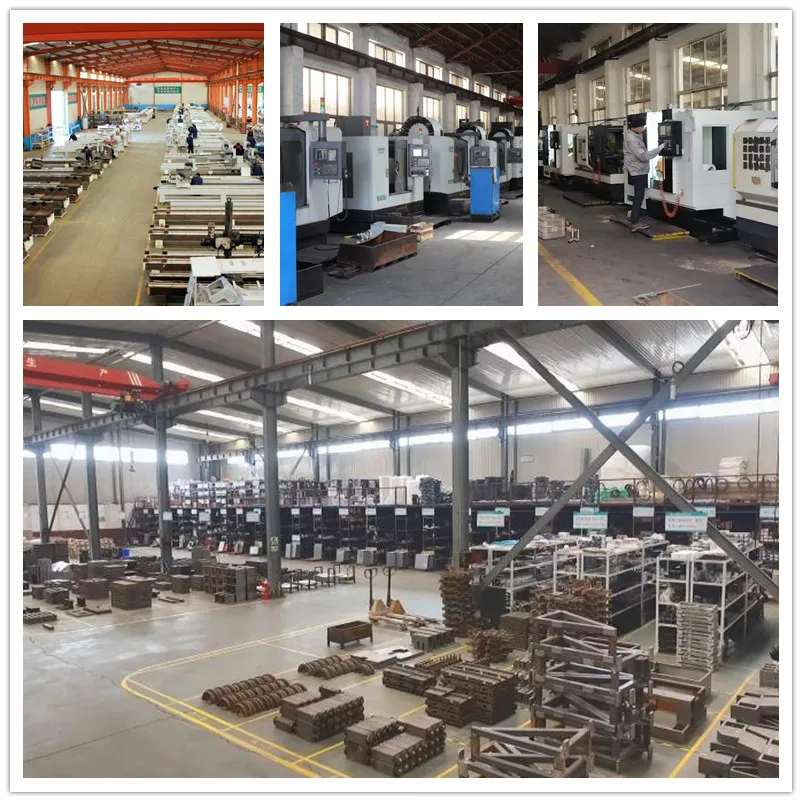

Factory View 2

Global Clients & Delivery

Global Clients
Client Interaction
Machine Delivery

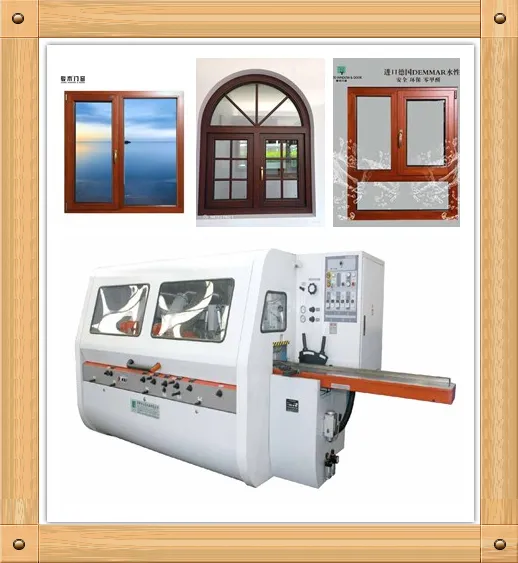

Finished Windows
💎 Why Choose Us

We are a leading manufacturer specializing in the design and manufacturing of aluminum and wood window & door machines. Established in 1999, we have grown into a top supplier in the industry with a dedicated R&D team.

  • 20+ Years Experience: Extensive expertise in door and window machinery manufacturing.
  • Top Tier Manufacturer: Ranked among the top 3 manufacturers in the region.
  • Professional Team: 230 skilled staff members ensuring quality and service.
  • Global Reach: Exporting to more than 40 countries worldwide.
  • High Capacity: Producing over 3000 sets per year.
  • Certified Quality: We accept certifications such as BV, CAS, SGS, and CE.
❓ Frequently Asked Questions
What is the maximum cutting length of this machine?
The machine supports a wide cutting range with a maximum length of up to 4200mm.
What cutting angles are available?
This CNC cutting machine can perform precise cuts at both 90° and 45° angles.
What kind of control system does the machine use?
It features an imported digital control system (CNC) which ensures high precision and allows for continuous cutting based on preset programs.
What are the power requirements for operation?
The machine requires a power supply of 380V, 3 Phase, at 50Hz, with an input power of 6kW.
How is the blade feed controlled?
The blade feed is powered by a hydraulic damping cylinder, ensuring smooth and stable motion during the cutting process.
What materials is this machine suitable for?
It is specifically designed for high-precision aluminum profile cutting, ideal for window and door manufacturing.
