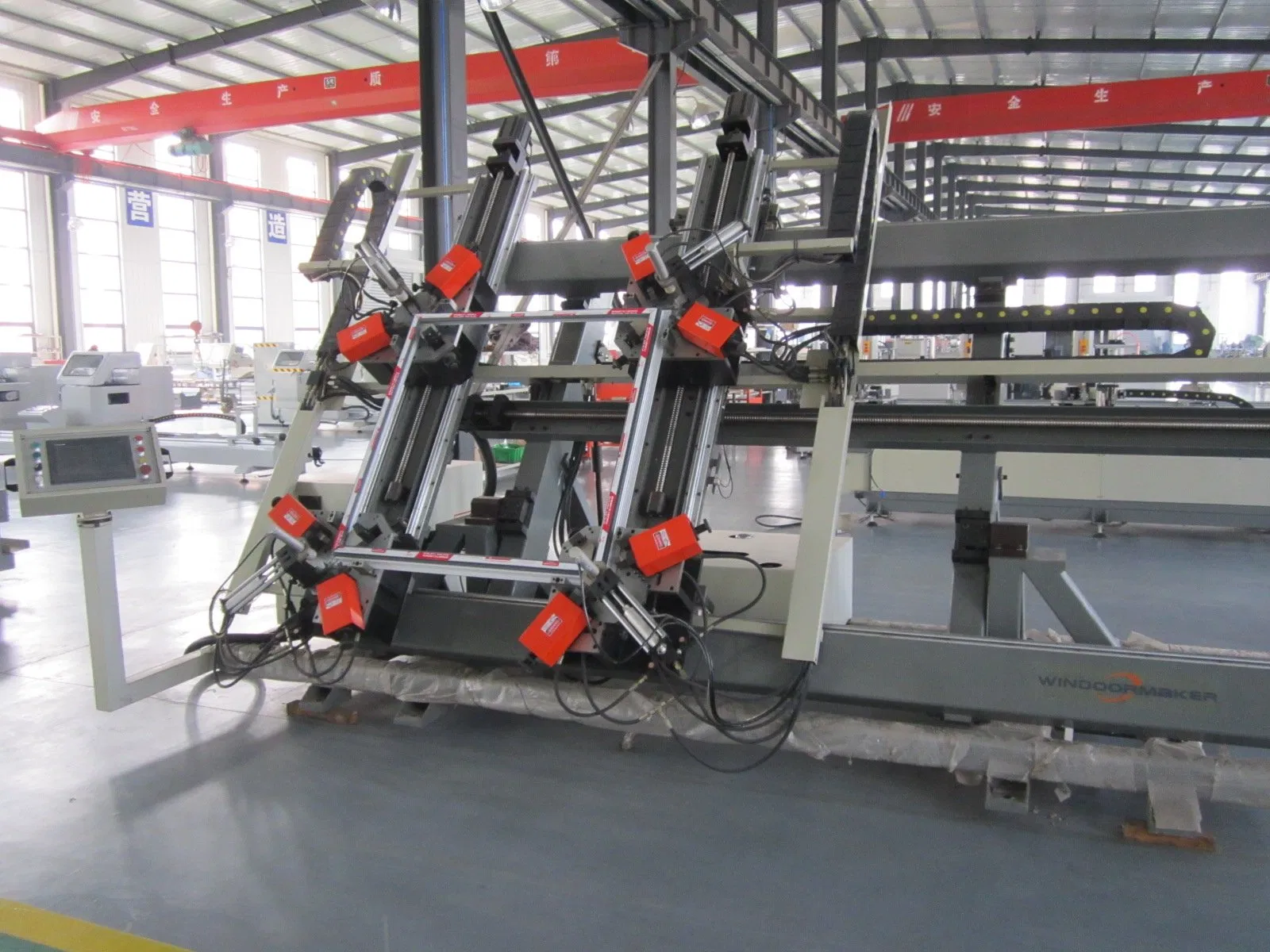

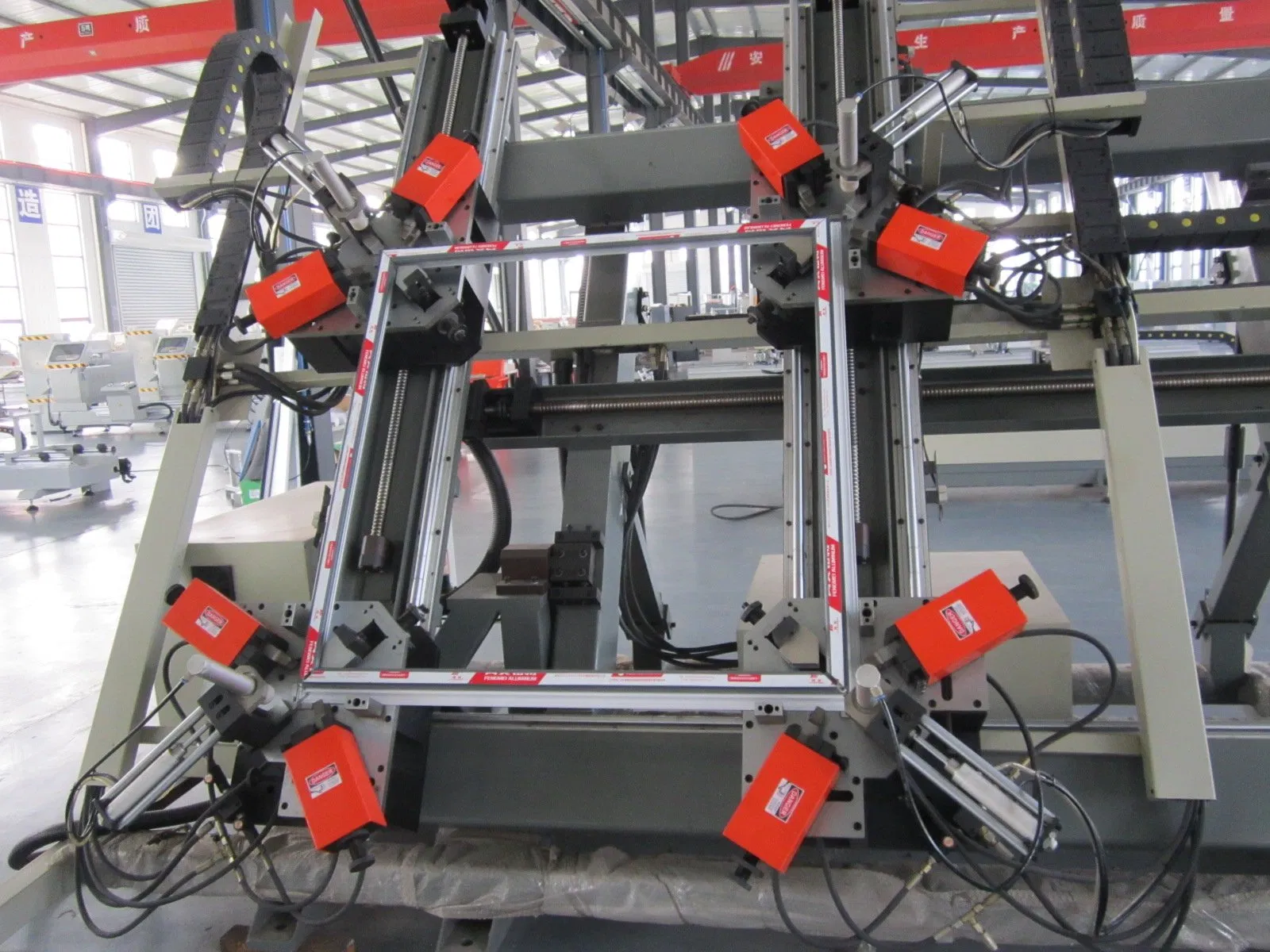

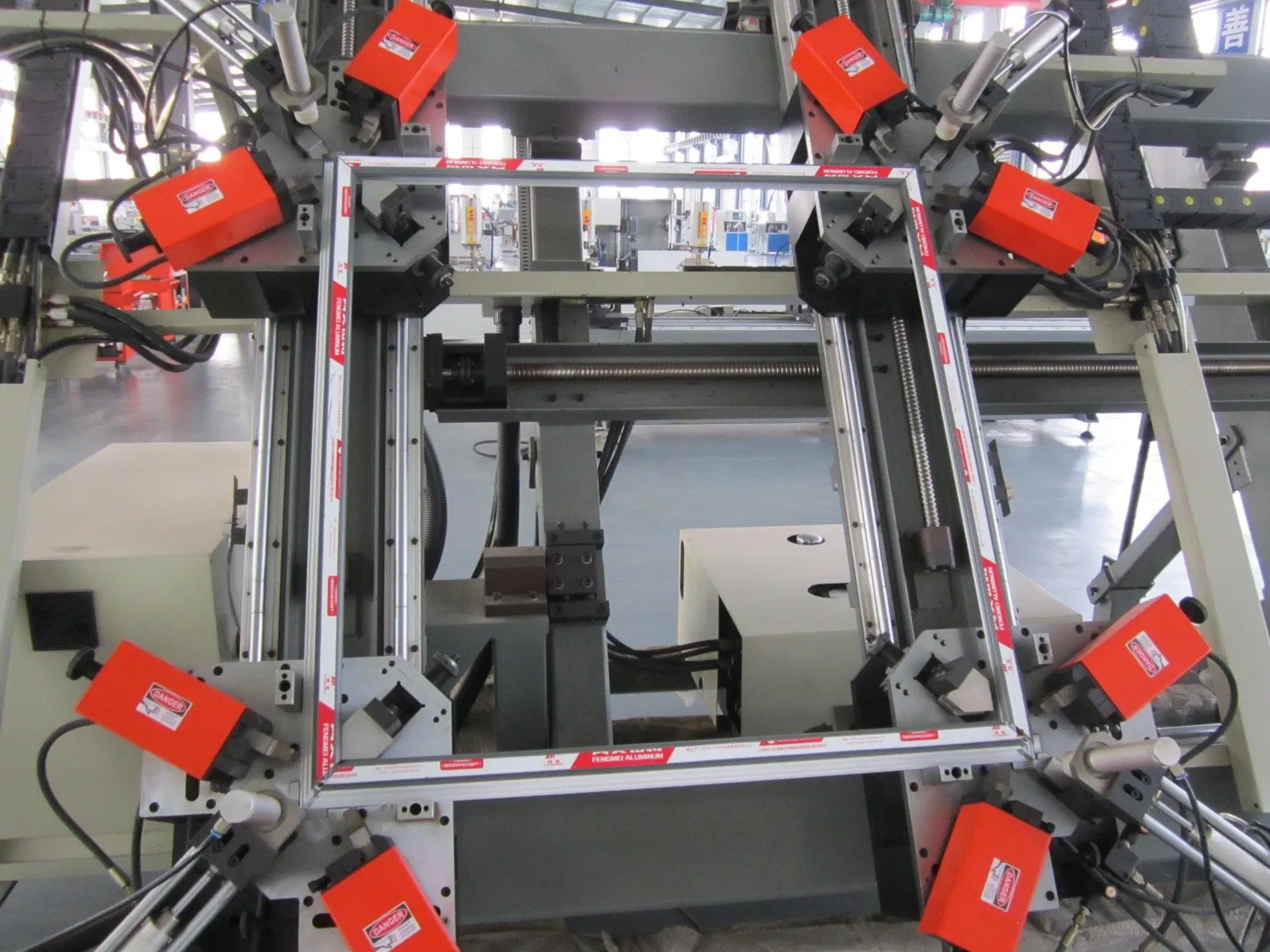

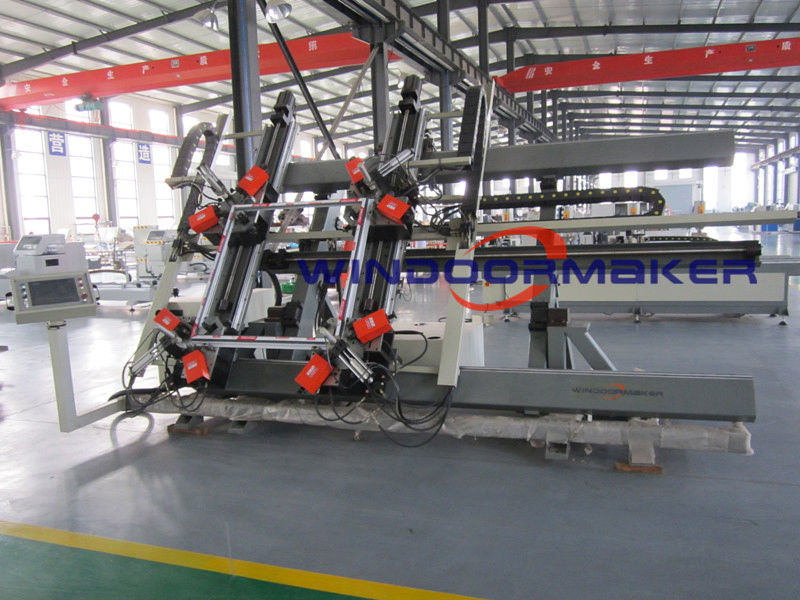

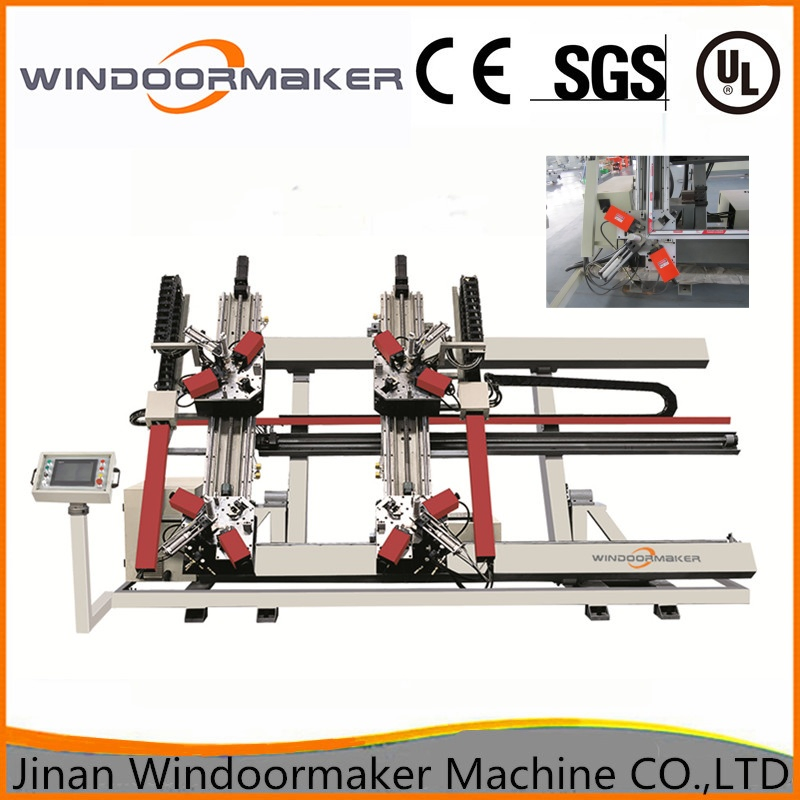

Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
1 / 5
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine
Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine

Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.:WM4-100x1800x3000
Condition:New
Certification:ISO, CE
Automatic Grade:Automatic
CNC or Not:CNC
Voltage:380V
Power:7.5kw
Function:Window Corner Combination
🛠️

Product Description

Key Features:

  • Used for corner crimping of aluminum window and door and curtain wall sash, four corners can be finished in one cycle.
  • Equipped with a CNC system driving the four heads, achieving high automatic and intelligent operation with precise fabricating size control.
  • The head movement utilizes linear bearings for high accuracy and long-term stability.
  • Four corner auto pre-clamping functionality monitored by a servo-control system.
  • Tooling adjustments are convenient to meet various profile requirements.
  • Advanced CNC system with a humanized interface for easy and reliable operation.
📊

Technical Parameters

Power supplyMade to order
Hydraulic gearbox motor power7.5KW
Rate oil cylinder pressure15Mpa
Oil tank capacity60L
Air pressure0.5~0.8Mpa
Air consumption60L/min
Processing profile heightMax. 93mm
Min frame size480×480mm
Max frame size1800×3000 mm
Dimension (LxWxH)4700×2200×2500mm
Weight1500kg
📜

Certifications

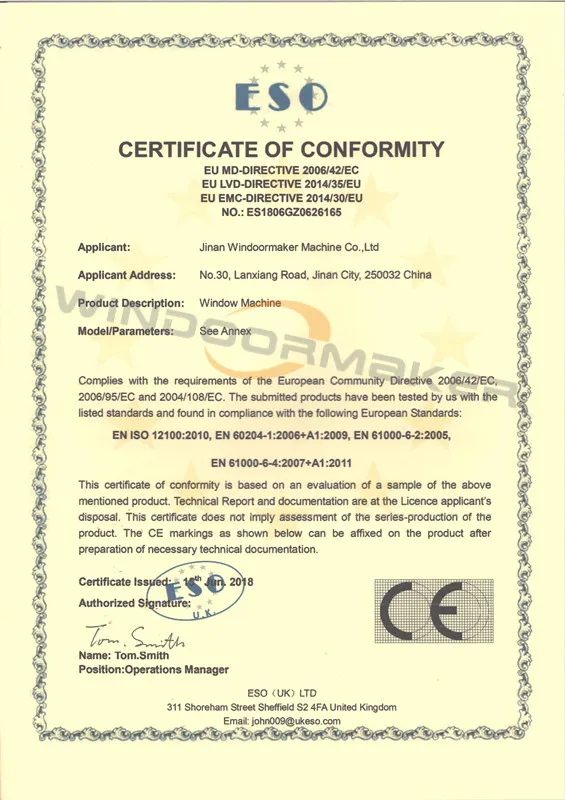

Certification 1

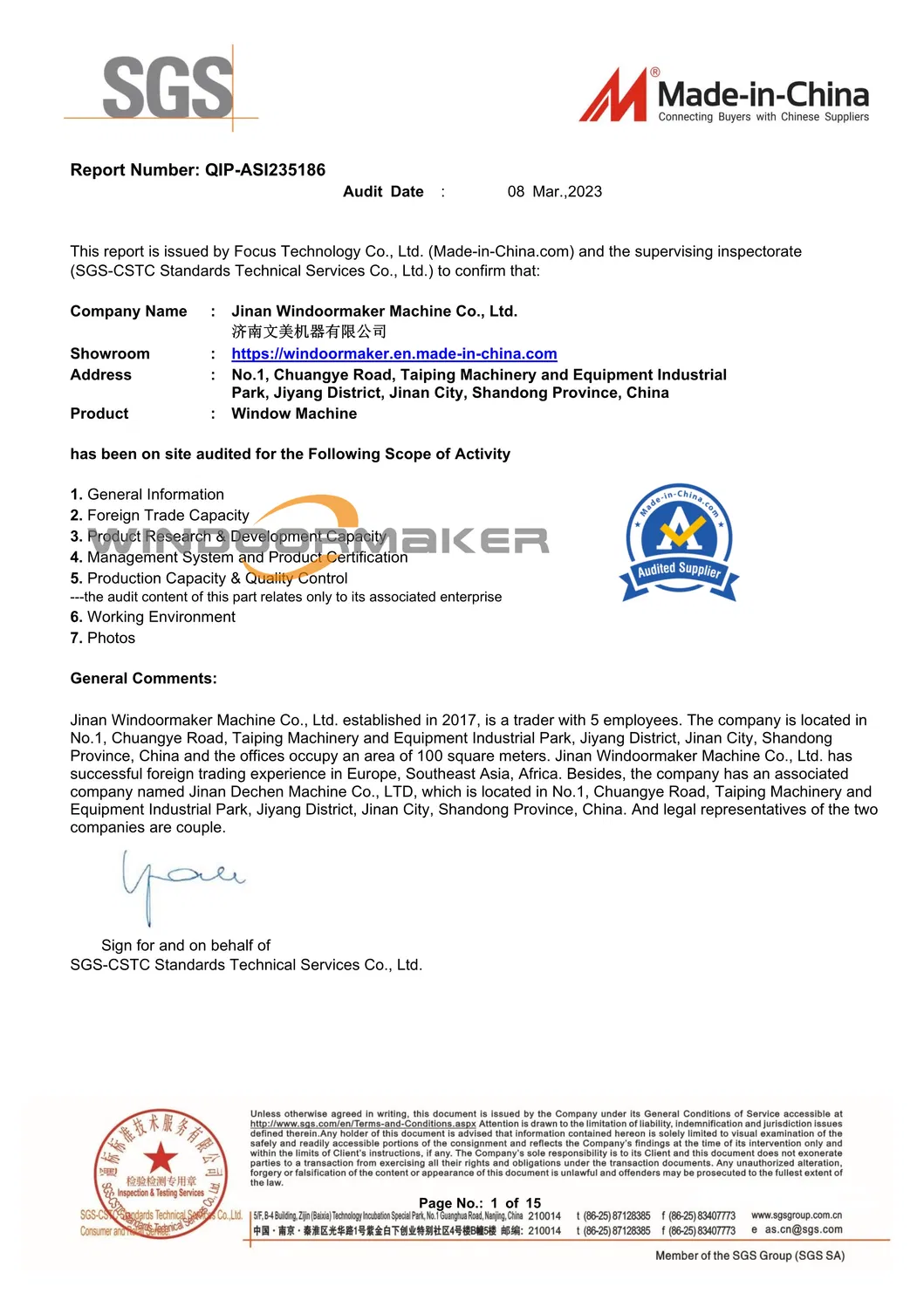

Certification 2
🏭

Production Capability

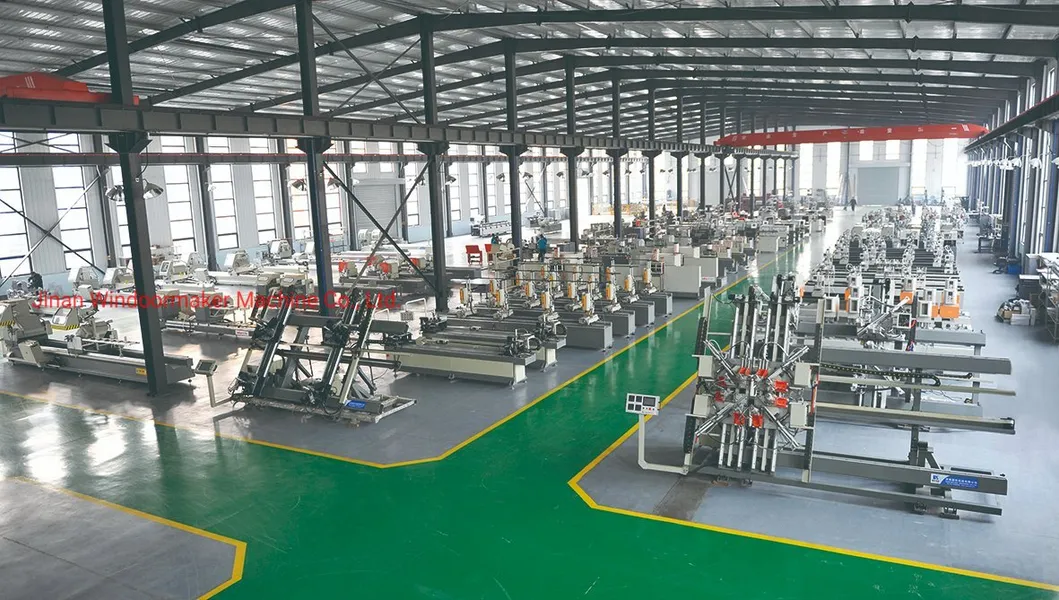

Factory Overview

We are an engineering-focused company with over 10 years of experience specializing in the manufacture and supply of UPVC and aluminum window and door machinery. Our factory covers an area of 15,000 m², where we focus on machine improvement, equipment modernization, and technological innovation.

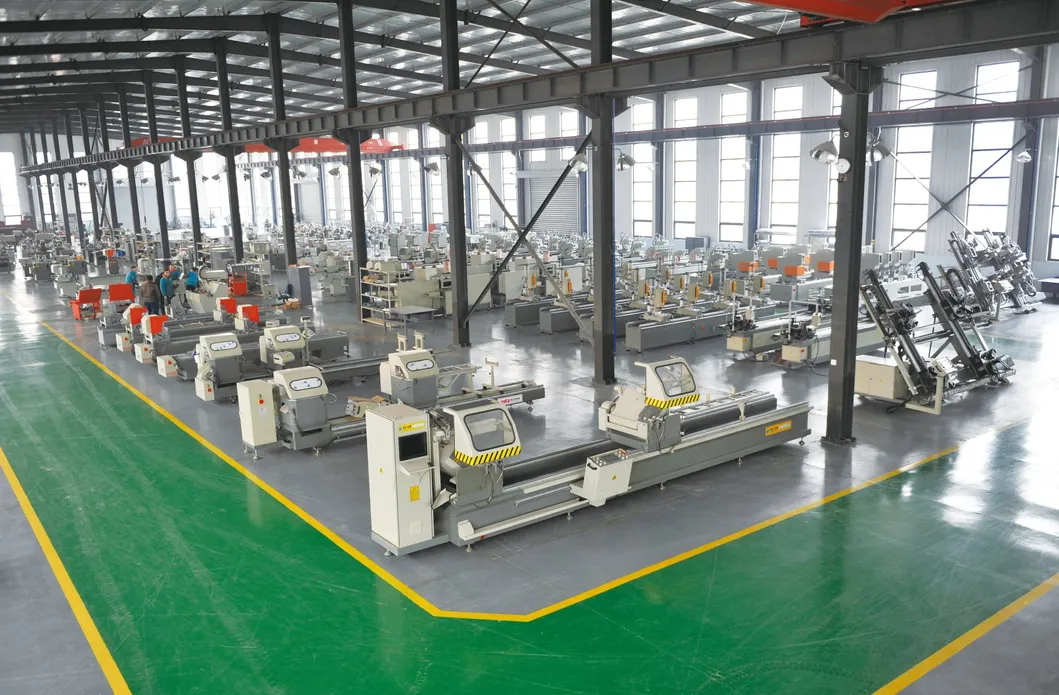

Equipment

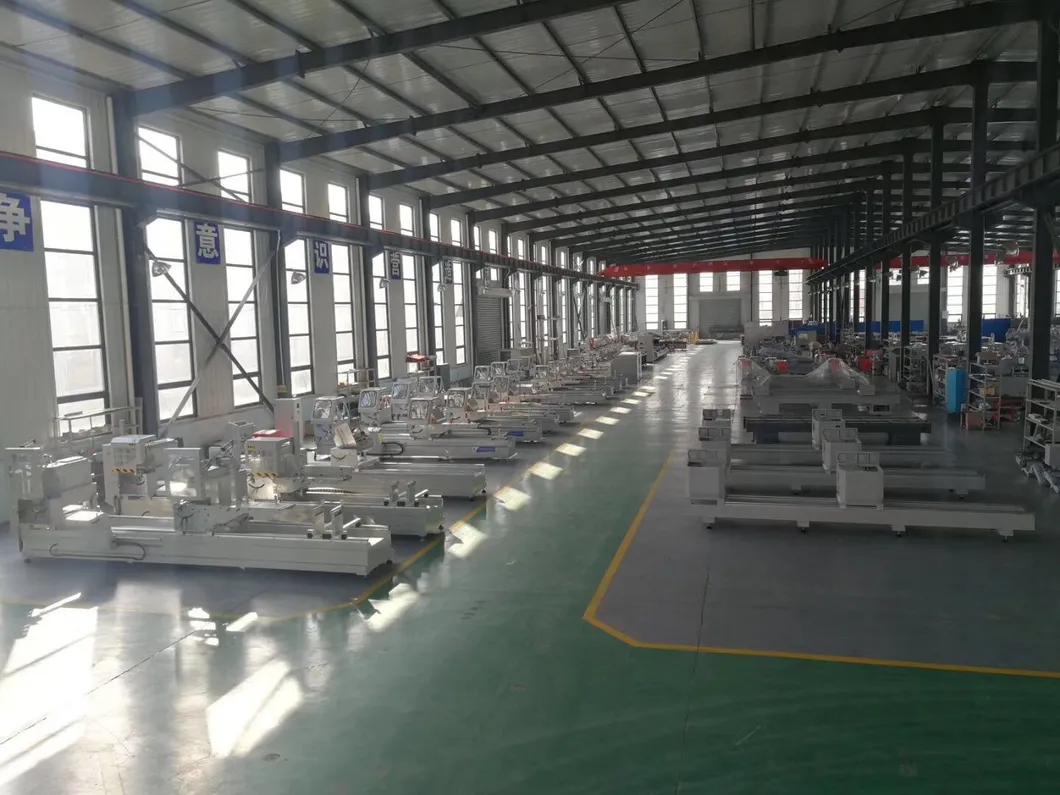

Workshop
🤝

Machine at Customer Site

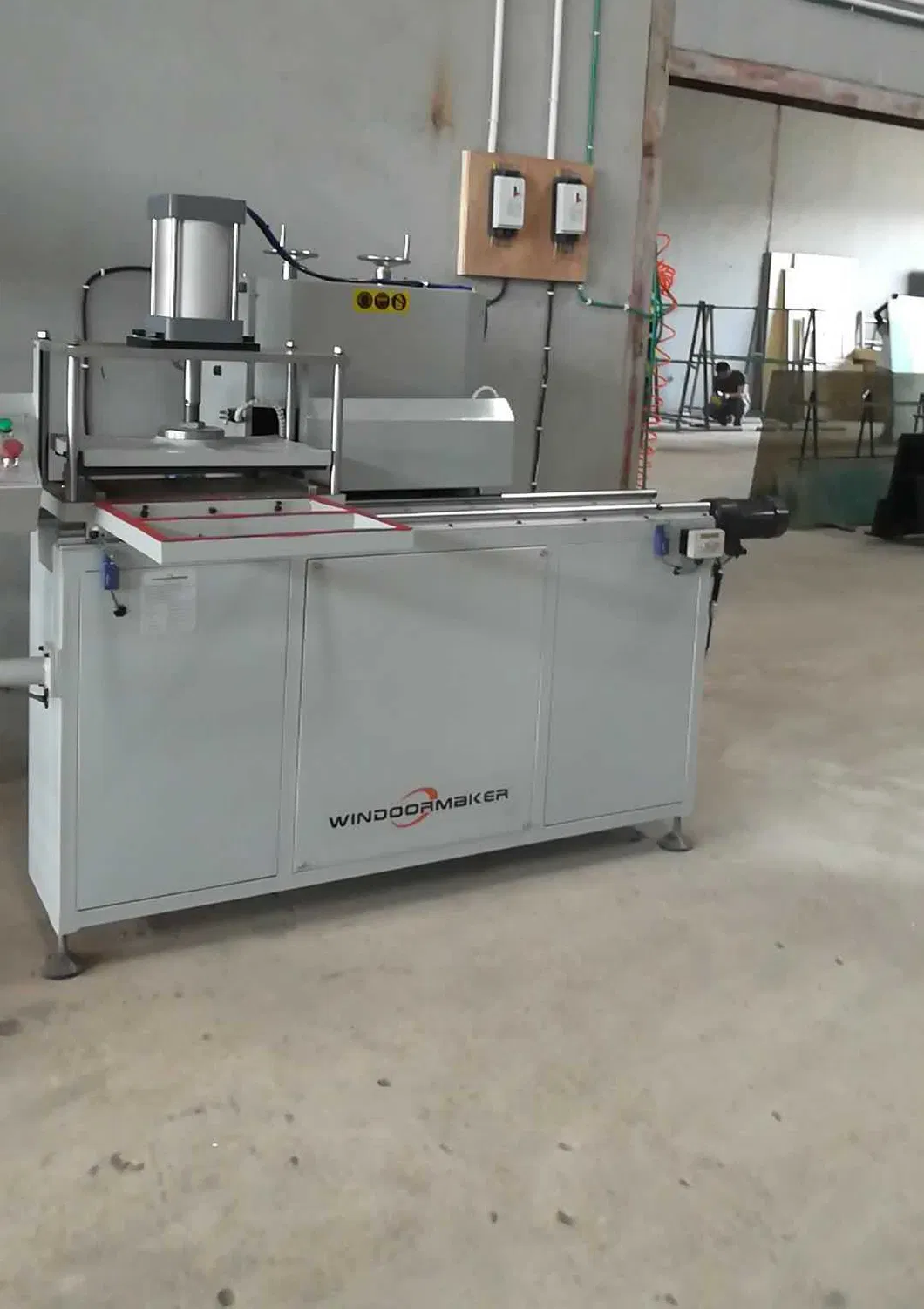

Customer site 1

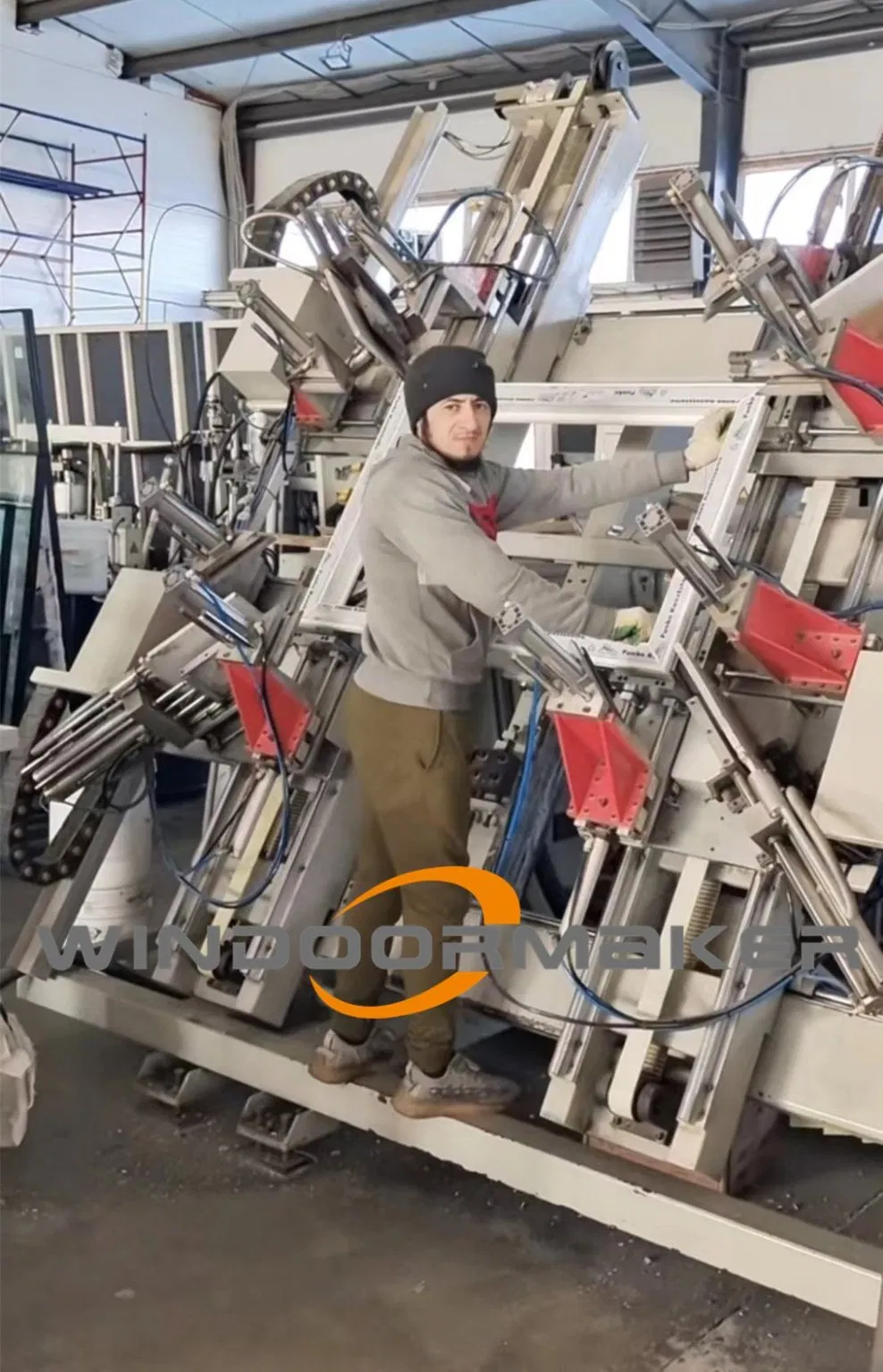

Customer site 2

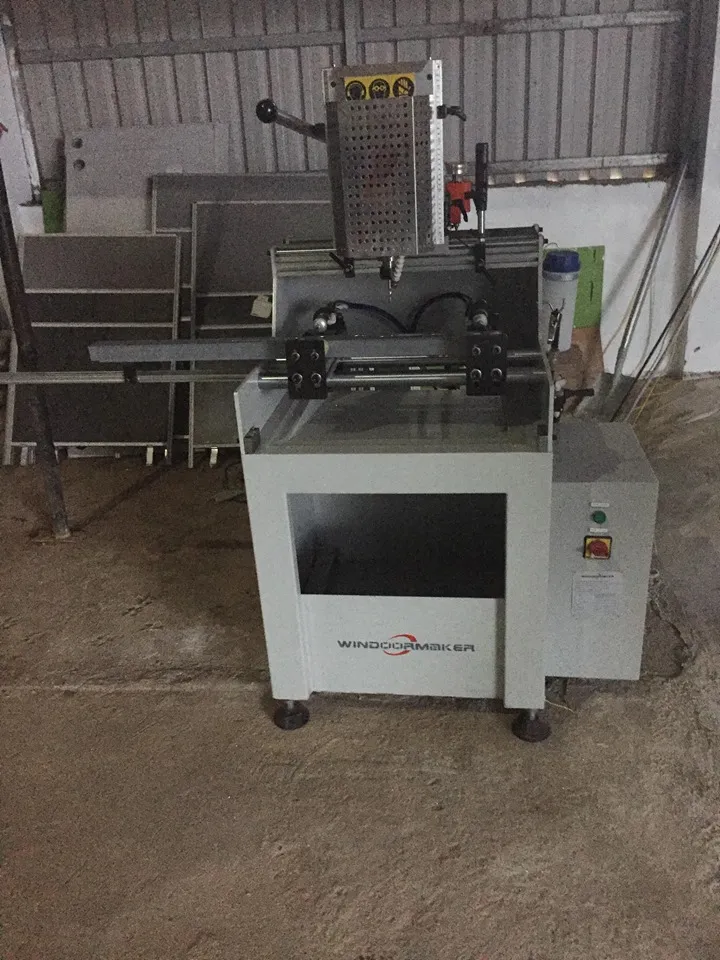

Customer site 3
📦

Packaging & Shipping

Packing 1

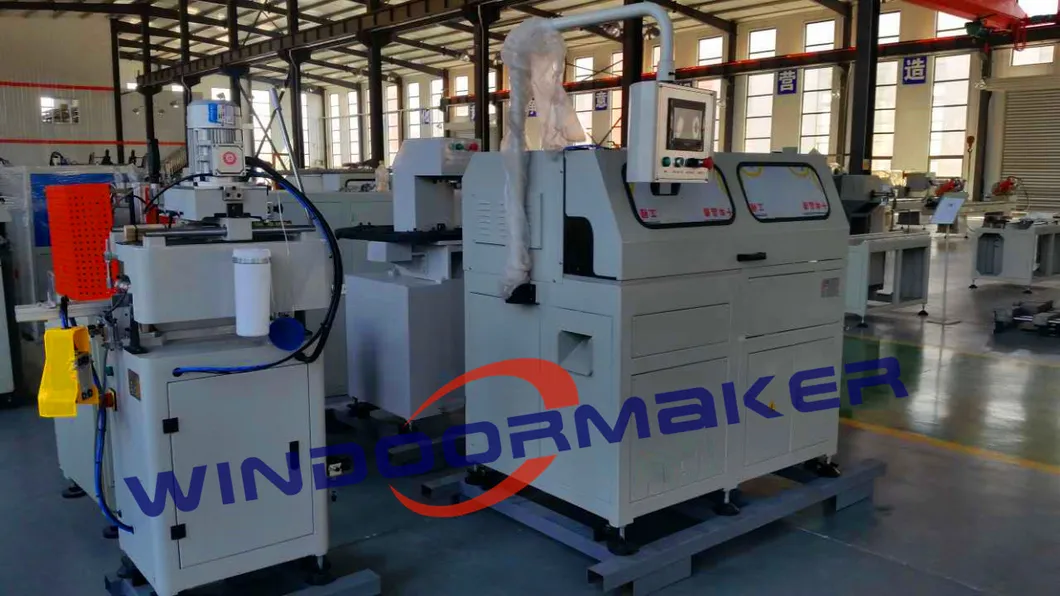

Packing 2
Shipping
❓

Frequently Asked Questions

What is the main application of the Four Head Corner Crimping Machine?
It is specifically designed for high-efficiency corner crimping of aluminum windows, doors, and curtain wall sashes, allowing all four corners to be completed in a single cycle.
What control system does the machine use?
The machine is powered by an imported CNC system (Schneider), providing intelligent operation and precise control over fabrication dimensions.
What are the maximum frame sizes supported?
The machine can handle frames up to a maximum size of 1800mm x 3000mm.
Does the machine support different profile heights?
Yes, the machine supports a maximum processing profile height of 93mm, and the crimping tooling is easily adjustable to meet various profile requirements.
}
What are the power and air requirements?
The machine operates on a 380V power supply (customizable) with a 7.5KW hydraulic motor, requiring an air pressure of 0.5~0.8Mpa for operation.
Is the machine durable for high-volume production?
Yes, the use of linear bearings for head movement and a robust hydraulic system ensures high accuracy and long-term stability in industrial environments.
