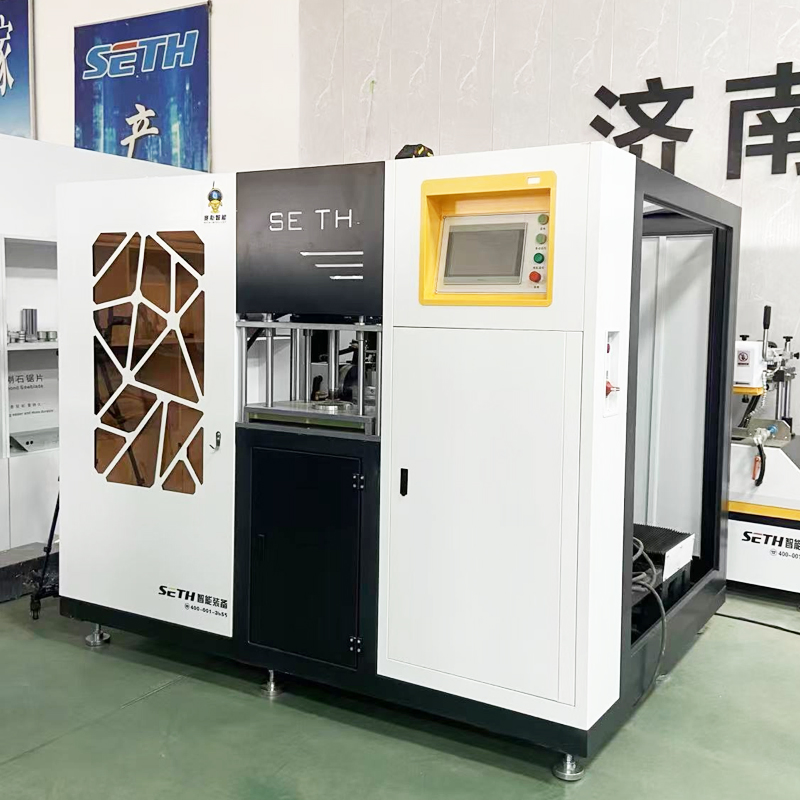

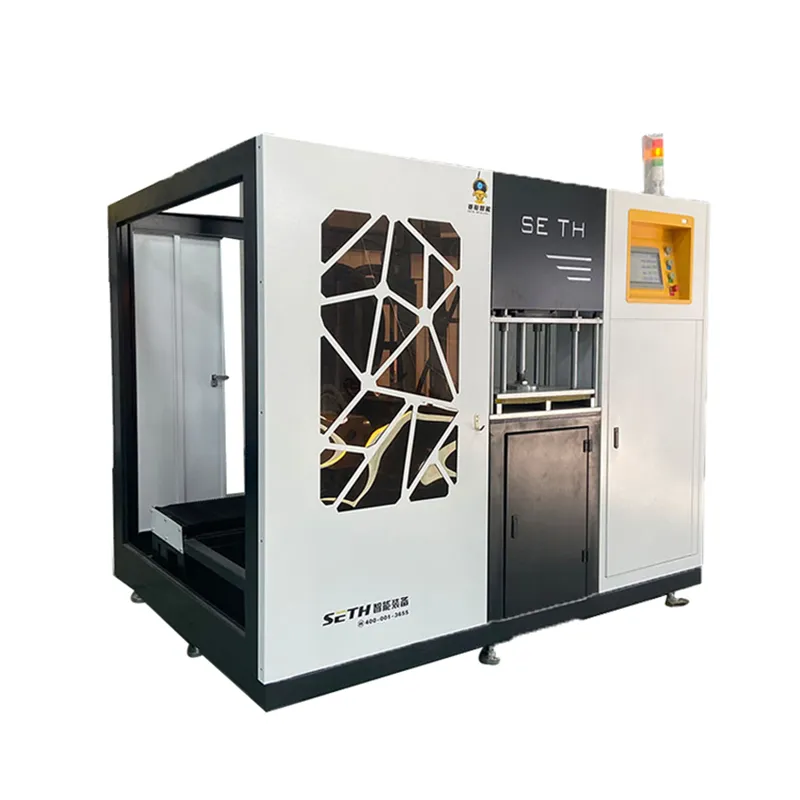

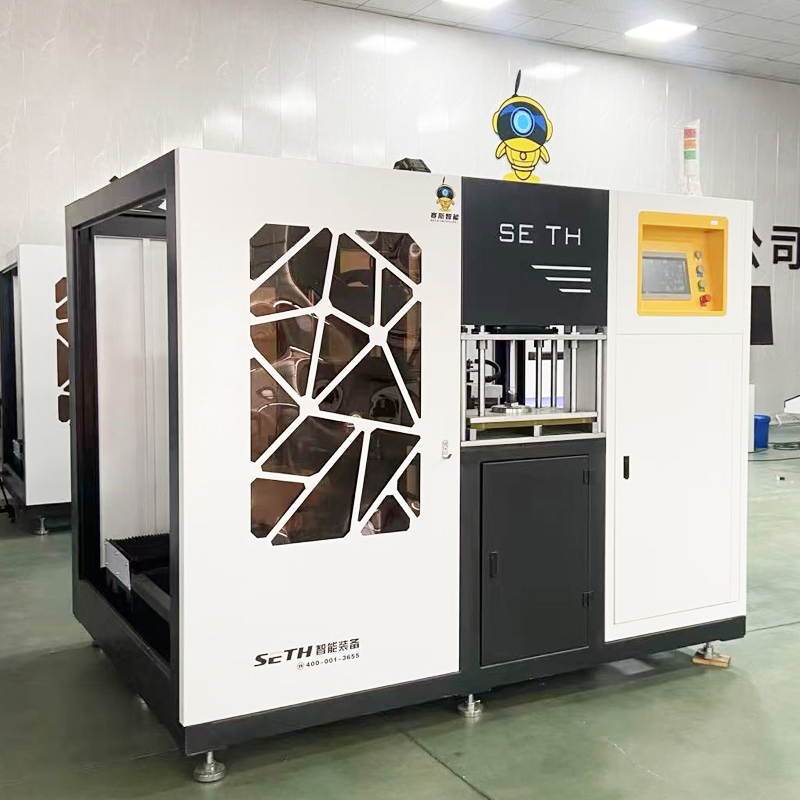

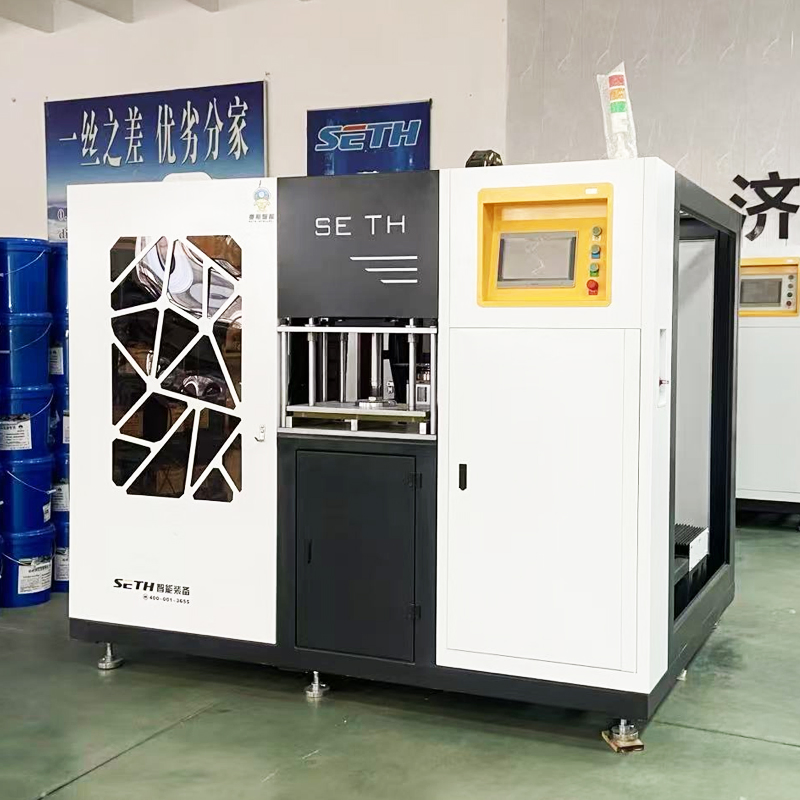

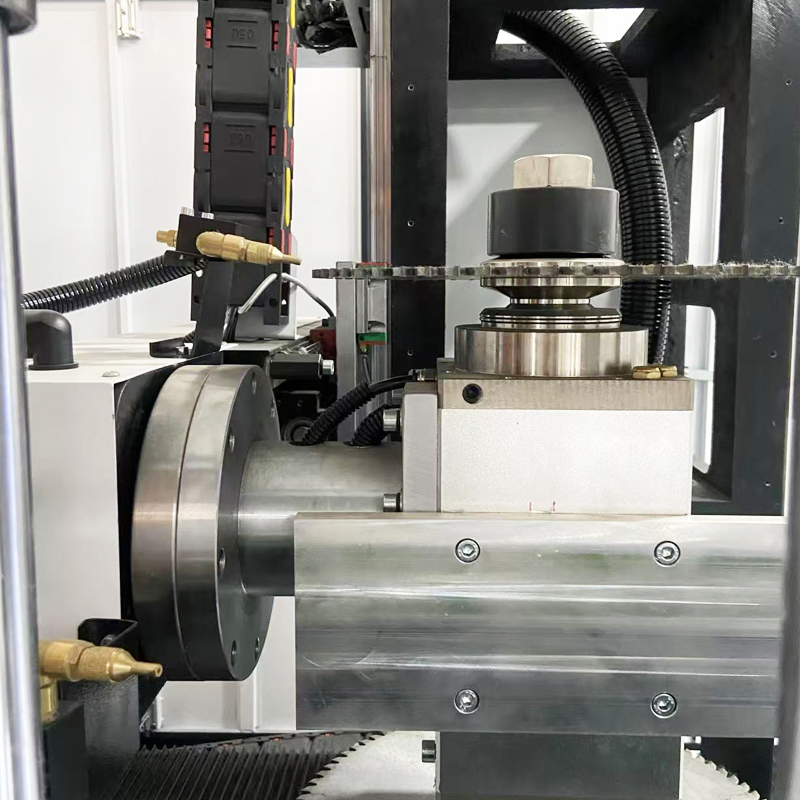

Aluminum Window Making Machine CNC End Milling Machine

Customization:	Available
After-sales Service:	Video Instruction, Online
Warranty:	15 Month

Basic Specifications

Model NO.	LDXB3+2-CNC-350	Condition	New
Certification	ISO, CE, TUV	Automatic Grade	Automatic
CNC or Not	CNC	Voltage	380V/50Hz
Total Power	13kw	Max Rotary Speed	2800rpm
Worktable Dimension	500×320mm	Motor Shaft Diameter	Ф30mm
Milling Cutter Dia.	Ф300mm	Cutting Blade	350mm
Max size of Mortise	110mm	HS Code	8459619000
Production Capacity	500 Units/Month	Package Size	2.50m * 2.20m * 1.70m

Product Overview

This CNC End Milling Machine is an intelligent model for door and window systems. It supports connection with ERP/MES management software and specialized door/window design software to realize integrated production and sales control, significantly improving efficiency.

✓Smart Workflow: Scan QR codes to automatically generate machining processes for profile end faces, reducing manual labor.

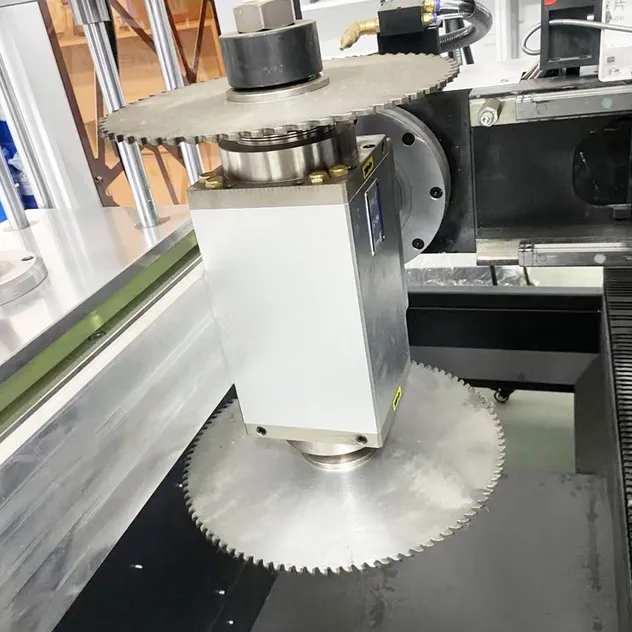

✓Multi-Profile Milling: Spindle rotates 0/90°, allowing simultaneous milling of multiple profiles.

✓CNC Precision: 3-axis CNC system handles rotating axes automatically for one-step forming.

✓Servo Control: Tool adjustments are servo-controlled, eliminating the need for custom tooling for different profiles.

Technical Specifications (LJDX-200C)

Power Supply	380V/50Hz	Milling Cutter Diameter	300mm
Total Motor Power	13kW	Worktable Feed Stroke	0~1300mm
Motor Speed	2800r/min	Open Tenon	110mm
Operating Pressure	0.6~0.8MPa	Worktable Dimension	500×320mm
Overall Dimension	2200×2200×1700mm	Gross Weight	750kg

Service & Support

Standard Warranty: 15 months quality guarantee for main parts. Free replacement for non-artificial failures during the warranty period.

Support: Lifetime technical online support. Video instructions and online troubleshooting are available at any time.

Installation: We provide detailed video tutorials. On-site worker training can be arranged upon request.

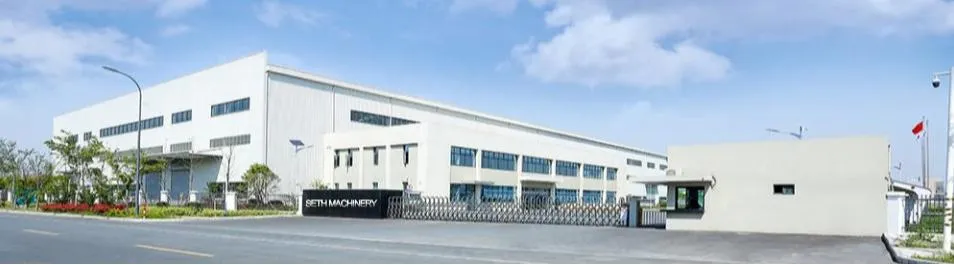

Manufacturing: Our facility is ISO9001, SGS, and CE certified with over 15 years of industry experience and 10+ national patents.

Packaging & Shipping

All machines are professionally packed for international transit using high-quality protective materials to ensure safety during delivery.

Frequently Asked Questions

Q: How to operate the CNC end milling machine? A: Each machine is fully adjusted and tested before delivery. We provide a comprehensive operation manual and video instructions. For additional help, we offer remote online support.

Q: What is the typical lead time for delivery? A: The standard production cycle usually takes 15 to 25 business days after the initial deposit is confirmed.

Q: What are your accepted payment terms? A: We standardly accept T/T with a 30% deposit to initiate the order and the remaining 70% balance prior to shipping.

Q: Are you a direct manufacturer? A: Yes, we are a factory specializing in window and door machinery. We can also assist in sourcing related products to provide a one-stop solution for your production line.

Q: What is the monthly production capacity of your workshop? A: Our workshop has a high capacity, producing more than 20,000 units of various window processing machines annually.

Q: Does the machine support custom window profiles? A: Yes, the CNC system and servo-controlled tools allow the machine to adapt to various profiles without needing specialized manual tool changes.
