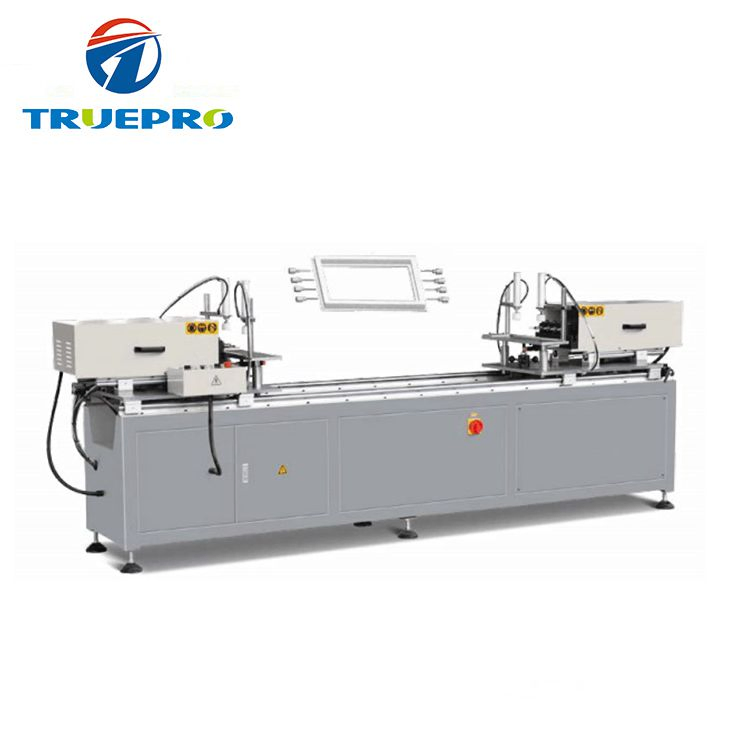

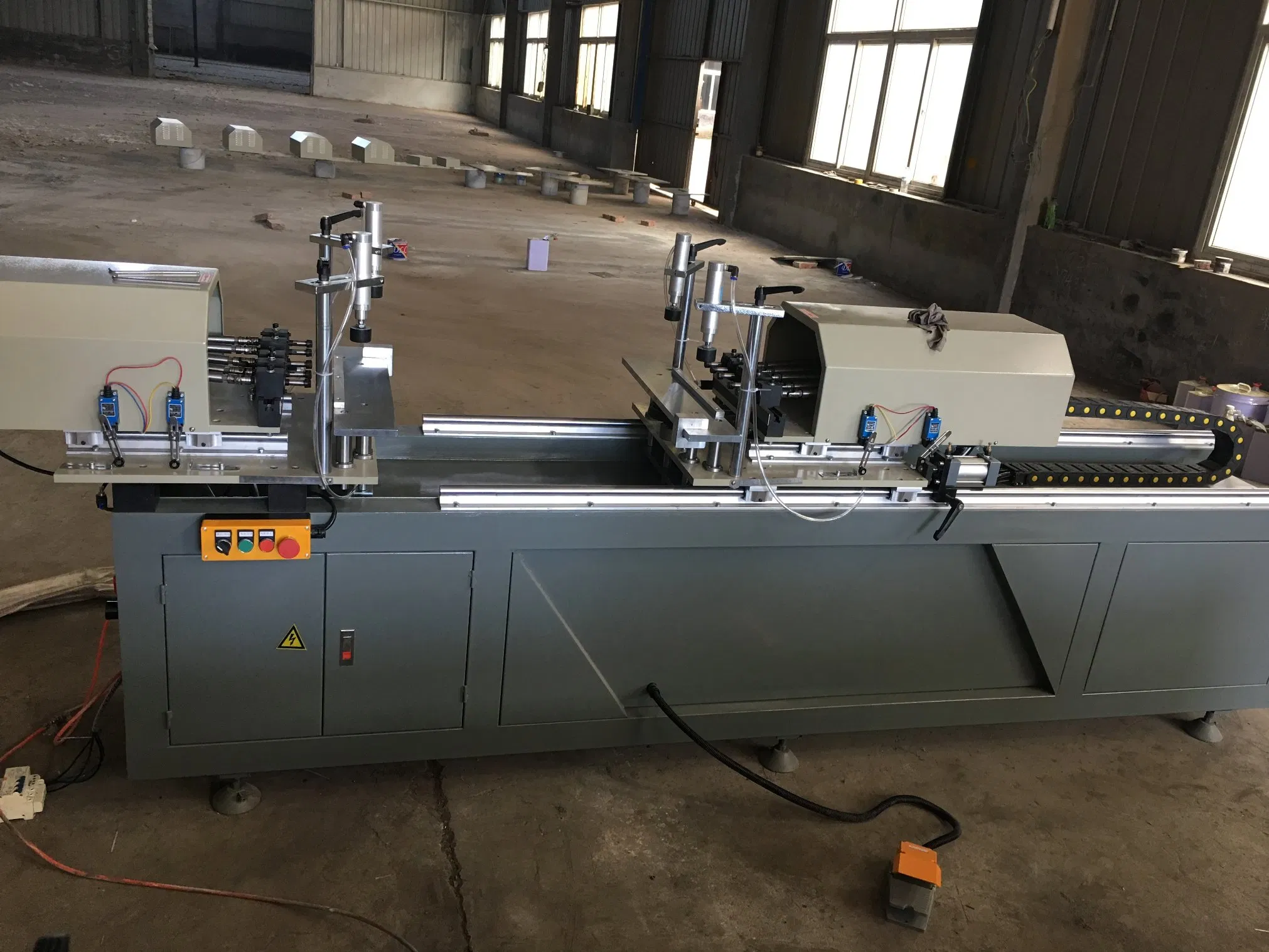

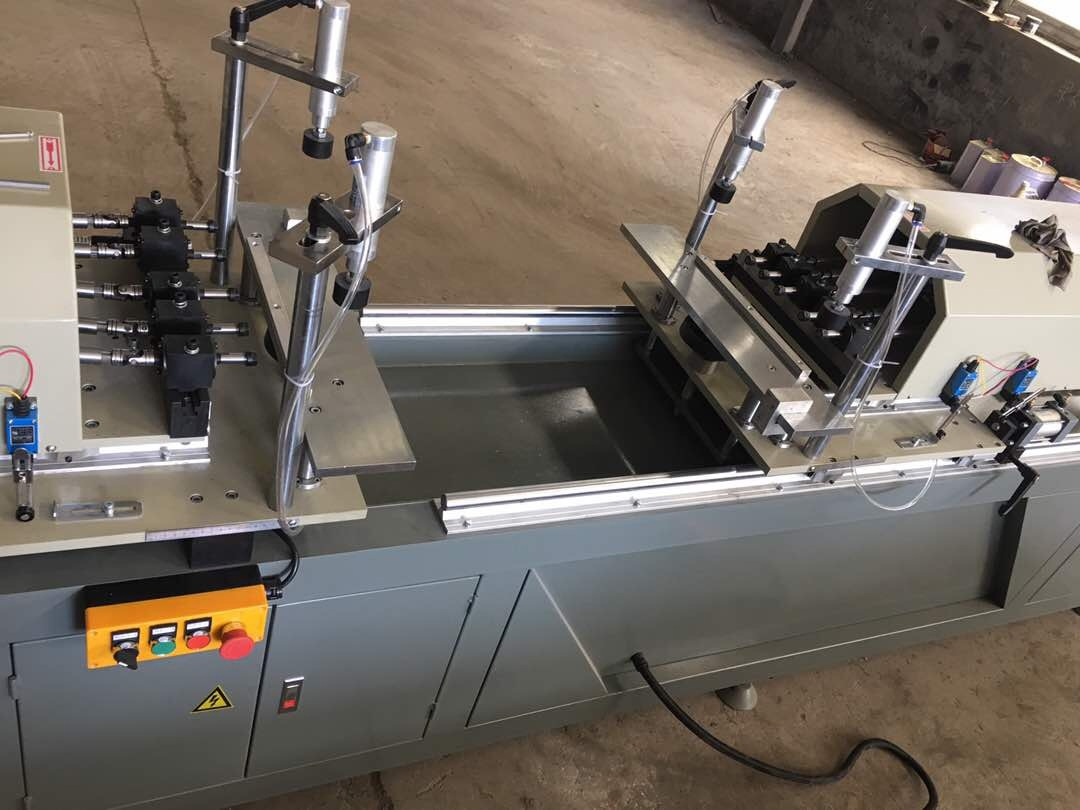

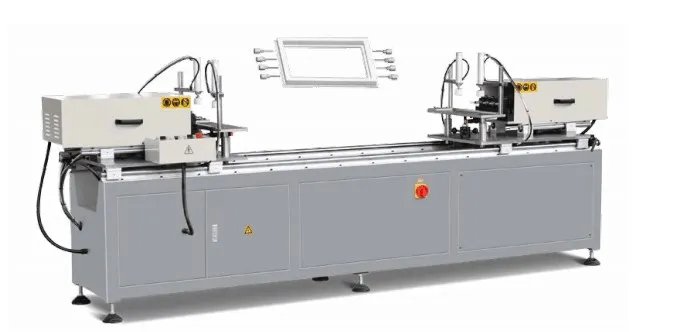

Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
1 / 5
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
Aluminum PVC Window Door Making Hinge Hole Drilling Machine

Aluminum PVC Window Door Making Hinge Hole Drilling Machine

Customization: Available
Condition: New
Certification: ISO, CE
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
CJLZK-1800
Automatic Grade
Automatic
CNC or Not
not CNC
Voltage
380V
Power(W)
3.0kw
Air Pressure
0.5-0.8MPa
Air Consumption
30L/Min
No. of Power-Drill
8
Process Dimension
300*2000mm
Drilling Diameter
1-7mm
Application
Mill UPVC Window Water Slot
Applicable Material
PVC, UPVC
📘 Product Overview
Aluminum PVC Window Door Making Hinge Hole Drilling Machine
1
It is used for drilling hinge installing holes, sliding support holes, and four connecting rod holes of aluminum window and door profiles (outward windows, tilt windows, etc.).
2
It can process 8 holes simultaneously on both sides, ensuring extremely high machining efficiency.
3
Equipped with a high-precision multi-axis drilling package to ensure machining accuracy and a long service life.
4
Foot switch control for easy and safe operation.
📊 Technical Parameters
Model CJLZK-1800 Air Pressure 0.5-0.8MPa
Input Power 1.14kw No. of Power Drill 8
Power Supply 380V 50Hz Motor Rotary Speed 25000r/min
Drilling Diameter Φ1-7mm Process Dimension 300*2000mm
Min Hole Distance 22mm Spindle Speed 1400rpm
Overall Dimension 1200*1200*1800mm Weight 300kg
🖼️ Product Gallery

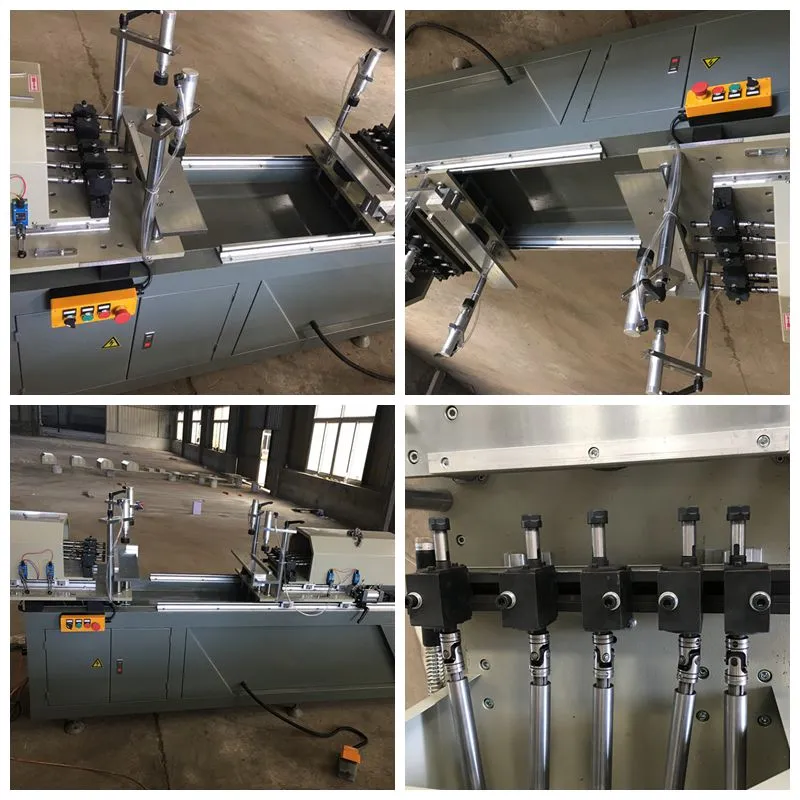

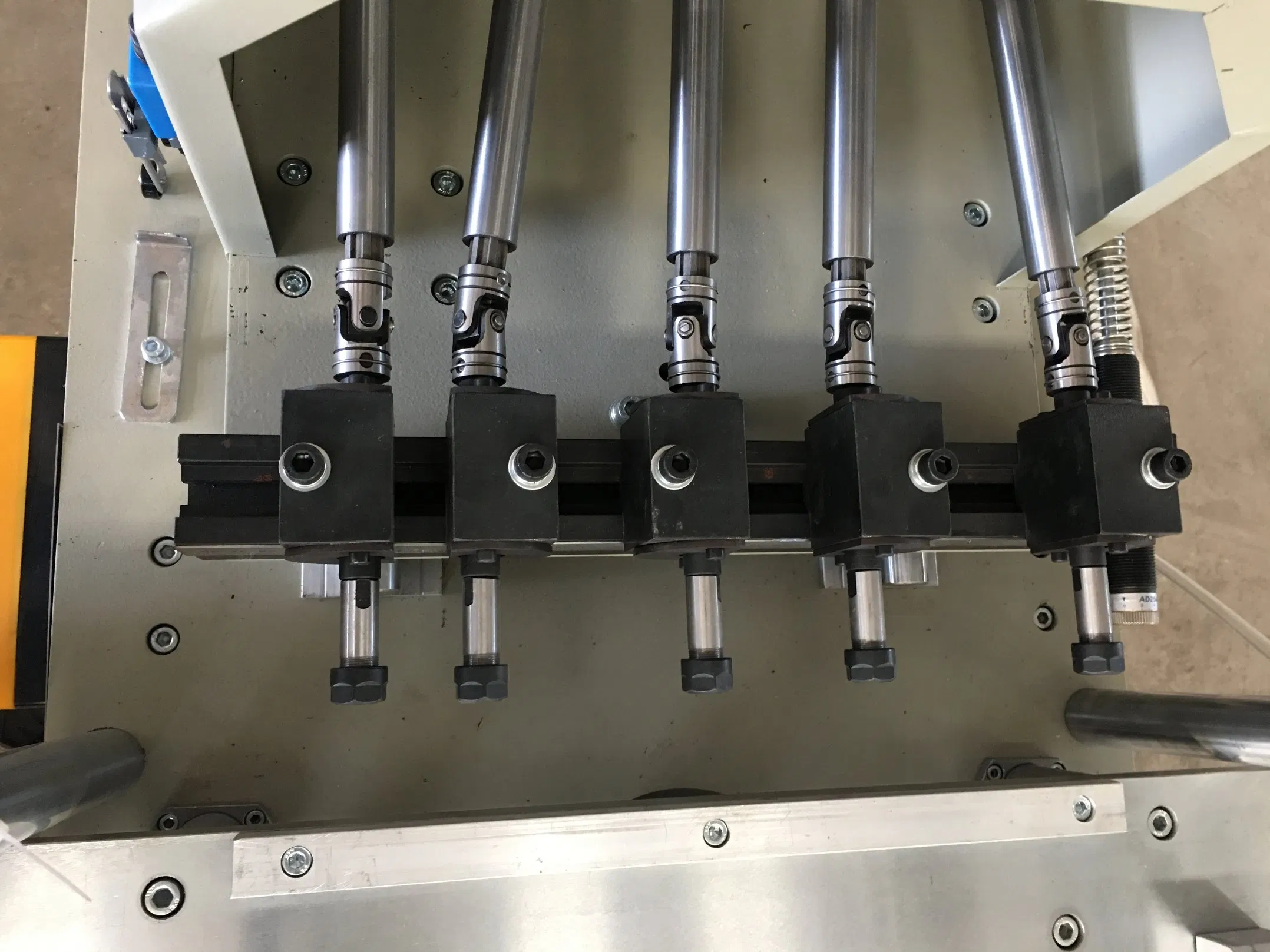

Detailed View
Machine Part 1
Machine Part 2
Machine Part 3
Machine Part 4

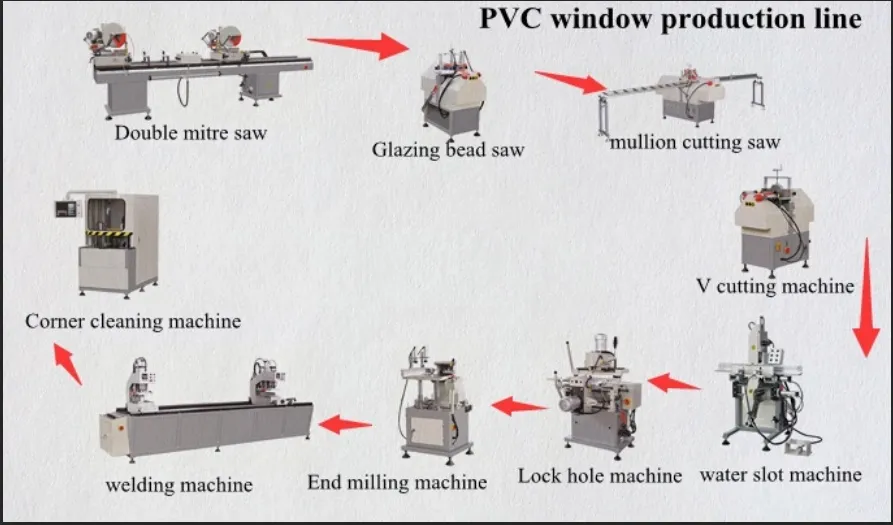

Processing View
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we have been providing professional products in this field for 10 years.
How to install the machine?
We provide installation instructions via video, email, and pictures. For large projects, we can arrange for technicians to assist with installation in your country.
Is customization available?
Yes, we can customize the machine according to the detailed drawings you provide.
What is your after-sale service?
We offer 24-hour technical support by phone, email, or online chat. The machine comes with a 12-month warranty period, and senior engineers are available for installation and training staff.
How long is the delivery time?
Generally, single machines require 15-30 days, while a whole plant setup may take 30-50 days.
Do you have CE and UL certification?
Yes, our machines comply with CE and UL certification standards.
