Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
1 / 5
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail
Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail

Aluminum Household Ladder Making Machine with Automatic Punching and Drilling System for Front Rail

Customization: Available
After-sales Service: Online Technical Support, Free Spare Parts
Warranty: 1year
Send Inquiry

Product Description

📊

Basic Information

Model NO.
JOM-J002
Certification
CE, RoHS, PC, ISO9001
Transport Package
Fumigation Wooden Case
Specification
180*120*120cm
Origin
China
HS Code
8462490000
Capacity
800 ladder/Day
📦

Packaging & Delivery

Package Size
440.00cm * 80.00cm * 169.00cm
Gross Weight
2000.000kg
⚙️

Product Description

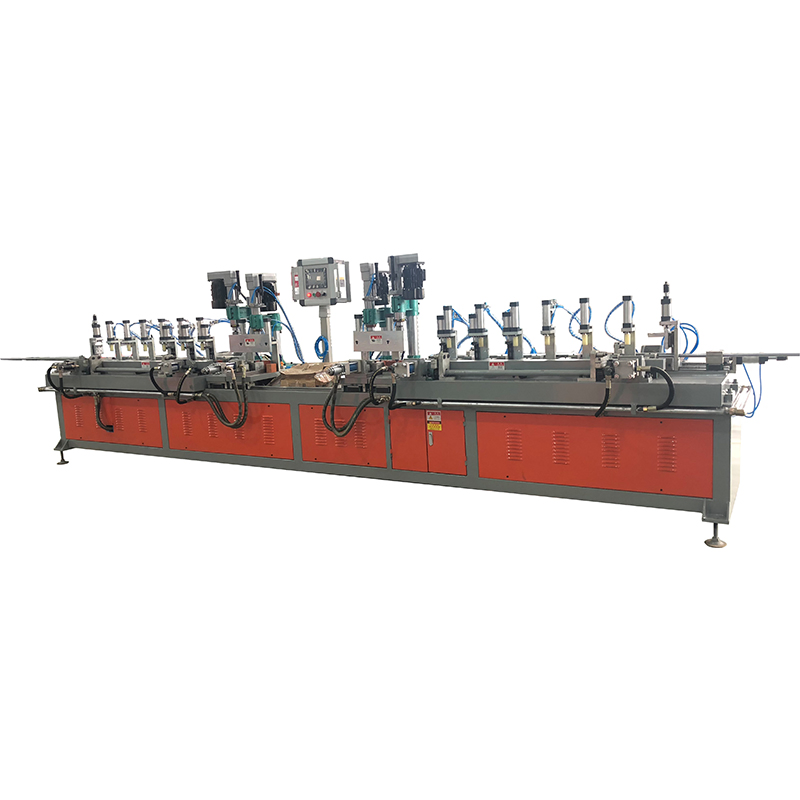

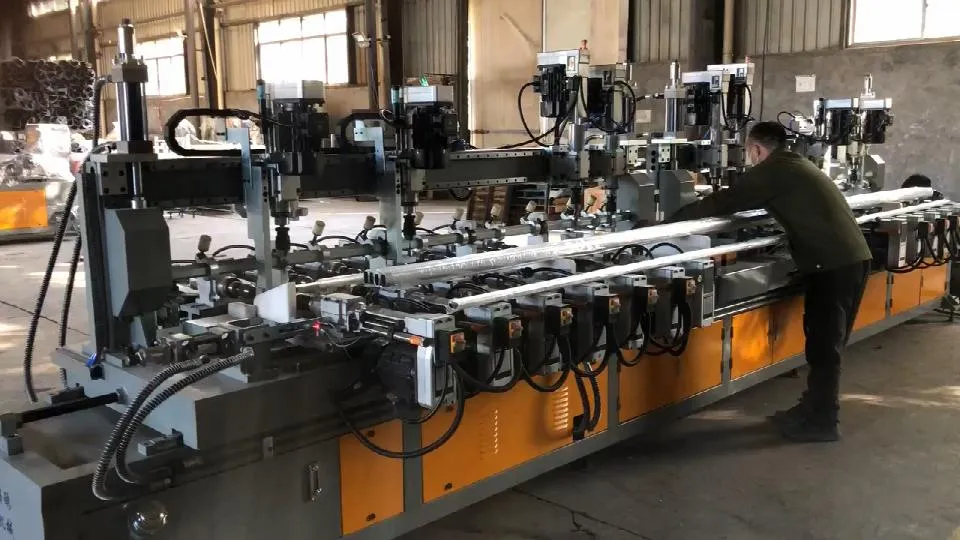

Household Ladder Automatic Punching and Drilling Machine for the Front Rail

This high-precision machine is specifically designed for the automated punching and drilling of holes in household ladder front rails, ensuring consistent quality and high output.

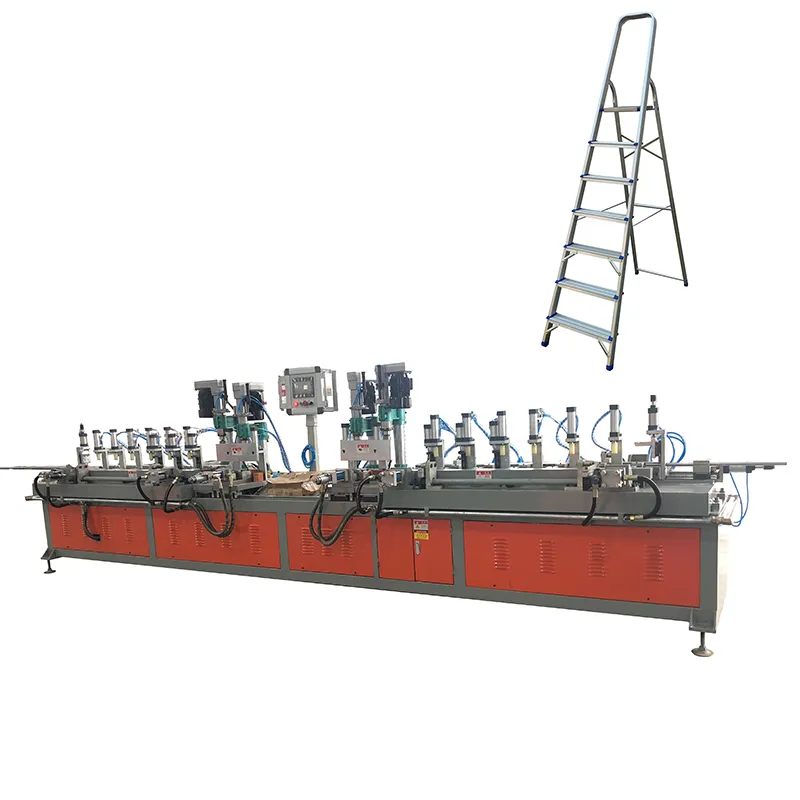

Ladder Making Machine
📝

Technical Data

Voltage380V/50HZ/3Phase
Motor5.5KW
Pressure14Mpa
Oil Tank60L
Efficiency8s/pc
Max Material Thickness1-1.25mm
Max Material Length2.27meter
💡

Key Features

Fully automatic solution for high efficiency
Easy matrix replacement for different hole formats
Profile displacement controlled by a servomotor
Adjustable pitch between holes (regular/irregular)
Customizable voltage and rail length
User-friendly system setup and operation
🖼️

Detailed Photos

❓

Frequently Asked Questions

1. What is the production capacity of this punching machine? The machine is highly efficient with a production speed of approximately 8 seconds per piece, allowing for a capacity of up to 800 ladder components per day.
2. Can the machine handle different rung distances? Yes, the system is designed for flexibility. It can accommodate both regular and irregular rung distances, and the pitch between holes is easily adjustable.
3. Are the technical specifications like voltage and length customizable? Absolutely. Both the operating voltage and the maximum processing length of the machine can be customized to meet specific regional requirements and factory standards.
4. How is the precision of profile movement maintained? The displacement of the profiles is precisely controlled by a high-performance servomotor, ensuring accurate hole positioning every time.
5. Is it difficult to change the molds for different ladder models? No, the machine features an easy matrix replacement system, allowing operators to switch between different hole formats and molds quickly and efficiently.
6. What are the typical payment and delivery terms? Generally, the delivery time is within 10-20 days. Payment terms usually involve a 50% deposit upon order confirmation, with the remaining balance cleared before delivery.
