Product Description

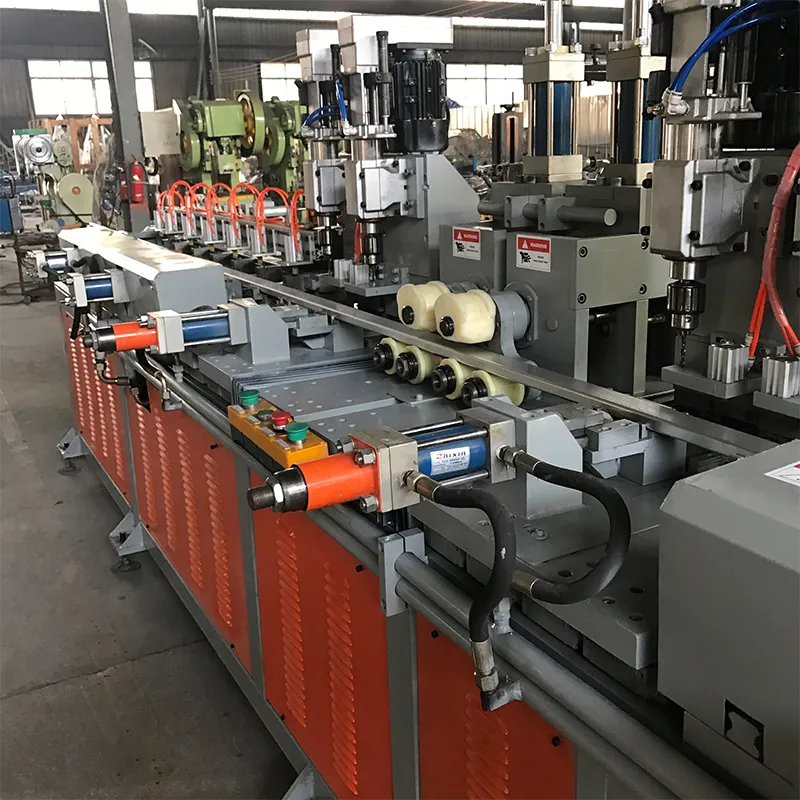

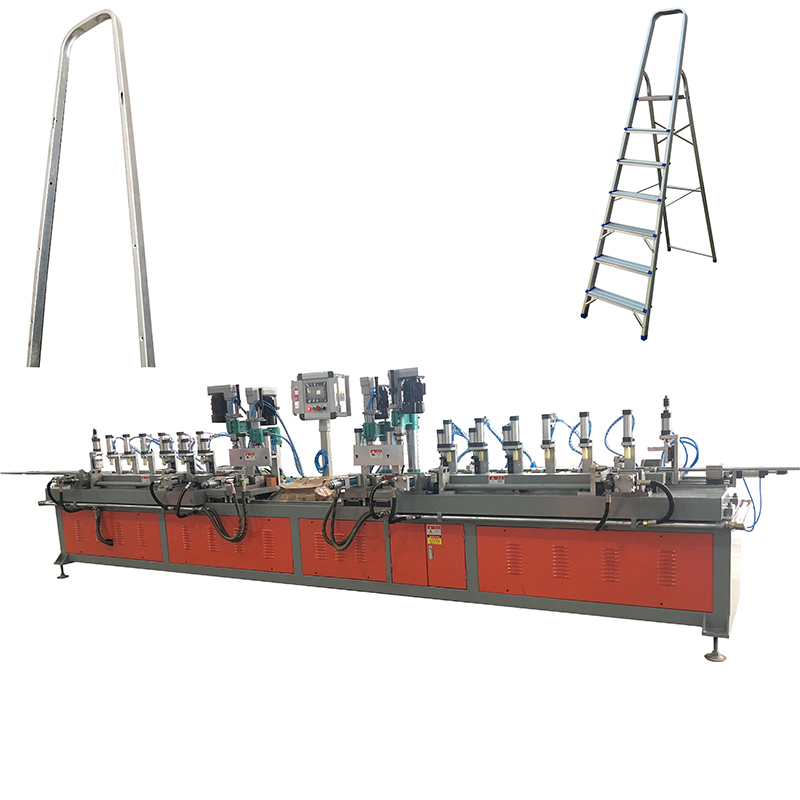

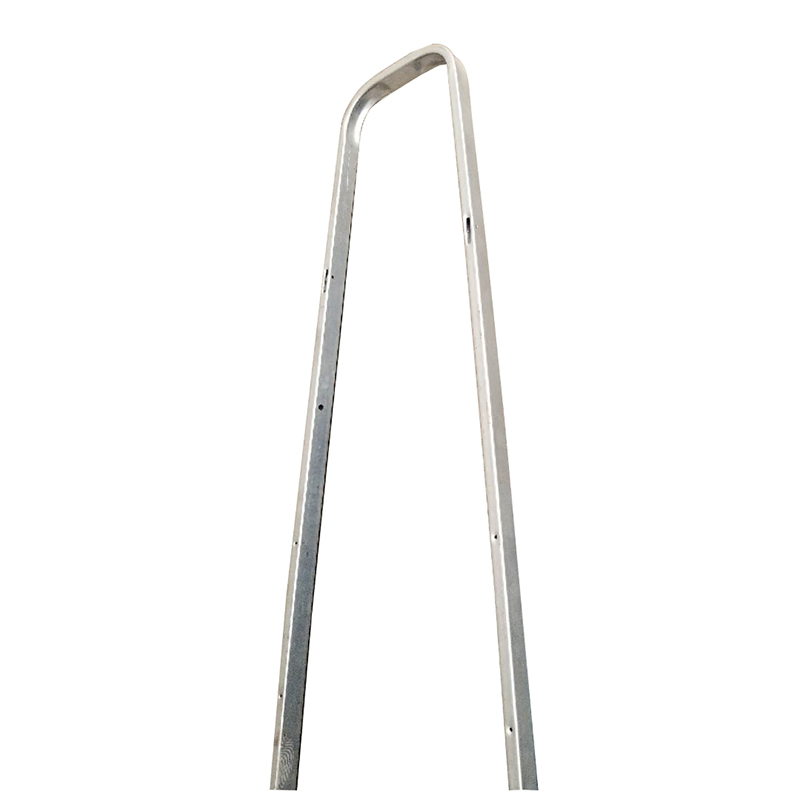

Household Ladder Automatic Bending-Punching-Drilling Machine for the Front Rail
The Machine is an automatic making machine specifically designed for the production of household ladders.
Technical Data
| Voltage | 380V/50HZ/3Phase |
| Motor | 5.5KW |
| Pressure | 7Mpa |
| Oil Tank | 60L |
| Efficiency | 15s/pc |
| Max Material Length | 2300-7000mm |
| Hydraulic unit (integrated) | 150bar |
| Pneumatic pressure (required) | 6bar |
Key Features

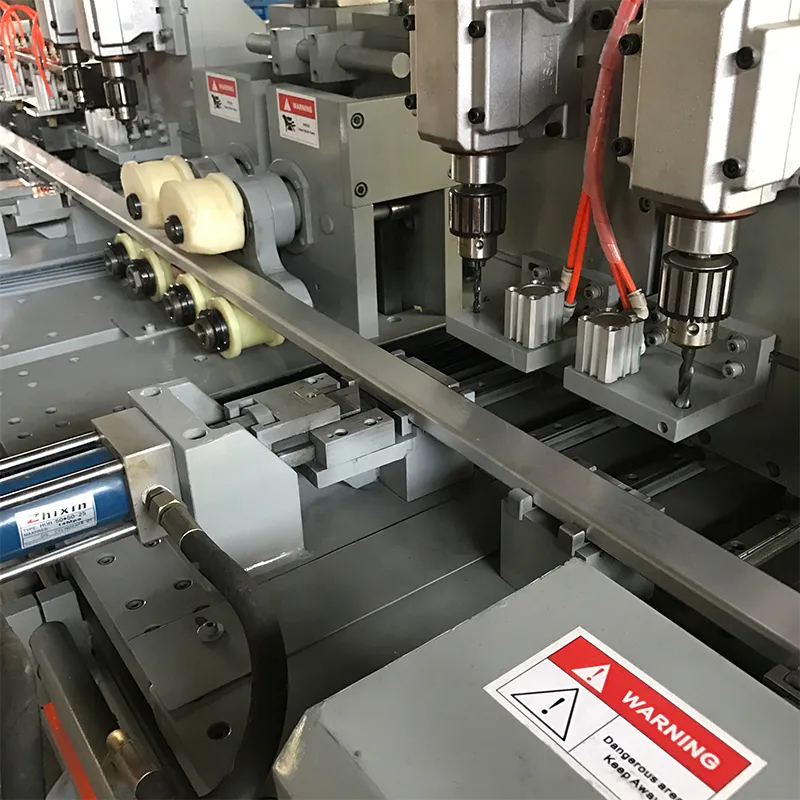

Fully automatic processing solution
Easy matrix replacement for different hole formats
Adjustable pitch between holes via servomotor
Profile displacement controlled by high-precision servomotor
Customizable length and voltage requirements
Supports both regular and irregular rung distances
Changeable initial hole positions
User-friendly system setup and handling
Quick-change mold design
Frequently Asked Questions
1. What is the production efficiency of this machine?
The machine is highly efficient with a processing speed of approximately 15 seconds per piece, allowing for a production capacity of up to 800 ladders per day.
2. Can the distance between the ladder rungs be adjusted?
Yes, the machine uses a servomotor to control profile displacement, which allows you to set both regular and irregular distances between rungs as needed.
3. Is it possible to customize the machine's voltage and length?
Absolutely. We offer customization options for both the operating voltage and the maximum material length (ranging from 2300mm to 7000mm) to suit your facility's requirements.
4. What kind of power and air supply is required?
The machine requires a 380V/50HZ/3Phase power supply and a pneumatic air pressure of 6bar for proper operation.
5. How difficult is it to switch between different ladder models?
The machine is designed with an easy matrix and mold replacement system, making it simple and fast to switch between different hole formats and ladder specifications.
6. What certifications does this equipment hold?
The machine is fully certified with CE, RoHS, PC, and ISO9001 standards, ensuring high quality and safety in operation.
