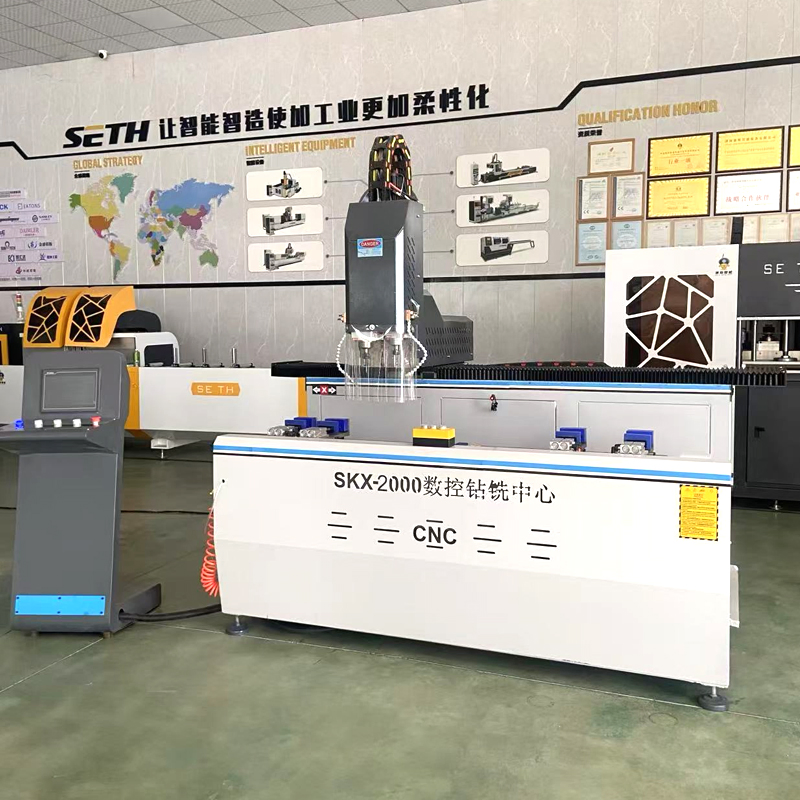

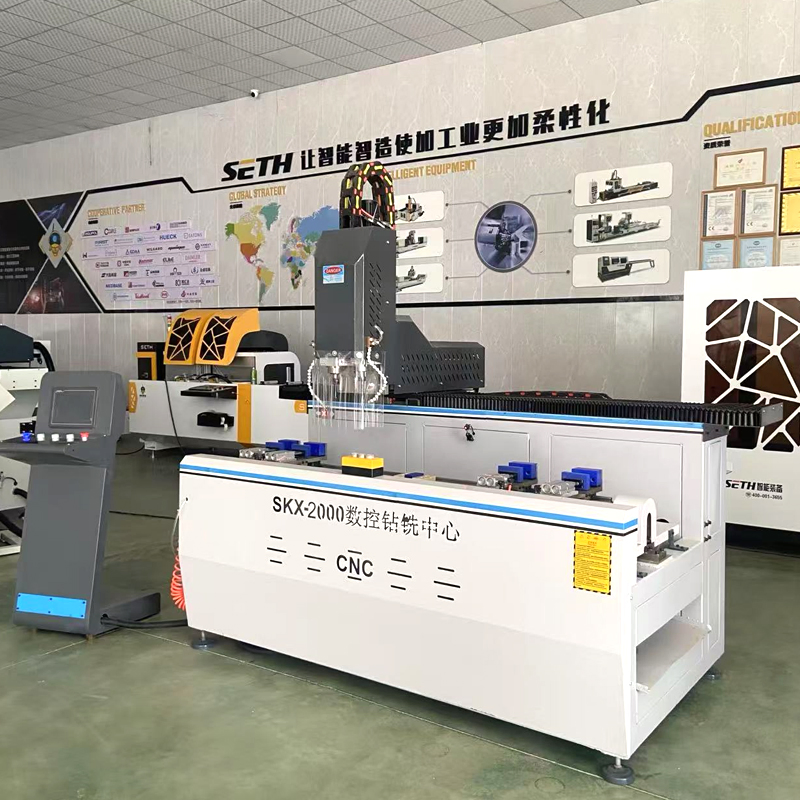

Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
1 / 5
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine
Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine

Aluminum Window Door Hinge Drilling CNC Drilling Milling Machine

Customization: Available
After-sales Service: Video Instruction, Online
Warranty: 15 Month
Send Inquiry

Product Description

📊 Basic Information

Model
SKX3+1-CNC-2000
Condition
New
Certification
ISO, CE, TUV
Automatic Grade
Automatic
CNC or Not
CNC
Total Power
10kw
Max Rotary Speed
12000rpm
Main Axis Power
S1:3.5kw S2:3.5kw
Production Capacity
500 Units/Month

⚙️ Aluminum Window Door Hinge CNC Milling Machine

Our high-performance CNC Drilling Milling Machine is suitable for industrial aluminum alloy profiles, doors and windows, and curtain wall aluminum alloy profiles. It efficiently processes round holes, slot holes, lock holes, special-shaped holes, milling, chamfering, and plane carving.

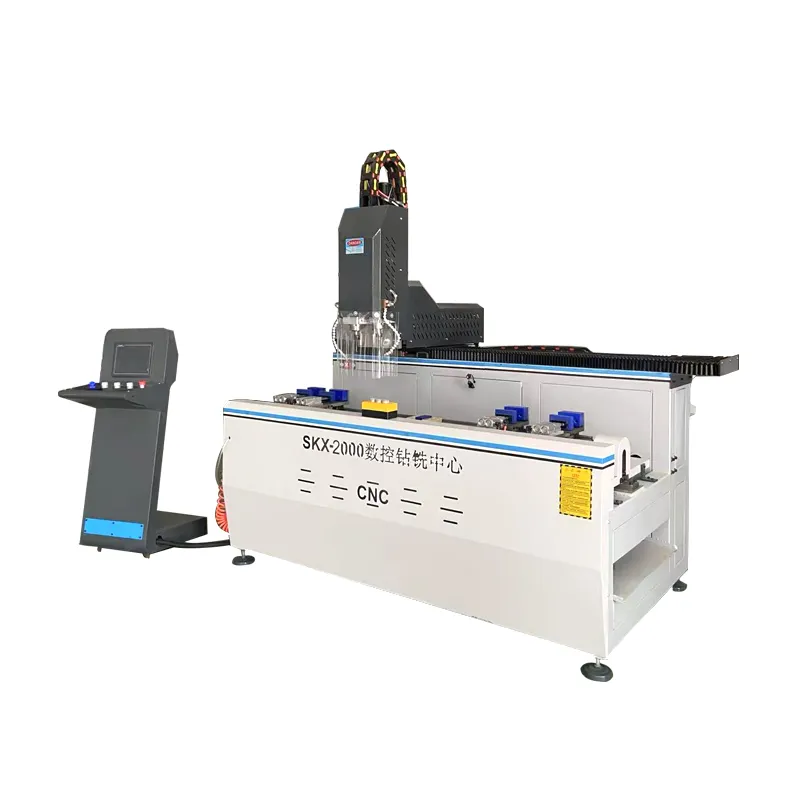

CNC Drilling Milling Machine Main View

Key Features

  • ✓ Air-cooled spindle with 3.5 kw power and 0~12000 rpm speed for high precision and reliability.
  • ✓ Imported guide rails and high-precision helical gear transmission for smooth motion.
  • ✓ 180-degree table rotation (-90° to +90°) enabling three-sided profile processing.
  • ✓ Deep hole processing capability through table flip, improving efficiency and quality.
  • ✓ Manual pump oil supply system and tool system control spray cooling device.
  • ✓ High-quality electrical components from international brands like Schneider.
  • ✓ Heavy-duty steel structure body after aging treatment for long-term stability.

📋 Technical Specifications

*(Custom configurations available upon request)

Model SKX3+1-CNC-2000
Power Supply 380V/50Hz Total Power 10kw
Max Rotary Speed 12000r/min Main Axis Power S1:3.5kw S2:3.5kw
X-axis Travel 2000mm Y-axis Travel 300mm
Z-axis Travel 280mm X-axis Speed 50m/min
Y-axis Speed 15m/min Z-axis Speed 15m/min

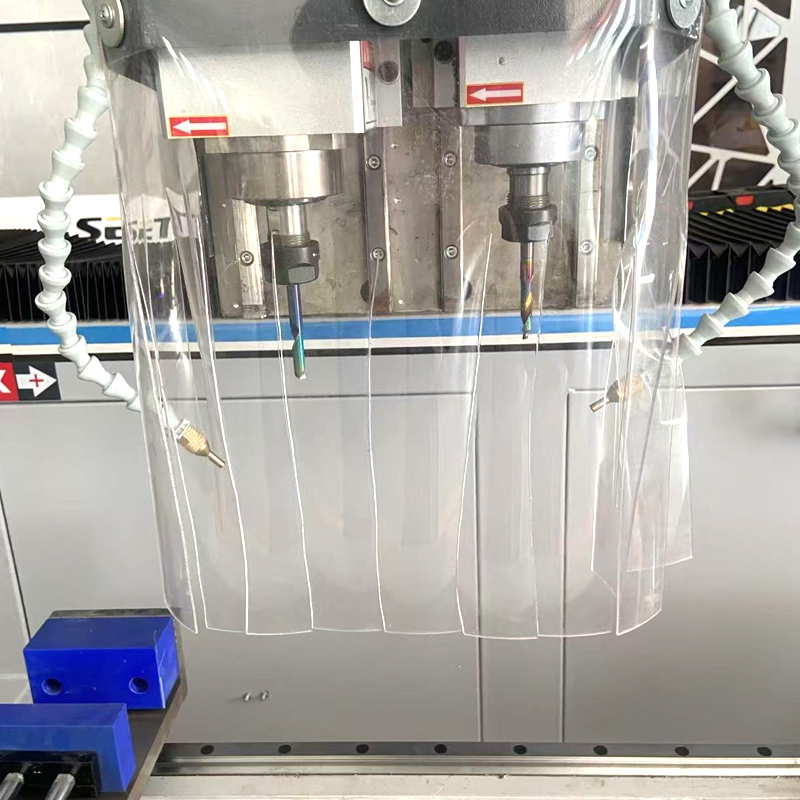

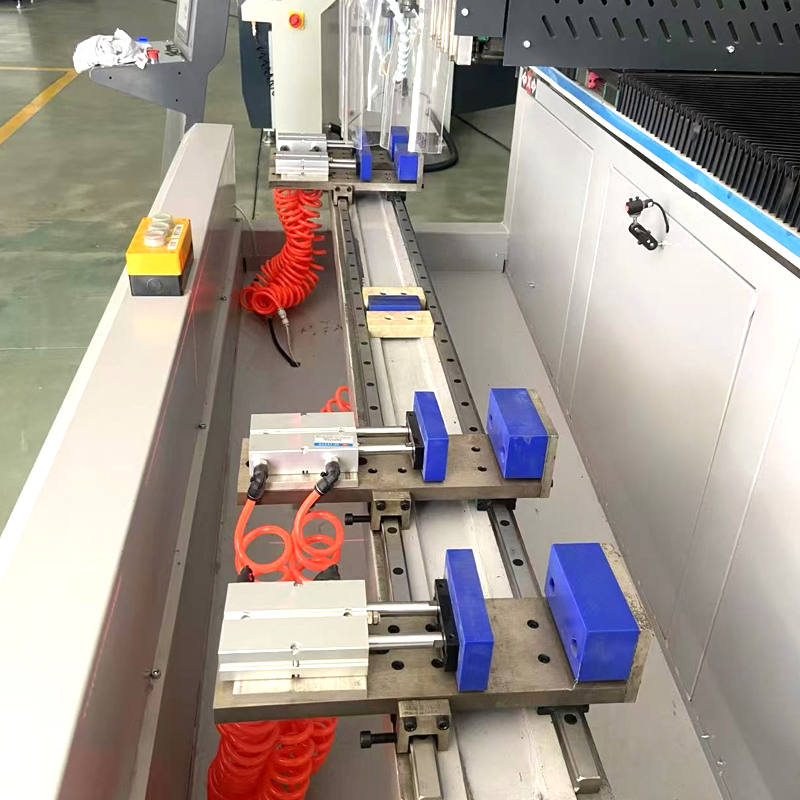

Detail Image 1
Detail Image 2
Detail Image 3

🔍 Front View & Design

Appearance and cutting parameters can be customized according to your specific requirements.

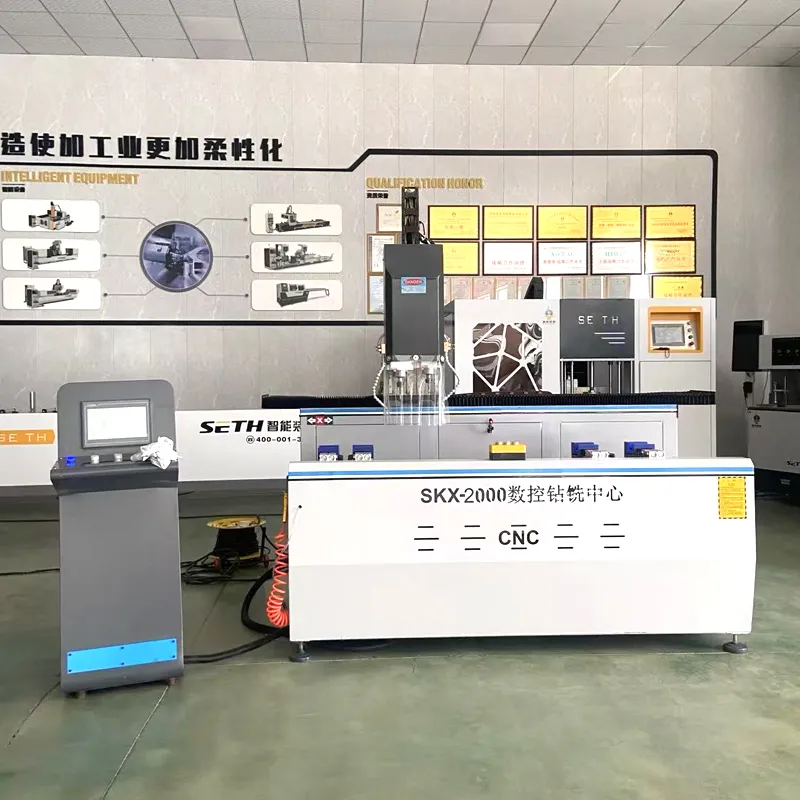

Full Front View of Machine

🛠️ After-Sales Service

Warranty
15 Months Standard Warranty

Technical Support: We guarantee the quality of main parts within 15 months. If parts fail without human error during the warranty period, they are provided free of charge. Online video support and technical guidance are always available.

Installation: We provide comprehensive online support video instructions. On-site worker training is also available upon request.

⭐ Why Choose Us?

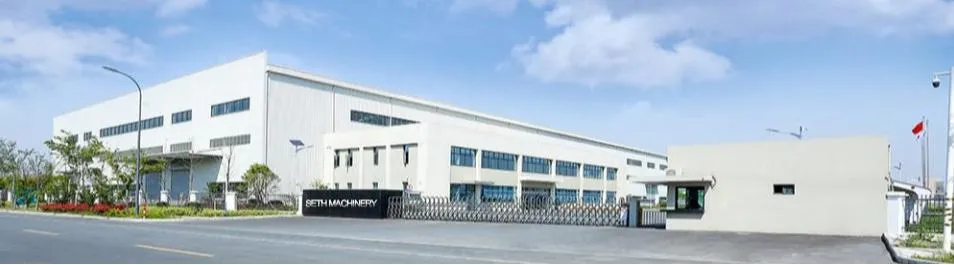

Workshop Quality
  • ★ 15 years of industry experience.
  • ★ State-of-the-art and well-equipped workshop.
  • ★ ISO9001, CE, and TUV certifications.
  • ★ Over 10 national patents in R&D.
  • ★ Professional OEM & ODM services available.
  • ★ Guaranteed on-time delivery.

📦 Packaging & Shipping

Package Size
320cm * 187cm * 220cm
Gross Weight
1200.00kg

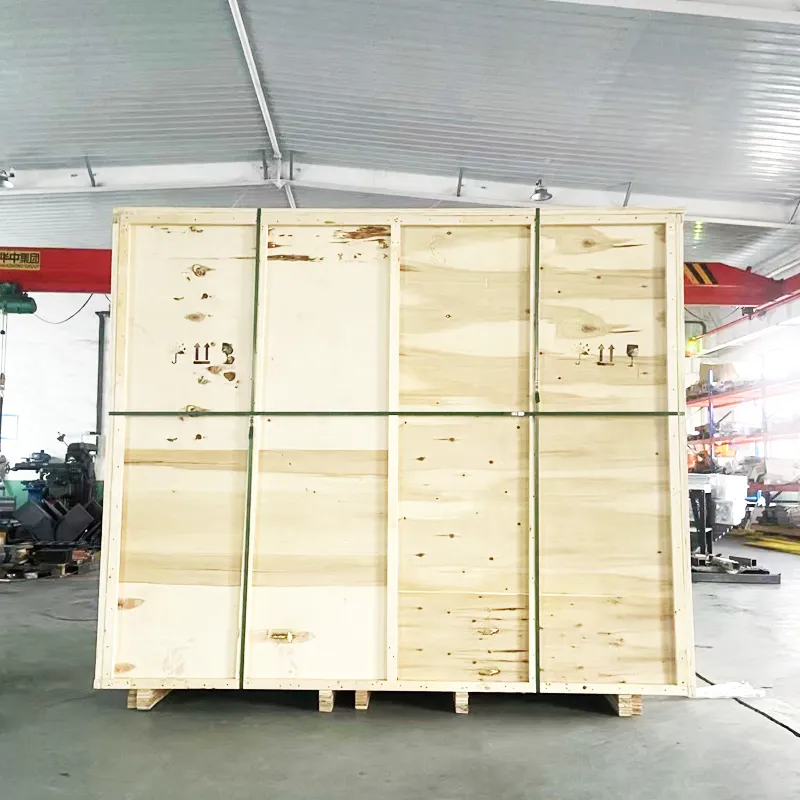

Packaging Detail 1
Packaging Detail 2

❓ Frequently Asked Questions (FAQ)

Q1: How do I operate the machine? A: We complete all adjustments and testing before delivery. We also provide comprehensive video and manual instructions. Our team is available online to assist with any additional questions.
Q2: What is the typical delivery time? A: Production typically takes between 15 to 25 days after the deposit payment has been confirmed by our bank.
Q3: What are your accepted payment terms? A: We require a 30% T/T deposit to confirm the order, with the remaining 70% balance due before delivery.
Q4: Are you a factory or a trading company? A: We are a direct factory. We also offer one-stop services to help you source related products if needed.
Q5: What is your monthly production capacity? A: Our workshop has a production capacity of approximately 500 units per month, totaling more than 20,000 machines per year.
Q6: Does the machine come with any certifications? A: Yes, our equipment is fully certified with ISO9001, CE, and TUV standards, ensuring high quality and safety for global markets.
