Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
1 / 5
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine
Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine

Aluminum Window Door Punching Machine CNC Pipe Punching Drilling Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
Customized
Type
High-Speed Punching Machine
Punch Shape
Open Punch
Slider Movement
Double Action
Drive Mechanism
Hydraulic Pump
Controlling Mode
CNC
Automatic Grade
Automatic
Power Source
Hydraulic Pressure
Precision
High Precision
Capacity
5--100 Ton
Voltage
380V or Customized
Punching Speed
70-120 Times/Min
Key Selling Points
High Productivity
Usage
Tube Pipe Punching Cutting
📦

Packaging & Delivery

Package Size
800.00cm * 130.00cm * 150.00cm
Gross Weight
5500.000kg
Transport Package
Professional Wooden Box
💡

Product Description

⚙️
Control System: Human-machine interface display, Touch Screen settings, NC control system, precise servo motor positioning, and module storage memory function.
🛠️
Structure: Robust steel plate welded structure ensuring durability and stability.
🔄
Mould Replacement: Easy die change system without complex adjustments, reducing damage and rejection rates. Skilled operators can change moulds within 10 minutes.
🎯
Punching Categories: Supports single hole, double hole, isometric, non-isometric, and rotary punching.
💧
Hydraulic & Servo System: Step-less operation adjustment with zero-load hydraulic loops. High-speed downward movement and low-speed processing for formation stability. Equipped with high-precision Italy-made digital scales.
📊

Technical Parameters

No. Specification Item Details
1Model Capacity10--80 Ton or Customized
2Punching Thickness0.5 ~ 11mm
3Round Pipe RangeΦ16 ~ Φ120 mm
4Square Tube Range20×20 ~ 150×150 mm
5Angle Iron Range30×30 ~ 75×75 mm
6Channel Iron Range25×50 ~ 60×120 mm
7Punching Speed70-120 Times/Min
8Main Motor Power7.5 -- 15KW (Customized)
9Control SystemTouch controllable display (English)
10Memory Function0-99 groups processing mode
11Overall Dimension6300×1500×1700mm
12Machine Weight5500Kg
🖼️

Machine Display

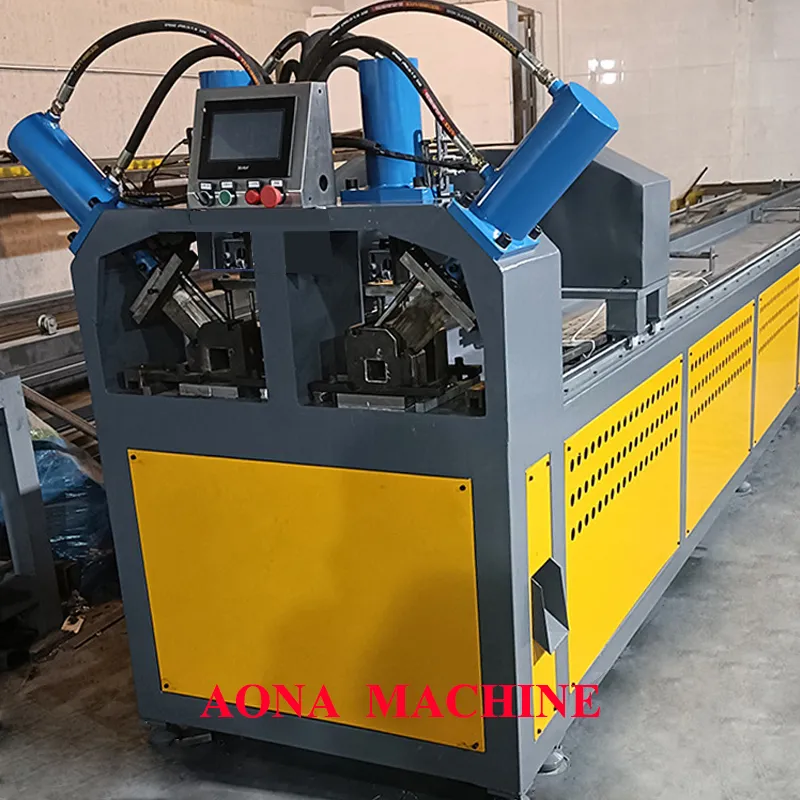

Punching Machine View 1

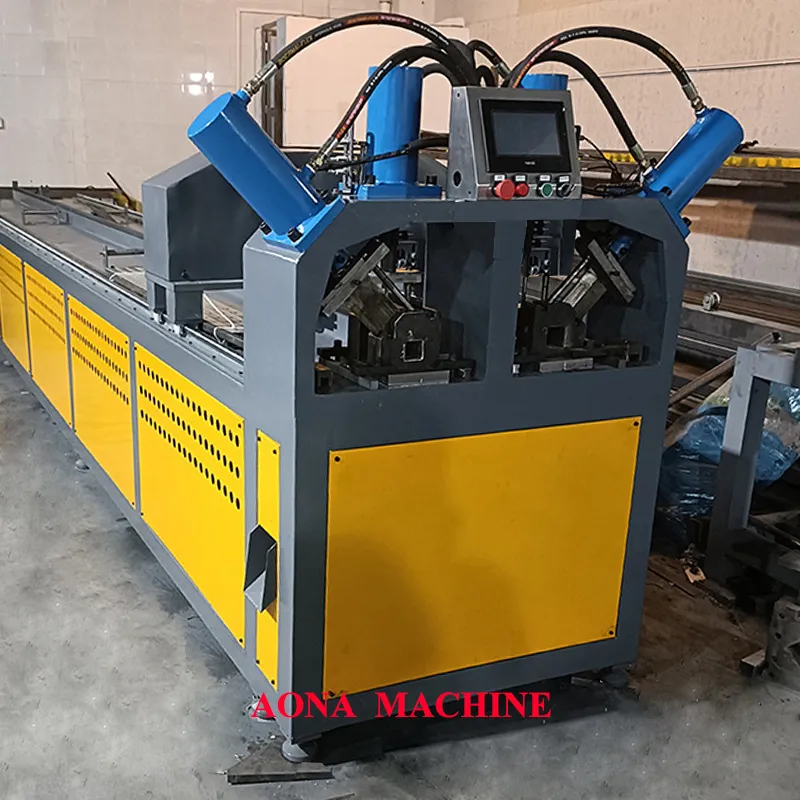

Punching Machine View 2

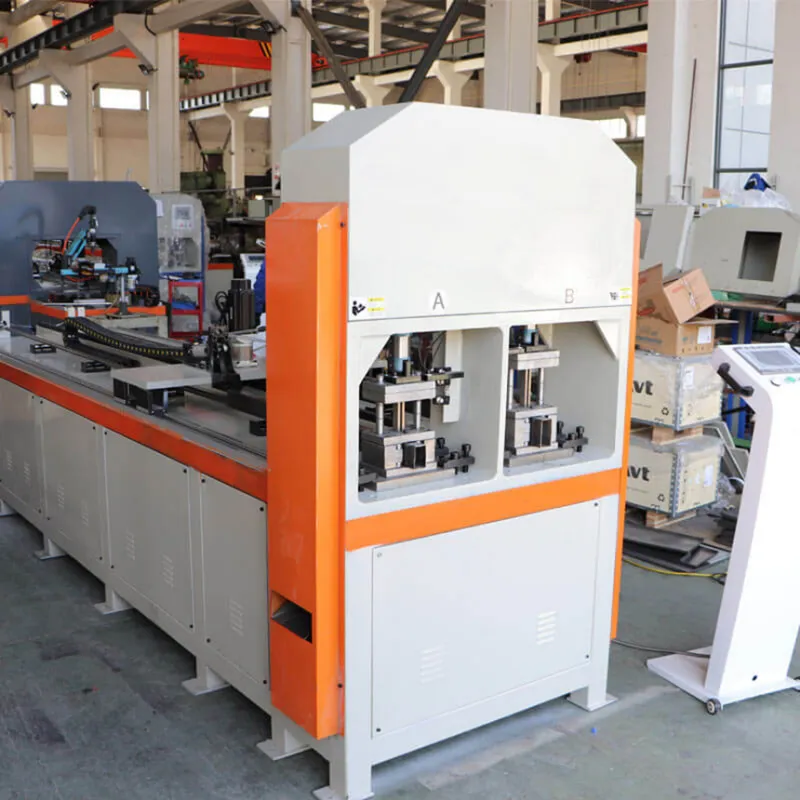

Punching Machine View 3

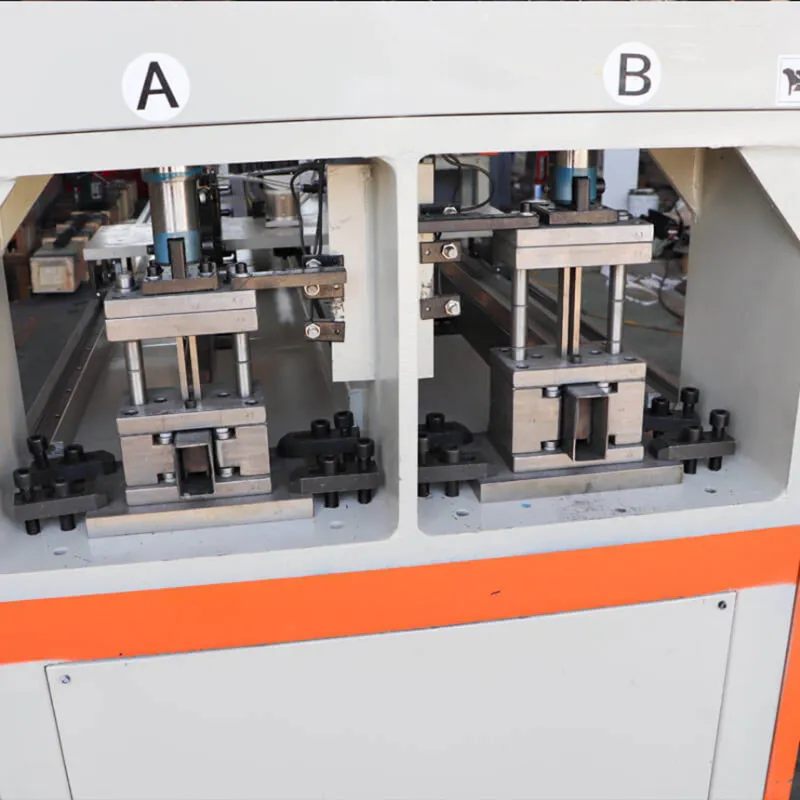

Punching Machine View 4
Punching Machine View 5

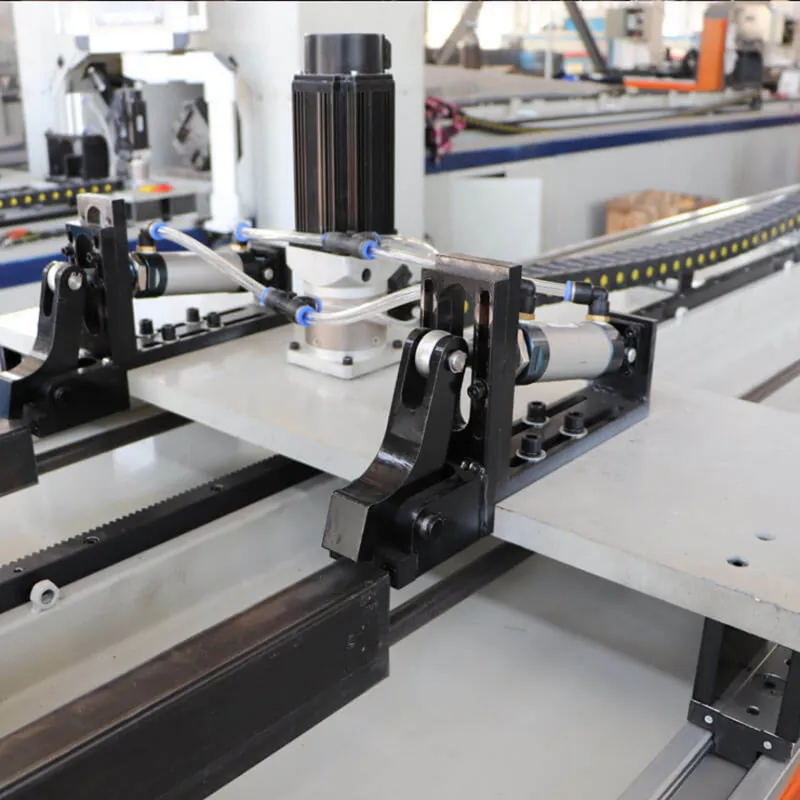

Punching Machine View 6

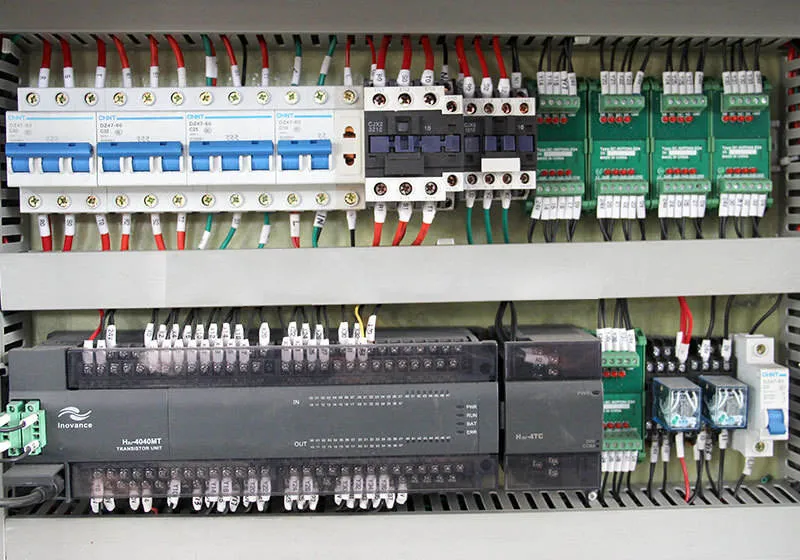

Punching Machine View 7

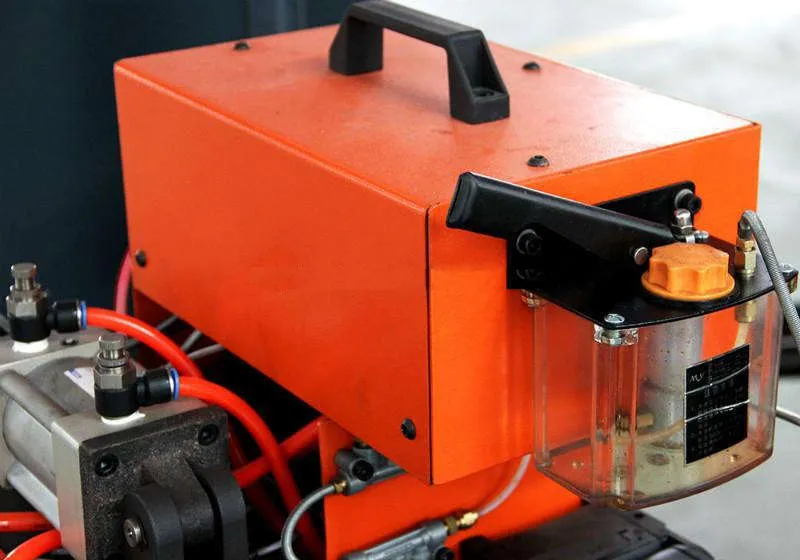

Punching Machine View 8

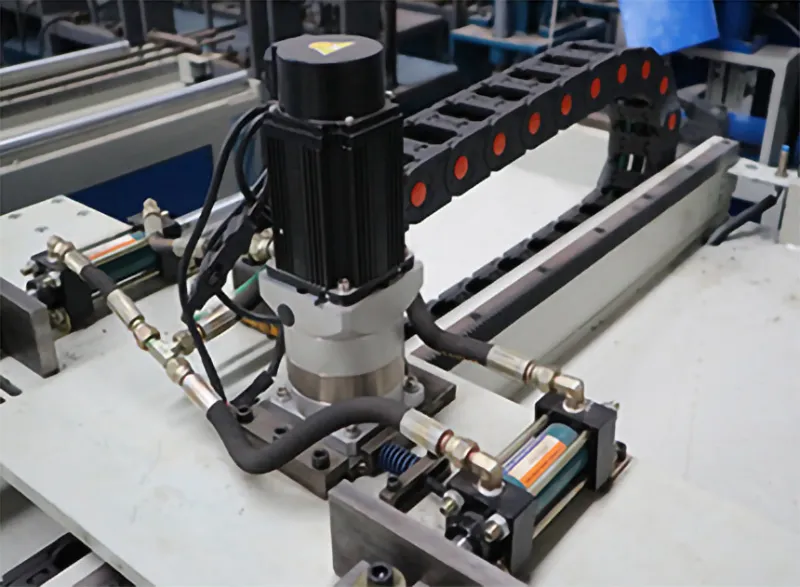

Punching Machine View 9
🏗️

Machine Applications

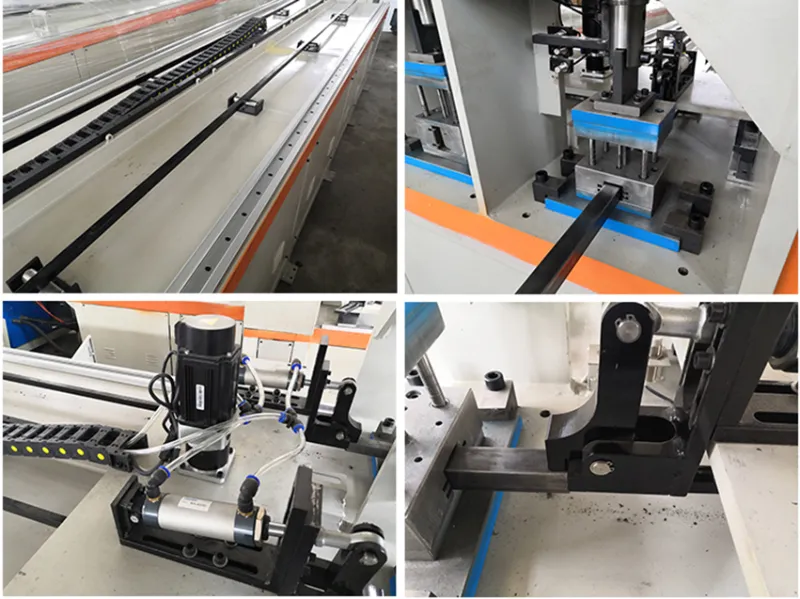

Application 1

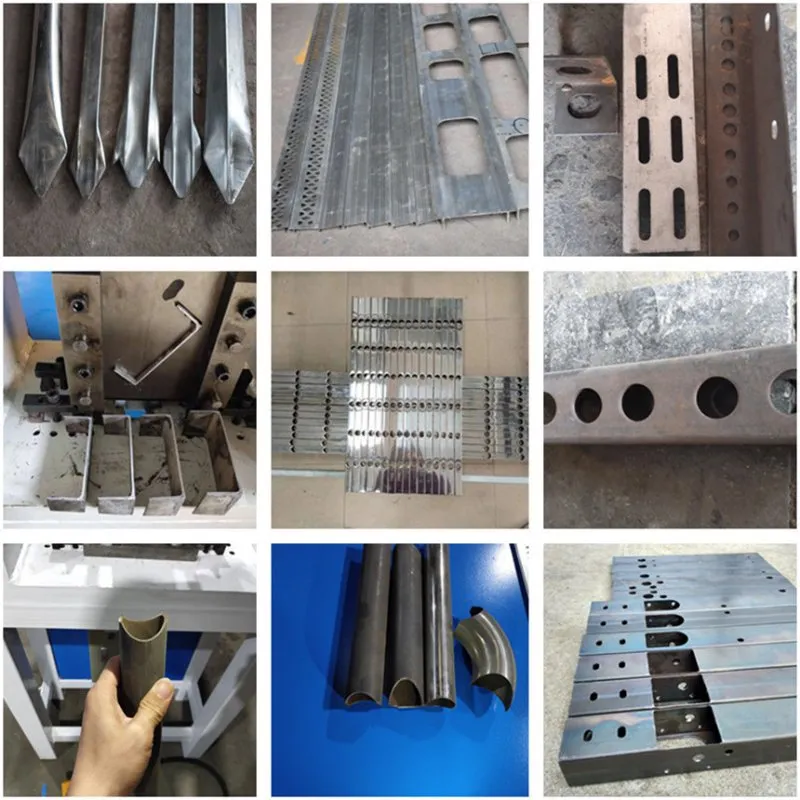

Application 2
Application 3
❓

Frequently Asked Questions

1. What is the power supply of the machine?
The standard power supply is 380V, but it can be customized according to your specific requirements.
2. What information is needed for an accurate quotation?
Please provide related technical requirements, detailed drawings, pictures of your profiles, industrial voltage, and your planned production output.
3. What are the payment terms?
Our standard term is a 30% down payment and 70% before shipment via T/T. We also accept L/C, DA, and D/P modes.
4. What is the estimated delivery time?
Typically, the delivery time is 20 days after the receipt of the down payment.
5. How long is the warranty period?
The machine comes with a 2-year warrantee period starting from the date of the Bill of Lading (B/L).
6. Can the machine handle irregular punching patterns?
Yes, the CNC control system allows for single hole, double hole, isometric, and non-isometric interval punching as well as 360° rotating punching.
