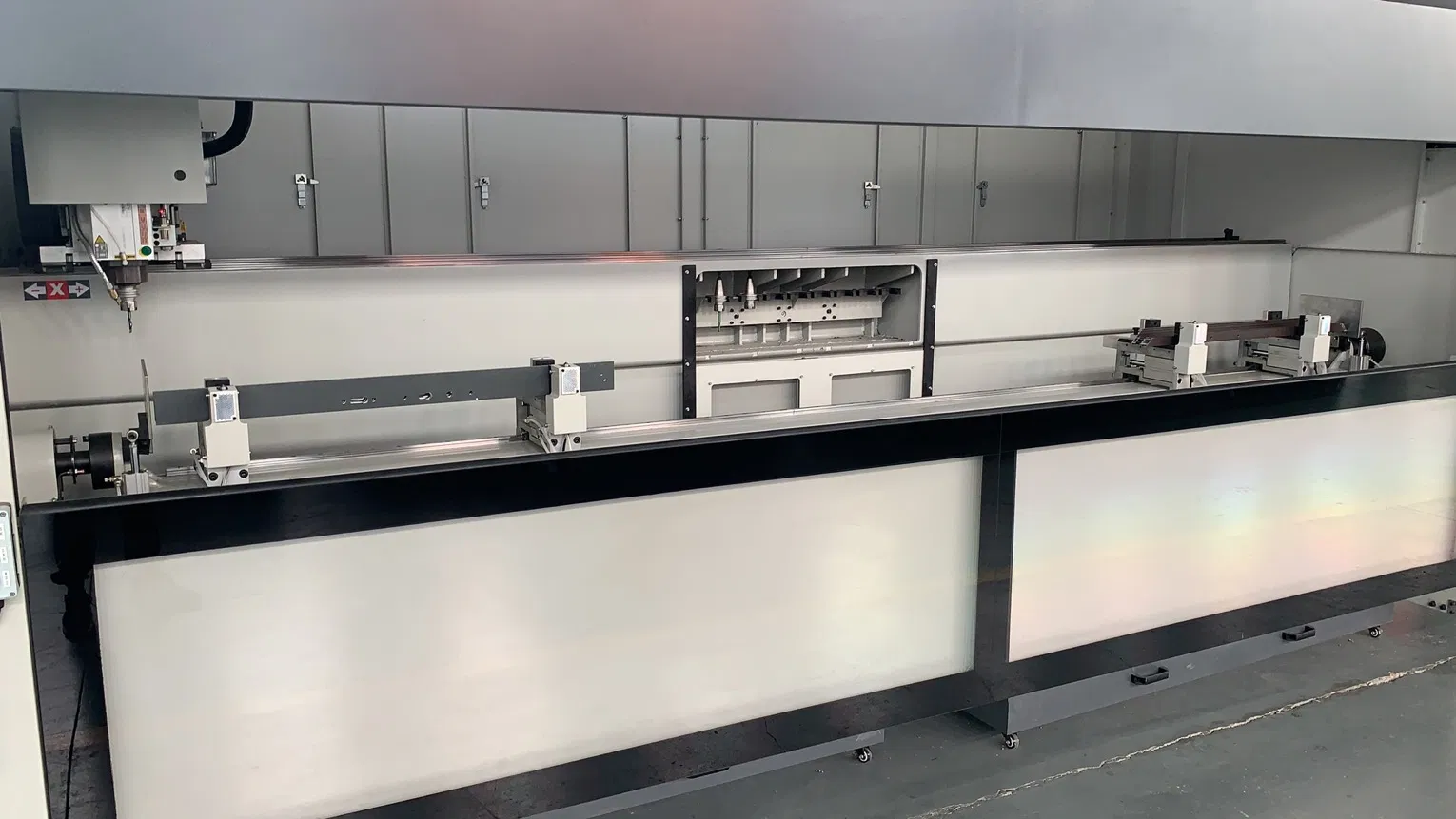

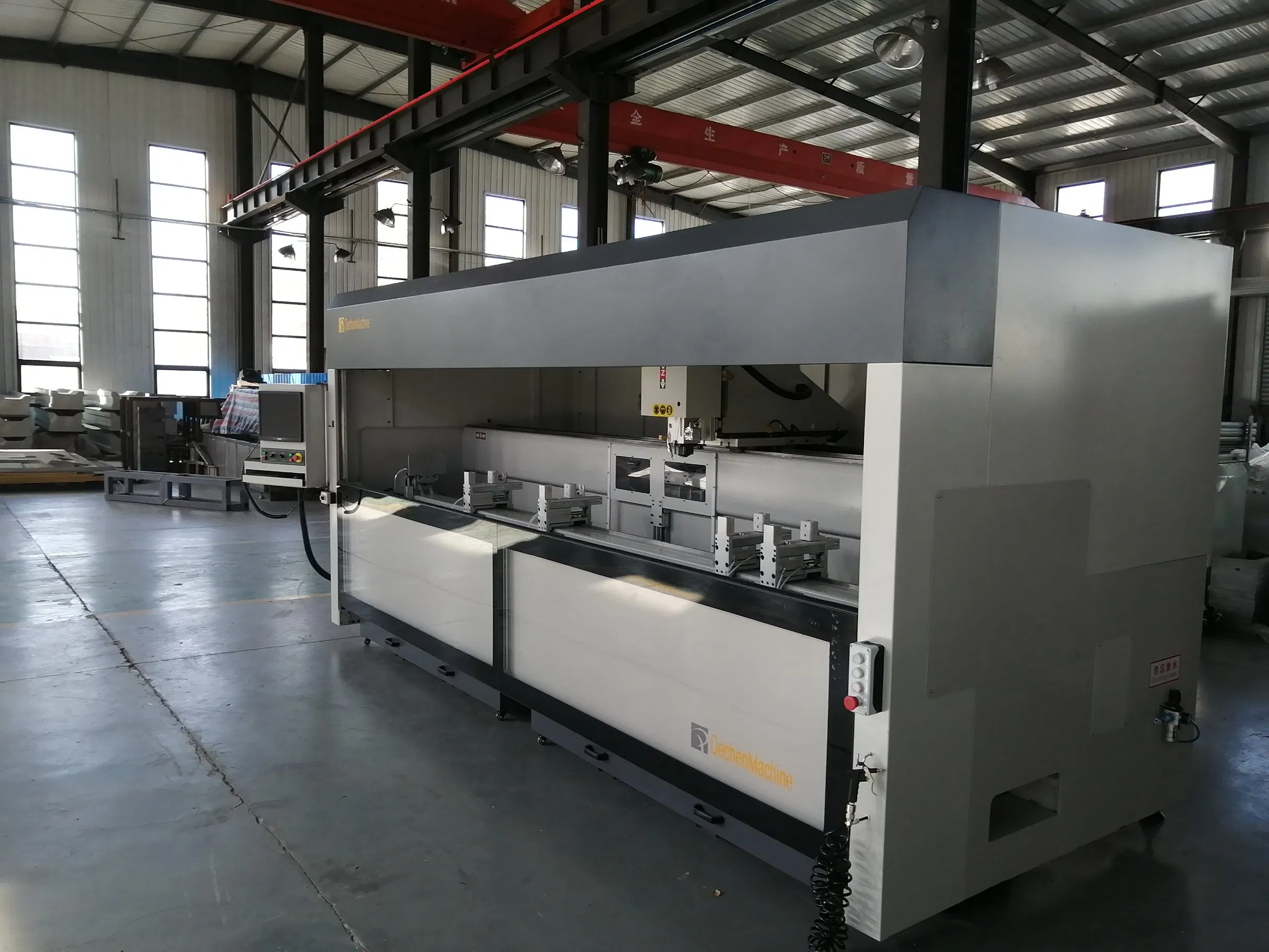

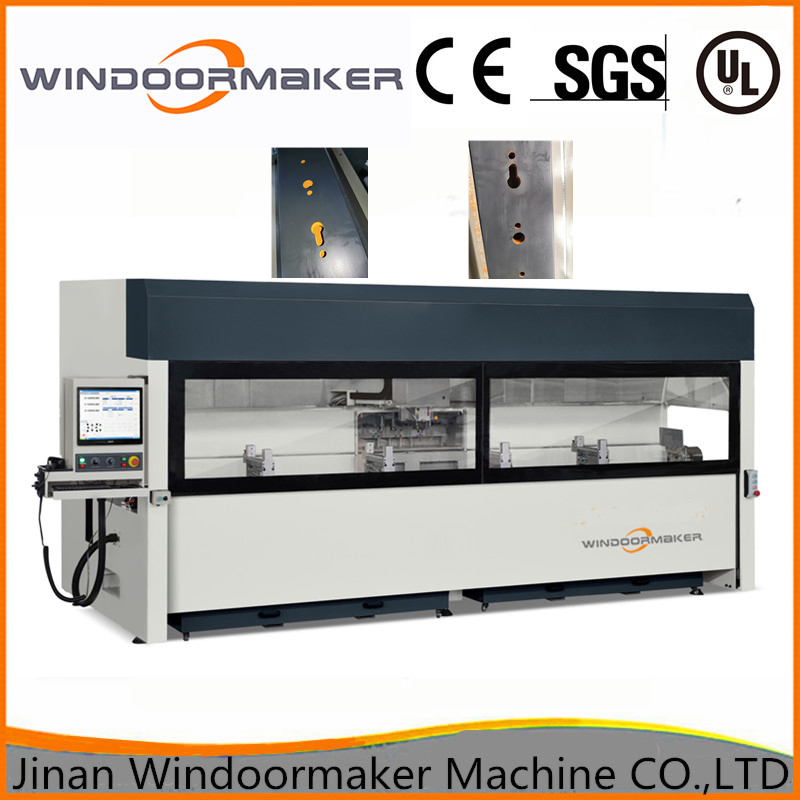

Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
1 / 5
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre
Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre

Aluminum Four Axis CNC Machining Center Aluminium Window Door Machine CNC Frame Hinge Handle Milling Centre

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.WM4-CNC-3500ConditionNew
CertificationISO, CEAutomatic GradeAutomatic
CNC or NotCNCVoltage380V
FunctionMilling, Drilling, CuttingSpindle Power4.5kw
Tools Magazine8 ToolsAir Pressure0.6~0.8MPa
Specification5100x2100x 2250mmOriginChina
Packaging & Delivery
Package Size4400.00cm * 2000.00cm * 2200.00cm
Package Gross Weight3000.000kg
Product Specification
  • Suitable for milling, drilling, cutting and other processing processes of aluminum profile.
  • The table rotates at any angle of +90°~-90°, and multi-surface machining can be realized in one clamping.

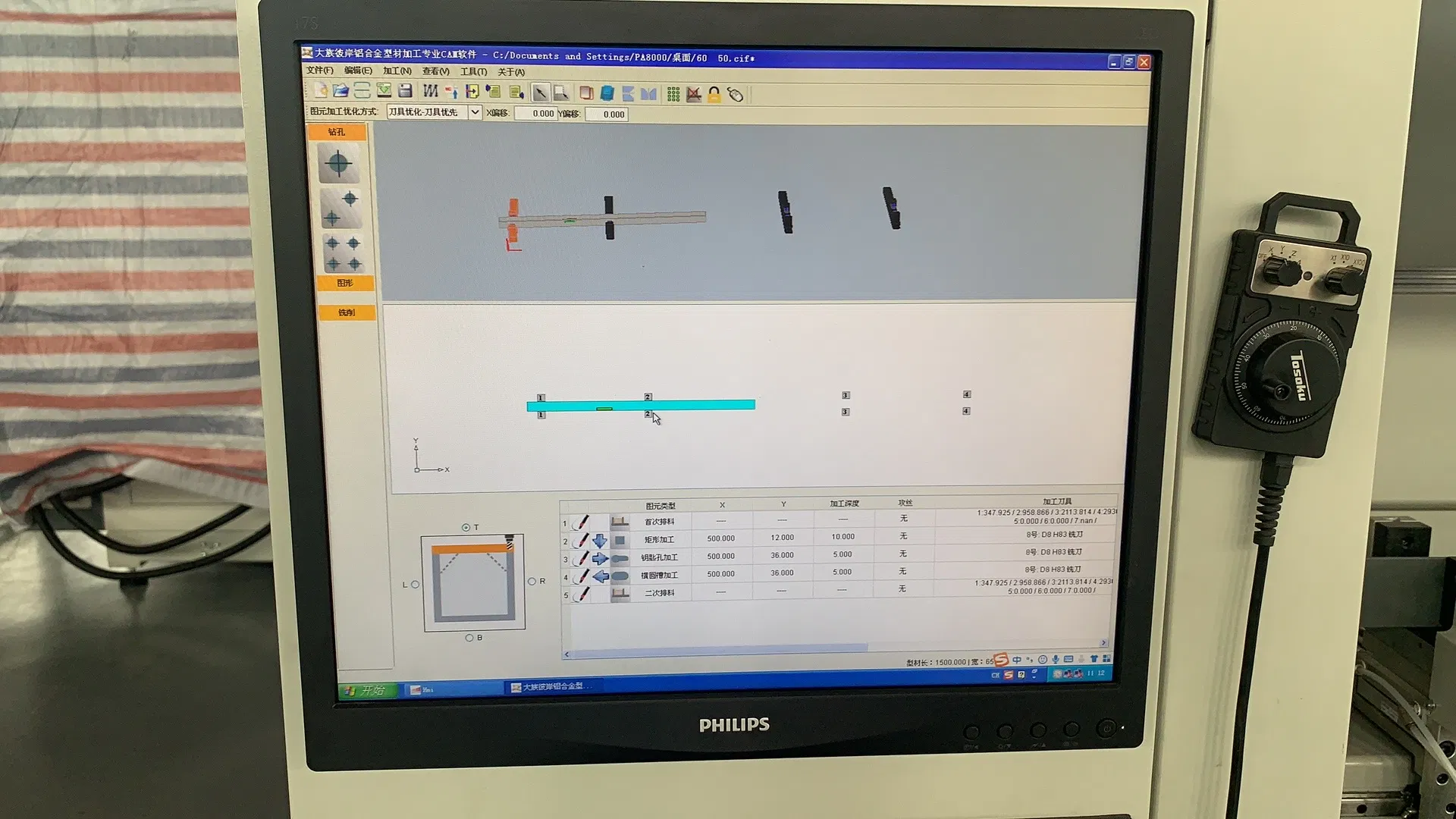

  • Equipped with CAM software, the operation interface of the equipment is simple and intuitive.

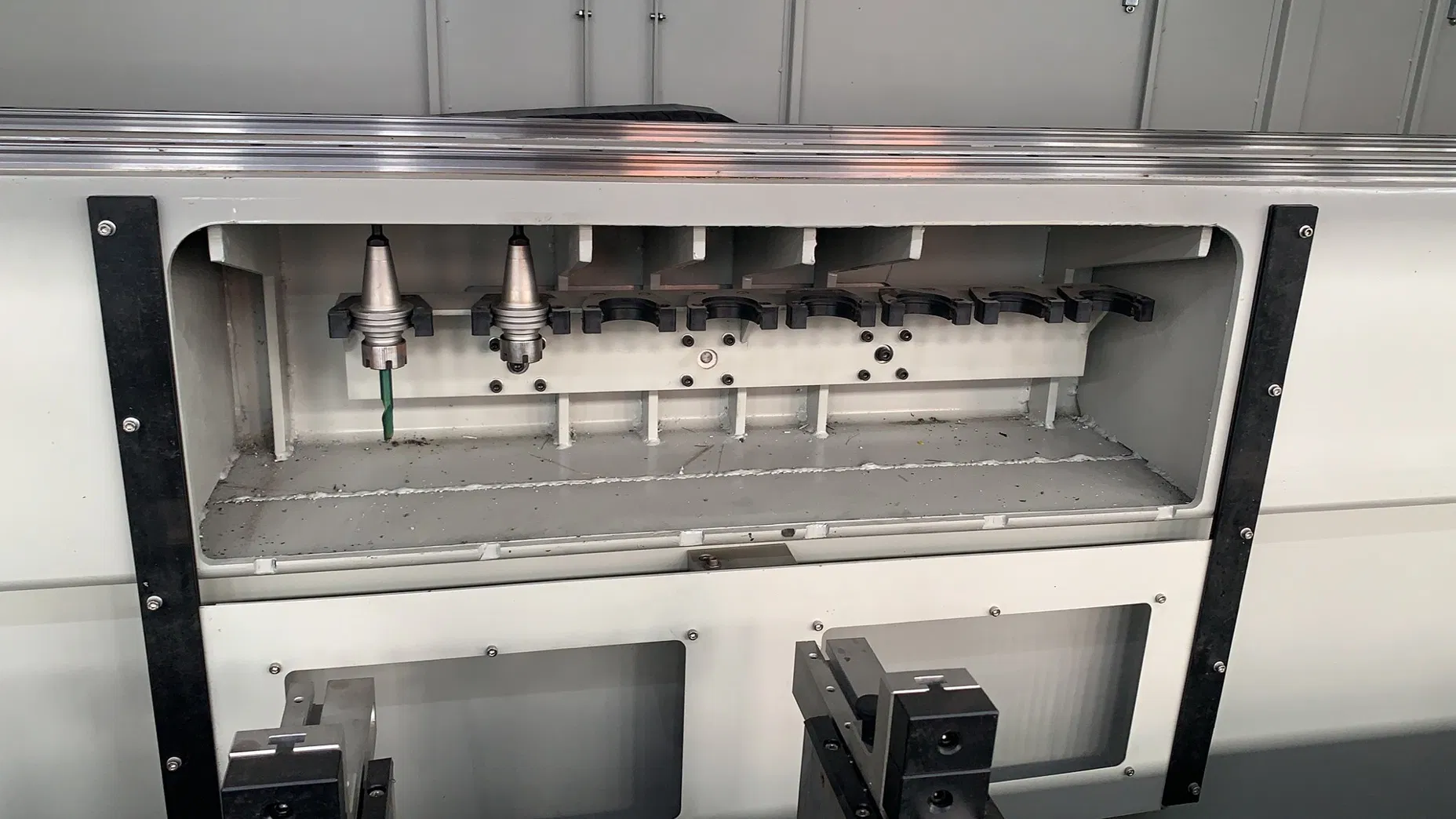

  • Imported automatic tool change spindle, with 8-station tools magazine, can realize fast automatic tool change.
  • Double-zone design of workbench, clamping position automatic detection, automatic arrangement; High efficiency.
  • Fully closed design, equipped with Automatic Chip Conveyor, more safe to use, environmental protection.
  • The machine has QR code reader and Industrial PC, which can access to MES production management system and realize the automation of production.
  • Adopt high-precision linear guide rail, ball screw, rack and pinion and imported servo motor to ensure smooth movement and high positioning and processing accuracy.
Technical Parameter
Power supplyMade to order
Spindle power4.5KW
Total power7.5KW
Rotary speed0-18000r/min
Working range X/Y/ZX=3500mm, Y=200mm, Z=200mm
Feeding speed X/Y/Z/AX=0-60m/min, Y/Z=0-30m/min, A=18r/min
Positioning Accuracy±0.15mm / ±0.05mm
Weight4000kg
Key Components
Spare Parts NameBrand (Original)Remarks
Low voltage electrical partsSiemens (Germany)AC Contactor/Circuit protector
SpindleHSD (Italy)High speed performance
Pneumatic componentsAirtac (Taiwan)Magnetic valve/Cylinder
Square Guide RailABBA/HIWIN (Taiwan)High precision
Servo Motor & DriverYASKAWA (Japan)Reliable movement
CNC SystemPA (Germany)Advanced control
Certifications

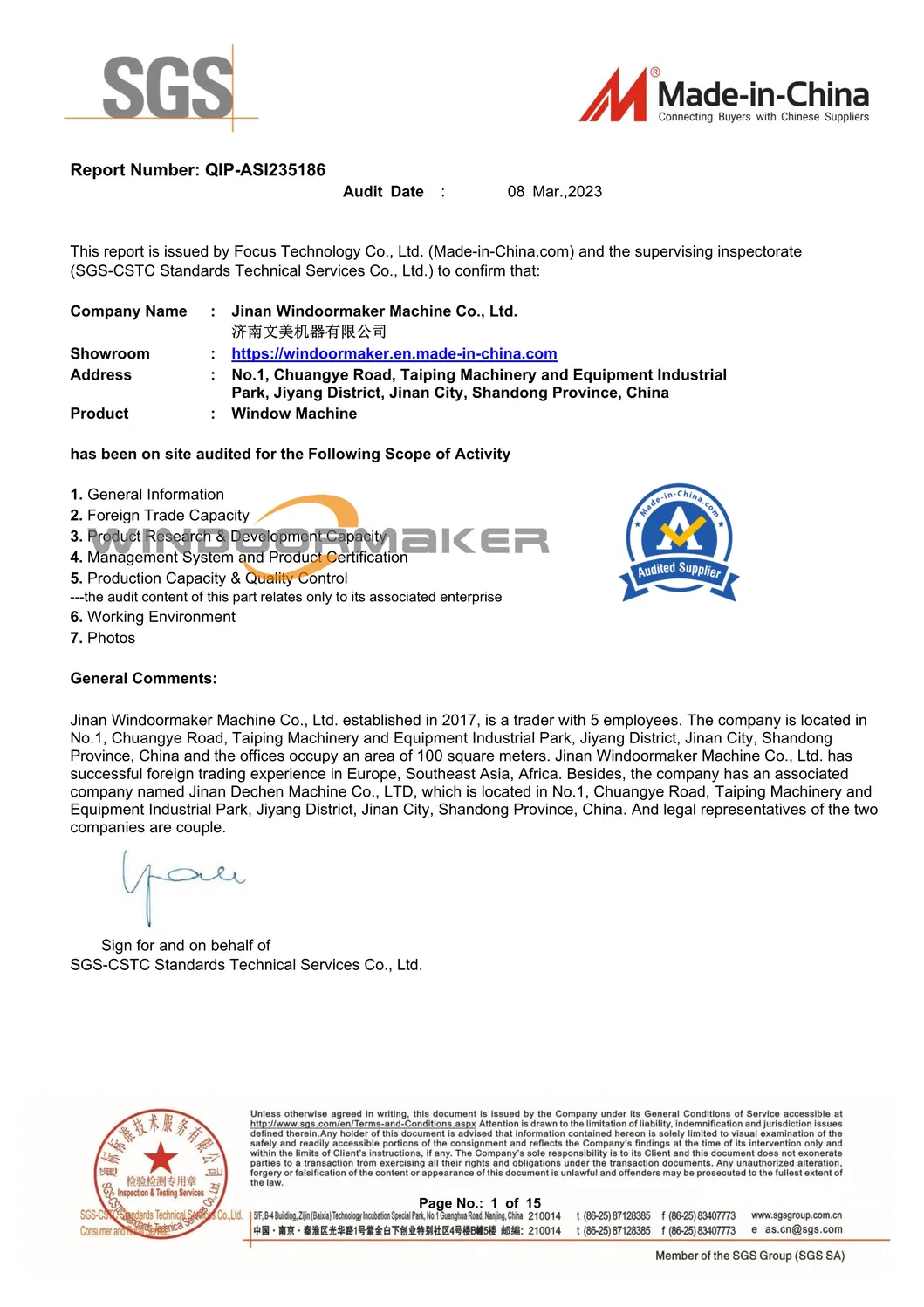

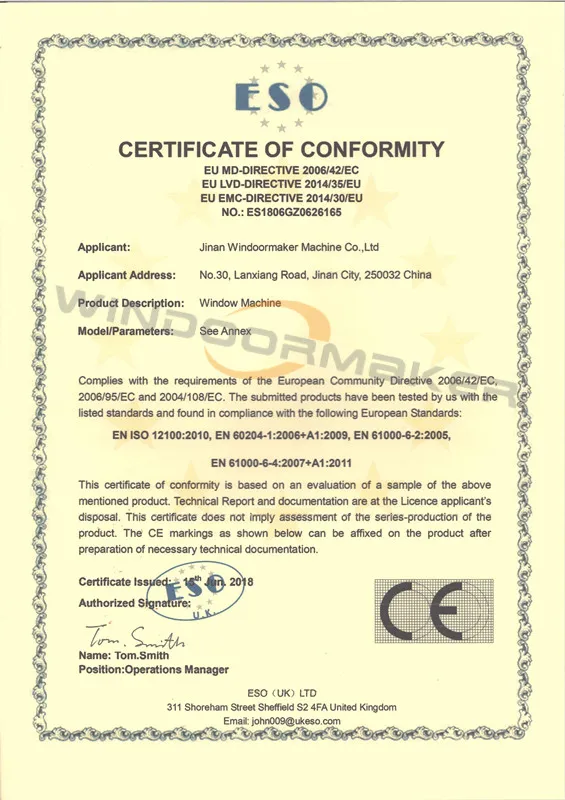

Certification
Certification
Production Excellence

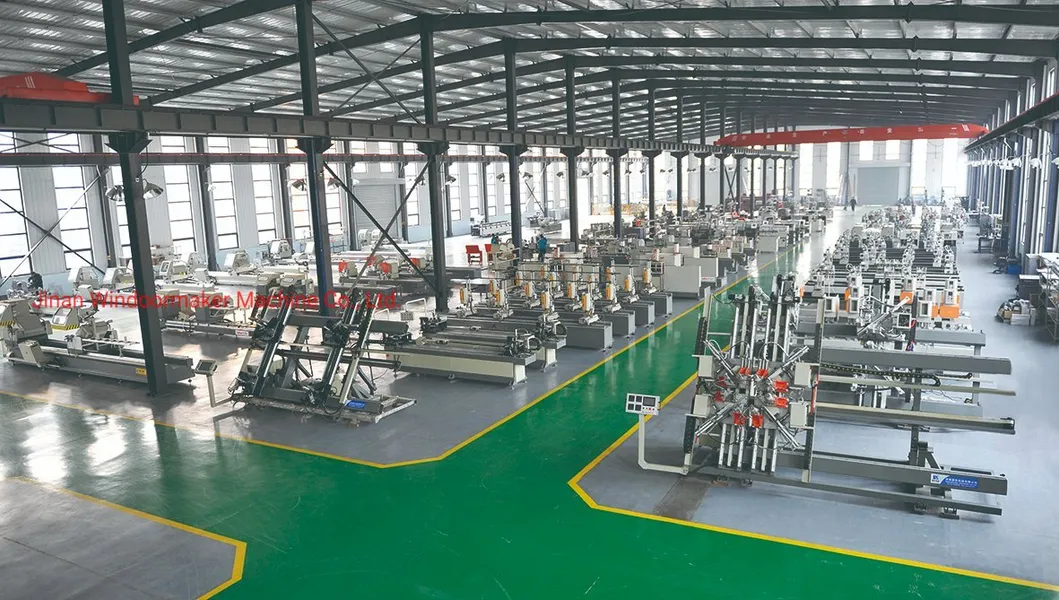

Factory Overview

We are an engineering company that has been in business for over 10 years, specializing in the manufacture and supply of aluminum window and door machines. Our factory covers an area of 15,000 m². During years of development, we have dedicated significant effort to machine improvement, introducing new equipment and technological innovation for production.

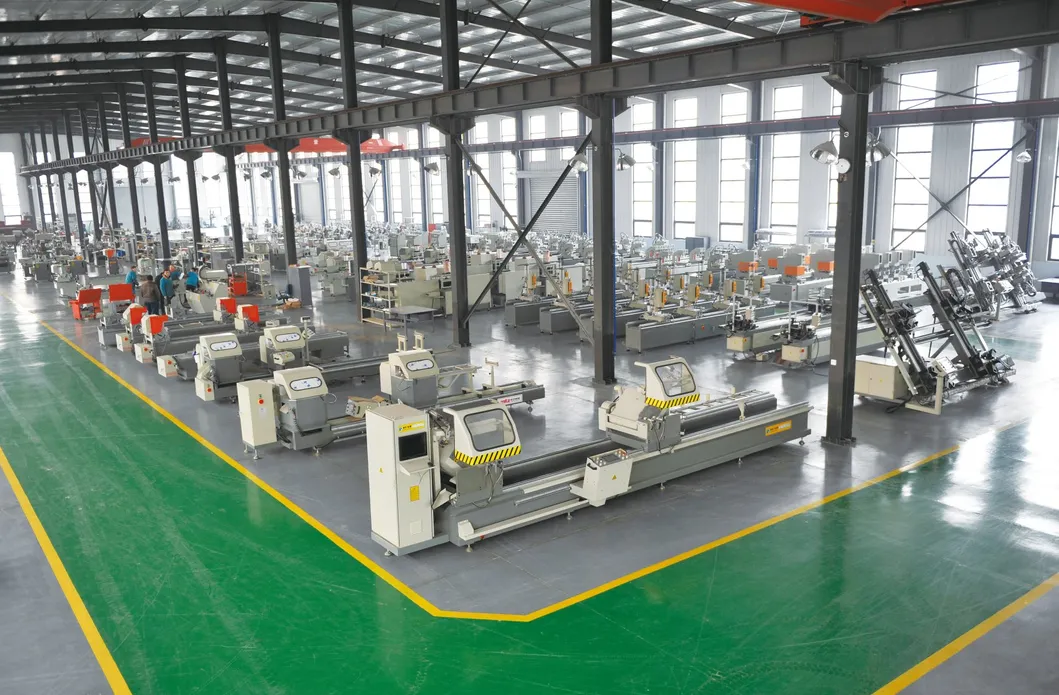

Facility 1

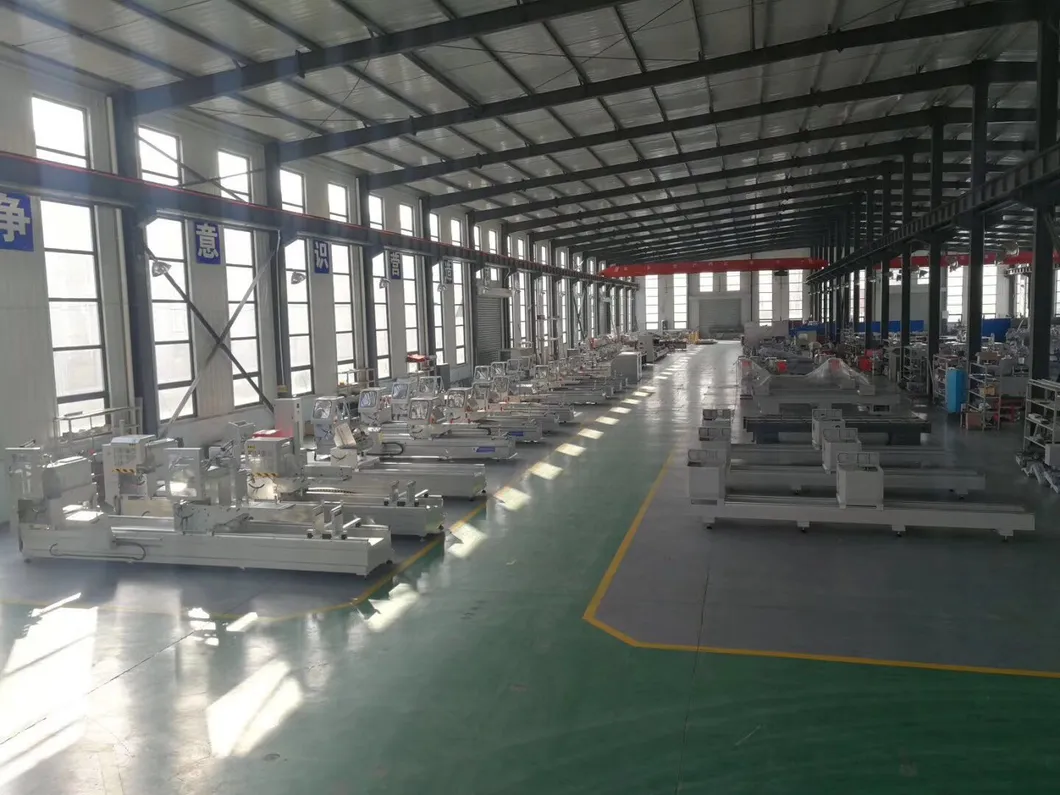

Facility 2
Machine at Customer Sites

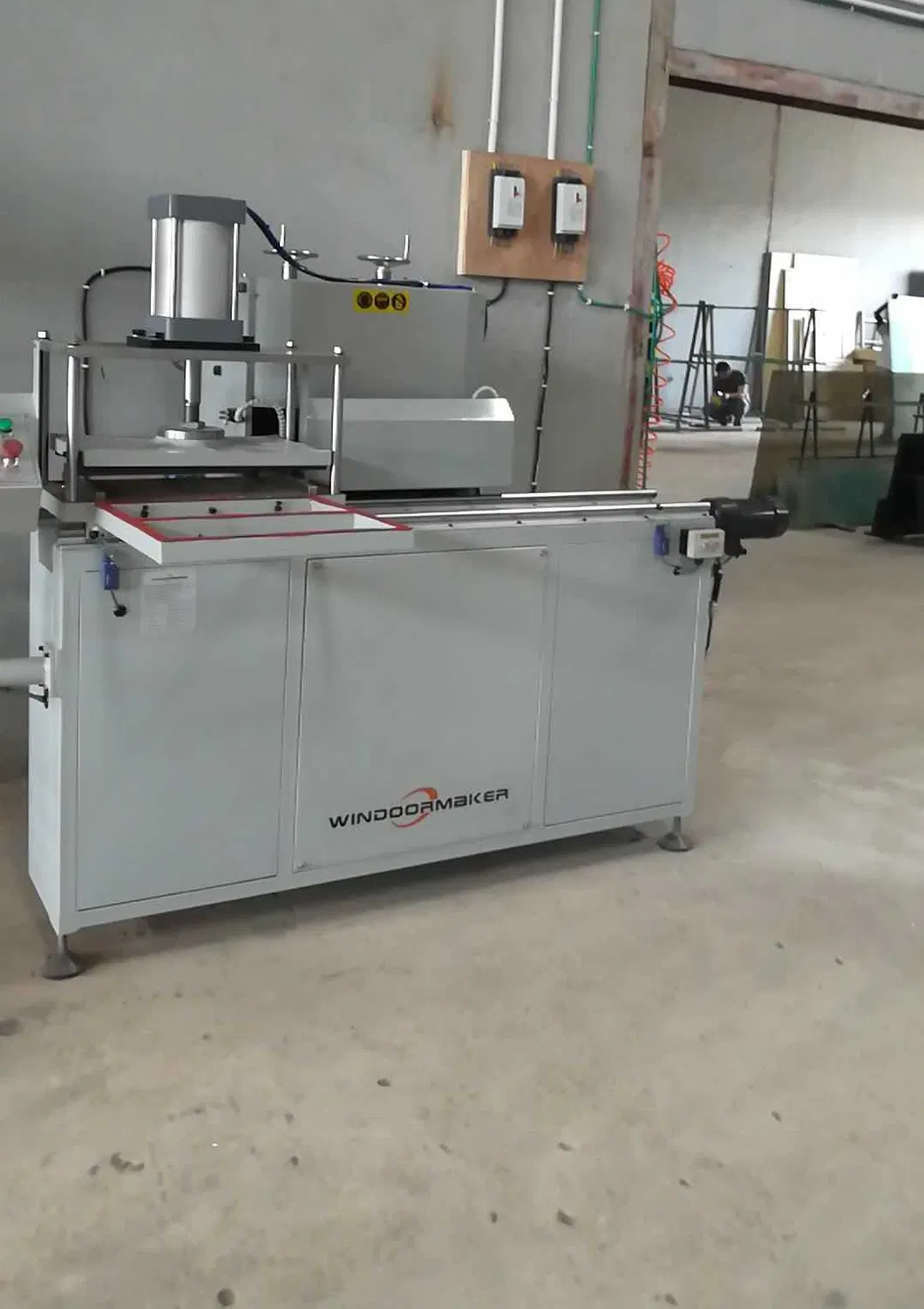

Customer Case 1

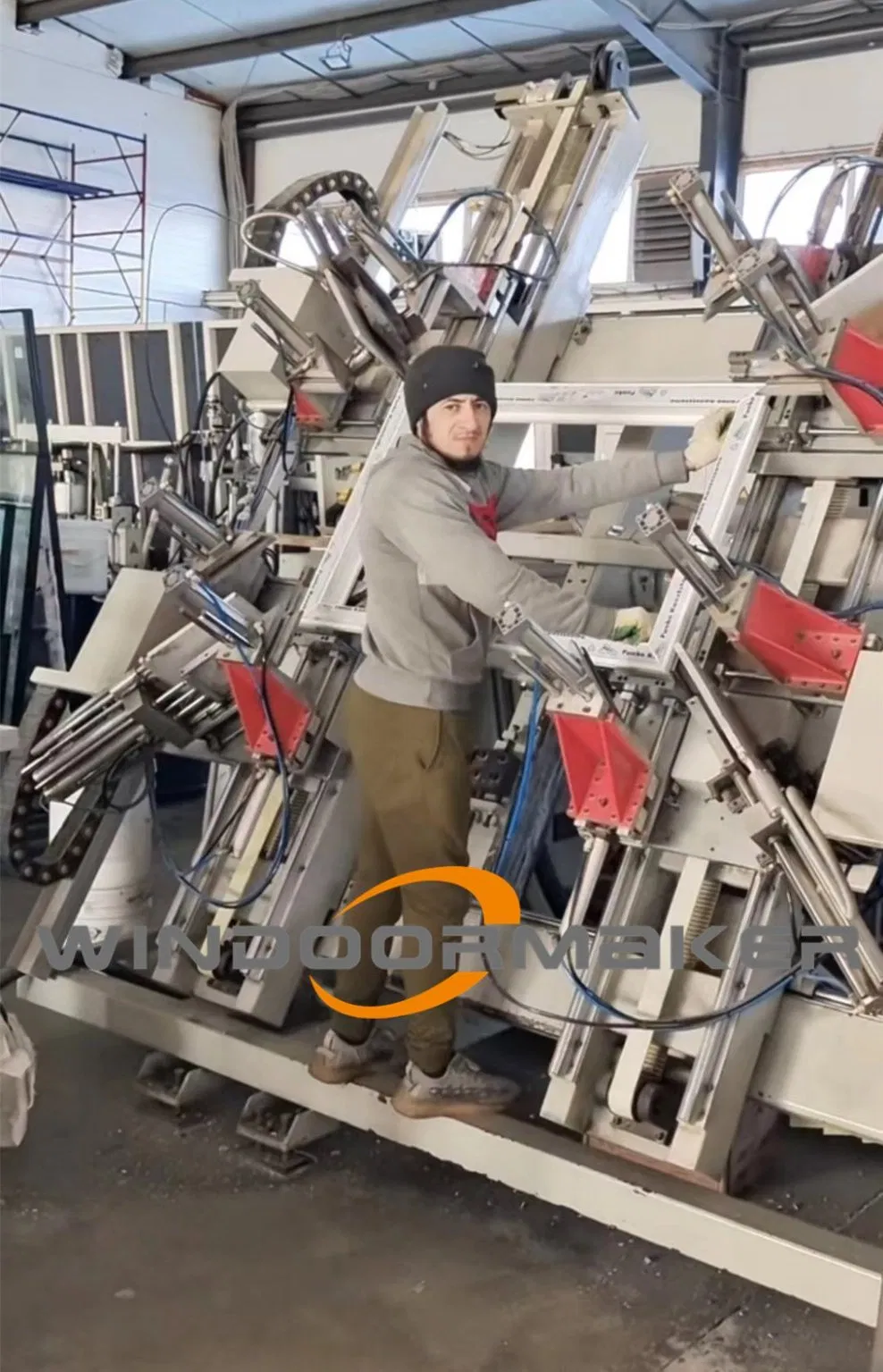

Customer Case 2

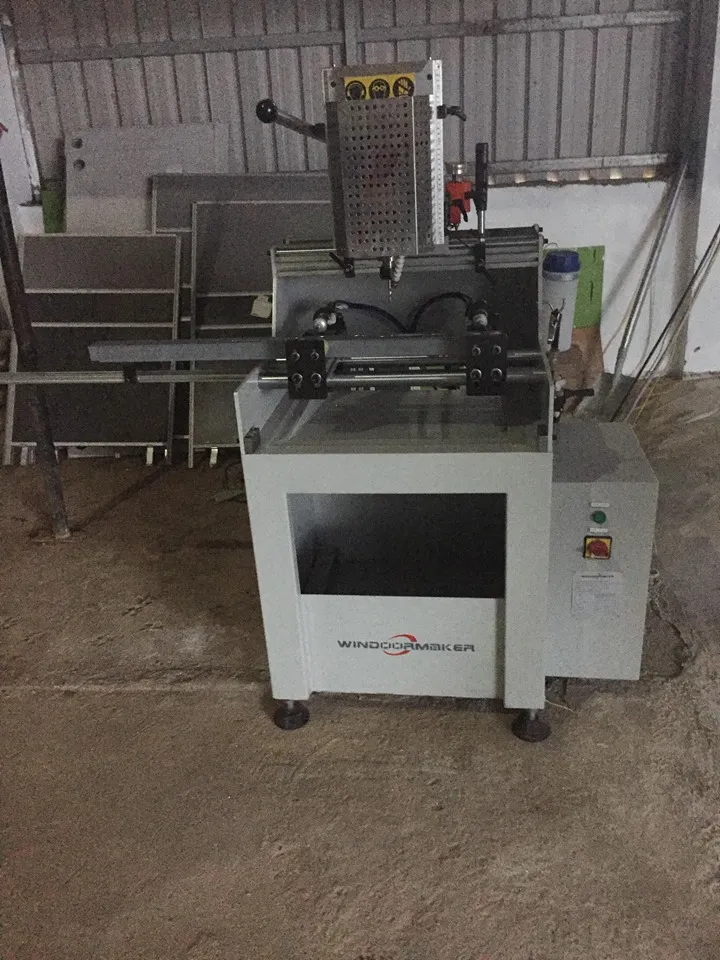

Customer Case 3
Packaging & Shipping

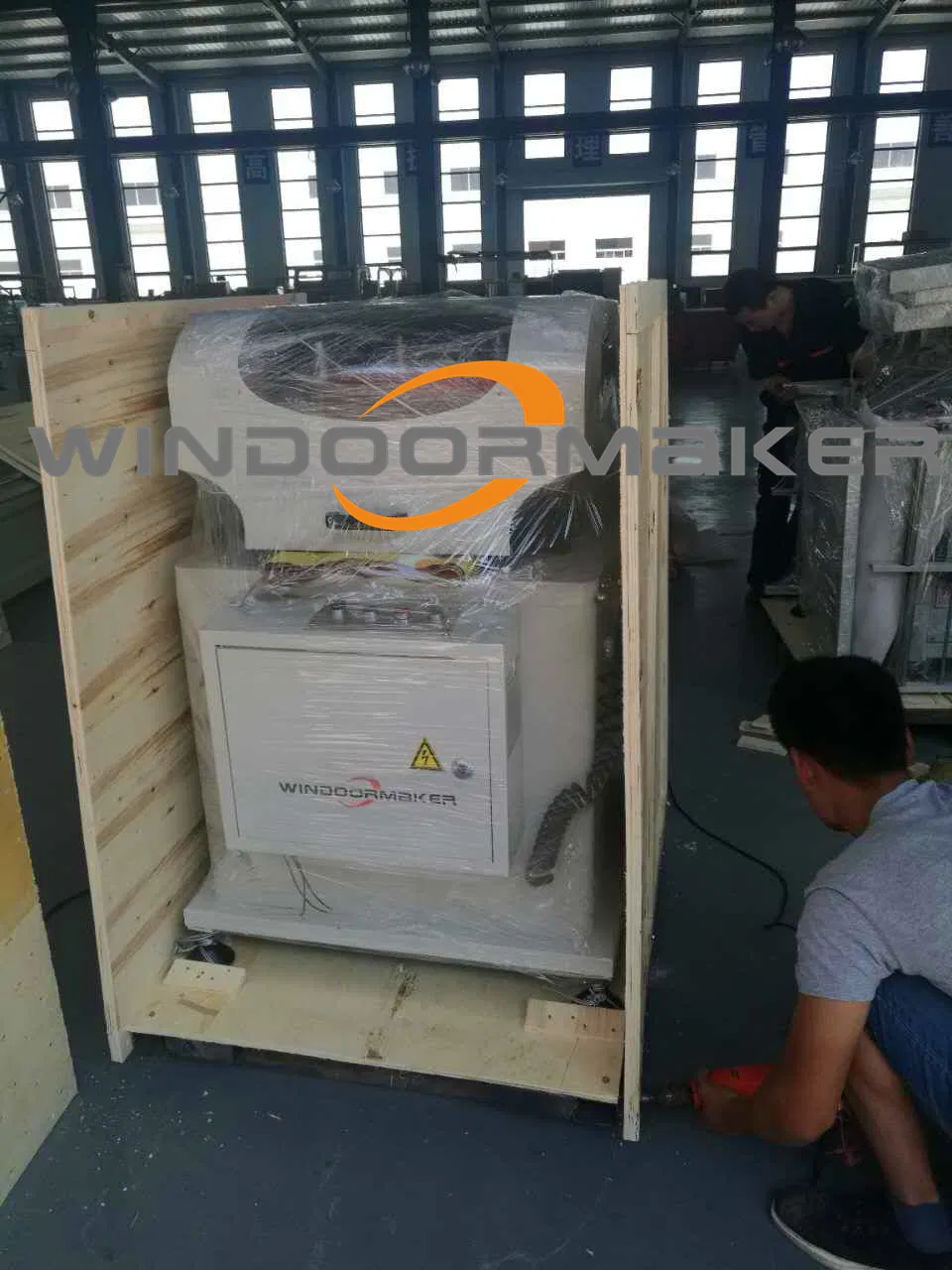

Shipping 1

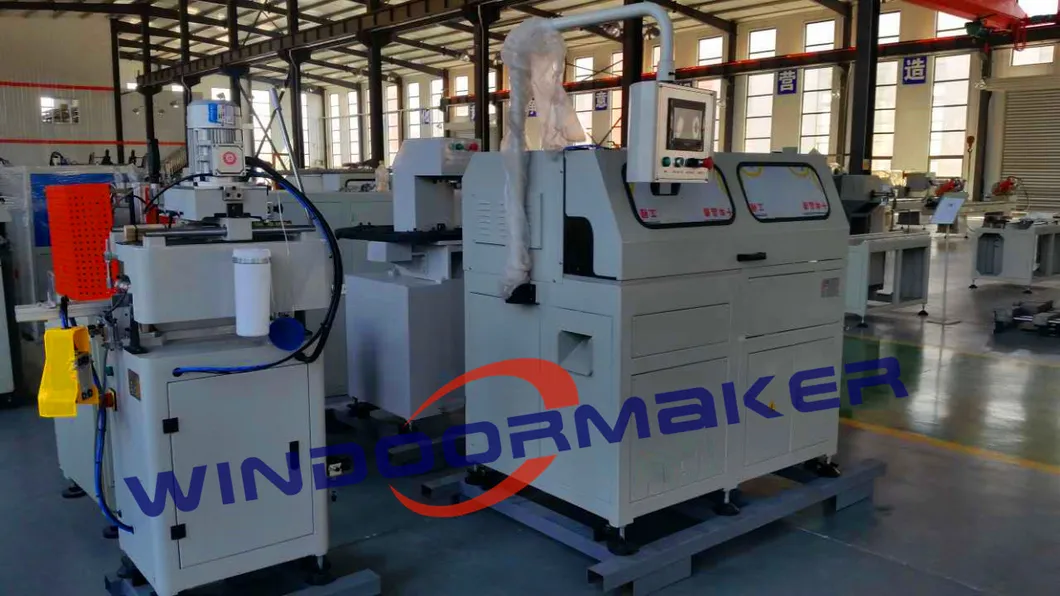

Shipping 2

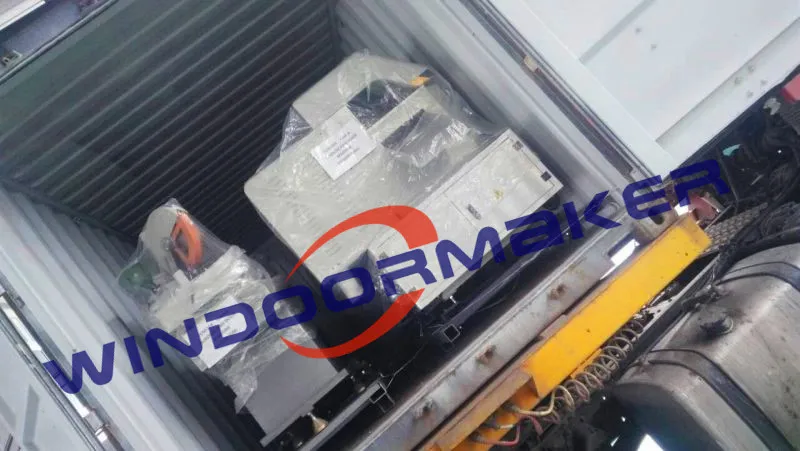

Shipping 3
Frequently Asked Questions
Q1: What materials can this CNC machining center process? A: It is specifically designed for the milling, drilling, and cutting of various aluminum profiles.
Q2: How many axis does the machine support? A: This is a four-axis CNC machining center, allowing the worktable to rotate between +90° and -90°.
Q3: Does the machine include an automatic tool changer? A: Yes, it is equipped with an 8-station tool magazine for fast and automatic tool transitions.
Q4: What is the positioning accuracy of the equipment? A: The machine offers high precision with a positioning accuracy of ±0.15mm and repositioning accuracy of ±0.05mm.
Q5: Can it be integrated into a smart factory system? A: Yes, it features an industrial PC and QR code reader to access MES production management systems for automated production.
Q6: What control system does the machine use? A: It utilizes a high-end German PA CNC system for reliable and intuitive operation.
