Zhixing Machine
Zhixing Machine

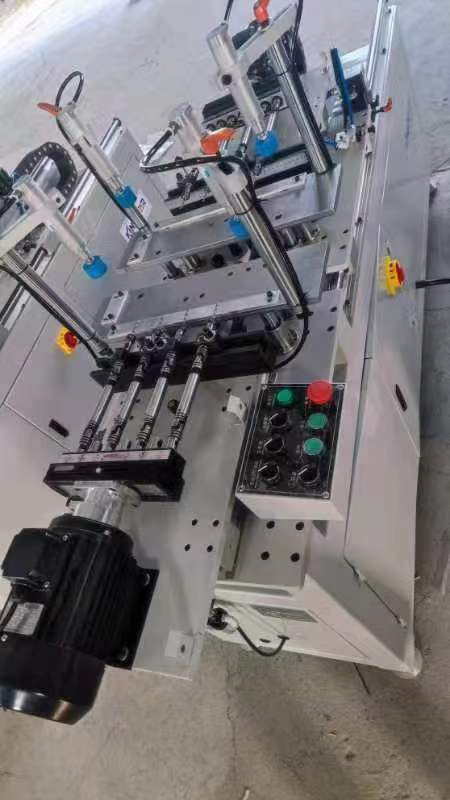

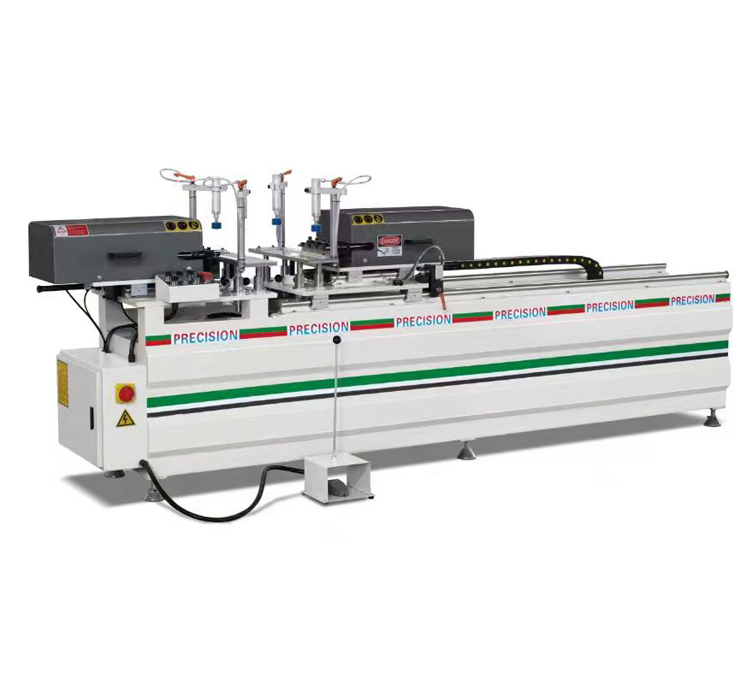

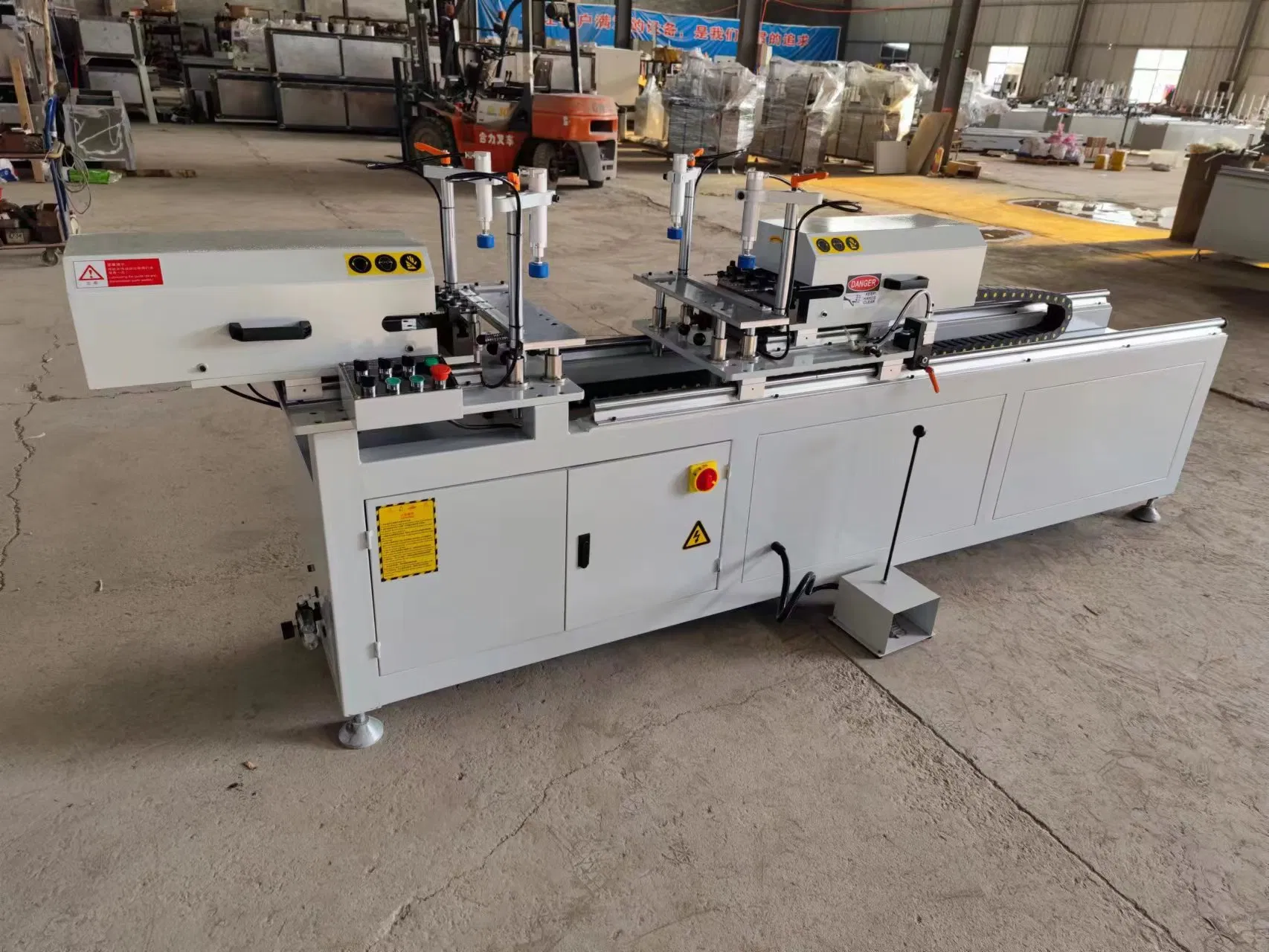

The aluminum door and window hinge drilling machine is a specialized model developed to meet the rigorous demands of the modern window processing industry. Engineered for safety and simplicity, this machine is technologically advanced and remarkably easy to maintain.

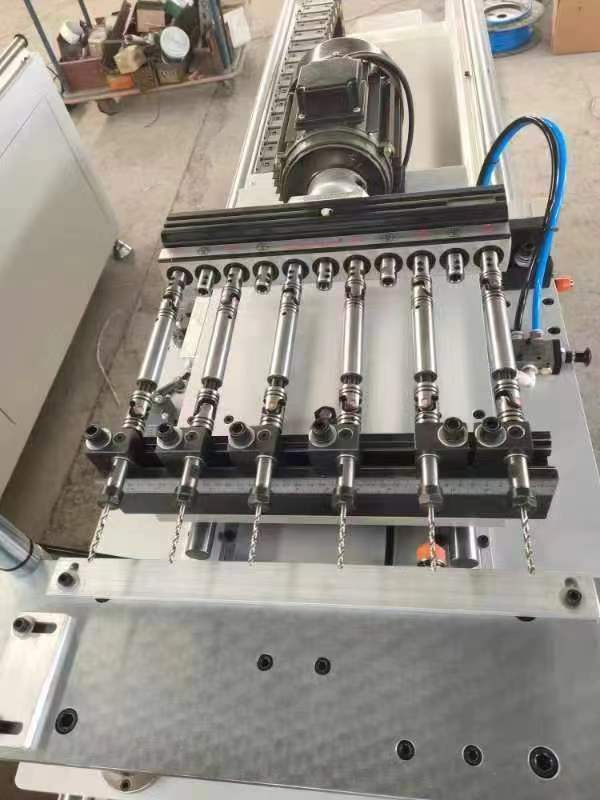

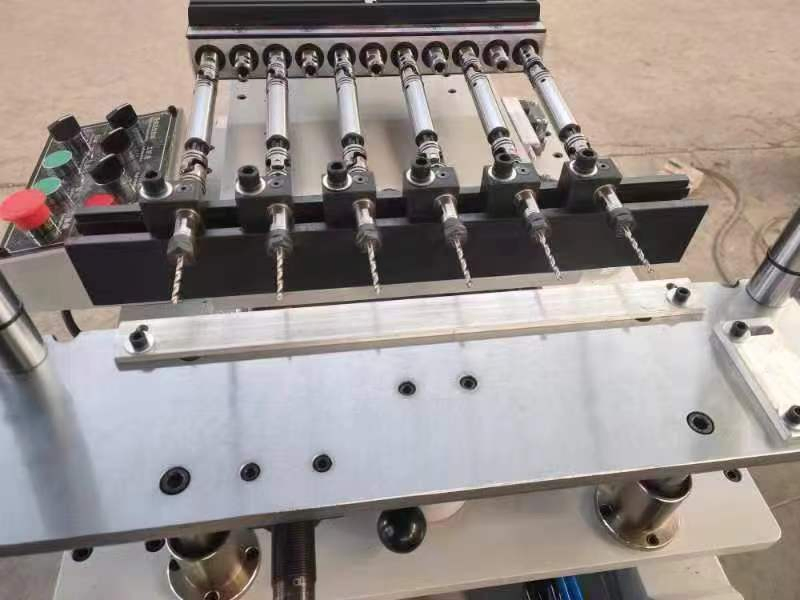

Primary Applications: It is specifically designed for drilling hinge holes in aluminum profiles. The machine features dual heads that can operate independently or simultaneously, allowing for the drilling of four or five holes on both sides at once, significantly boosting production efficiency.
| Parameter | Data |
|---|---|
| Input voltage | 380V 50HZ |
| Motor power | 2×1.5KW |
| Drill speed | 1400r/min |
| Min center distance (middle) | 22mm |
| Max center distance (ends) | 390mm |
| Max processing height | 2000mm |
| Gas source pressure | 0.5~0.8MPa |
| Gas consumption | 30L/min |
| Feed speed | 0~3m/min |
| Overall dimensions | 3500×700×1200mm |
Established in 2011, the manufacturer specializes in the research and production of CNC aluminum profile machines, including double saw machines, heavy-duty angle machines, and hinge drilling centers. The production facility utilizes advanced fiber laser cutting and welding technology to ensure international quality standards.
