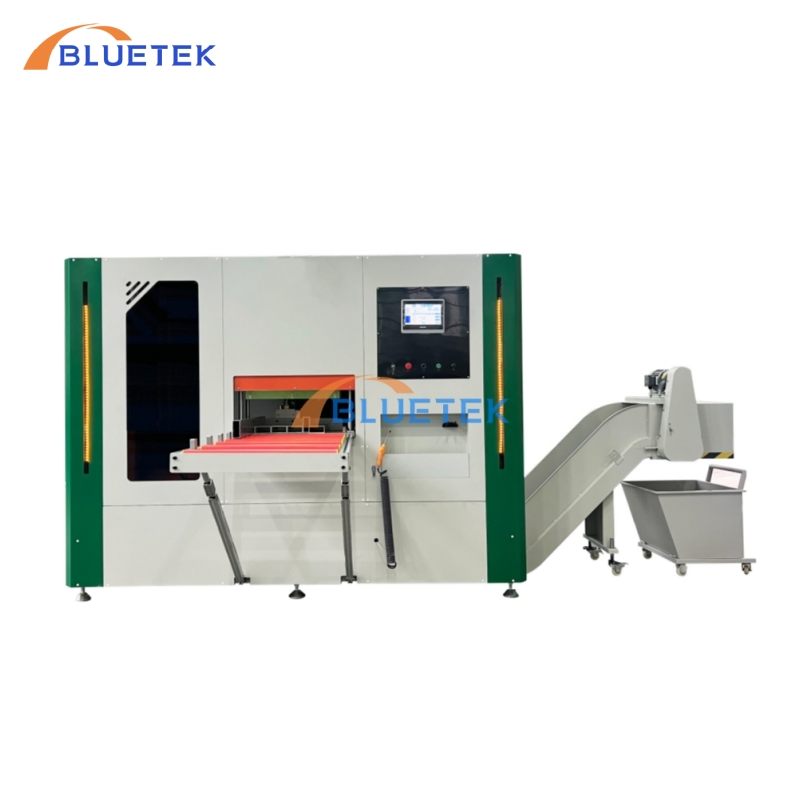

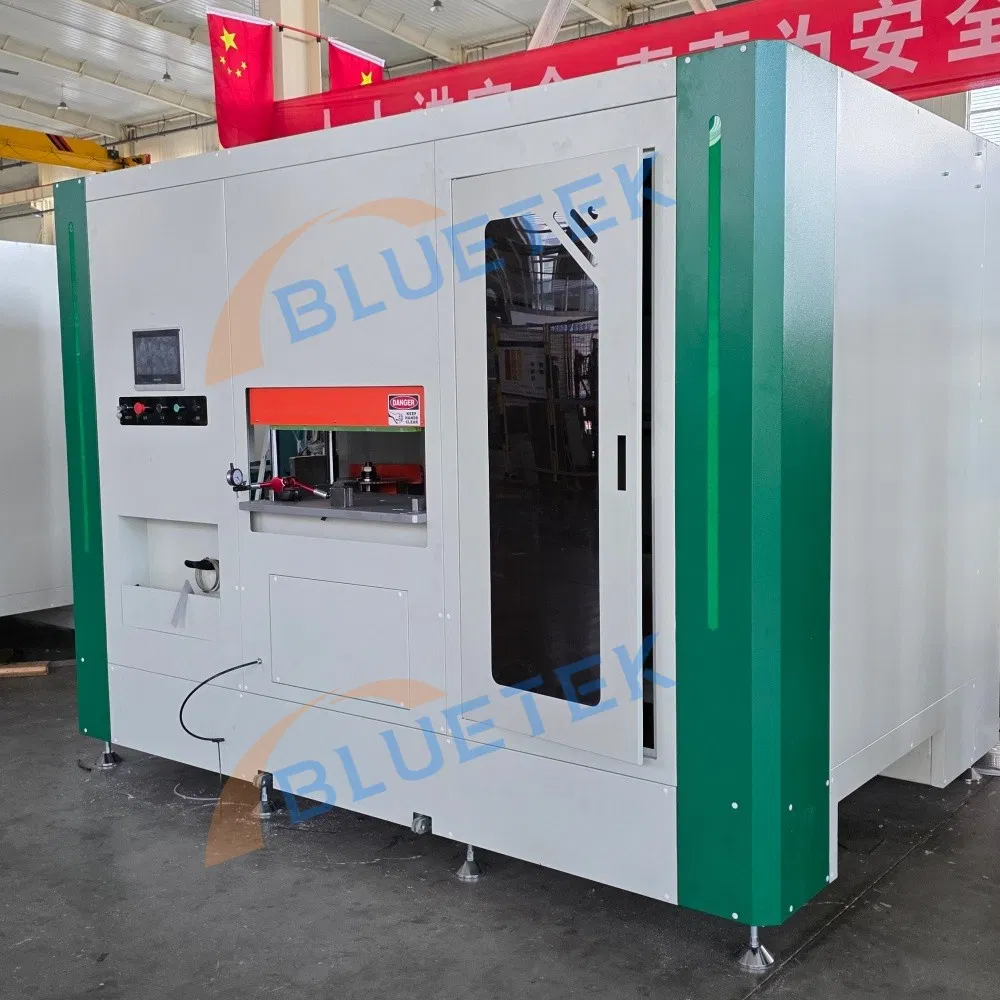

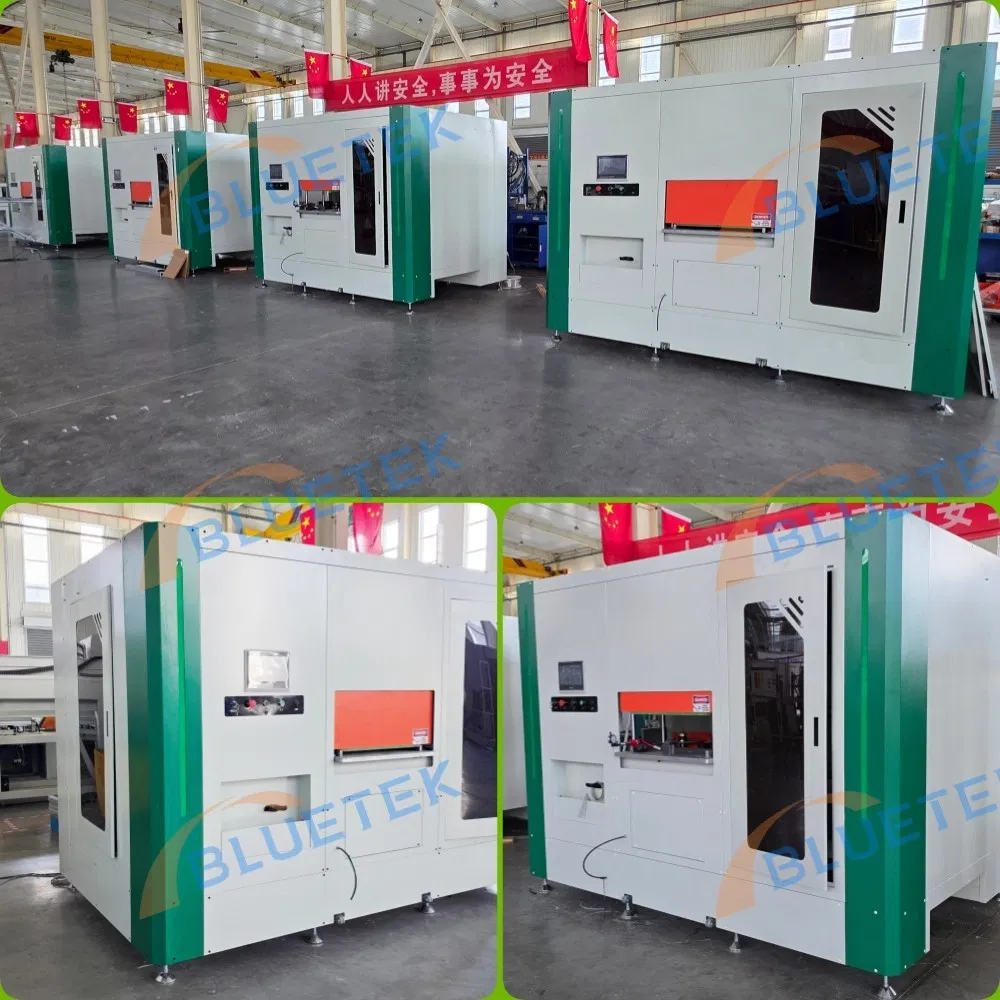

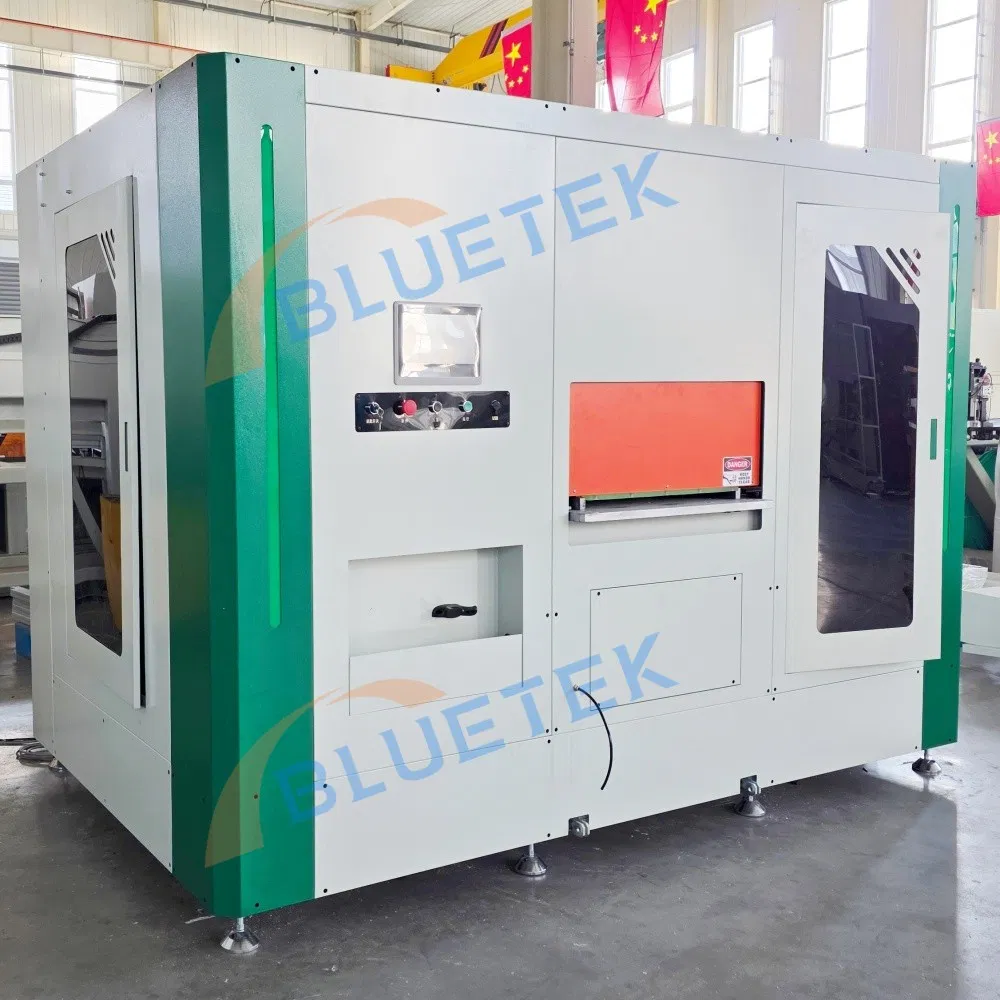

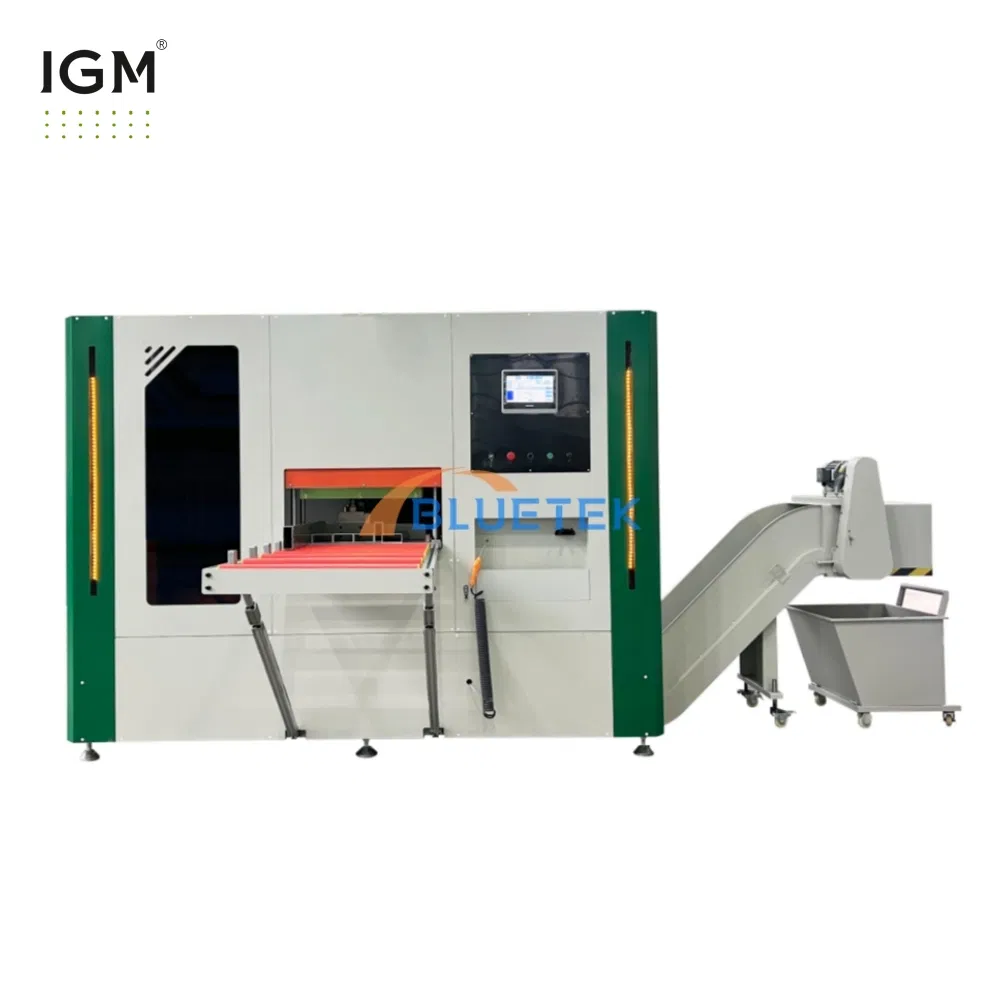

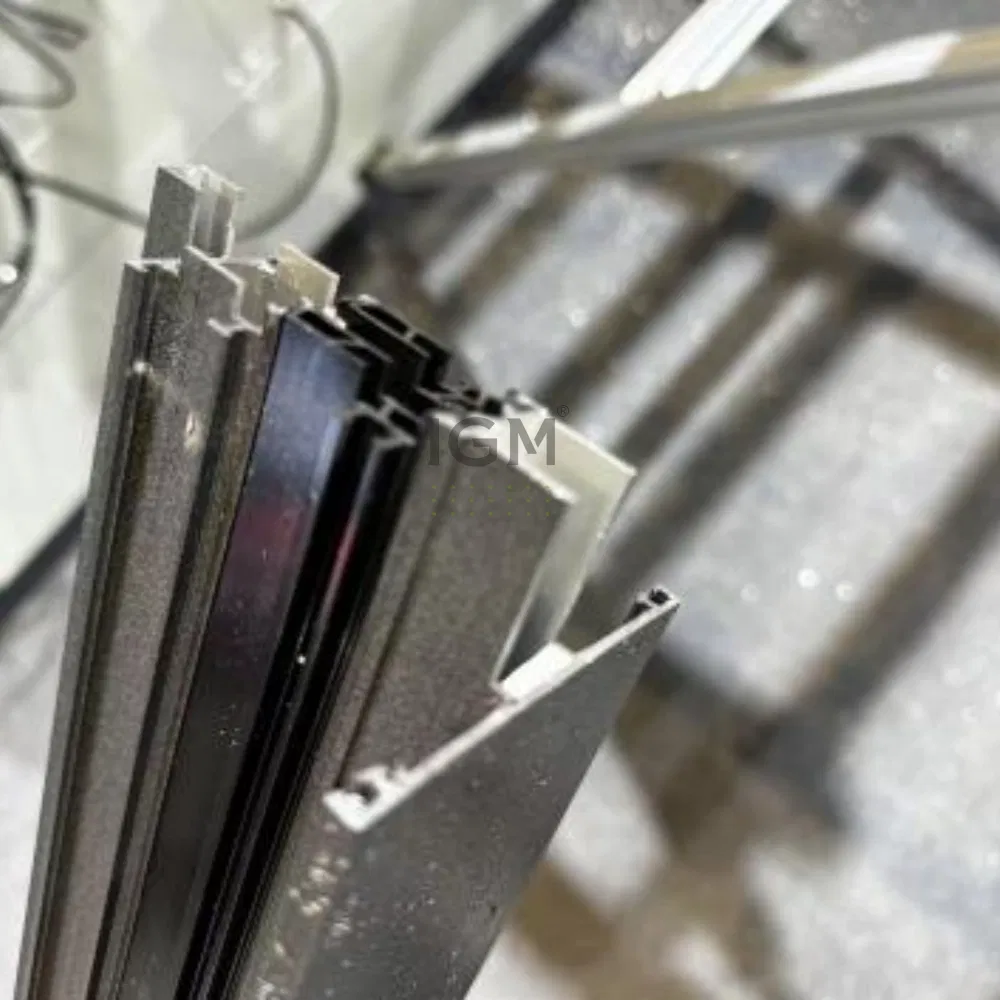

This high-precision SZA400 model is specifically designed for milling the mullion end-face of aluminium alloy profiles, providing a robust solution for aluminum window and door manufacturing.
| Parameter Item | Specifications |
|---|---|
| Working Air Pressure | 0.6 -0.8 Mpa |
| Power Supply | 380V 50Hz 3Phase |
| Total Power | 11kw |
| Motor Power | 3kw * 2 |

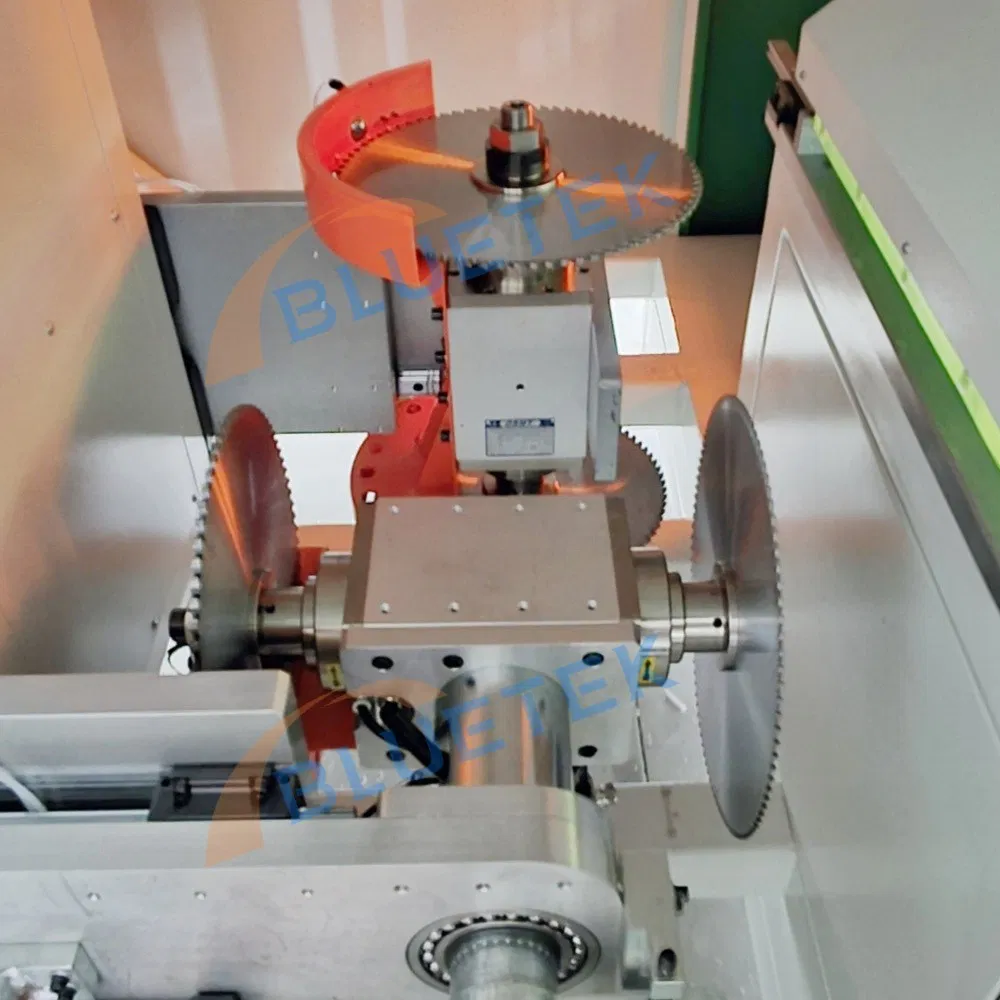

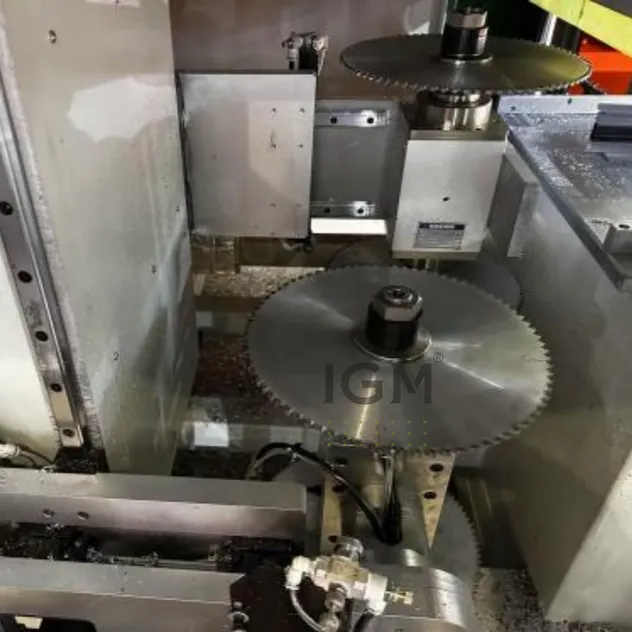

| Diameter of Blades | Φ350mm × φ30mm |
| Milling Depth / Height | Max. 120mm / Max. 200mm |

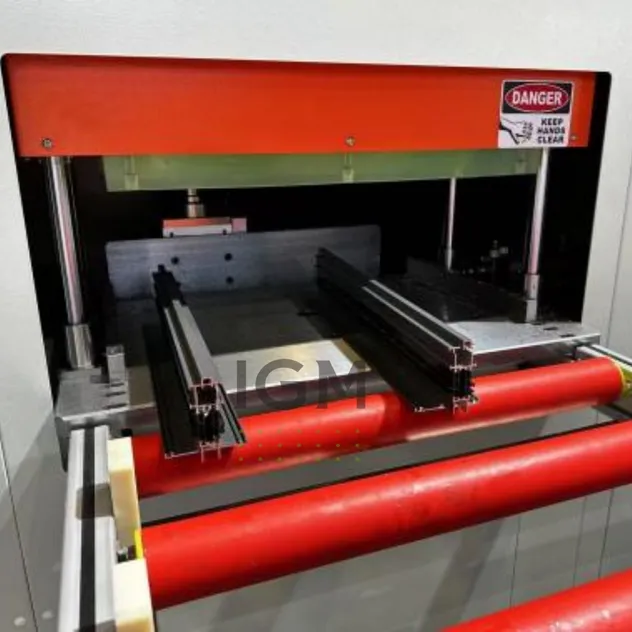

| Workbench Width | 595mm |
| Overall Size | 2880 * 1880 * 2160 mm |
| Machine Weight | 1900 kgs |

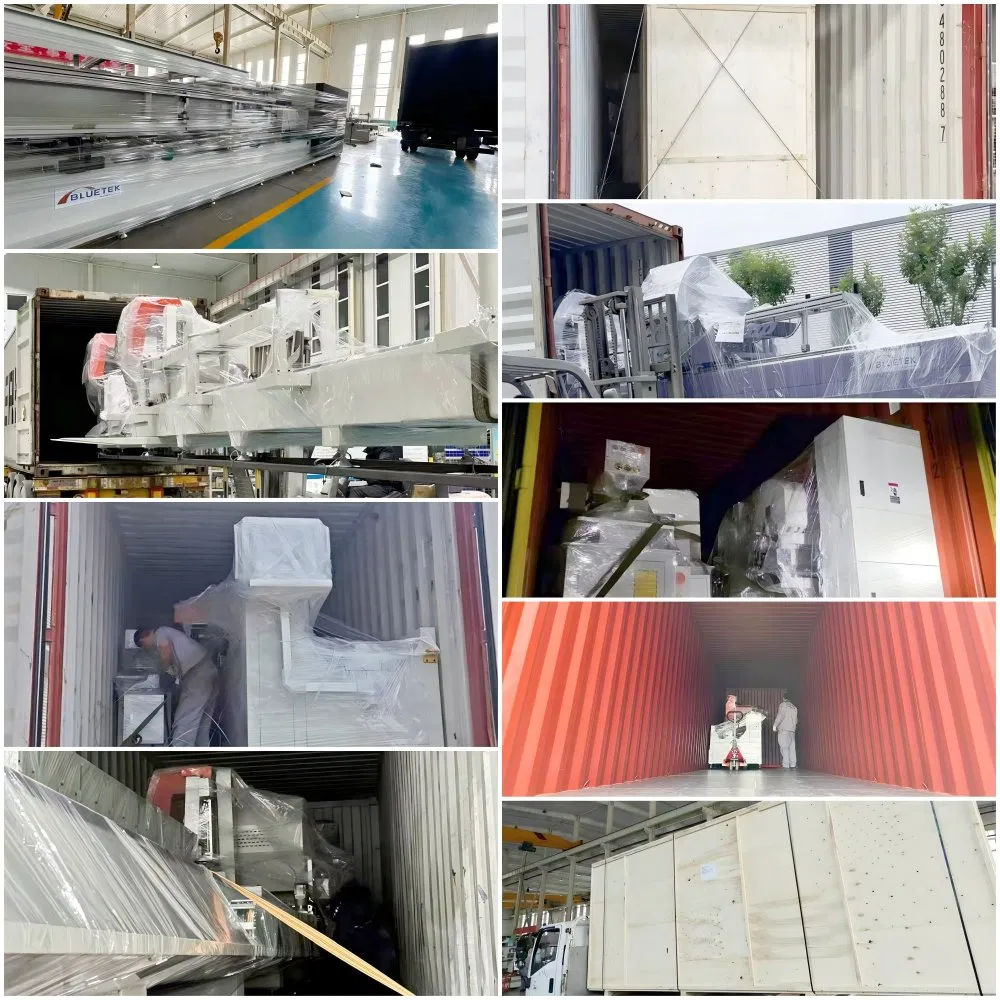

LCL: Machines are packed in fumigation-free plywood cases. The pallet is thickened and raised, with the machine base securely fixed by steel wire.
FCL: Machines are wrapped in plastic film and secured within 20/40-foot containers using steel wire or specialized packaging tape. Fumigation-free wooden boxes are available upon request.

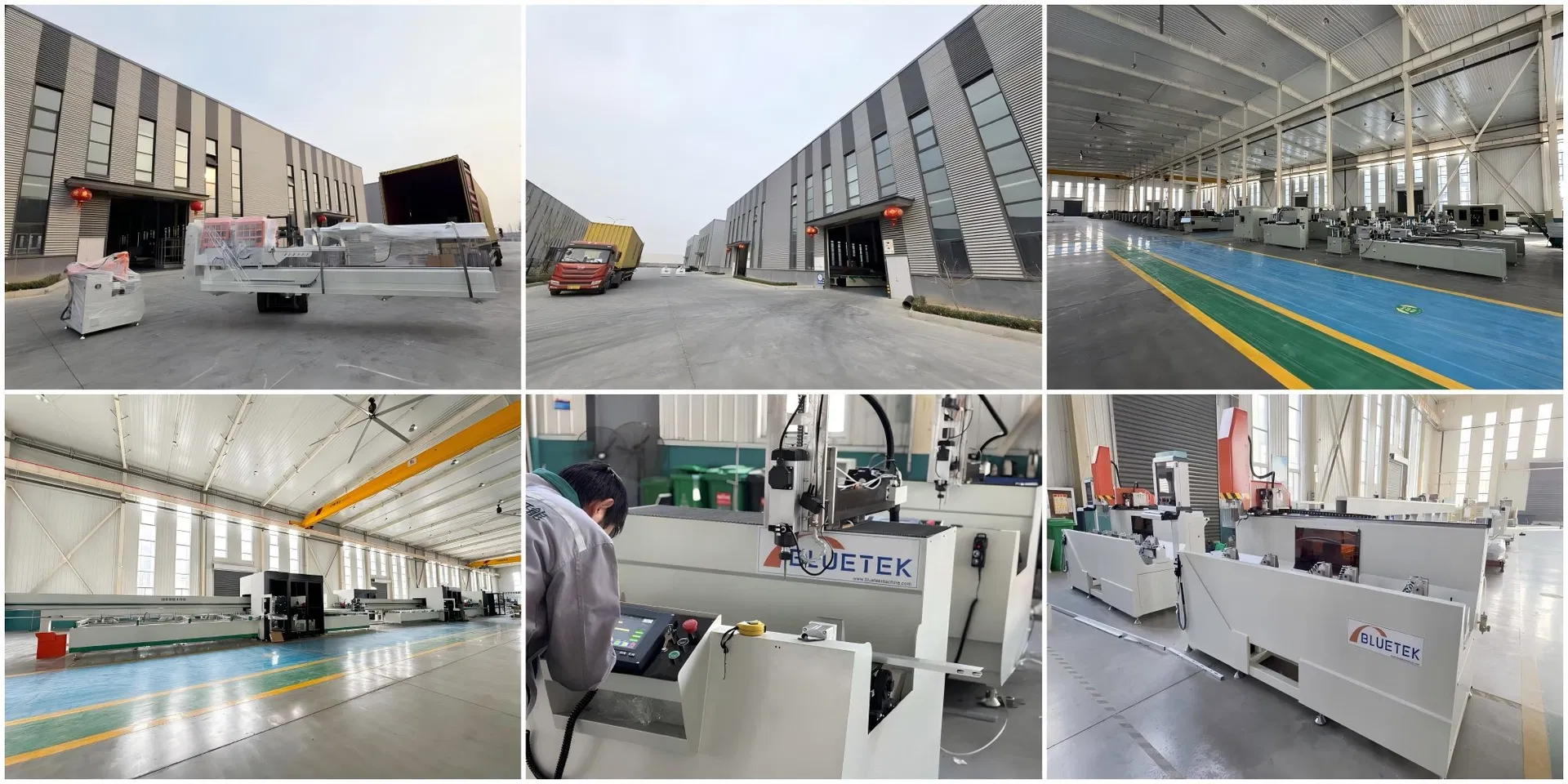

We specialize in the design and manufacturing of high-quality Aluminum and UPVC window door machinery. Our products are engineered for precision, efficiency, and durability, catering to a global clientele across Europe, North America, and the Middle East.

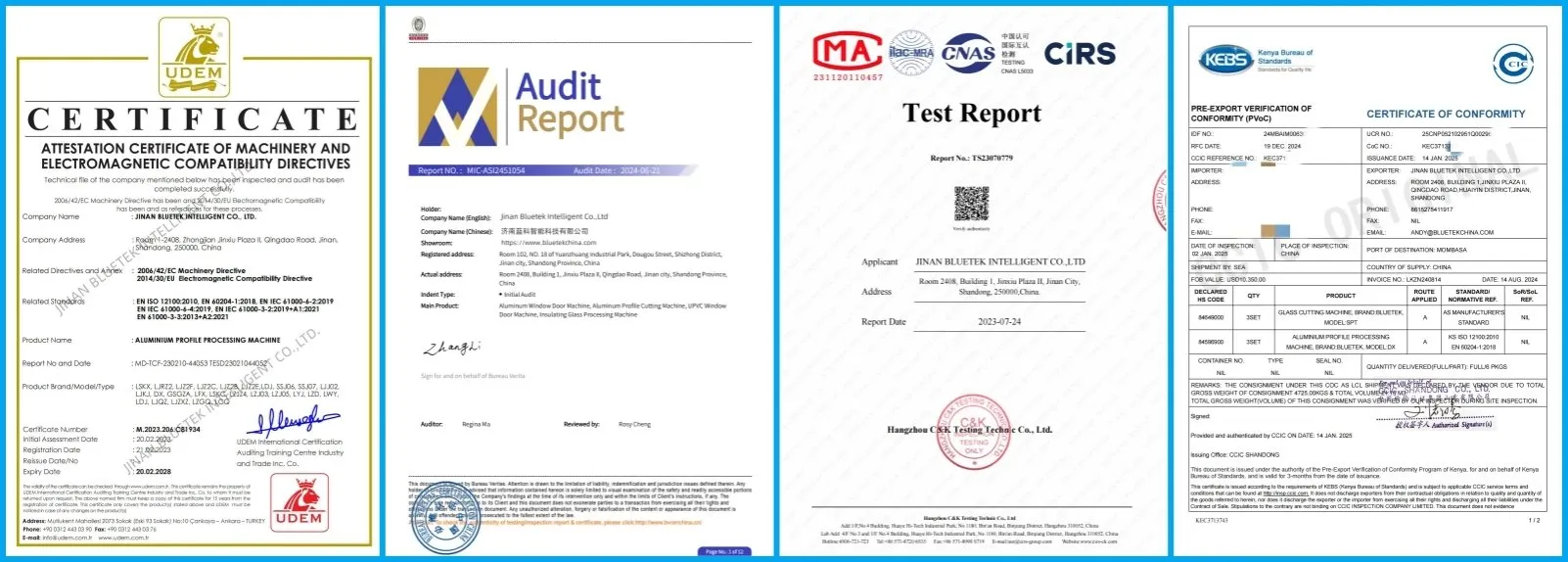

Our machinery has passed EU CE certification and US UL certification, ensuring compliance with international safety and quality standards for export to over 50 countries.
