Product Description

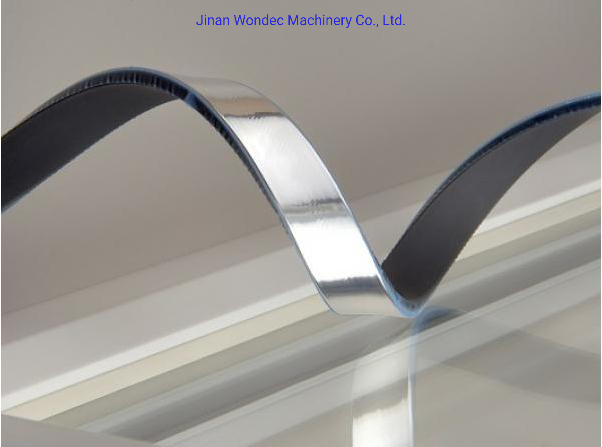

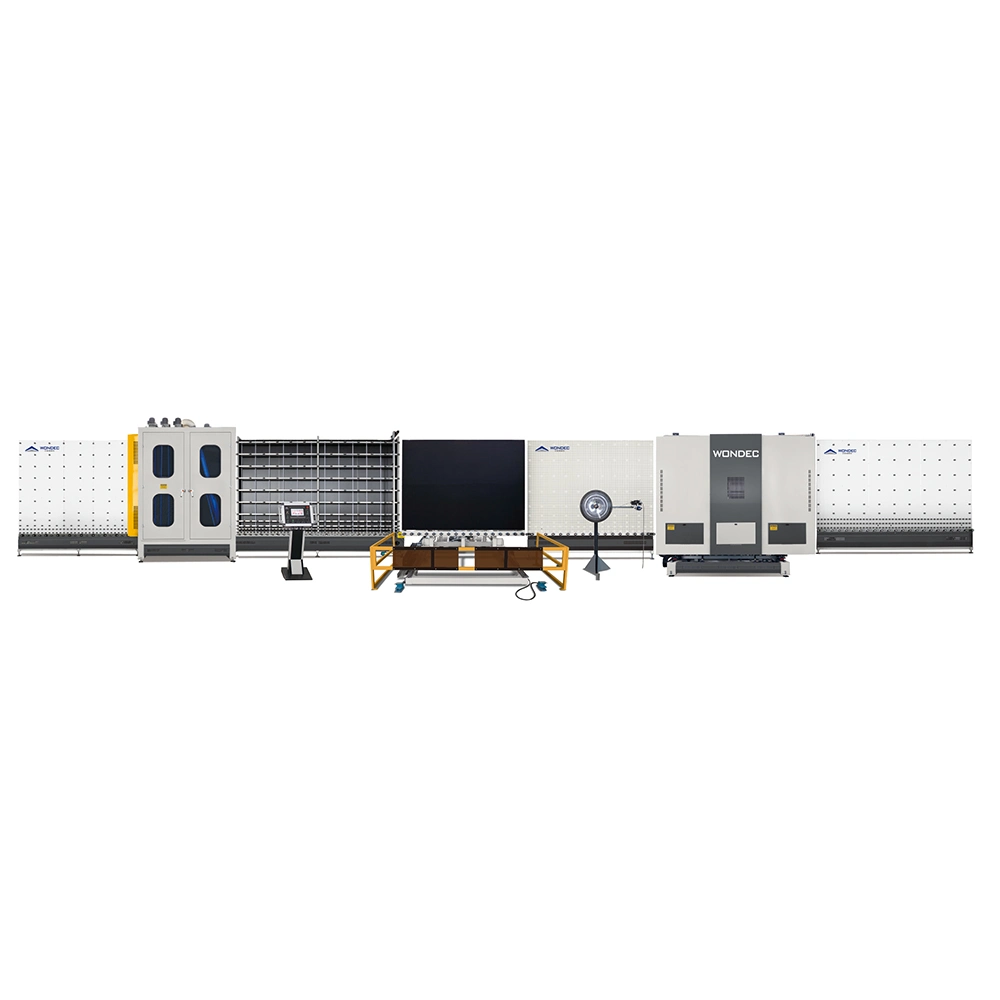

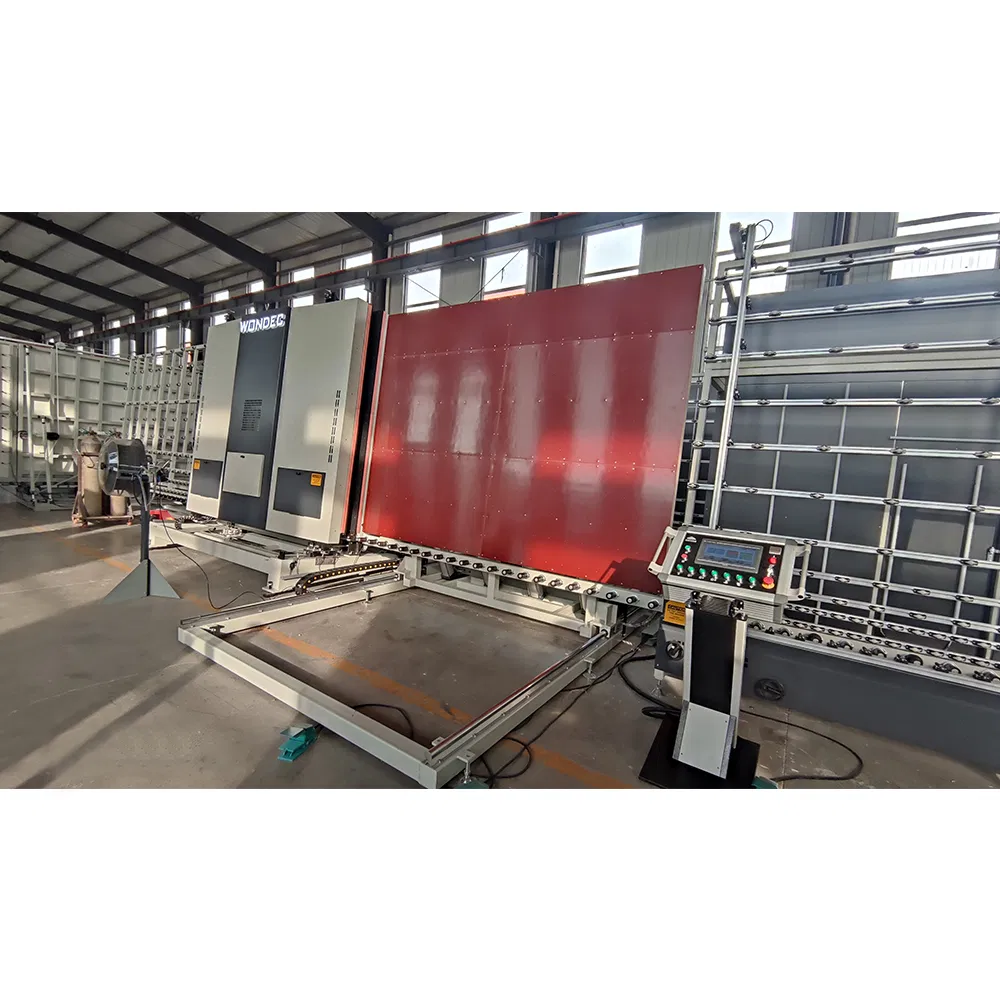

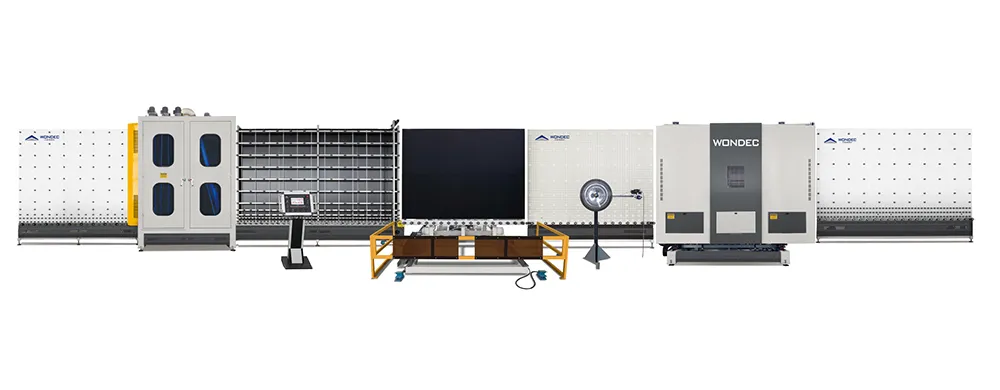

Automatic Vertical Type Super Spacer Insulated Glass Production Line
Section 01: Input conveyor
This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

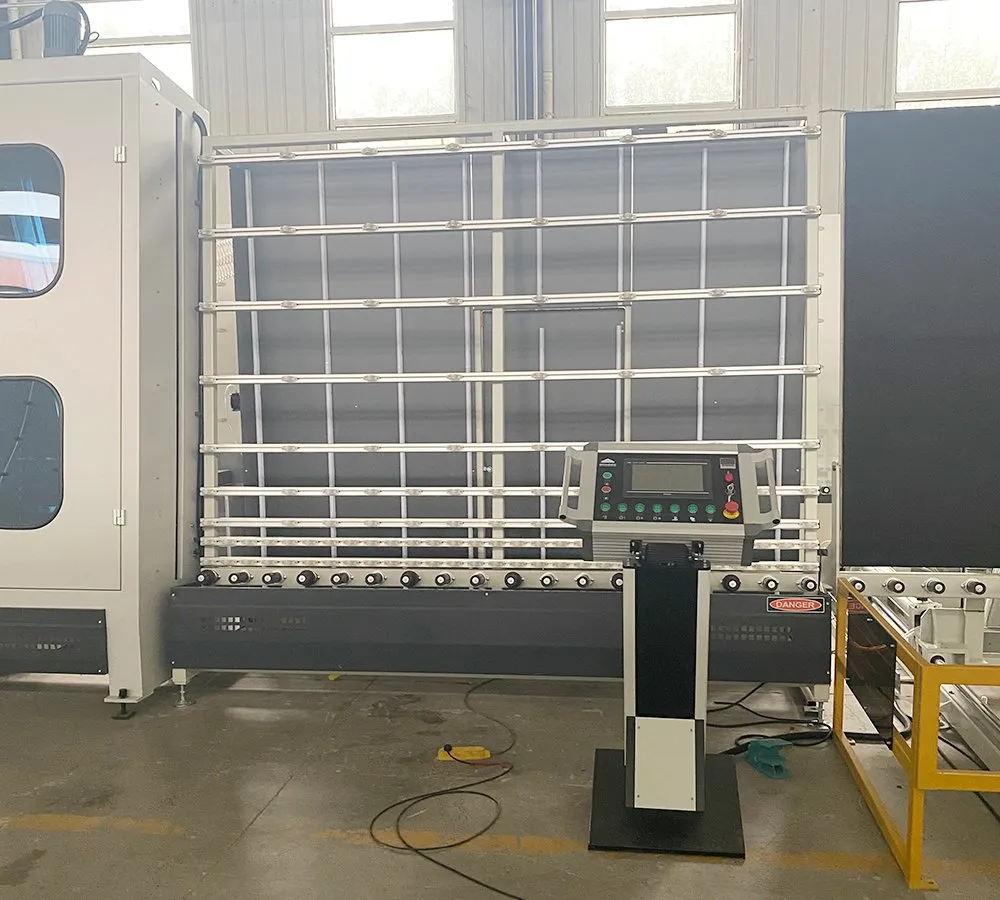

Section 02: Glass washing and drying section
- Stainless steel material and corrosion-resistant material adopted for all washing area and waterway system.
- 6 brushes driven by 6 independent motors; ensures continuous operation if one motor fails.
- Coupling connection between brush and motor prevents slip or idling.
- Soft brushes (0.1mm) for Low-E glass and hard brushes (0.2mm) for ordinary glass.

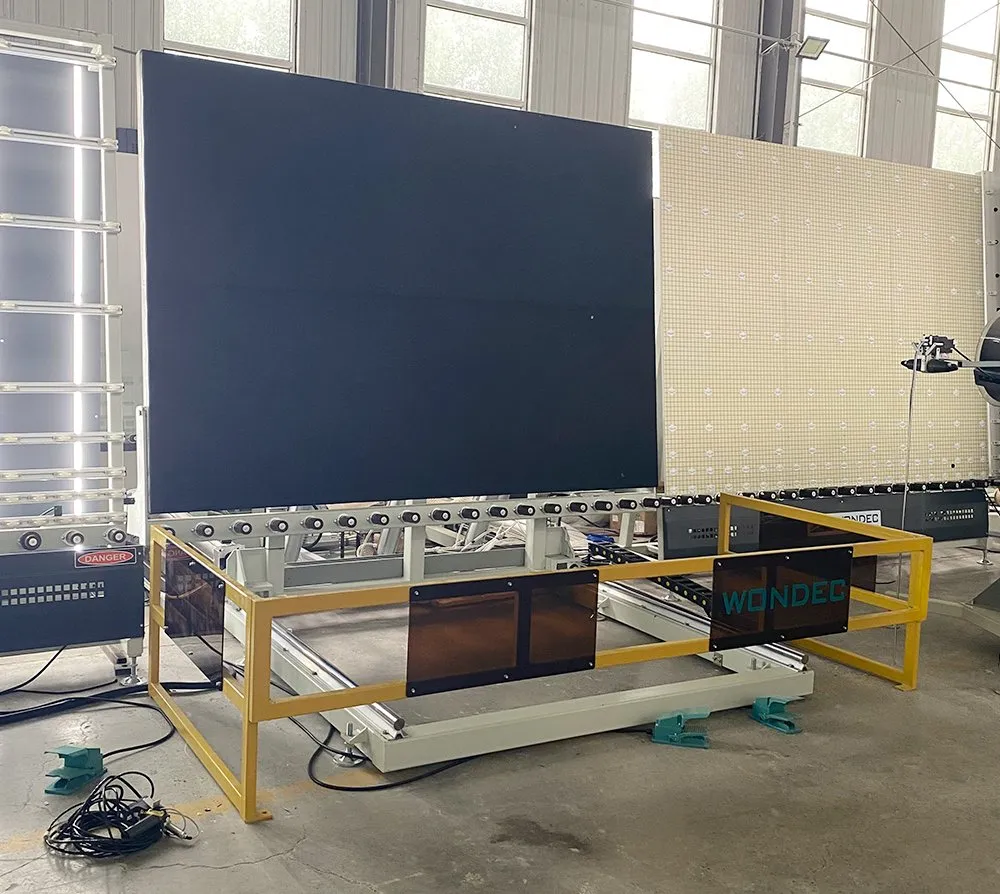

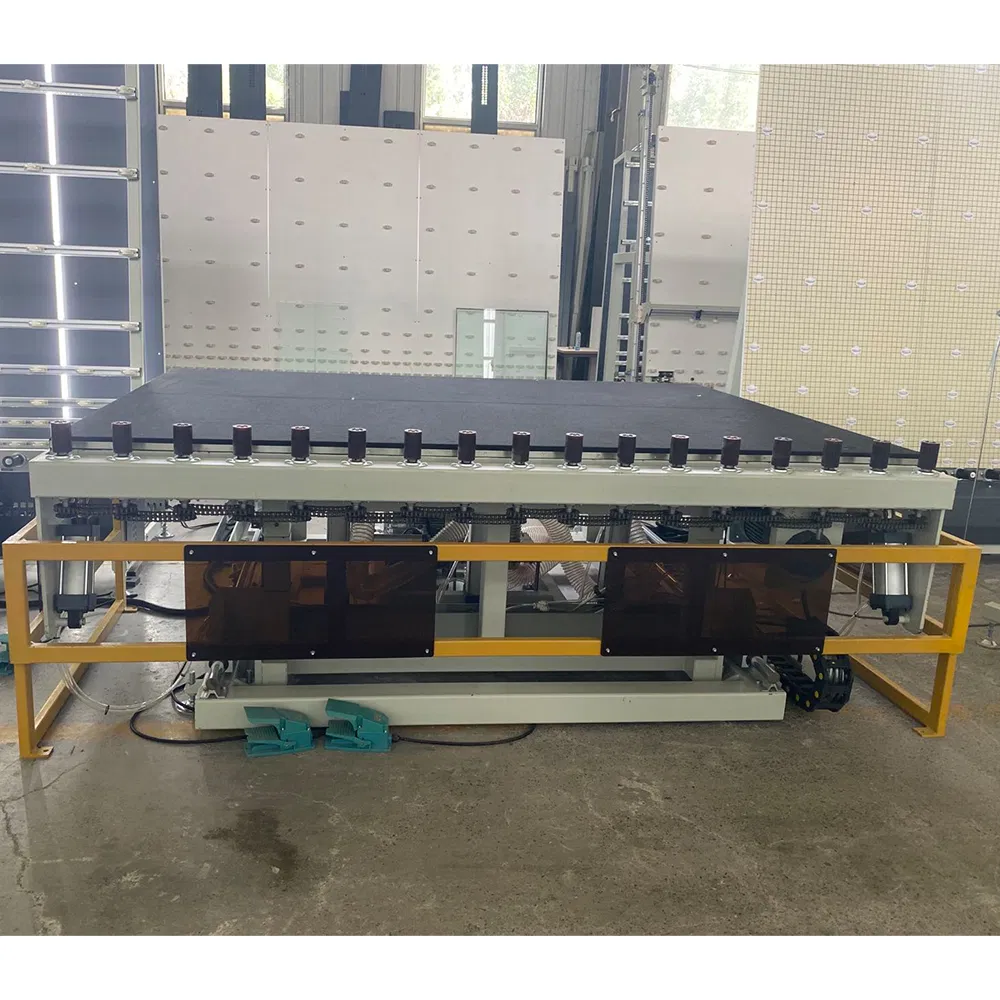

Section 03: Glass Inspection conveyor

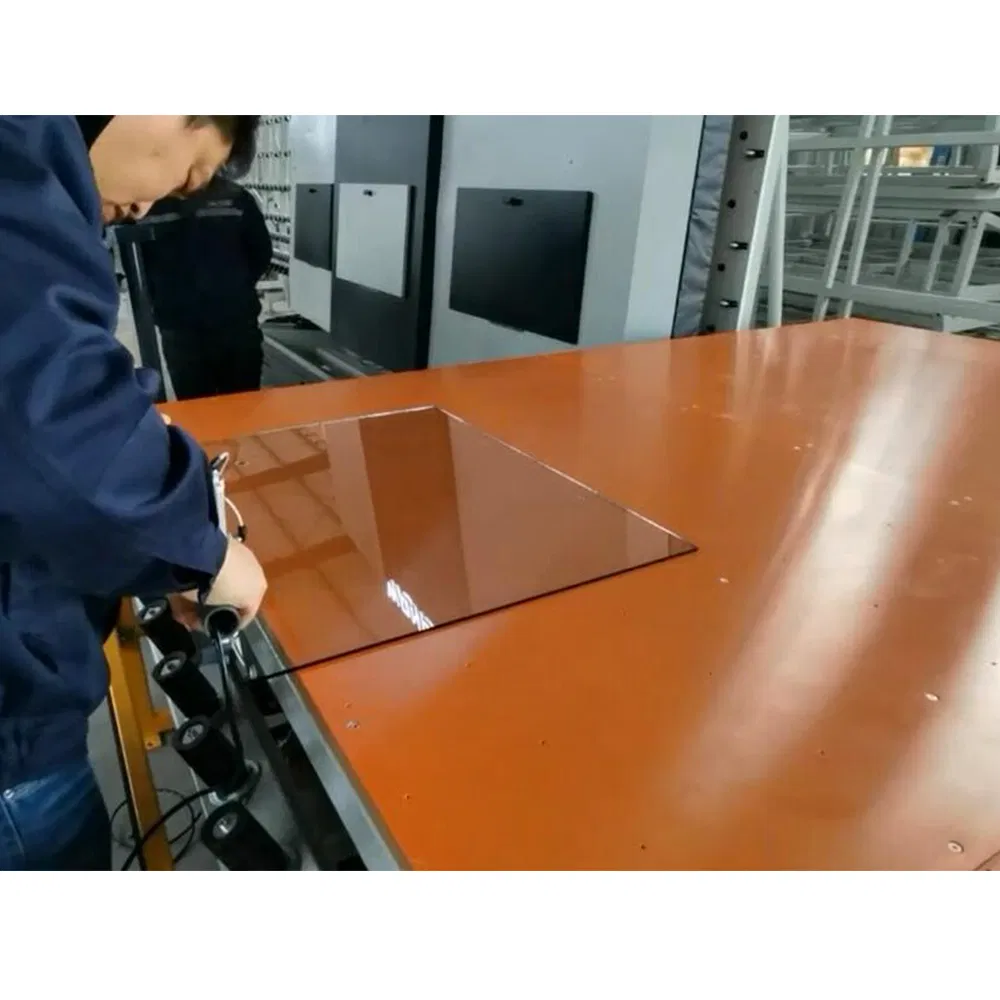

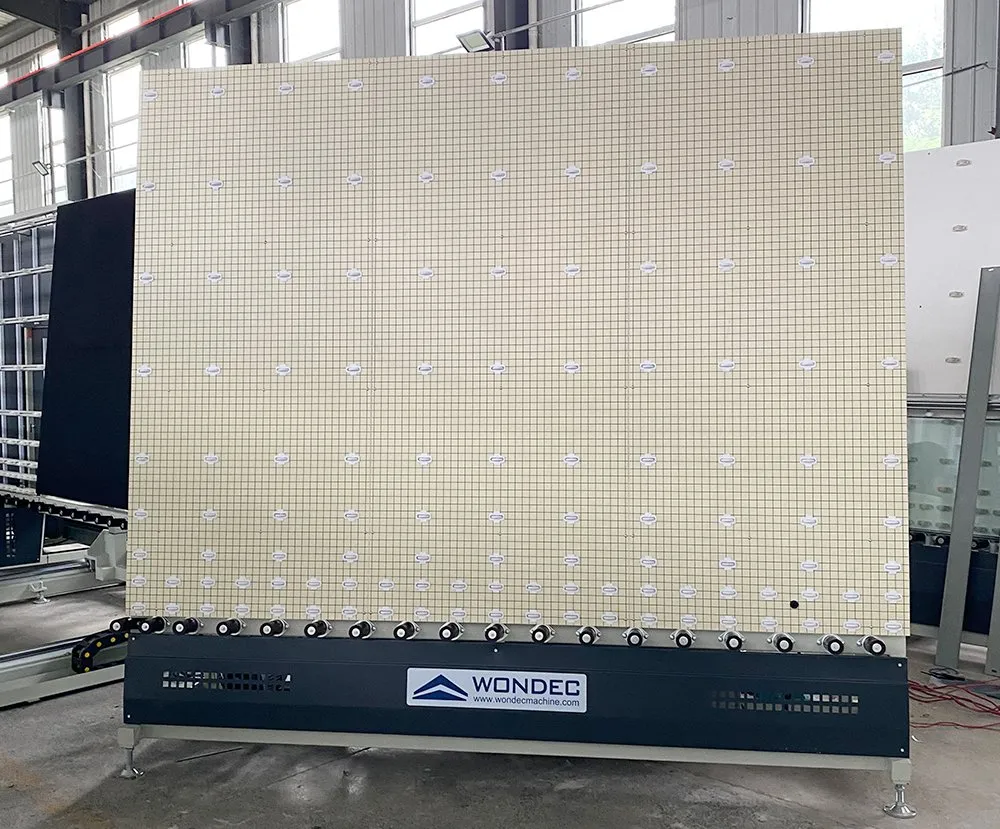

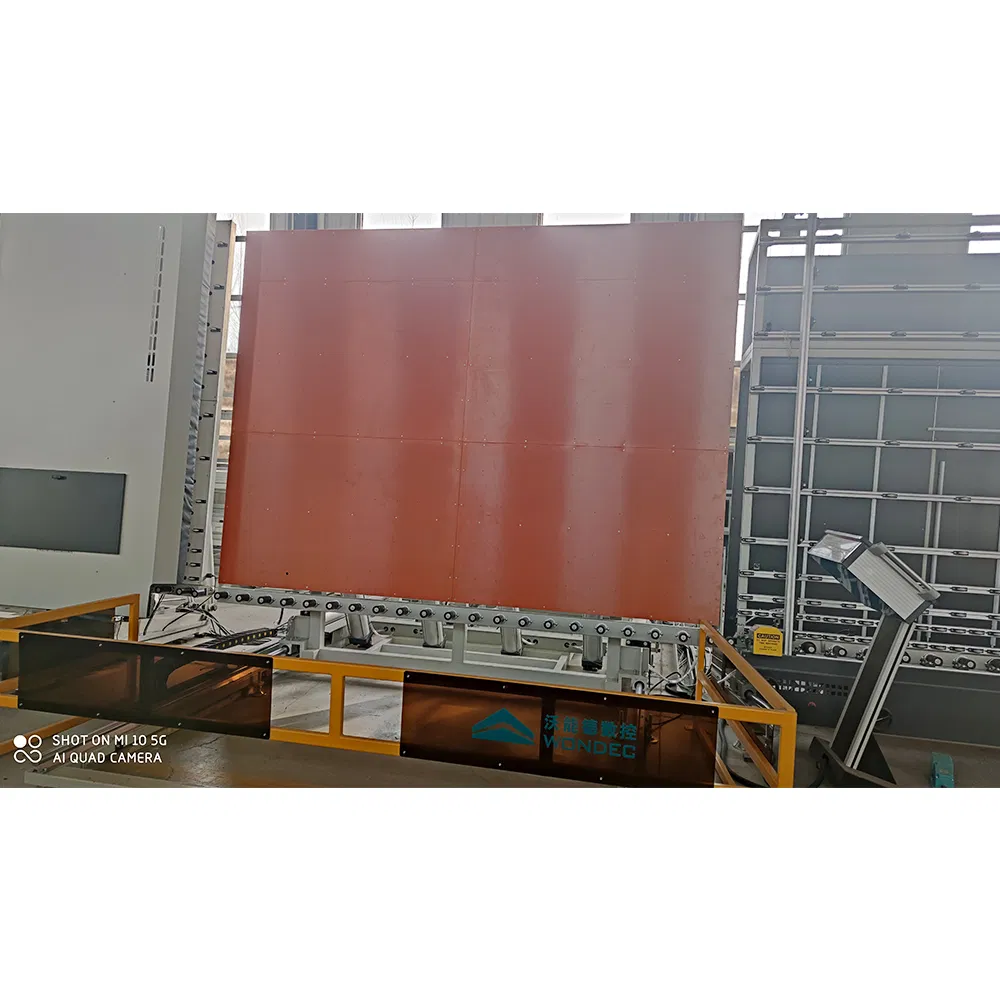

Section 04: Tilting table for Super Spacer manual application

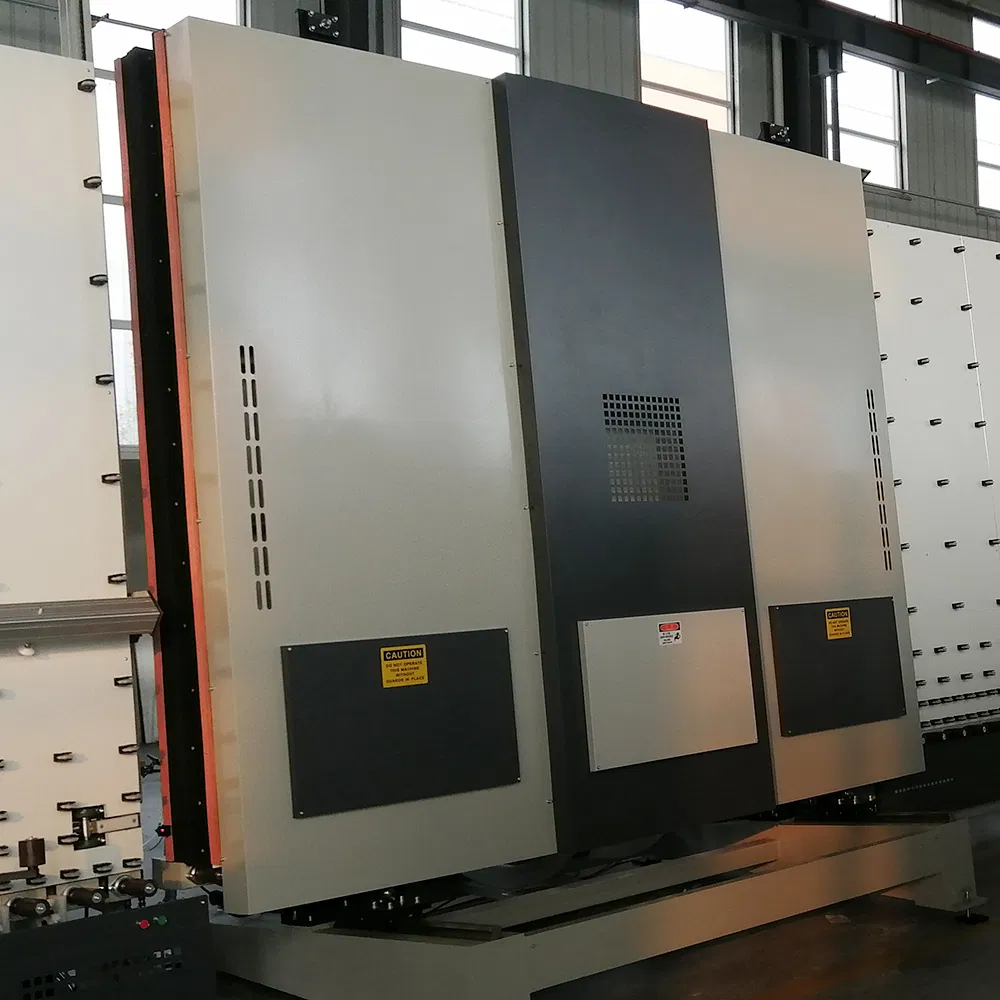

Section 05: Georgian bars application

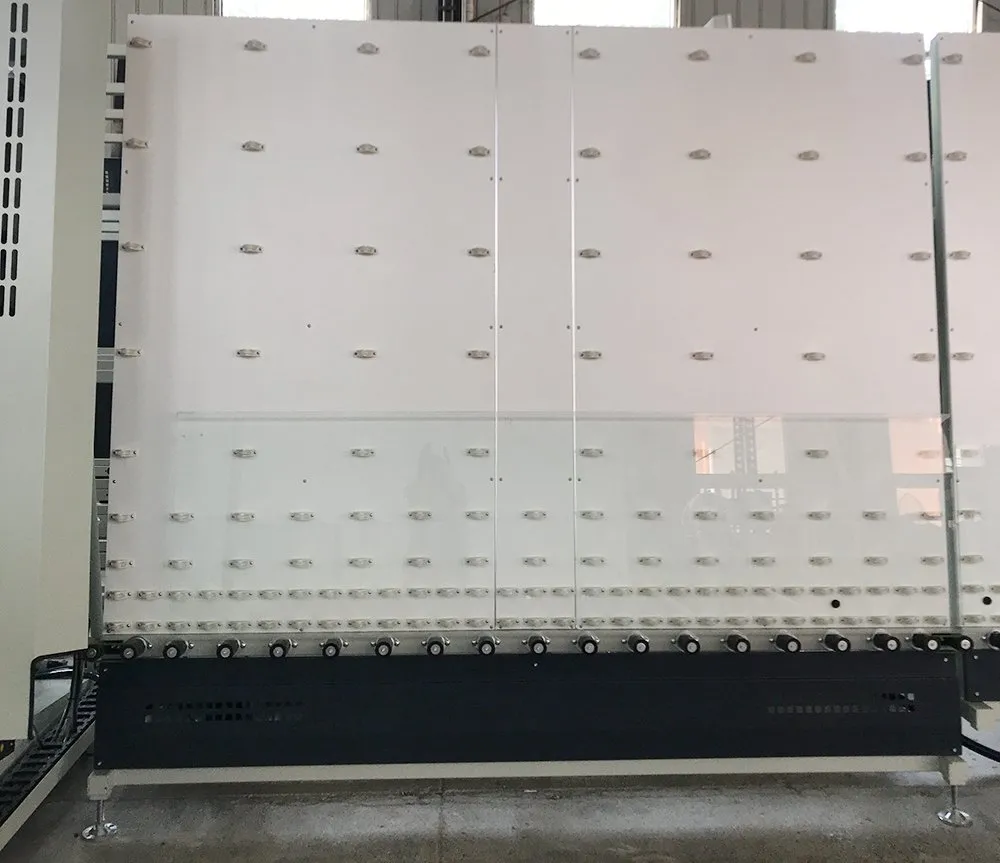

Section 06: Inside assembly & panel press with online argon gas inflation
- Denser steel frame for superior machine body strength.
- Panel press controlled by Servo motor for high precision.
- Two-layer front pressing plate ensures long-term flatness adjustment.
- Suction cups equipped with separate logic valves, working partitioned by glass size.
- Automatic online gas filling suitable for double & triple IGU (Argon inflation from bottom).
Section 07: Output conveyor
Used to transmit and store glass units to improve work efficiency. Can store glass units when connected with a sealing robot.
❓
Frequently Asked Questions
What is the maximum thickness of insulating glass this line can produce?
The production line can handle a maximum insulating glass unit thickness ranging from 12mm to 80mm.
Can this machine wash Low-E coated glass?
Yes, the washing section features three soft brushes with a diameter of 0.1mm specifically designed to prevent damage to Low-E films.
How is the precision of the panel press maintained?
The panel press is controlled by a high-precision Servo motor and features a two-layer steel frame pressing plate that can be adjusted for long-term flatness.
Does the line support automatic Argon gas filling?
Yes, Section 06 includes an automatic online gas filling system suitable for both double and triple IGU, with inflation from the bottom side.
What happens if one of the brush motors fails?
The washing section utilizes 6 independent motors for its 6 brushes, meaning if one motor has an issue, it will not affect the operation of the others.
What are the glass size limitations for this model?
The maximum glass size is 2000*2500mm, while the minimum glass size is 500*300mm.
