The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
1 / 5
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls
The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls

The 14 Axis Rolling Compound Machine for Large Screen Precision CNC Aluminum Profile Processing Is Suitable for Broken Bridge Aluminum Curtain Walls

After-sales Service: 24-Hour Online
Warranty: 2years
Condition: New
Send Inquiry

Product Description

Technical Specifications

Model NO.
GY-CNC-14
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power
4kw
Rolling Knife Diameter
230mm
Cutter Head
230mm
Machinable Profile End Face
250*380mm
Configuration Method
Full Servo Feed
Production Capacity
500 Pieces/Year
Packaging & Delivery
Package Size
180.00cm * 120.00cm * 180.00cm
Package Gross Weight
700.000kg

Product Description

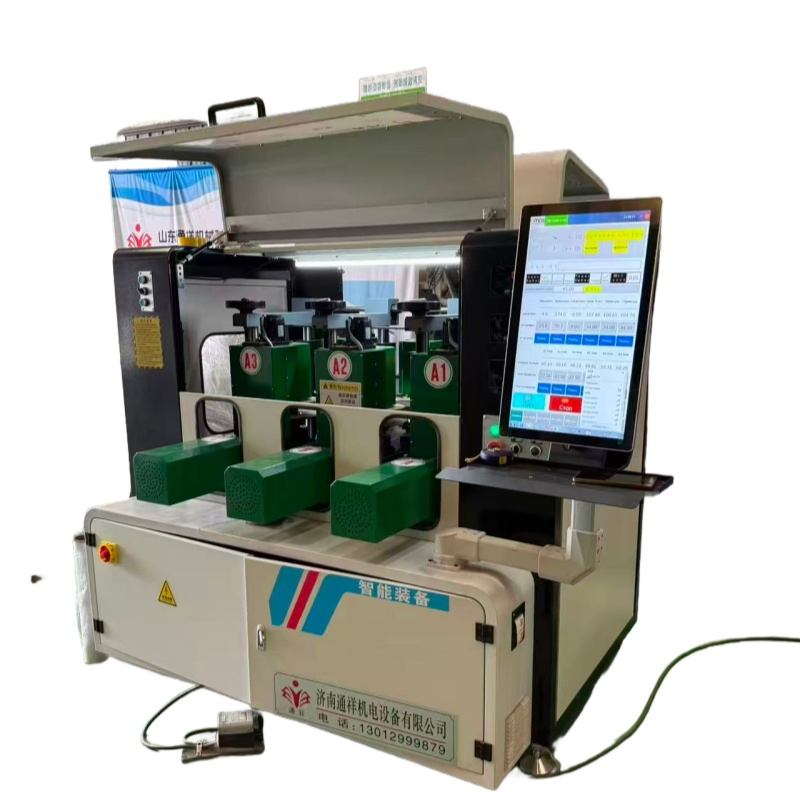

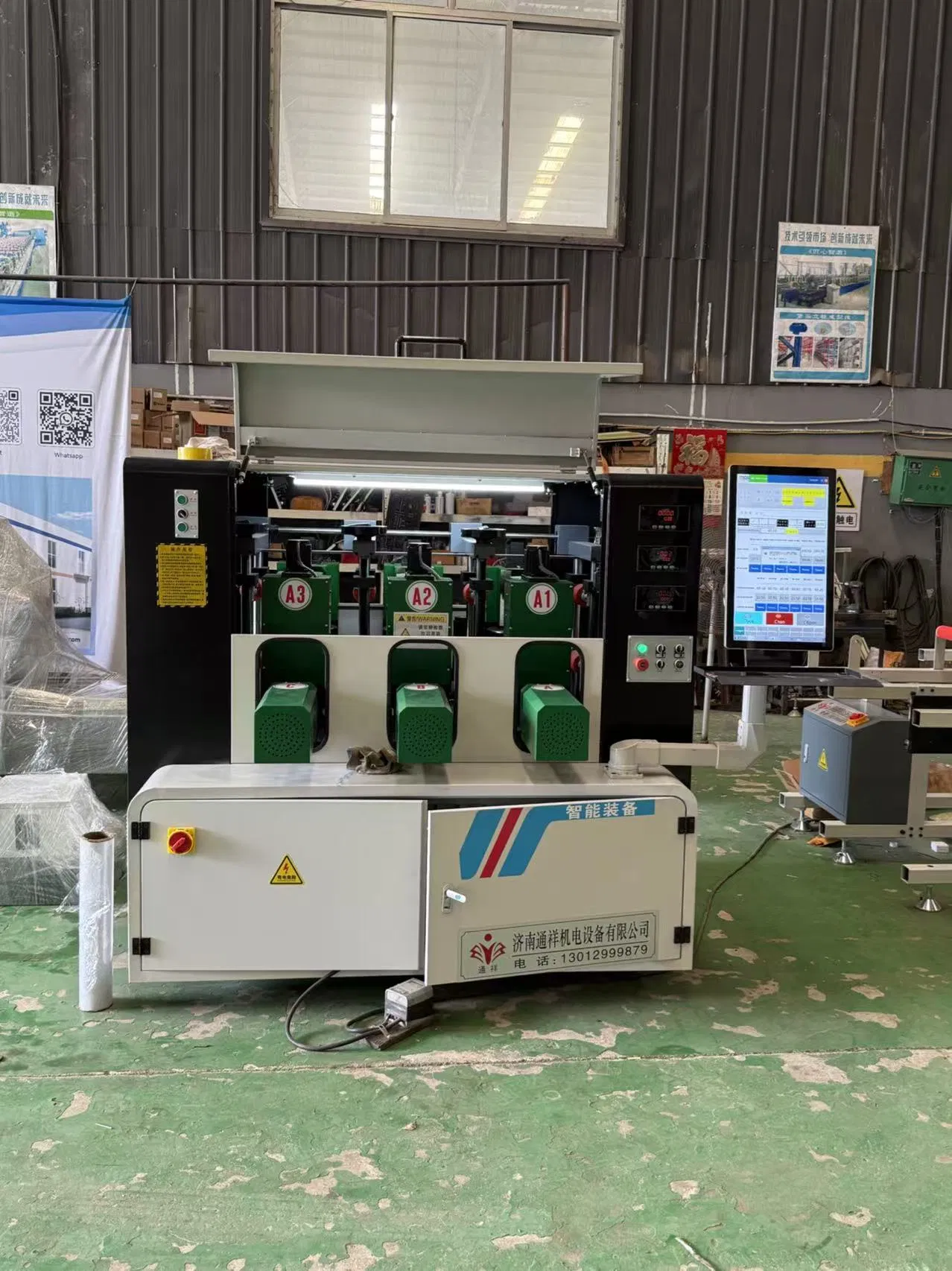

Fully automatic CNC 14-axis rolling compound machine GY-CNC-14
  • This machine is used for the rolling and compounding of thermal break aluminum, door and window, and curtain wall profiles. It combines aluminum profiles with teeth cut and thermal break strips into a complete thermal break aluminum profile.
  • The pressure wheel automatically controls the height of the profile, enabling rapid straightening of the profile when it is bent.
  • The machine tool bed adopts linear guide rail motion pairs, ensuring the accuracy of the cut components.

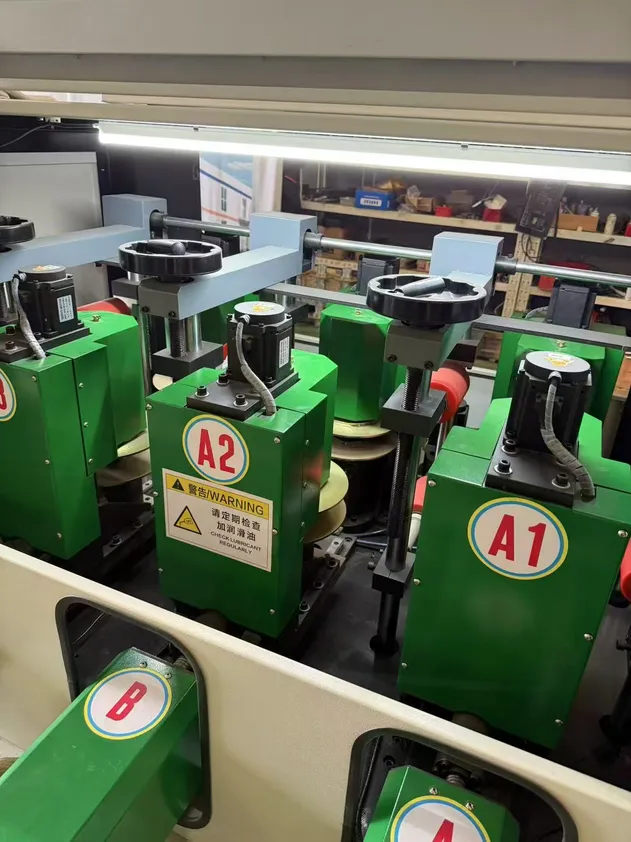

  • Six sets of cutter heads can be started with one click, allowing for quick replacement of thermal insulation strips. It can store and remember over 2,000 different types of aluminum materials.
  • The opening and closing protective cover ensures safe and convenient operation.
  • The high and low staggered table material type can be started with one button, eliminating the need for manual adjustment.

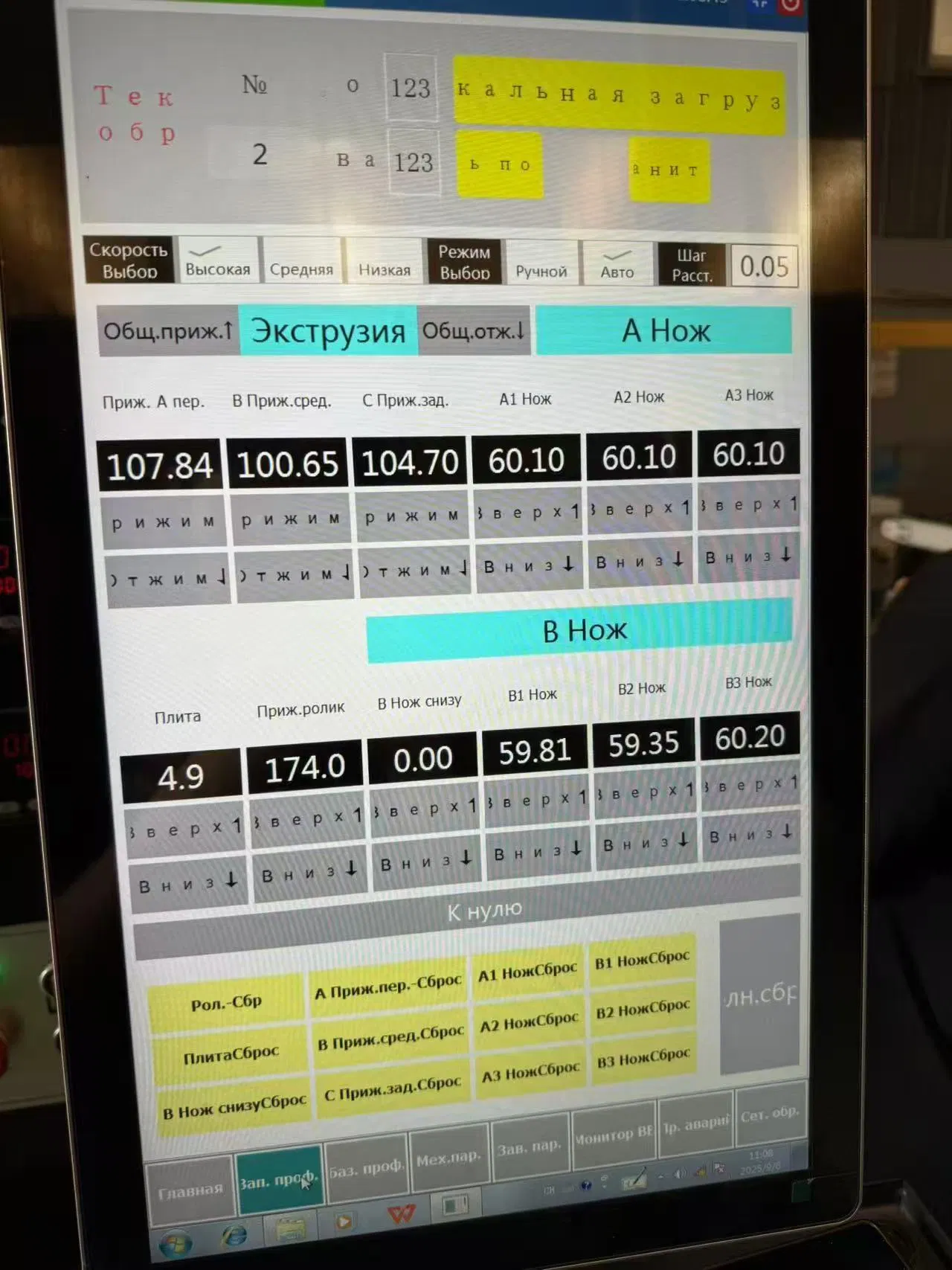

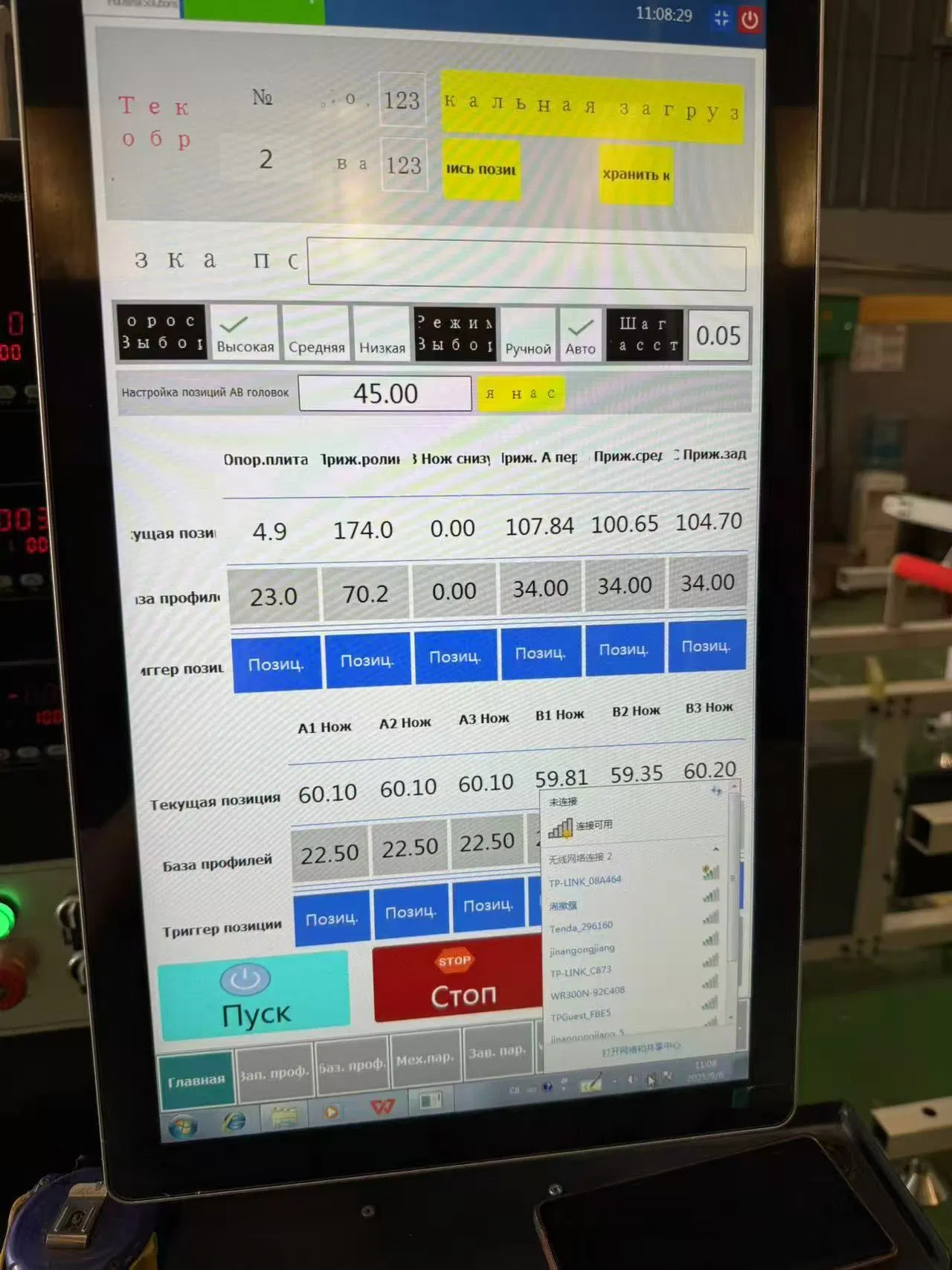

  • Equipped with an intelligent numerical control system. All data operations are digitized with a simple and intuitive interface.
  • The head part is cast as one piece with integrated support plates and reinforcing crossbeams to enhance stability.
1Input power supply380V 50HZ
2Power4KW
3Diameter of the rolling knife230mm
4Cutter head230mm
5Profile feed speed6-45m/min
6Machinable profile end face250*380mm
7Configuration methodFull servo feed
CNC Aluminum Profile Processing
Rolling Compound Machine
Precision CNC Machine

Warehouse & Production Management

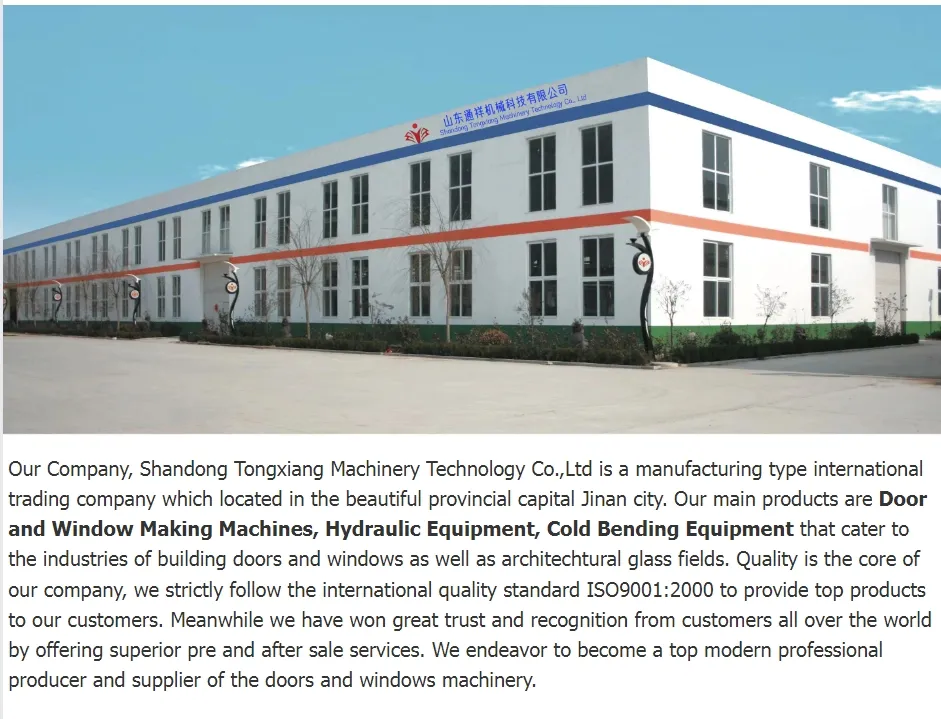

Production Facility

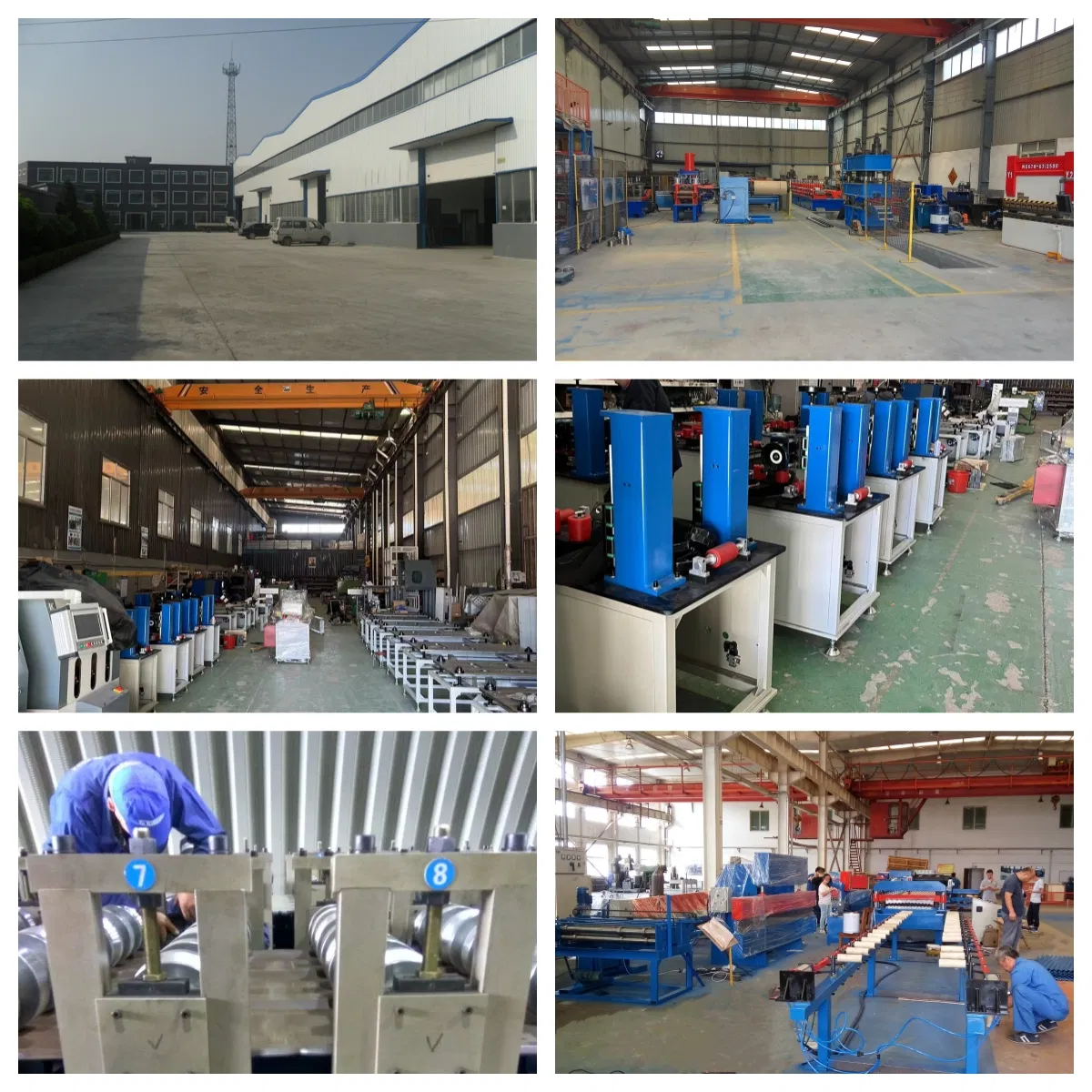

Warehouse Management
Production Process

Our Clients & Exhibitions

Client Exhibition 1
Client Exhibition 2
Client Exhibition 3
Client Exhibition 4

Certifications & Other Products

Certifications
Quality Standards
Other Machinery Products

Packaging & Shipping

Packaging and Logistics

Frequently Asked Questions

1. Who are we?
We are a professional company integrating production, sales, and service. With 20 years of design and research experience, we enable our products to achieve professional design and precise manufacturing.
2. How do we ensure quality?
We always provide a sample before mass production and conduct a final inspection before shipment to ensure the highest quality standards.
3. What can you purchase from us?
We offer door and window equipment, cold bending forming machines, hydraulic equipment, CNC grinding machines, and tile pressing machines.
4. Why purchase from us instead of other suppliers?
Our 20 years of industry experience ensure that every piece of machinery is built with precision and backed by professional service and technical support.
5. What delivery terms can we offer?
We accept a wide range of delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
6. What payment methods are accepted?
We support various payment methods such as T/T, L/C, D/P, MoneyGram, Credit Card, PayPal, Western Union, and Cash in multiple global currencies.
