| Product Name | Double-head cutting saw with CNC |
| Machine Model | LJZ2-500×4200-CNC |
| Input Voltage | 380V/50Hz |
| Input Power | 4.4KW (2.2kw*2) |
| Working Air Pressure | 0.5~0.8MPa |
| Saw Blade Speed | 2800r/min |

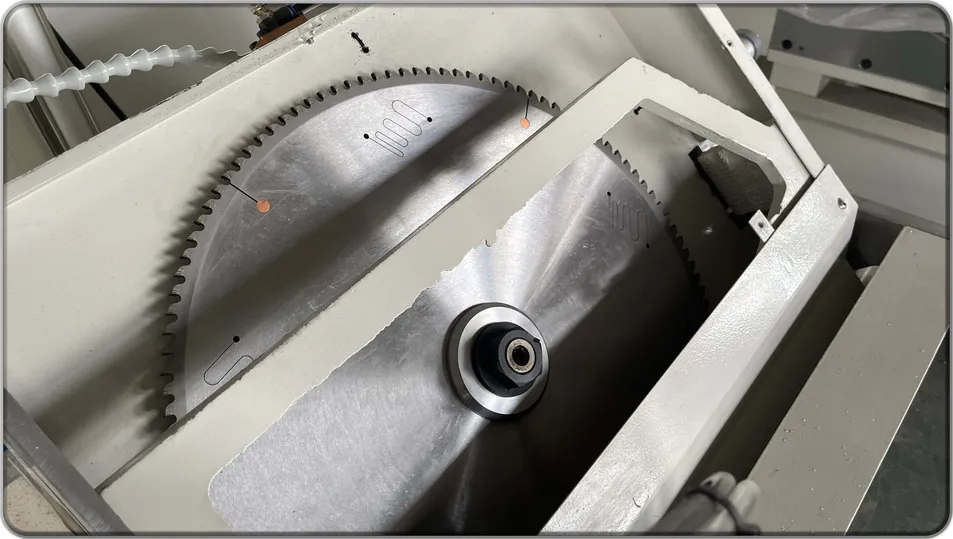

| Saw Blade Specifications | Ø500×4.4×ø30mm |
| Cutting Angle | 45º / 90º |
| 90° Maximum Length | 4200mm |
| Weight | 1200KG |

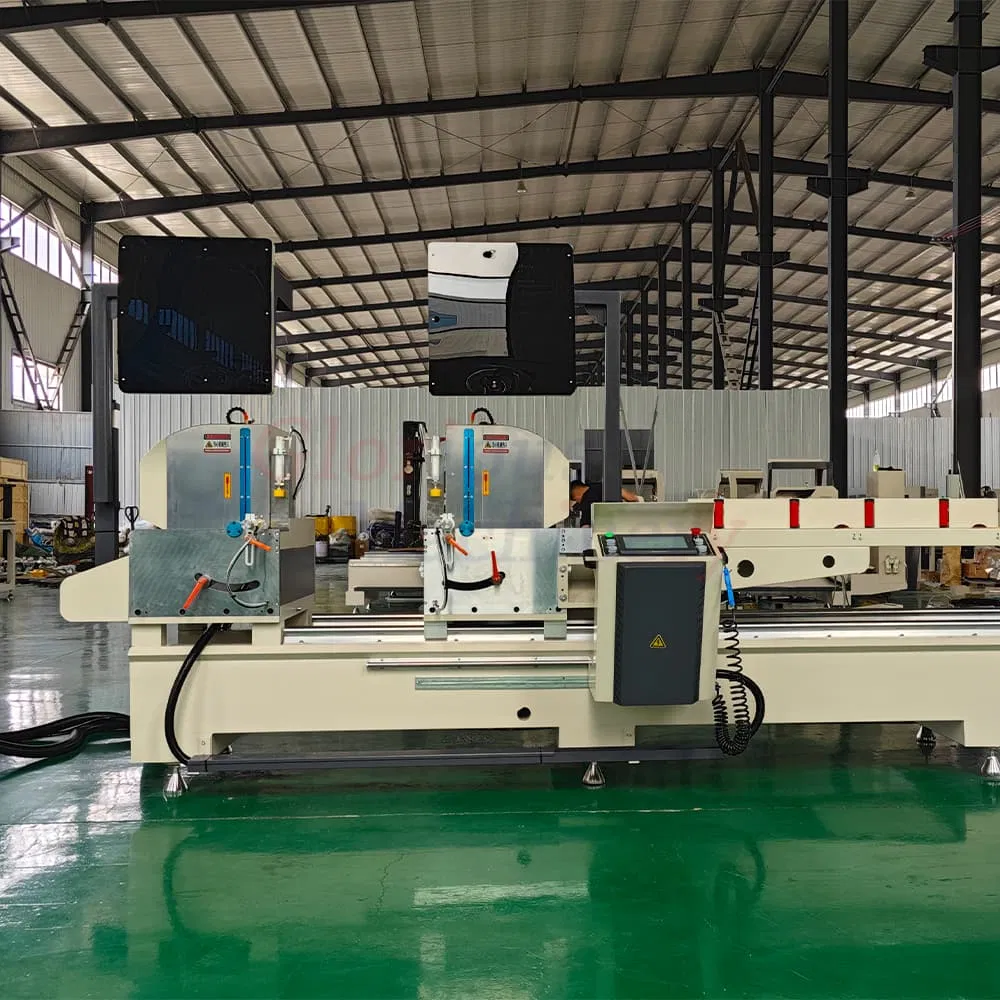

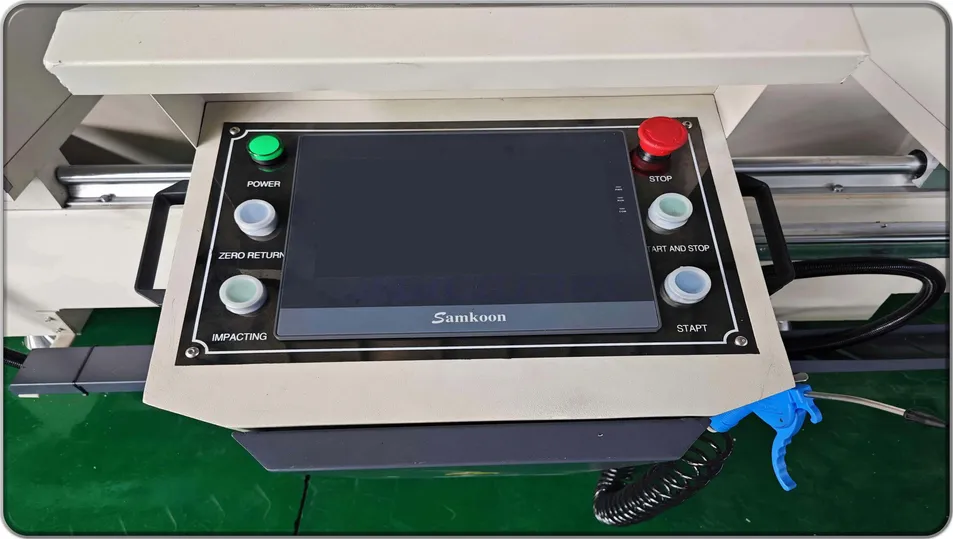

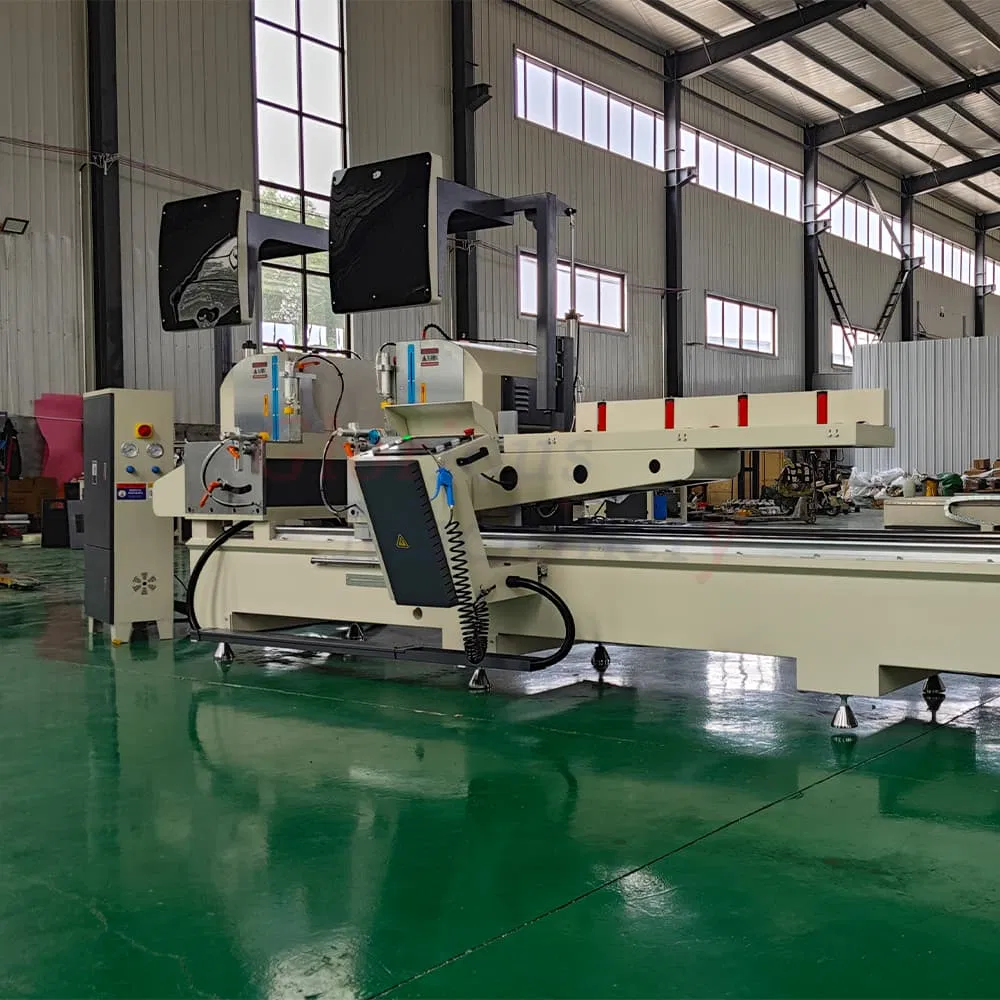

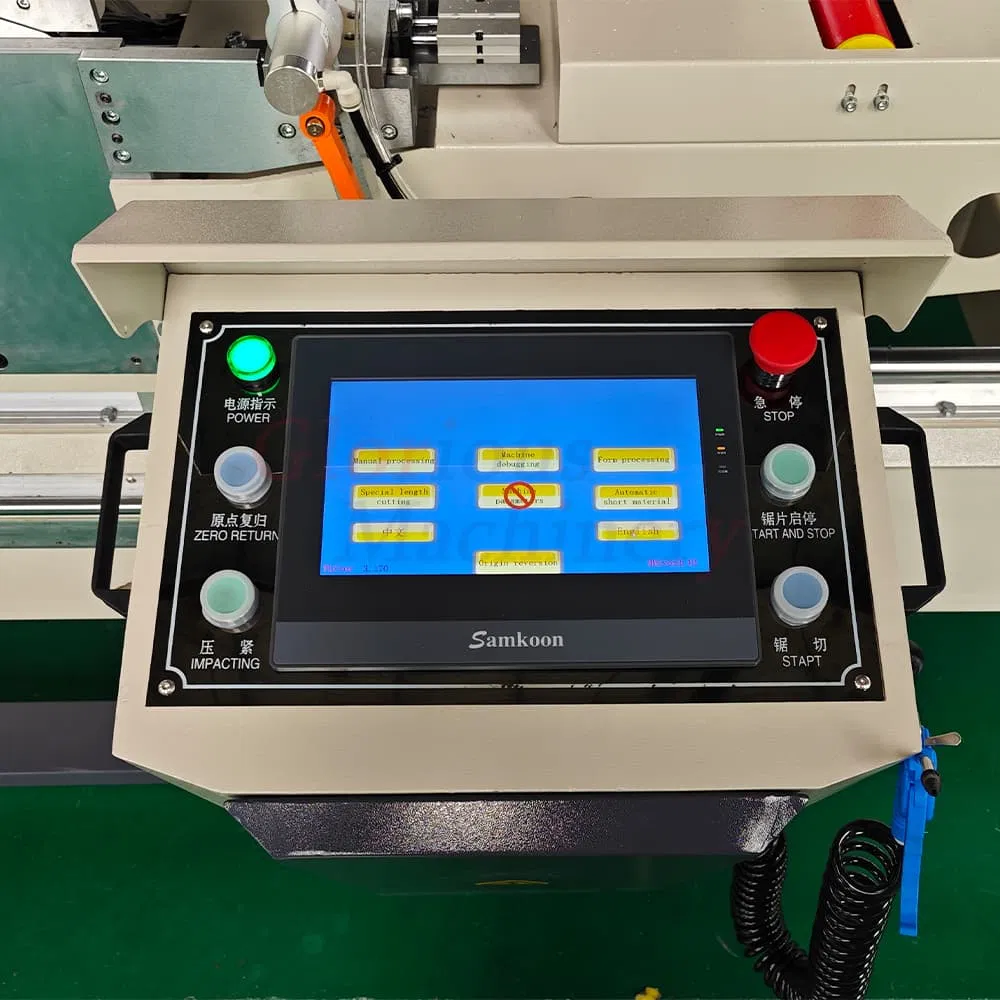

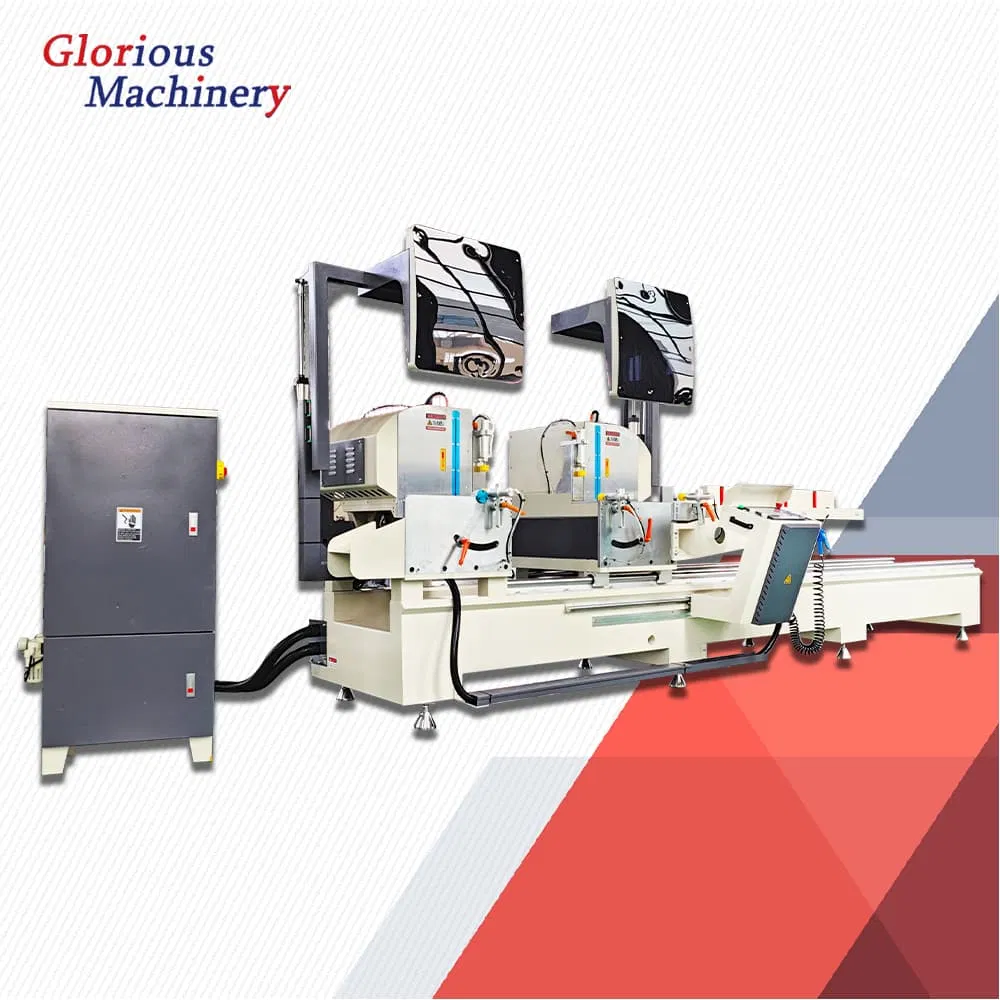

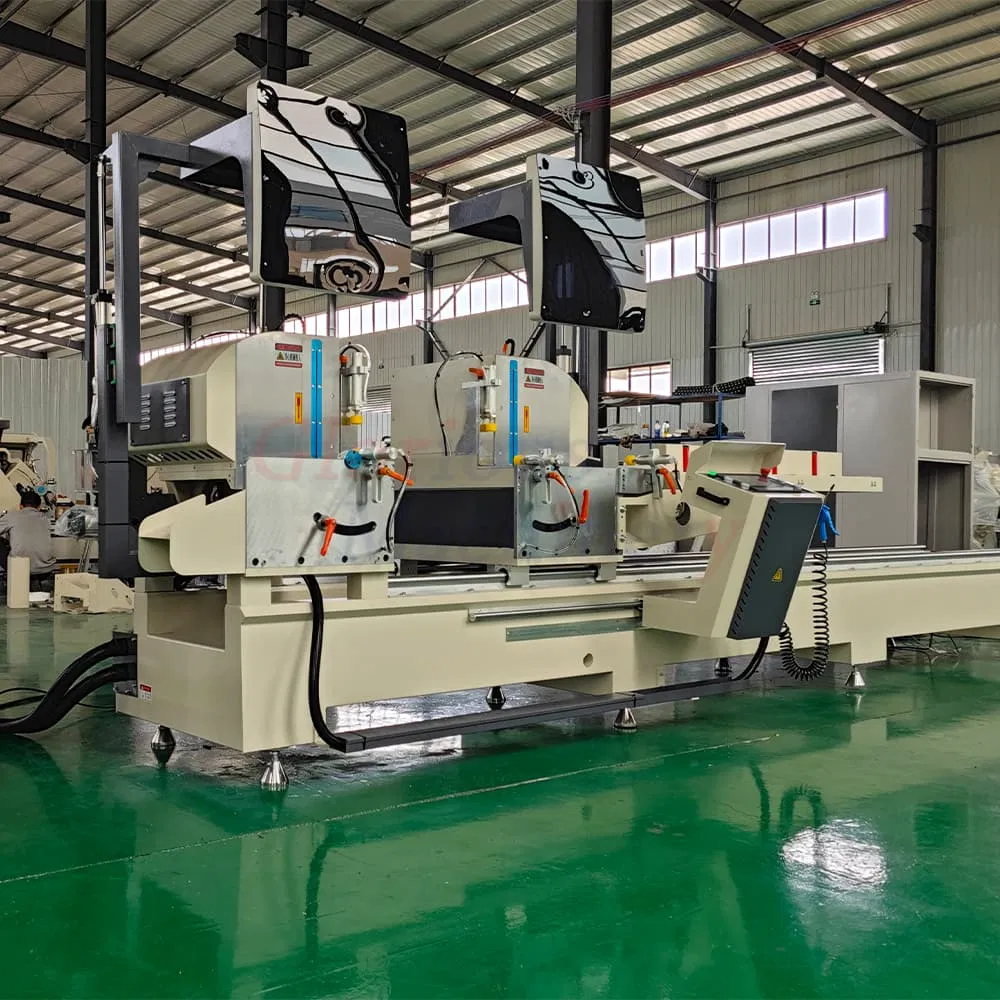

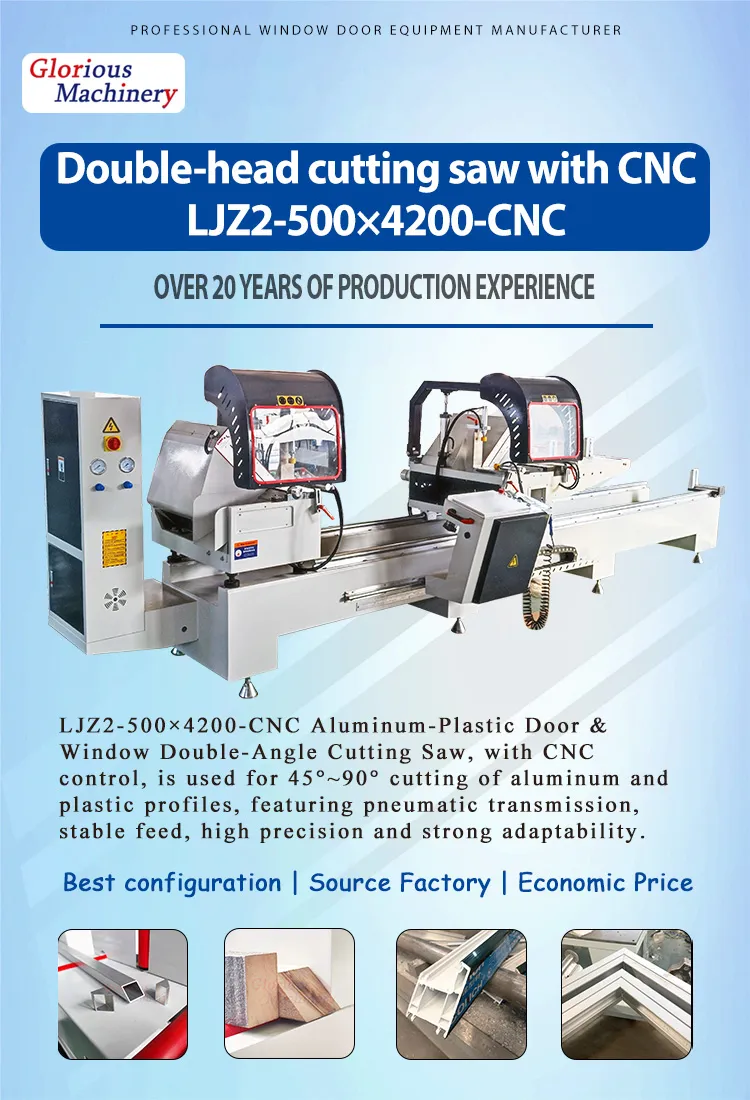

LJZ2-500×4200-CNC Aluminum-Plastic Door & Window Double-Angle Cutting Saw is mainly used for 45°~90° cutting of aluminum and plastic profiles. Equipped with a CNC numerical control system, it realizes automatic positioning and precise parameter control, reducing manual operation errors and further improving cutting accuracy and operation efficiency.

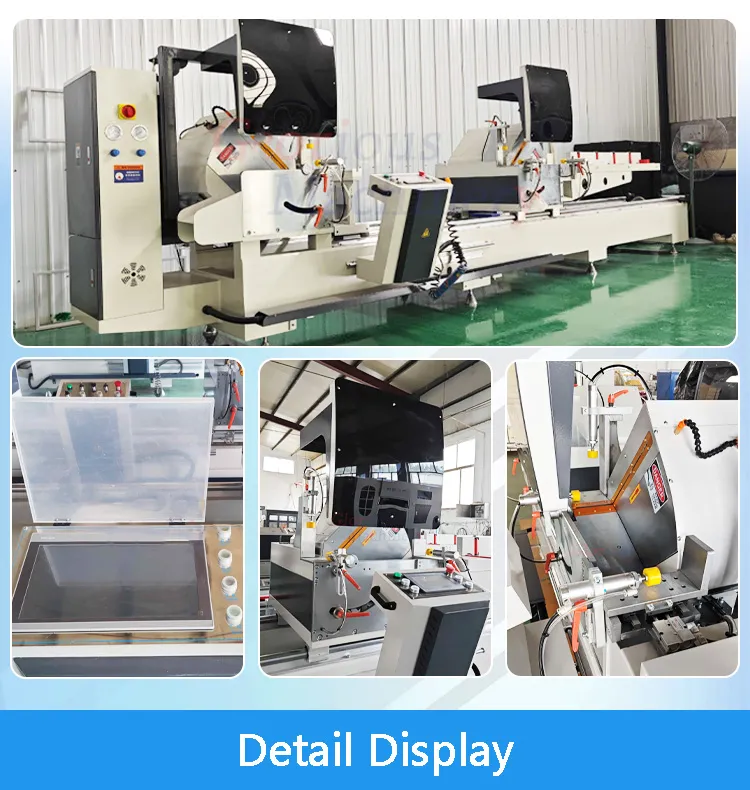

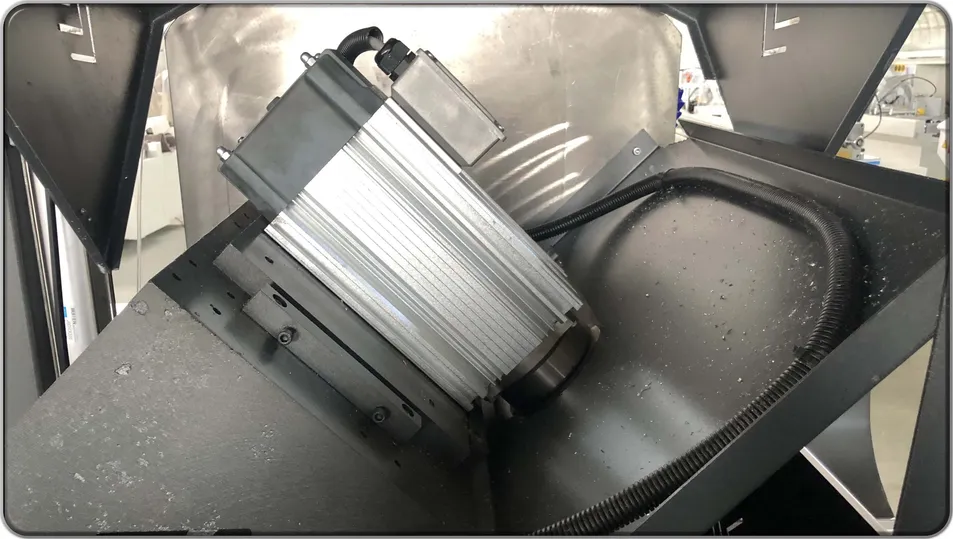

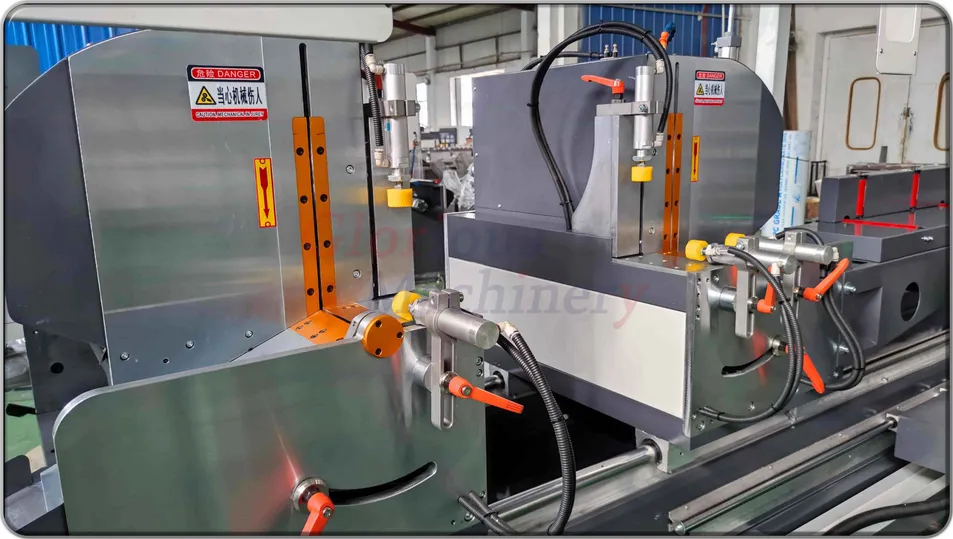

The machine adopts pneumatic transmission and linear feed mode, ensuring stable and smooth feed. The movable saw head is driven by a motor for convenient operation; the cutting tool is a cemented carbide circular saw blade, which, combined with CNC precise positioning, effectively guarantees high cutting precision and a neat, smooth cutting surface.
This machine is designed for precise and efficient cutting of various construction profiles, including Aluminum Alloy Profiles, PVC/UPVC Profiles, and Wood or light steel components.
1. Precision Cutting: employed to cut profiles to exact dimensions.
2. Milling & Drilling: process drainage holes and hardware positions.
3. Structural End Milling: precisely process the connecting ends of mullion profiles.
4. Cleat Cutting: accurately cut small metal cleats for reinforcement.
5. Corner Crimping Assembly: bond profiles into rigid 90-degree corners.
6. Finished Window Frame: The outcome of this precise manufacturing process.

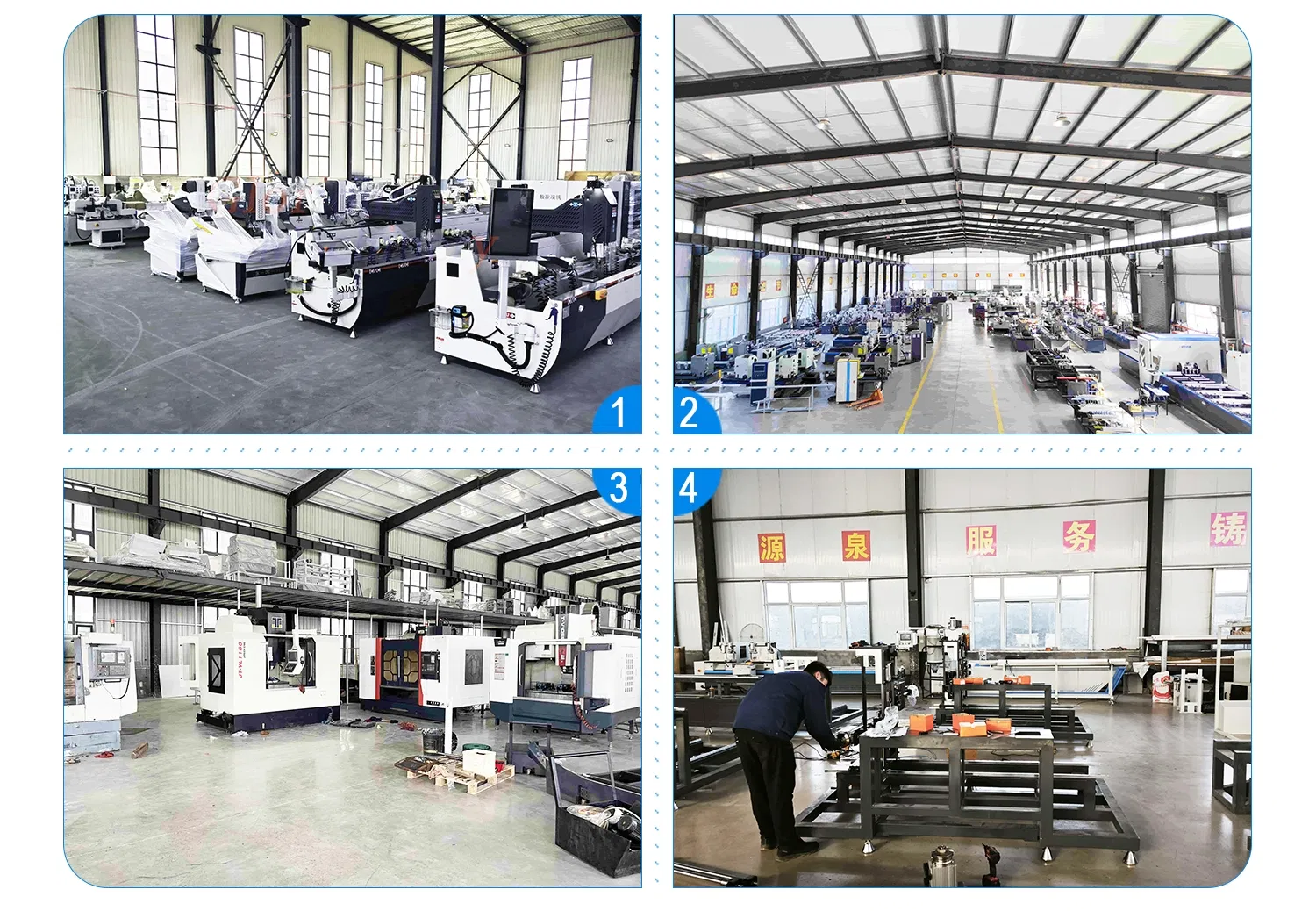

We are an innovative manufacturing enterprise with independent R&D, professional design and large-scale production capabilities, focusing on the R&D, production and sales of middle and high-end aluminum & PVC window and door processing equipment. We are committed to providing global customers with practical, innovative and reliable overall mechanical equipment solutions.
With high-quality product quality and advanced technical level, our equipment has been successfully exported to many countries such as the United States, Canada, Russia, India and Malaysia, building a global sales and service network.
