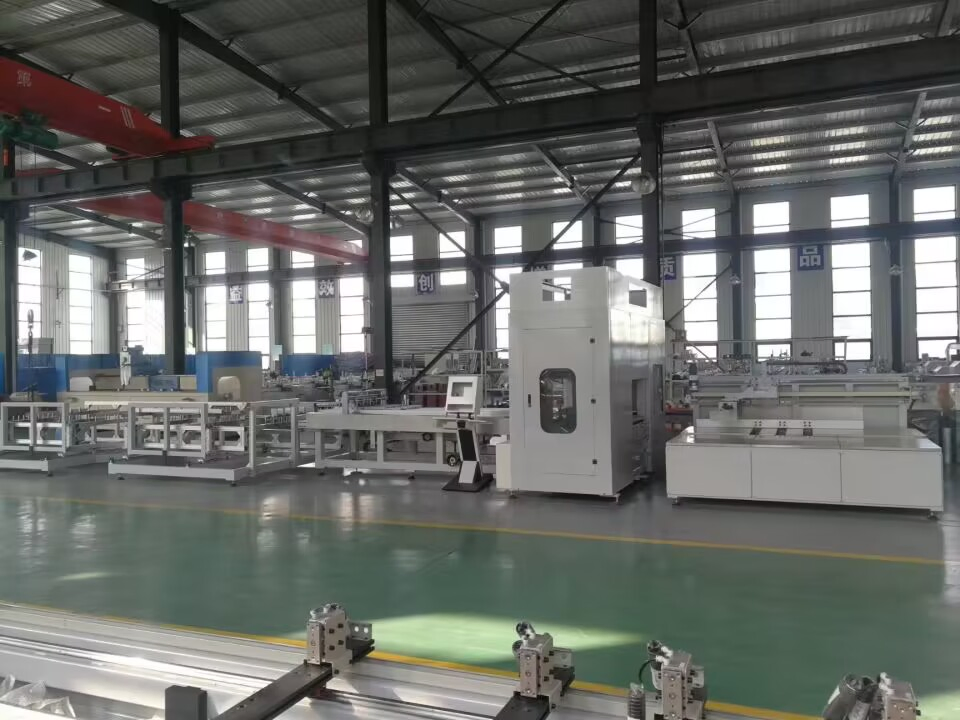

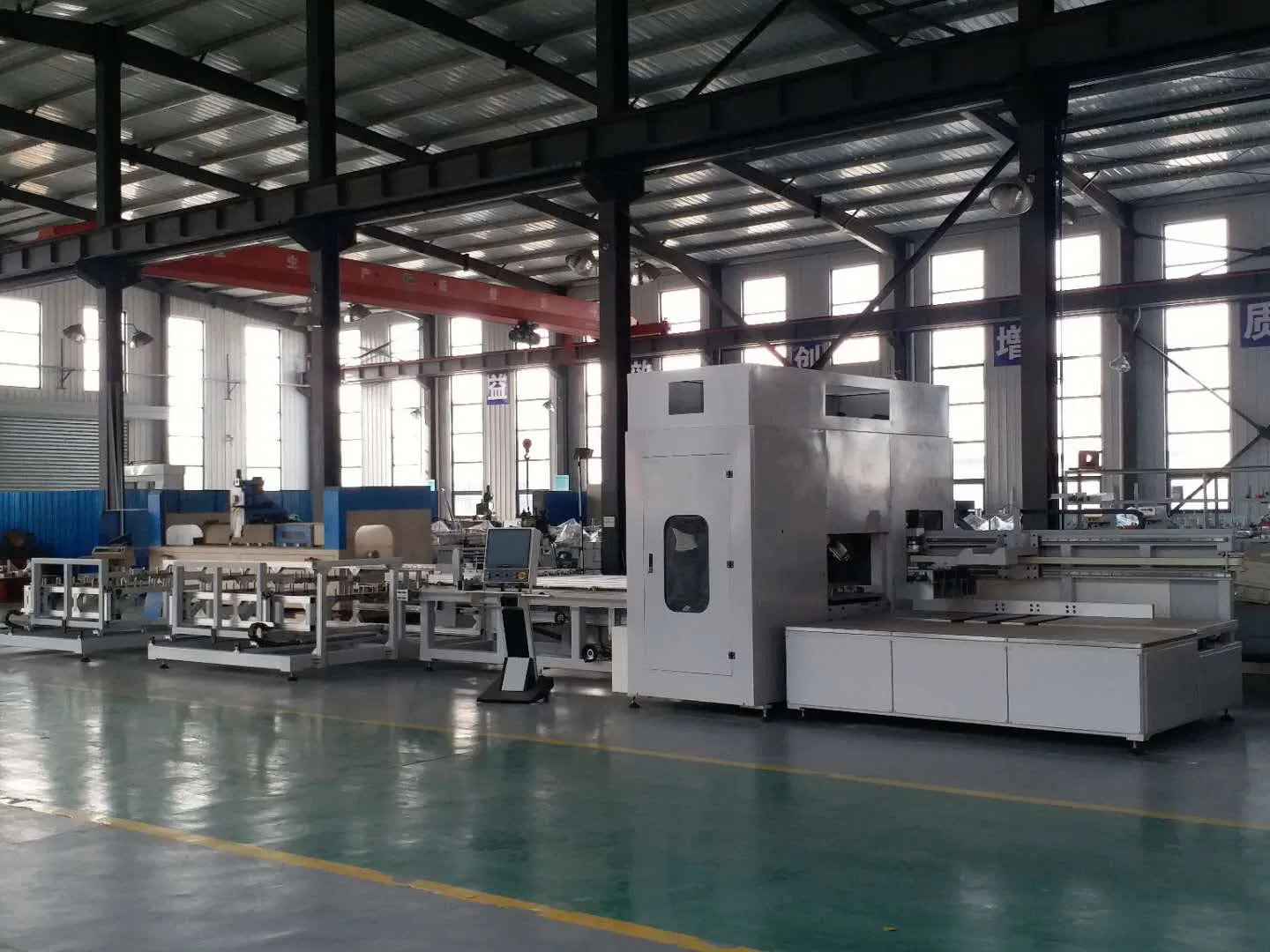

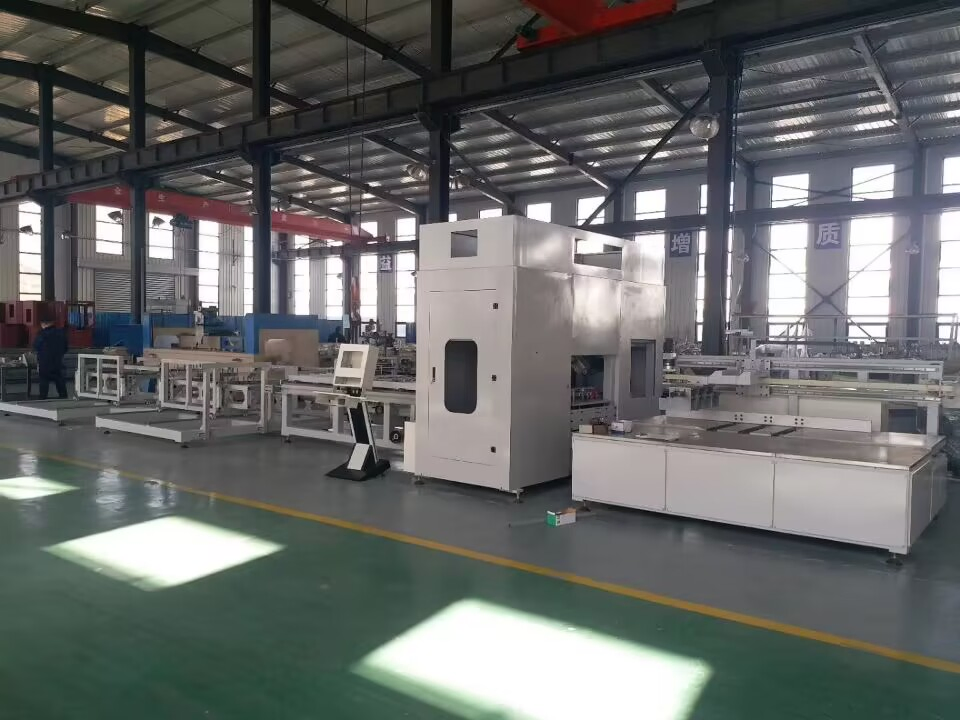

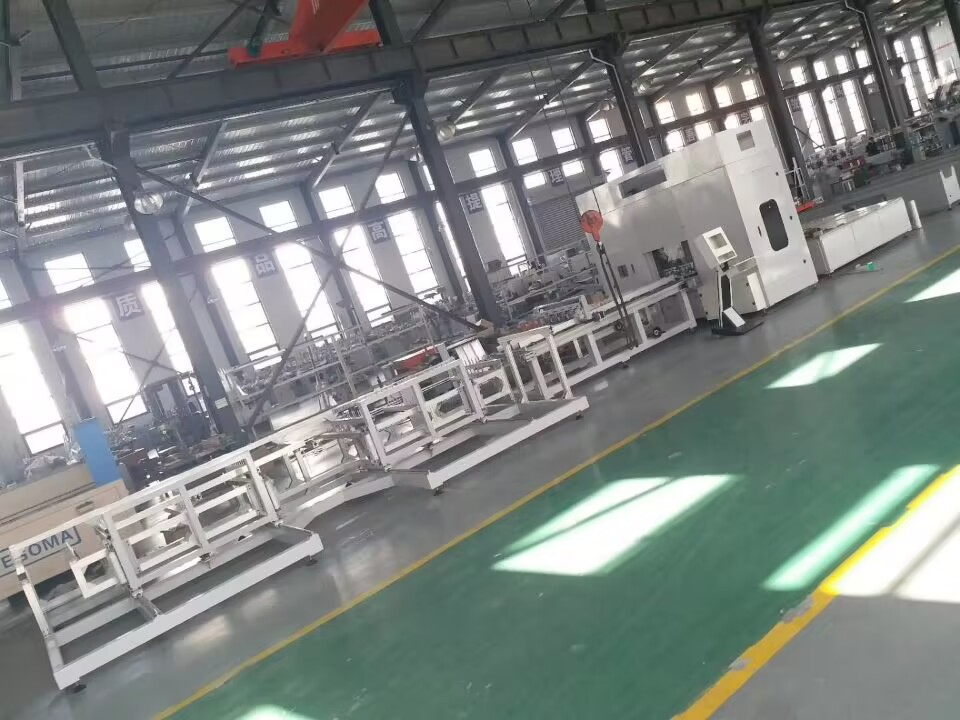

UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
1 / 5
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine
UPVC Window Door Profile Cutting Center PVC Window Door Making Machine

UPVC Window Door Profile Cutting Center PVC Window Door Making Machine

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

🔹 Basic Information

Model NO.WMCU-CNC-6500
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNCHigh Precision Control
Voltage380V
Machine NamePVC Cutting Center Machine
Motor Power13kw
Cutting Angle45, 90 Degree
OriginChina

⚙️ Product Features

  • UPVC Window Profile Cutting Center is used for auto cutting of the 45°, V-notch and mullion cutting of upvc profile. Suitable for massive production.
  • Download the profile cutting data automatically, without manual input or adjustment.
  • Complete the profile clamping, feeding, cutting automatically. High degree of automation.
  • The machine hand can clamp 8 profiles at one time and finish the cutting of them. High production efficiency.
  • High-speed main shaft cutting with linear motion guide for high precision quality.
  • Three-axis CNC controlling with imported driving system and close-loop control.
  • Can be connected with the computer to realize CAD/CAM and supports bar code printer integration.
  • Equipped with auto cut profile outputting system and left residue collecting system for a clean workshop.
  • Ergonomic operating table height to decrease labor intensity.

📊 Technical Parameters

Parameter Item Specification Details
Input Voltage380V/50HZ
Input Power13 kw
Operation Air Pressure0.5 ~ 0.8 MPa
Air Consumption100 L/min
Motor Rotary Speed3000 r/min
Saw Blade DiameterΦ500 × 4.3 × Φ30 mm
Cutting Heightframe & sash ≤ 120 mm
V-Notch Depth≤ 60 mm
Cutting WidthMax 140 mm
Cutting LengthMax 6500mm, Min 450mm
Machine Weight3300 kg
Overall Dimension12900 × 4300 × 2000 mm

📜 Certifications

Certification 1

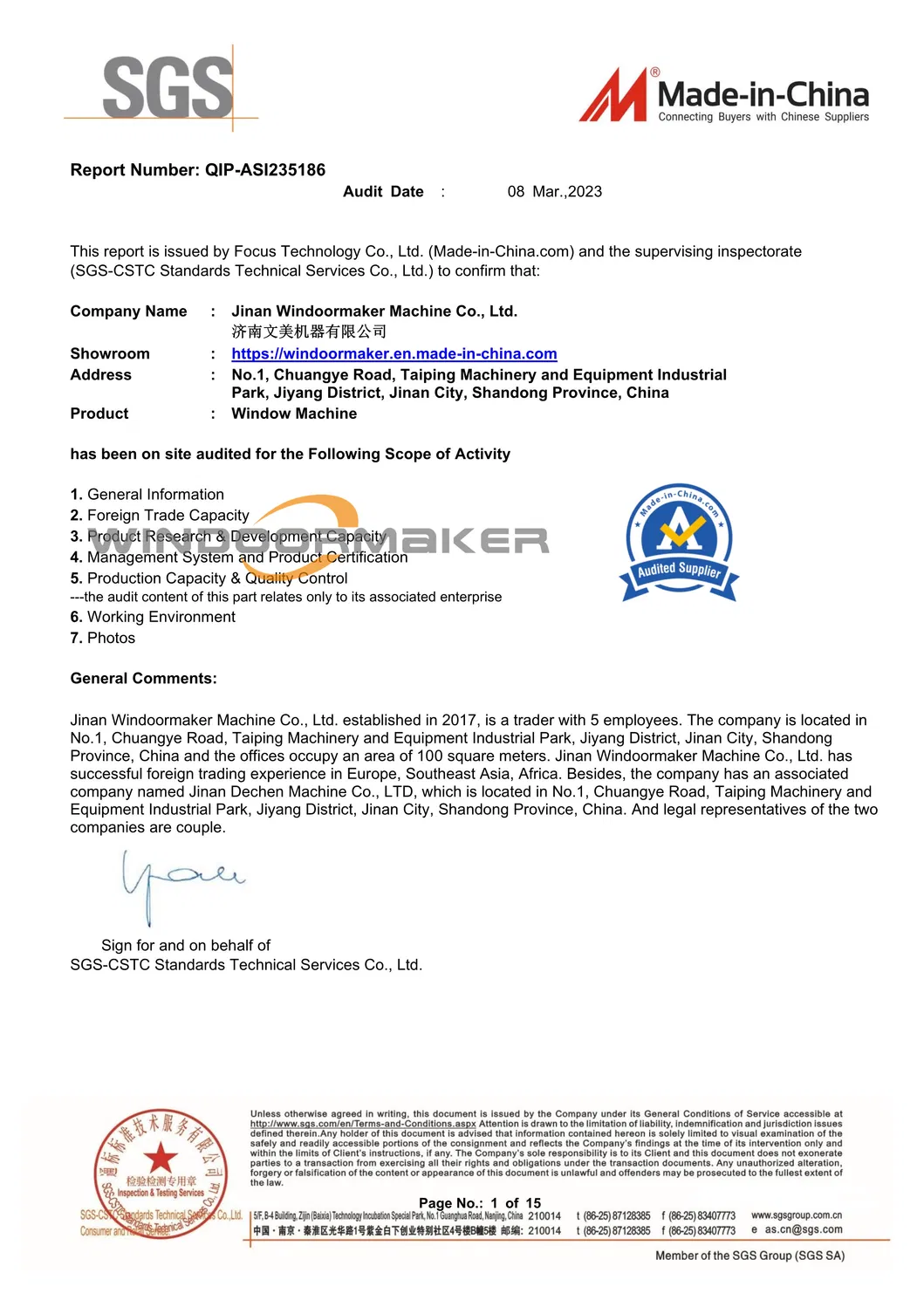

Certification 2

🏢 Factory Overview

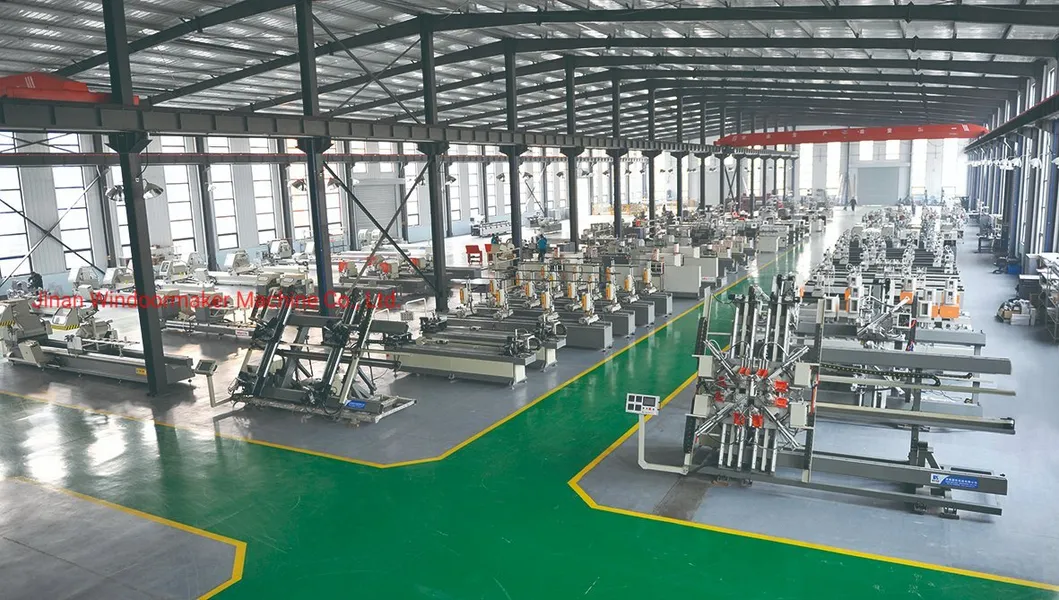

Factory Facility

We are an engineering company that has been in business for over 10 years, specialized in the manufacture and supply of UPVC & aluminum window and door machines. Our factory covers an area of 15,000 m². Through years of development, we have focused on machine improvement, introducing new equipment and technological innovation for high-quality production.

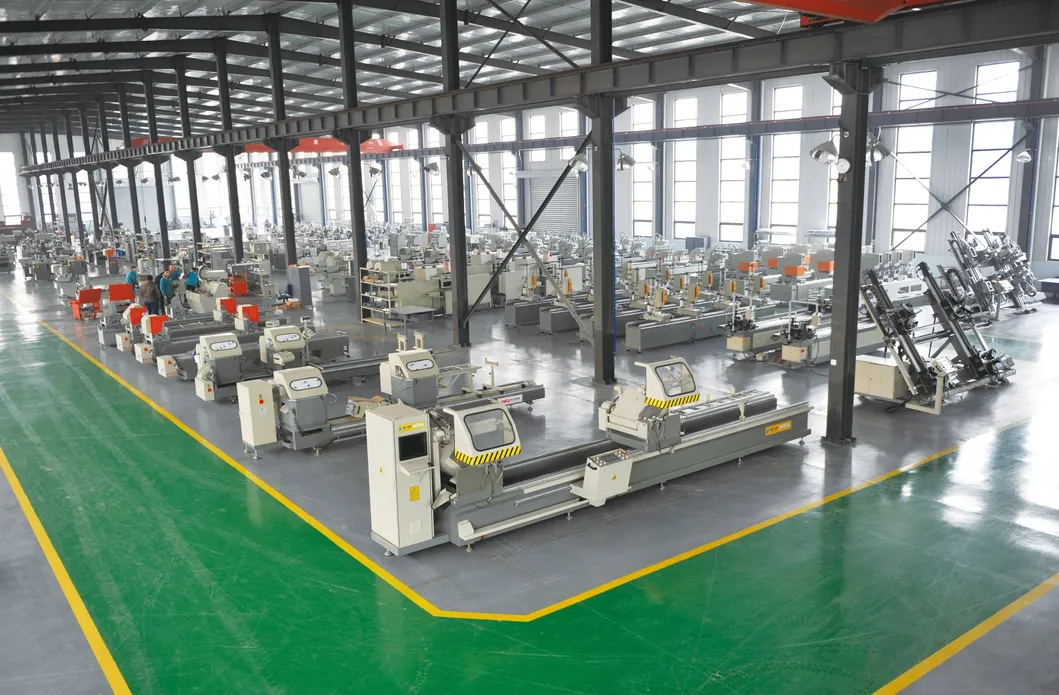

Production Line

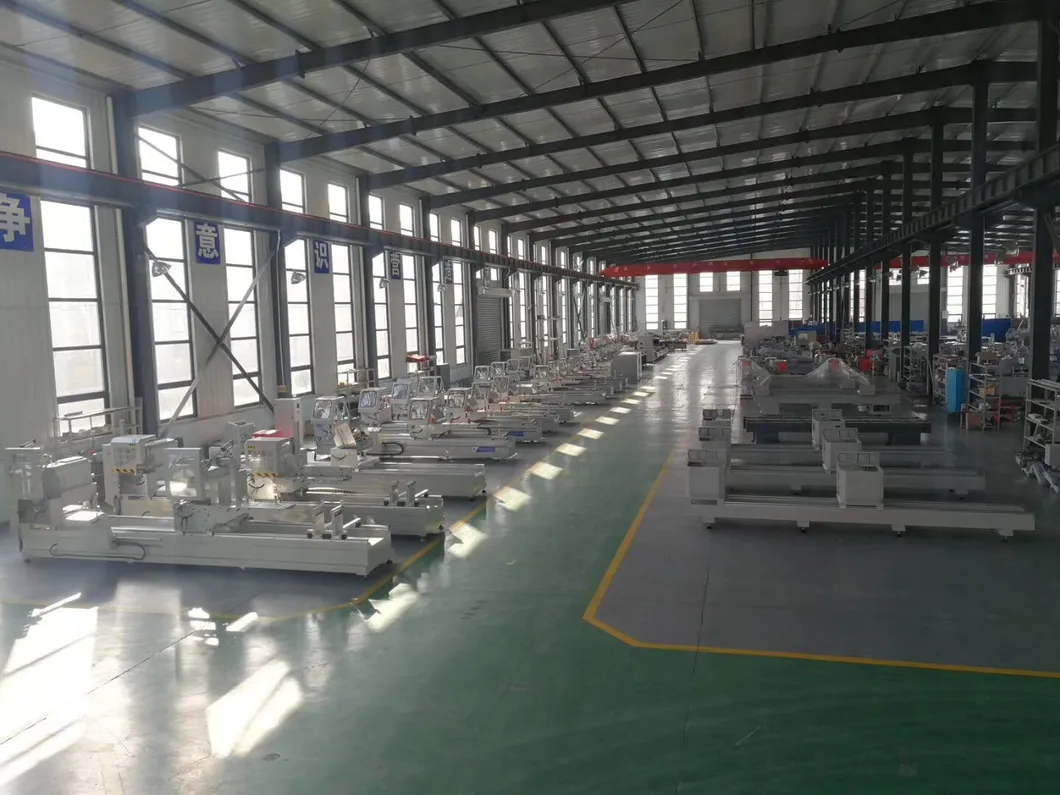

Factory Workshop

🛠️ Machines at Customer Sites

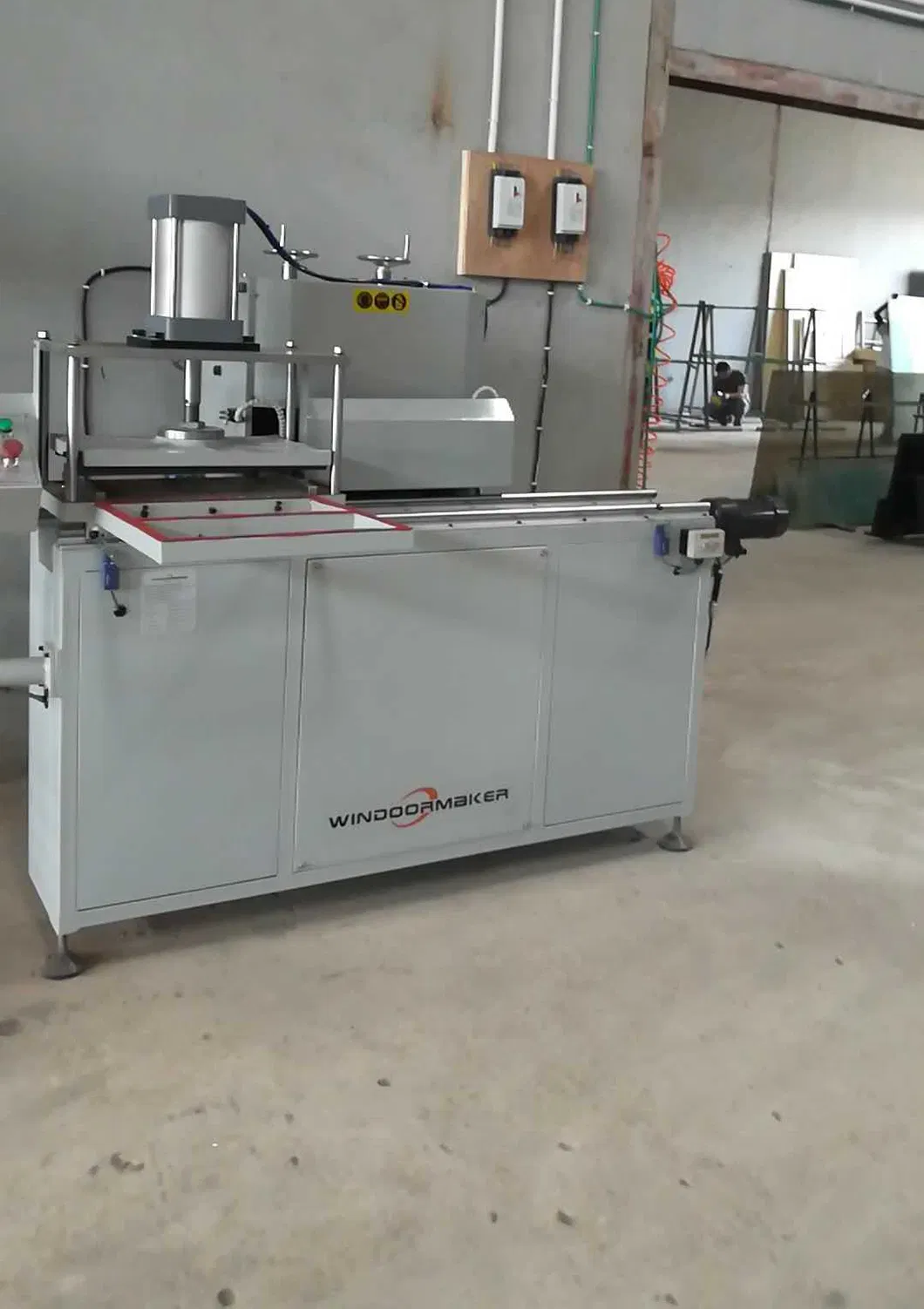

Customer Site 1

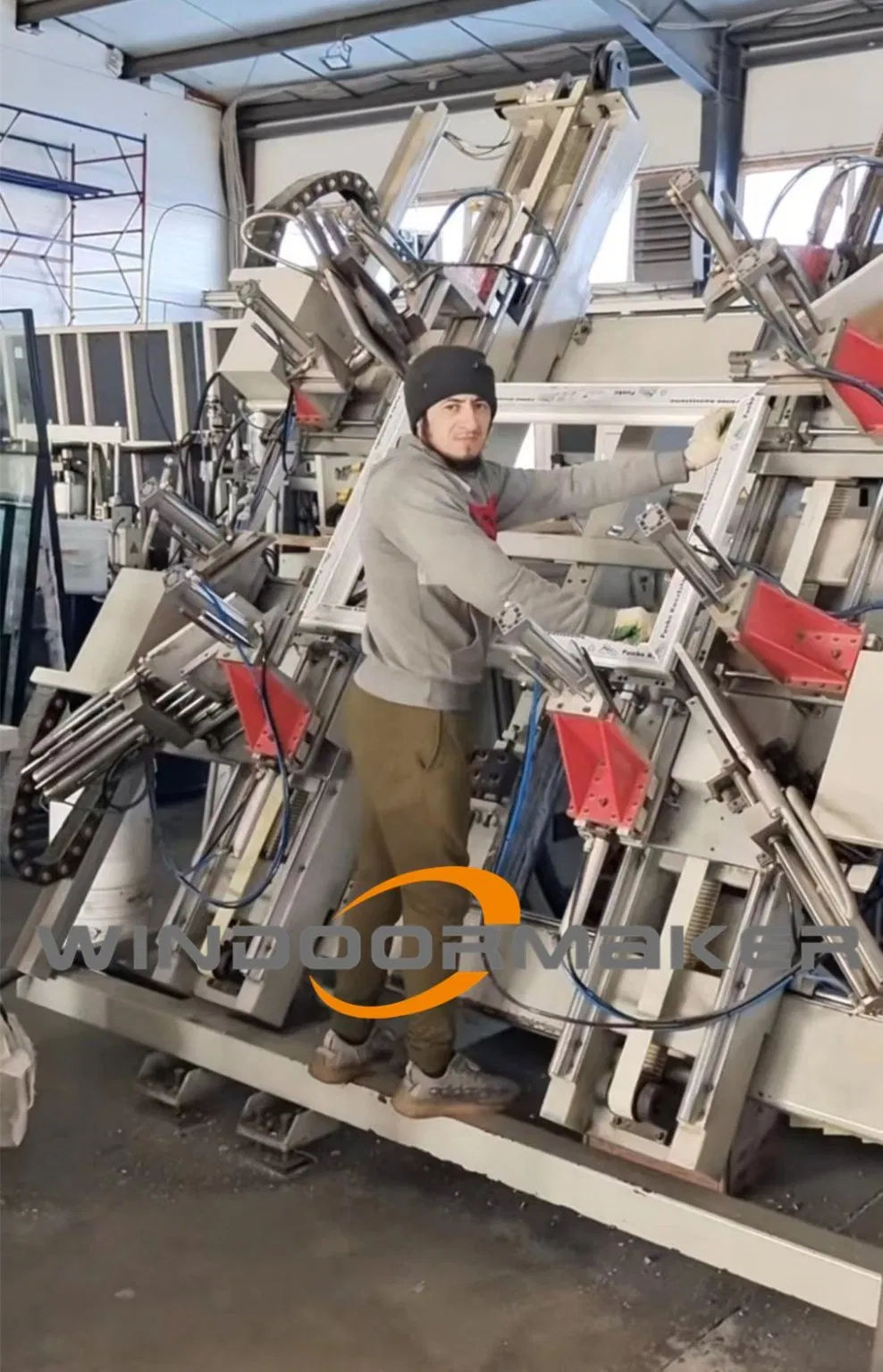

Customer Site 2

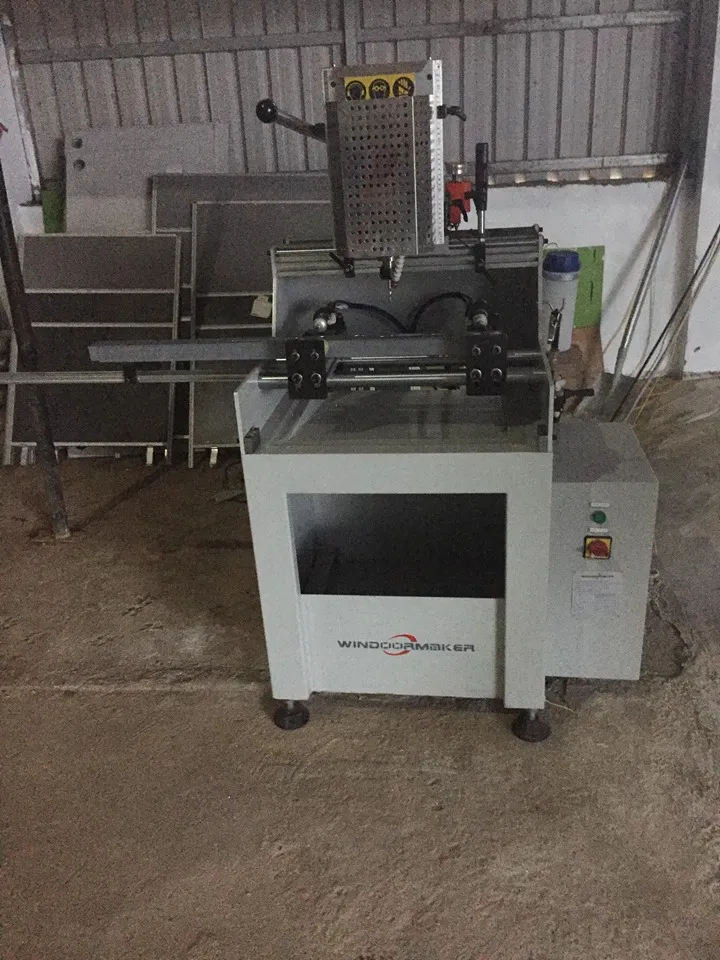

Customer Site 3

📦 Packaging & Shipping

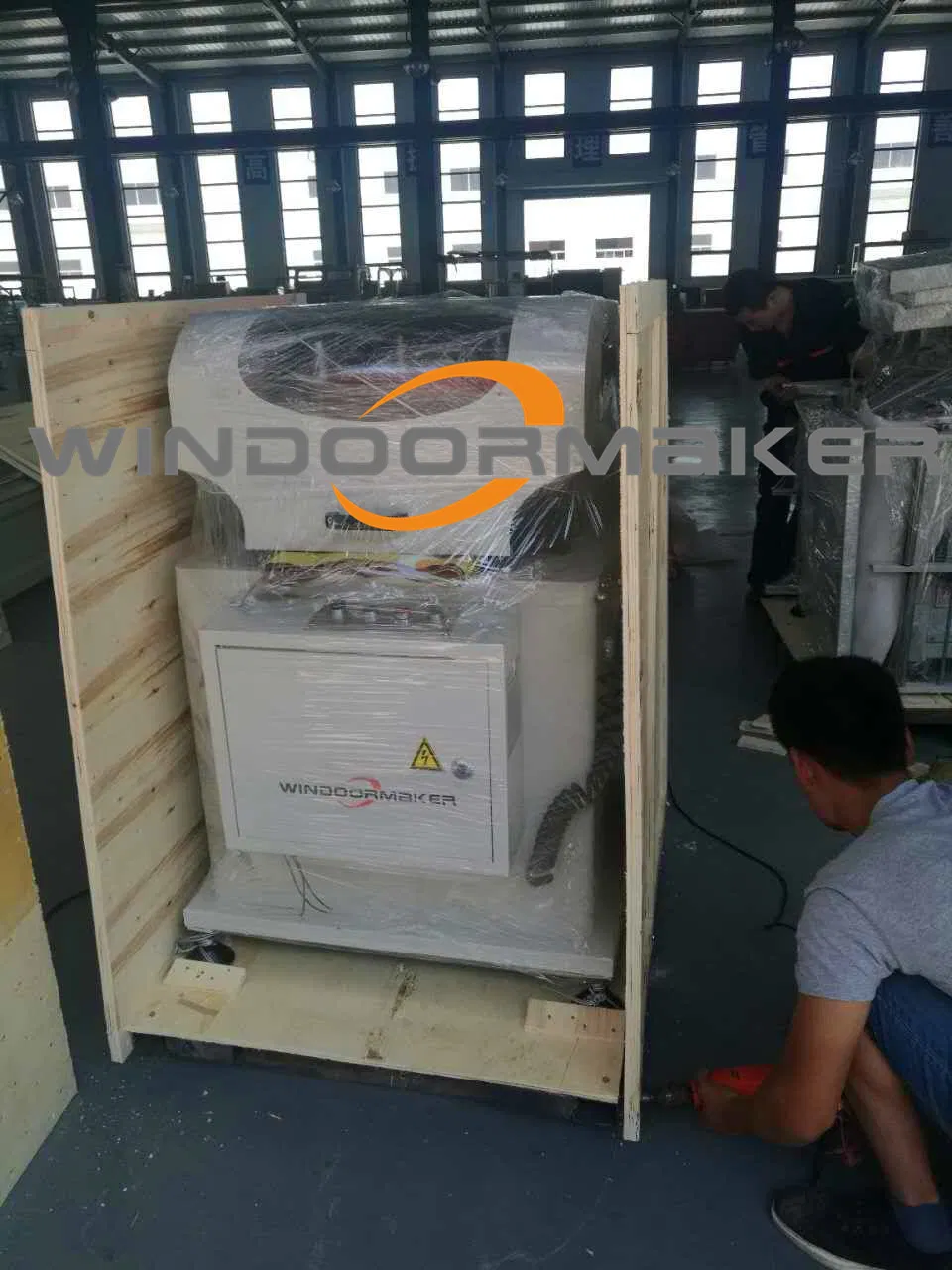

Packing 1

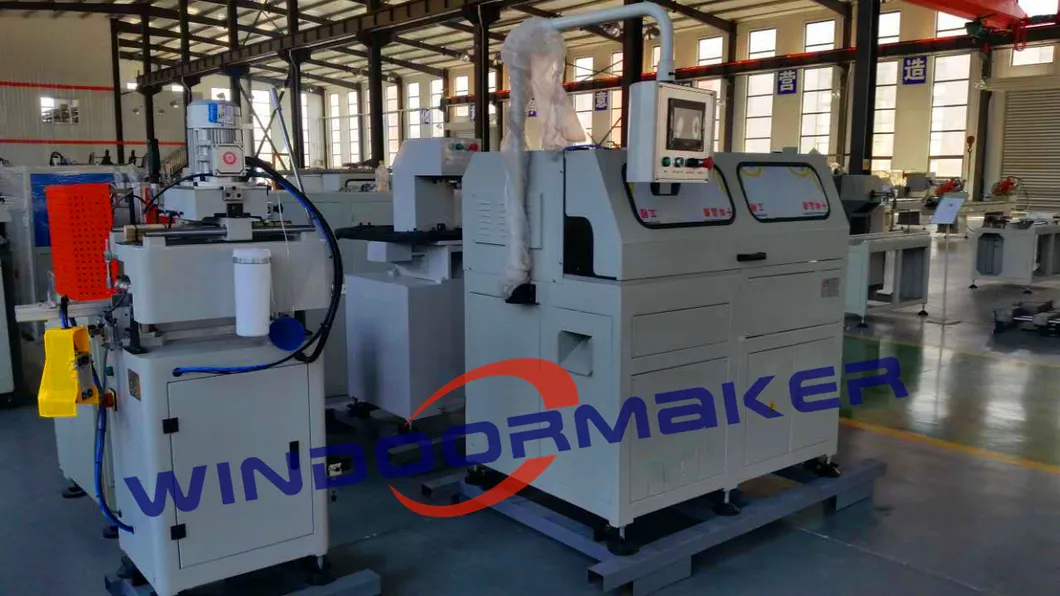

Shipping 1

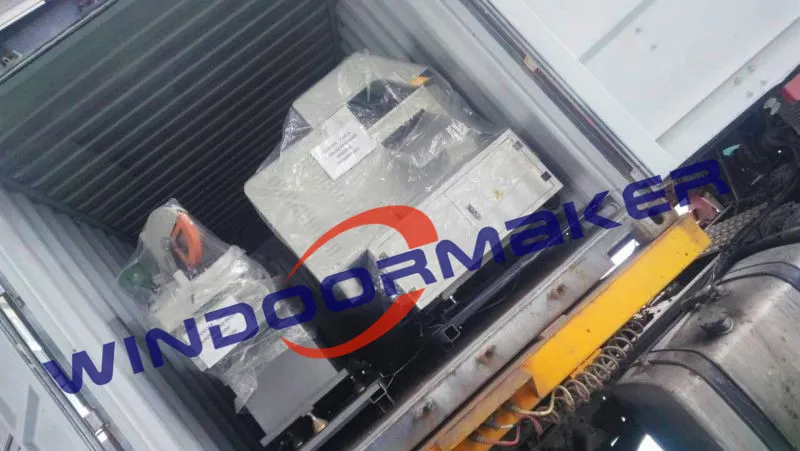

Shipping 2

❓ Frequently Asked Questions

1. What types of cuts can this PVC cutting center perform? The WMCU-CNC-6500 is designed for automatic 45-degree cutting, V-notch cutting, and mullion cutting specifically for UPVC window and door profiles.
2. Is manual data entry required for each cutting task? No, the machine can download profile cutting data automatically from a computer, eliminating the need for manual input and increasing accuracy.
3. How many profiles can the machine process simultaneously? The mechanical hand system is capable of clamping and processing up to 8 profiles at one time, significantly improving production efficiency for large-scale manufacturing.
4. Can this machine be integrated with software like CAD/CAM? Yes, the system can be connected to a computer to realize CAD/CAM integration, allowing for streamlined design-to-production workflows.
5. What is the maximum cutting length supported? The machine supports a maximum cutting length of 6500mm, making it suitable for a wide range of standard and oversized profile requirements.
6. Does the machine include a waste management system? Yes, it is equipped with a residue collecting system to automatically gather left-over materials, ensuring the workshop remains clean and organized.
