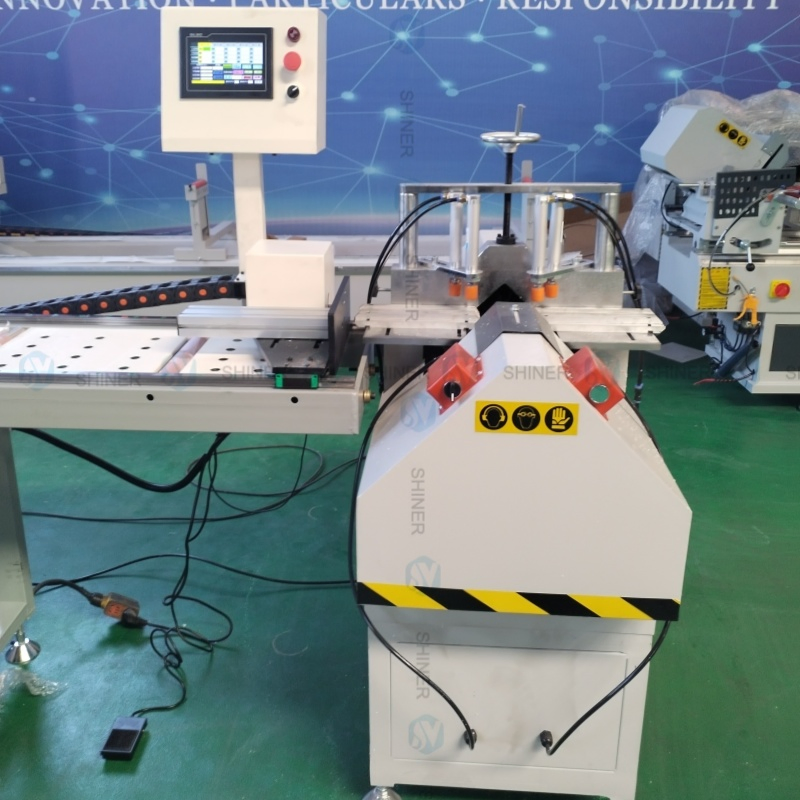

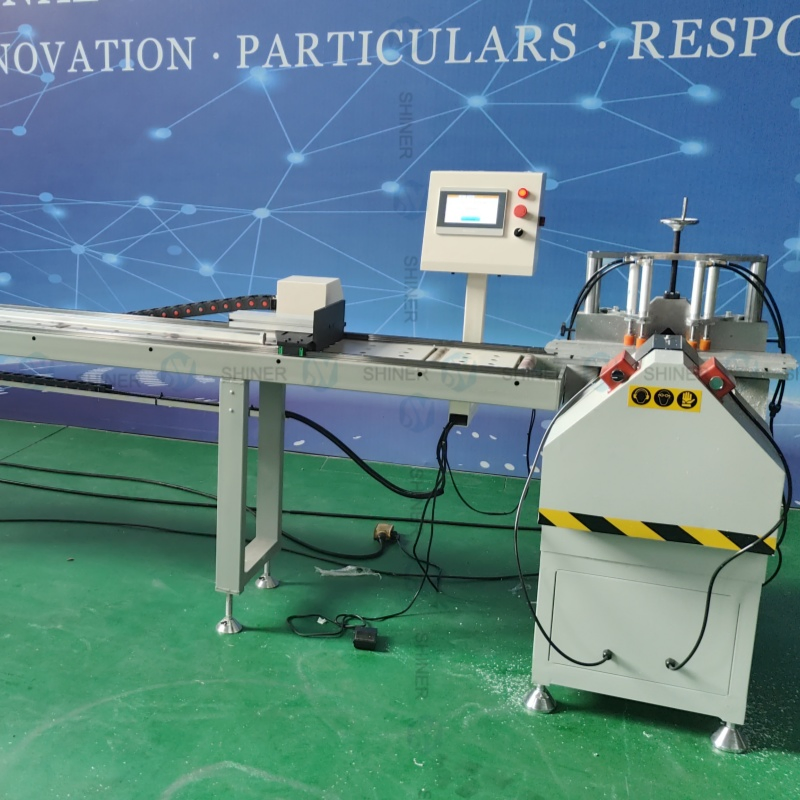

UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
1 / 5
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth
UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth

UPVC Window Door Making Machine CNC Glazing Bead Cutting Machine with Bluetooth

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.:SYJW-1800W
Condition:New
Certification:ISO, CE
Automatic Grade:Semi-Automatic
CNC or Not:Not CNC
Voltage:380V/50Hz
Input Power:2*0.75kw
Spindle Speed:2800rpm
Air Pressure:0.5~0.8MPa
Cutting Depth:29mm
Cutting Width:120mm
Cutting Length:320~1800mm
Applicable Industry:UPVC Window Door Making
Packing:Plywood Case
Product Description: Glazing Bead Cutting Saw

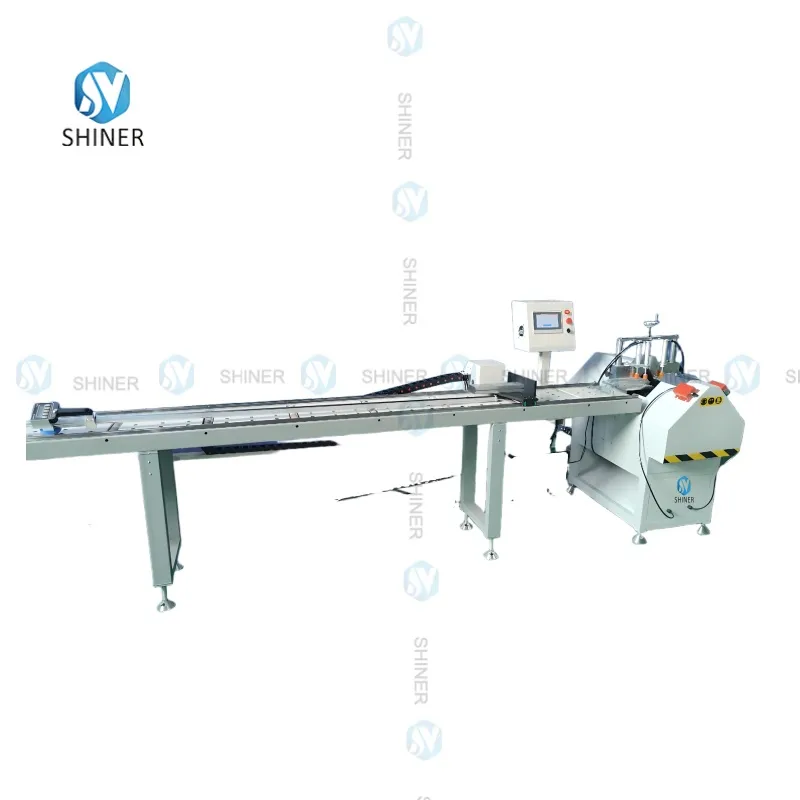

Glazing Bead Cutting Saw
  • 1Used for 45 degree glazing bead profile.
  • 2Two glazing beads cutting in one time.

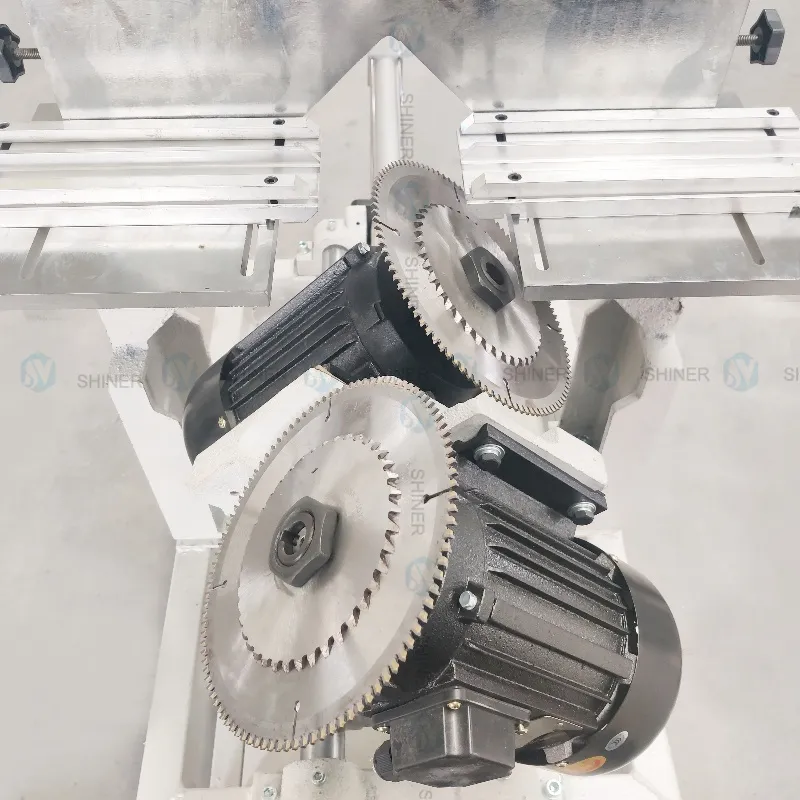

  • 34 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
  • 4Vertical clamping device and special designed cutting jig ensure stable positioning.
  • 5Precise & easy operated measuring table.
Technical Parameters
Parameter Item Specification Details
Input Voltage380V/50Hz
Input Power2*0.75Kw
Spindle Rotary Speed2800rpm
Air Pressure0.5~0.8Mpa
Air Consumption20L/min
Cutting Depth29mm
Cutting Width120mm
Cutting Length320~1800mm
Saw Blade DiameterØ210
Overall Dimension1300*700*1350mm
Detailed Photos & Features

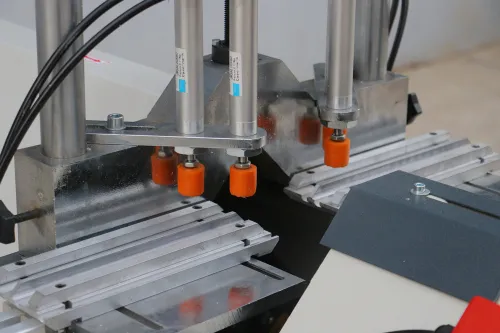

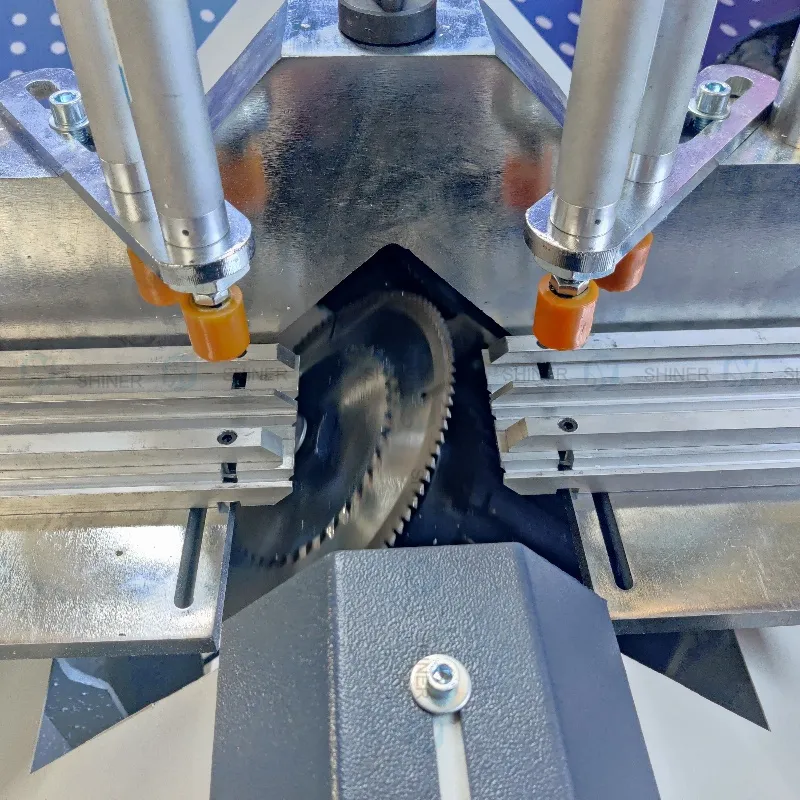

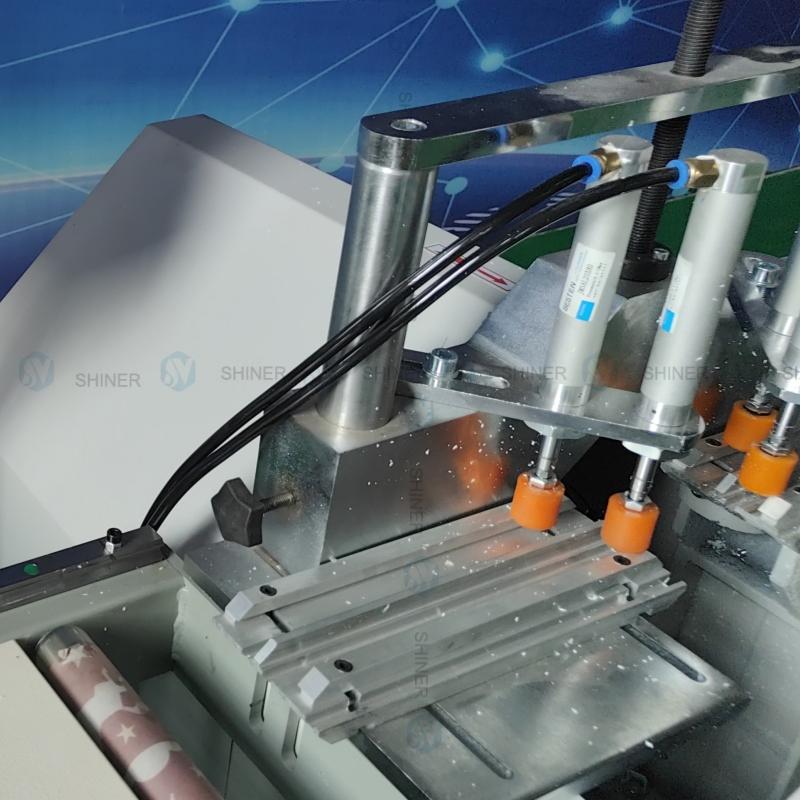

Vertical clamping

With vertical clamping device. One time can cut 2 pieces glazing bead profile.

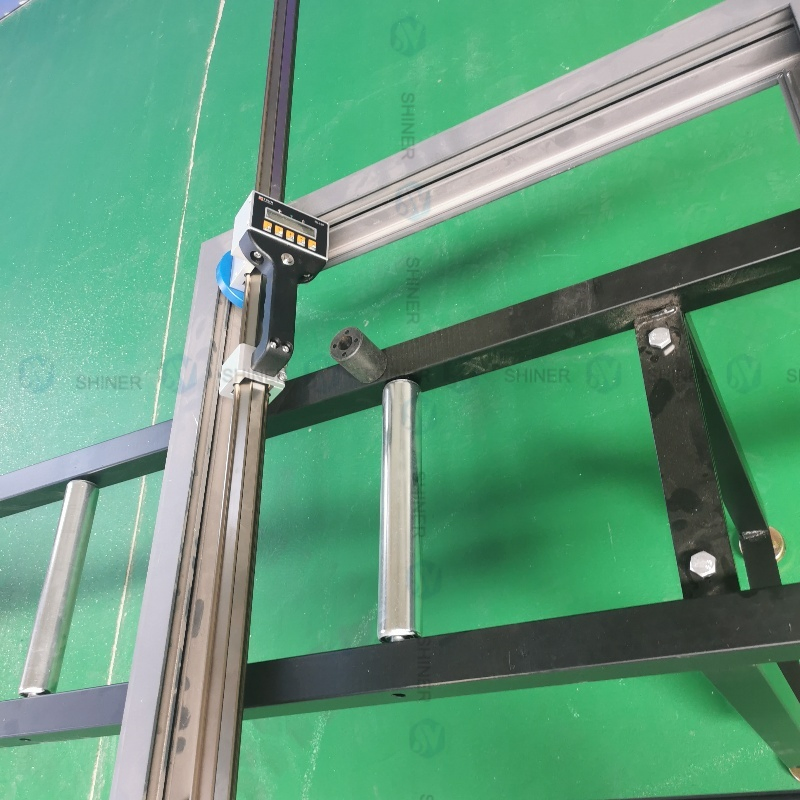

Bluetooth measurement

With bluetooth measurement, it can measure the glazing bead easily and accurately, supporting automatic cutting.

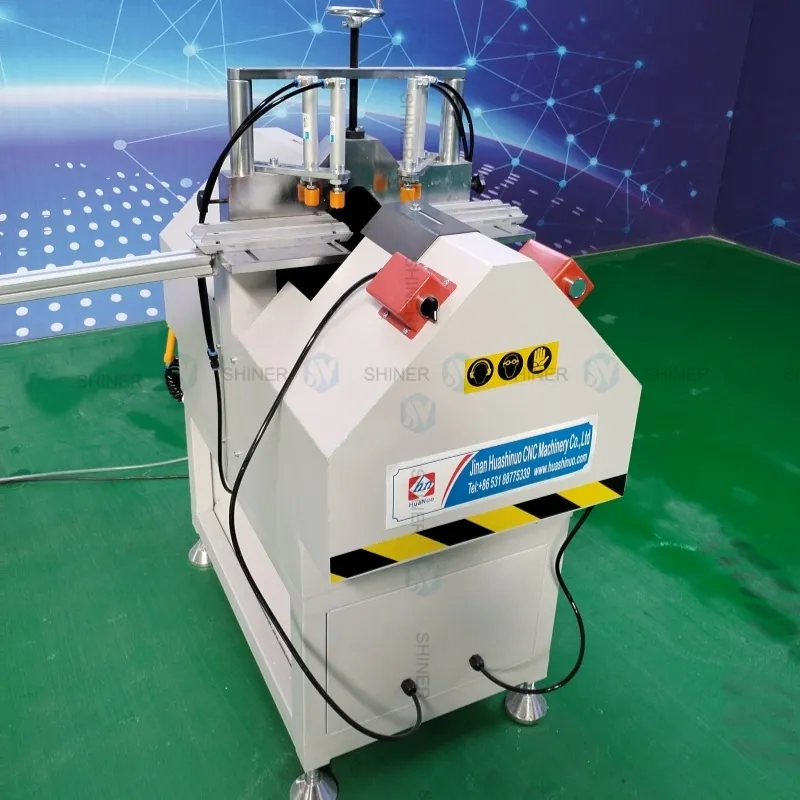

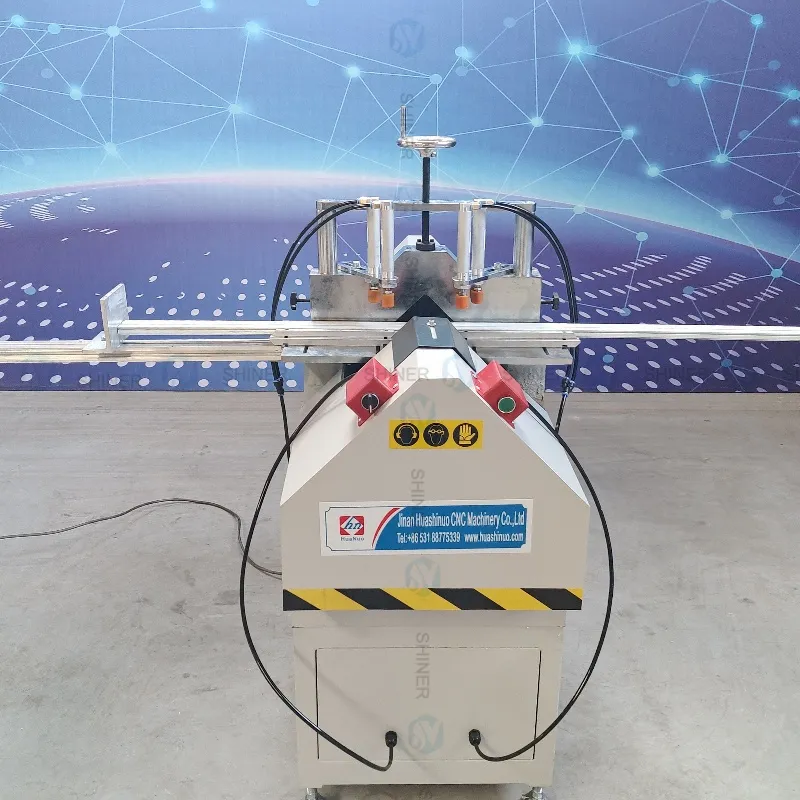

Detail 1 Detail 2
Detail 3 Detail 4
Packaging & Shipping

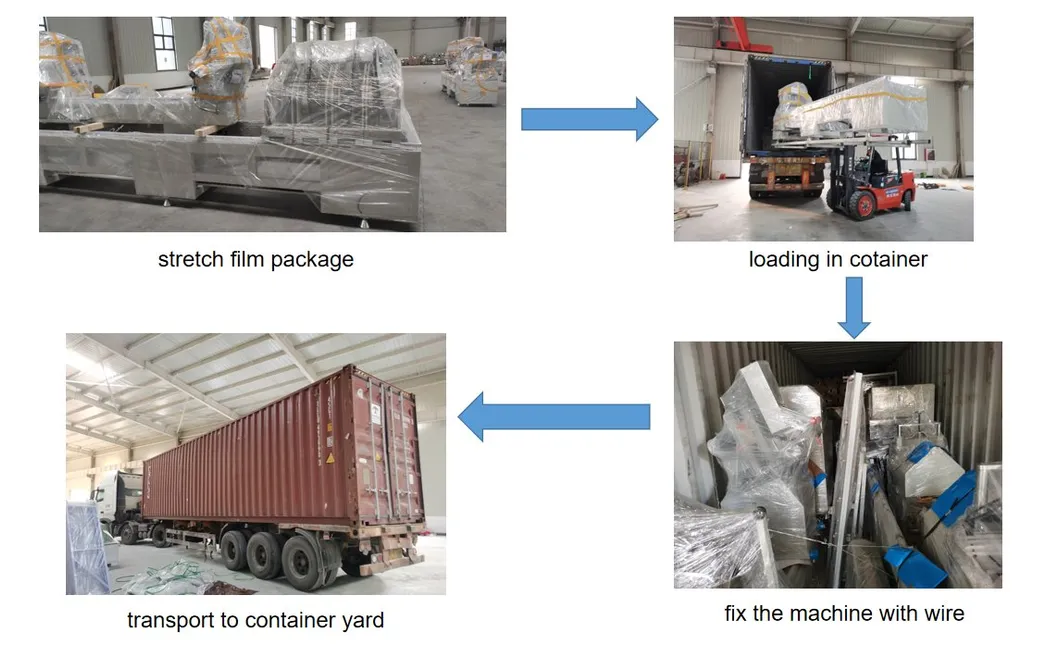

Packing Details:

For LCL (Less than Container Load) shipping: Inner package: stretch film; Outside package: standard export plywooden cases.

For FCL (Full Container Load) shipping: All machines will be wrapped with film and fixed into the container with steel iron.

Delivery Time: Usually 3-5 working days after payment. Big or customized orders take 10-15 working days.

Shipping Package
Our Advantages

We are committed to providing the best quality products and services. Our technical expertise ensures efficient and cost-effective solutions for modern industrial requirements. Our engineers offer professional factory layout services according to your specific needs.

Factory Layout
Exhibition
Exhibition 1 Exhibition 2
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with over 15 years of experience in this industry.
What is the product guarantee?
We offer a 12-month guarantee, 24-hour technical support, English manuals/video tutorials, and technical support for life.
How long is the delivery time?
Standard machines take 3-15 days. Customized or non-standard machines typically take 15 to 30 days depending on requirements.
Is the machine easy to operate for first-time users?
Yes, we provide English manuals and guide videos. Engineers are also available for on-site installation and training if needed.

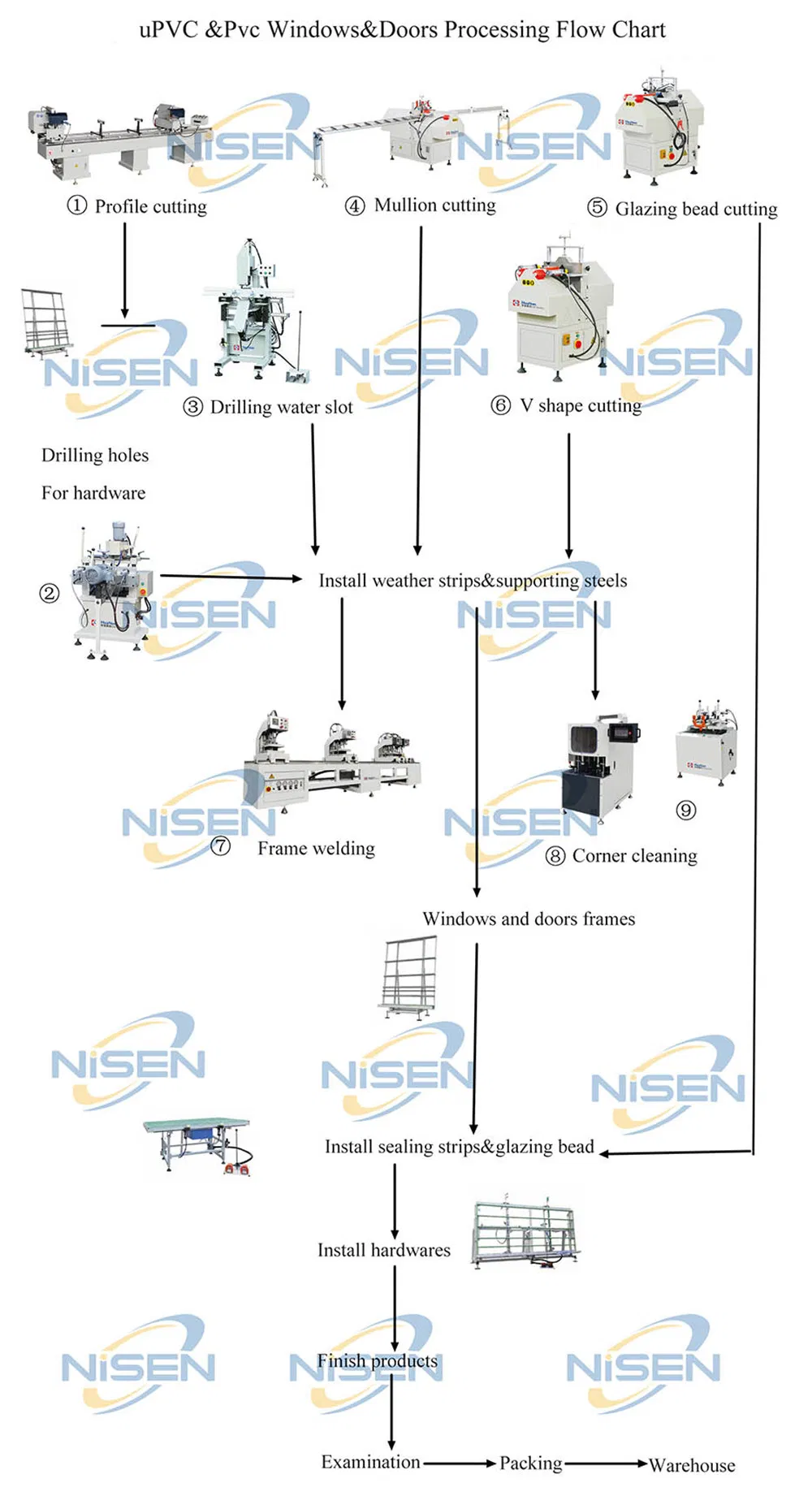

What machines are needed for a full UPVC window production line?
A basic line requires at least 7 machines: Cutting machine, Welding machine, V-cutting/End milling, Glazing bead machine, Lock hole machine, Water slot milling, and Corner cleaning machine.
What accessories are provided?
We provide standard accessories with the machine and offer consumable parts at agency prices for future replacements.
