Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
1 / 5
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine
Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine

Plastic PVC/CPVC/UPVC Water& Electric Conduit Pipe/Tube (extruder, haul off, cutting winding, belling) Extrusion/Extruding Making Production Line Machine

Customization: Available
Warranty: One Year
Product Type: PVC Pipe
Send Inquiry

Product Description

Basic Specifications

Model NO.
WS005
Screw Design
Double-screw
Automation
Automatic
System
Computerized
Certification
CE, ISO9001:2008
Condition
New
Delivery Time
20-50 days
Electronic Parts
ABB/Siemens/Omron/Rkc
Motor
Siemens
Specification
16-800mm
Capacity
400 sets/Year
Origin
China

Product Overview

The Φ20-Φ630 series PVC pipe extrusion machine line is specialized for manufacturing plastic PVC pipes with various diameters and wall thicknesses. These pipes are widely used in agricultural plumbing, constructional plumbing, cable laying, and more.

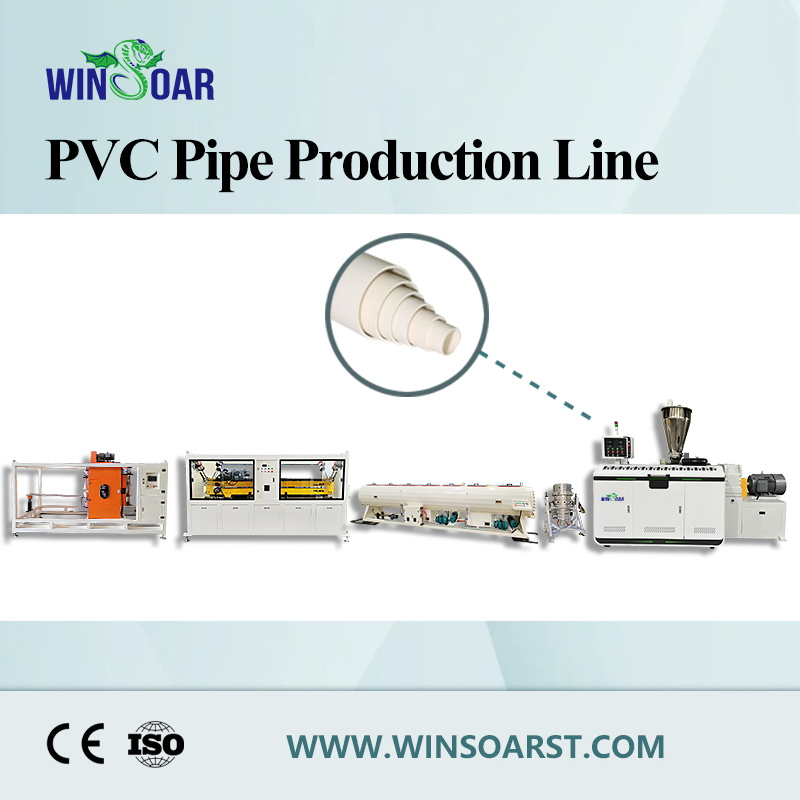

This comprehensive production line consists of a conical twin screw extruder, vacuum calibration tank, haul-off unit, motors, cutter, and stacker. The system ensures reliable performance and high production efficiency.

Key Features:

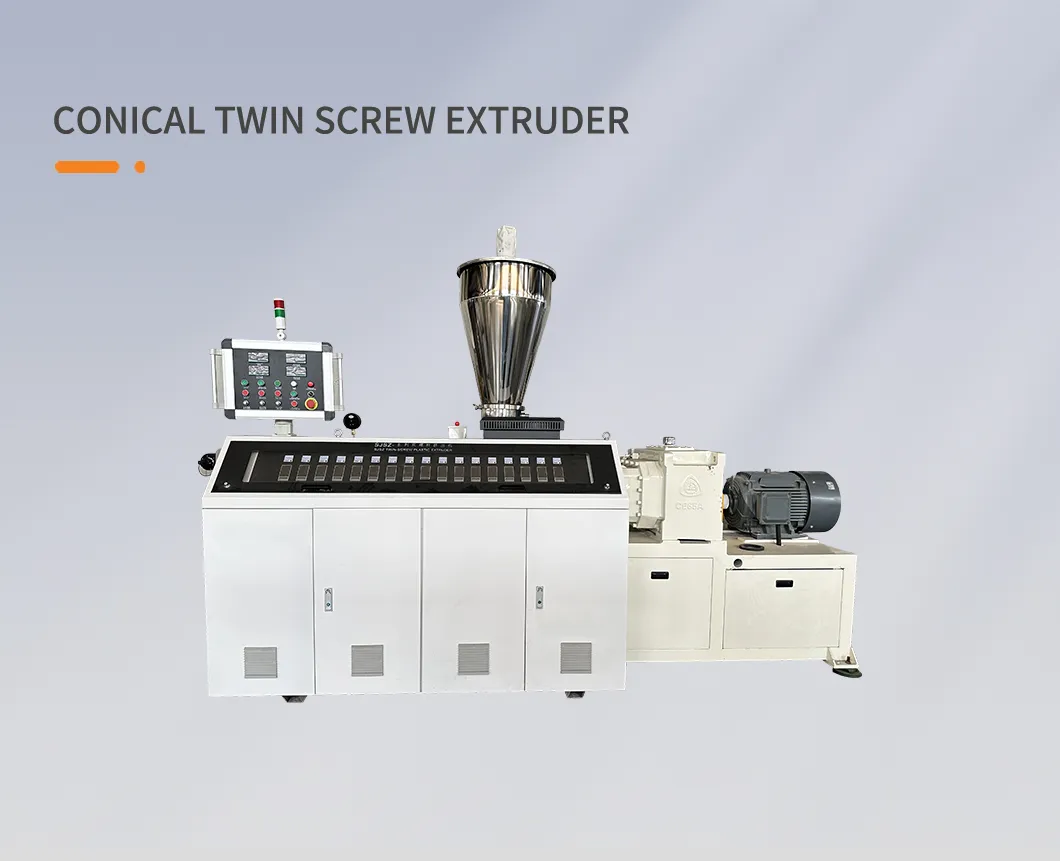

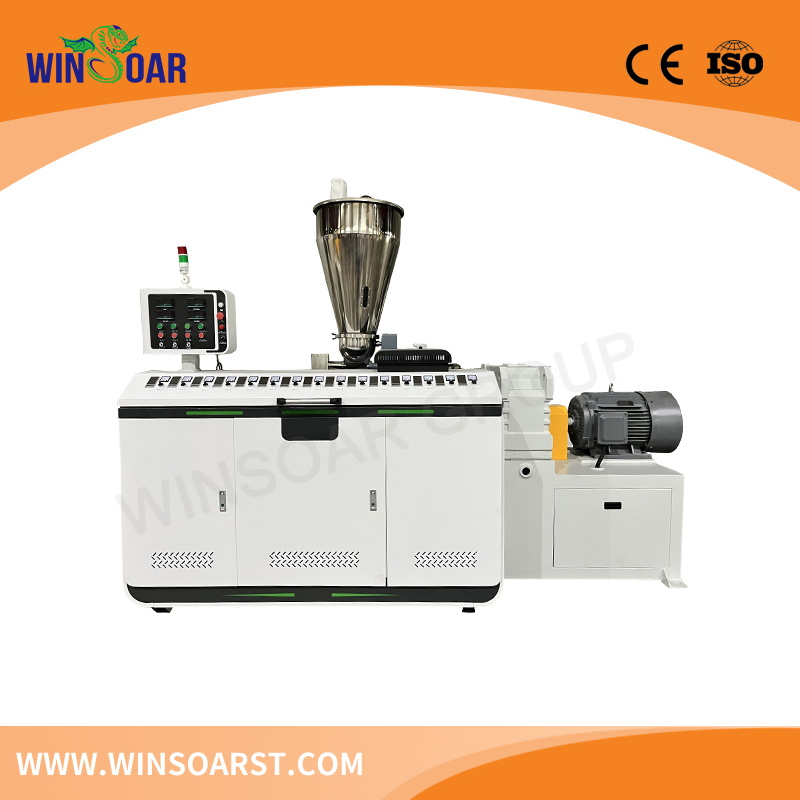

  • Extrusion Equipment: Double screw extruder with high-efficiency screw design for superior speed, yield, and plasticizing capacity.
  • Vacuum Shaping: Vacuum spray tanks and cooling tanks with all water-contact parts made of durable stainless steel.

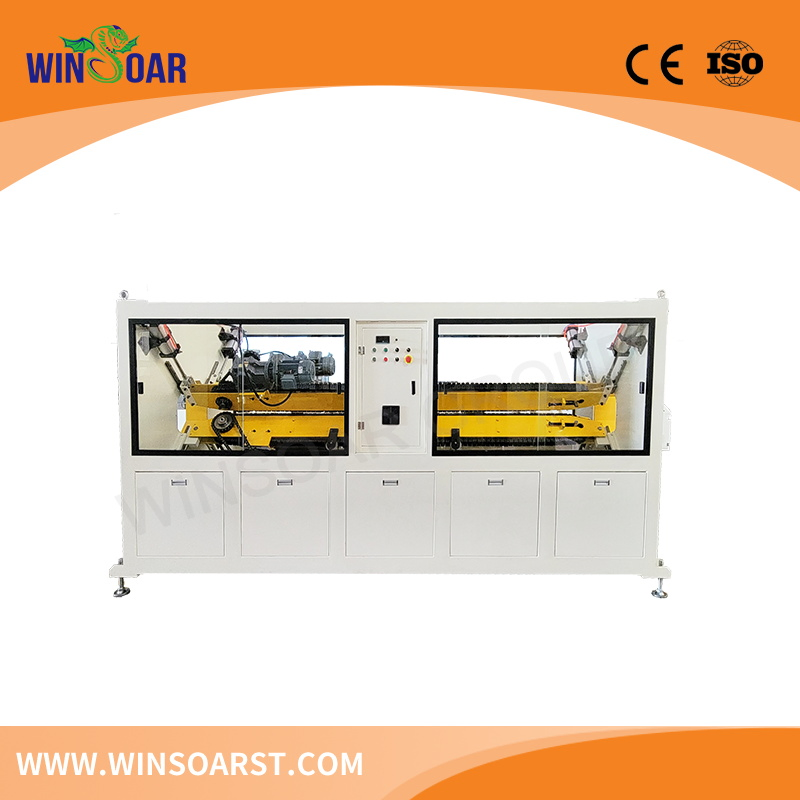

  • Traction System: Two claw-type or rubber belt crawler tractors adapted to specific production requirements.
  • Precision Cutting: Equipped with a no-dust rotating knife or planetary cutting type for smooth finishes.
  • Control System: Optional PLC automatic control system for stability, easy operation, and adjustable production speeds.

Technical Parameters

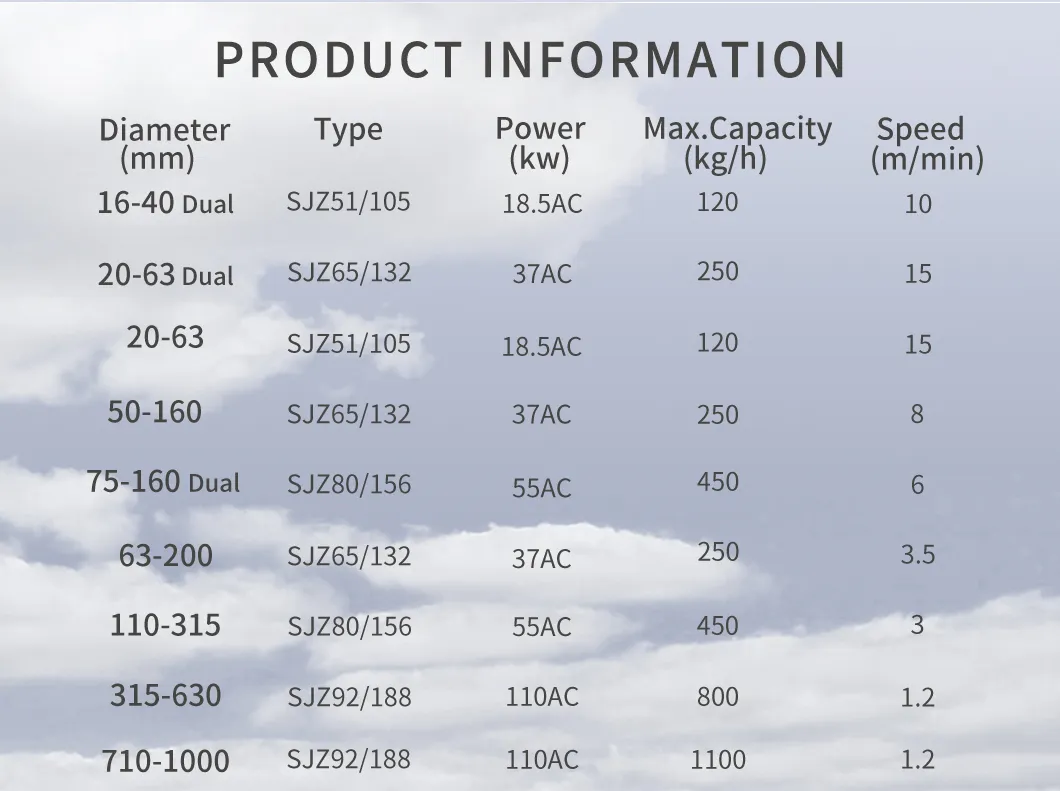

Diameter Range (mm) Extruder Type Extrusion Power (KW) Max Capacity (kg/h) Max Haul Off Speed (m/min)
Ф16-40 DualSJZ51/10518.5 AC12010
Ф20-63 DualSJZ65/13237 AC25015
Ф20-63SJZ51/10518.5 AC12015
Ф50-160SJZ65/13237 AC2508
Ф75-160 DualSJZ80/15655 AC4506
Ф63-200SJZ65/13237 AC2503.5
Ф110-315SJZ80/15655 AC4503
Ф315-630SJZ92/188110 AC8001.2
Ф710-1000WSP130/26160 AC11001.3

Machine Components Gallery

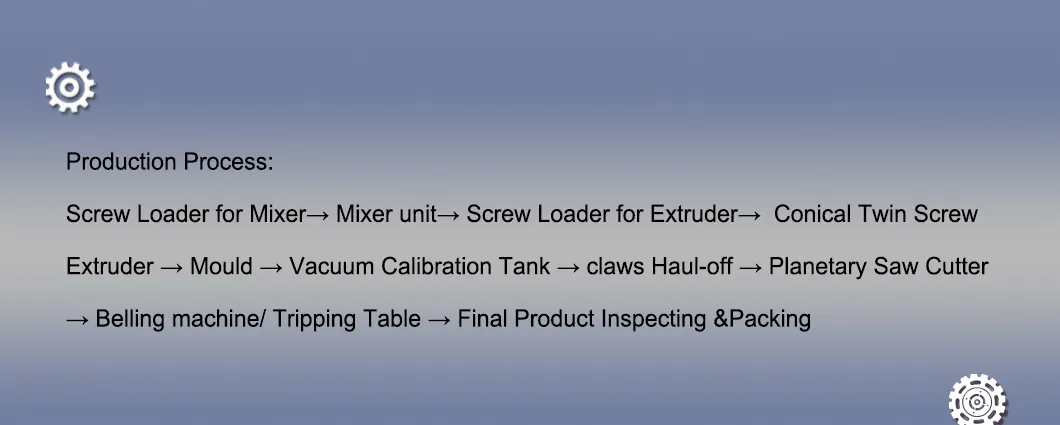

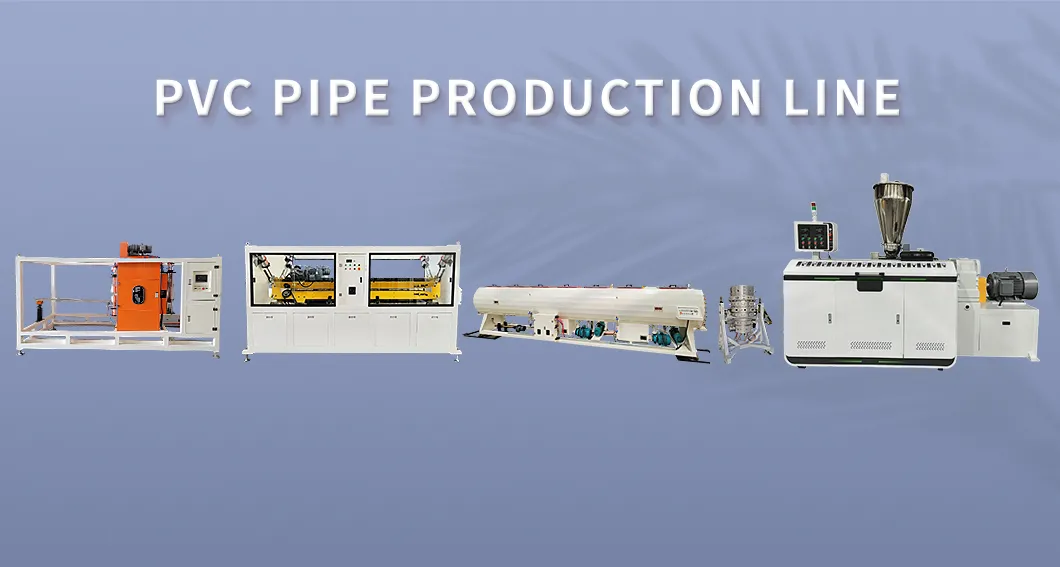

Production Line

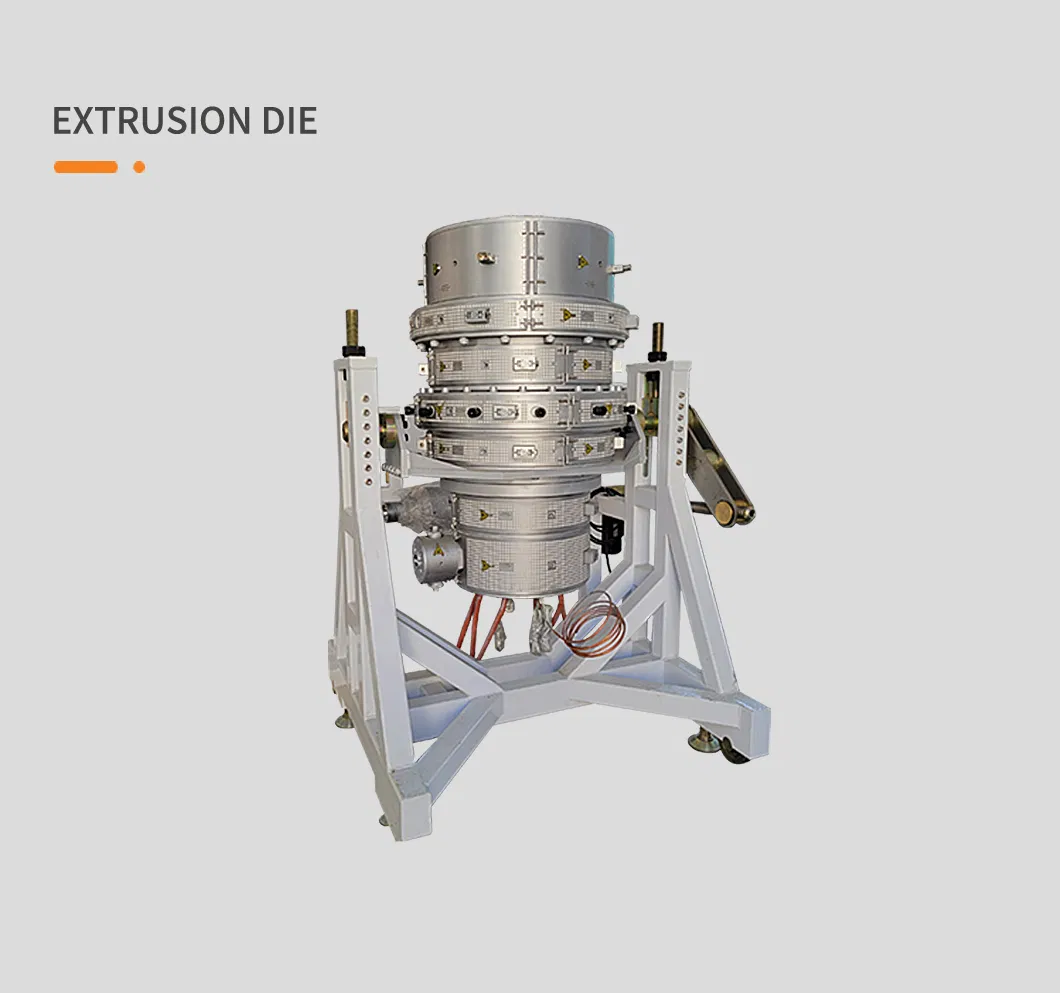

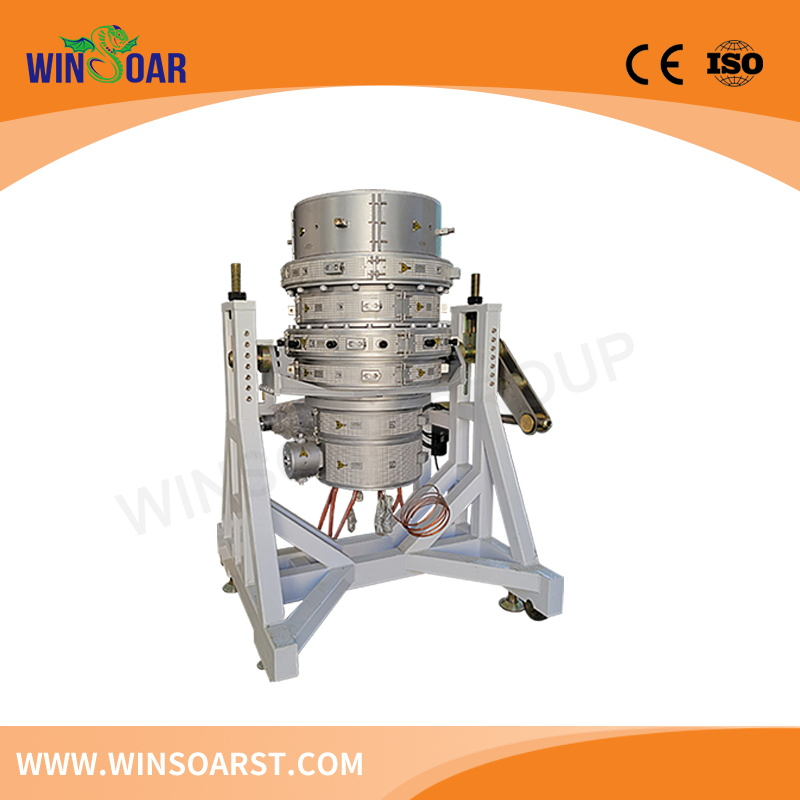

Extruder Unit
Cooling System
Haul off Machine

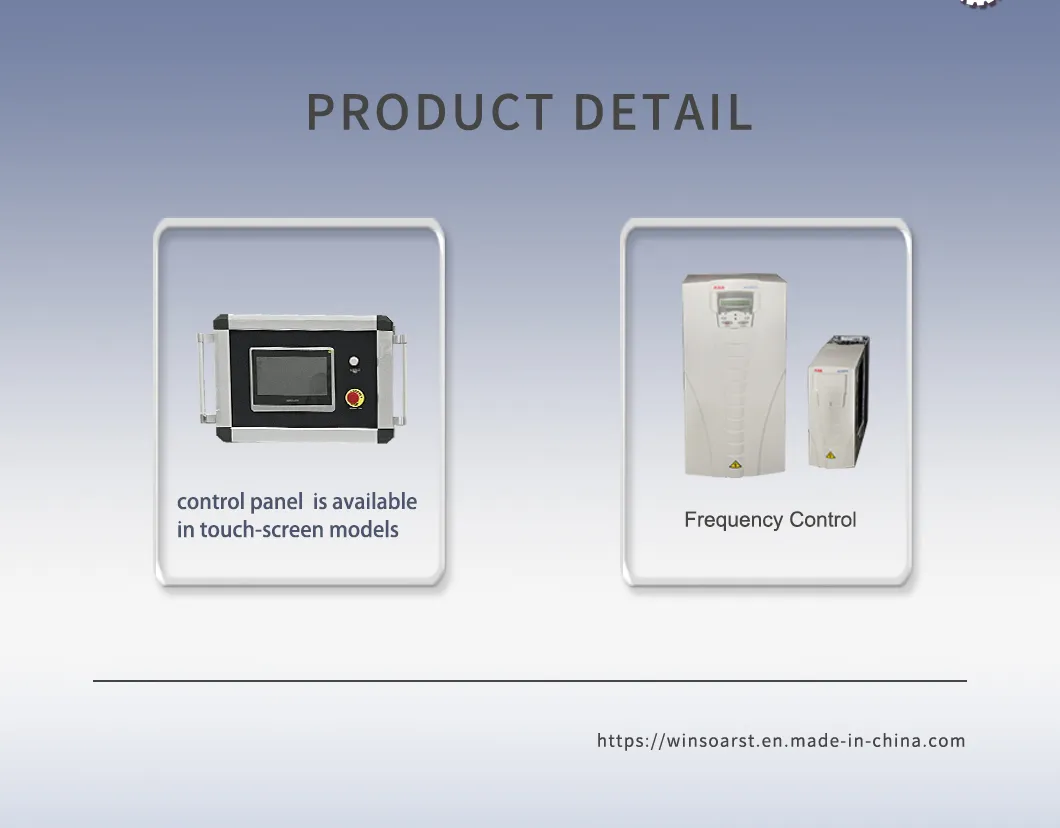

Control Panel
Feeding Device
Equipped with quantitative feeding devices to ensure stable extrusion matching.

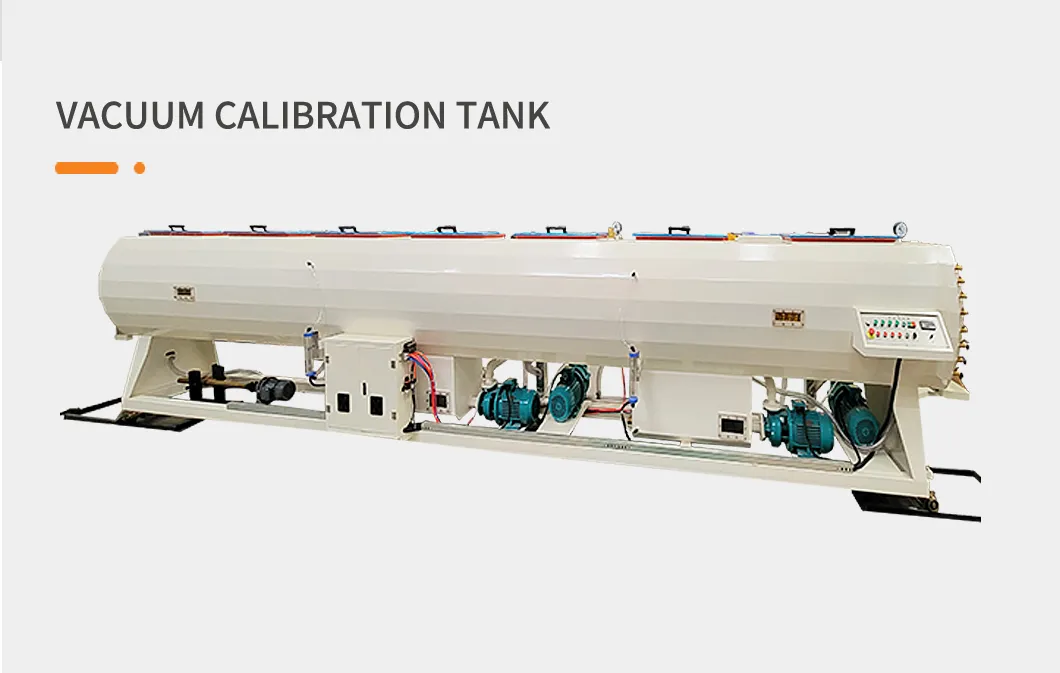

Vacuum Tank

Vacuum system and water circulation for efficient pipe shaping.

Haul-off Unit

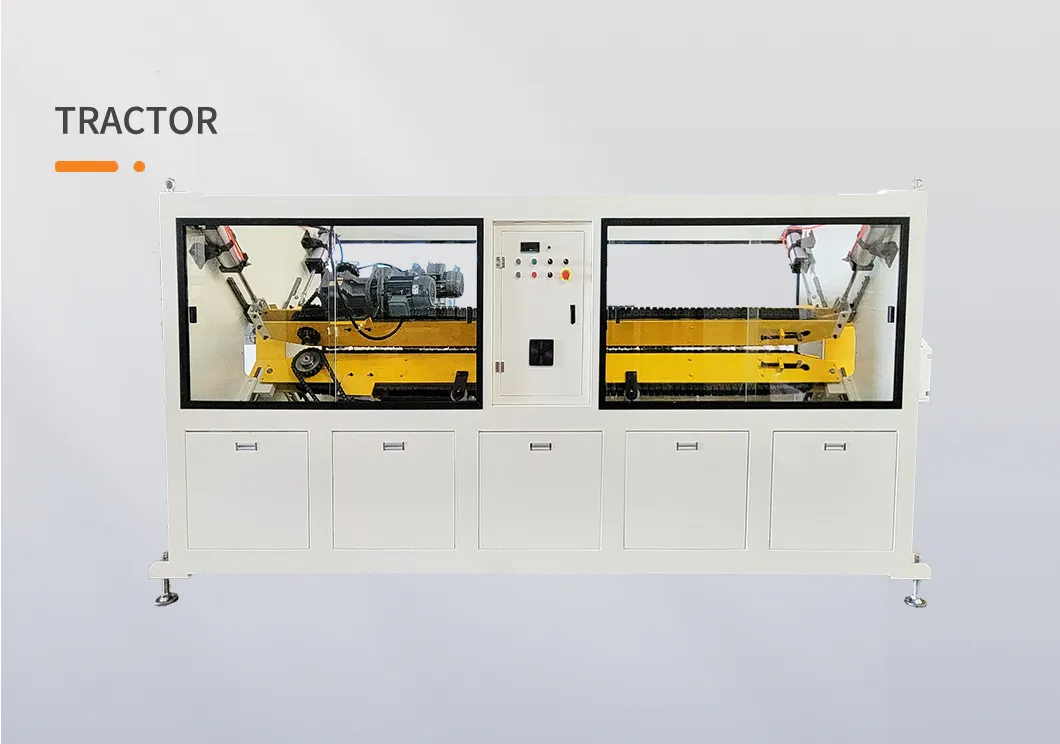

Frequency conversion controlled haul-off unit for continuous output.

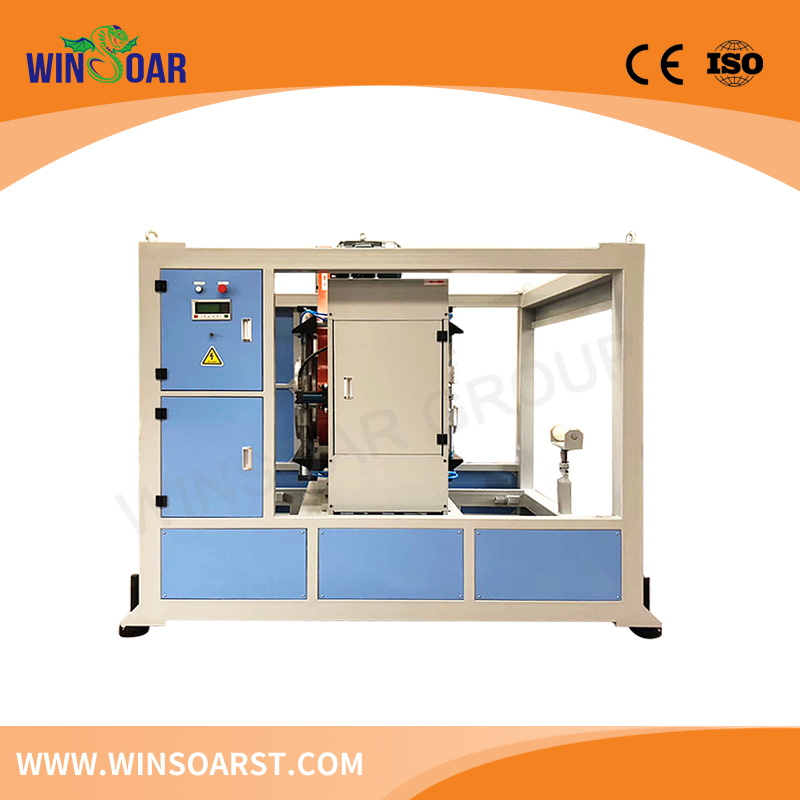

Cutting Unit

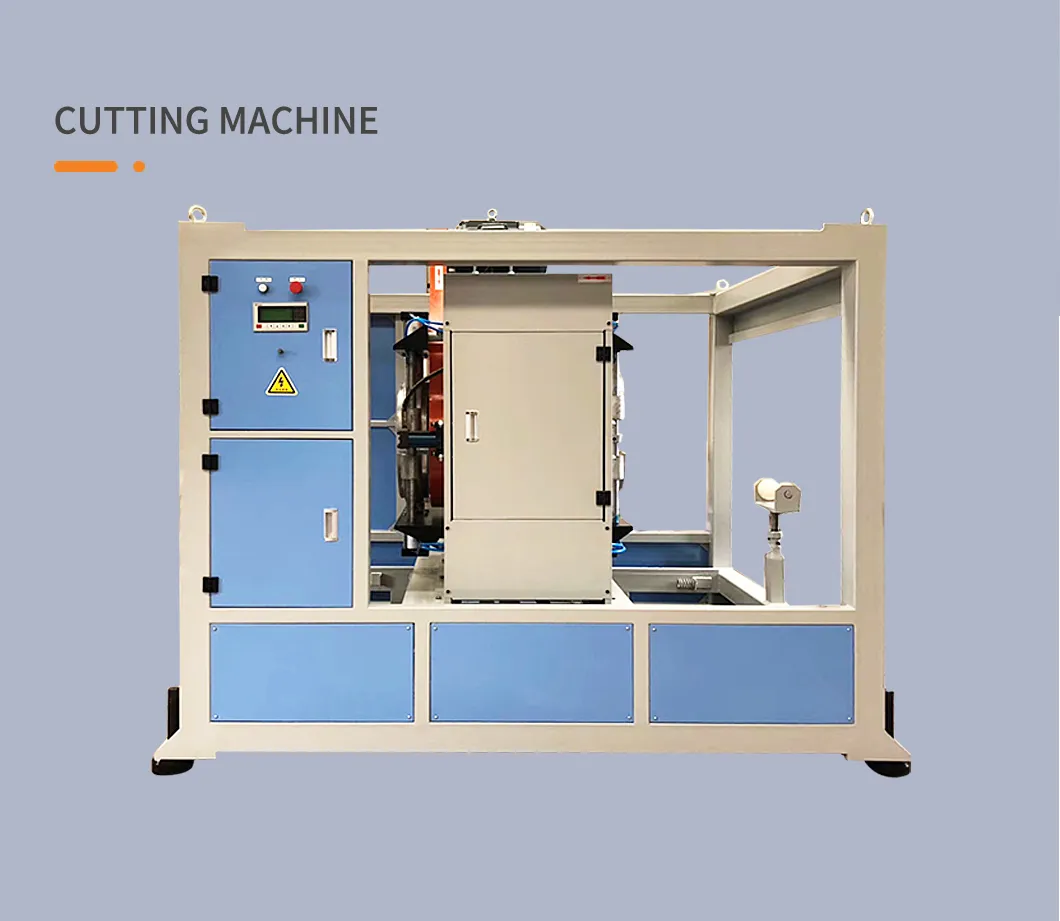

Automatic dust-free cutting based on encoder length control.

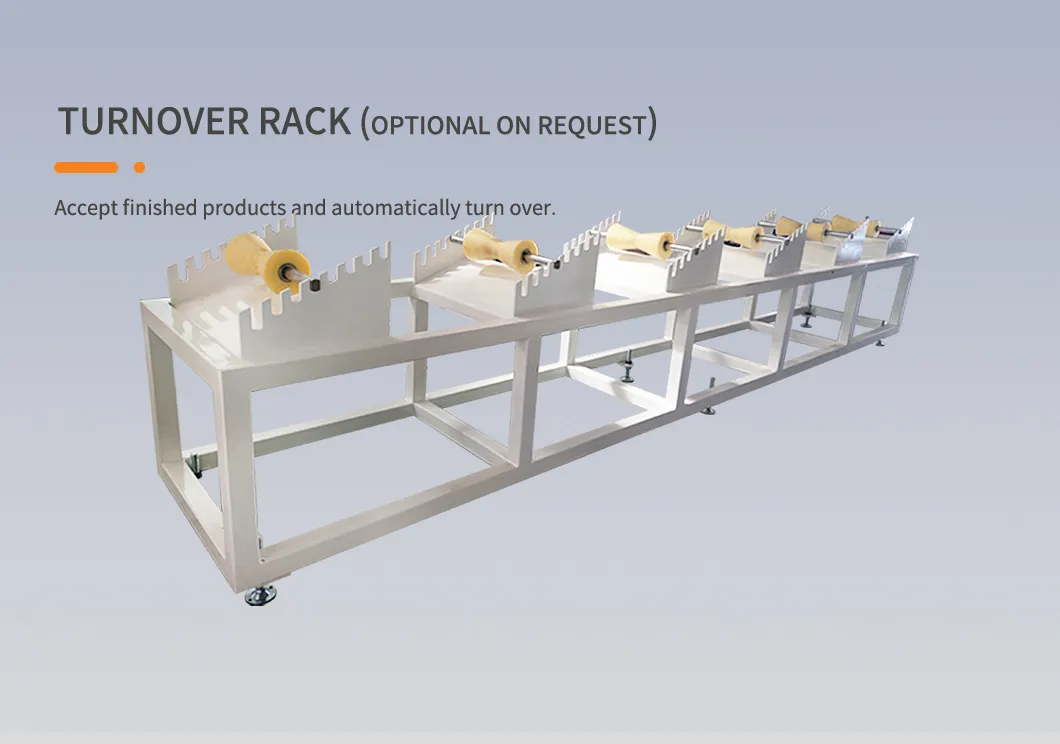

Stacker

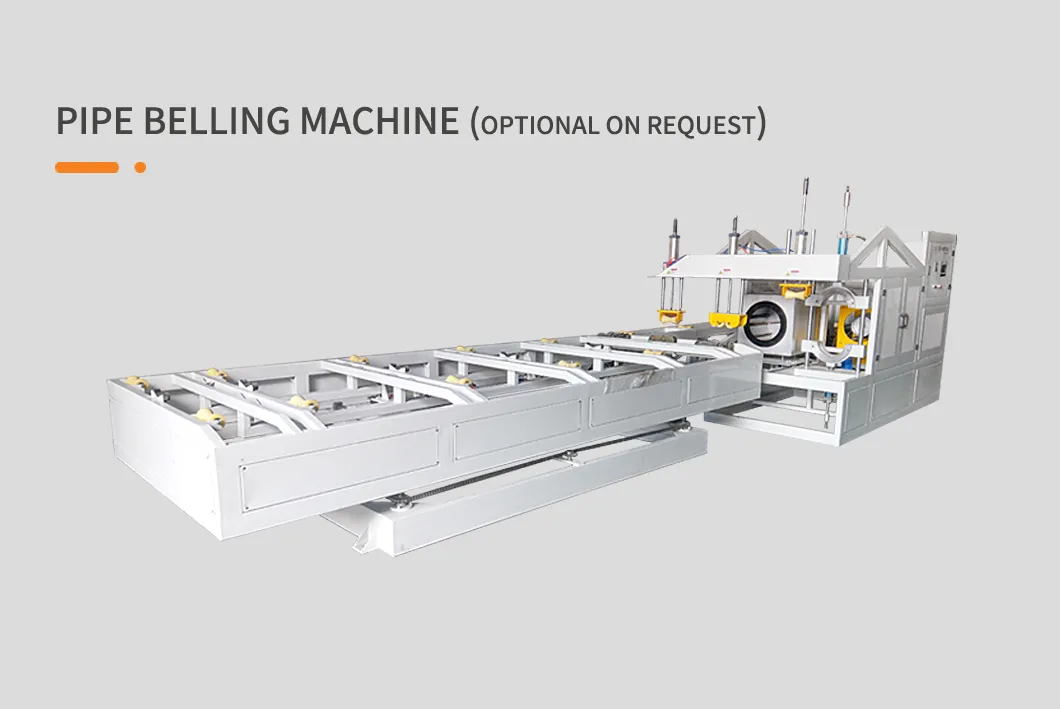

Finished Pipes
Component Detail 1
Component Detail 2
Component Detail 3
Full Production View

Frequently Asked Questions

Q1: What range of pipe diameters can this machine produce? A: This machine line can produce PVC pipes with diameters ranging from 16mm up to 800mm, depending on the specific model configuration chosen.
Q2: What materials are used for the vacuum spray and cooling tanks? A: All parts that come into contact with water are made of high-quality stainless steel to ensure durability and prevent corrosion.
Q3: How is the cutting length of the pipes controlled? A: The cutting is automatically carried out and controlled by an encoder according to the required length, ensuring precision and a smooth cut without scraps or dust.
Q4: Can the machine produce specialized pipe types? A: Yes, we can manufacture special pipe production lines for items such as spiral silencing pipes and core foaming pipes based on your specific requirements.
Q5: What are the main electrical components used in the system? A: The line utilizes world-renowned electronic parts from brands such as ABB, Siemens, Omron, and RKC to ensure stable and reliable performance.
Q6: What type of automation control is available? A: We offer a variety of options, including PLC automatic control systems, which provide excellent stability and are very simple for operators to use.
