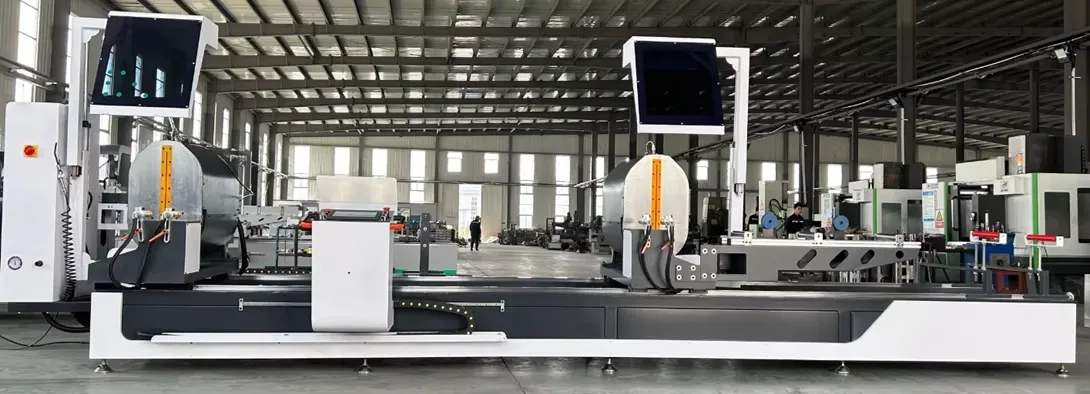

CNC double-headed arbitrary angle precision saw for aluminum profiles
Key Advantages: Simple operation, reliable performance, advanced technology, and easy maintenance. This high-end CNC three-axis double-head cutting saw is primarily used for processing aluminum profiles at any angle, including components for new energy vehicles like curved anti-collision beams and various irregular cutting positions.
Main Characteristics:

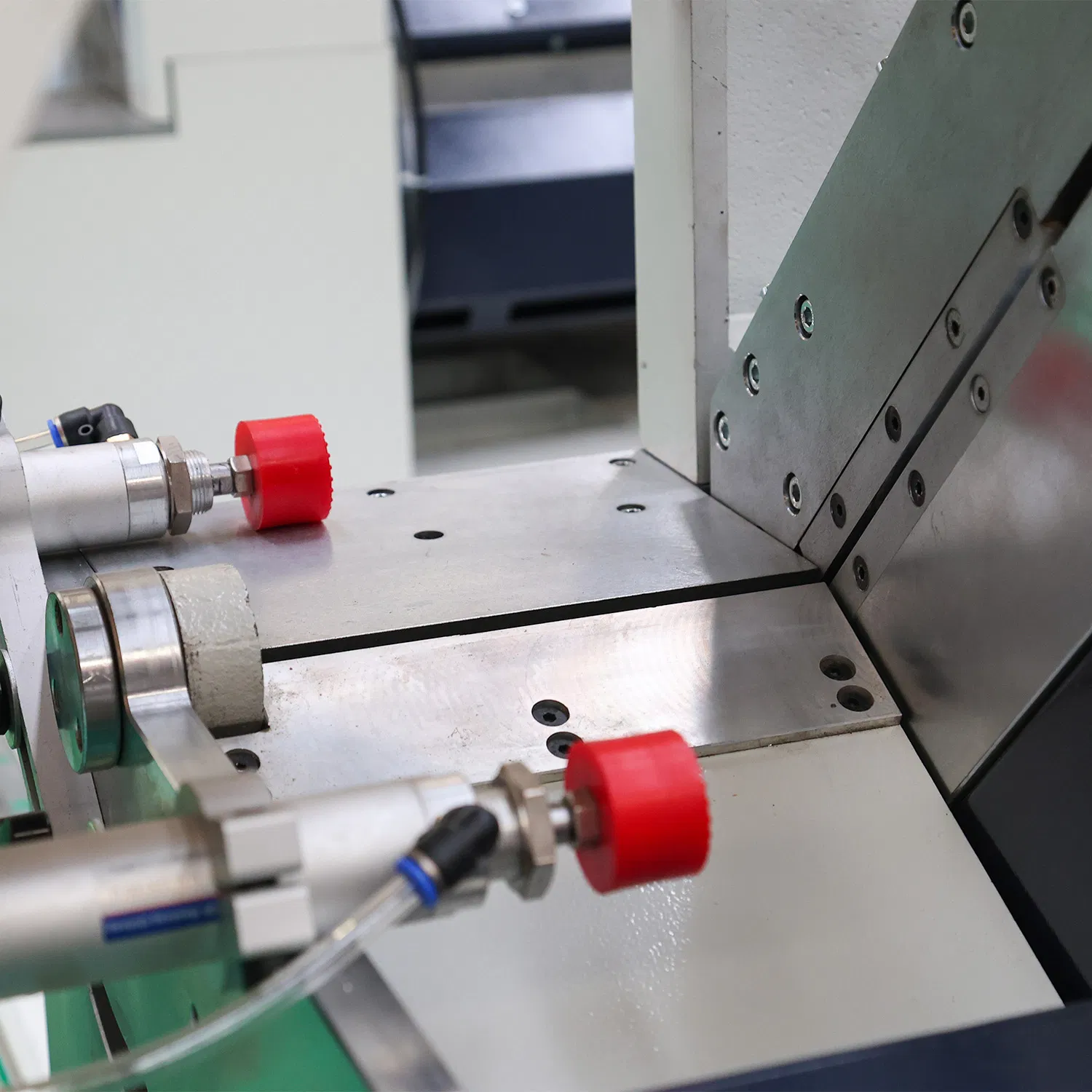

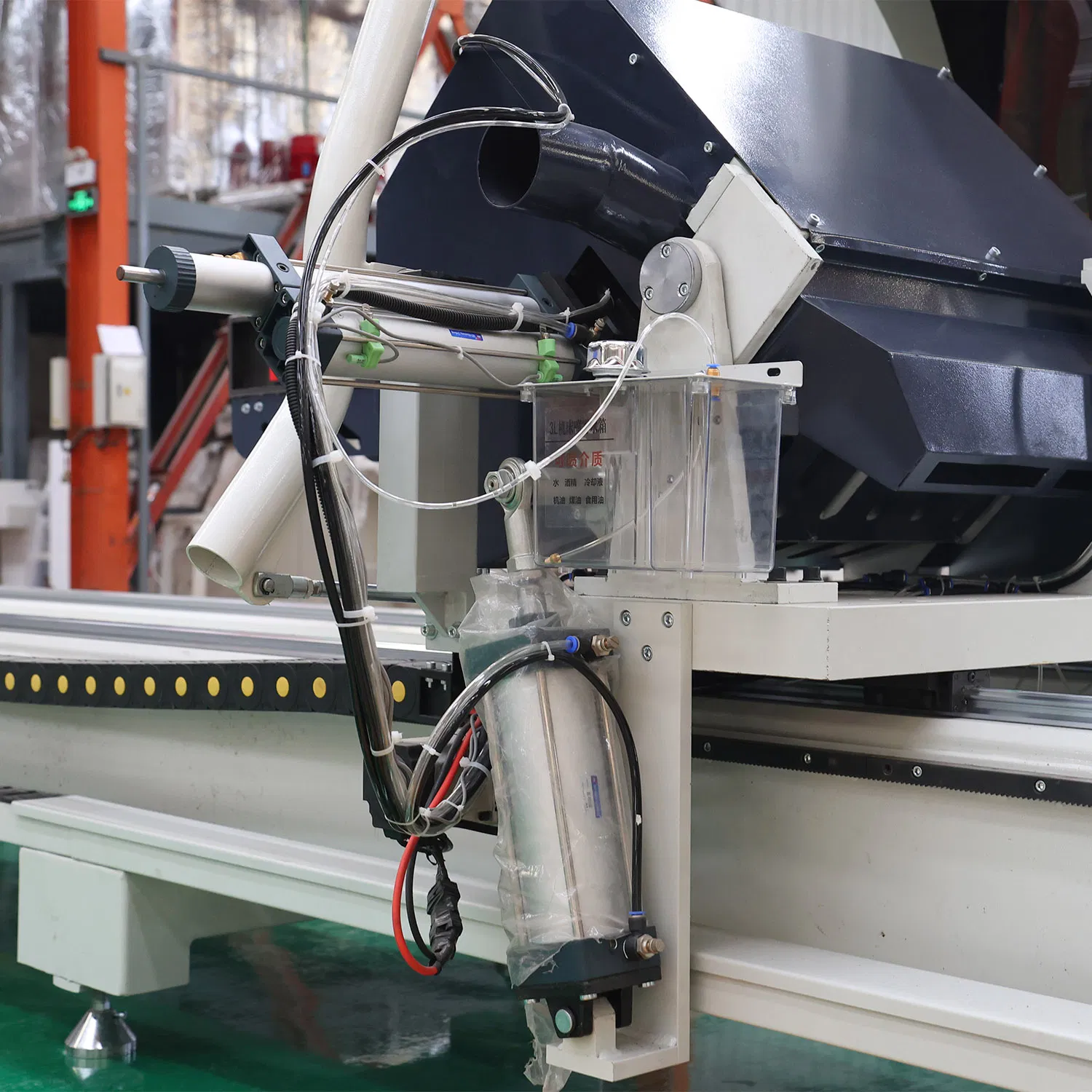

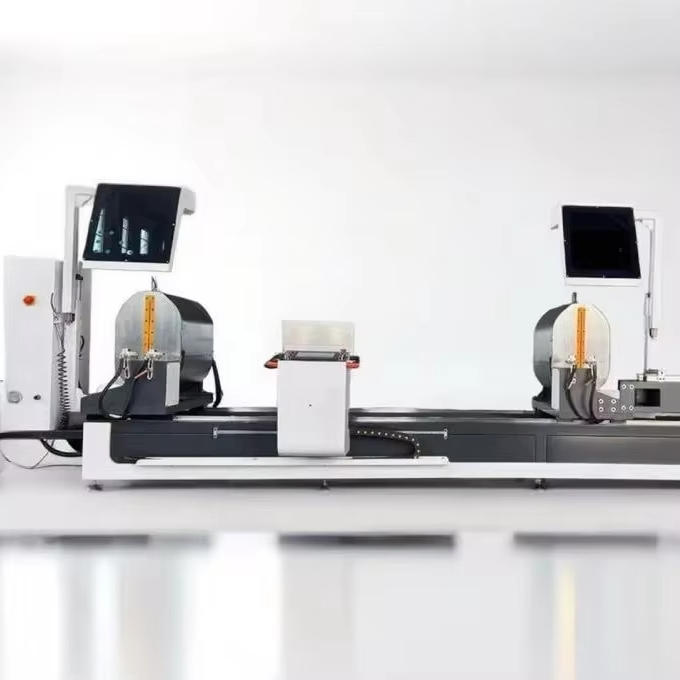

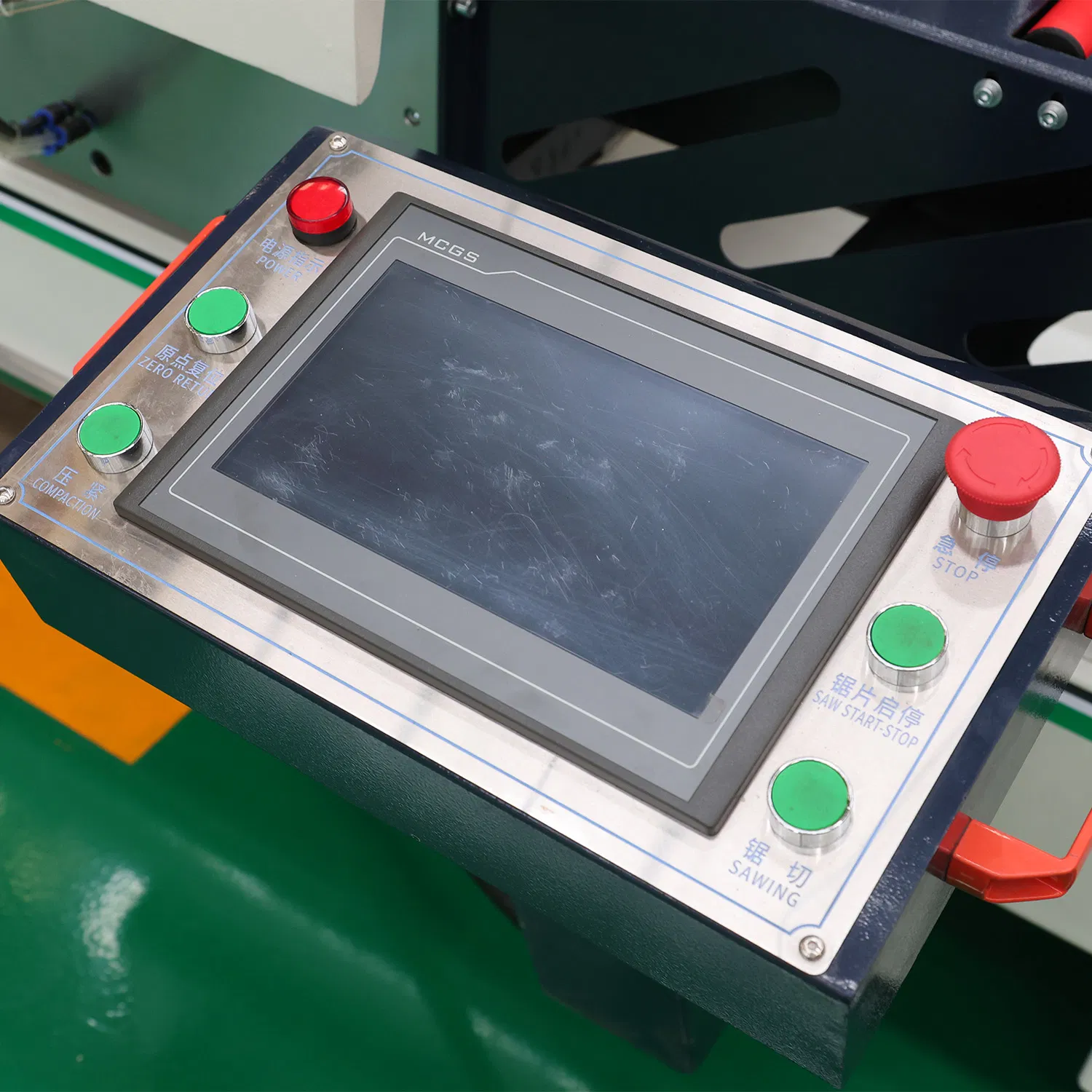

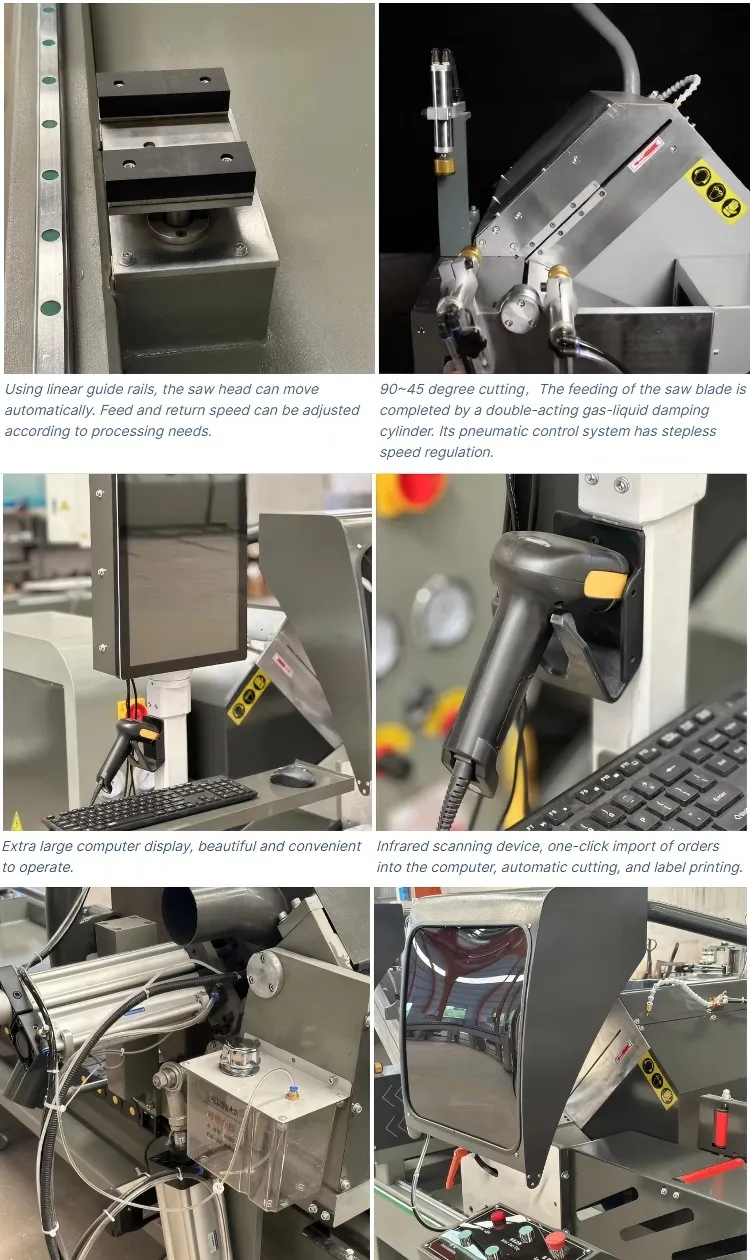

The bed is equipped with two saw heads: the left head is fixed, while the right head adjusts via the control panel along guide rails. The high-precision CNC system manages the cutting length. Operators can easily control positioning, pressing, cutting, and tool return from a movable operating table. Safety is prioritized with moving parts fully enclosed by solid safety covers.
| Item | Specification |
|---|---|
| Power Supply | 380V 50Hz |
| Motor | 2 × 2.2 kW, 2800 r/min |

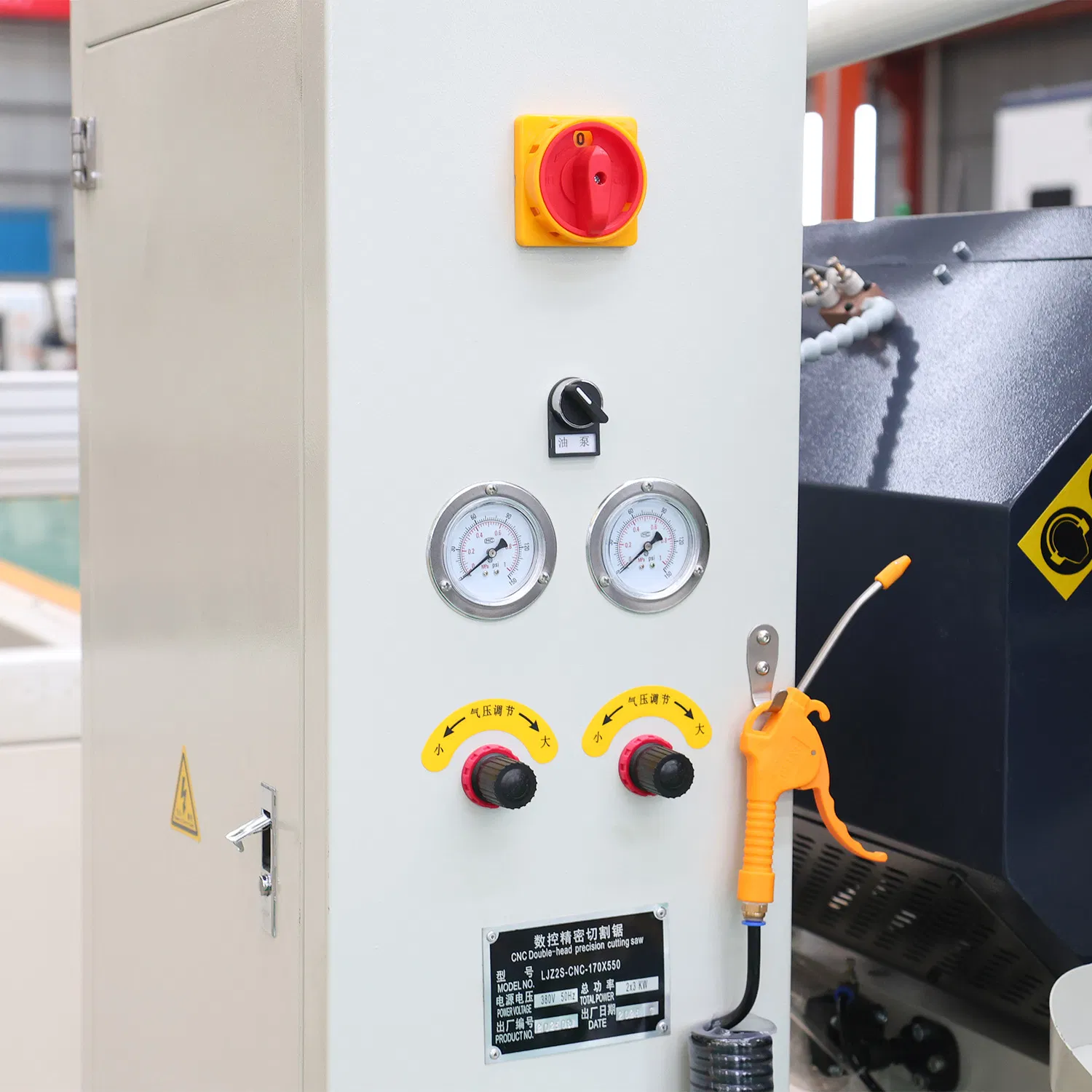

| Working Pressure | 0.5 ~ 0.8 MPa |
| Cutting Length | Max 6000 mm |
| Min. Cutting Length | 360 mm at 90°; 760 mm at 45° |
| Cutting Range | 120 × 230 mm (W × H at 90°) |
| Cutting Angle | Any angle between 22.5° ~ 157.5° |
| Feeding Speed | Stepless adjustment, 0 ~ 3 m/min |
| Saw Blade Specification | φ500 × φ30 × 4.4 × 120T |
| Repeat Length Accuracy | ±0.1 mm |
| Cutting Flatness | ≤ 0.1 mm |
| Cutting Angle Accuracy | ±5′ |
| Overall Dimension | 7800 × 1500 × 2040 mm |
| Weight | Approx. 2500 kg |

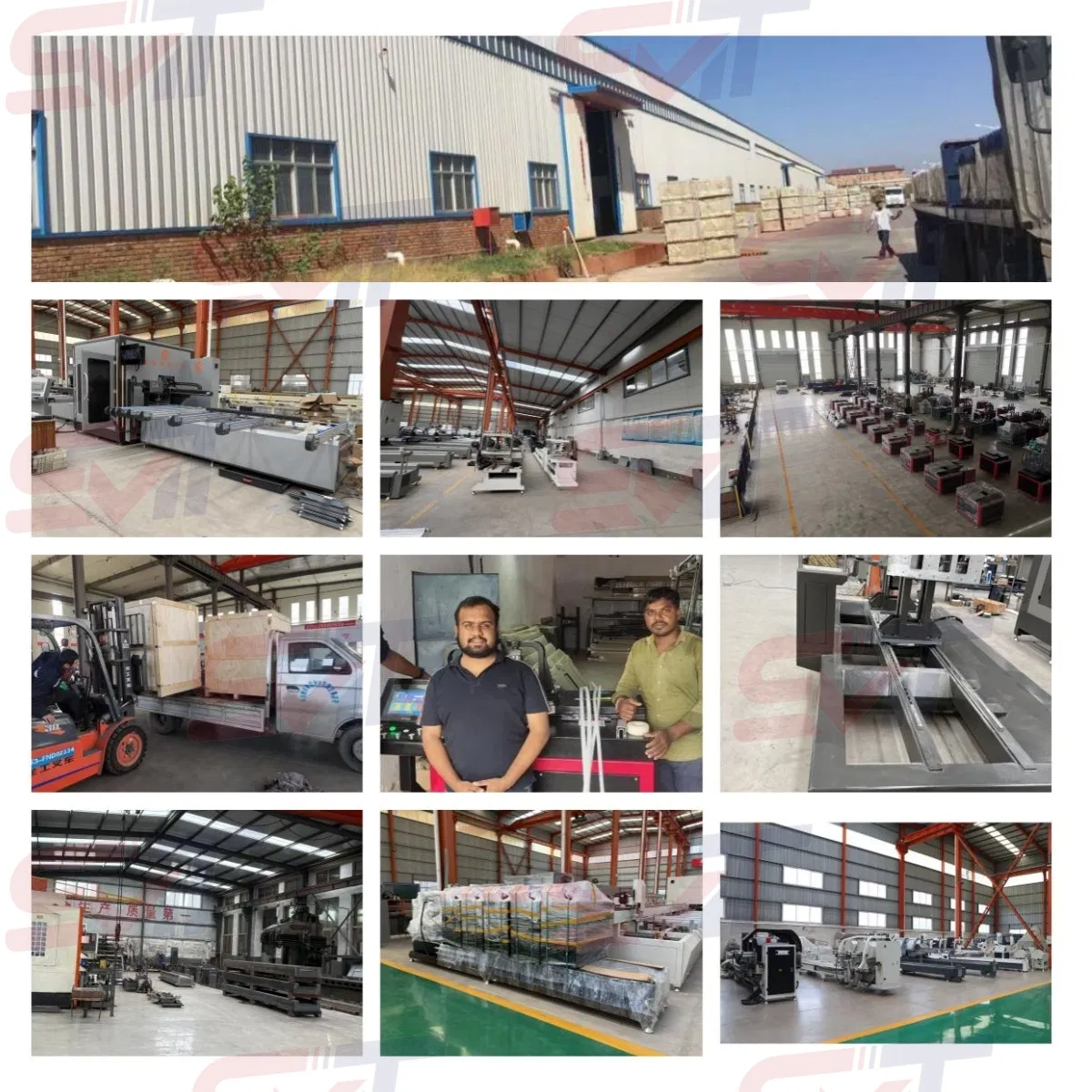

We are a recognized leader in the design and manufacturing of intelligent window and door processing machinery. Our core range includes insulating glass production lines as well as aluminum and PVC window processing equipment. We focus on providing reliable, high-performance solutions tailored to specific production needs and investment plans.
🌟 OEM Capabilities: We have obtained the qualification to carry out OEM production for leading international brands. We welcome inquiries for customized technical solutions and innovative manufacturing partnerships.
