Zhixing Machine
Zhixing Machine

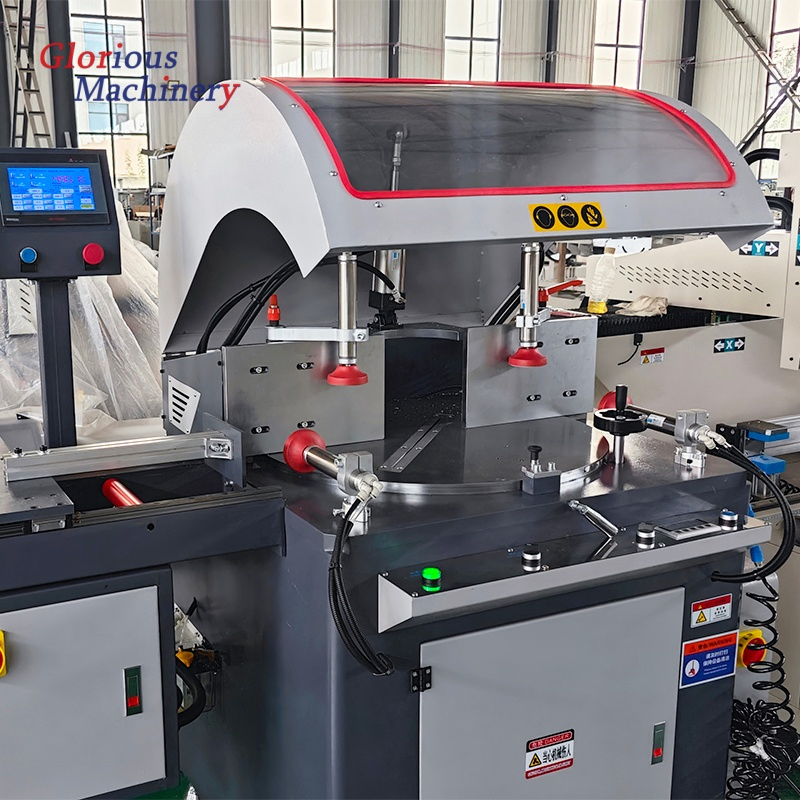

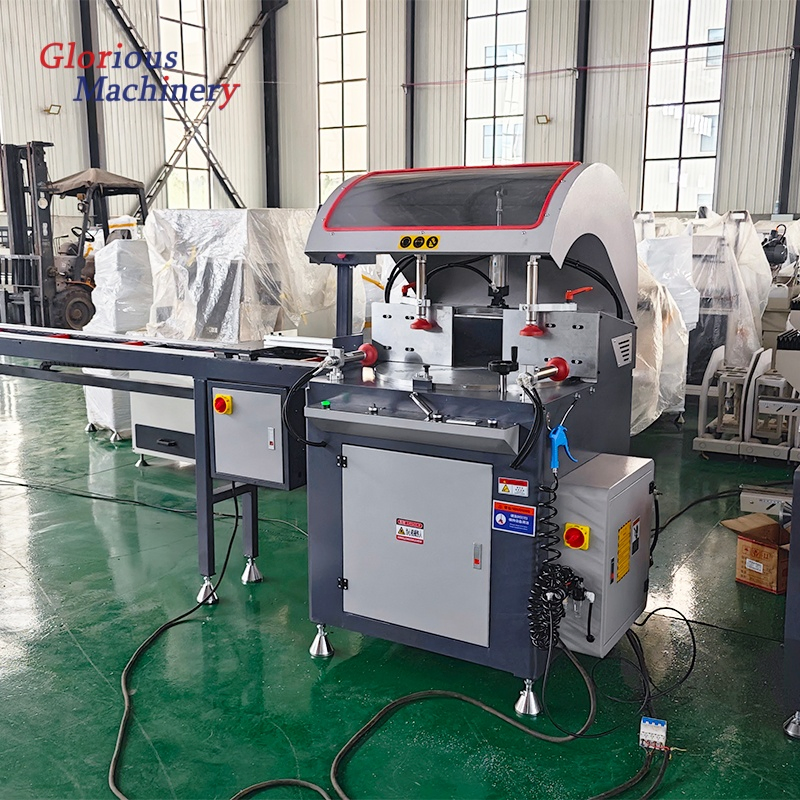

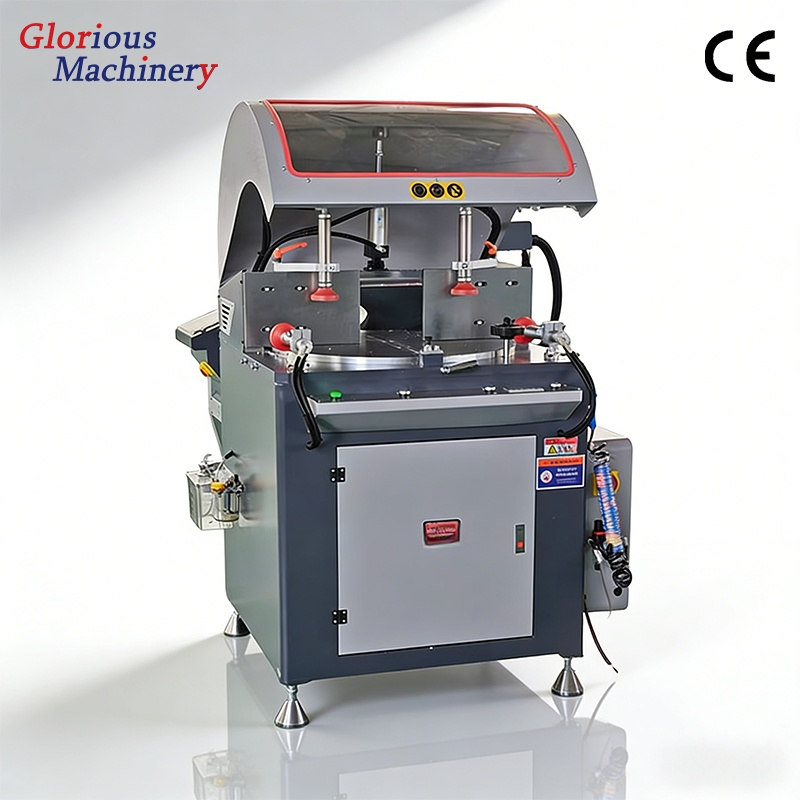

| Product Name | Single-head digital display arbitrary Angle cutting saw |
| Machine Model | LJDY-500 |
| Input Voltage | 380V 50-60HZ 3P |
| Total Power | 2.2kW |
| Working Air Pressure | 0.5~0.8MPa |

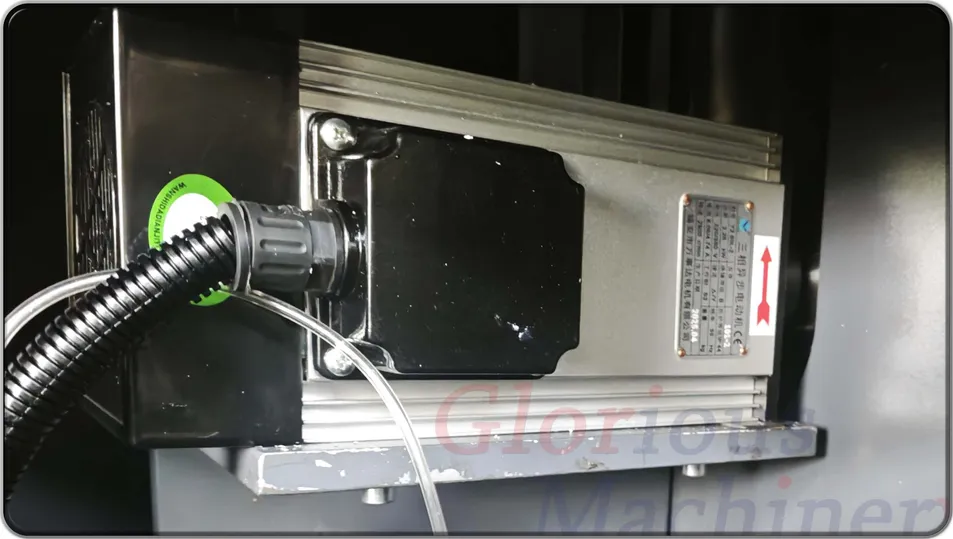

| Motor Rotary Speed | 2800r/min |
| Dimension(L*W*H) | 1250*1200*1560mm |
| Weight | 600kg |

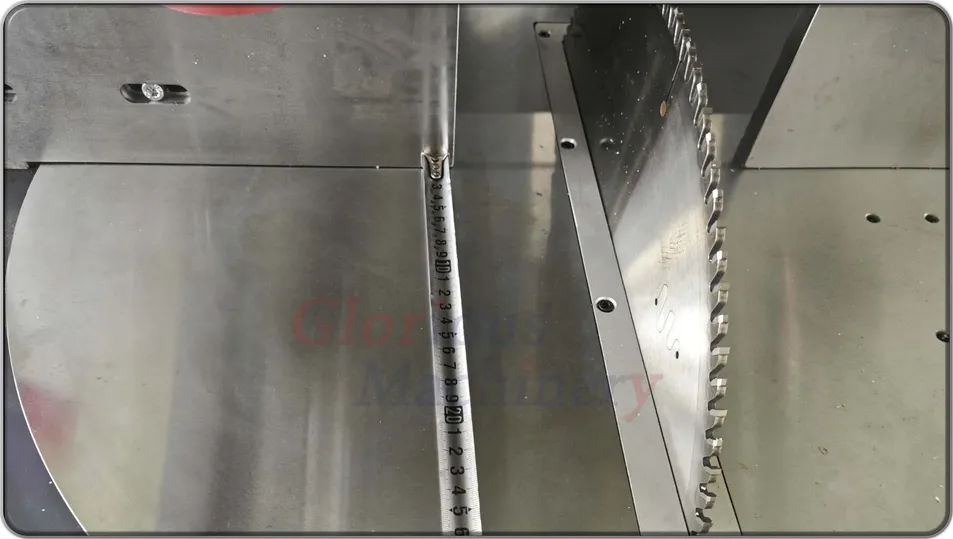

| Blade Specification | 500*30*4.4*120 |
| 90° Max Cutting (H*W) | 135mm * 190mm |
| 45° Max Cutting (H*W) | 135mm * 190mm |

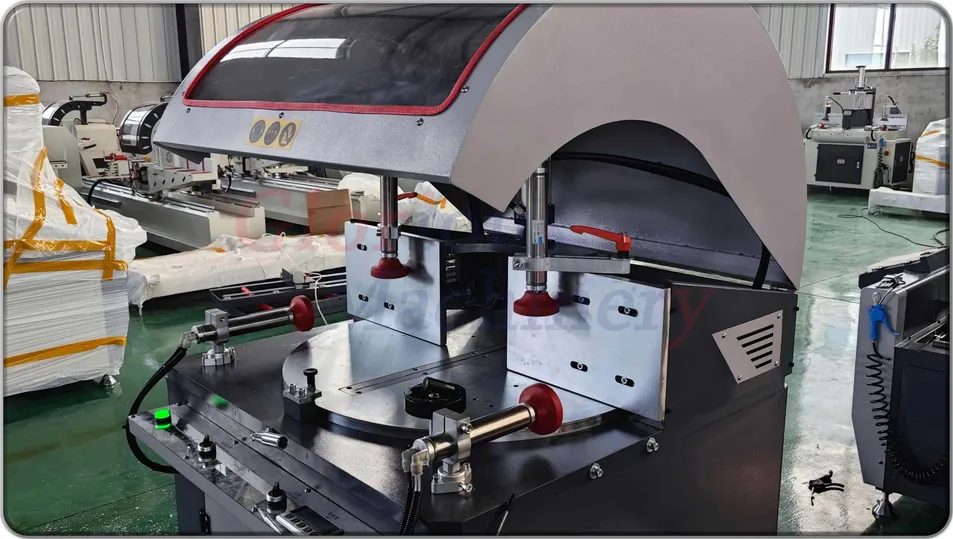

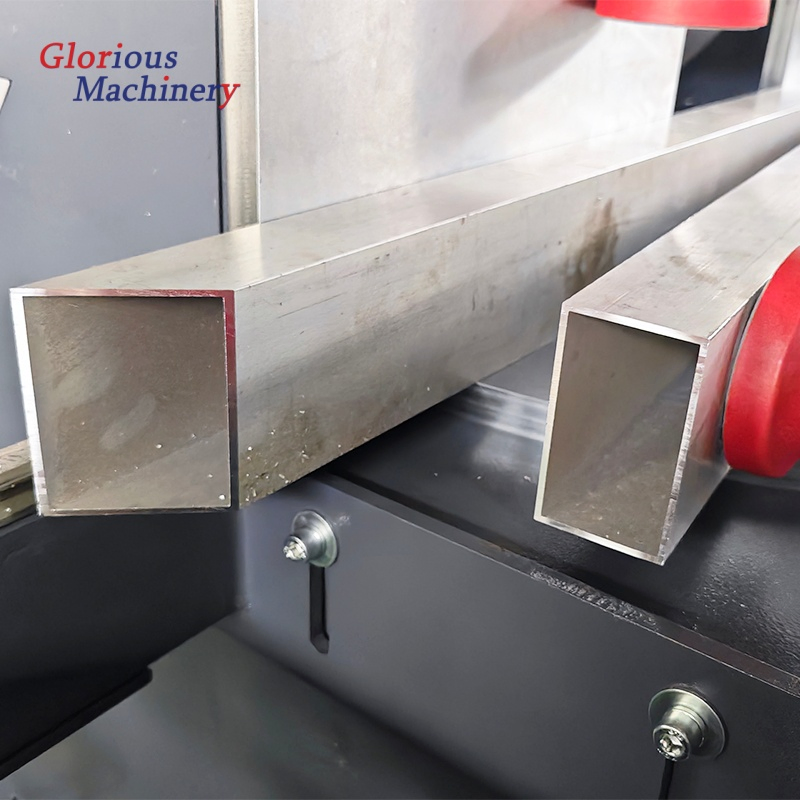

Features high-precision multi-angle cutting for aluminum alloy, plastic and wood-plastic profiles, with accurate angle control and smooth cutting surface. Ideal for construction decoration, door & window manufacturing, light box and photo frame production.

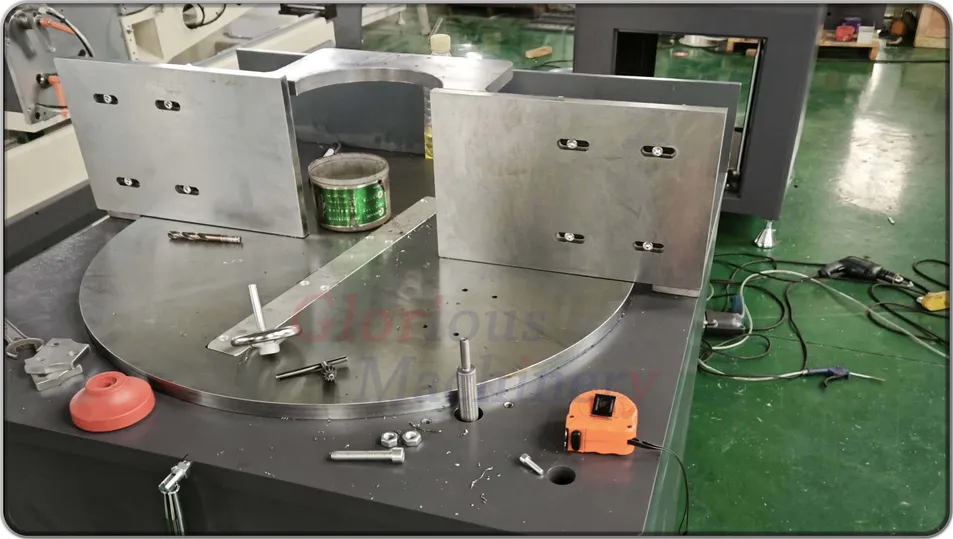

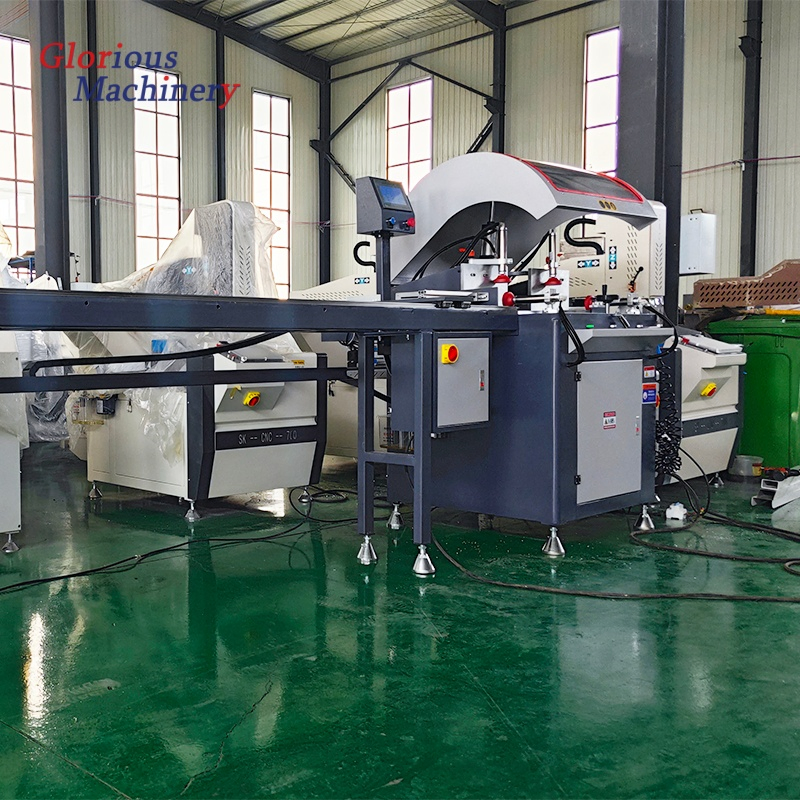

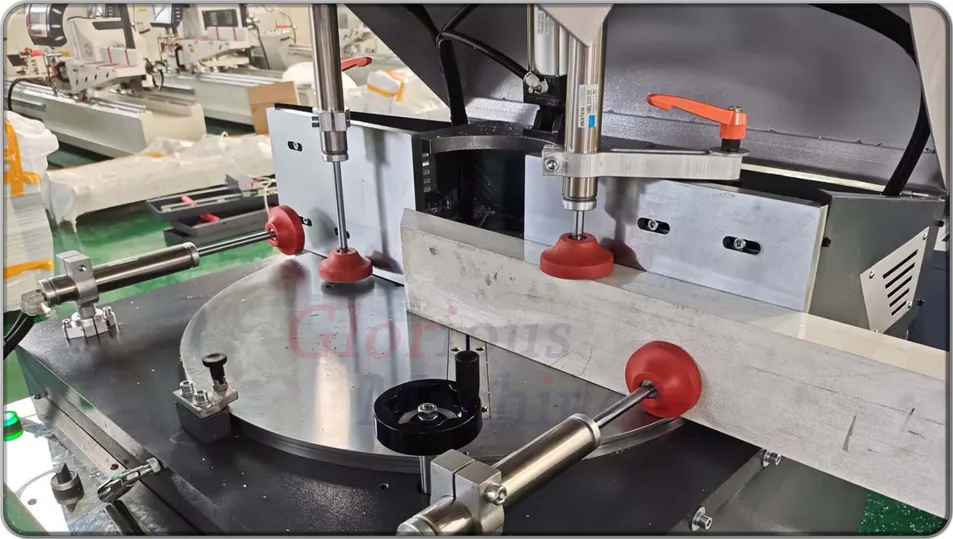

25 linear square rails ensure strong load-bearing, stable high-intensity cutting and consistent precision. Stainless steel feeding rack is durable and aesthetically pleasing, with gasket-adjustable positioning to further improve cutting accuracy.

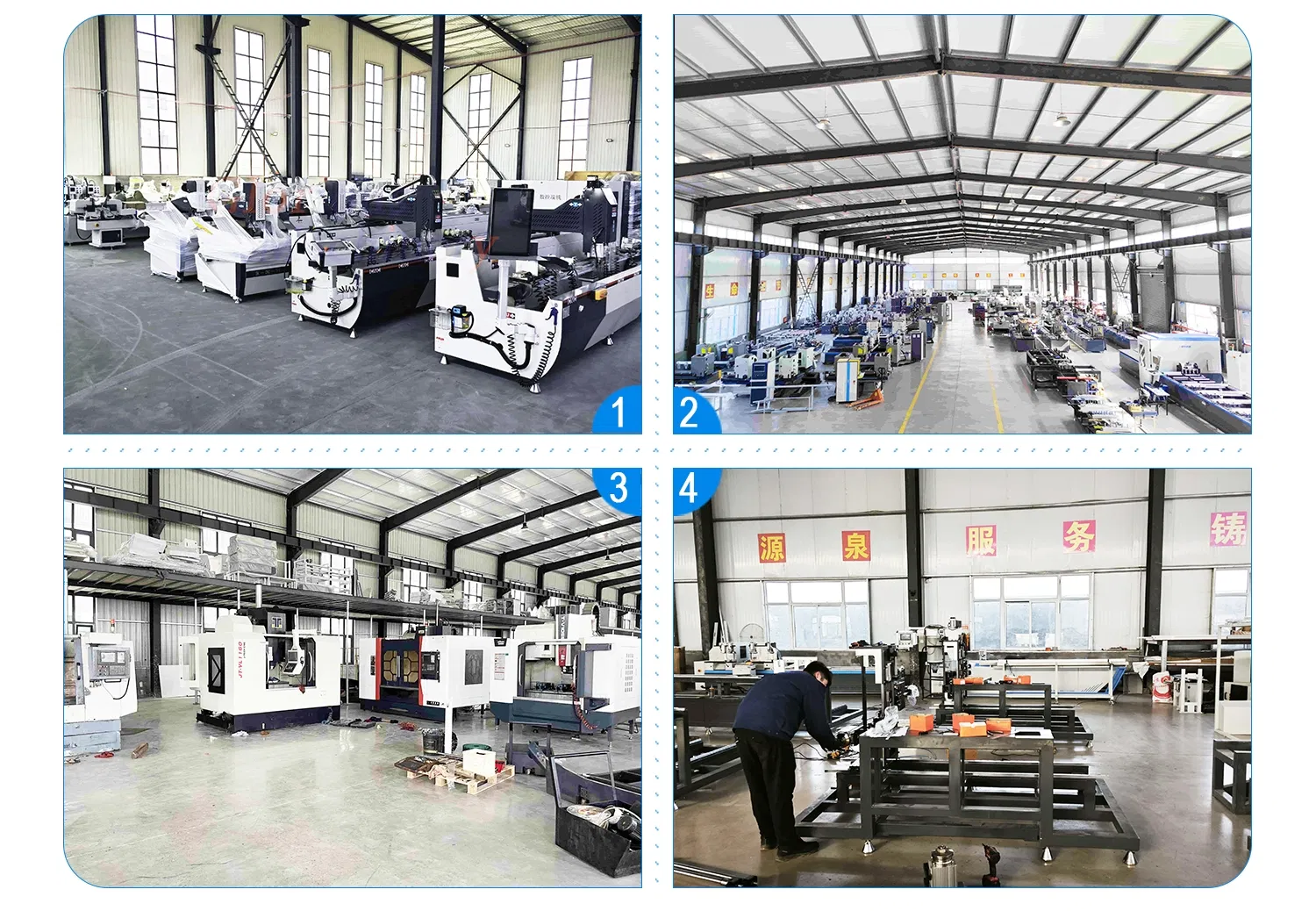

As an innovative manufacturing enterprise with independent R&D and professional design capabilities, we focus on middle and high-end aluminum & PVC window and door processing equipment. We are committed to providing global customers with practical, innovative, and reliable mechanical solutions.
