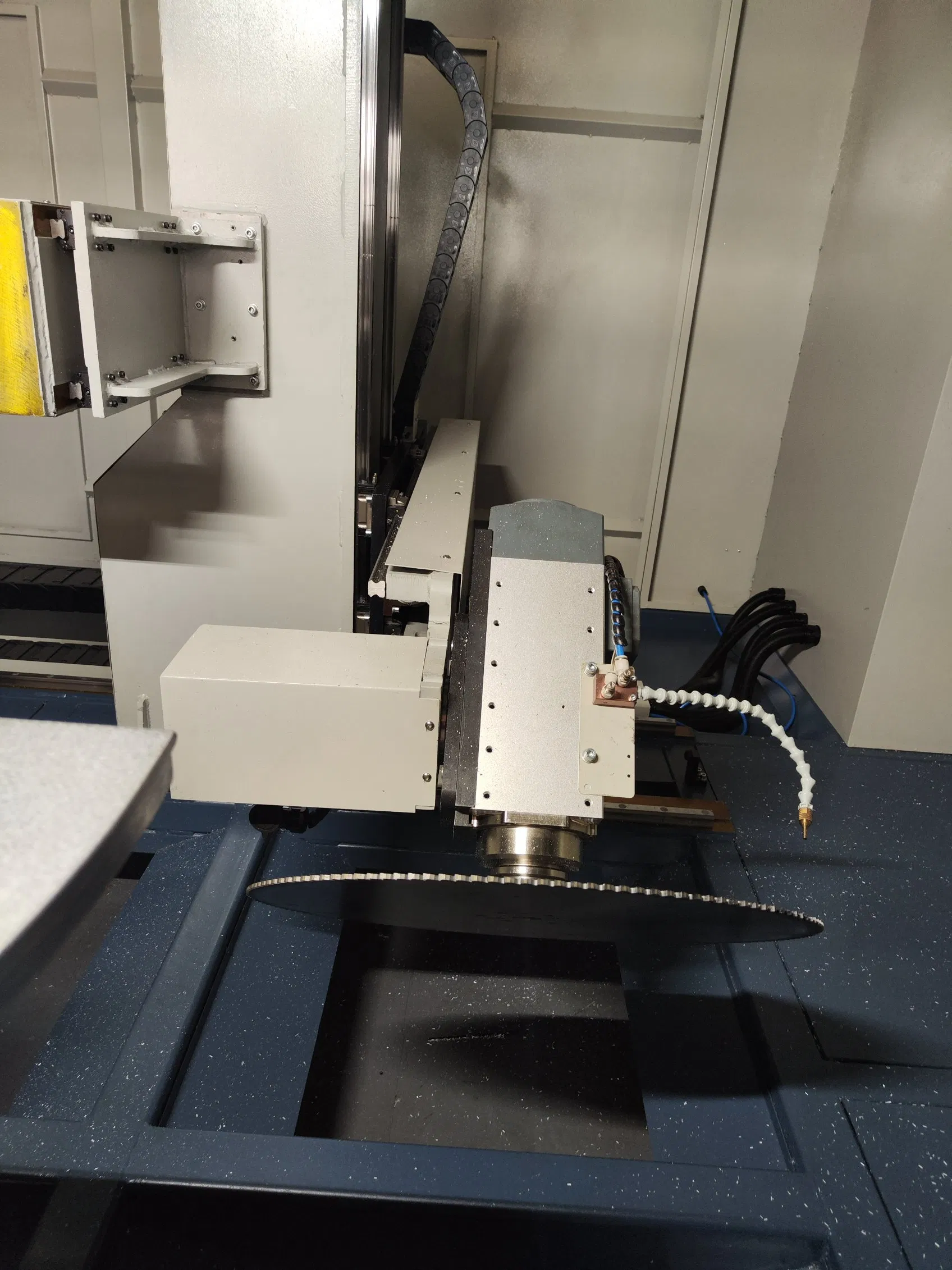

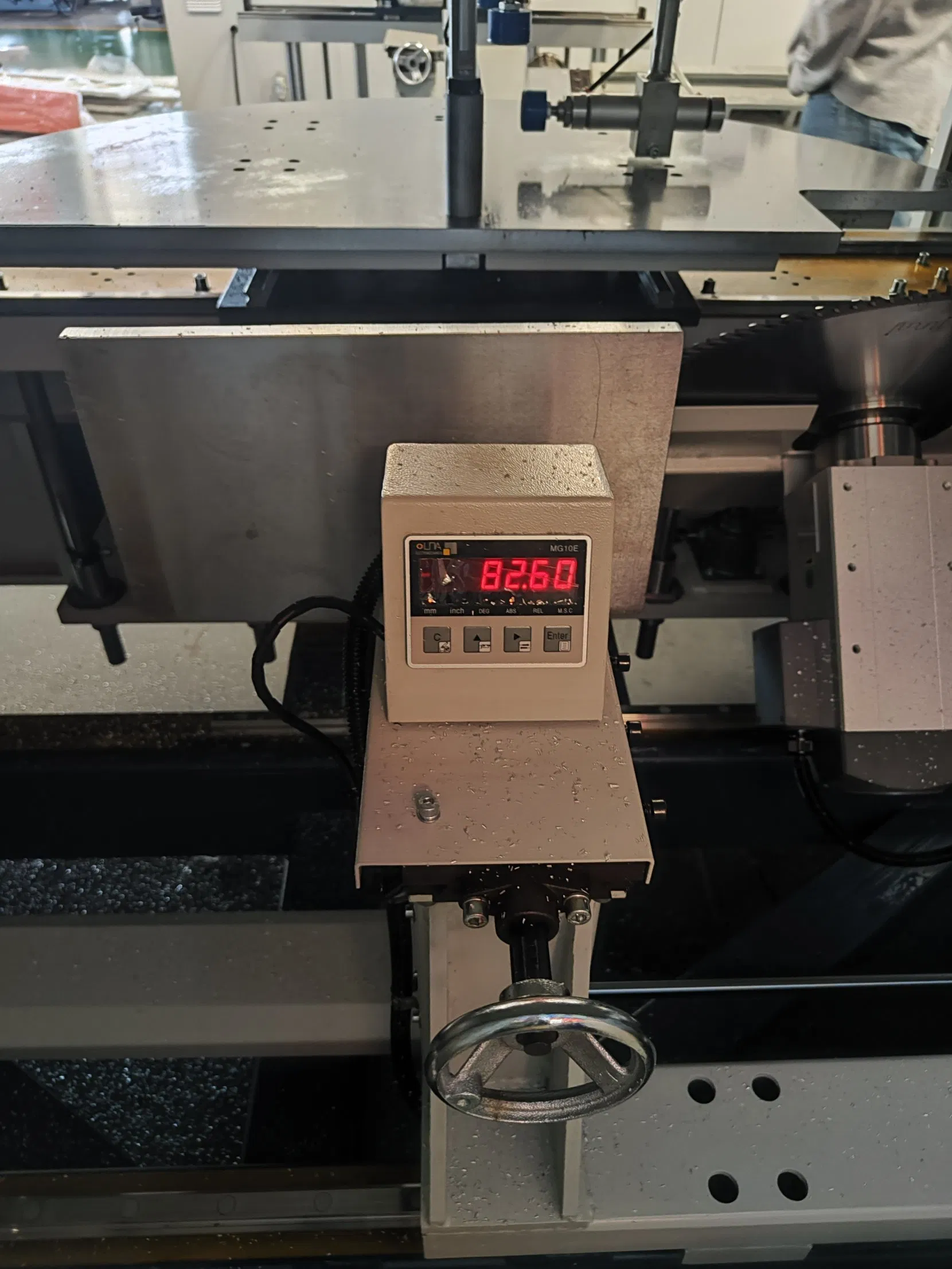

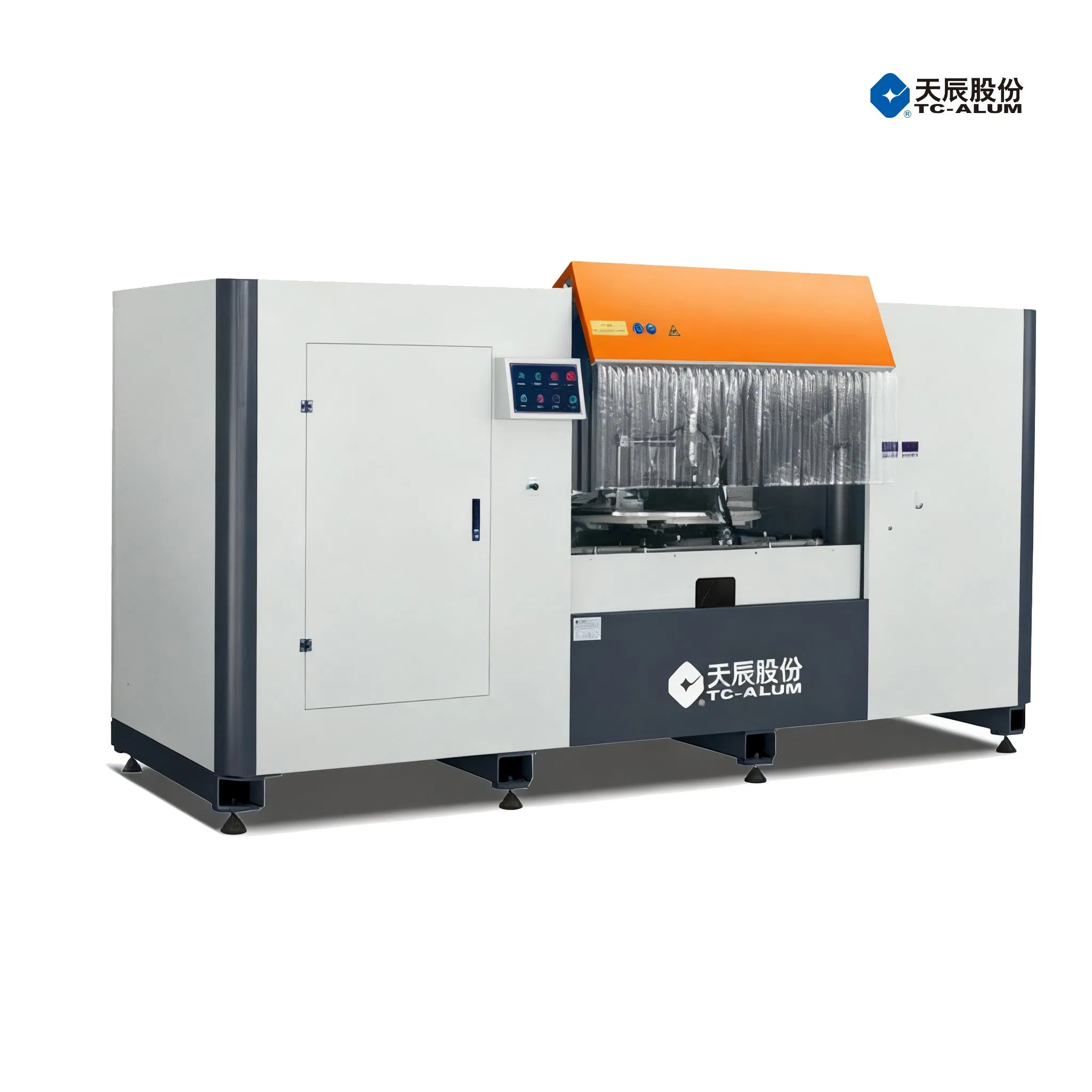

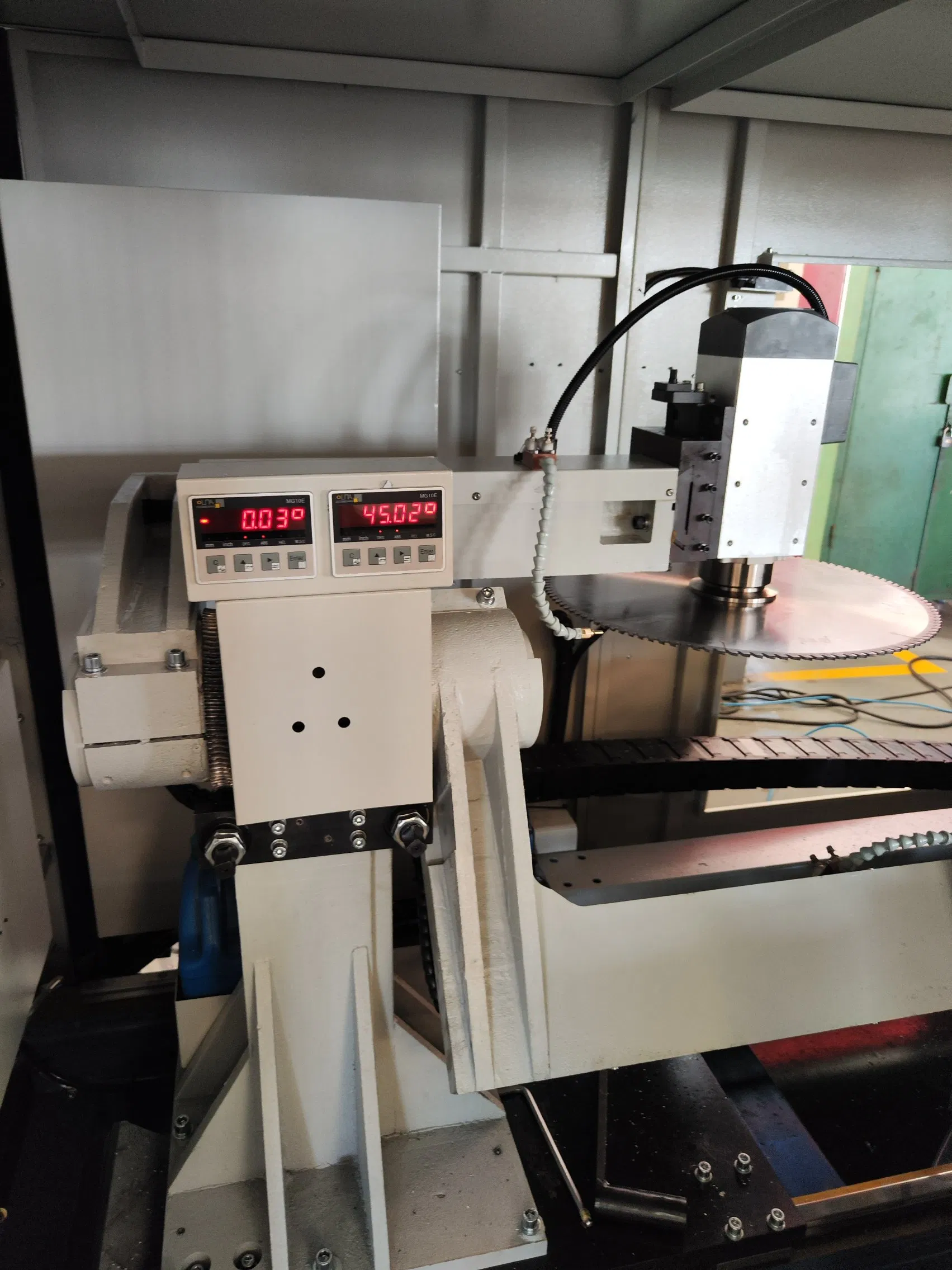

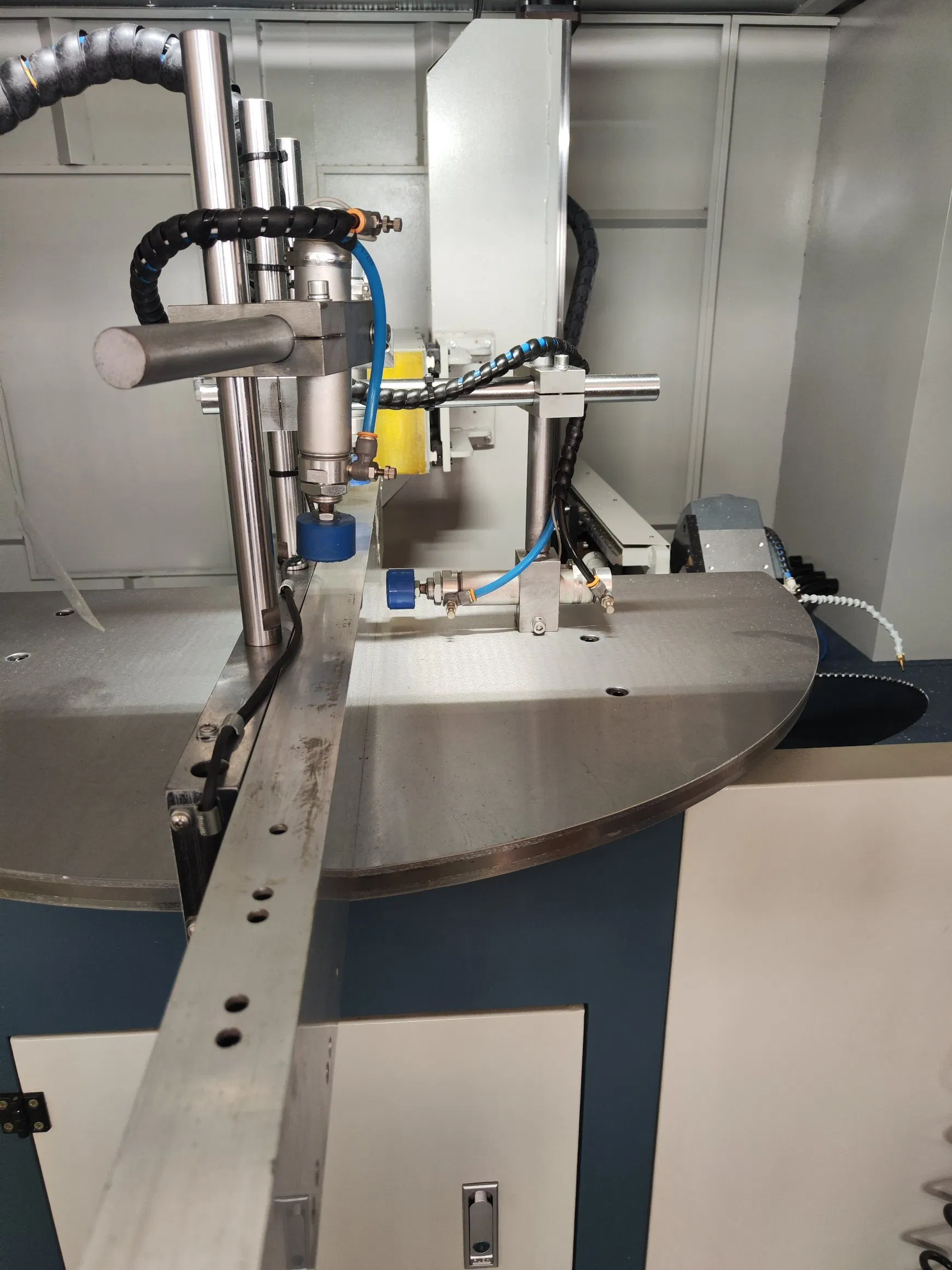

This specialized notching saw is designed for processing aluminum curtain wall and lighting skylight profiles with special end-surface angles. It features two saw blades that swing freely from 0° to -45°, enabling precise angle cutting. Equipped with a magnetic ruler control system, it provides digital display of cutting angles and worktable height adjustments, ensuring accurate and efficient special-shaped end processing.
| Item | Specification |
|---|---|
| Power supply | 380V 50Hz |
| Cutting motor power | 2×3.0kW |
| Motor rotary speed | 2800r/min |
| Operation air pressure | 0.5Mpa-0.8Mpa |
| Saw blade swinging range | 0º -45° |
| Cutting depth (vertical & horizontal) | 220×180mm |
| Cutting Width | 300mm |
| Cutter feeding speed | Stepless speed regulation 0-3m/min |
| Saw Blade Specification | φ600mm/φ550mm |
| Contour Dimension | 3600×1700×1800mm |
| Weight | About 1500kg |
We offer a full range of high-performance machinery for aluminum door, window, and curtain wall production, featuring high precision, automation, and flexibility.

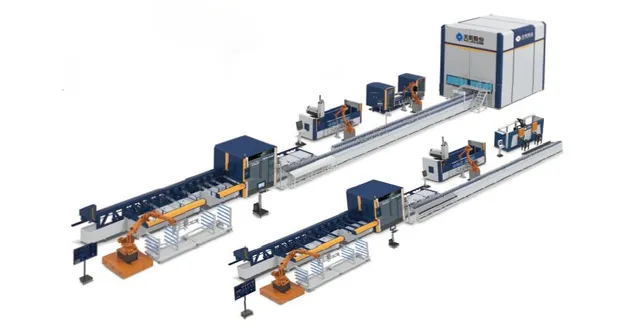

Intelligent Production Line

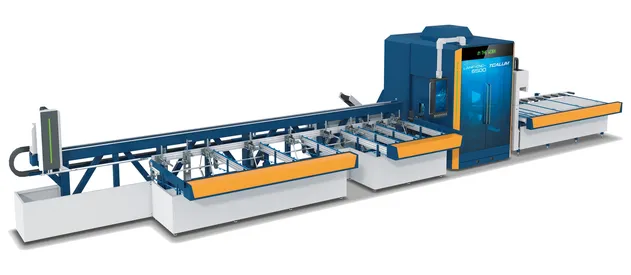

Sawing and Milling Machining Center

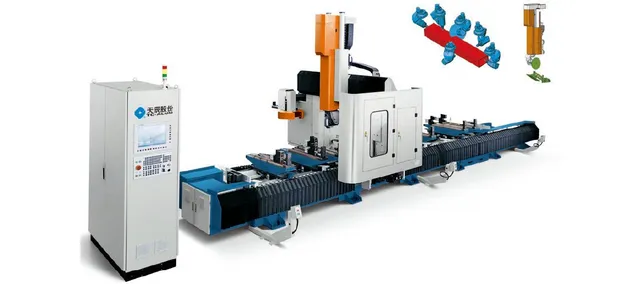

Milling Machining Center

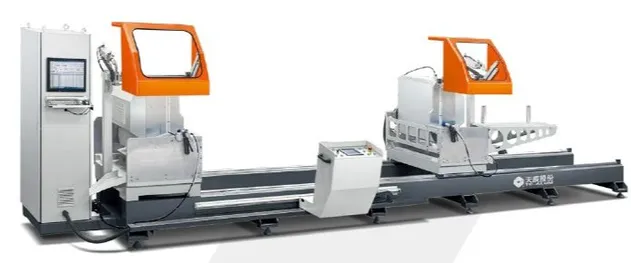

Double Head Saw

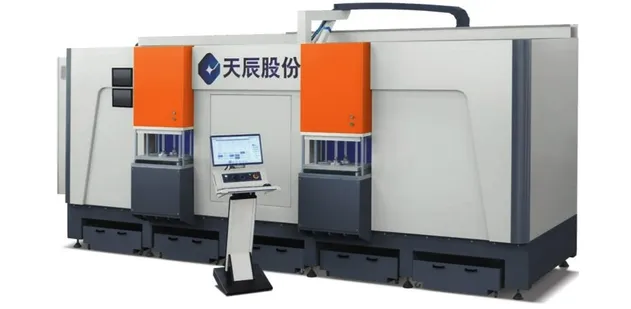

End Milling Machine

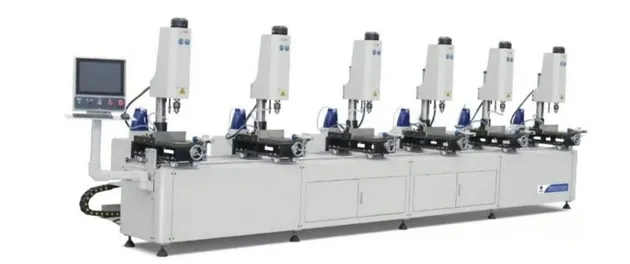

Drilling Machine

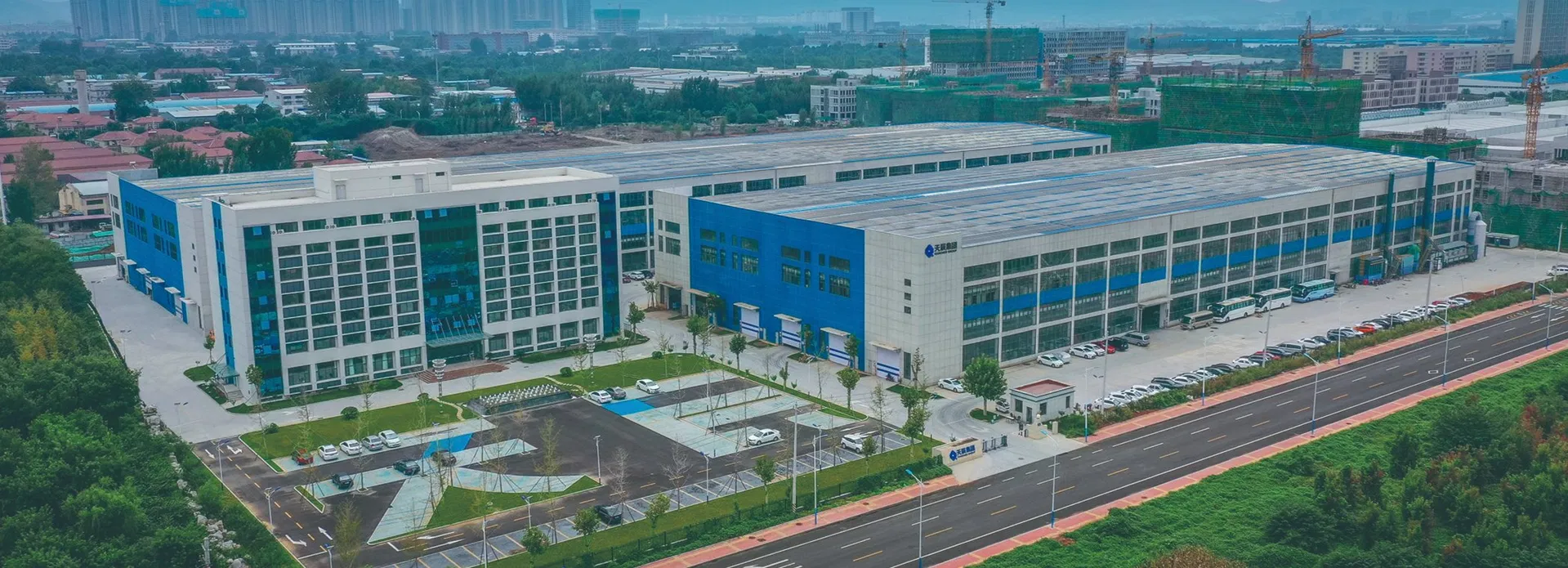

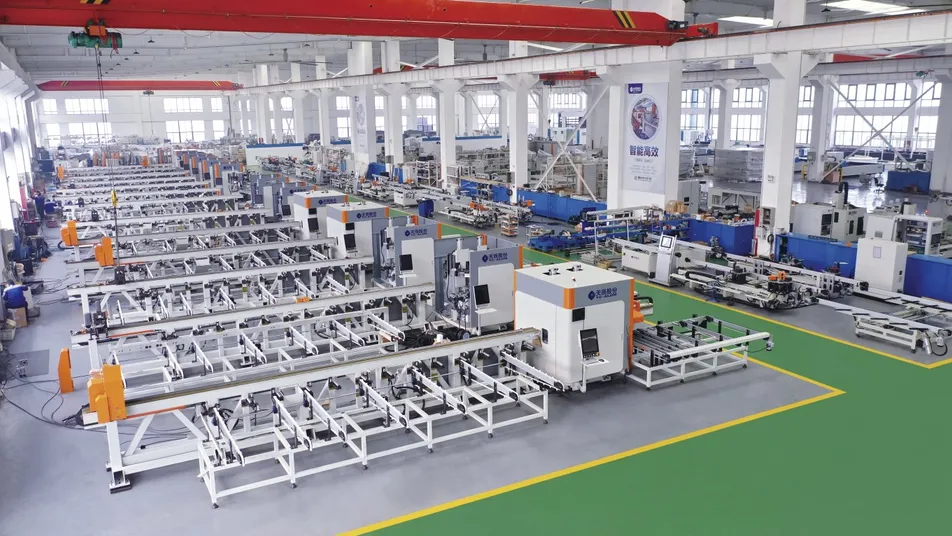

As a high-tech enterprise specializing in R&D, manufacturing, and sales, we provide automated fabrication systems for aluminum windows, doors, and curtain walls. Our facility includes a professional inspection center that tracks materials, parts, and complete machines using laser interferometers and ballbar instruments.
