⚙️ Basic Information
Cutting Motor Power
3.0kw X 2
Motor Rotary Speed
2800r/Min
Saw Blade Swing
0-45 Degree
🚀 Machine Features
- Designed specifically for aluminum curtain-wall and lighting skylight processing with special angle requirements at profile ends.

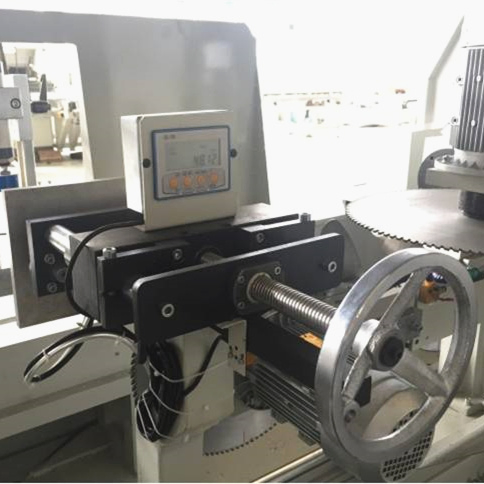

- Equipped with a high-precision magnetic ruler control system for digital display of cutting angles and worktable height.

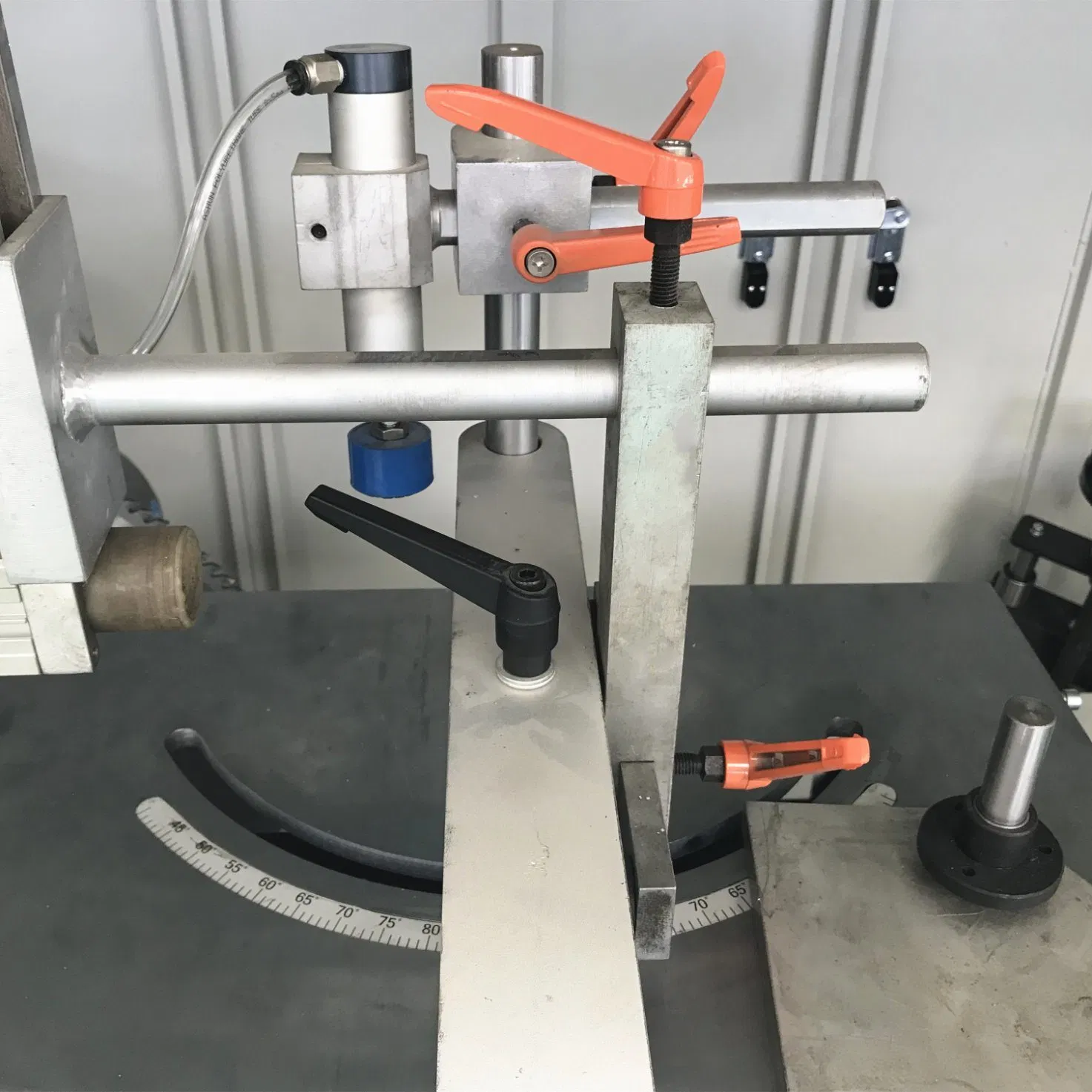

- Convenient adjustment of the worktable and locating device ensures efficient processing of complex end surface angles.

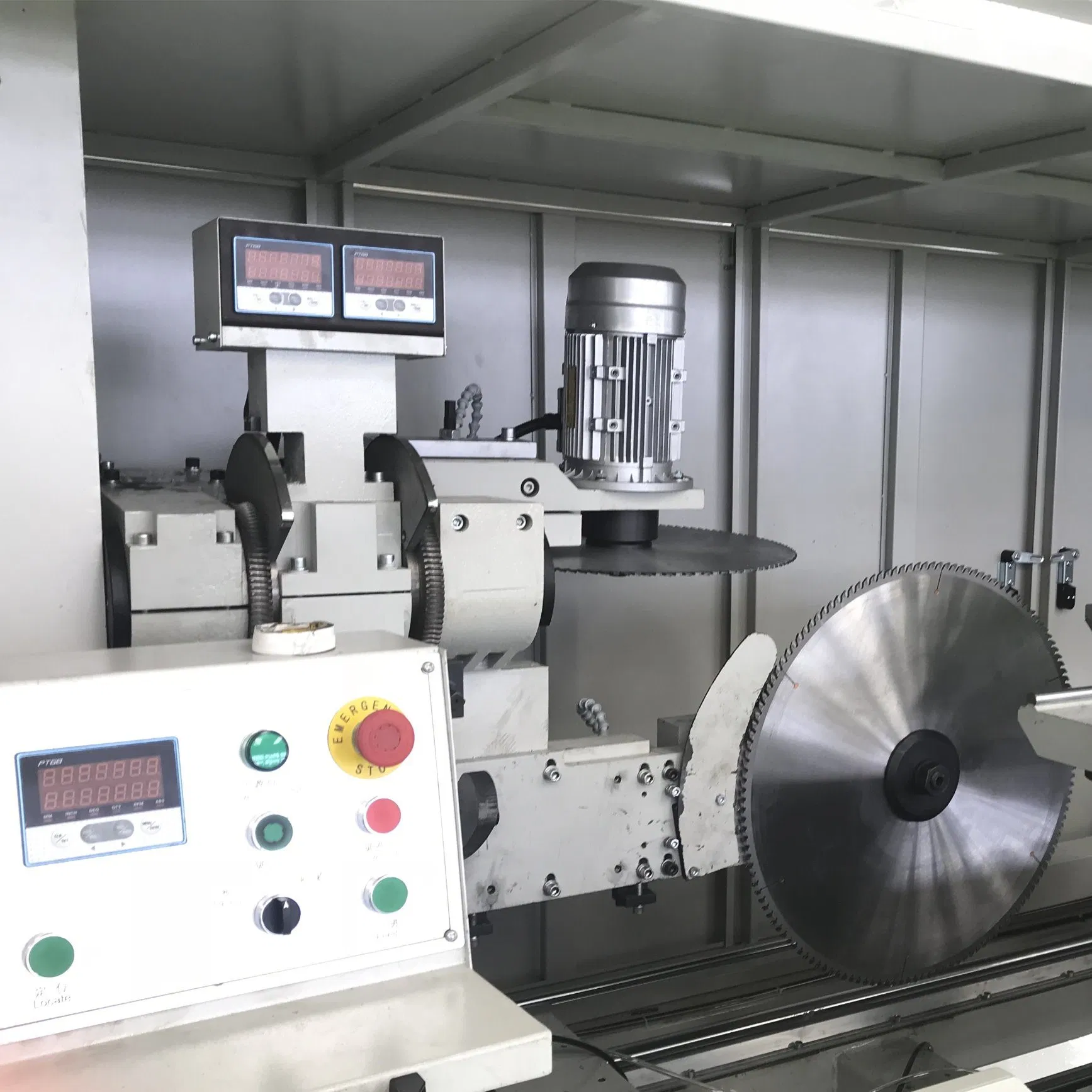

- Dual saw blades feature a flexible swinging range from 0° to 45° to accommodate various technical specifications.
📊 Technical Parameters
| Item |
Specification |
| Cutting Motor Power | 3.0kW * 2 |
| Motor Rotating Speed | 2800 r/min |
| Saw Blade Swinging Range | 0° ~ 45° |
| Cutting Depth (V/H) | 220 * 180 mm |
| Cutting Width | 300 mm |
| Feeding Speed | Stepless regulation 0 ~ 3m/min |
| Saw Blade Spec | 600 * 30 * 4.8 * 4.2mm (Z=144) |
| Contour Dimension | 3500 X 1550 X 1800 mm |
| Total Weight | Approx. 1500kg |
🔍 Product Gallery
❓ Frequently Asked Questions
What is the primary use of the LJKA-600 notching saw?
The machine is specifically designed for processing aluminum curtain walls and lighting skylights, particularly for profiles requiring special angles at the ends.
How accurate is the angle adjustment?
The machine utilizes a magnetic ruler control system which provides a digital display of the cutting angle, ensuring high precision and easy adjustment.
What is the swinging range of the saw blades?
The two independent saw blades can swing freely within a range of 0° to 45°, allowing for versatile angle cutting.
Can the feeding speed be adjusted?
Yes, the machine features stepless speed regulation for the cutter feeding, ranging from 0 to 3 meters per minute to suit different material thicknesses.
What are the power requirements for this equipment?
The equipment is powered by two 3.0kW motors. The voltage can be customized based on your local industrial power standards.
What type of after-sales support is provided?
We offer comprehensive online technical support to assist with machine setup, operation, and troubleshooting.
