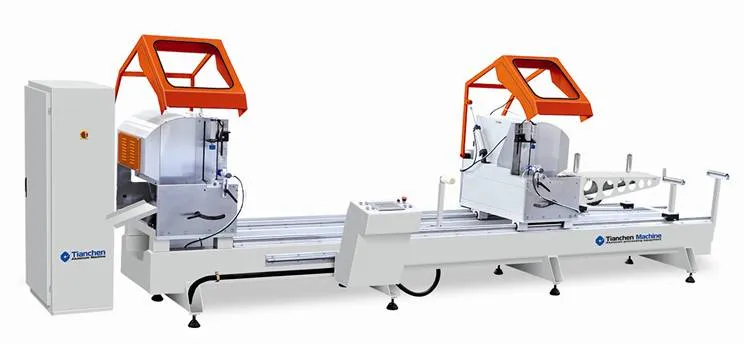

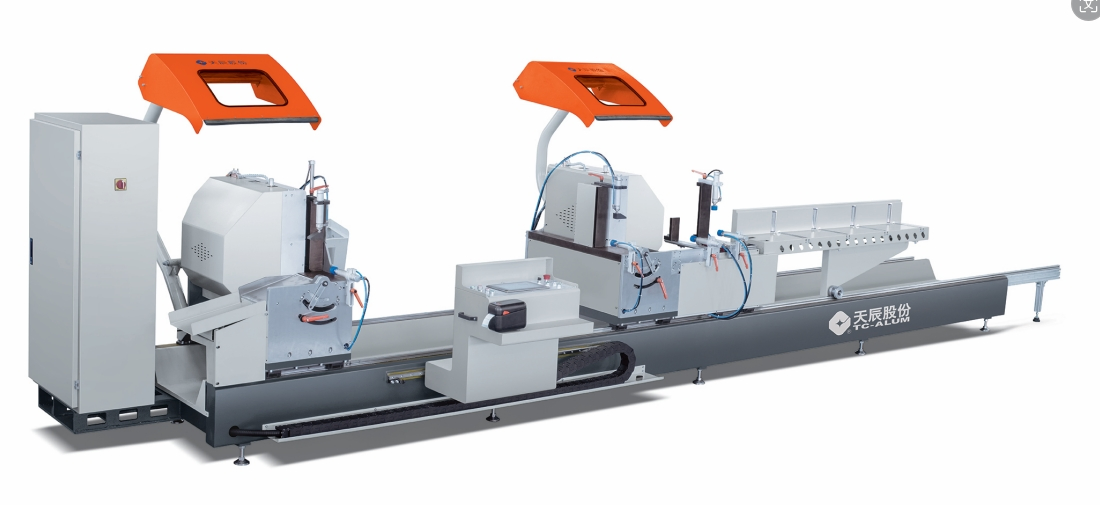

High-Precision CNC Cutting Center with Double Head Mitre Saw System
| Cutting Motor Power | 2 * 3.0KW | 2800r/min |
| Cutting Length Range | 450 ~ 5000mm |
| Available Cutting Angles | 45°, 90° |
| Cutting Capacity (W*H) | 150*210mm at 90°; 150*150mm at 45° |
| Cutting Speed | Stepless speed regulation (0~3m/min) |

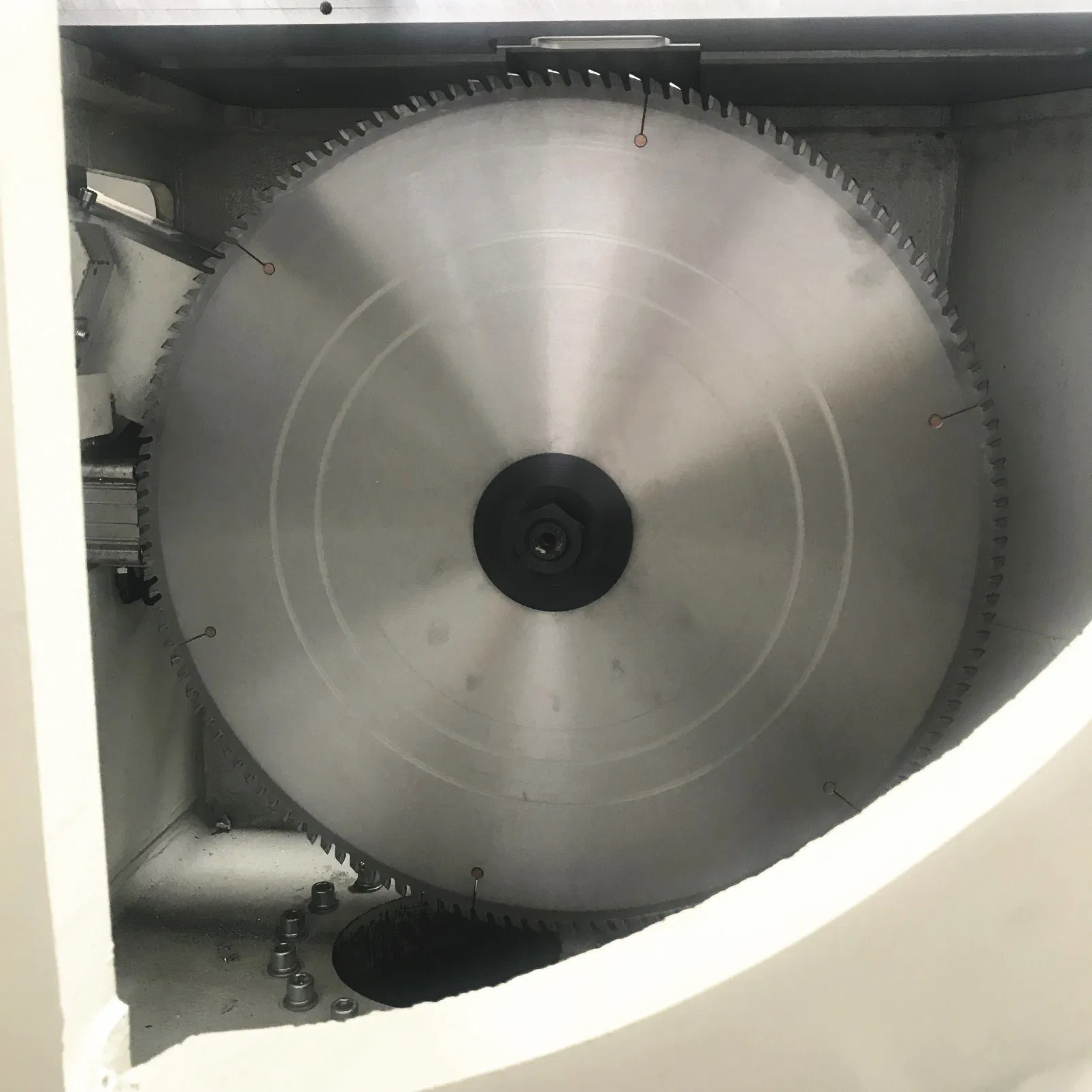

| Blade Specification | φ500 * φ30 * 4.4 * 3.8mm |
| Repeat Locating Tolerance | ±0.2mm |
| Cutting Angle Tolerance | ±5′ |
| Contour Dimension | 7700 * 1700 * 1900mm |
| Total Weight | Approx. 2500 KGS |
The machine is specifically designed for high-precision cutting of raw aluminum profiles used in window and door fabrication.

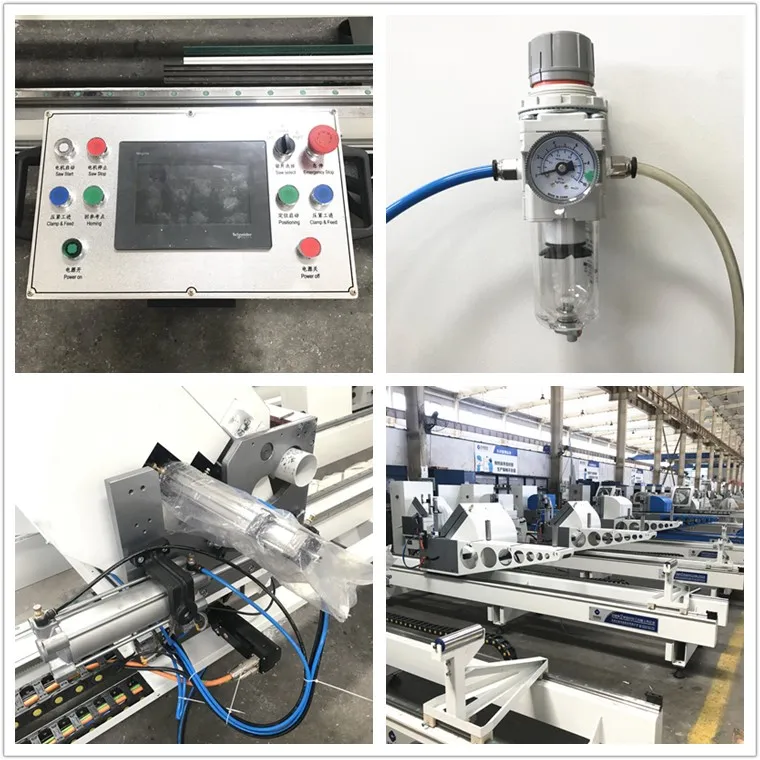

This model is equipped with a high-performance Siemens control system to ensure stable and precise automatic operation.
The machine supports precision cutting at both 45° and 90° angles, with an angle tolerance of only ±5′.
It can process aluminum profiles with a maximum height of 150mm and a maximum width of 150mm (up to 210mm width at 90°).
The average productivity is quite high, capable of completing a cut for each piece in approximately 30 seconds.

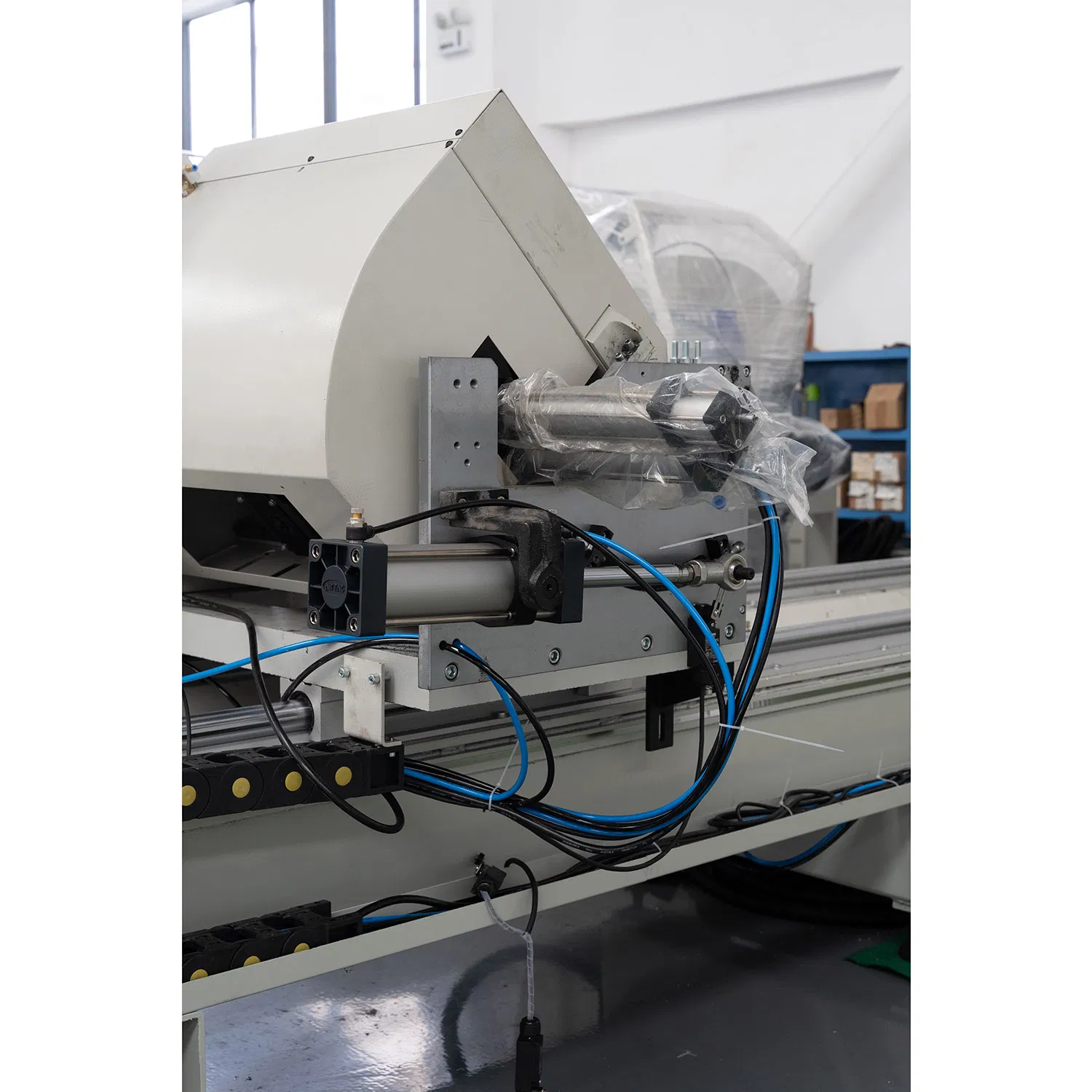

Yes, the movable head uses a servo driver with gear rack transmission and a full close-loop control system, providing a repeat locating tolerance of ±0.2mm.
