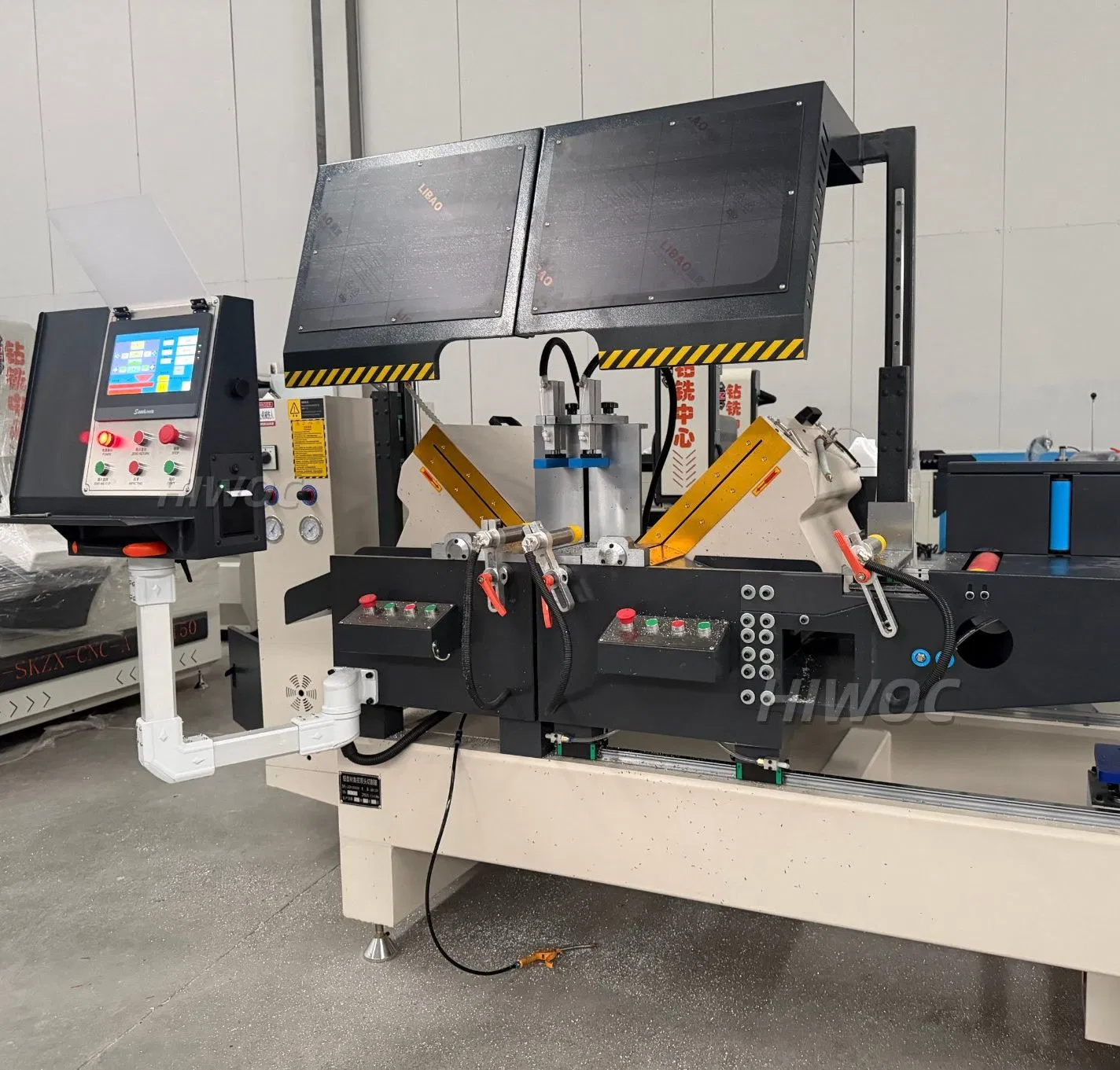

High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
1 / 5
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine
High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine

High Precision Manufacture Aluminum Alloy UPVC PVC Double-Head Precision CNC Cutting Saw Machine

Customization: Available
After-sales Service: Online Guidance
Warranty: 2 Years
Send Inquiry

Product Description

Basic Overview
Model NO.
LJZ2D-CNC-500*4200
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Input Power
3X2kw
Motor Speed
2800r/Min
Product Description

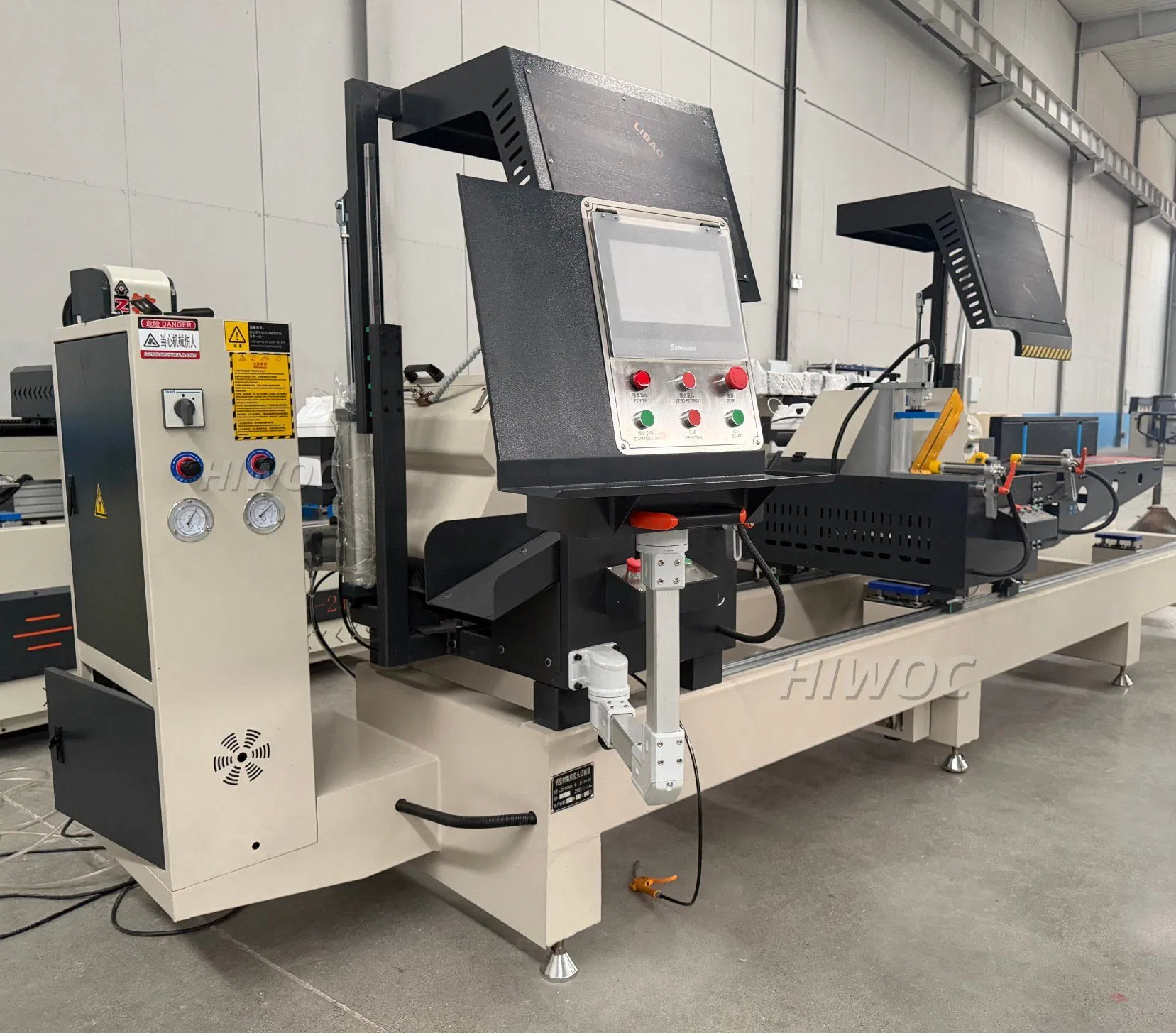

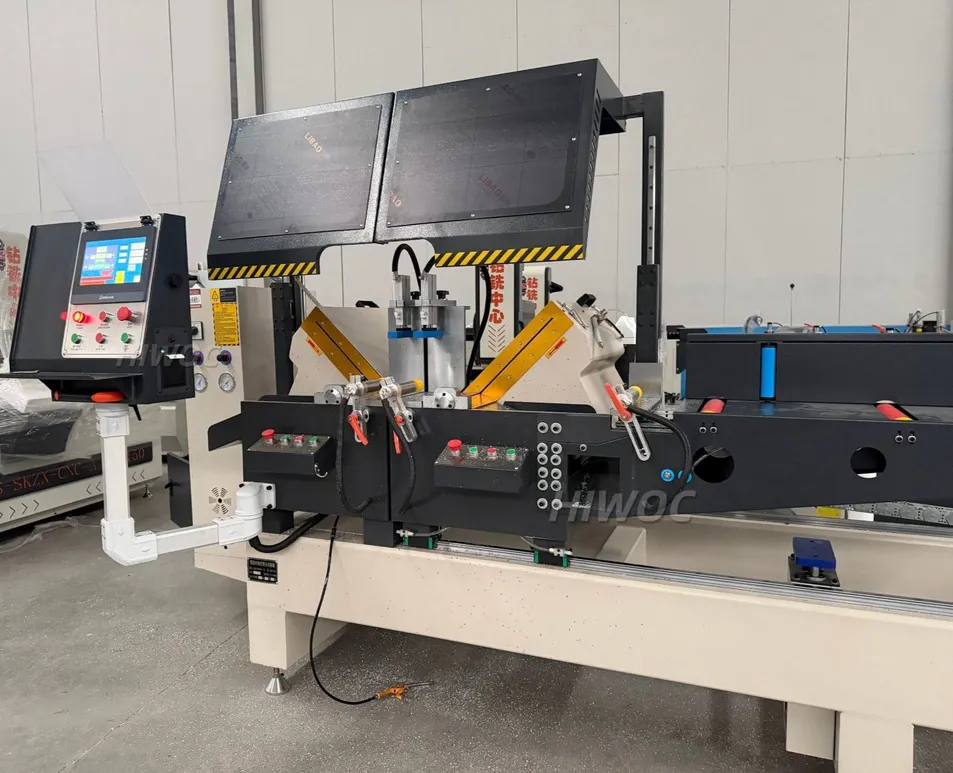

CNC Cutting Saw Machine Front View

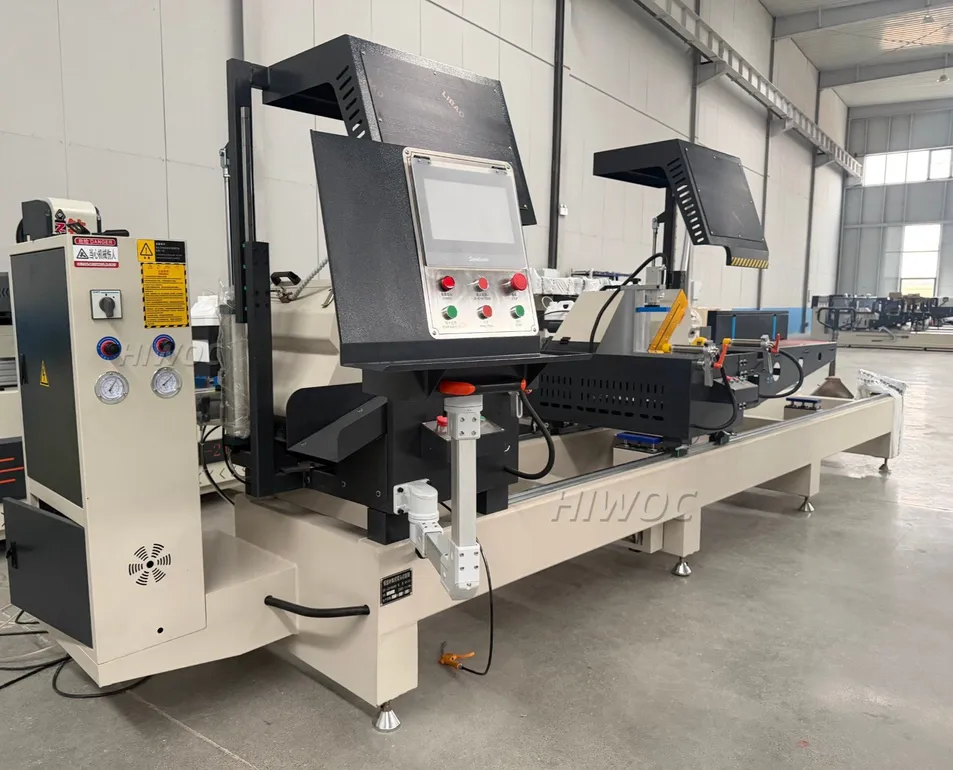

CNC Cutting Saw Machine Side View

Key Features:

  • Imported carbides blade ensures accurate processing and high endurance.
  • Saw blade rotates smoothly due to the high-accuracy spindle system.
  • Uniform speed feeding and smooth motion facilitated by air-hydraulic damping cylinders.
  • The feeding system adopts imported linear guide pairs for high stability.
  • Two adjustable saw heads capable of cutting profiles at angles between -45° and 90°.
  • Auto-opening and closing shield for enhanced operation safety.
  • Right head feeding uses a high-lead ball screw for precision driving and locating.
  • Equipped with a digital display device for clear operational feedback.
  • Vertical and horizontal clamping cylinders for secure material handling.
Technical Specification
Air Pressure0.5~0.8MPa
Input Voltage380V 50Hz or customized
Input Power3x2Kw
Air Consumption80L/min
Motor Rotary2800r/min
Cutting Width * Height190X200mm
Cutting Length400-4200mm
Saw Blade SpecificationØ500 × Ø30
Cutting Angle90° / 45°
Overall Size5930 * 1650 * 1950mm
Weight1950kg
Packing & Delivery
Package Size
600.00cm * 175.00cm * 210.00cm
Gross Weight
2000.000kg
Machine Packing Process
Secure Delivery Packaging
Manufacturing Expertise

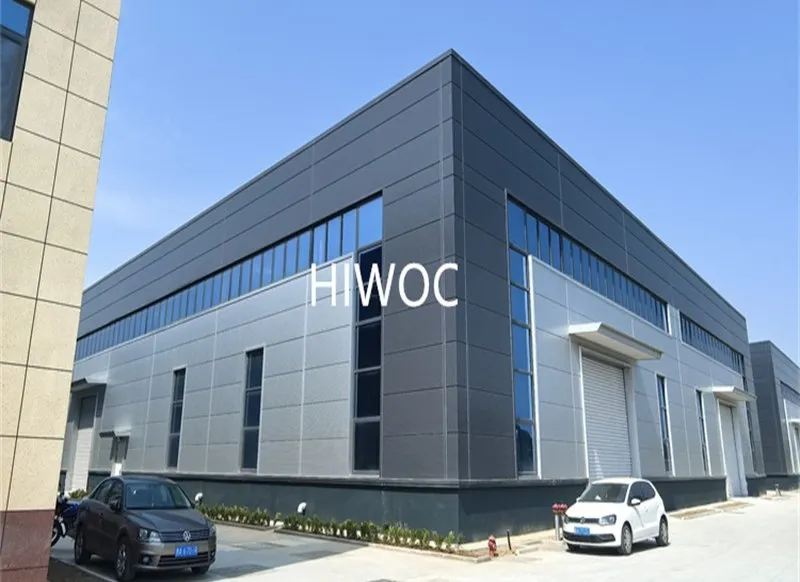

Production Workshop

We are specialized in the production of high-performance UPVC window door machines, aluminum window door machines, curtain wall making machines, and insulating glass machines. Our operations integrate research and development, production, sales, and maintenance services as a comprehensive solution.

To provide a perfect service experience, we assist in sourcing UPVC/aluminum profiles and window door hardware through our long-term manufacturing partners. Our dedicated team has successfully exported machinery to 35 countries, building a reputation for high-quality products and excellent after-sales support based on integrity and innovation.

Frequently Asked Questions
How should I choose the appropriate model of cutting saw machine?
Please provide your profile specifications and required configuration parameters. Our technical team can select the best model based on your product drawings and production needs.
What are your standard trade terms?
We accept standard international trade terms including FOB, CFR, and CIF.
What is the typical delivery time for orders?
Our standard delivery time is approximately 30 days. You will be notified by the shipping company before the machine arrives at your designated port.
What main product categories do you offer?
We specialize in a wide range of industrial machinery, including CNC Lathes, CNC Milling Machines, High-Precision Sawing Machines, and specialized window/door production lines.
Can the machine voltage be customized for my country?
Yes, while our standard input is 380V 50Hz, we can adjust the power specifications to meet your local industrial requirements.
Do you provide after-sales support and maintenance?
Absolutely. We offer comprehensive maintenance services and technical support to ensure your machinery continues to operate at peak performance.
