| Model NO. | LJZ2-500*4200 |
| Condition | New |
| Certification | CE |
| Automatic Grade | Semi-Automatic |
| Voltage | 380V |

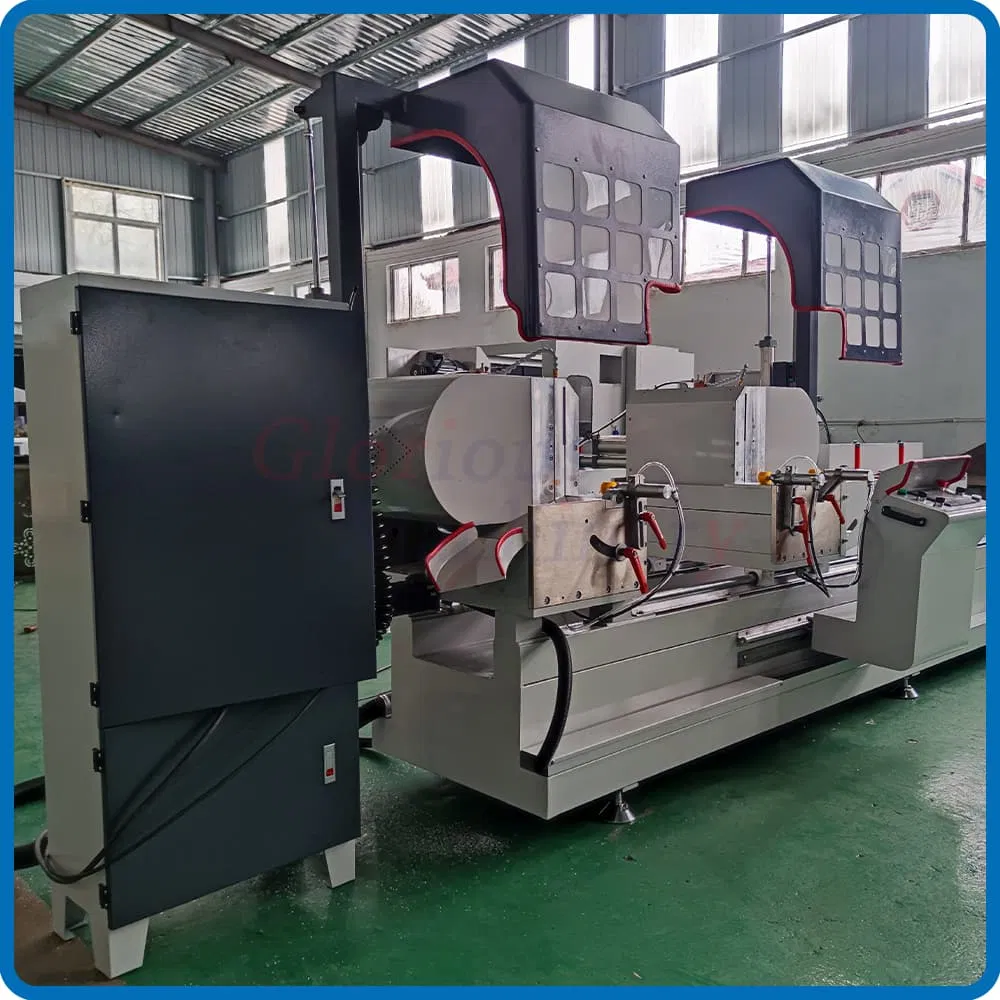

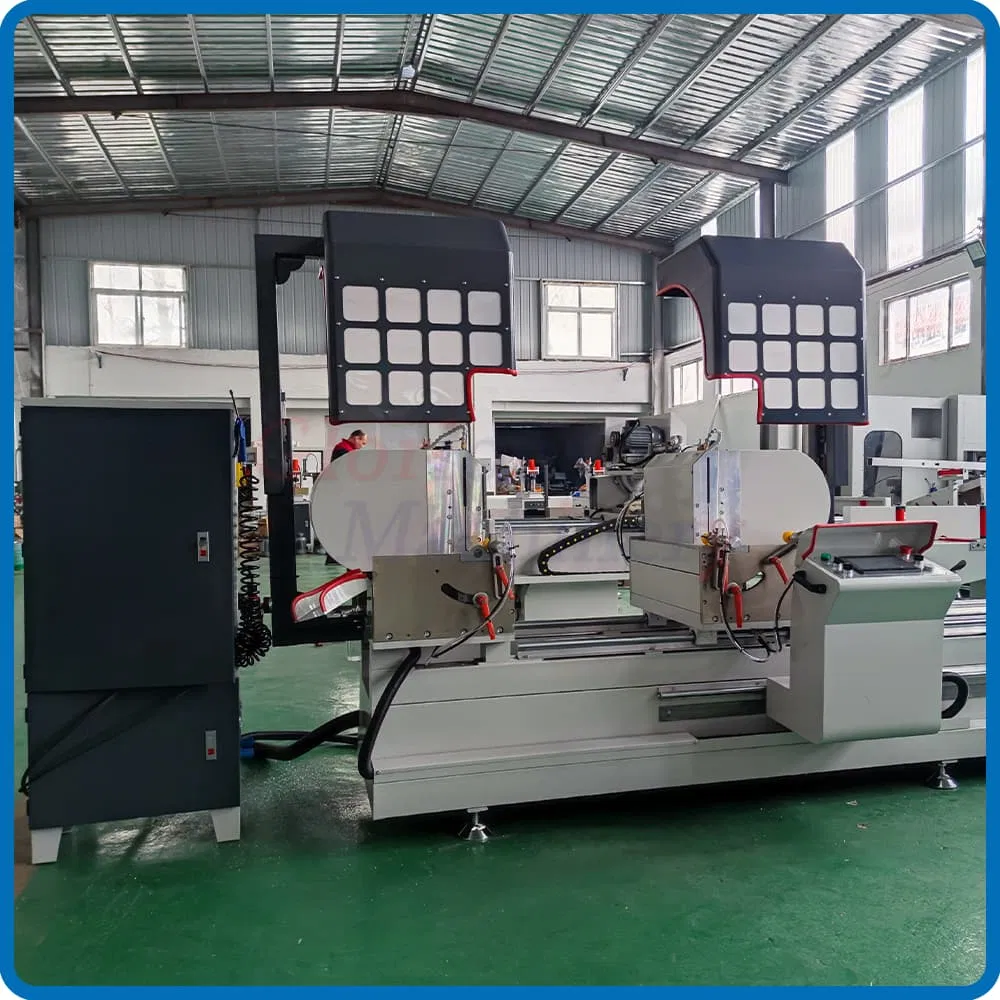

| Product Name | Double Head Cutting Saw |
| Function | Window Profile Cutting Machine |
| Application | Window Door Frame Cutting |
| Cutting Range | 365 ~ 4200 mm |
| Cutting Angle | 45 Degrees - 90 Degrees |
| HS Code | 84778000 |

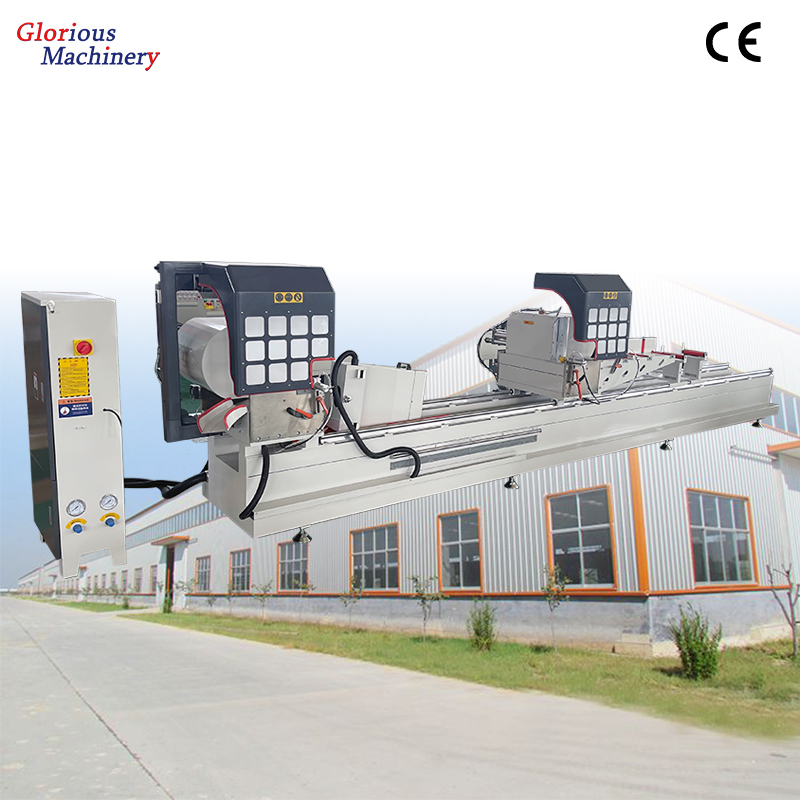

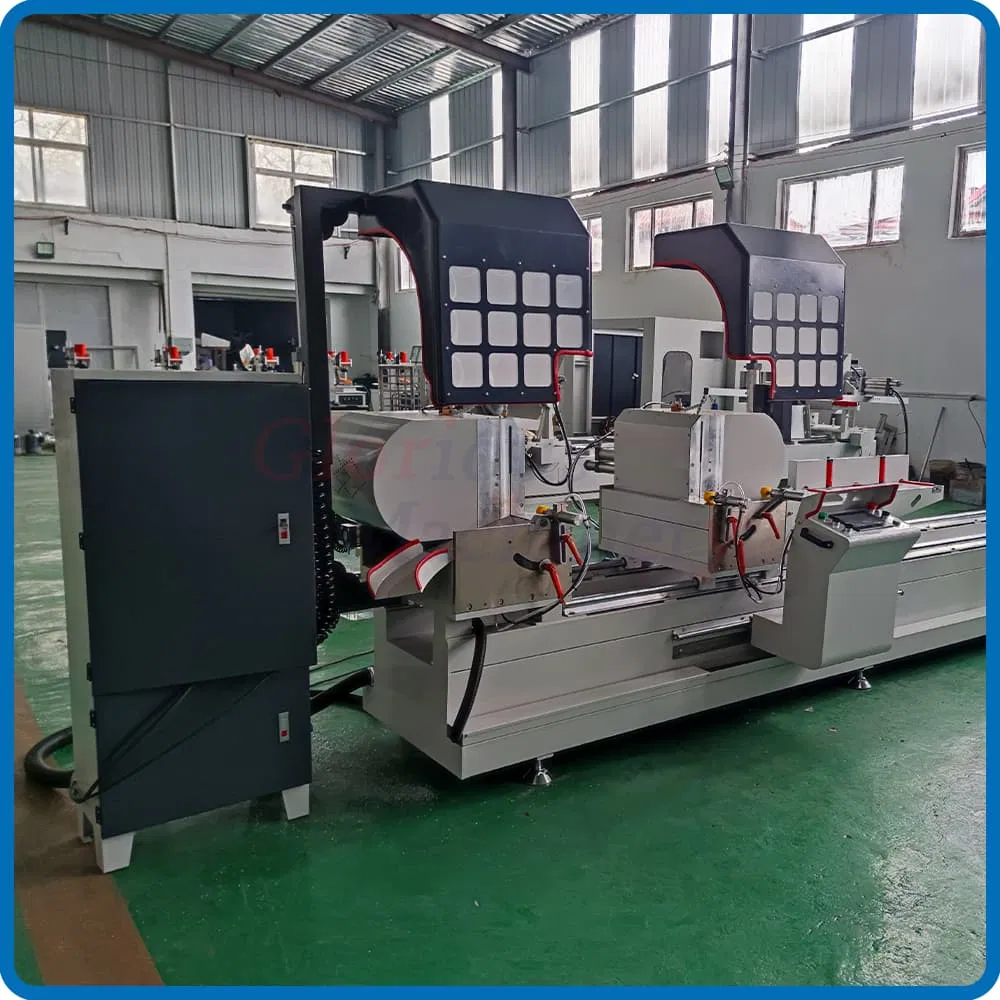

The Double-Angle Cutting Saw is mainly used for 45°~90° cutting of aluminum and plastic profiles, which is a key equipment for door and window processing, accurately meeting the angle cutting needs of profiles.
The machine adopts pneumatic transmission and linear feed mode, ensuring stable and smooth feed. The movable saw head is driven by a motor for convenient operation; the cutting tool is a cemented carbide circular saw blade, which effectively guarantees high cutting precision and neat cutting surface.
It is suitable for door and window profiles with a thickness of 0~100mm and a cutting length of 500~4200mm. It has single and double head shearing selection functions, strong adaptability to different processing needs.

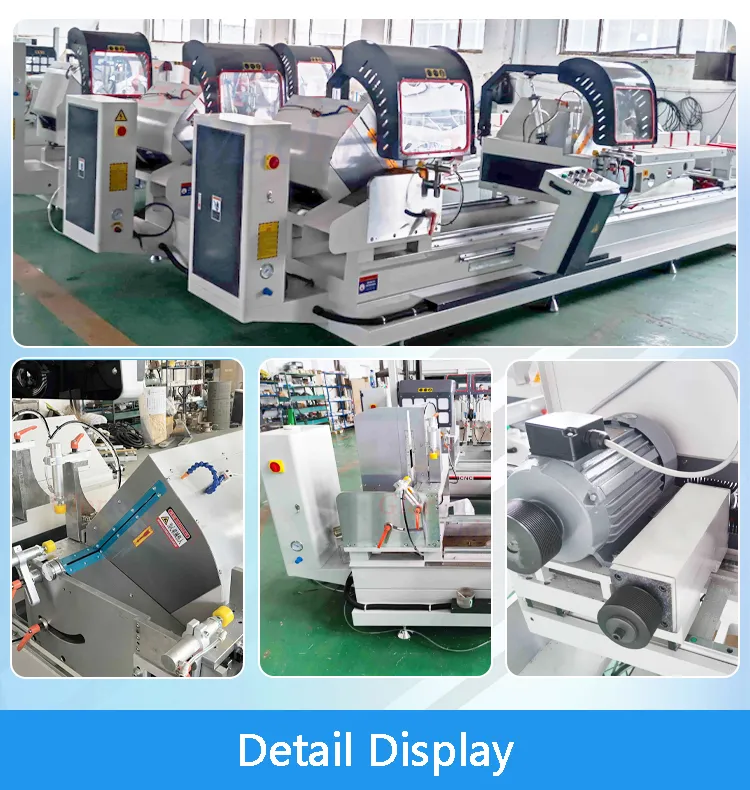

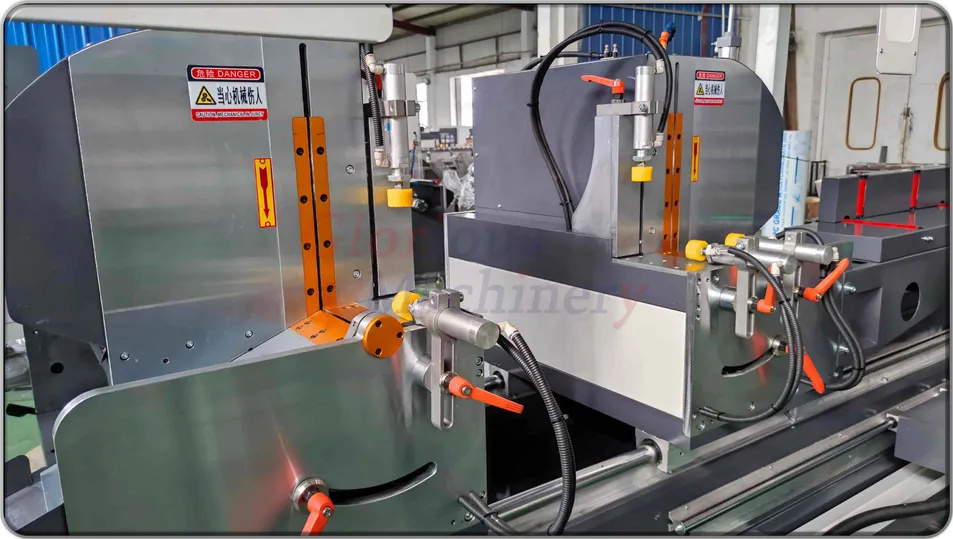

45°/90° Cutting Dual-Head Coordination

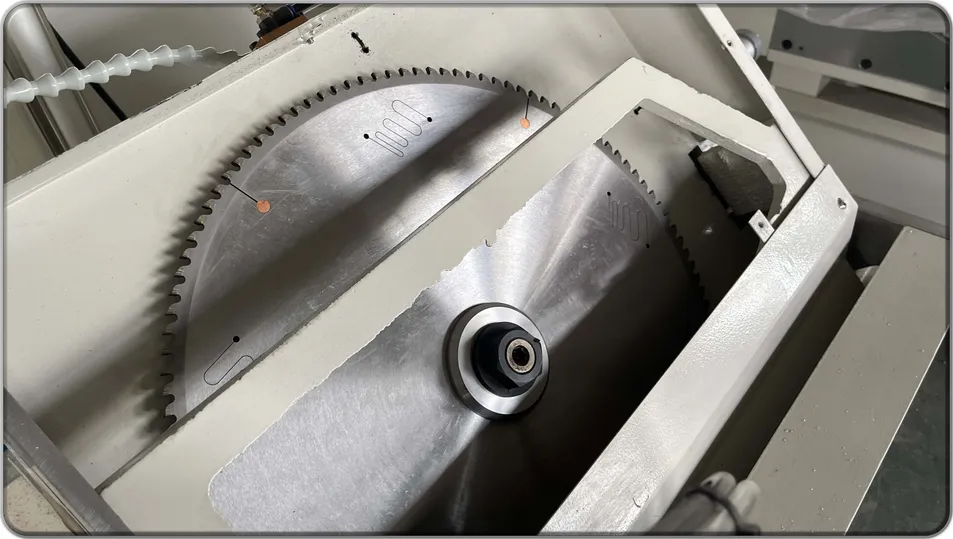

High-Performance Alloy Sharp & Durable

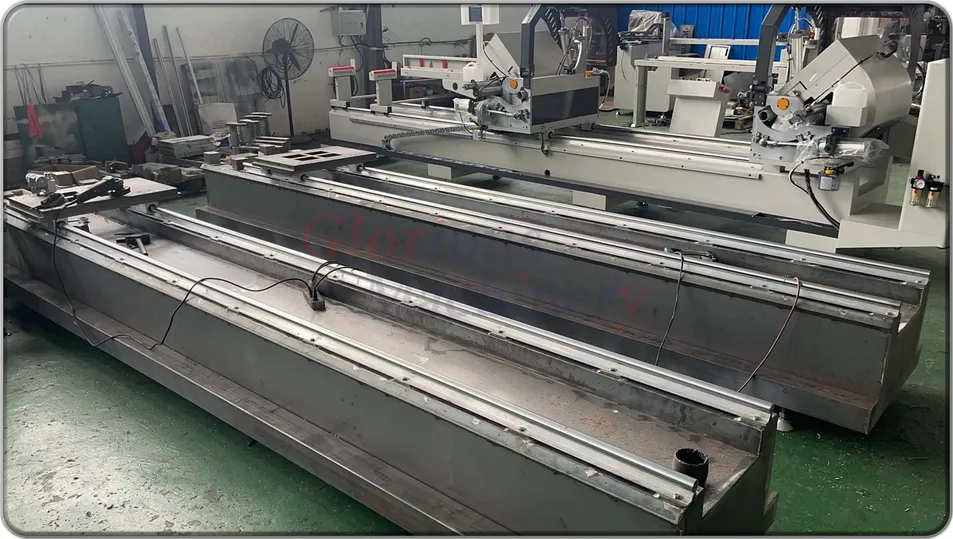

High-Rigidity Welded Body

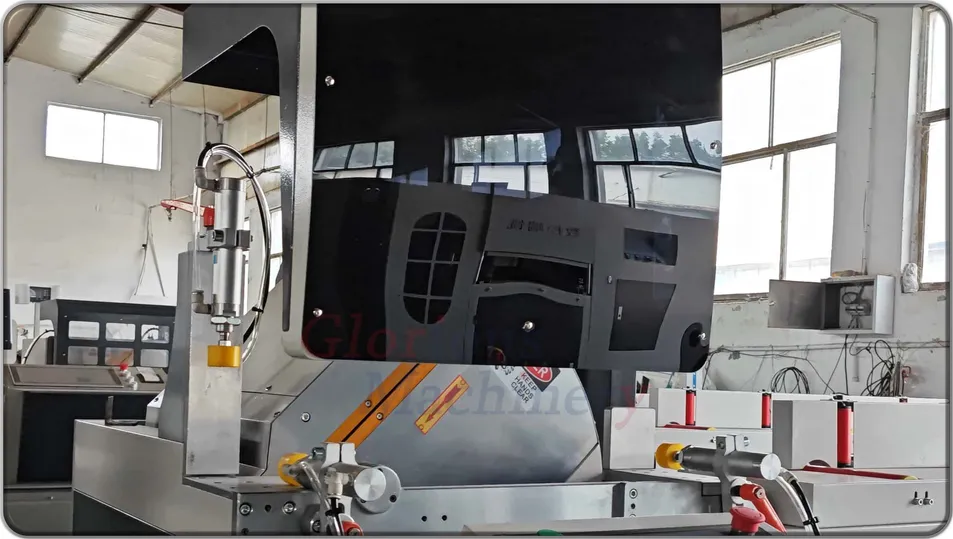

Automatic Protective Cover
Cutting Parameters:
• Maximum Cutting Height: 300 mm
• Standard Cutting Angles: 45º, 90º (Custom available)
• 90° Max Length: 4200mm; Min Length: 365mm
• 45° Max Length: 4200mm; Min Length: 565mm
Profile Compatibility:
Designed for precise cutting of Aluminum Alloy Profiles (Solid/Hollow), PVC/UPVC Profiles, and composite materials.

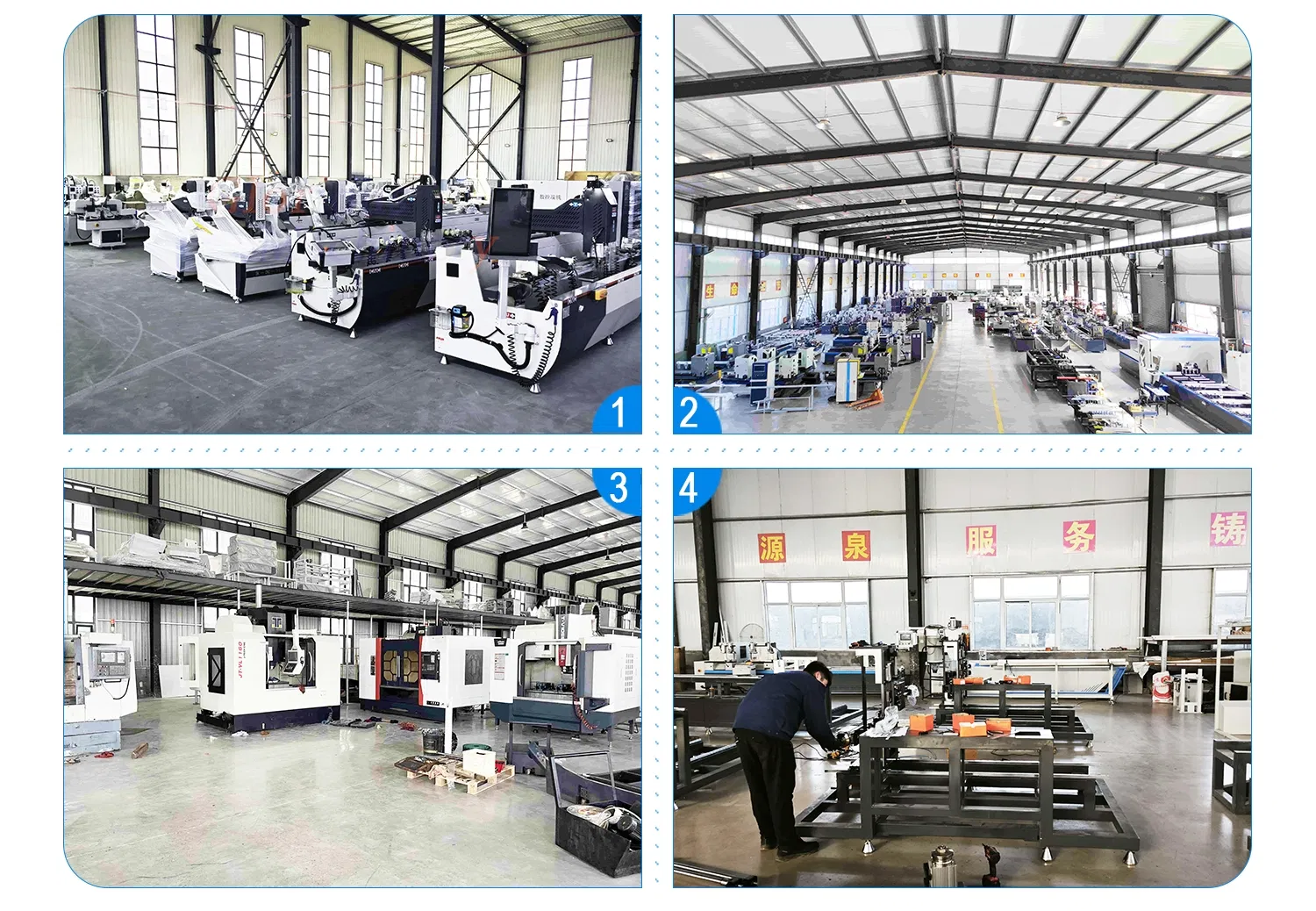

We are an innovative manufacturing enterprise with independent R&D, professional design and large-scale production capabilities, focusing on the production of middle and high-end aluminum & PVC window and door processing equipment.
