Curtain Wall and Skylight Notching Saw for Aluminum Profile Ljk-500

After-sales Service:	1year
Warranty:	1year
Condition:	New

Basic Info.

Certification

ISO, CE

Automatic Grade

Automatic

CNC or Not

CNC

Voltage

Customized

Saw Blade

φ600mm

Saw Blade Qty

2PCS

Cutter Degree

+45°--45°

Max. Cutting Depth

150mm

Max. Cutting Size

150mm

Origin

China

HS Code

84778000

Production Capacity

60 sets

Product Description

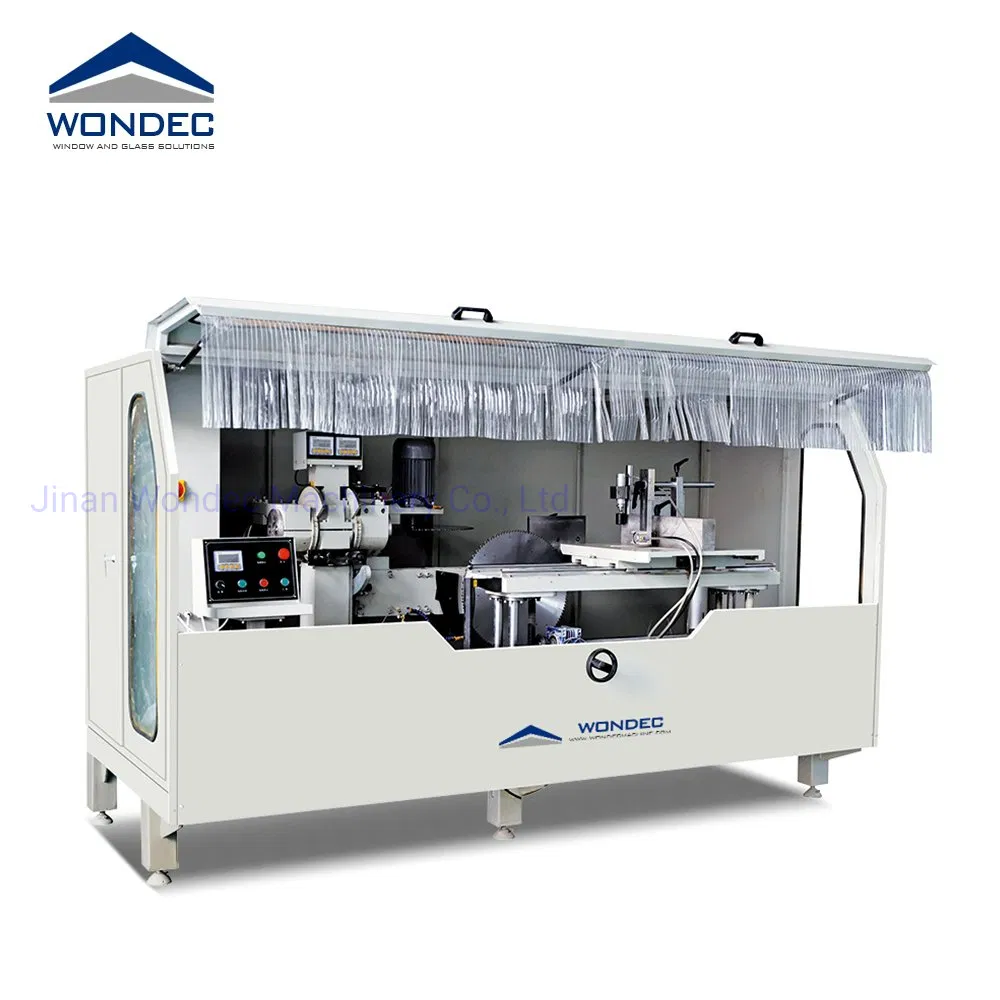

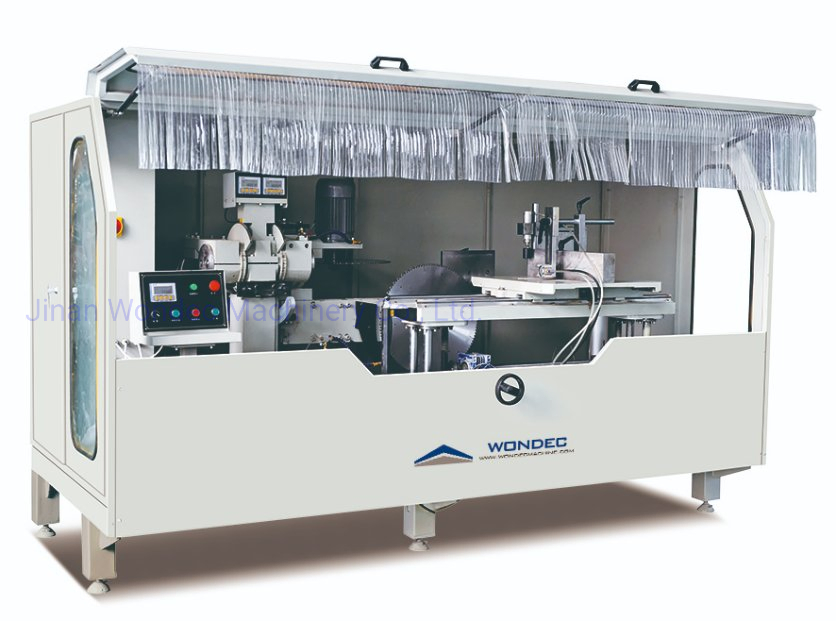

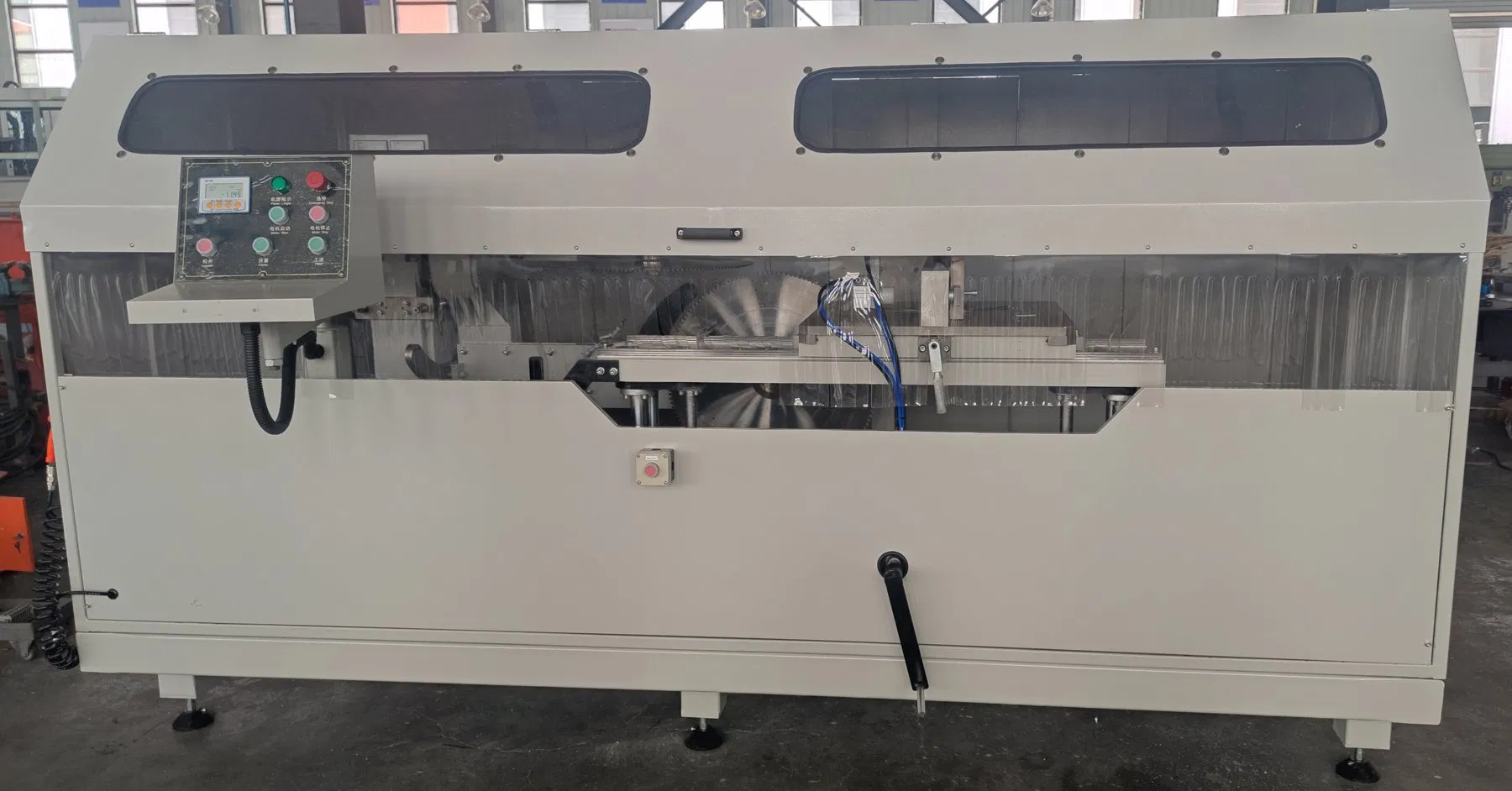

Aluminum Skylight and Curtain Wall Notch Saw LJK-500

Machine Features:

Specially developed for aluminum curtain wall and lighting skylight processing industries.
Simple operation with reliable performance and easy maintenance.
Designed for high-precision cutting of the end angles for profiles.
Equipped with carbide tooth saw blades for fast cutting and high productivity.

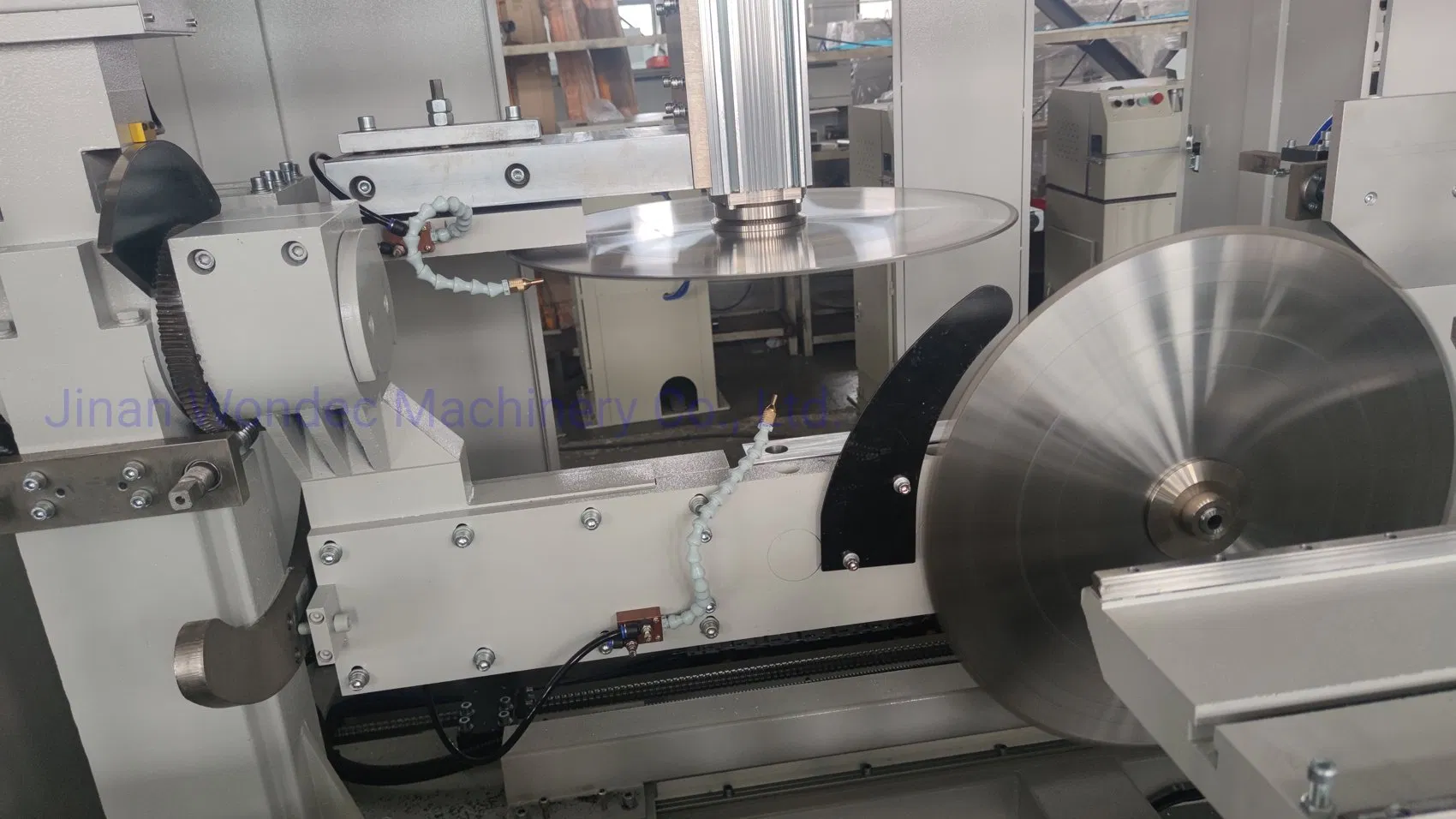

Dual saw blades working simultaneously to cut specialized end angles.
Flexible saw blade movement within a range of +/-45°.

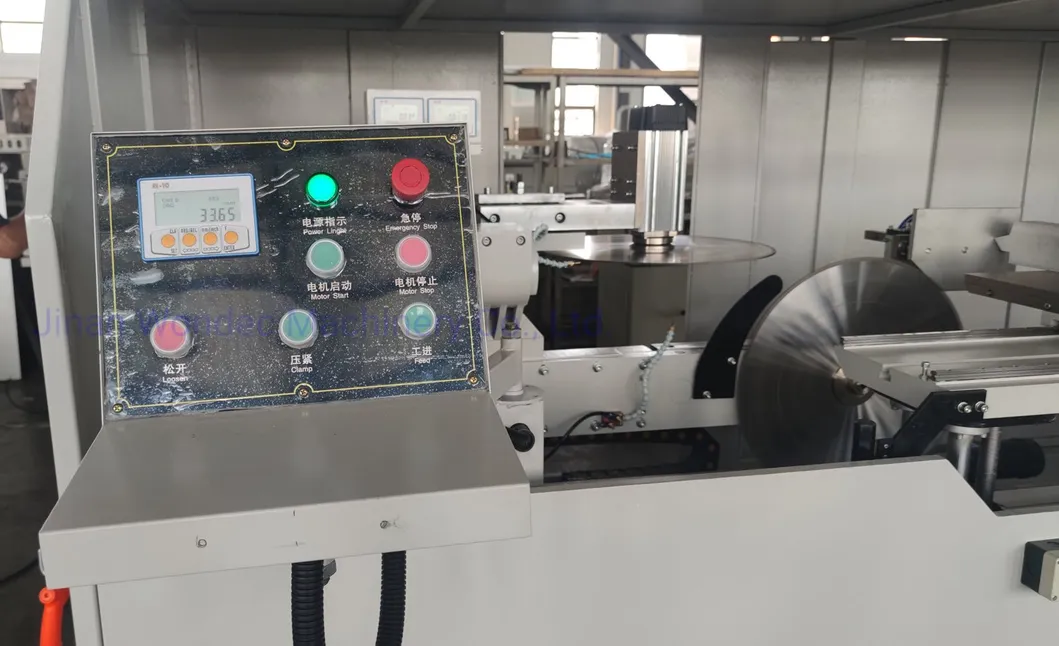

Integrated magnetic grid ruler system for digital display of cutting angles and table height.

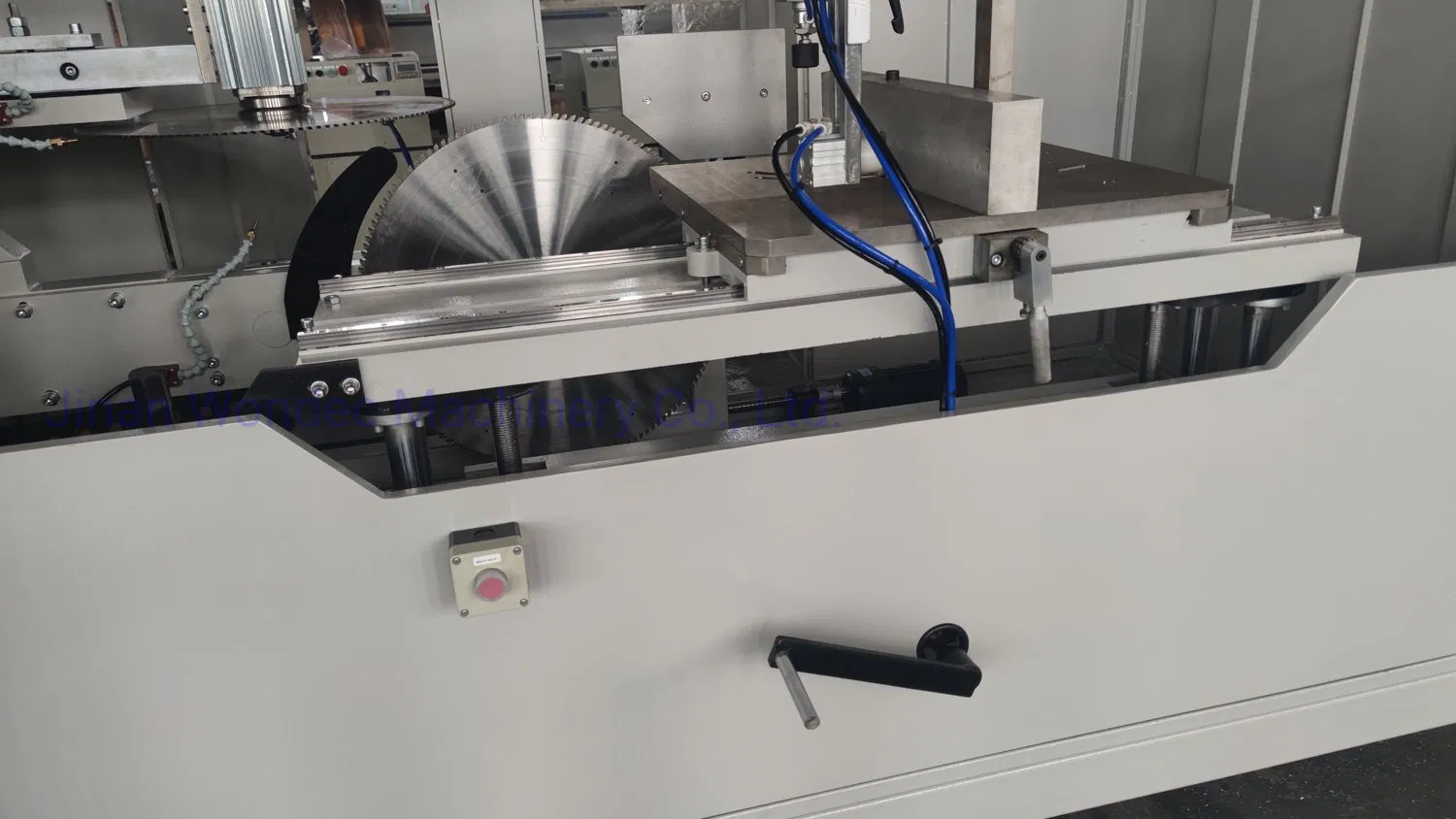

Ergonomic worktable and positioning device design for easy adjustment.

Technical Parameters

Input Power	4.4 kw	Voltage	Customized
Working Pressure	0.5~0.8 Mpa	Rotating Speed	2800 r/min
Saw Blade QTY	2 PCS	Cutting Degree	-45° ~ +45°
Saw Blade	φ500φ304.8mm Z=120	Cutting Depth	150mm
Overall Dimension	314013801800mm	Weight	1500kg

Frequently Asked Questions

1. What materials is the LJK-500 notch saw designed for? The LJK-500 is specifically designed for cutting end angles of aluminum curtain walls and lighting skylight profiles.

2. Can the machine cut angles other than 90 degrees? Yes, the two saw blades can swing freely within a range of +/-45°, allowing for precise specialized angle cuts.

3. How accurate is the angle and height adjustment? The machine features a magnetic grid ruler control system that provides a digital display for high-precision cutting angles and table height positioning.

4. What is the maximum cutting depth of this equipment? The LJK-500 offers a maximum cutting depth of 150mm for vertical and horizontal profile processing.

5. Does the machine support customized power voltages? Yes, the voltage configuration can be customized to meet the electrical standards of different regions and industries.

6. What type of saw blades are used? It utilizes high-quality carbide tooth saw blades (φ500mm), ensuring fast cutting speeds and high durability.
