📋 Basic Information
| Model NO. | ZX3-DW2500 |
| Condition | New |
| Certification | ISO, CE, TUV |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Product Name | Window Lock Hole Making Aluminium Profile CNC Mill |
| Power Supply | 380V 50Hz |
| Power | 6.05 Kw |
| X/Y/Z Axis | 2500mm / 400mm / 400mm |
| Rotational Speed | 18000rmp/5.6kw |
| Weight | 1200kg |
| Dimensions | 2200*1400*1800mm |
| Production Capacity | 5000 PCS/Year |
⚙️ Product Description

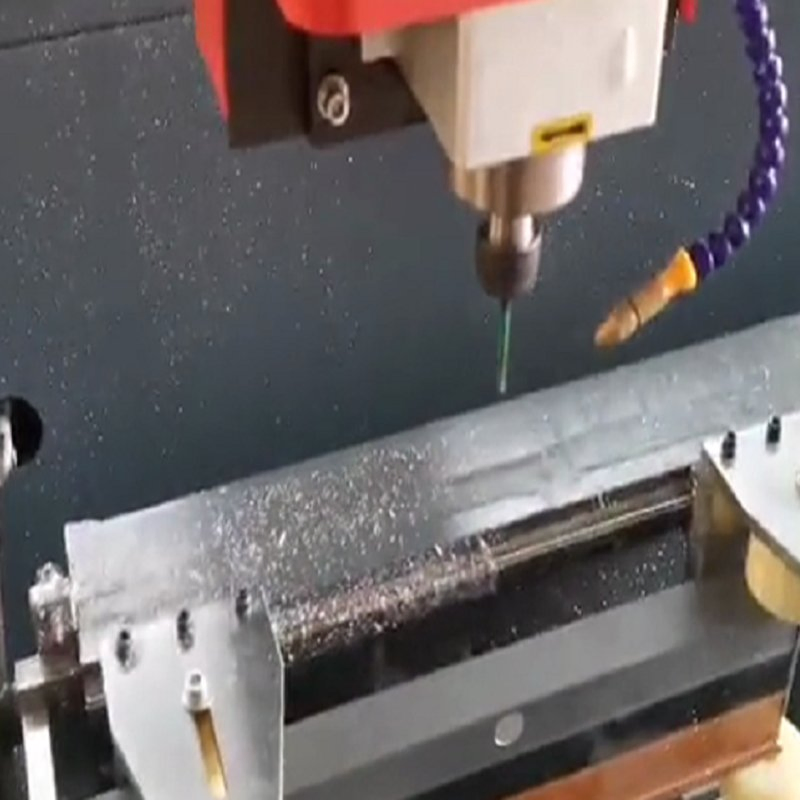

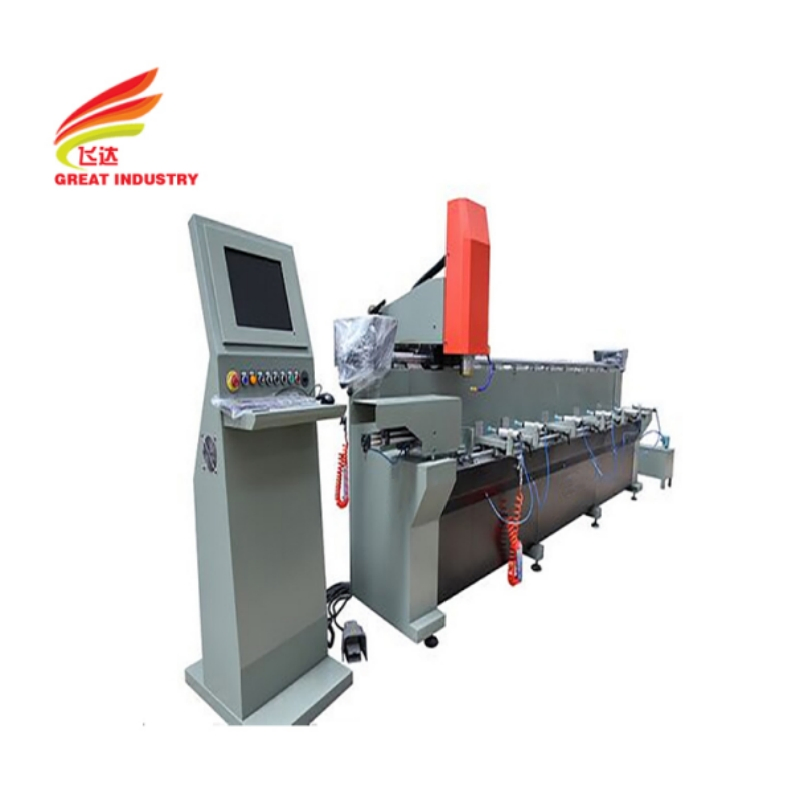

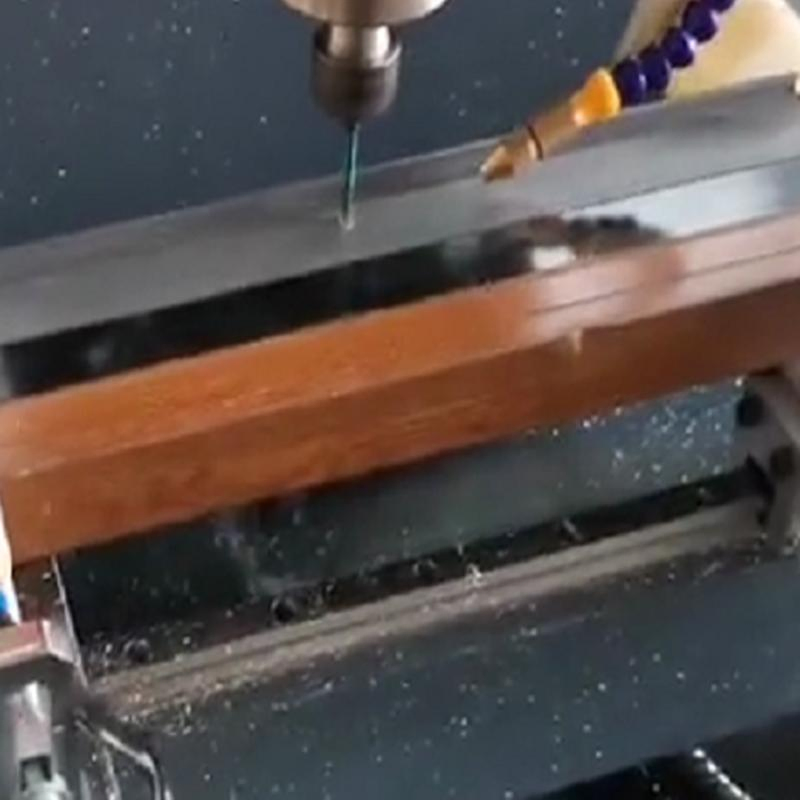

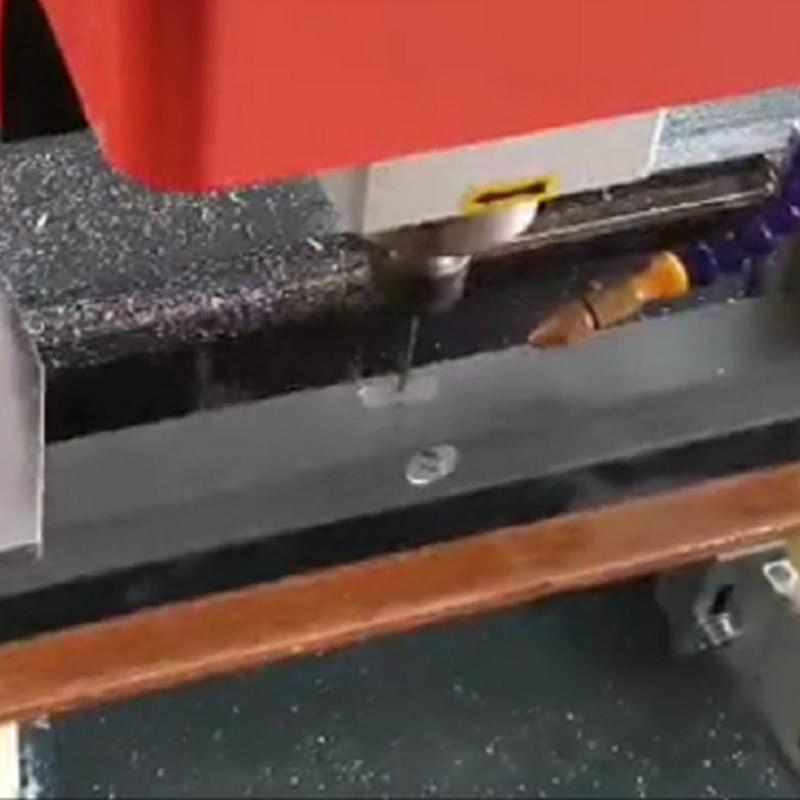

Window lock hole making aluminium profile cnc milling aluminum extrusion drilling machine
Performances and Features

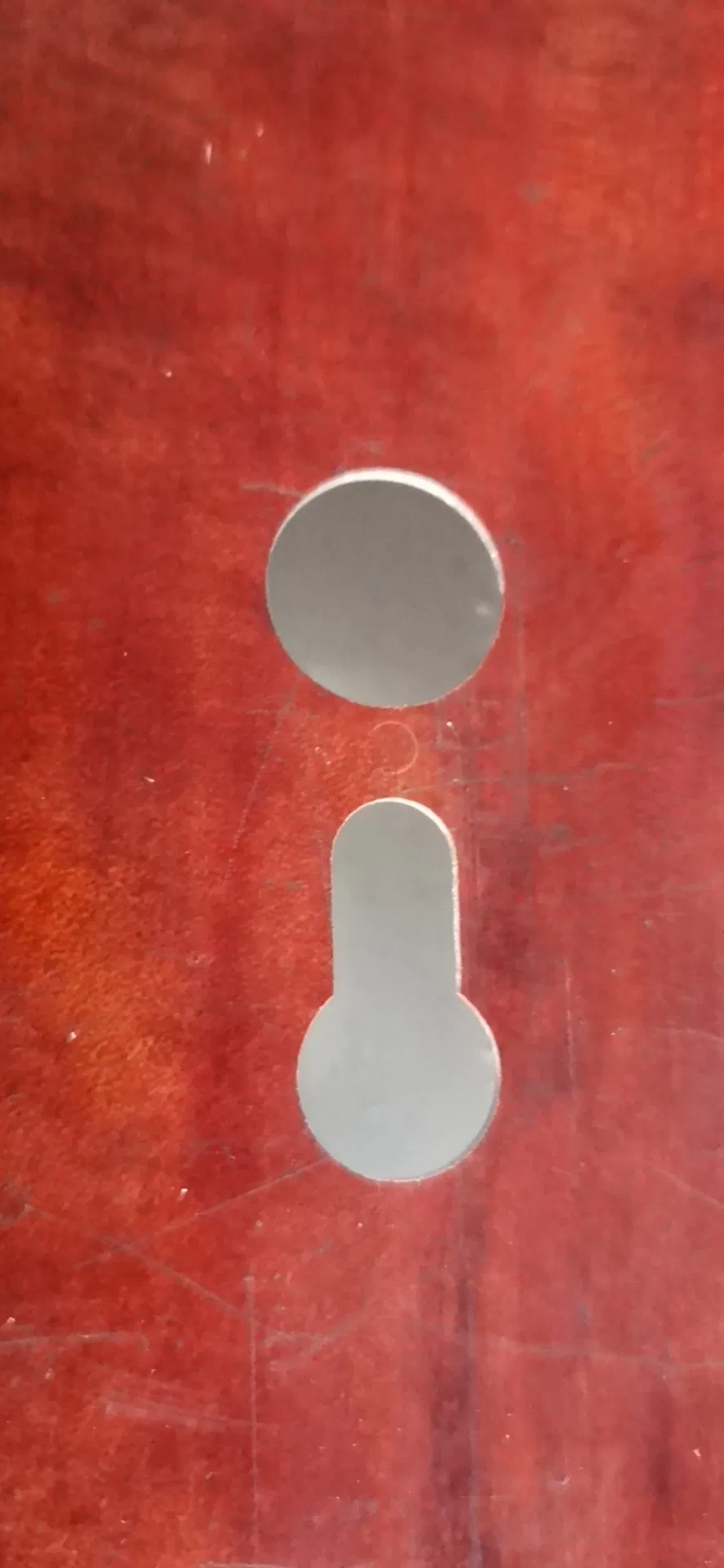

- Applicable to processing all kinds of installation holes, lock holes, shaped holes and water outlet slots.
- End milling and tapping capabilities for various aluminum profiles for doors and windows.
- The working head can apply drilling and milling on any position of the profile.
- Multi-shaft controller ensures high precision and system reliability.
- Equipped with high-quality AC servo motors and high-precision linear guide ways.
- 3 axes with high-speed principal spindle for efficient machining.
- Safety cabin design to fully protect the operator during high-speed operations.
- Pneumatic clamping system and moving working table for stable processing.
- Integrated cooling spray system to extend tool life.
🎯 Machining Precision
Repetition Allowance
±0.02 mm
Positioning Allowance
±0.05 mm
Verticality
0.05 mm / 100mm
Roundness
0.03 mm

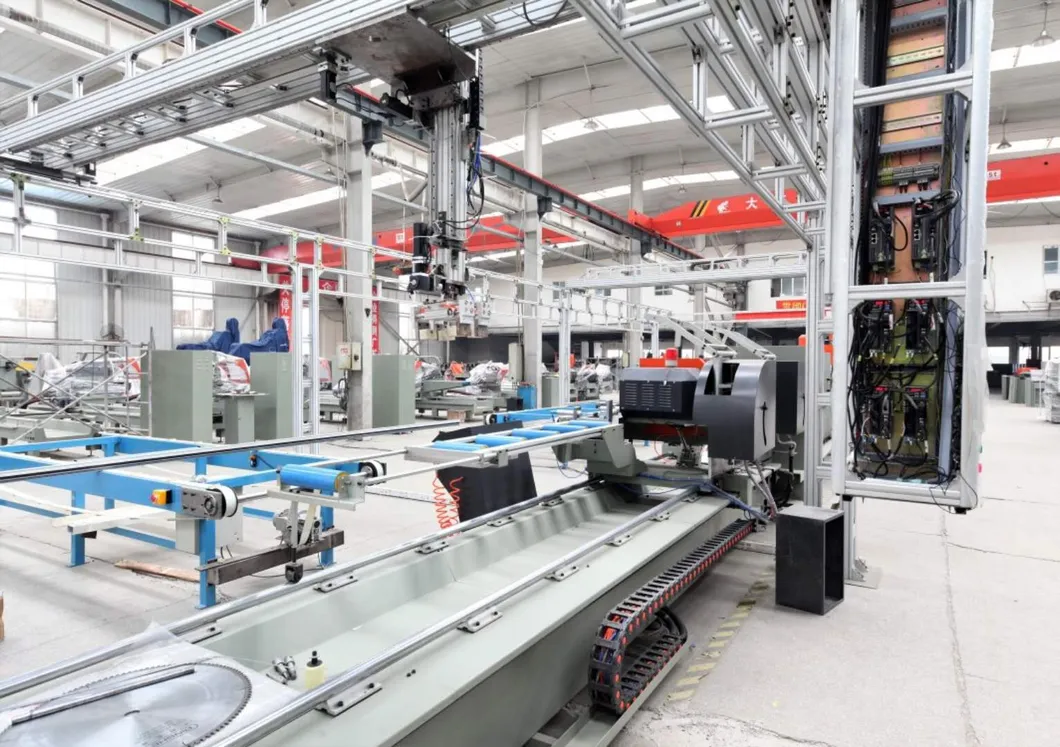

⭐ Our Advantages & Components
📦 Packaging & Service
| Item | Service Detail |
| Service Duration | 7*24 Hours (All Weather Service) |
| Warranty Period | 1-2 Years |
| Package Size | 220.00cm * 140.00cm * 180.00cm |
| Gross Weight | 1200.00kg |
❓ Frequently Asked Questions
If I make Aluminum windows and doors, how many basic machines do I need?
You typically need a Double Head Cutting Saw, Copy Router Machine, End Milling Machine, Automatic Corner Connector Cutting Saw, and a Single Head Corner Crimping Machine.
How can I get the best machine for my specific business?
Please provide your cutting material details, size, thickness, and required functionality. We will suggest the most suitable professional solution for your needs.
Is the machine easy to operate for a first-time user?
Yes, it is user-friendly. We provide an English manual and installation videos clearly showing how to assemble and use the equipment. Technical support is always available.
What should I do if the machine has a problem at my location?
Under normal use, problems are rare. However, we provide full support, can send free replacement components during the warranty period, or dispatch engineers for repairs if necessary.
How long does shipment typically take?
Standard machines are usually shipped within 15 days after receiving the deposit. Customized machines generally require more than 25 days.
What additional services does your company provide?
We offer free training for operation and maintenance, free investment analysis, production line layout design, and technical support for window and curtain wall pressure calculations.
