CNC Hole Drilling & Milling Machine - High-Efficiency Aluminum Window Door Profile Processing Equipment Template

📋 Basic Specifications

Model NO.	LXK-150
Condition	New
Certification	ISO, CE
Automatic Grade	Automatic
CNC or Not	CNC
Equipment Type	CNC Processing Hole Processing Machine
Function	Drilling for Glue Hole Pin Hole Installation Holes

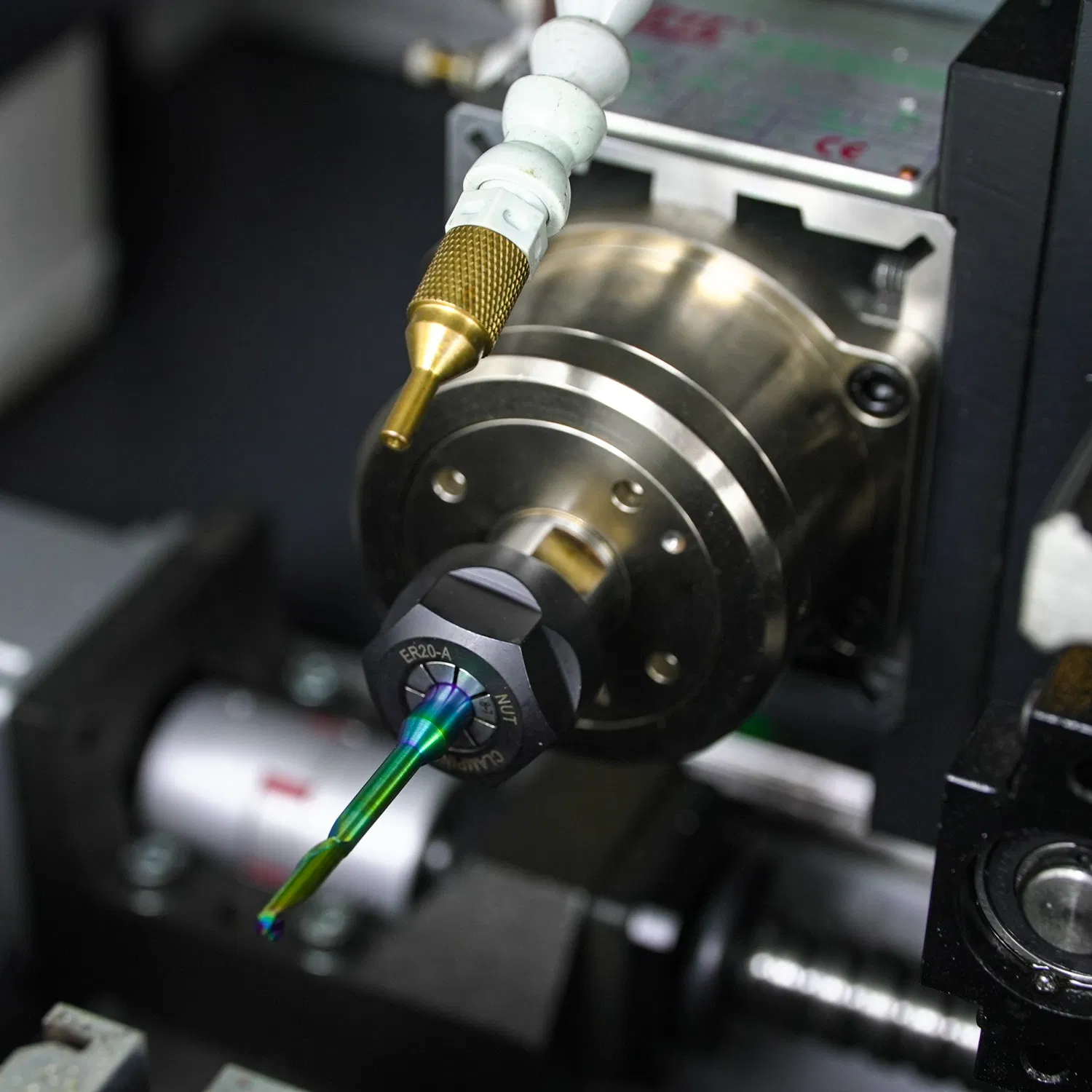

Milling Cutter Speed	16000r/Min
Working Air Pressure	0.5-0.8 MPa
Overall Dimension	500010001650mm
Weight	495 Kgs

📍 Product Description

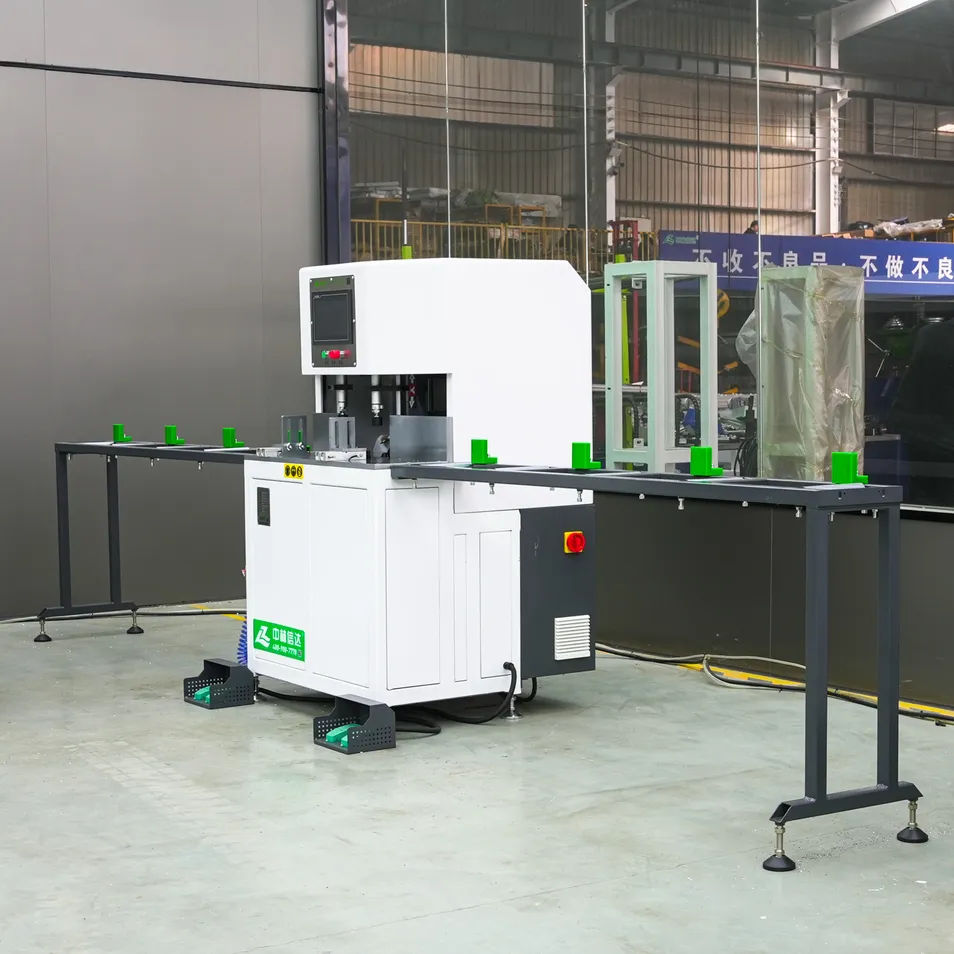

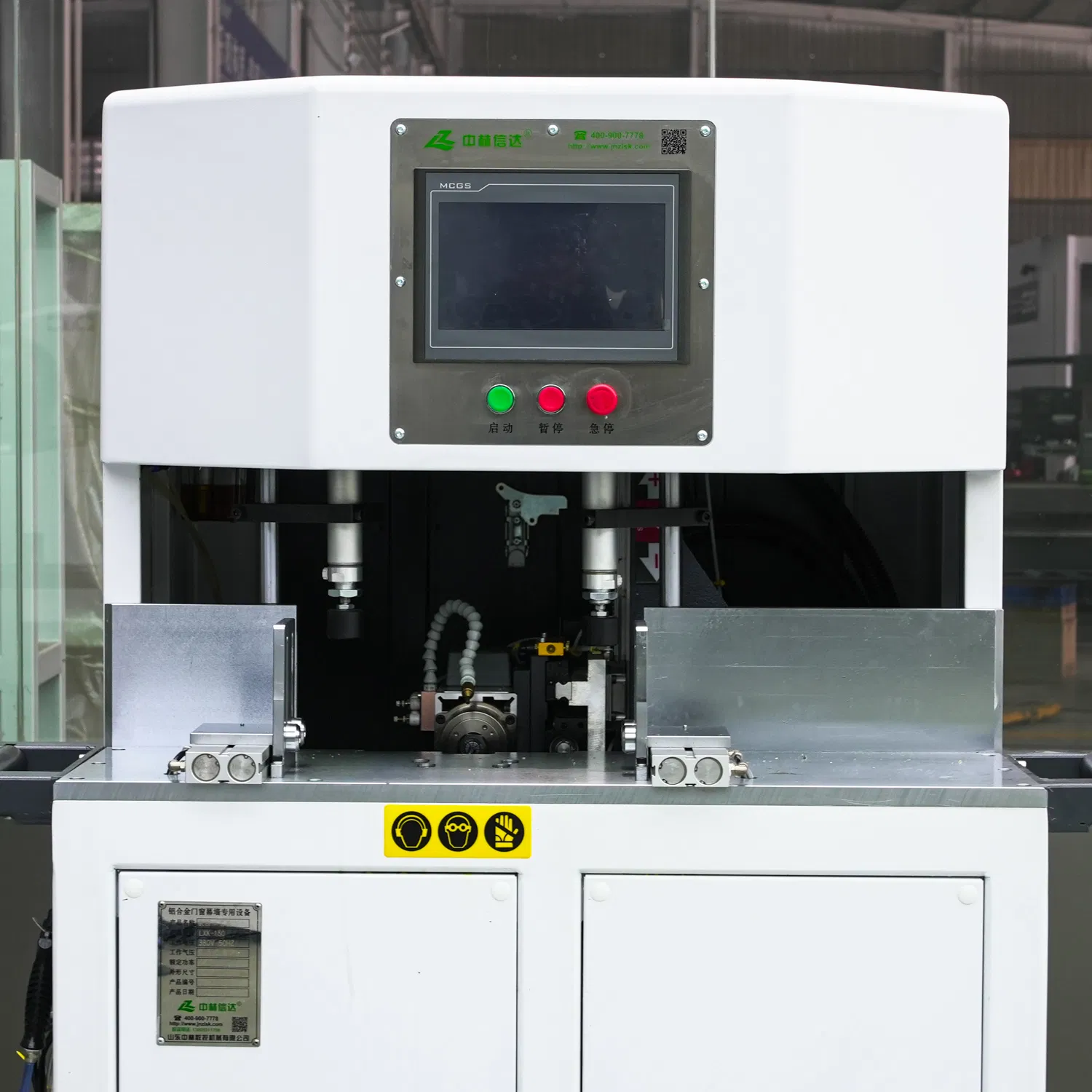

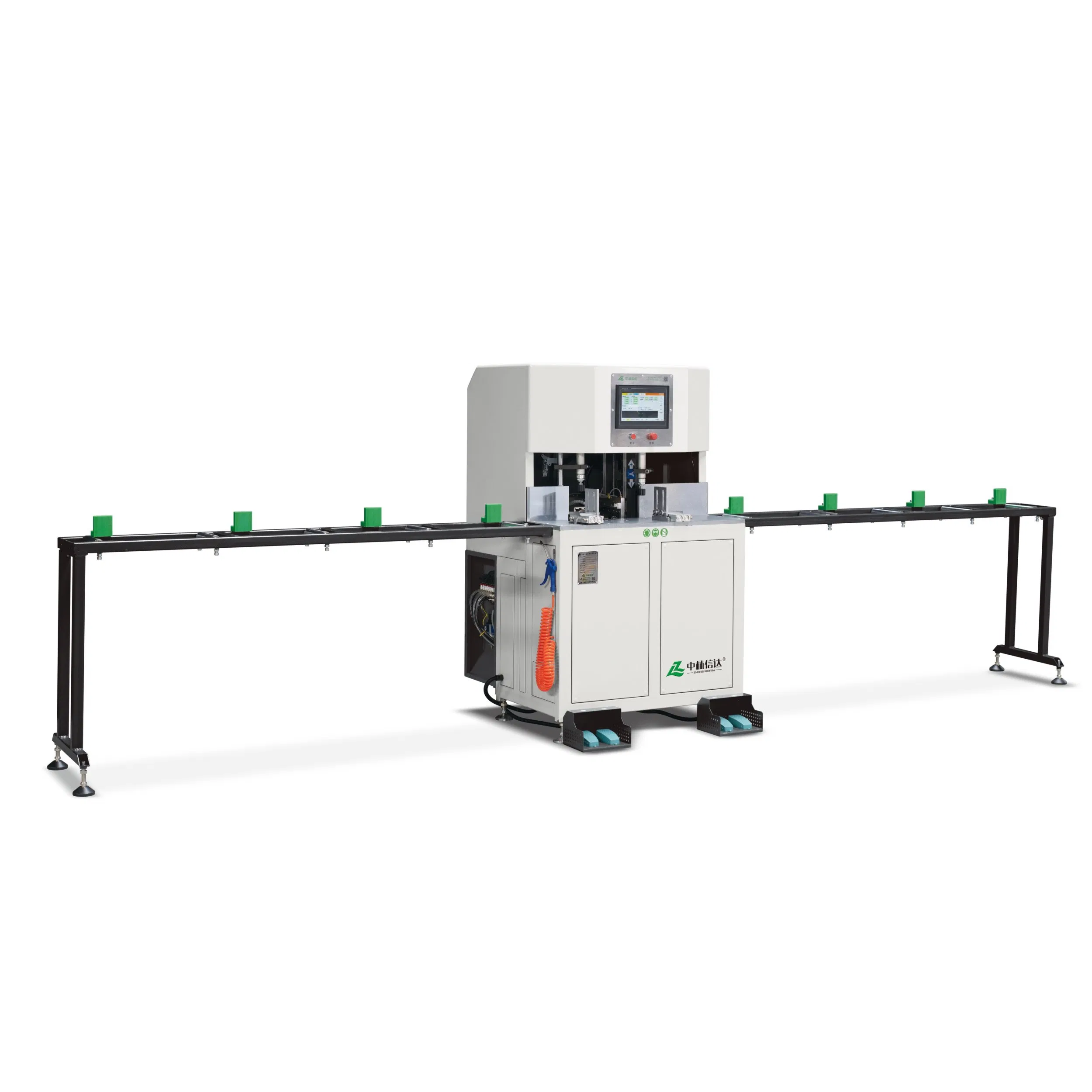

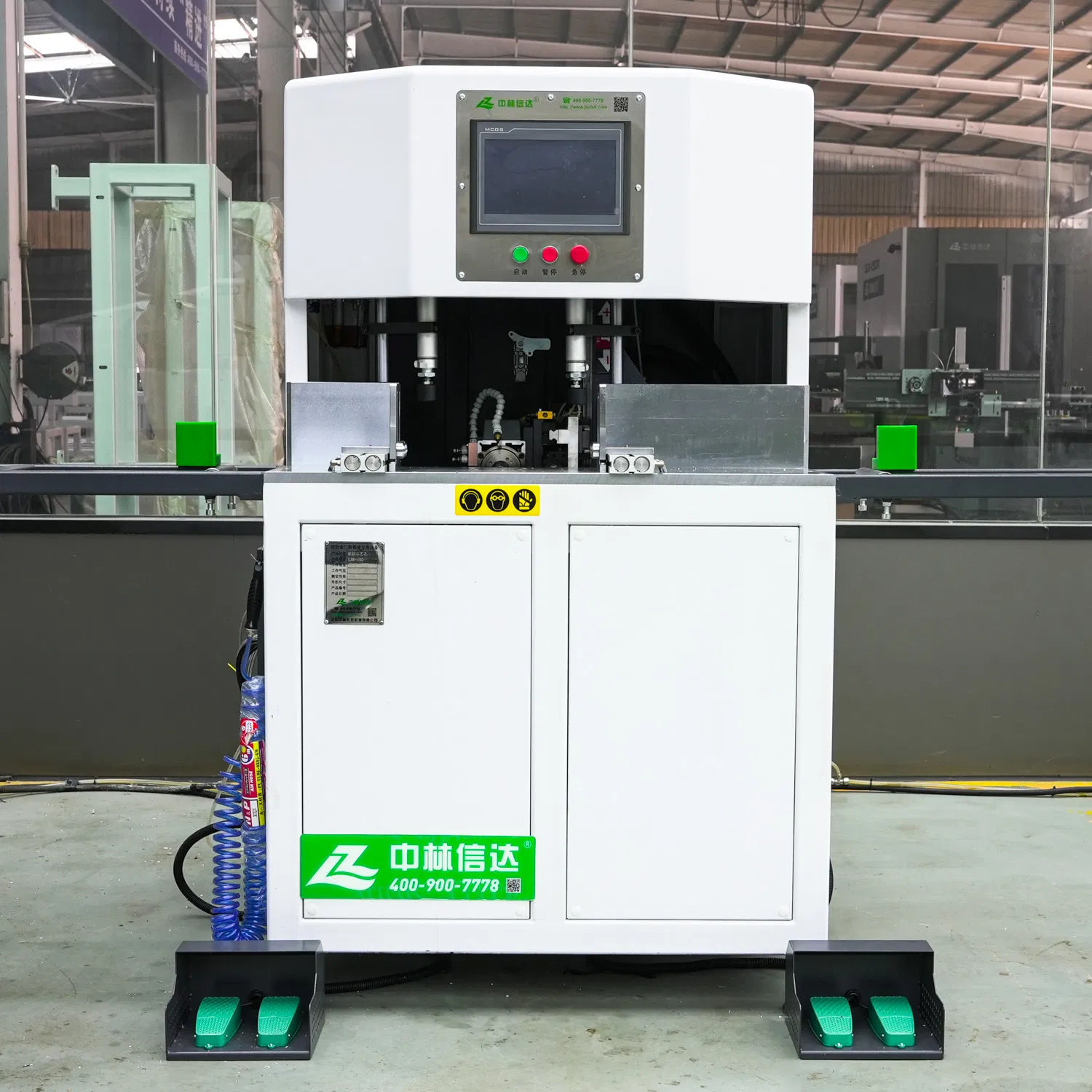

The CNC Process Hole Processing Machine (Horizontal Single-Head Aluminum Copy Router Machine, Model LXK-150) is a CNC machining tool dedicated to aluminum door and window production. It automatically drills glue injection holes, pin holes, screw holes, and mills sharp corners on aluminum profiles. It eliminates custom mold costs, replaces traditional punching machines, and features dual drives for simultaneous processing to boost efficiency. Its patented corner-locating design ensures precise, clean cuts, making it a cost-effective upgrade for aluminum fabrication.

⭐ Key Features & Advantages

⚙

Precision Processing
Automated processing of glue injection holes, pin holes, and screw connection holes with high repeatability.

🚀

High Efficiency
Dual drives allow left and right processing at the same time, significantly improving output compared to traditional methods.

💻

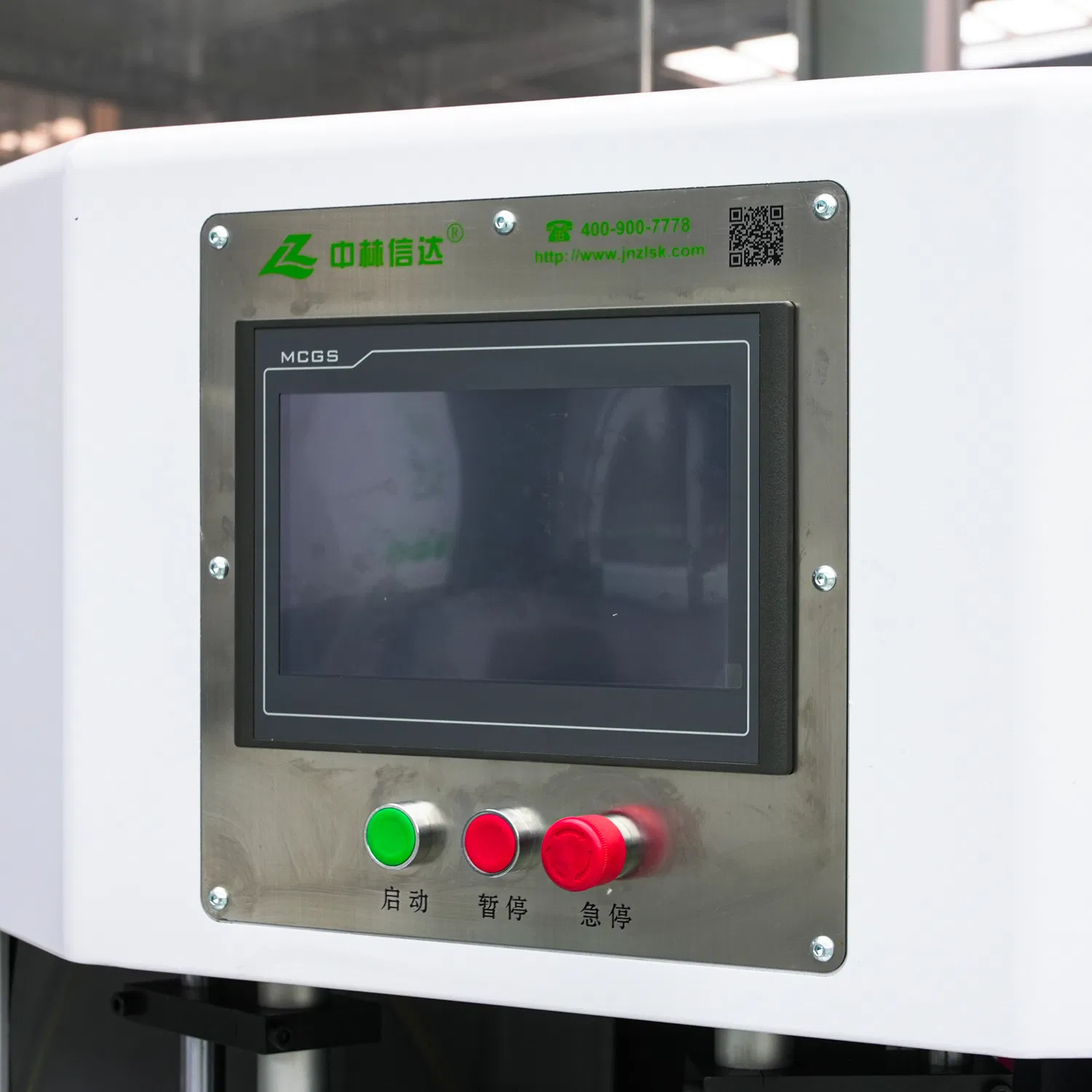

Smart Control

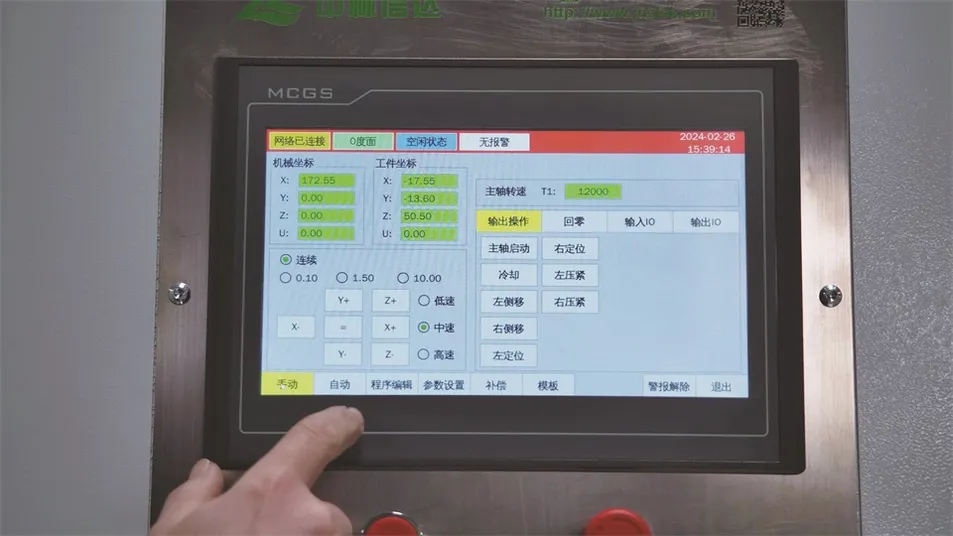

Numerical control programming that is easy to use, effectively replacing the need for traditional punching machines.

🛡

Patented Design
Unique design avoids cutting surfaces by accurately locating the corner for a cleaner finish.

📚 Technical Data

Power Supply	380V/50Hz	Milling Cutter Speed	16000r/min
Input Power	4.5kW	Working Air Pressure	0.5~0.8MPa

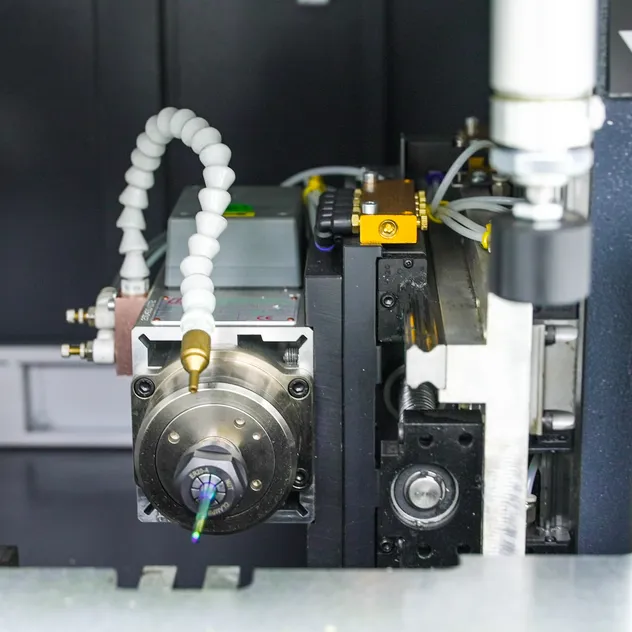

Spindle Power	2.2kW	Air Consumption	10L/min
Servo Motor	0.75kW × 3	Weight	Approx. 495kg

🏭 Manufacturing Excellence

Our production integrates R&D, manufacturing, and quality control, focusing on intelligent door/window lines and aluminum curtain wall equipment. We follow the core principles of "Accuracy, Reliability, and Professionalism" to serve mid-to-high-end global clients.

📦 Packaging & Shipping

Package Type	Wooden Box
Package Size	500.00cm * 100.00cm * 165.00cm
Gross Weight	495.000kg

❓ Frequently Asked Questions

Q: Can this equipment meet diverse aluminum profile needs?

A: Yes. We offer intelligent solutions for door/window frames, aluminum curtain walls, and industrial profiles. The equipment handles full-process tasks including cutting and milling to match your specific requirements.

Q: Is the machine complex to operate?

A: No. The equipment features "fool-proof operation" with automatic data identification. It eliminates the need for complex manual programming, reducing the reliance on highly skilled workers.

Q: How is the processing accuracy and stability?

A: The machine uses high-end components (e.g., HIWIN, Schneider) and diamond tools. It achieves ±0.02mm repeat positioning and ±0.05mm milling accuracy, ensuring stable quality and reducing rework.

Q: What kind of after-sales support is provided?

A: We provide a 1-year warranty and lifelong maintenance. This includes 24h online service, quick parts deployment, remote troubleshooting, and on-site support if necessary.

Q: How does this equipment optimize production costs?

A: Efficiency is increased by up to 3x with double-spindle CNC technology. Labor costs are lowered through automated operation, and material loss is minimized due to high precision stability.

Q: What is the production capacity for this model?

A: The standard production capacity is approximately 20 units per month, ensuring quality controlled manufacturing and timely delivery.
