Basic Specifications
Model NO.LZX-CNC-3000-2
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
Voltage380V
Equipment TypeCNC Drilling Milling Machine
ApplicationWindow, Door and Curtain Wall
Motor Power12kw (Single Head 7.5kw)
Spindle Speed18,000 rpm
X-Axis Stroke3000mm
Y-Axis Stroke420mm
Z-Axis Stroke350mm
Machined Surface-90° / 0° / 90°
Air Pressure0.5~0.8MPa
Product Description

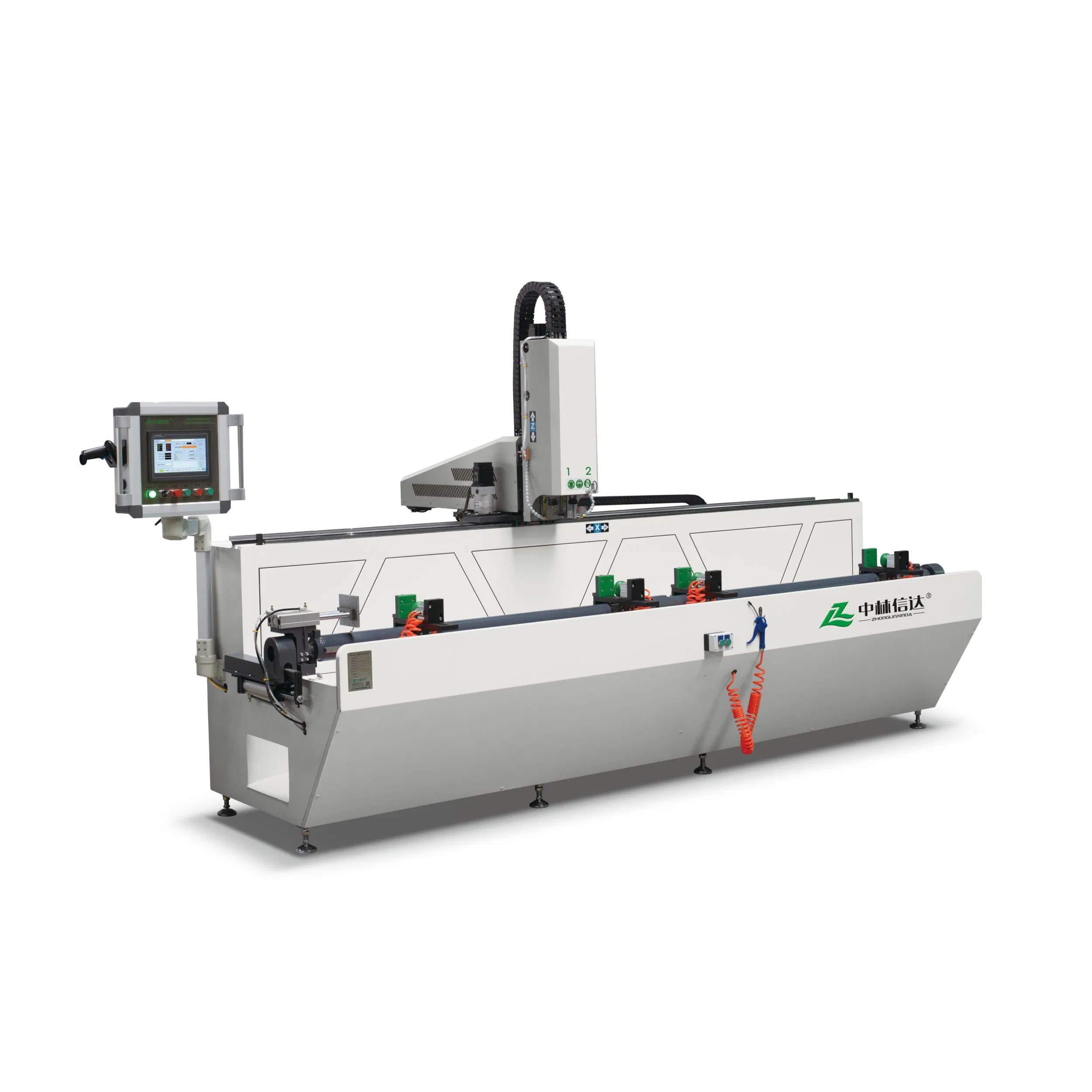

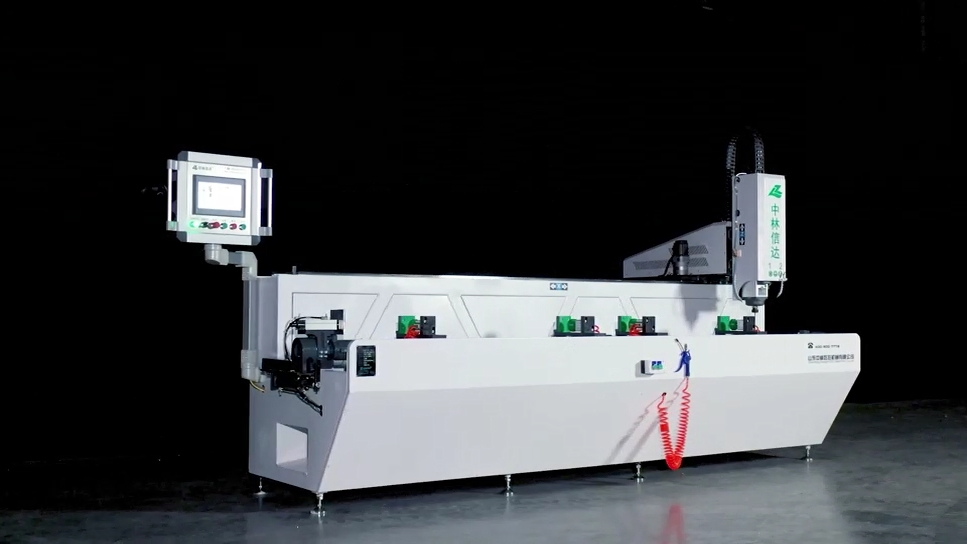

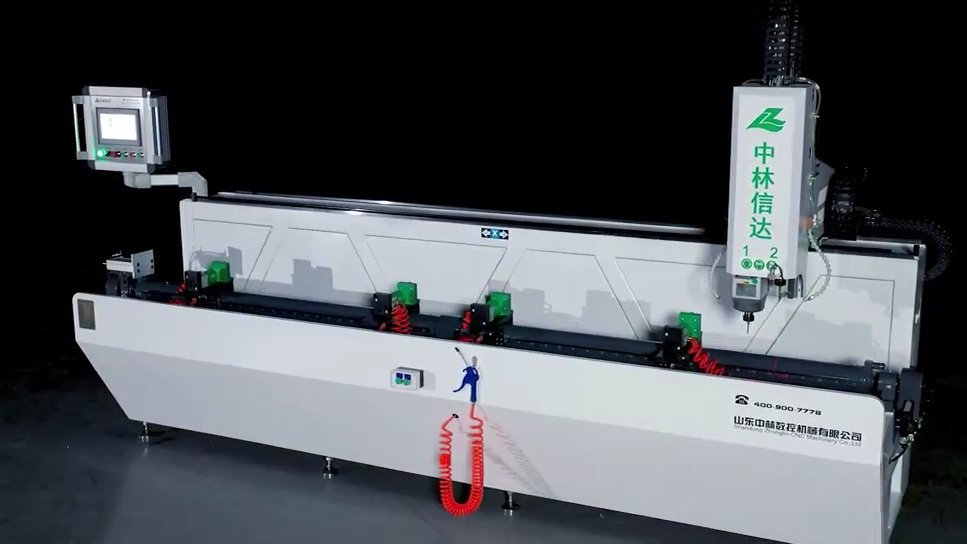

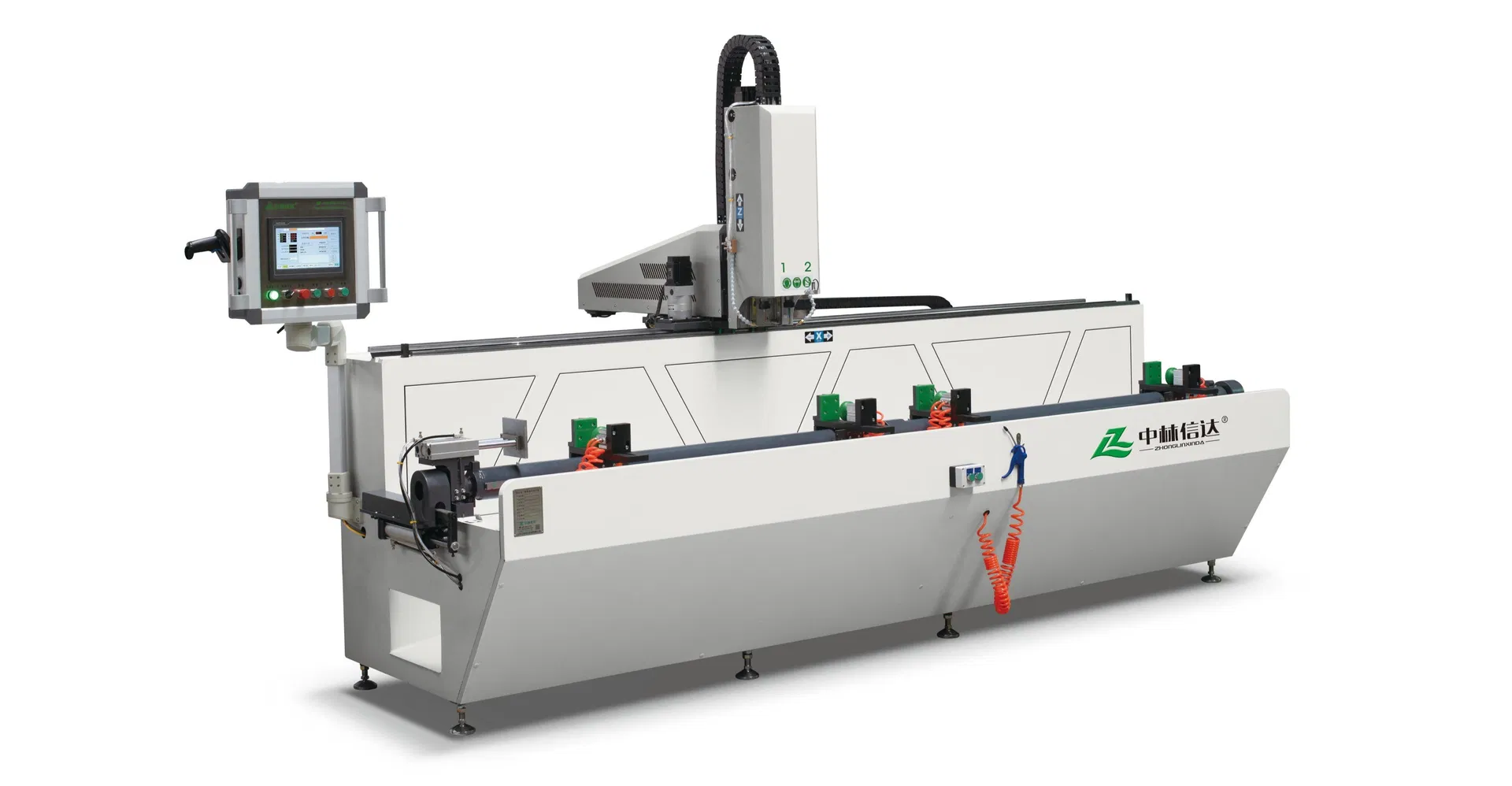

🚀 High-Performance CNC Drilling Milling Machine
This CNC Drilling Milling Machine is an ideal solution for Window, Door, and Curtain Wall fabrication. It is designed to handle Aluminum Alloy, Thermal Break Aluminum, and PVC profiles with extreme precision.

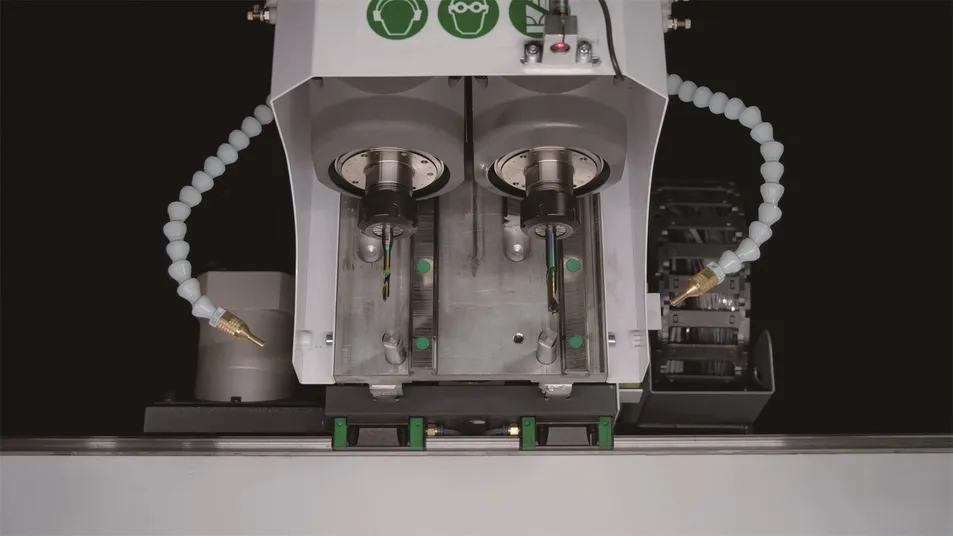

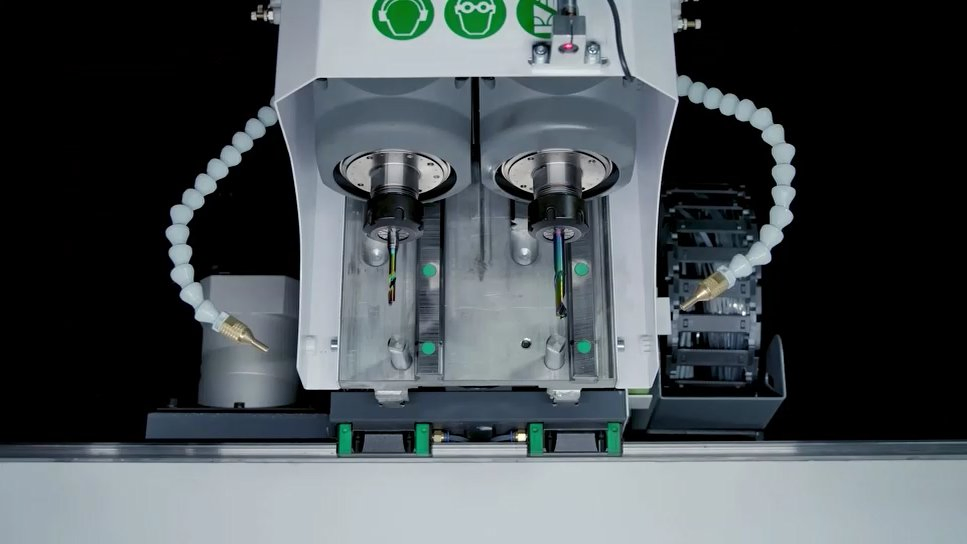

- Double Spindle Structure: Processing efficiency is doubled compared to single-head machines.

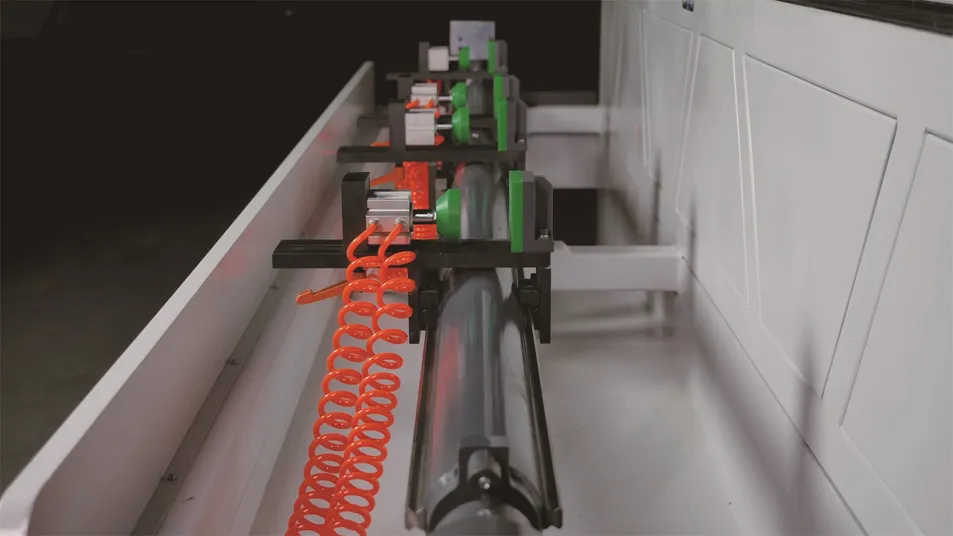

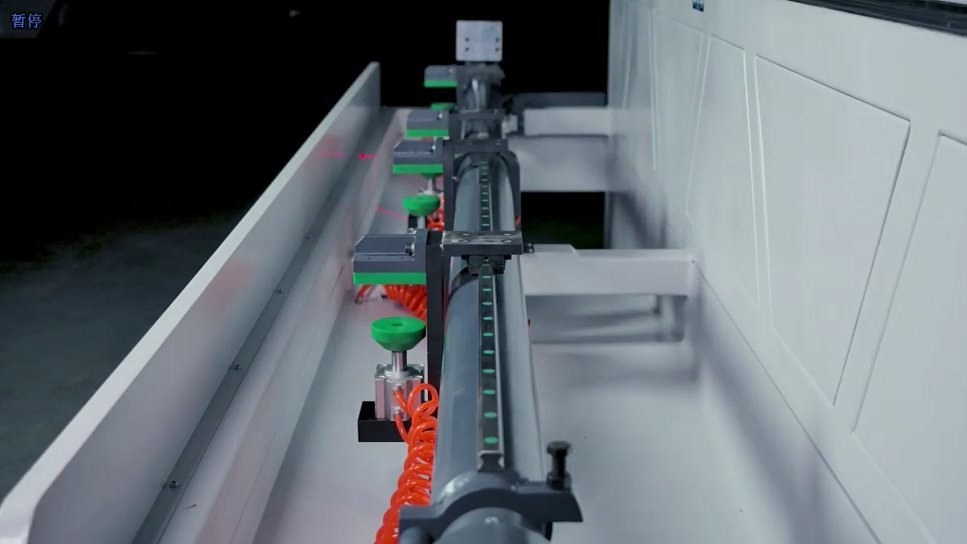

- 3-Side Rotary Workbench: Enables milling on three surfaces with just one clamping session.

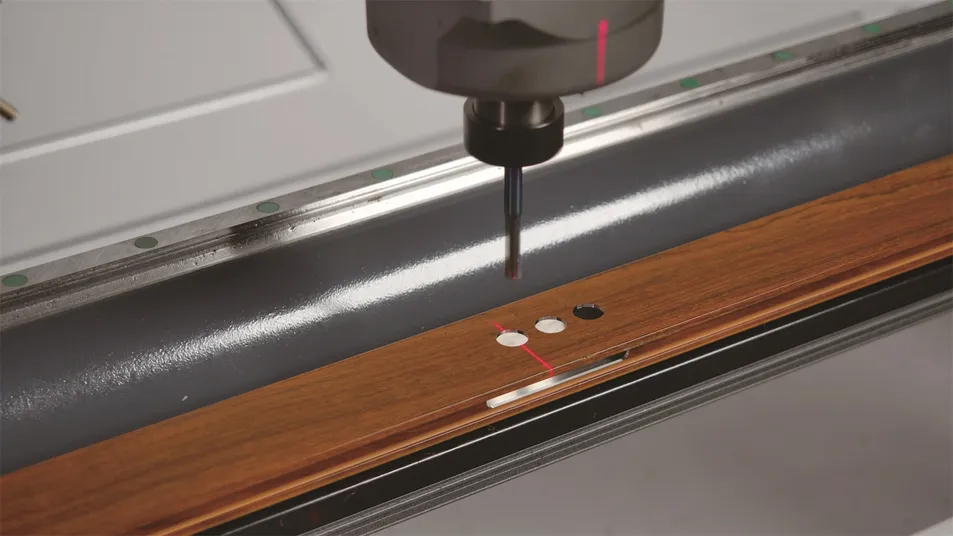

- Versatile Machining: Suitable for round holes, slotted holes, lock holes, and special-shaped profiling.
- High Speed: 4.5kW motorized spindle with torque reaching 18,000 rpm.
- Easy Operation: "Fool-proof" system with a standard graphics library for direct import and processing.
Manufacturing & Application

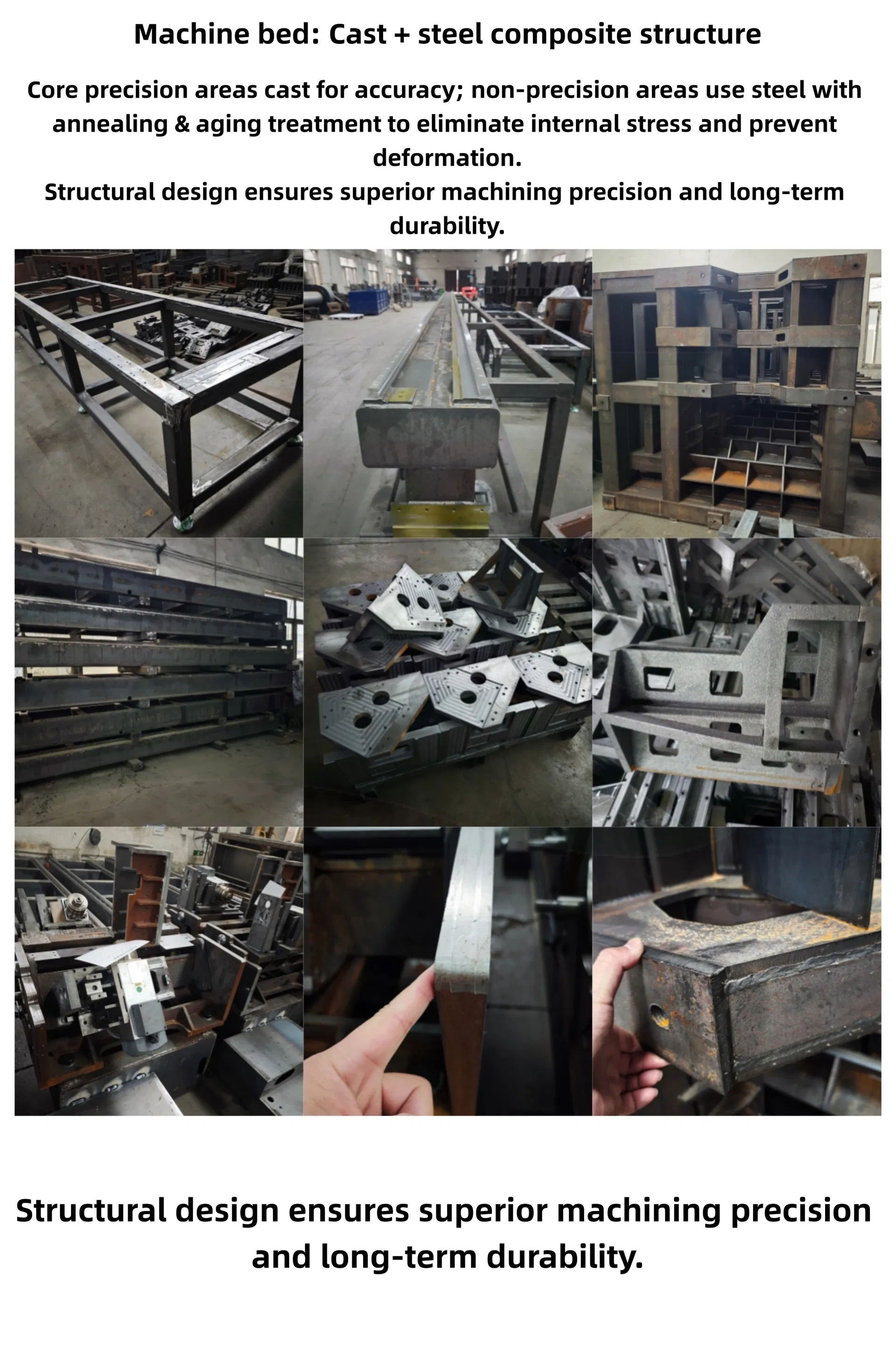

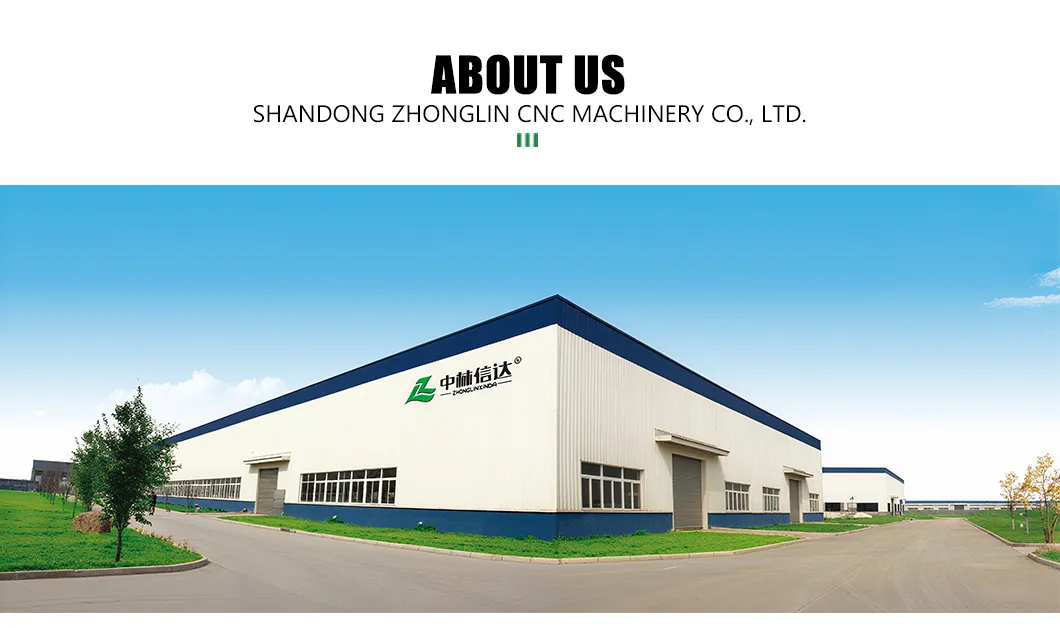

Based in a major machinery hub, our production integrates R&D, sales, and full-scale manufacturing. We focus on intelligent door/window lines and aluminum equipment, utilizing over 100 sets of high-precision machining centers.

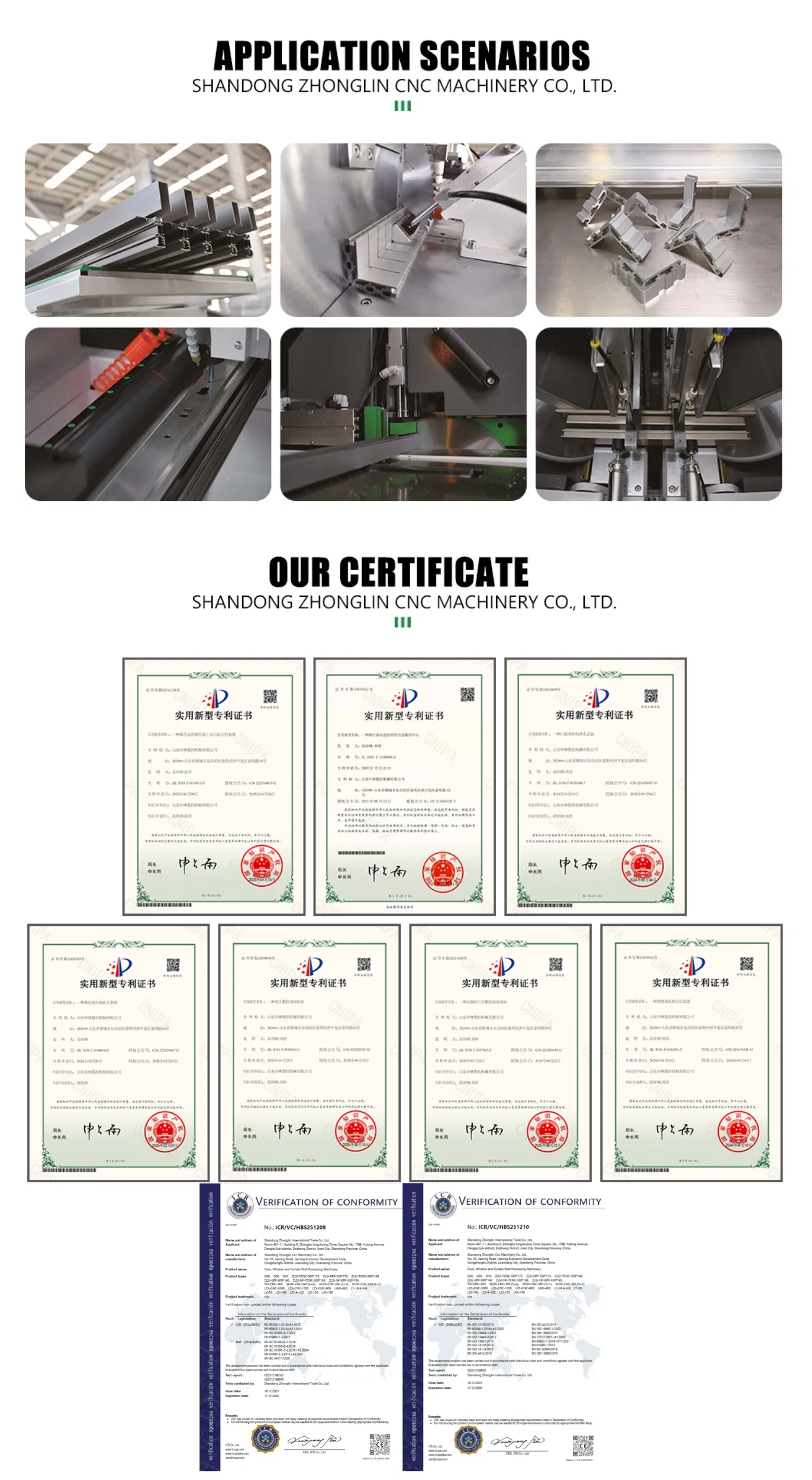

Application Scenarios
Frequently Asked Questions
Q: Can this equipment handle both door frames and curtain wall profiles?
A: Yes. Our CNC machines and custom solutions are designed to handle full-process door/window fabrication as well as complex curtain wall profiles with various cutting and milling requirements.
Q: Is the operation complex? Do I need highly skilled workers?
A: No. The system features "fool-proof operation" with automatic data identification and standard graphics libraries. We also provide comprehensive training and remote support to minimize the need for specialized programming skills.
Q: What is the positioning and milling accuracy of the machine?
A: The equipment utilizes high-end core parts (like HIWIN and Schneider) to achieve ±0.02mm repeat positioning accuracy and ±0.05mm milling accuracy, ensuring stable quality and reducing material waste.
Q: How do you handle after-sales service and maintenance?
A: We offer 24-hour online support, a 1-year warranty, and lifelong maintenance. Our team provides remote troubleshooting and on-site support if needed, alongside regular maintenance guidance to reduce downtime.
Q: How much faster is the double-spindle CNC machine compared to standard ones?
A: The double-spindle structure combined with an 18,000 rpm motor makes the processing efficiency approximately three times faster than ordinary drilling and milling machines.

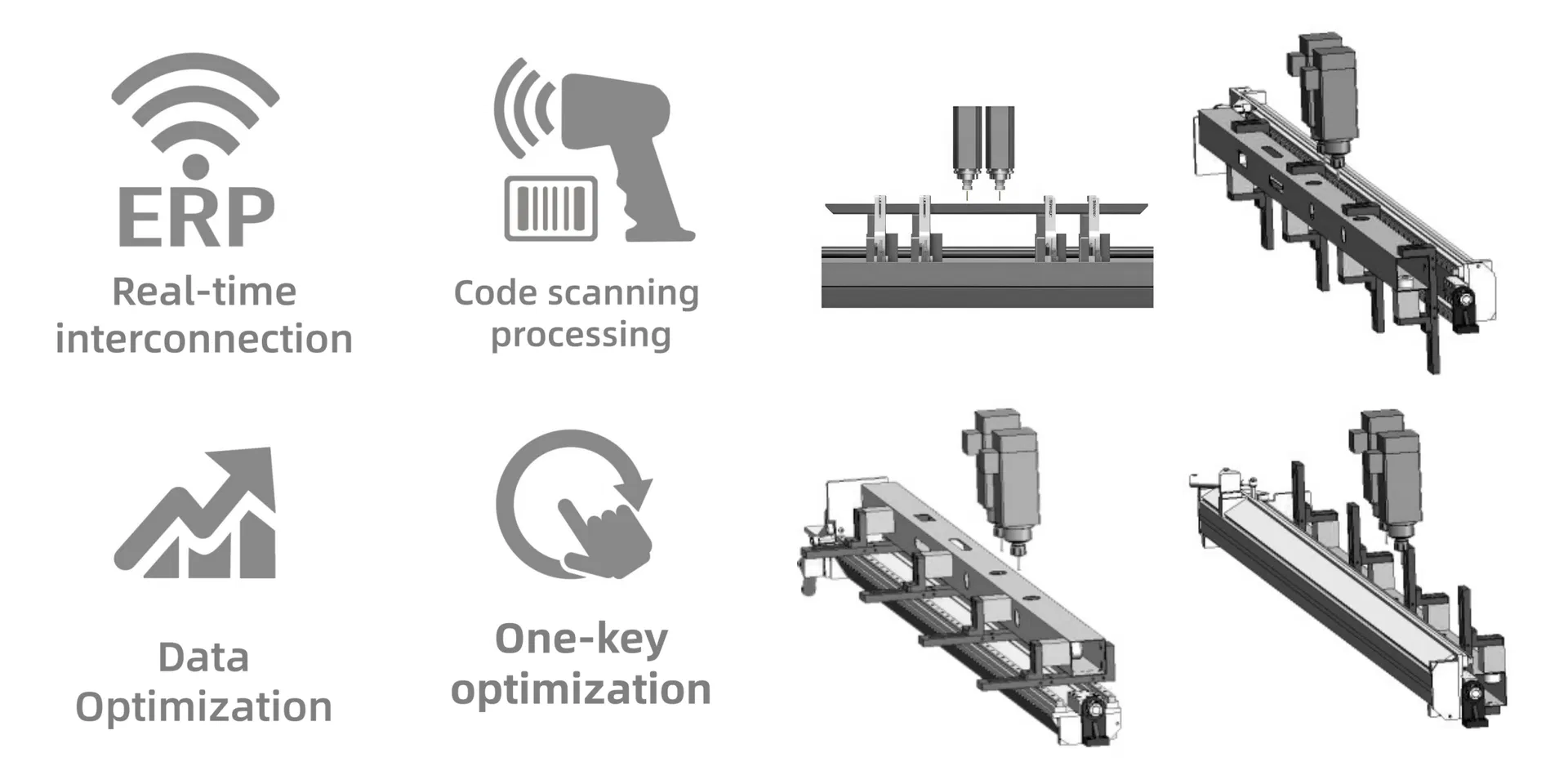

Q: Can the machine software connect to ERP systems?
A: Yes. ERP connection is possible to enable capacity statistics and real-time monitoring, helping to optimize production progress and overall management costs.
