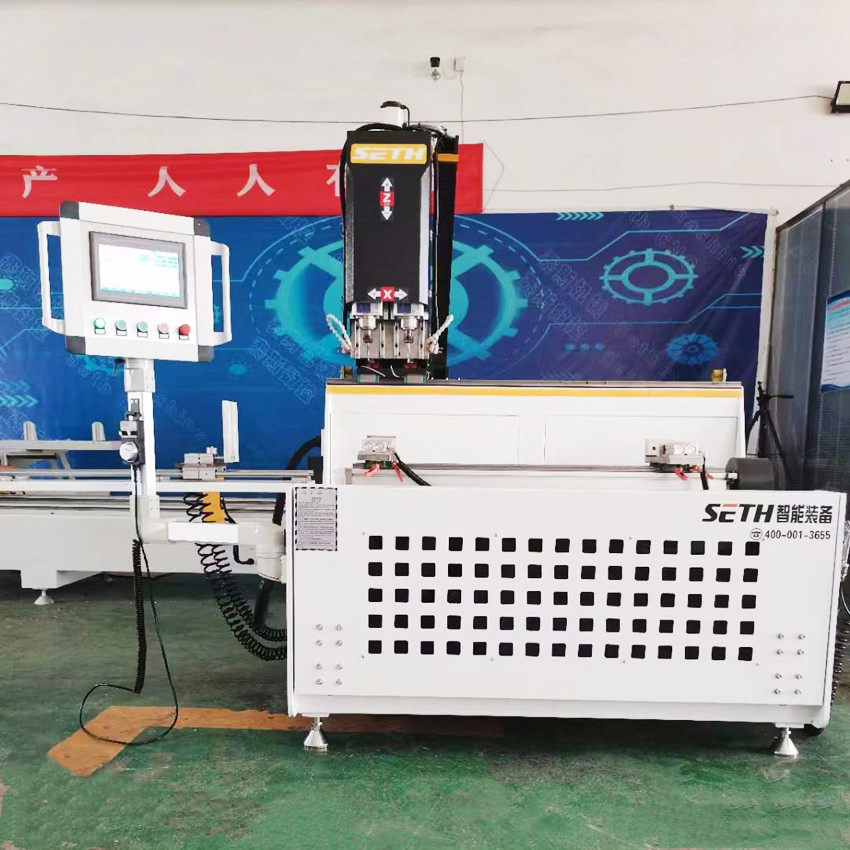

CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
1 / 5
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile
CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile

CNC Machine Double Head Drilling Machine Milling Machine for Aluminum Profile

Customization: Available
After-sales Service: Video Introduction, Online
Warranty: 24 Months
Send Inquiry

Product Description

📦 Basic Info. & Overview
Model NO.SKX3+1-cnc-1200
ConditionNew
CertificationISO, CE, SGS
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Working Pressure0.6-0.8MPa
Main Axis Power8.5kw
X Axis Longitudinal Travel1200mm
Y Axis Transverse Travel300mm
Z Axis Vertical Travel280mm
Max Rotary Speed18000r/Min
Overall Dimension2200X1600X1950
Weight800kgs
🛠️ Product Description

Integrating New Technologies for Aluminum Profile Processing

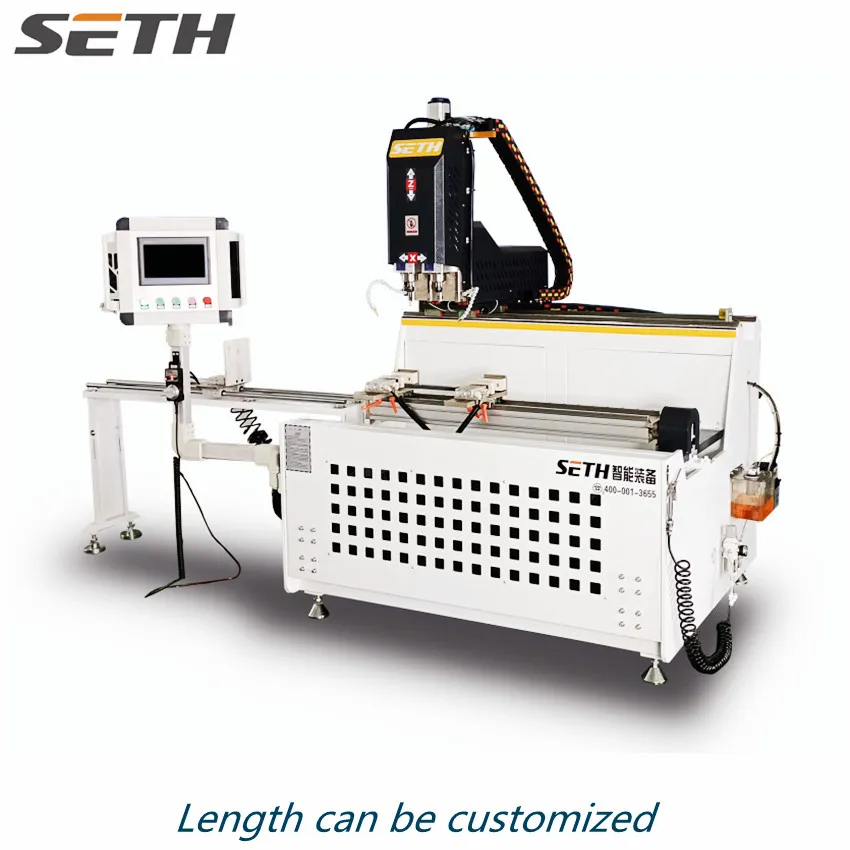

CNC Machine
⚙️
Versatile Processing: Designed for drilling, milling, chamfering, and engraving on aluminum profiles, window-door structures, and curtain walls.
⚡

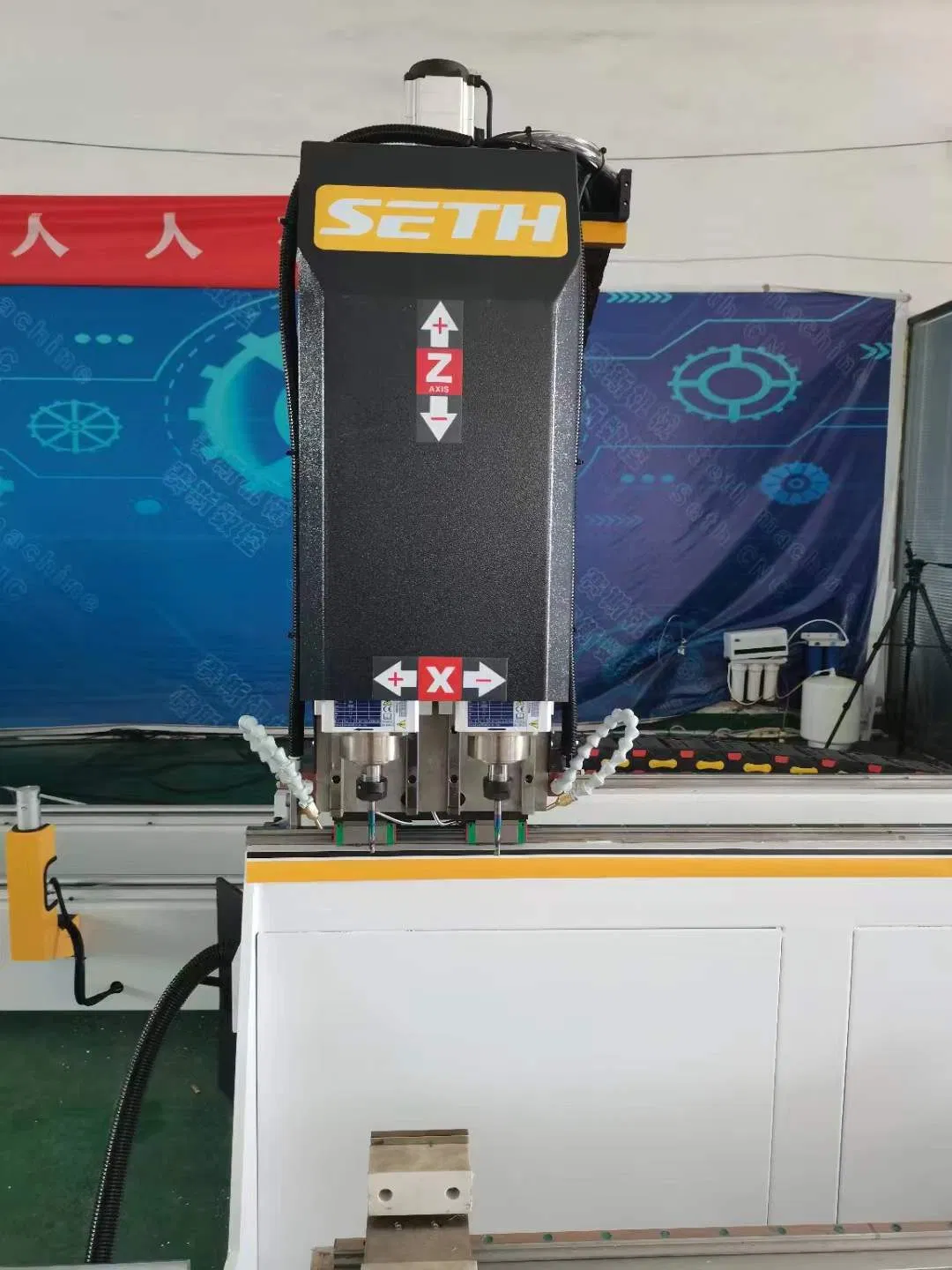

High-Speed Spindle: Equipped with a 9kW air-cooling electric main axis (0~18000r/min) for high precision and reliability.
🖥️
Advanced Control: Utilizes professional CNC control systems with CAD/CAM programming software for automatic G-code transformation.
🔄
Rotary Worktable: The table can overturn between 180°, -90°, 0°, and +90°, allowing three-face processing with a single clamping.
💧
Cooling System: Integrated electric pump oil supply and spray cooling device for optimal tool maintenance.
🖼️ Detailed Photos

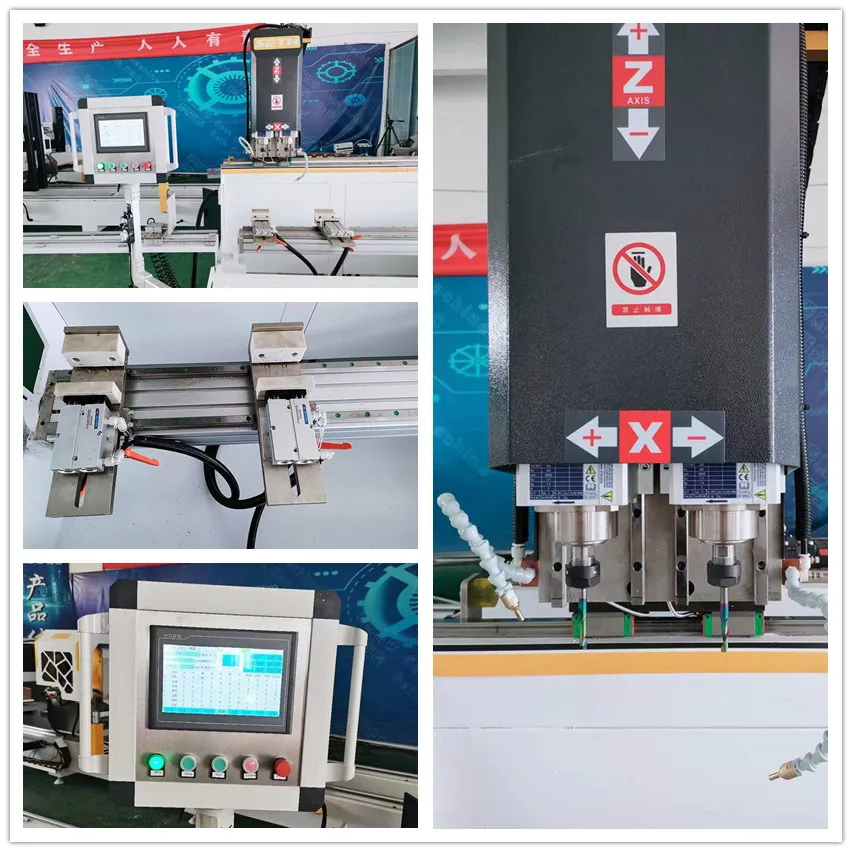

Detail 1
Detail 2

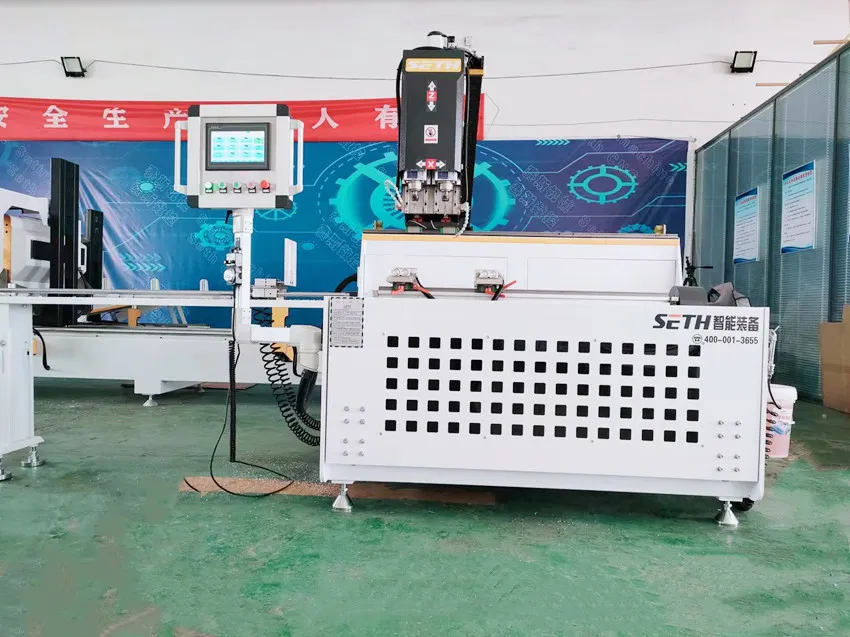

Detail 3
📊 Product Parameters
Power Supply380V/50Hz
Air Pressure0.5~0.8MPa
Total Power6.0kW
Main Axis Power8.5kW
Max Rotary Speed18000r/min
X-axis Travel1200mm
Y-axis Travel300mm
Z-axis Travel280mm
X/Y/Z Speed50m/min / 15m/min / 15m/min
Weight500kgs - 800kgs

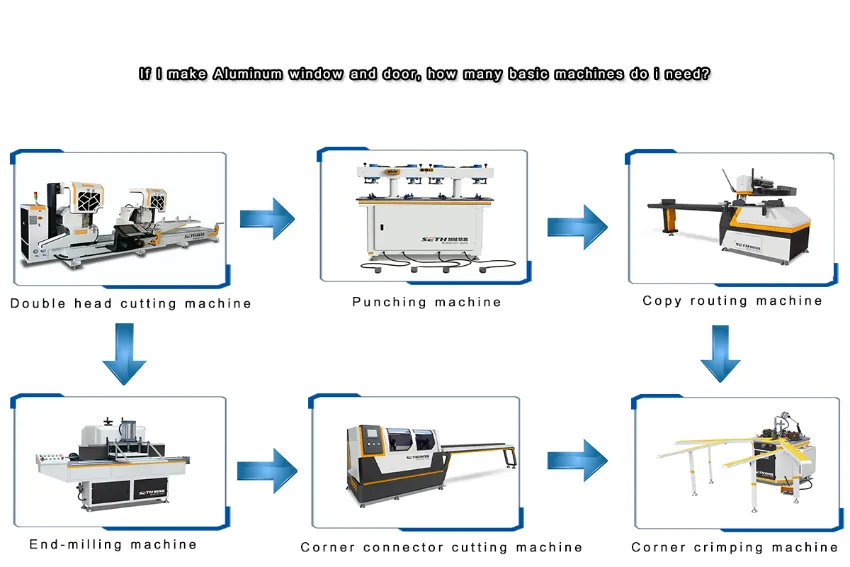

Processing View

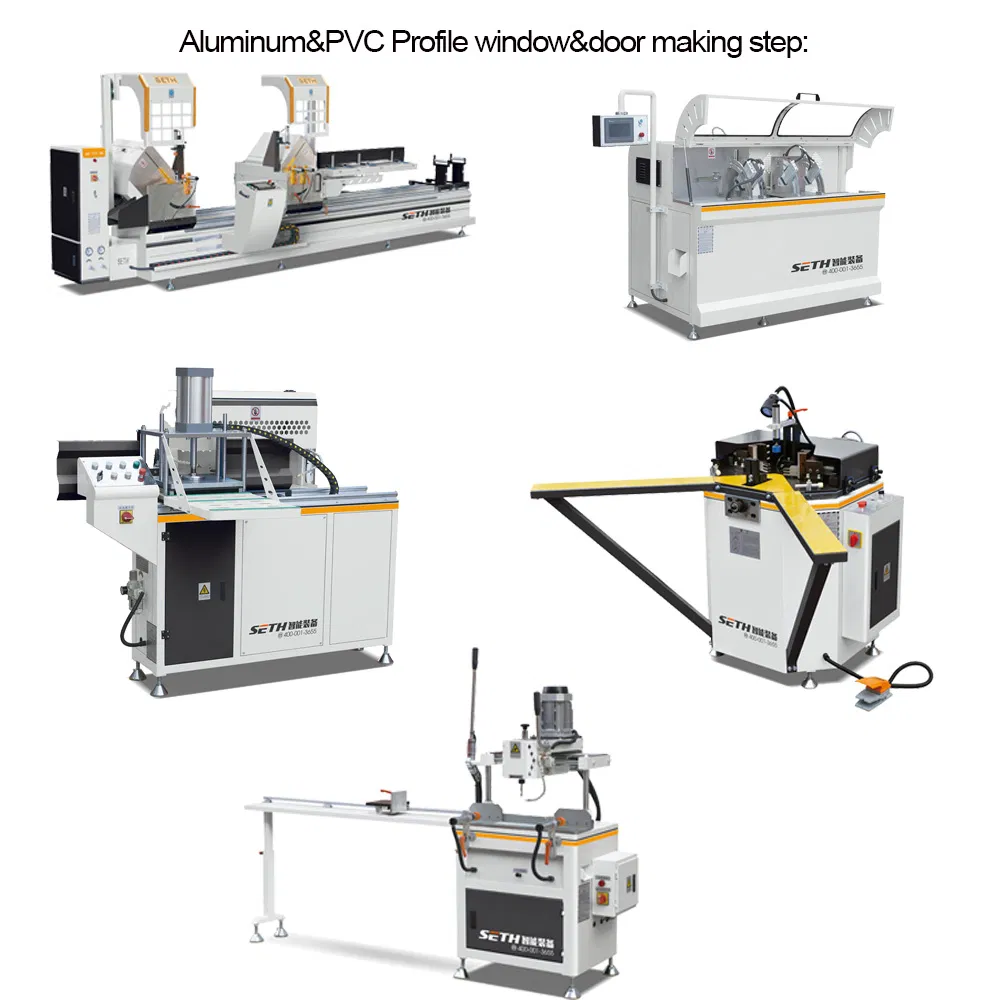

Internal Structure
📜 Certifications & Packaging
Certificate 1
Certificate 2

Machines are professionally packed in standard wooden boxes to ensure safe international transit.

❓ Frequently Asked Questions
Q1: What materials can this CNC machine process?
This machine is specifically designed for processing aluminum profiles, UPVC window-door profiles, and light alloys used in curtain wall industries.
Q2: Does the machine support multi-face processing?
Yes, the worktable can rotate between -90°, 0°, and +90°, allowing for efficient processing of three faces with a single clamping.
Q3: What kind of CNC system does it use?
The machine adopts professional CNC control systems compatible with CAD/CAM software, enabling automatic G-code generation for easy operation.
Q4: Is there an integrated cooling system for the tools?
Yes, an automatic spray cooling device is controlled by the system to ensure the longevity of the cutting tools and a smooth finish on the material.
Q5: What are the installation and training options?
We provide comprehensive online support, including full documentation and operation videos. On-site engineering installation and worker training are also available upon request.
Q6: What is the precision level of the axis movement?
The machine utilizes high-precision oblique gear and rack driving for the X-axis, and high-precision ball screw drives for the Y and Z axes to ensure maximum stability and accuracy.
