CNC Double Head Cutting Saw Aluminum/PVC UPVC Window Door Processing Machine Double Mitre Saw Machinery

Customization: Available
After-sales Service: Video Instruction, Online
Warranty: 12 Months

Product Description

i

Basic Information

Model NO.
LJZ2-CNS-500*4300
Condition
New
Certification
ISO, CE, SGS
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Working Pressure
0.6-0.8MPa
Cutting Length
380-4300mm
Cutting Width
Max.135mm
Cutting Angle
90° 45°
Transport Package
Wooden Box
Specification
5800x1800x1500mm
Origin
Jinan
HS Code
8461500090
P

Product Description

Integrating new technologies and creating a new future with window & door processing.

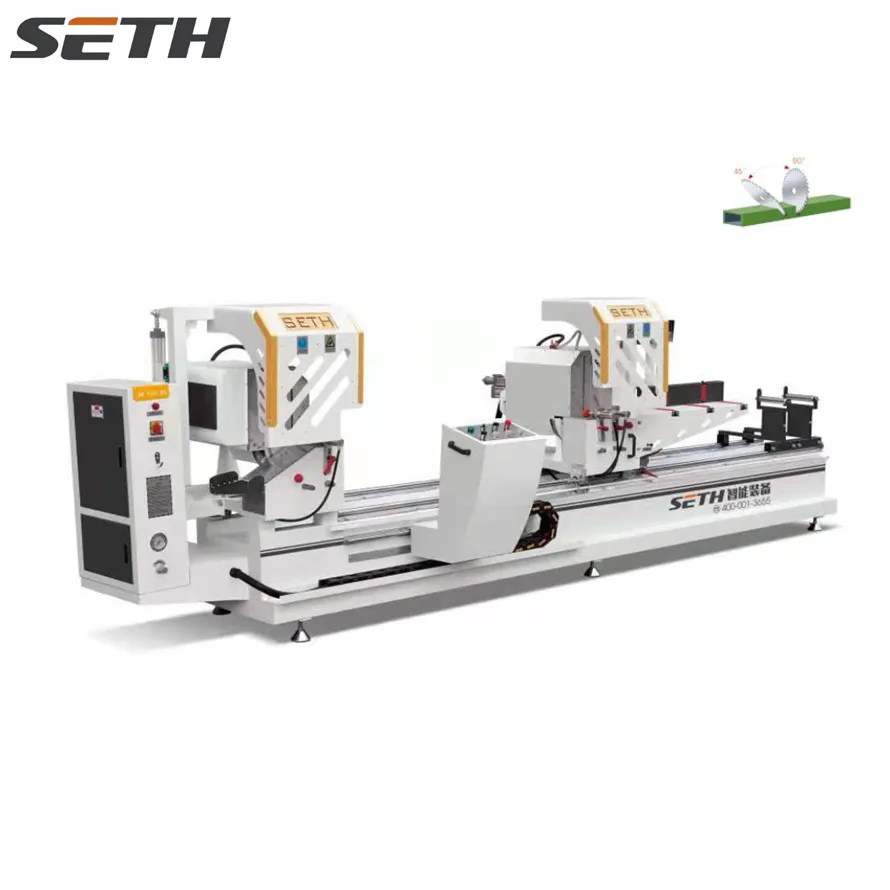

CNC Double Head Cutting Saw
Equipment Features:
  • Mainly used for cutting industrial aluminum profiles, aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
  • Imported digital magnetic grid system automatically displays the cutting length, featuring high precision repeated positioning and convenient operation.
  • Equipped with high-quality carbide saw blades (outer diameter 500), ensuring high linear speed and machining accuracy.
  • High-precision spindle ensures stable rotation and improves the surface quality of the workpiece.
  • Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
  • Adopts a micro-spray cooling device for better maintenance.
  • The machine head can rotate automatically, position, and clamp in two directions; can work independently with a single machine head.
  • Automatic opening and closing of the protective cover ensures safer operation.
  • The saw blade automatically swings at angles of 45° and 90°.
D

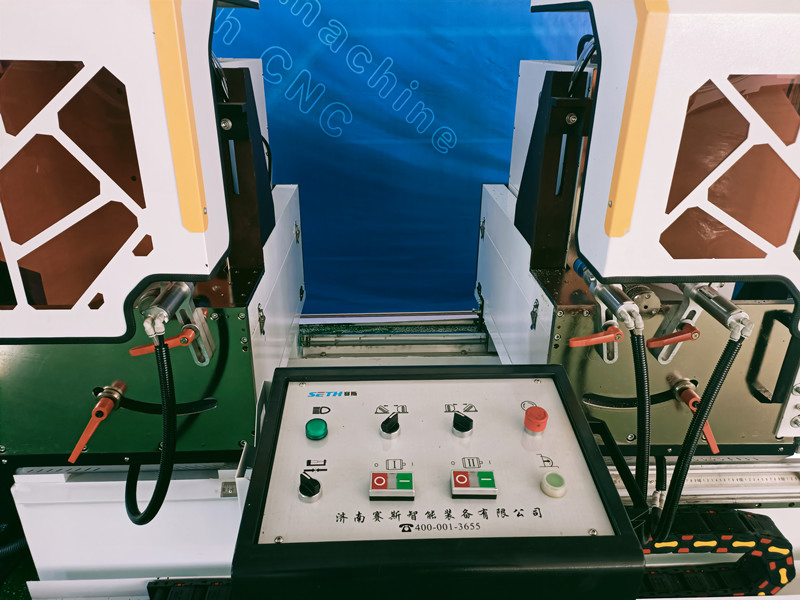

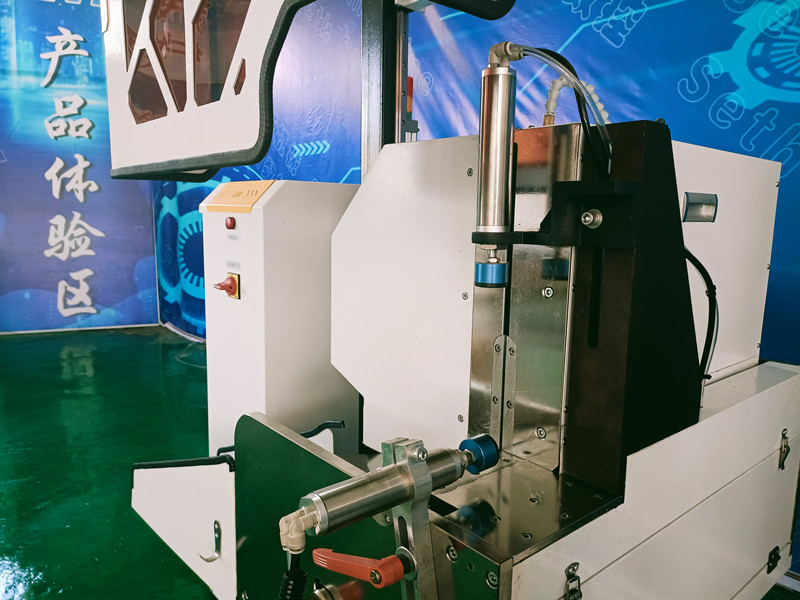

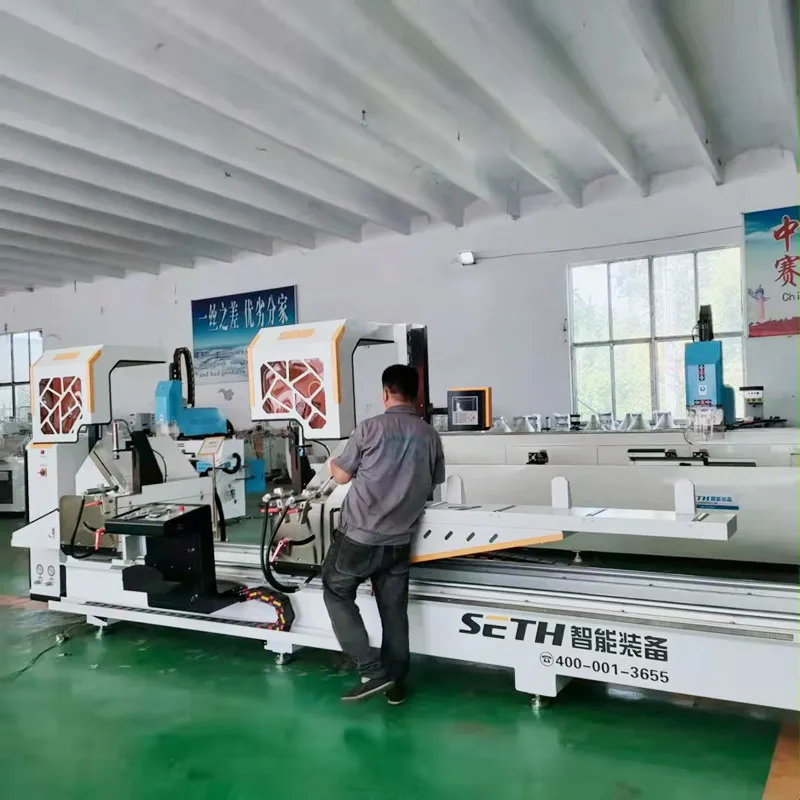

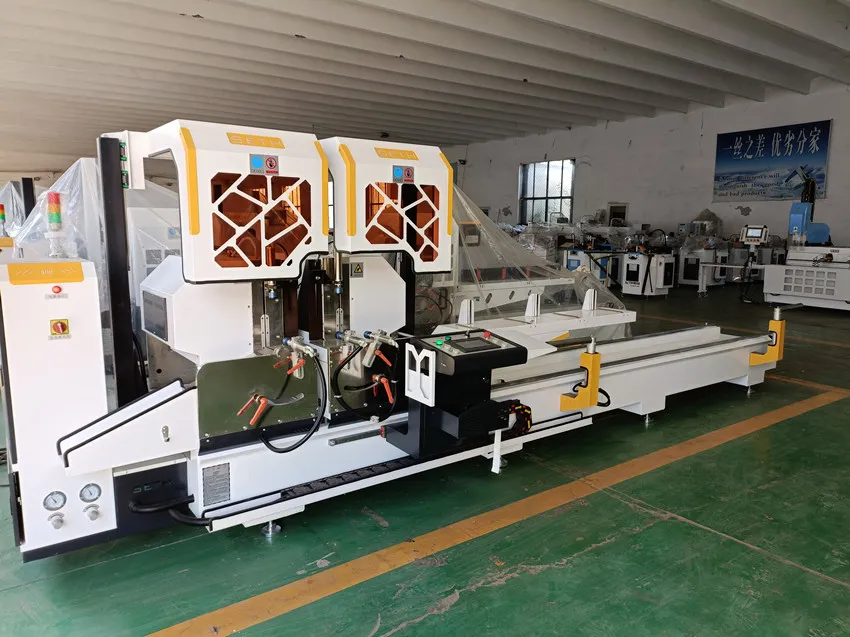

Detailed Photos

S

Technical Parameters

Power380V 50HZ
Saw head motor2×3KW/ 2840r/min
Working pressure0.5 ~ 0.8mpa
Air consumption60L/min
Saw lengthMax 4300mm MIN 420mm
Saw widthMax 140mm
Maximum cutting slope45° 140×220mm; 90° 140×300mm
Sawing Angle90°, 45°
Feed speedStepless regulation 0-3m/min
Saw blade specificationsø500 × ø30 × 4.4 × Z120
Dimensions5800×1800×1500 mm
Weight1450 kg
Repeat constant length accuracy≤ 0.05mm
C

Major Components

No.NameBrandOrigin
1CNC SystemDeltaTaiwan
2Touch screenDeltaTaiwan
3Automatic circuit breakerSchneiderFrance
4AC contactorSchneiderFrance
5Servo MotorFourShanghai
6Solenoid valveYadekTaiwan
7Alloy saw bladeHeyuanJapan
8Guide railSilverTaiwan
A

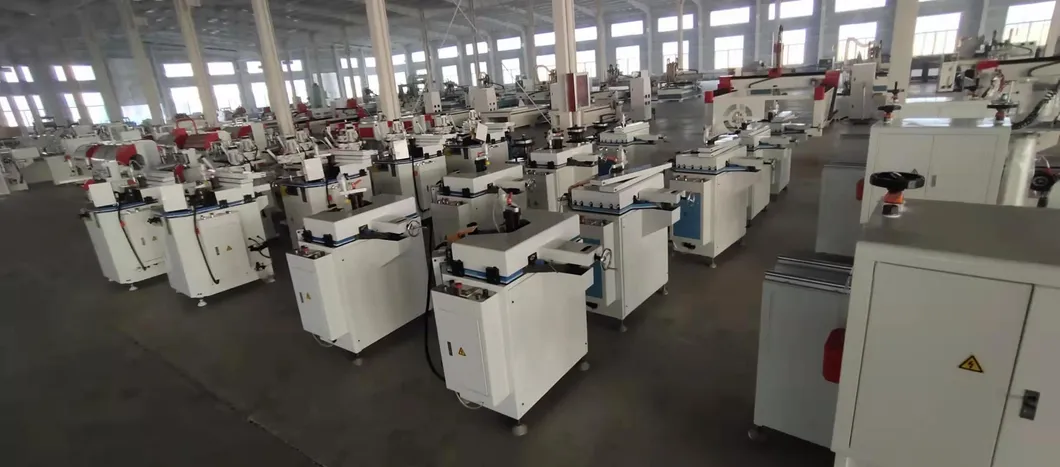

Professional Production

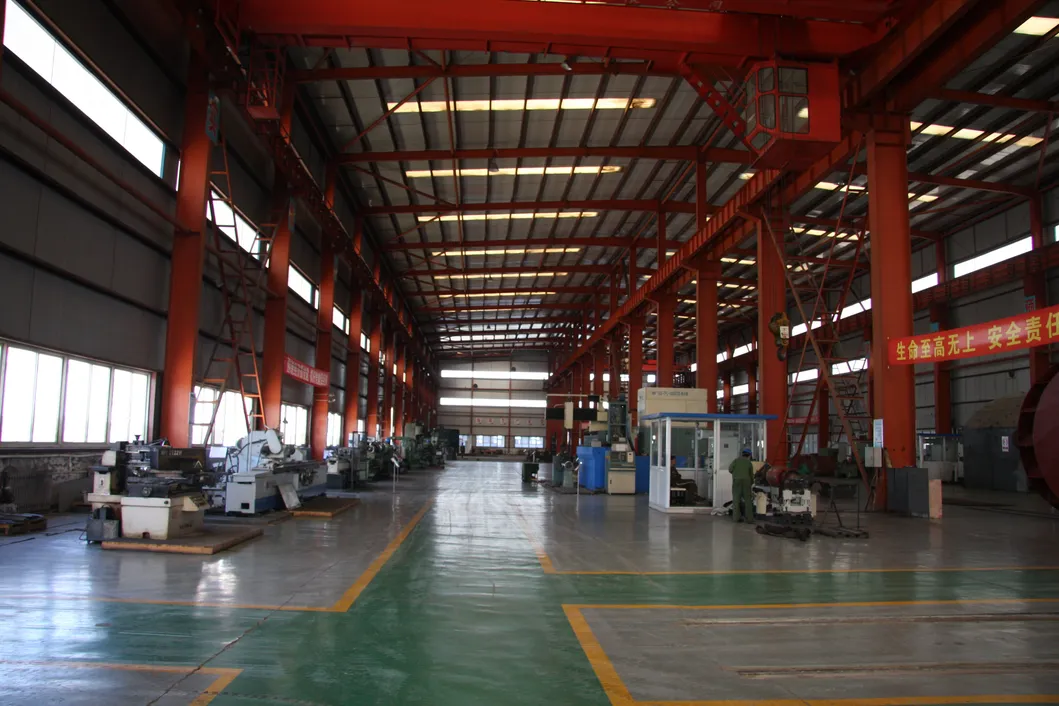

Specializing in the production of aluminum and UPVC window and door machines, curtain wall, and hollow glass processing equipment. We meet the needs of different clients through customized solutions and different grades of products. Equipped with independent processing workshops, assembly workshops, and quality inspection centers to ensure excellent equipment quality.
V

Certifications & Advantages

Certifications
Our Advantages
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer and seller specializing in window processing machinery.
What are your main product categories?

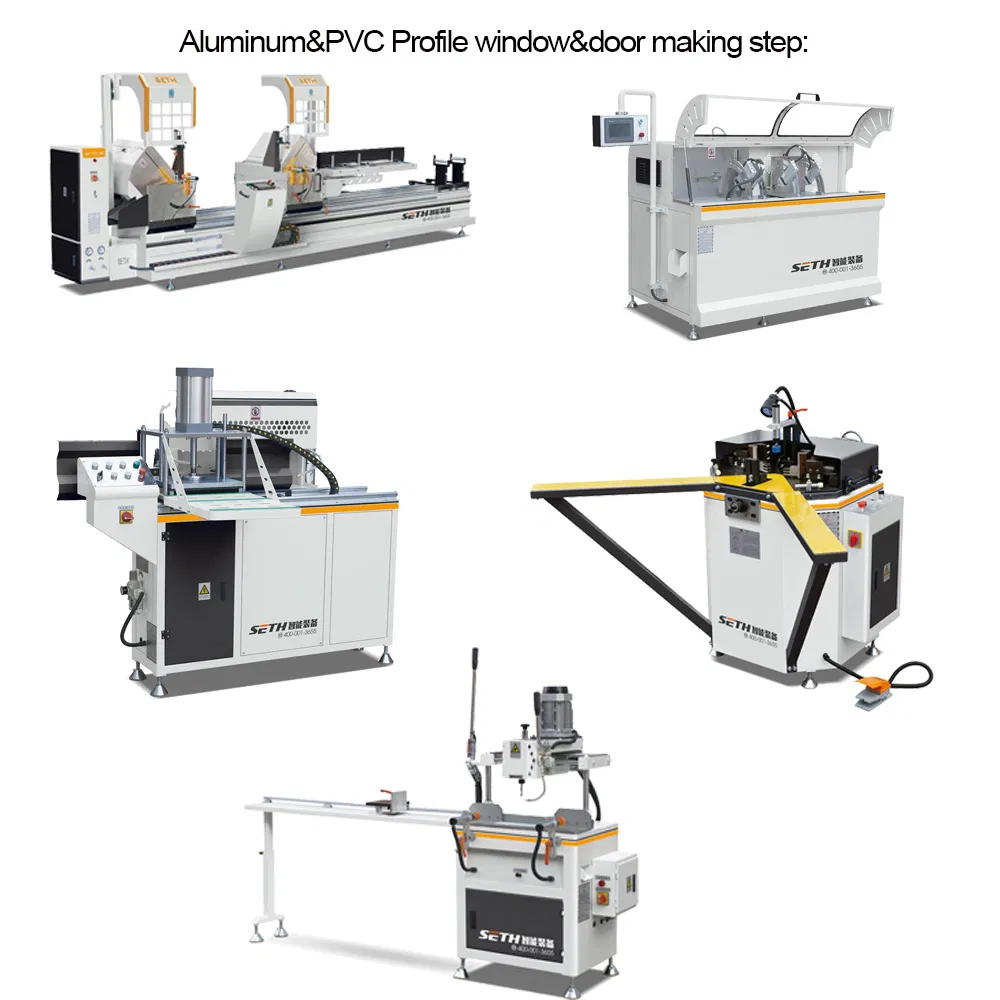

Our main products include CNC cutting centers, double miter saws, end milling machines, CNC milling machines, aluminum punching machines, and corner connector saws for both aluminum and UPVC profiles.
What kind of after-sales service do you provide?
We offer two options: 1. On-site installation and worker training by our engineers. 2. Comprehensive online service with full documentation and video tutorials for installation and operation.
What materials can your cutting machines process?
Our machines are designed for industrial aluminum profiles, aluminum alloy windows and doors, curtain walls, as well as PVC and wood profiles.
What are the technical advantages of your double head saw?
Our saws feature high-precision spindles, imported digital magnetic grid systems for length display, carbide saw blades, and automatic angle swinging (45° and 90°).
Do you provide machinery for UPVC window making?
Yes, we provide a full range of UPVC manufacturing equipment including welding machines, cutting machines, lock-hole machines, and corner cleaning machines.
