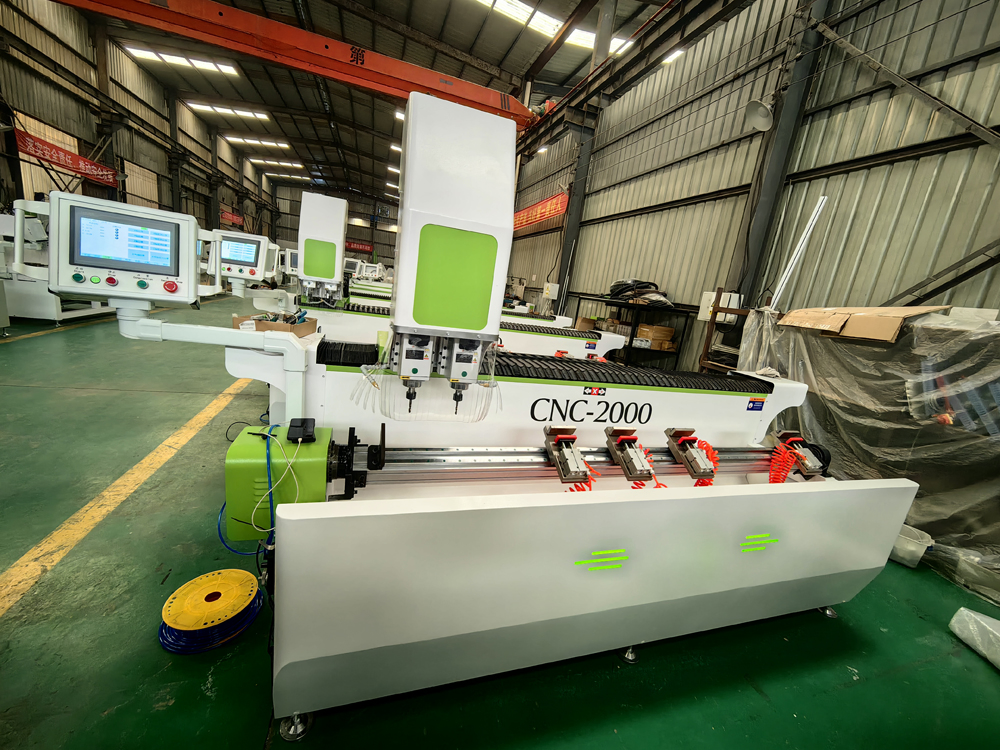

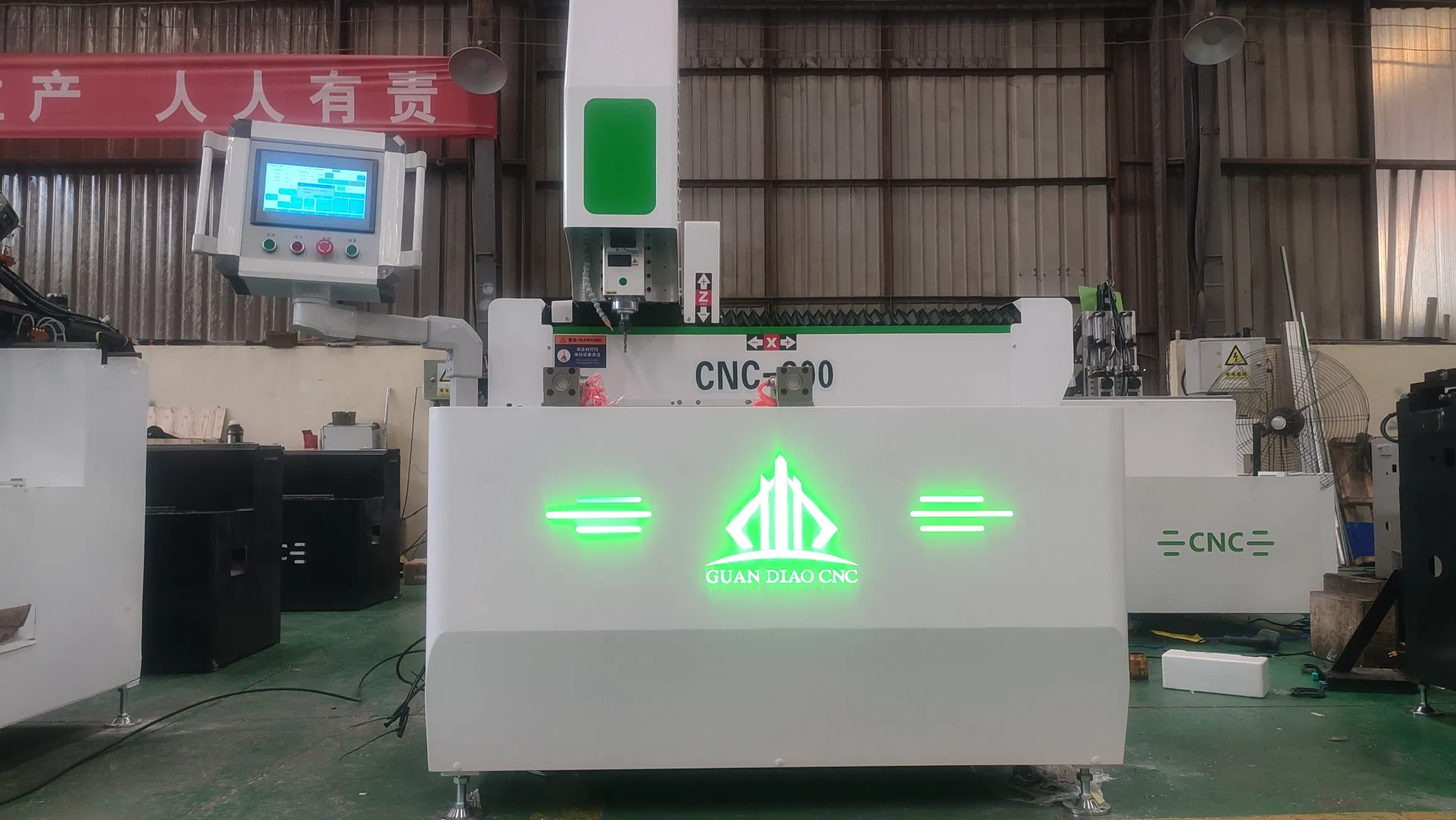

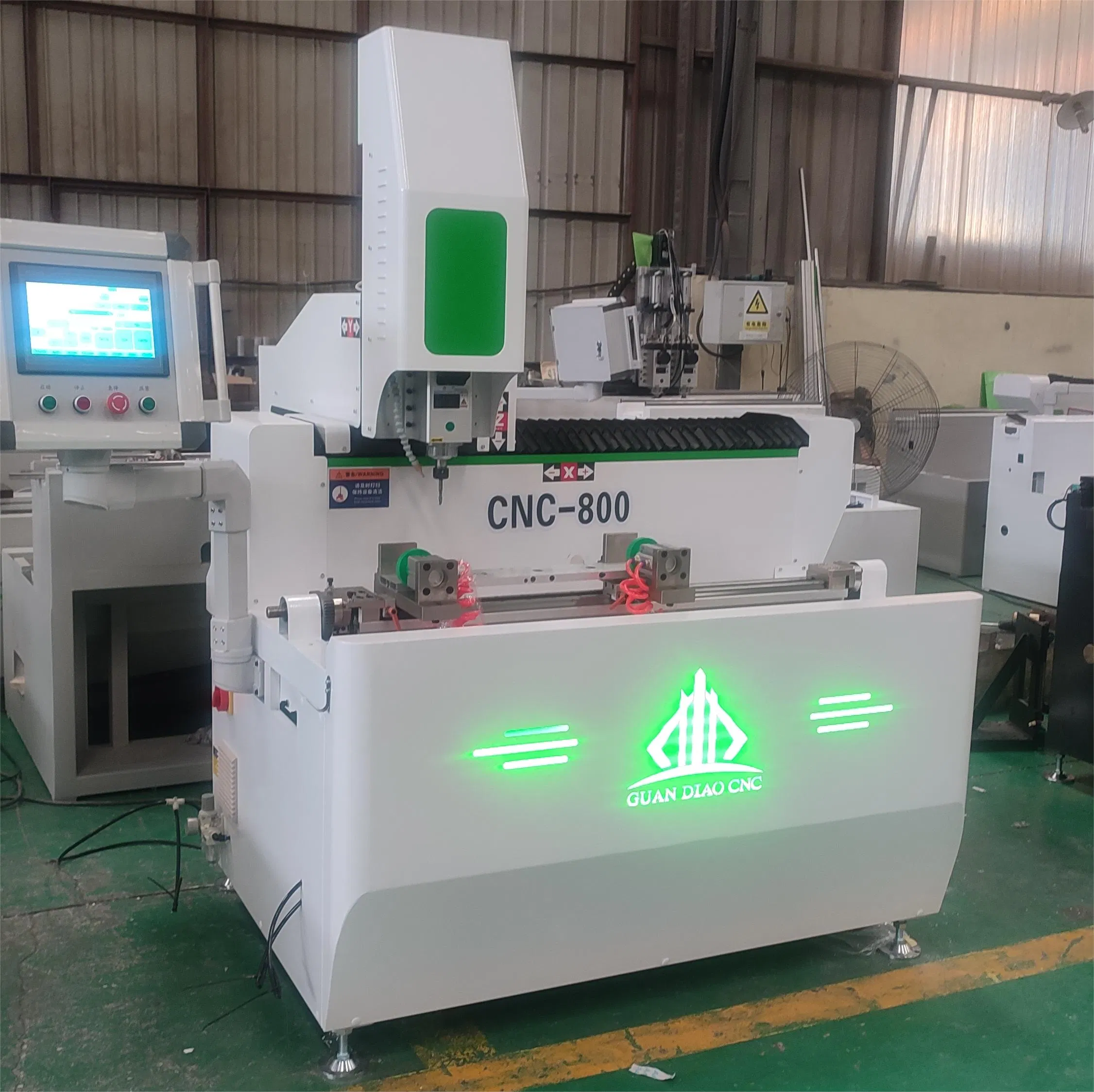

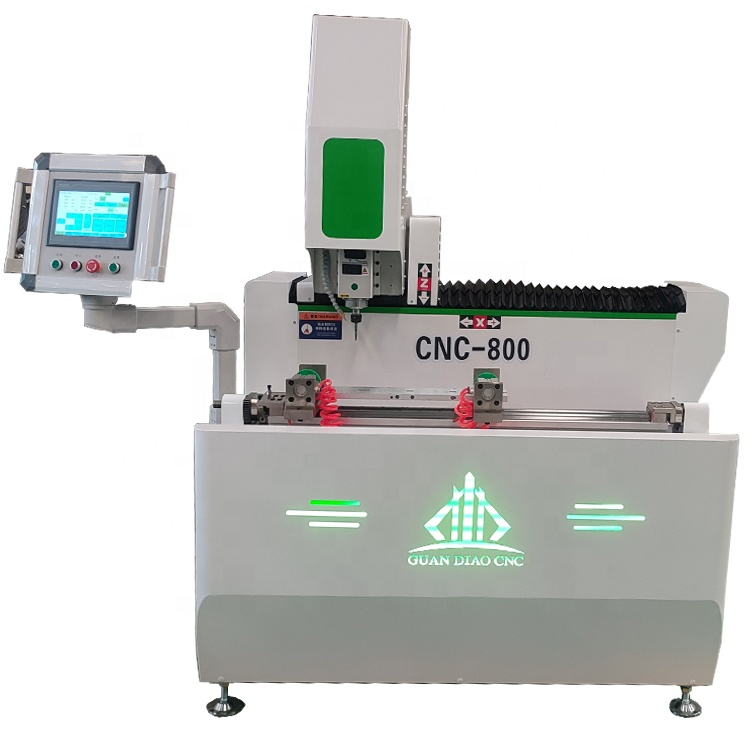

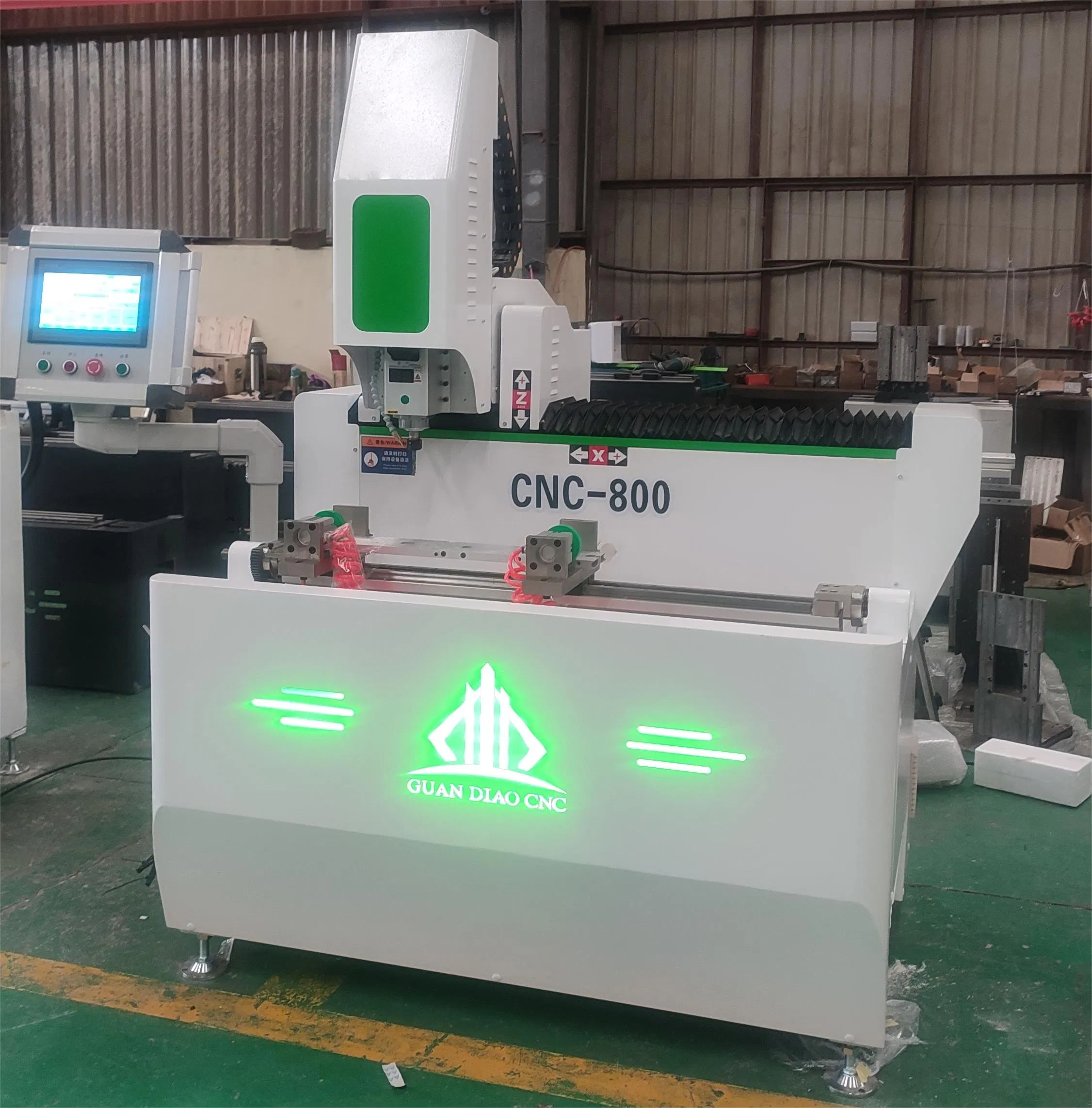

Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
1 / 5
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine
Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine

Aluminum/UPVC/PVC Automatic Window and Door Profile CNC Door Lock Hole Drilling Milling Cutting Machine

Customization: Available
After-sales Service: Free Replacement Accessories
Warranty: 1 Year
Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.
GD-CNC-800
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Spindle Power
3.5kw
Transmission
Taiwan High Precision Ball Screw
Spindle Rpm
1000-24000
Working Pressure
0.5-0.6MPa
Rolling Angle
180°/360°
Origin
China

🛠️ Product Description

Metal CNC Drilling Machine for Aluminum Profile

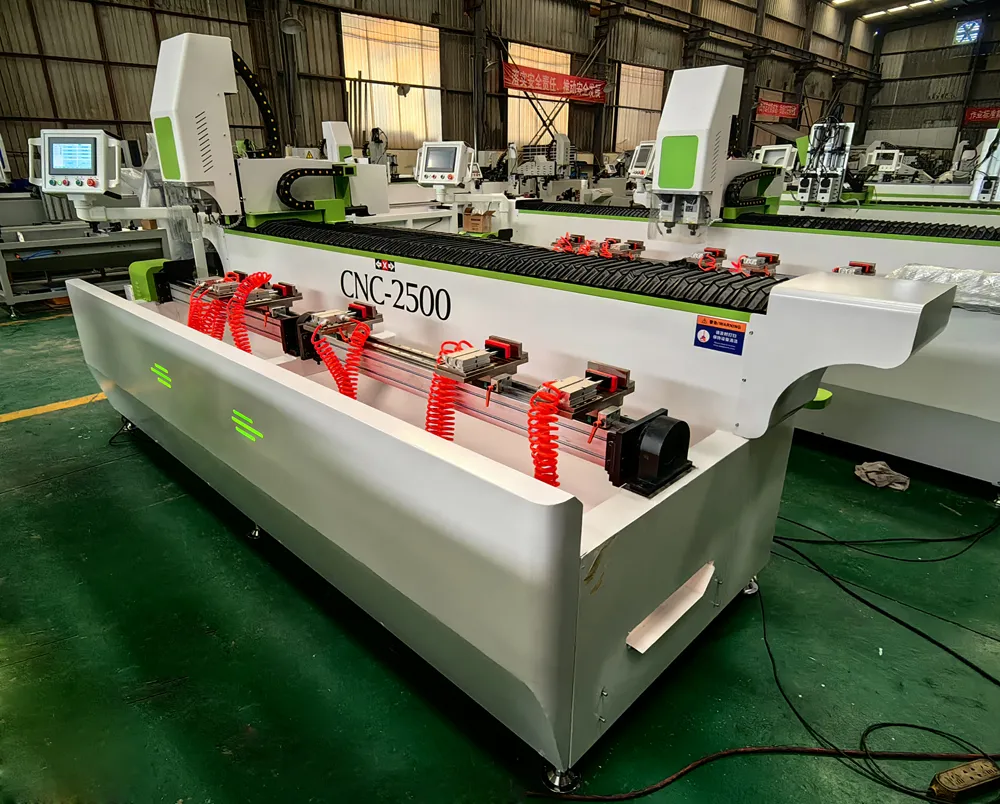

CNC Drilling Machine
Aluminum Profile CNC Machine

The GD-800/1000/2000/2500 series automatic CNC drilling machine is designed for aluminum profile processing. It features a ball bearing movement device, high-precision linear guides, and a servo motor system to ensure stable operation and precise positioning. The X-axis utilizes a rack and pinion drive, while the Y and Z axes are driven by high-precision guide screws.

Key Features:
1
CNC specific system for easy operation and high stability.
2
Thickness welded bed with sheet metal spray and integrated light strips.
3
High-precision electric spindle with excellent safety and reliability.
4
X-axis helical gear/rack drive; Y/Z axis high-precision ball screw drive.
5
Worktable turns from -90°, 0° to +90°, allowing three-surface milling in one clamping.

📋 Technical Specifications

StructureLathe bed adopts strong welded steel tube to avoid distortion.
Control SystemCNC control system (Optional JD, DSP, or Mach 3 USB).
Spindle Power3.5kw HQD/WHD Powerful Spindle.
Guide RailTop Brand Square Linear Rail (Hiwin 20), high accuracy.
Spindle RPM1000-24000 rpm.
Working Area X800 / 1200 / 1500 / 2000 / 3300mm.
Working Area Y/Z150 / 200 / 350 / 400mm.
Rolling Angle180° / 360° Optional.

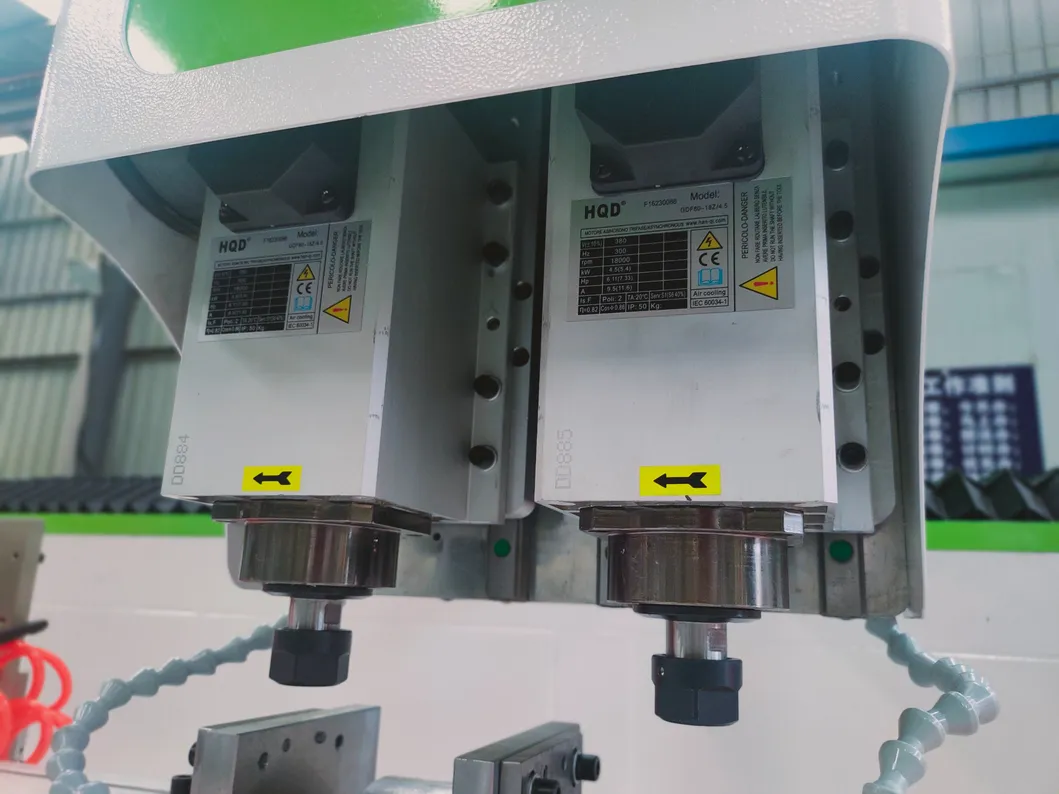

Powerful Spindle

HQD/WHD Powerful Spindle
High speed for wood, PVC, aluminum, and soft metals.

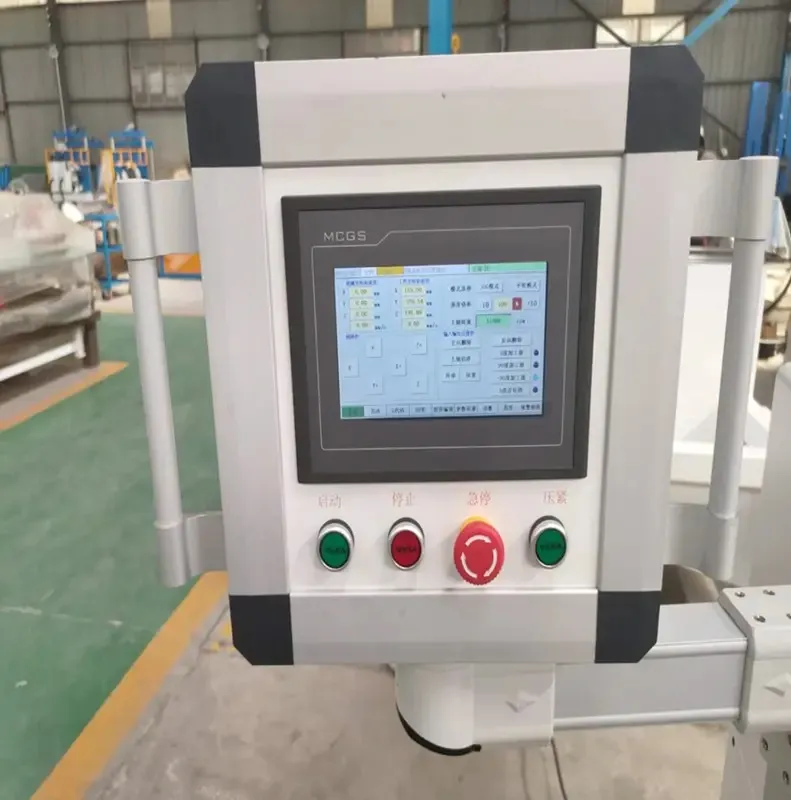

PLC Controller

Intelligent Controller
Easy to operate PLC/NC Studio system.

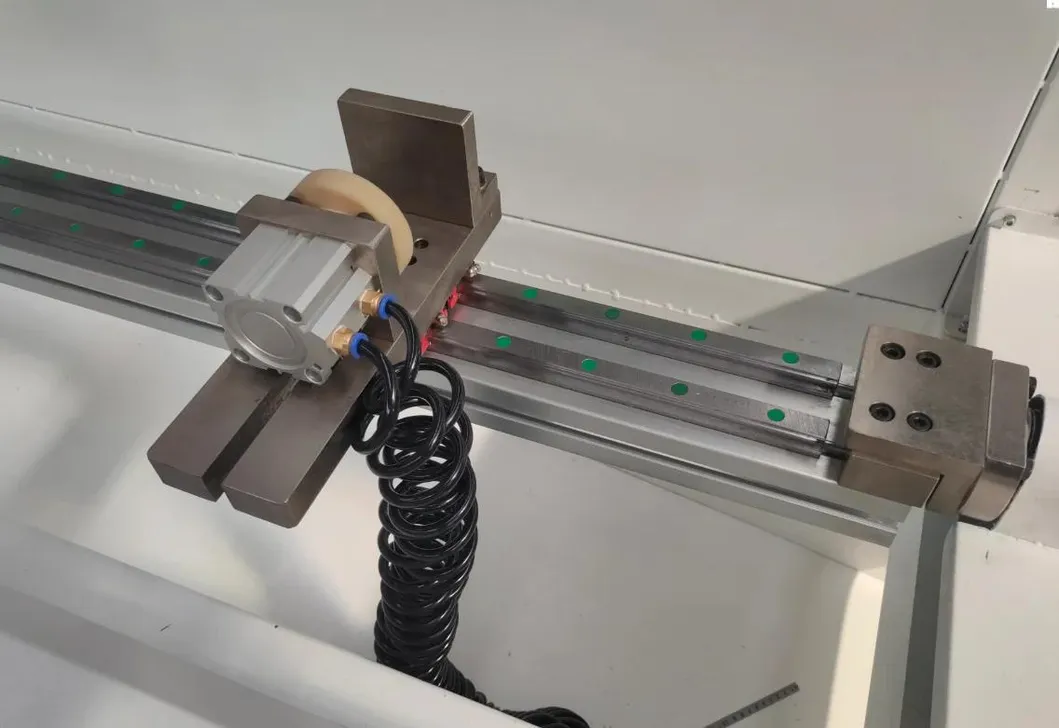

Square Guide Rail

Square Guide Rail
High precision Hiwin 20 guides for stability.

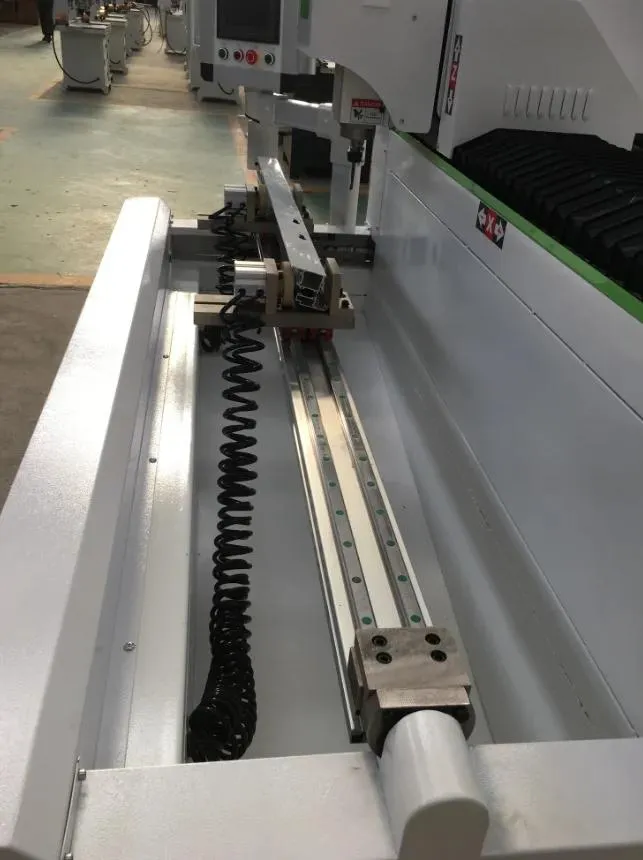

4th Axis Rotary

Optional Rotary Axis
Supports 4-axis/5-axis for cylindrical materials.

🎯 Application Samples

Suitable for drilling, milling, round holes, and special holes in aluminum alloy profiles, as well as flat engraving and other precision processing.

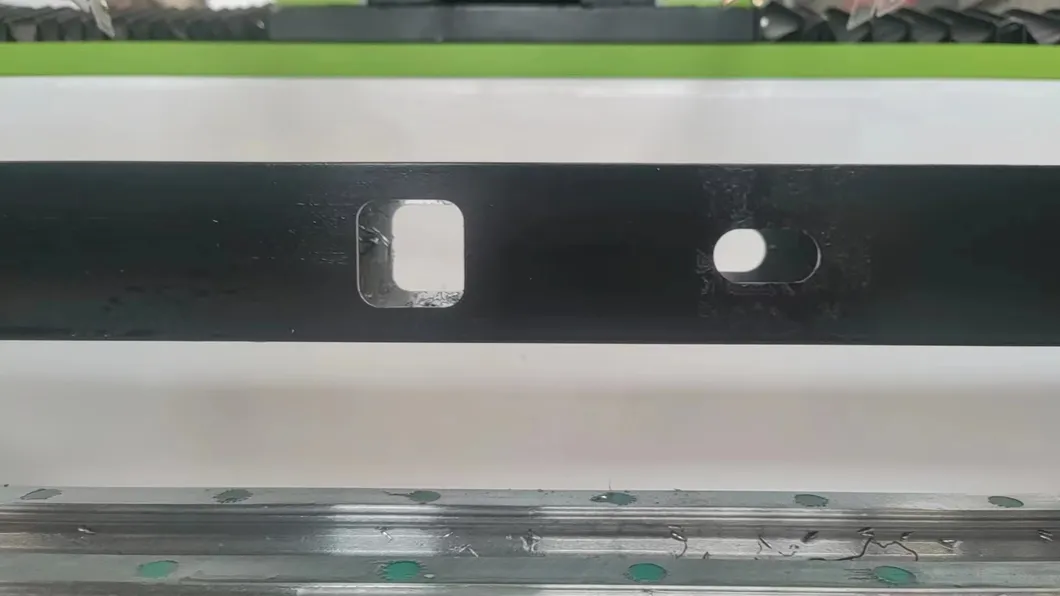

Sample 1

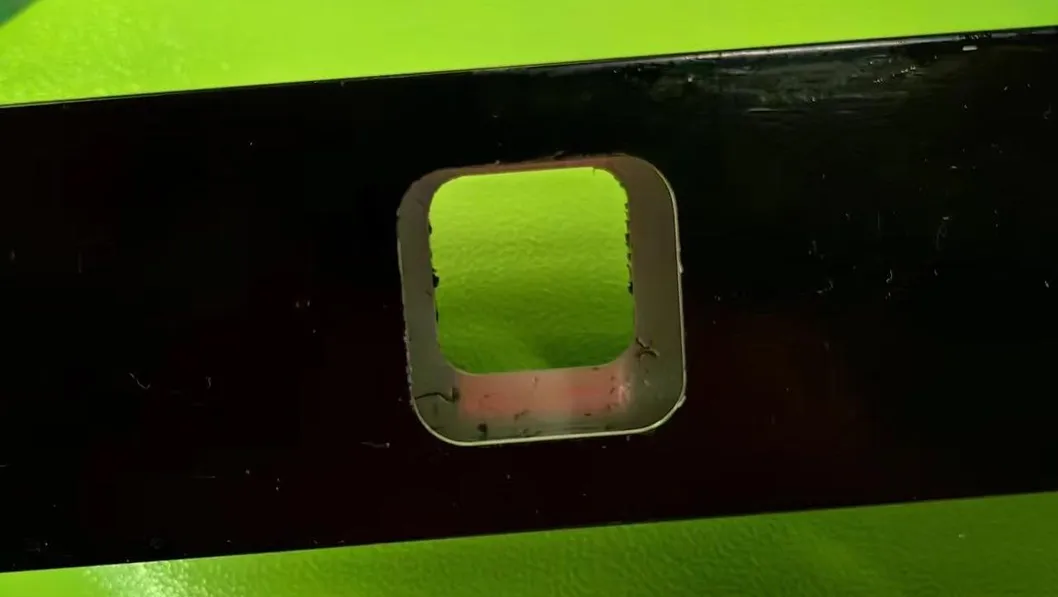

Sample 2

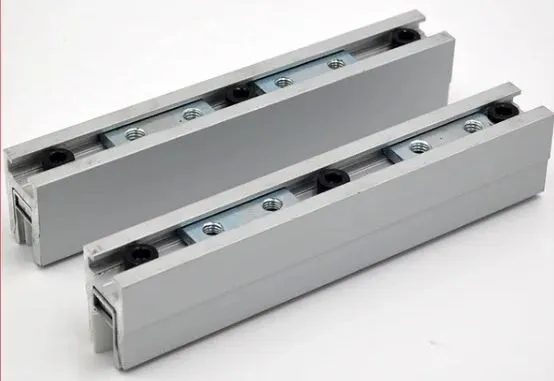

Sample 3

📦 Service & Support

1. Delivery: Properly packed in containers or wooden cartons for safe transportation.
2. Warranty: 12-month warranty. Free spare parts provided under normal maintenance conditions.
3. Technical Support: 24-hour online support via video, manual, and digital communication tools.

❓ Frequently Asked Questions

Q1: What materials can this CNC machine process? A: It is specifically designed for aluminum profiles, but can also handle PVC, wood, copper, and other soft metals.
Q2: Can the machine process multiple sides of a profile? A: Yes, the worktable can rotate between -90°, 0°, and +90°, allowing for three-surface milling in a single clamping.
Q3: What is the spindle speed range? A: The high-speed electric spindle operates between 1,000 and 24,000 RPM.
Q4: Does the machine support 4-axis or 5-axis operations? A: Yes, 4-axis and 5-axis rotary options are available for processing cylindrical and complex 3D shapes.
Q5: What kind of maintenance is required for the guide rails? A: The machine includes a lubrication system for the square guide rails to ensure smooth operation and longevity.
Q6: Is the control system easy for beginners? A: Yes, it uses an intelligent integrated numerical control system with a vivid human-machine interface for easy operation.
