CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
1 / 5
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine
CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine

CNC Automatic Aluminium Window Door Machining Milling Making Mill Drill Router Drilling Extruder Welding Engraving Punching Laser Machine

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
WDJ4-CNC-7000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Spindle Power
12kw
Type
4 Axis Processing Center
Maximum Speed
24000/Min
Air Pressure
0.6-0.8MPa
Position Accuracy
±0.05mm
Capacity
1000 Sets/Year
⚙

Product Description

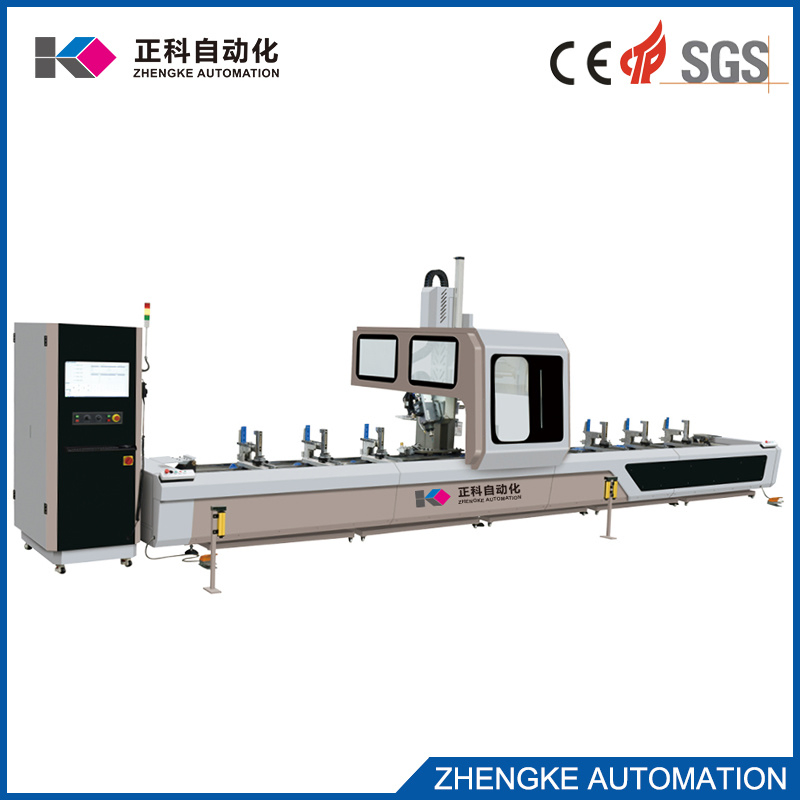

High Speed 4 Axis CNC Drilling Cutting Machinery Window and Door Making Machine

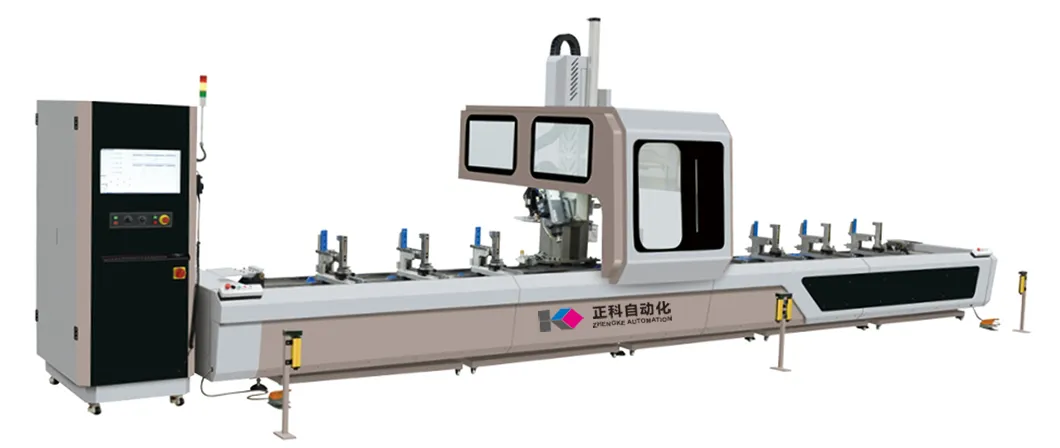

High Speed 4 Axis CNC Machine
Power supply380V / 3Phase / 50Hz or customized
Spindle power12kW
Maximum speed24000/min
Air pressure0.6~0.8Mpa
Spindle taper holeISO-30
Tool magazine formRotary tool magazine
Tool magazine capacity12
X/Y/Z axis stroke7000mm / 1500mm / 600mm
X axis feeding speed0~55m/min
Y/Z axis feeding speed0~40m/min
C-axis rotation range±110º
Machining accuracy±0.1mm/m
Overall dimension9800×2500×2800mm
Weight4500kg
★

Key Features

  • One-time Clamping: Realize multi-process processing such as milling keyhole grooves, flow grooves, and installation holes in one setup.
  • Advanced Control System: Adopts high-end machine tool numerical control system for continuous automatic milling of various profiles.
  • Software Compatibility: Conveniently import CAD drawings and connect to international window, door, and curtain wall system software (Klaes, Schüco, etc.).
  • Versatile Processing: Suitable for complex aluminum, copper, PVC, and industrial profiles used in building curtain walls and sun rooms.
  • High Precision Components: Equipped with imported servo motors, ball screws, and linear guides to ensure high stability and machining accuracy.

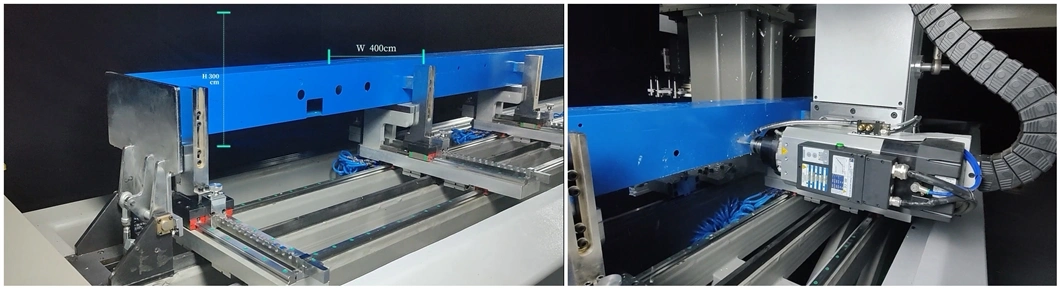

Detailed Feature 1

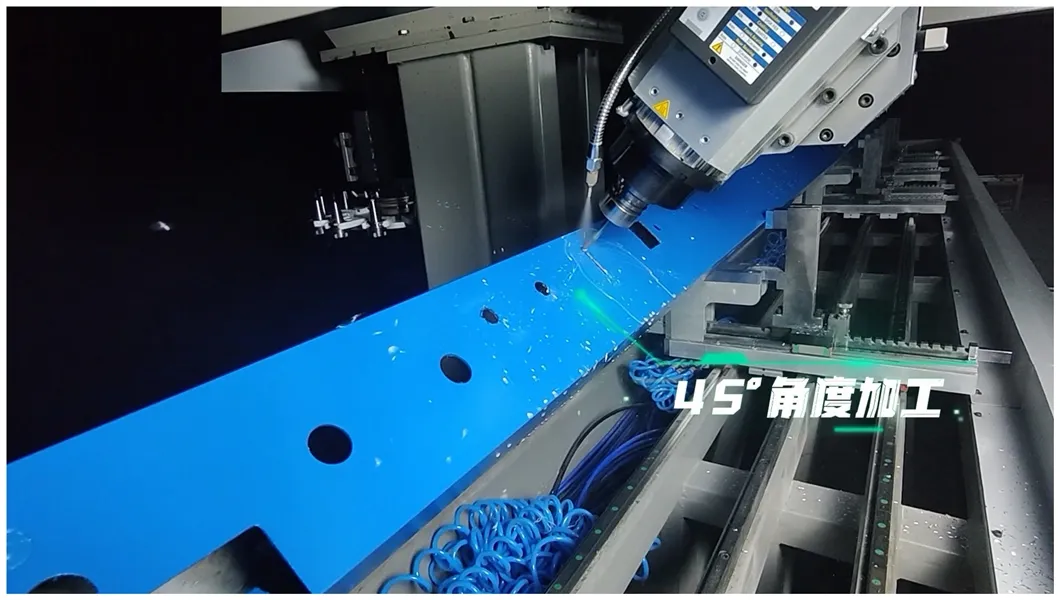

Detailed Feature 2
📷

Detailed & Sample Photos

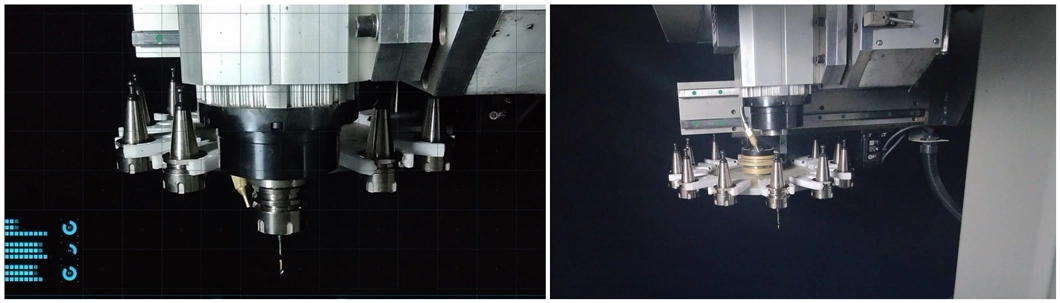

Tool Magazine

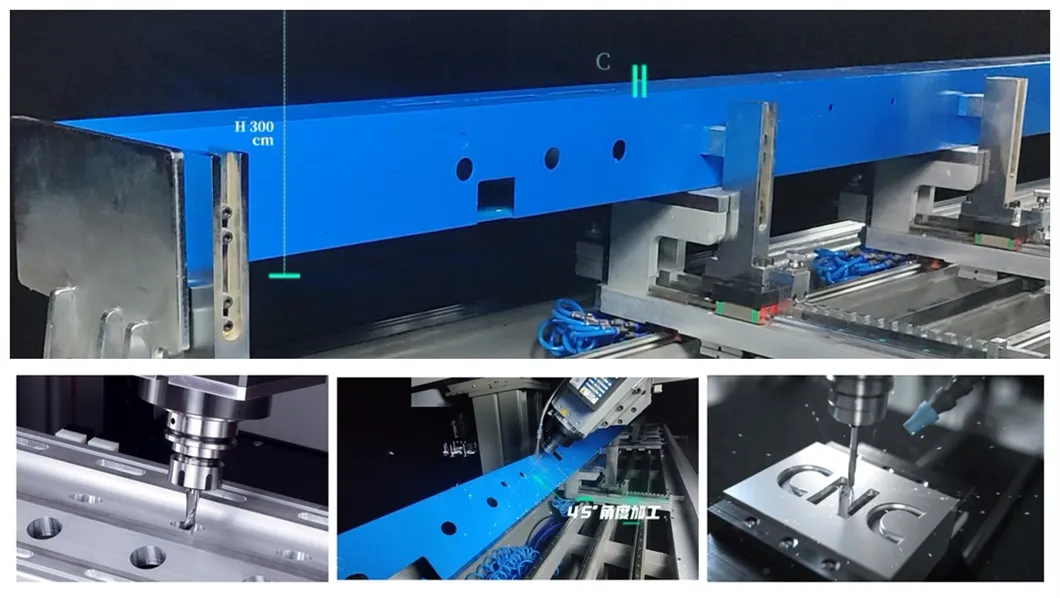

Sample Work

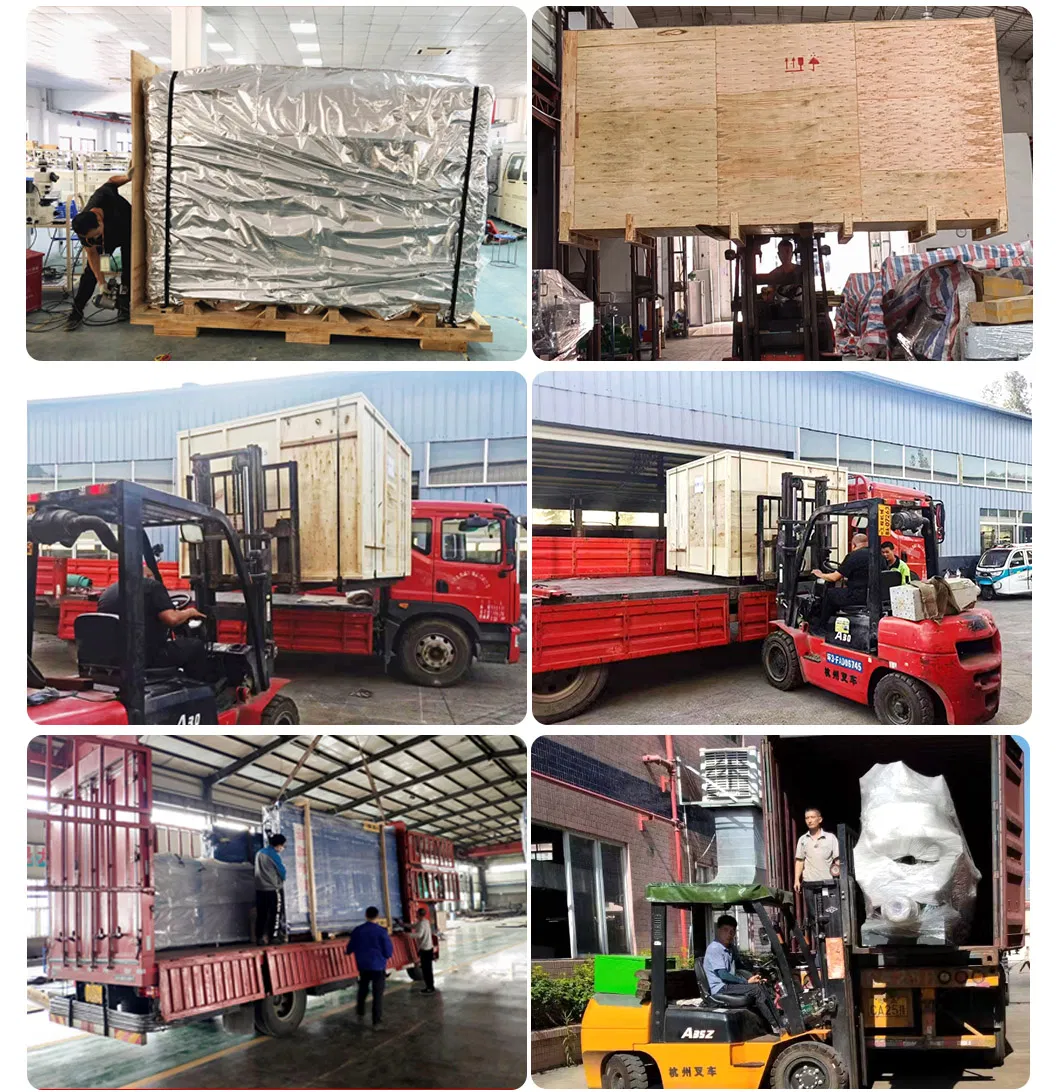

Packing Detail
✔

Capabilities & Advantages

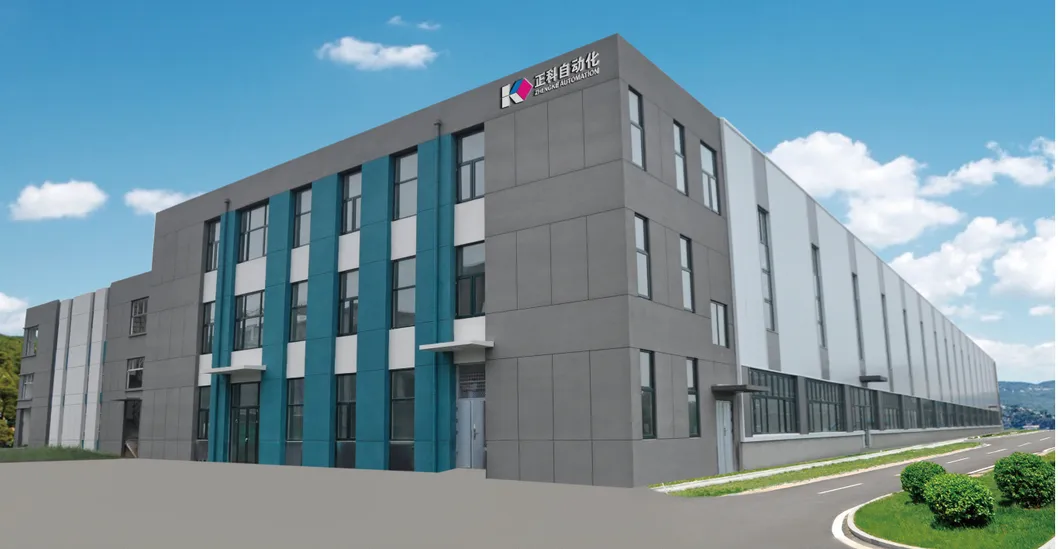

Facility Overview

Specializing in high-tech glass and profile machinery, including cutting, edging, washing, and tempering equipment. With independent technology design and R&D teams, we provide integrated solutions for modern manufacturing.

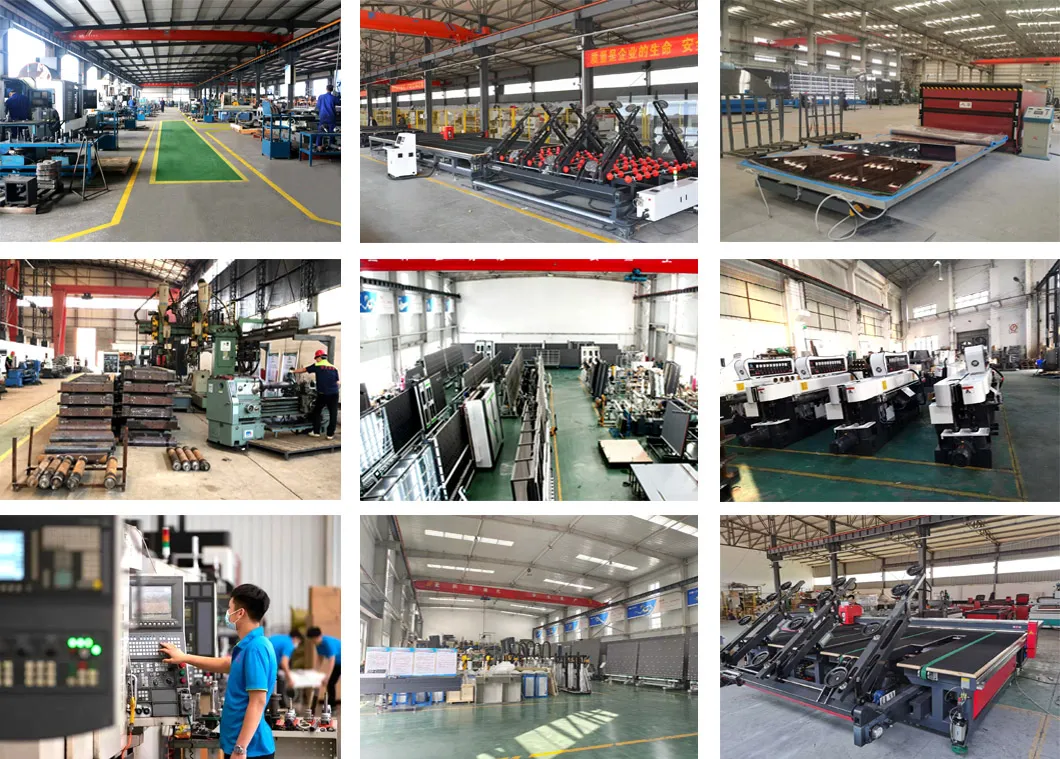

Machine Testing
  • Professional glass and profile production solutions.
  • Advanced production equipment and strict quality control systems.
  • Support for OEM & ODM, including customized designs and packaging.
  • Direct manufacturer pricing to ensure market competitiveness.
  • Efficient after-sales service including technical consulting and staff training.
Advantage 1
Advantage 2
?

Frequently Asked Questions

1. What materials can this 4-axis CNC machine process? It is suitable for processing various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.
2. Is the machine compatible with professional window and door software? Yes, it can be connected to domestic and international software such as German Klaes, Schüco, Duter, and more.
3. What is the tool magazine capacity and type? The machine features a rotary tool magazine with a capacity of 12 tools for automatic multi-process machining.
4. What is the machining accuracy of the equipment? The machine offers a repeat positioning accuracy of ±0.05mm and a general machining accuracy of ±0.1mm/m.
5. Can the machine handle large-scale profiles? Yes, the processing length is up to 7000mm, with a width of 400mm and a height of 300mm.
6. Does the system support CAD drawing imports? Yes, CAD drawings can be imported into the system conveniently to facilitate rapid programming and production.
