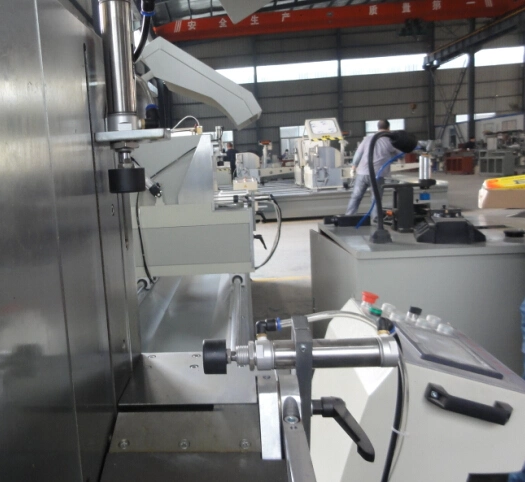

China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
1 / 5
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine
China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine

China Hot Sale UPVC Door Window Making Machinery Double Head Cutting Saw Machine

Customization: Available
Condition: New
Certification: CE
Send Inquiry

Product Description

Basic Info.

Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Input Power5.9kw
Rotary Speed2800r/Min
Air Consumption60L/Min
Cutting Length300-4200mm
Cutting Width135mm
Cutting Height200mm
Cutting Angle45 and 90 Degree
Weight1850kg
OriginChina

Product Description

Double Head Cutting Saw Machine for UPVC Door Window Making

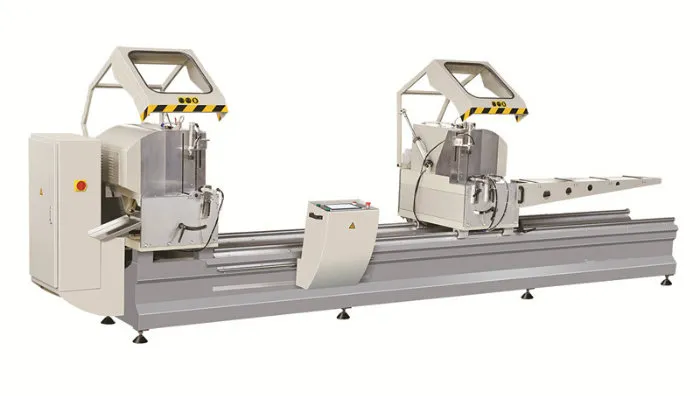

Double Head Cutting Saw Machine
1For cutting Aluminum profile.
2The feeding system adopts imported linear guide pair, with high accuracy and stability.
3Auto 45°and 90°cutting change.
4Imported linear guiding pair ensured steady processing accuracy.
5Saw blade rotates smoothly due to high accuracy spindle.
6Hydraulic feeding systems ensure precise and stable feeding.
7Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8Carbide saw blade is of accurate processing and high efficiency.
9Two heads can work together or single, when together work, one time can cut off the required length and angle.

Technical Parameters

SpecificationDetails
Power supply3N~50Hz 380/220V or As Customer Specification
Cutting motor power5.9KW
Rotary speed2800r/min
Operation air pressure0.5~0.8MPa
Air consumption60L/min
Blade specificationø500×ø30×4.4×Z120
Cutting speedstepless speed regulation 0~3m/min
Max. cutting length4200 mm
Min. cutting length400 mm
Cutting widthmax 135mm
Cutting height90°: max 300mm; 45°: max 200mm
Repeat locating tolerance±0.2mm
Weight1850KGS

Machine Details

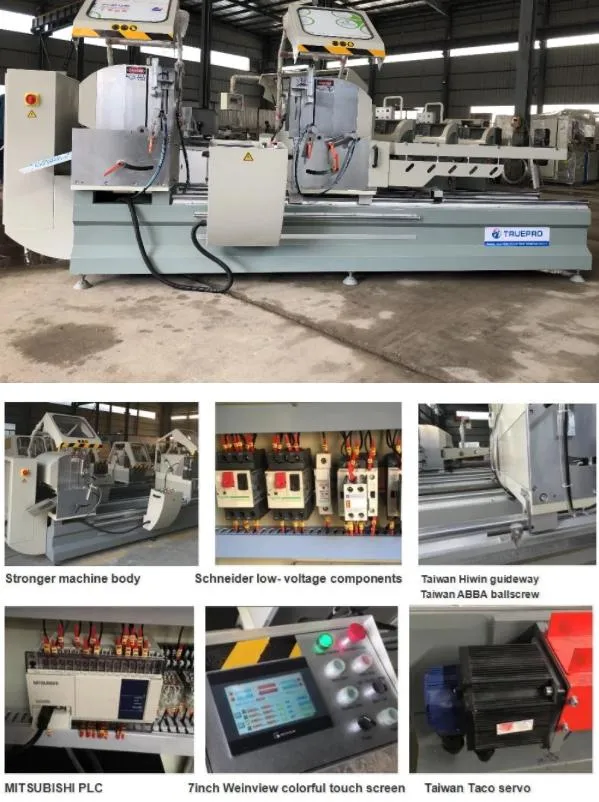

Machine detail 1
Machine detail 2
Machine detail 3

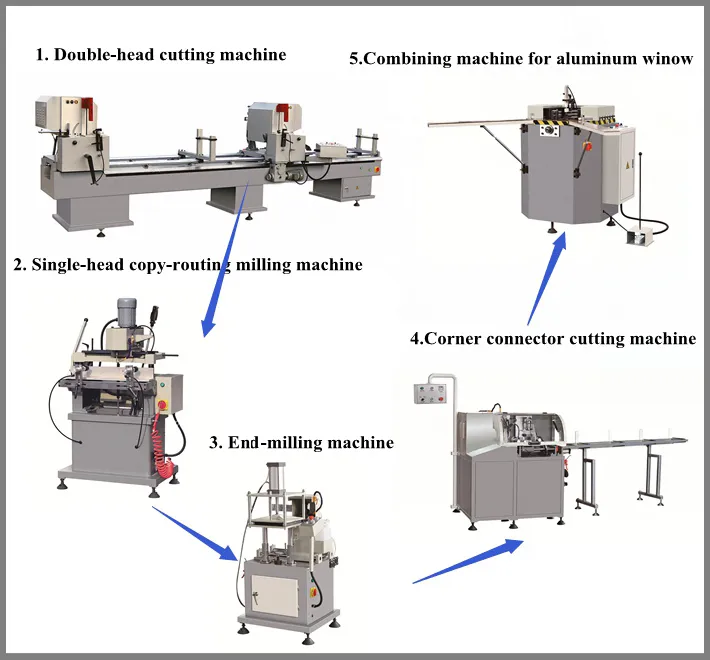

Machine structure

Our Service

Pre-sale Service

• Free contact for the most suitable machine selection.

• Free professional design for each customer especially.

After-sale Service

• 24 hours technical support by phone or email.

• 1 year warranty period.

• Engineers available for abroad installation, maintenance and training.

Payment Methods

• L/C, 30% deposit by T/T, 70% balance L/C.

• T/T, 30% deposit, 70% before shipment.

• Western Union or Paypal.

Frequently Asked Questions

When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines may require more than 25 days.
What can you do if my machines have problems?
1) We can send you free components if your machines are within the guarantee period. 2) We can dispatch our engineers to repair your machines.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All our engineers have passports for international travel.
How many basic machines are needed for Aluminum window and door making?
You would typically need: 1) Double head cutting saw; 2) Lock hole copy milling machine; 3) End milling machine; 4) Automatic corner connector cutting saw; 5) Single head corner combining machine.
What is the warranty period for the machinery?
We provide a 1-year warranty period for our machinery, along with 24-hour technical support to ensure your production remains stable.
Is trade assurance available for orders?
Yes, we support trade assurance which protects your payment safety and ensures the quality of the machinery delivered.
