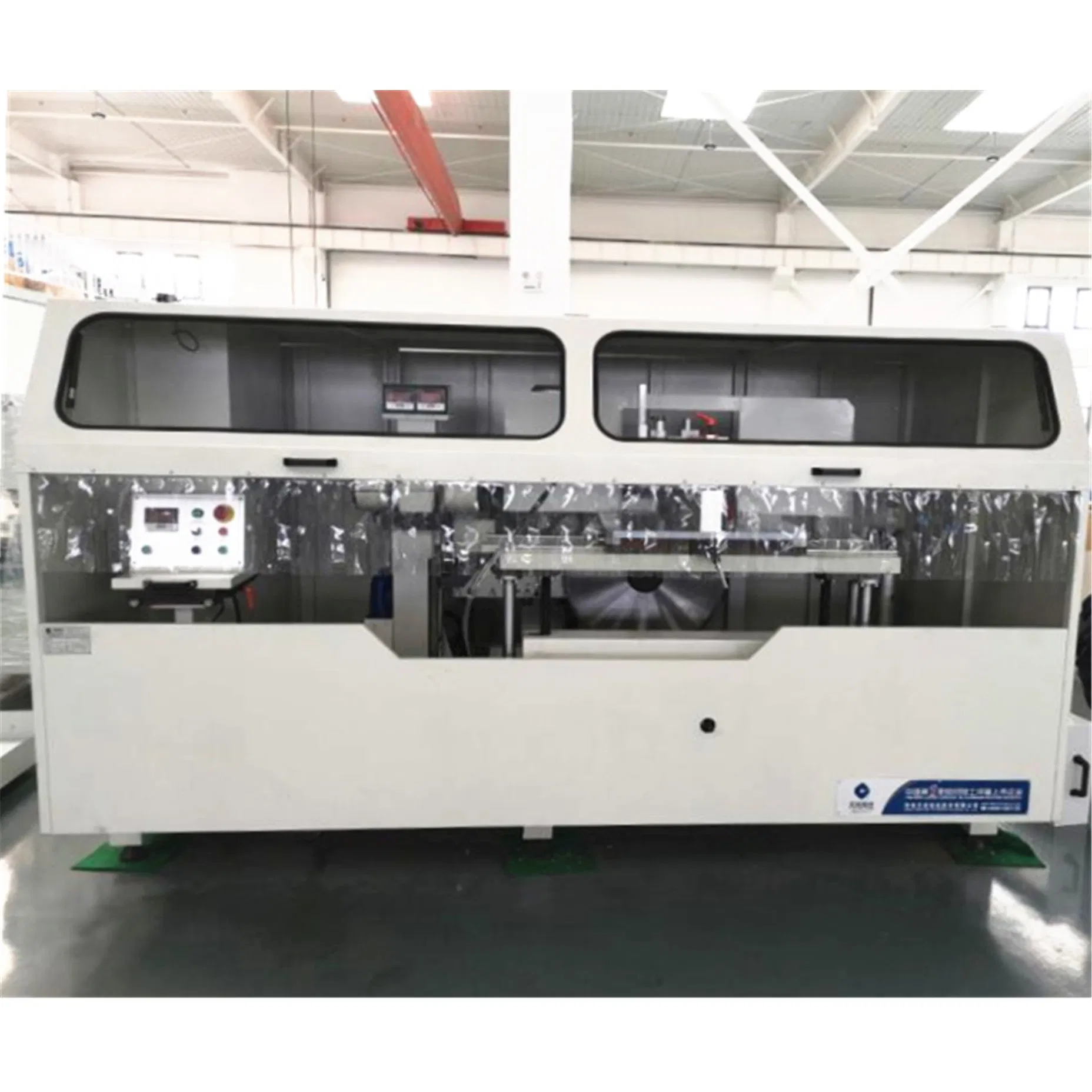

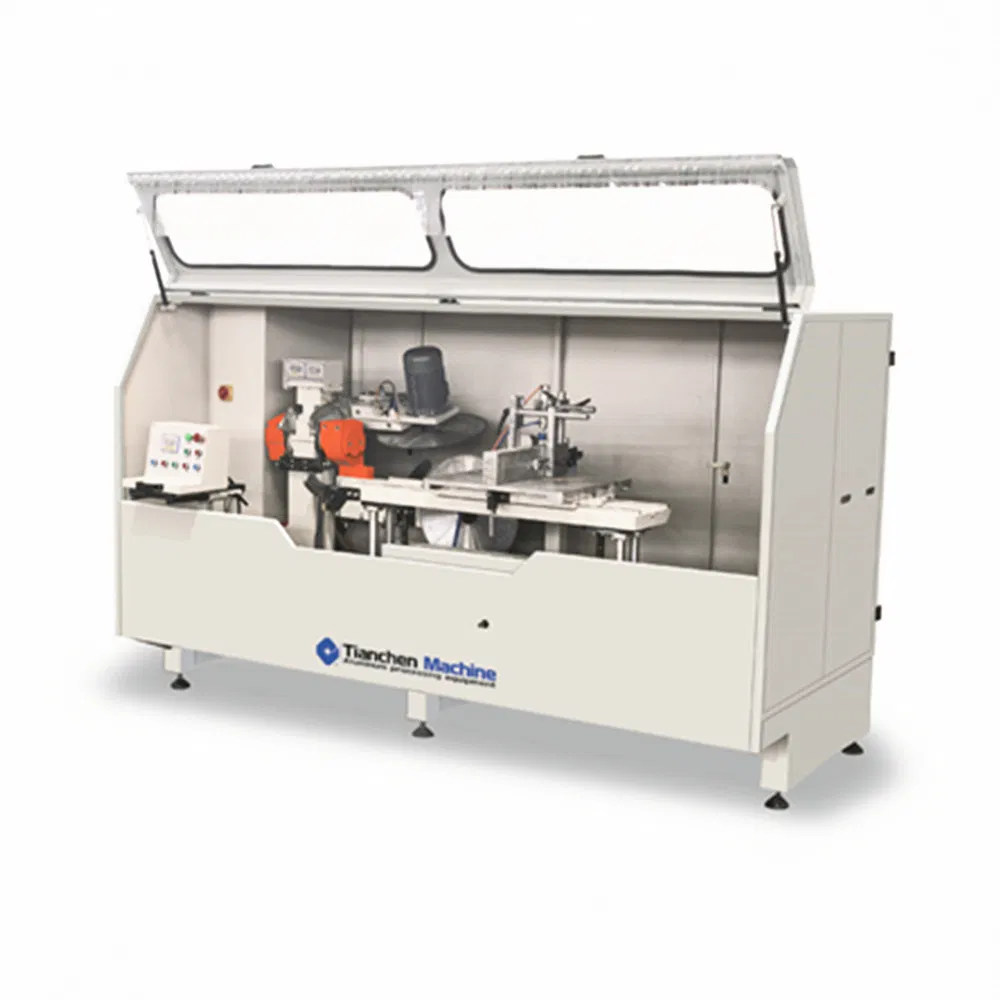

Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
1 / 5
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing
Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing

Aluminum Profile Curtain Wall Notching Saw Machine for Facade Processing

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
LJKA-600
Automatic Grade
Semi-Automatic
CNC or Not
not CNC
Voltage
Customized
Cutting Motor Power
3.0kw X 2
Motor Rotary Speed
2800r/Min
Saw Blade Swinging
0-45 Degree
Cutting Depth
220X180mm
Feeding Speed
0-3m/Min
Saw Blade (H)
Dia:500X30X4.4X3.8
Saw Blade (V)
Dia:600X30X4.8X4.2
Weight
1500kg
Warranty
12 Months
Production Capacity
200 Sets Per Month
⚙️

Aluminum Profile Curtain Wall Notching Saw Machine

Aluminum Profile Notching Saw Machine

Main Features

  • Designed specifically for aluminum curtain-wall and lighting skylight processing with special angles at the profile end surface.

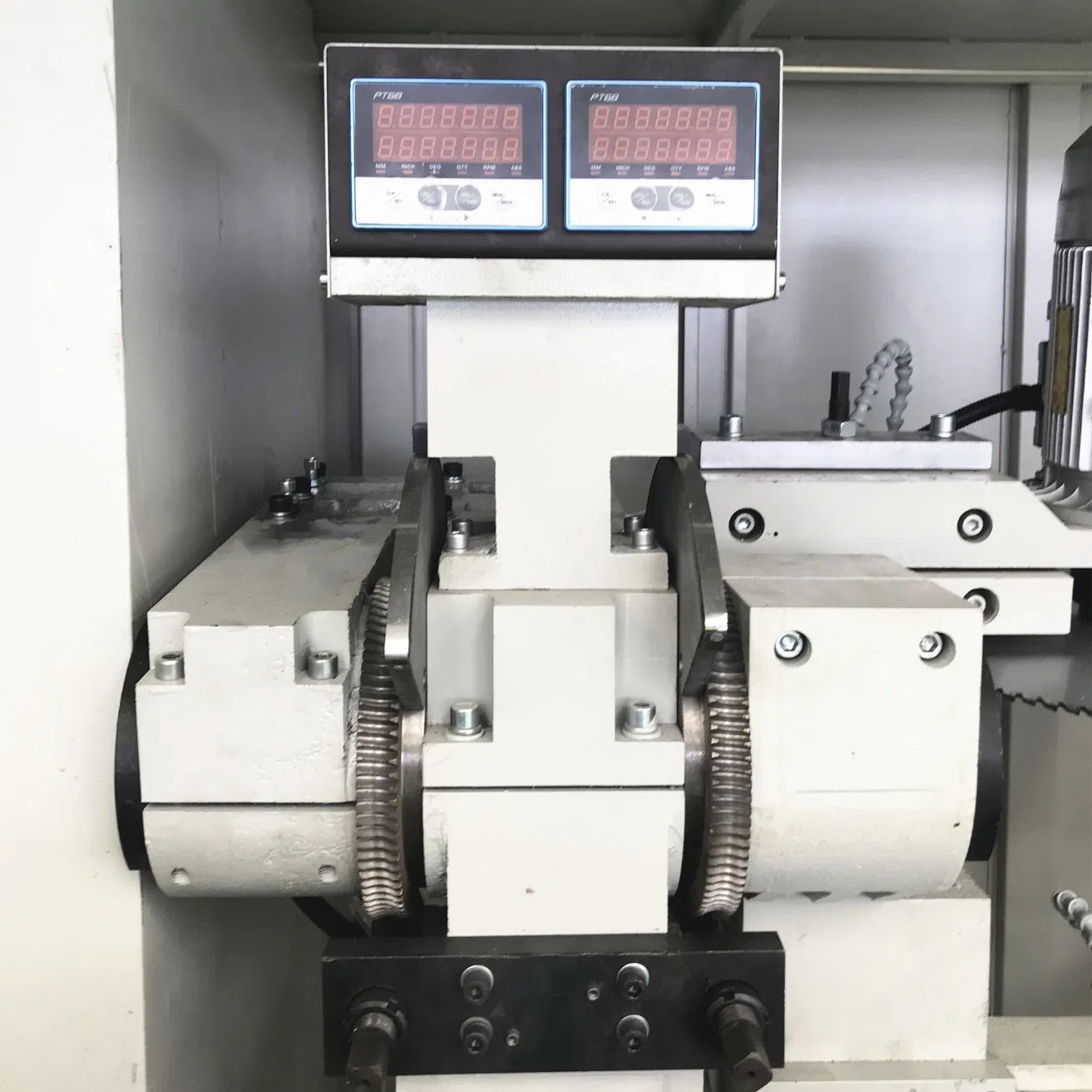

  • Equipped with a magnetic ruler control system for digital display of cutting angle and worktable height.

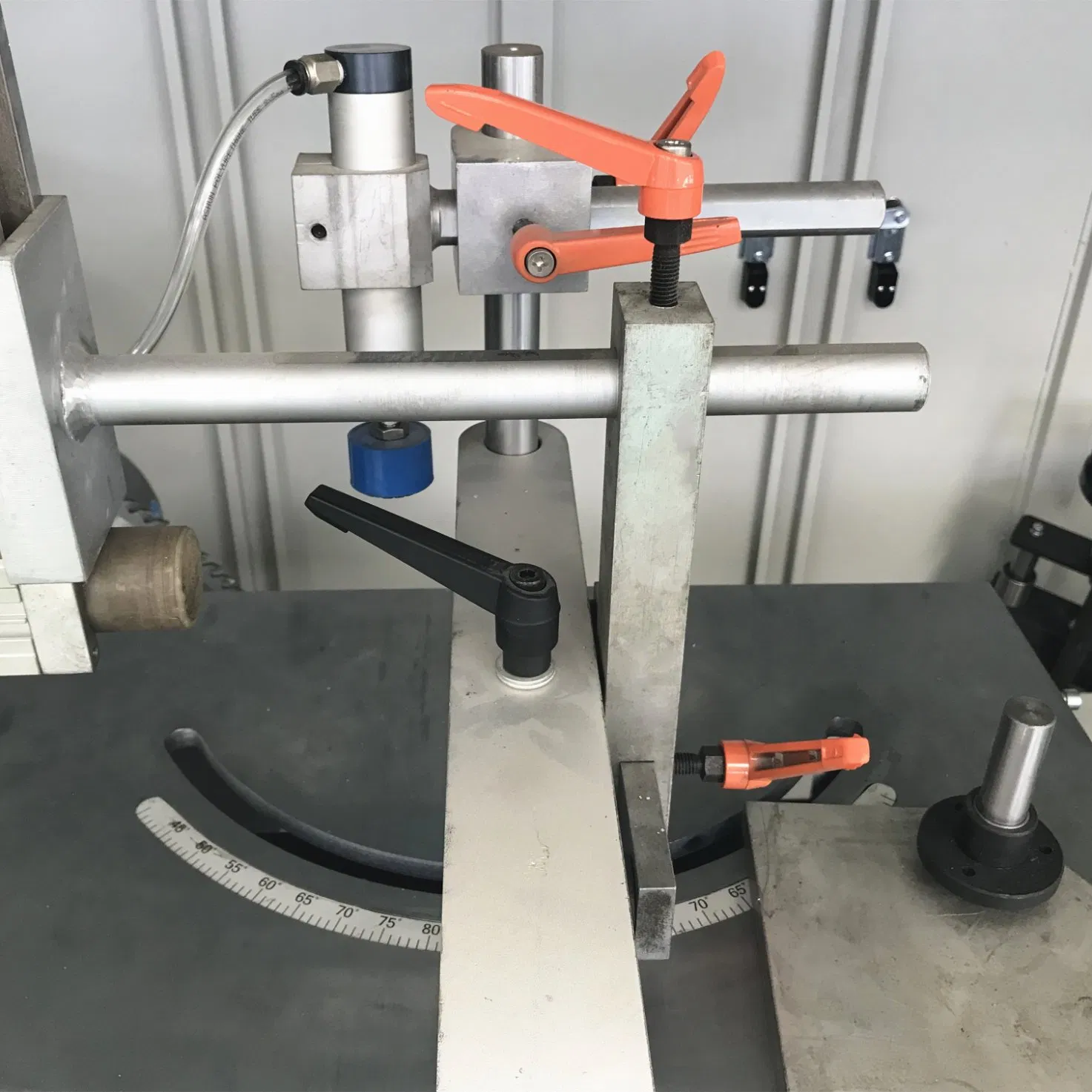

  • Convenient adjustment of worktable and locating device to achieve precise end surface angle processing.

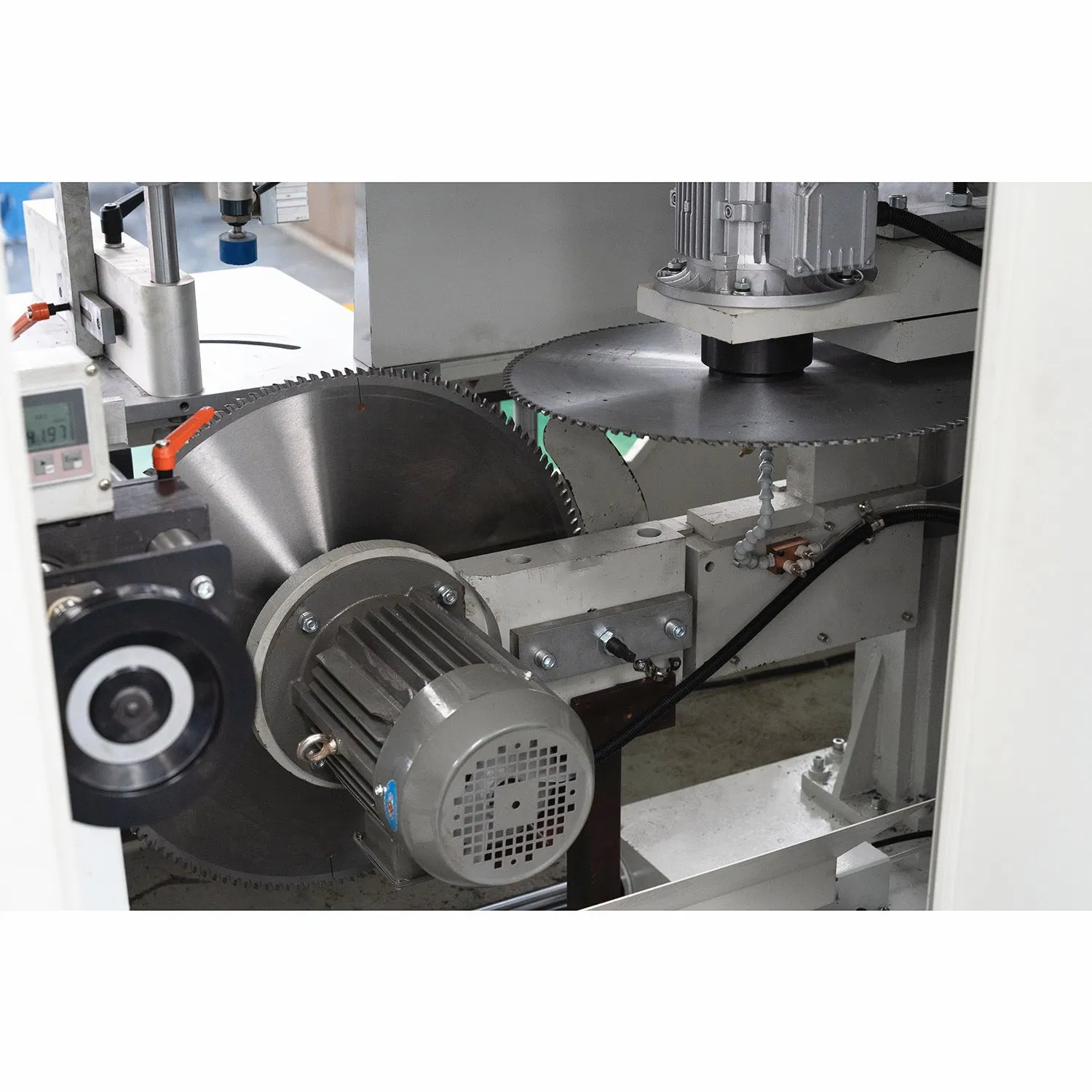

  • Dual saw blades capable of swinging freely within a range of 0° to 45°.
📊

Technical Parameters

Item Specification
Cutting Motor Power3.0kW * 2
Motor Rotating Speed2800 r/min
Saw Blade Swinging Range0° ~ 45°
Cutting Depth (V/H)220 * 180mm
Cutting Width300mm
Feeding SpeedStepless 0 ~ 3m/min
Saw Blade Specification600 * 300 * 4.8 * 4.2mm Z=144
Dimensions3500 X 1550 X 1800 mm
WeightApprox. 1500kg

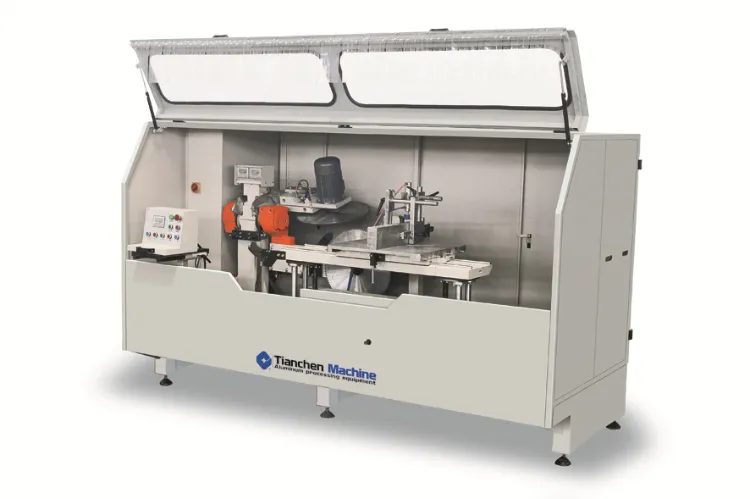

Facade Processing Detail
Machine Detail 1 Machine Detail 2 Machine Detail 3
❓

Frequently Asked Questions

Q1: What is the primary use of the LJKA-600 notching saw?
It is specifically designed for processing aluminum curtain-walls and lighting skylights, particularly for cutting special angles at the profile end surfaces.
Q2: How is the cutting accuracy controlled?
The machine features a magnetic ruler control system which provides a digital display for both the cutting angle and the worktable height for high precision.
Q3: What is the swinging range of the saw blades?
The two saw blades can swing freely from 0° to 45°, allowing for versatile angle processing.
Q4: What are the motor specifications?
The machine is equipped with two cutting motors, each with a power of 3.0kW, operating at a rotary speed of 2800 r/min.
Q5: Is the feeding speed adjustable?
Yes, the cutter feeding speed features stepless speed regulation, ranging from 0 to 3 meters per minute.
Q6: What are the maximum cutting dimensions?
The machine can achieve a cutting depth of 220x180mm (vertical and horizontal) and a cutting width of up to 300mm.
