🔹 Basic Information
Main Motor Speed
3000r/Min
Working Air Pressure
0.6~0.8MPa
Package Size
2500*1300*1800mm

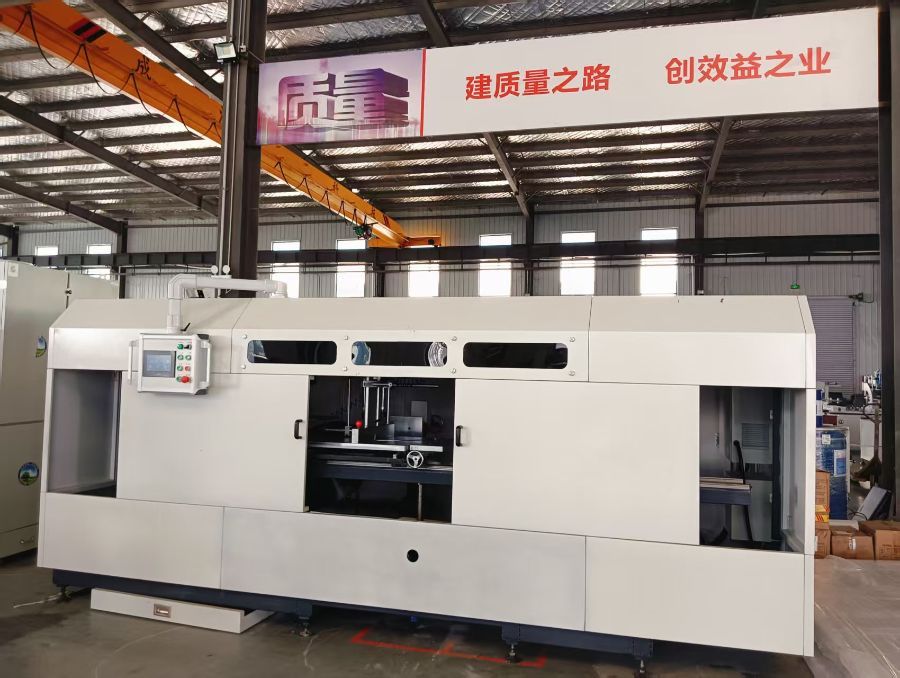

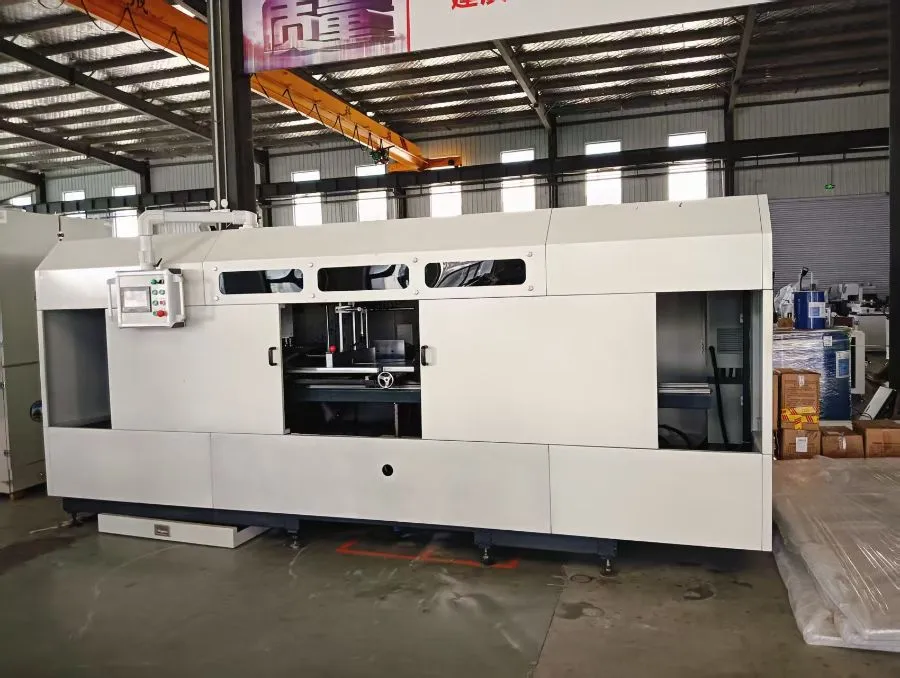

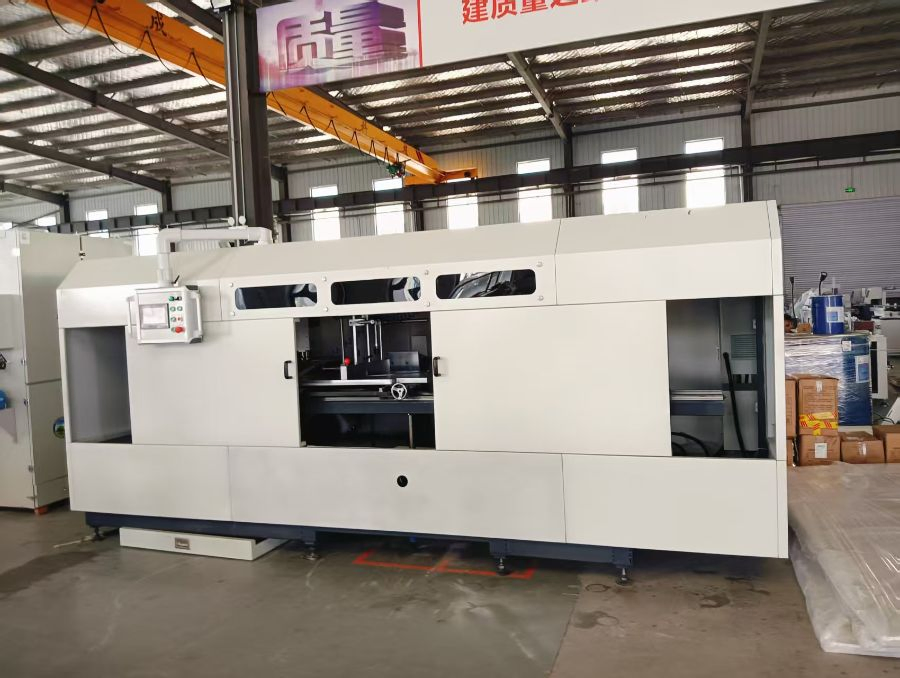

⚙️ Product Description: Aluminum Facade Notching Saw
01
Mainly used for interface processing of aluminum alloy profiles and plastic profiles.
02

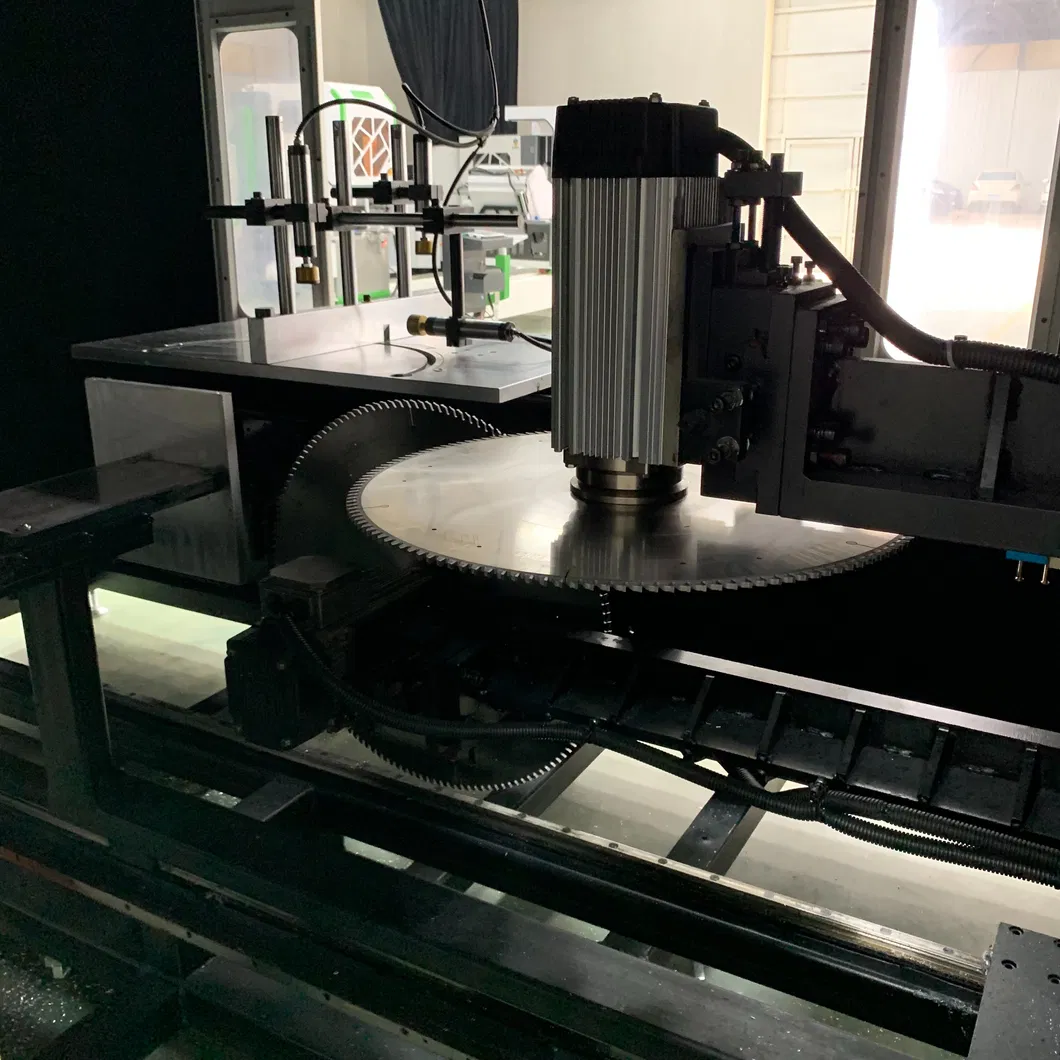

Equipped with hard alloy saw blades (outer diameter up to Φ 600) for high processing accuracy and smoothness.
03

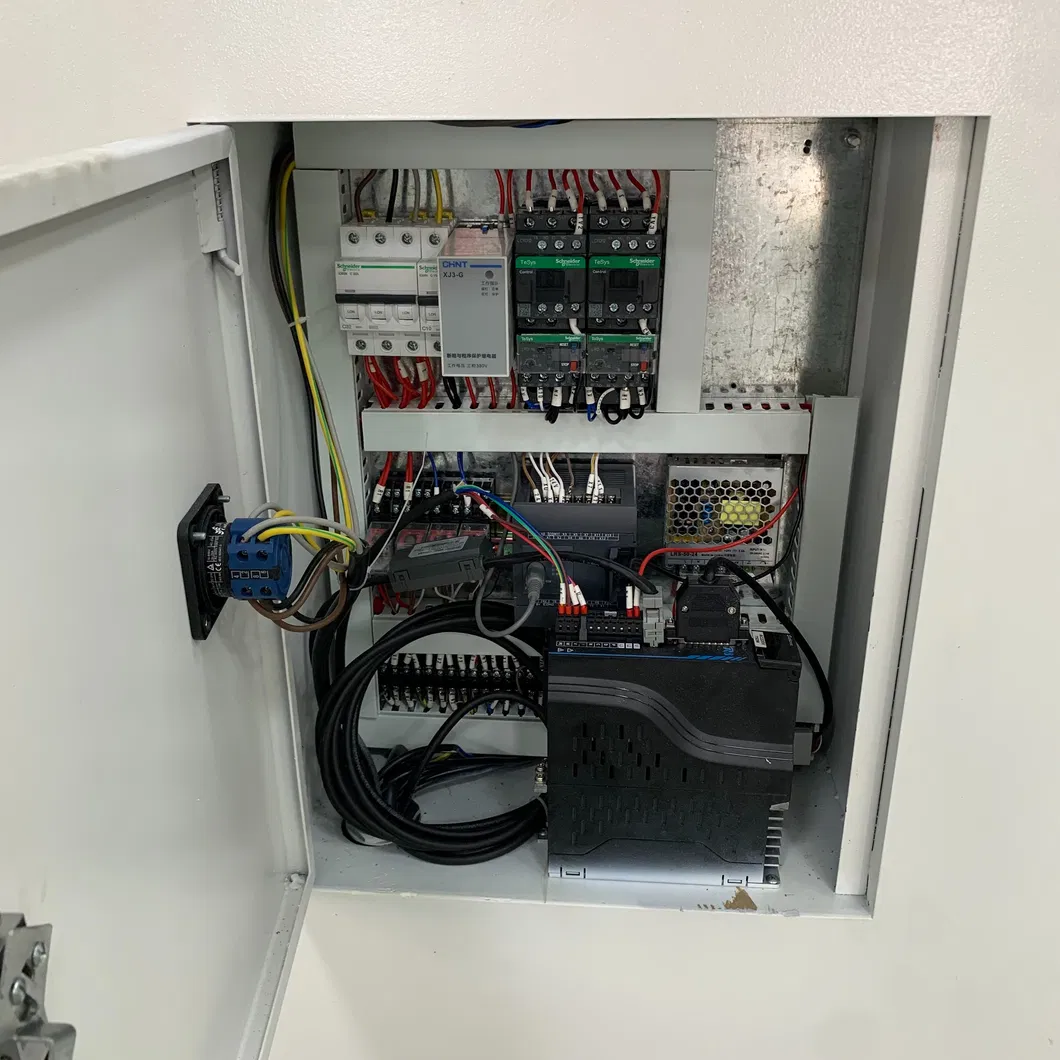

Utilizes a high-precision sawing spindle motor and Panasonic PLC controller for superior stability.
04
Features variable frequency feed and dual frequency control; saw blade stops within 15 seconds for safety.
05

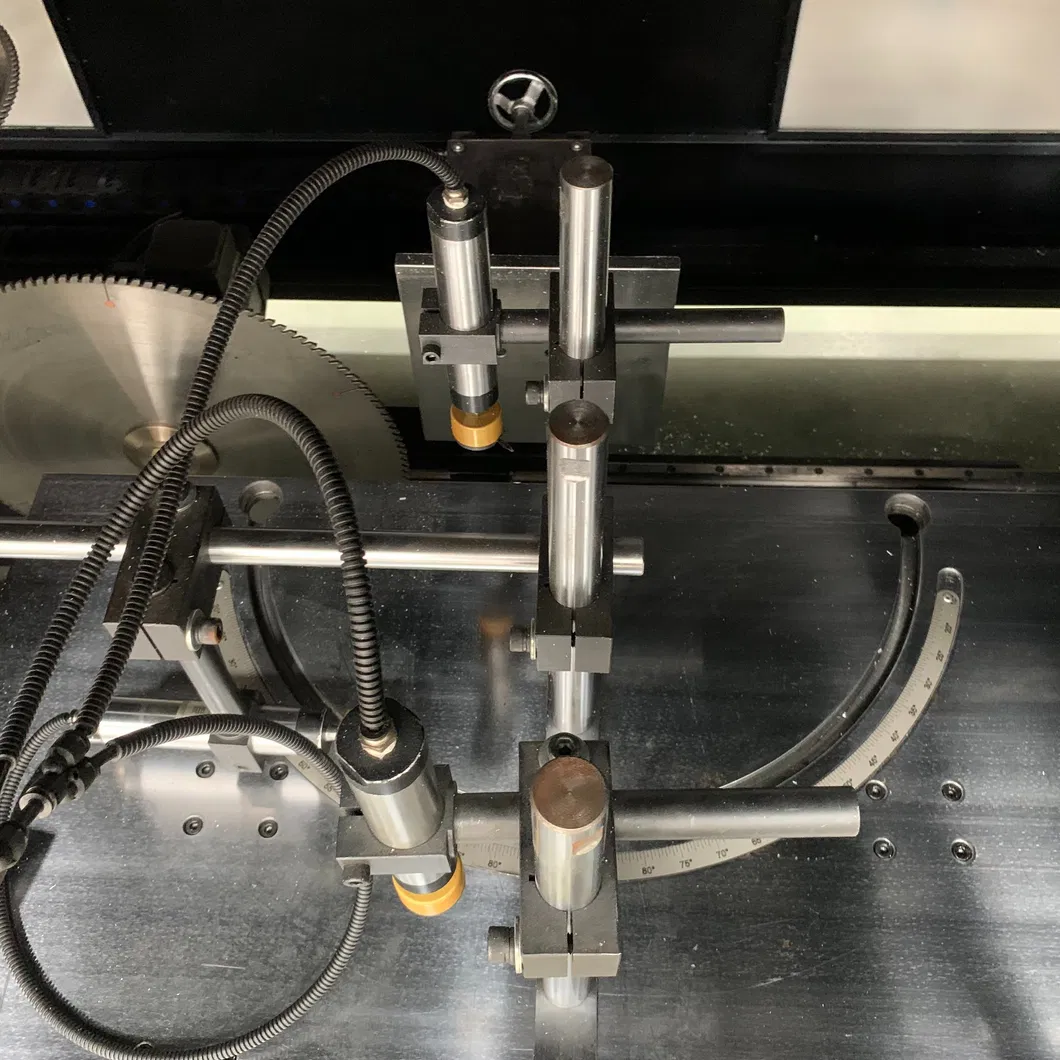

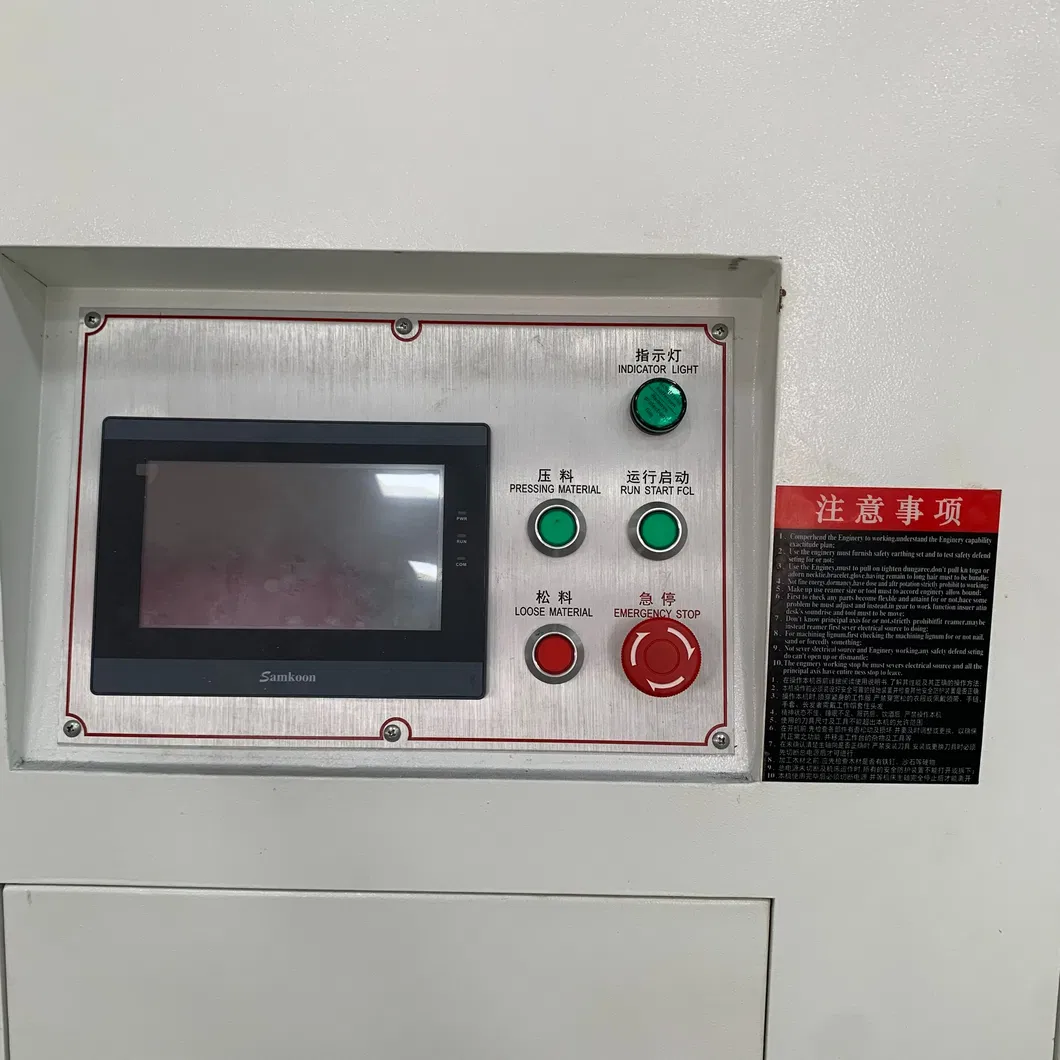

Equipped with 5 sets of digital display devices for precise adjustment of material processing angles.

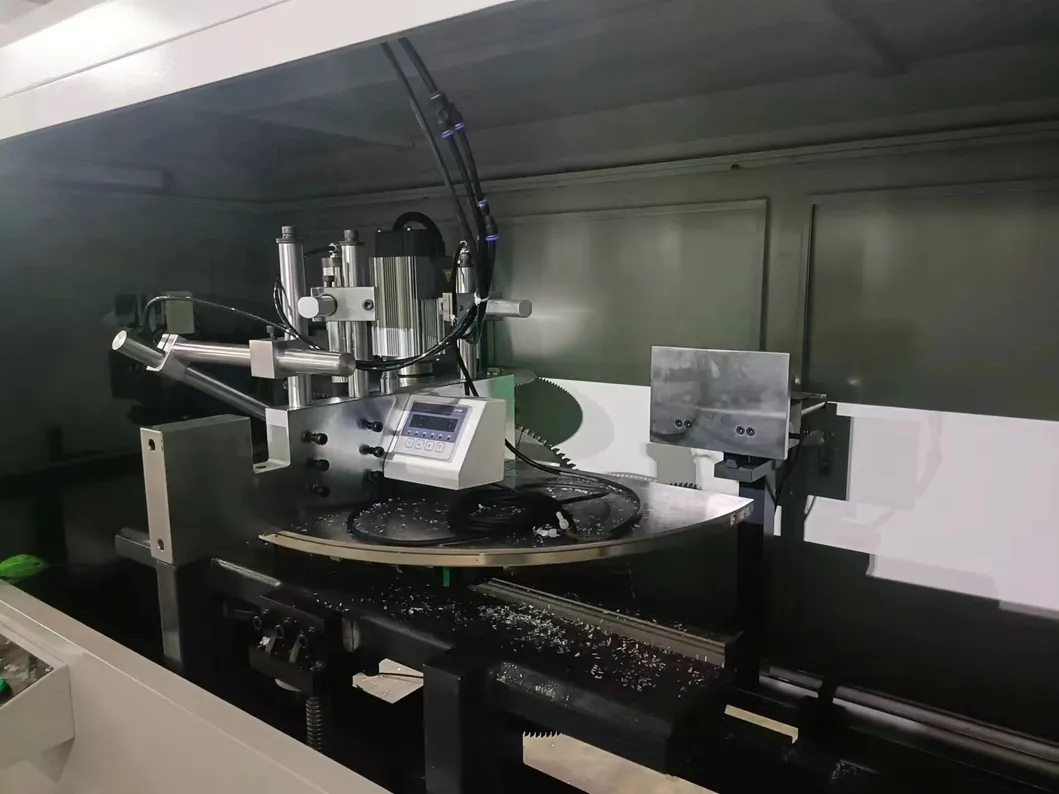

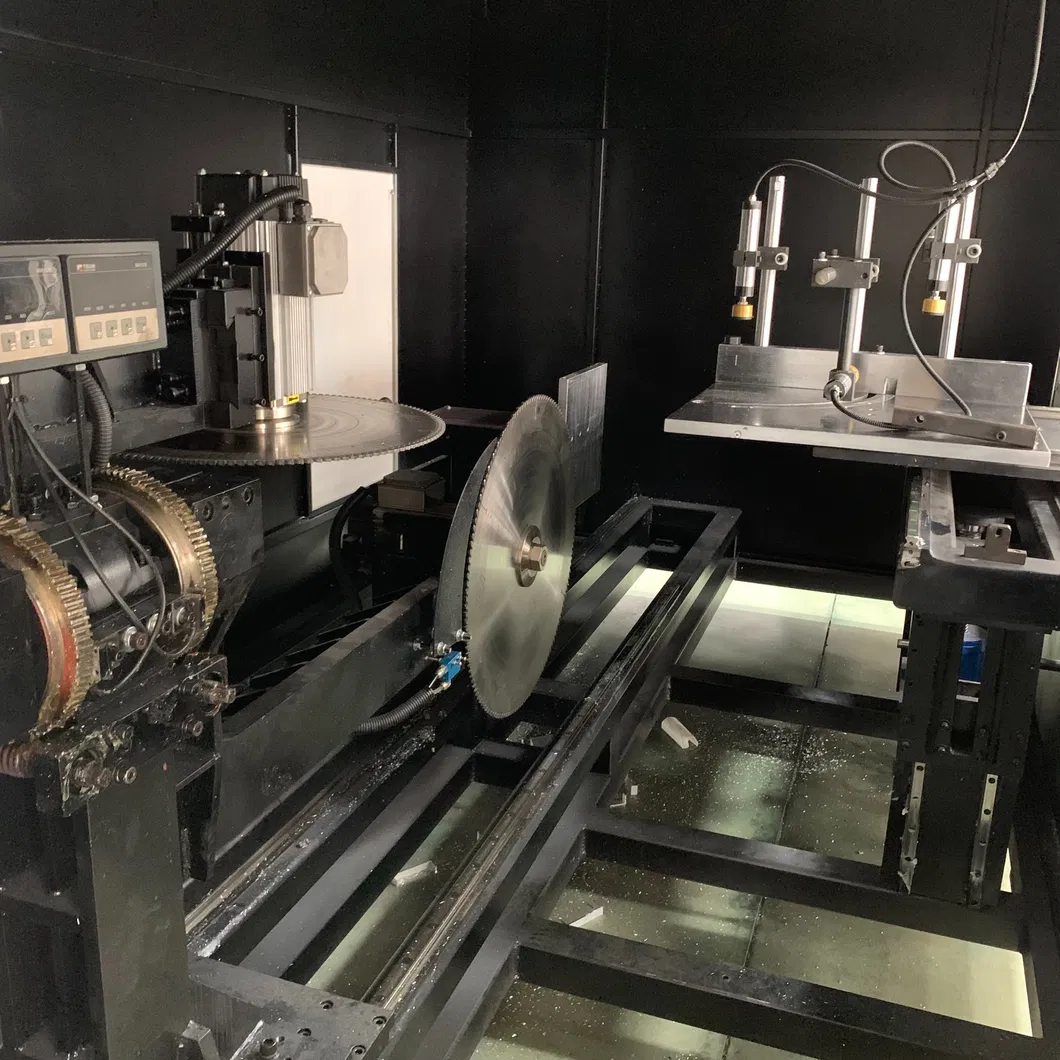

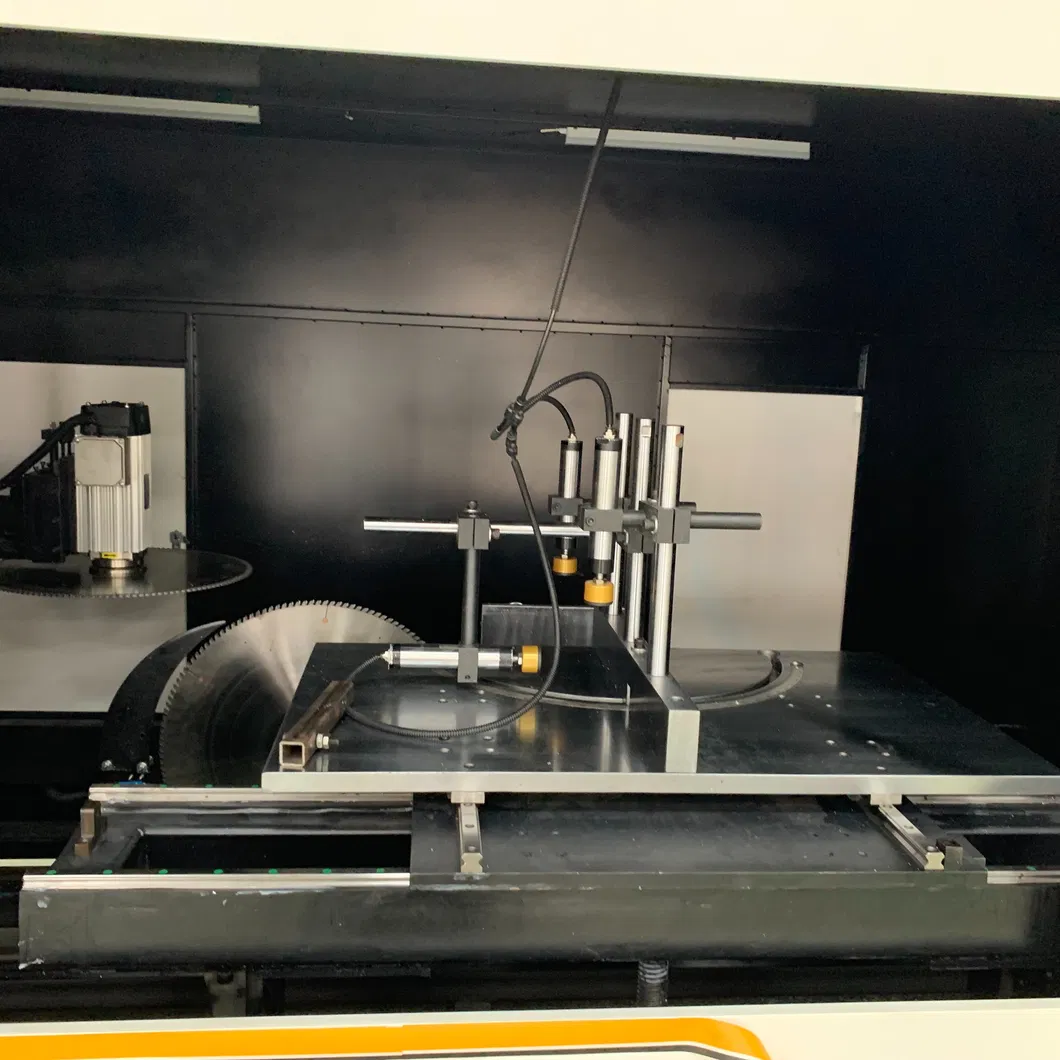

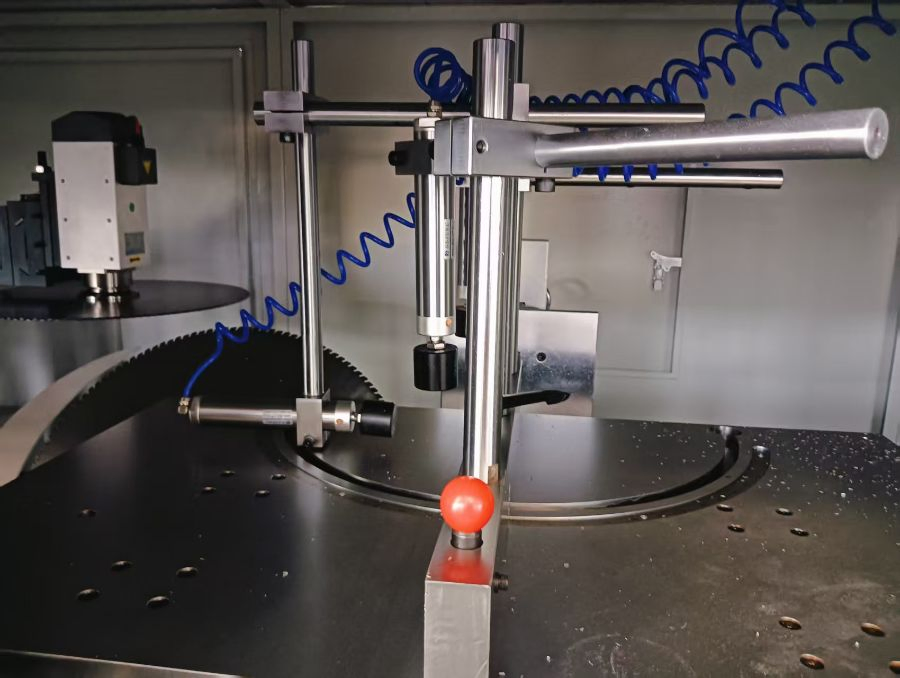

🔍 Details Display
📋 Technical Specifications
Sawing (width x height)260 × 210mm (90°), 260 × 145mm (45°)
Main motor power2×3kw
Main motor speed3000r/min
Saw blade size∅ 600 / ∅ 550 Aluminum flat teeth
Saw blade feed speed0~3m/min
Vertical saw blade rotation+15°/-45°
Horizontal saw blade rotation+75°/-45°
Workbench rotation angle± 20 °
Workbench movement2700 mm

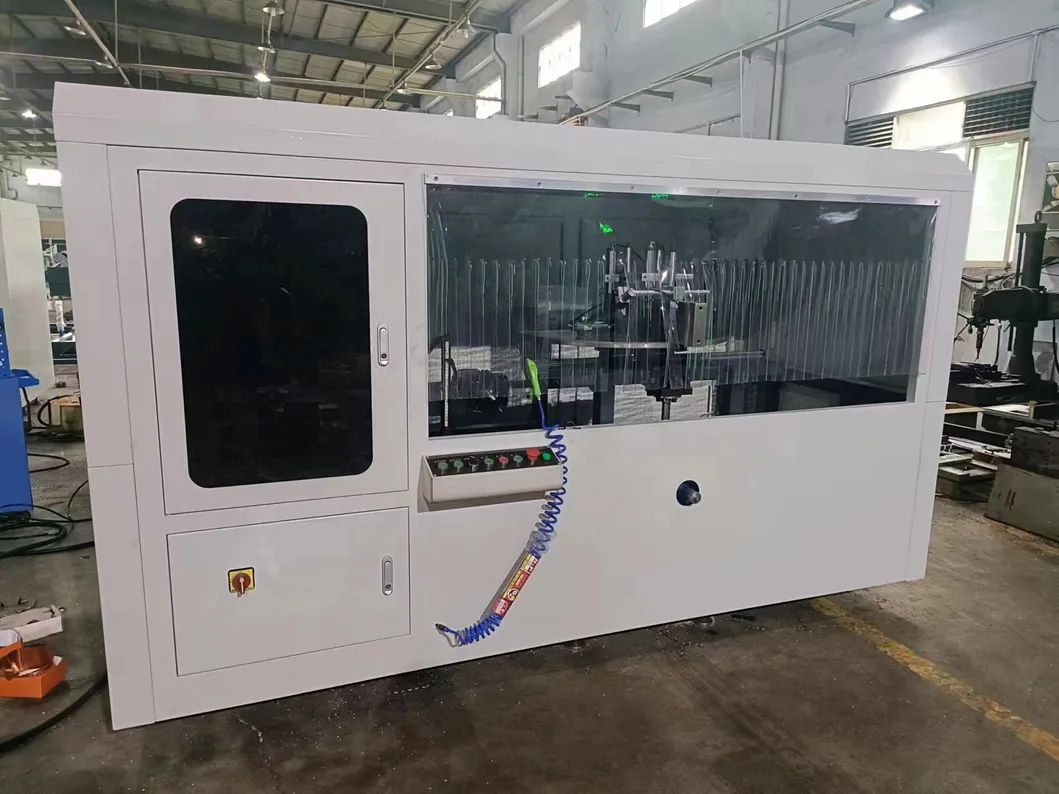

🛠 Standard Configurations & Certifications
📦 Packaging & Shipping
Frequently Asked Questions
Q1: What materials can the aluminum facade notching saw process?
A: It is primarily designed for interface processing of aluminum alloy profiles, but it is also highly effective for processing plastic profiles.
Q2: What is the maximum saw blade size for this machine?
A: The machine can accommodate hard alloy saw blades with an outer diameter of up to Φ 600mm.
Q3: How is the safety of the operator ensured?
A: The machine uses variable frequency feed and dual frequency control, allowing the saw blade to stop completely within 15 seconds to ensure safety.
Q4: What control system does the machine use?
A: It is equipped with a high-precision Panasonic PLC controller and high-performance spindle motors for maximum stability.
Q5: What are the adjustable angles for the saw blades?
A: The vertical saw blade can rotate from +15° to -45°, while the horizontal saw blade can rotate from +75° to -45°.
Q6: How precise is the angle adjustment?
A: With 5 sets of digital display devices, operators can conveniently adjust and view the material processing angles with extreme precision.
