Technical Specifications Overview
| Model NO. | DSK-CNC-3500DK |
| Condition | New |
| Certification | ISO, CE, SGS |
| Automatic Grade | Automatic |

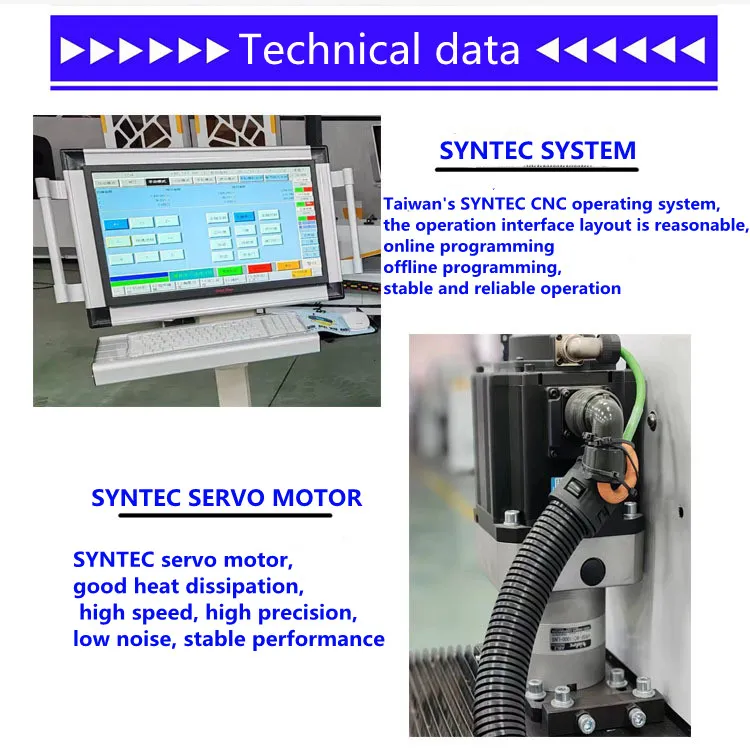

| CNC Control System | Syntec |
| Voltage | 380V |

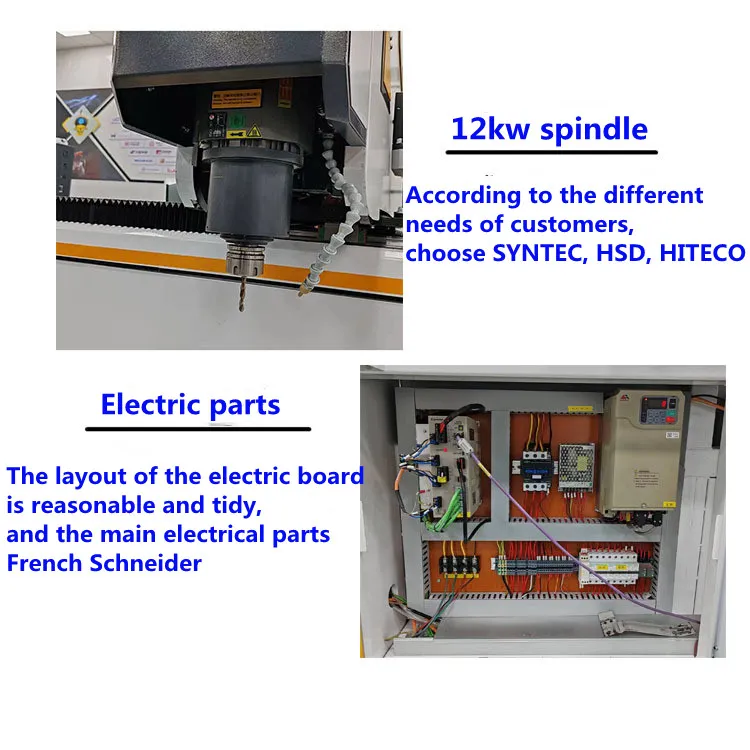

| Main Axis Power | S1: 12.00kw |
| Max Rotary Speed | 18000r/Min |
| X Axis Longitudinal Travel | 3500mm |
| Y Axis Transverse Travel | 500mm |
| Z Axis Vertical Travel | 350mm |
| X Axis Speed | 50m/Min |
| Dimensions | 4180X1600X2200mm |
| Weight | 2200kgs |

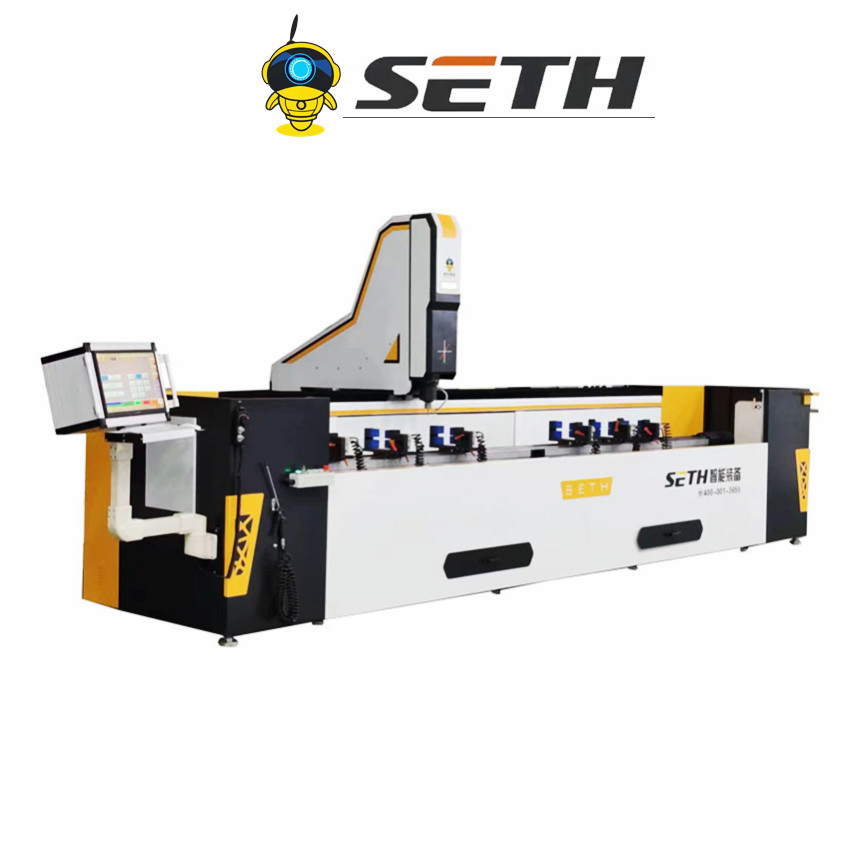

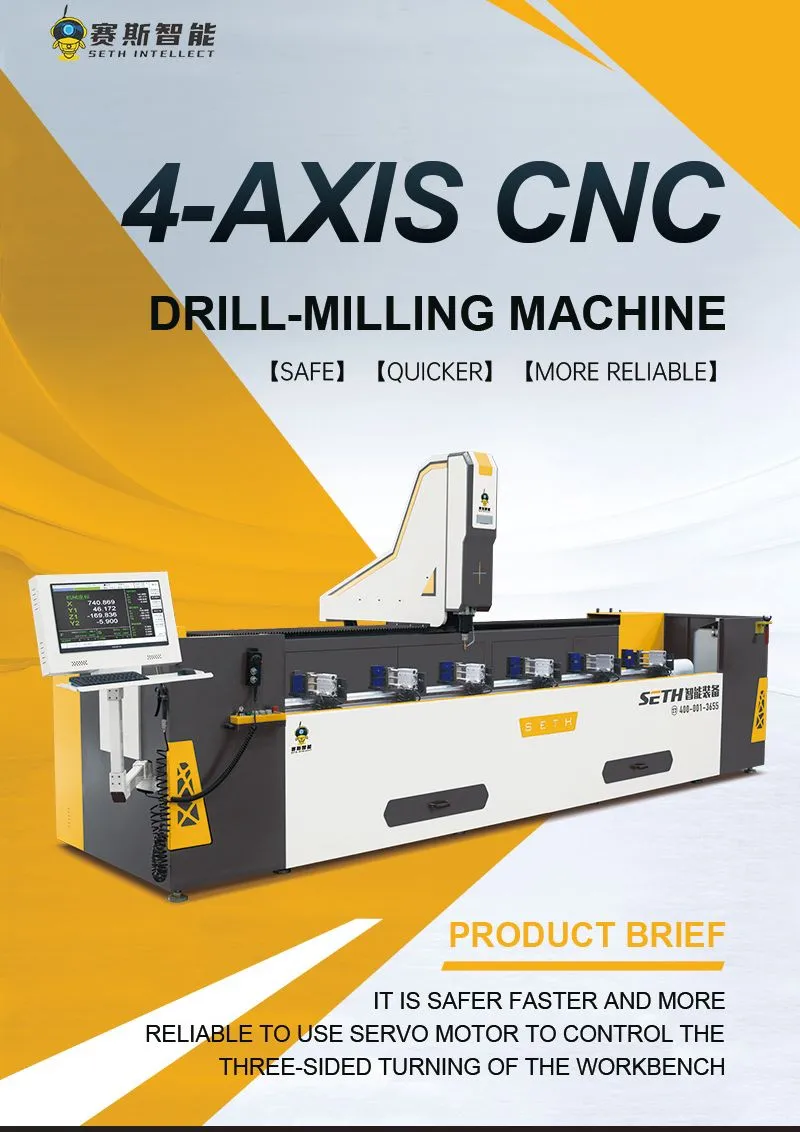

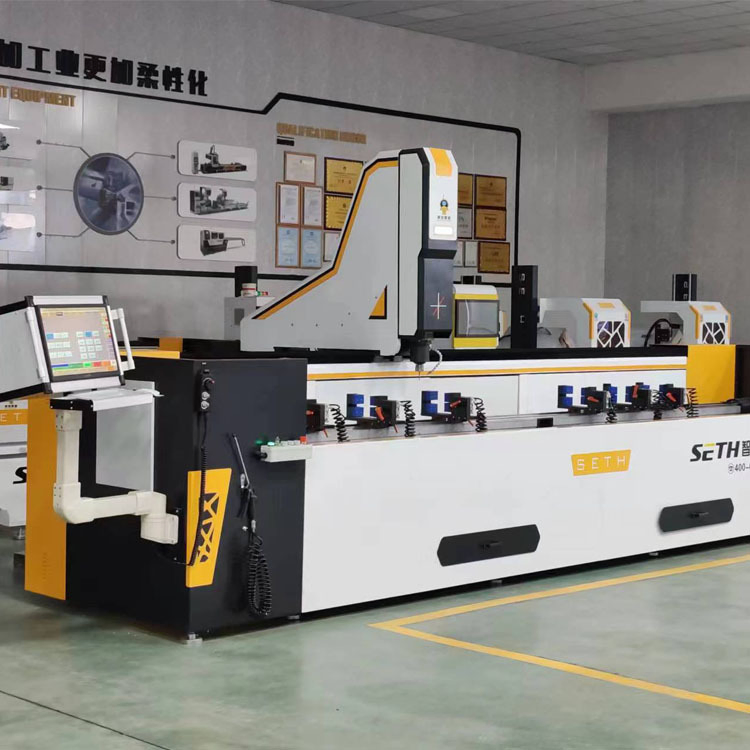

Aluminum Processing 4 Axis CNC Machining Center
Model: DSK-CNC-3500DK
The 3-meter CNC Aluminum Profile Drilling & Milling Center is engineered for high-precision machining of aluminum and light alloy materials. It performs drilling, milling, tapping, and slotting tasks efficiently, making it ideal for manufacturing doors, windows, curtain walls, and industrial components.
📍 High Precision
Full servo drive control with ±0.05mm machining accuracy.
🛠️ Multi-Function Integration
Performs drilling, milling, slotting, and tapping in one setup.
💪 Rigid Structure
High-strength cast iron base reduces vibration for stability.
🧠 Smart CNC Control
Supports CAD/CAM direct import for automatic programming.
🛡️ Safety Protection
Full enclosure to prevent chips and coolant splashes.
⚡ Energy Efficient
Optimized tool paths reduce material waste and power consumption.
Core Applications & Technical Advantages
- Architectural Doors & Windows
- Curtain Wall Manufacturing

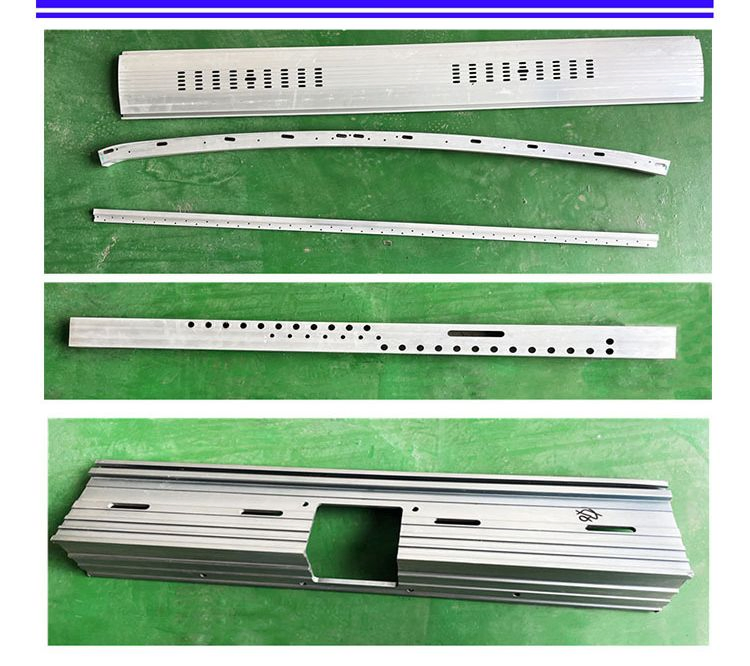

- Industrial Aluminum Components
- Transportation Equipment Parts
- Aluminum Furniture Frames
☆ Suitable for industrial aluminum alloy profiles, doors and windows, and curtain walls.
☆ Spindle adopts air-cooled technology, power 6 kw, speed up to 18000 rpm.
☆ Table flips 180 degrees (-90° to +90°), allowing three-sided processing in one clamping.
☆ Equipped with professional CAD-CAM programming software for automatic G-code conversion.

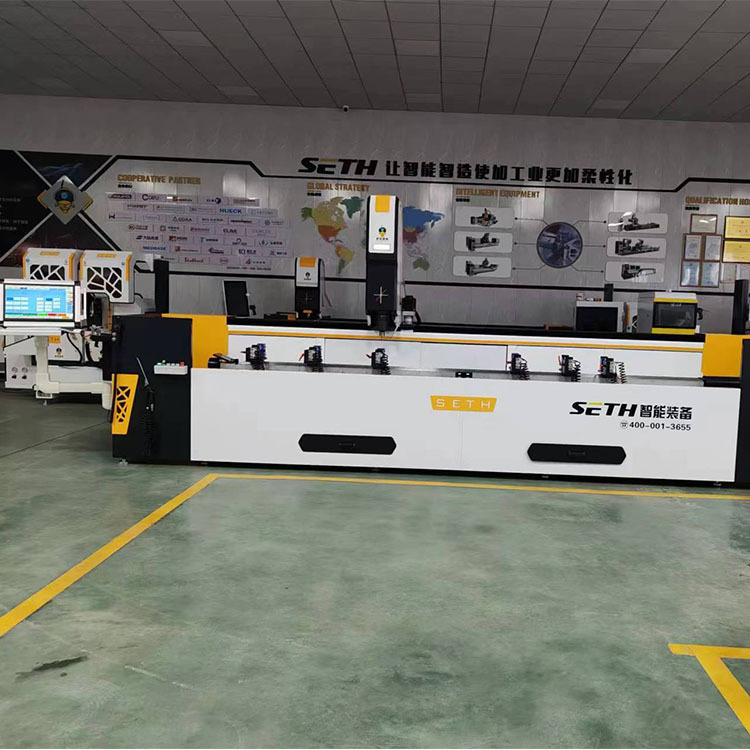

Maintenance & Product Showcase
Daily Check: Ensure smooth movement of all axes and inspect tool wear.
Regular Lubrication: Weekly check and refill guideway oil and spindle lubrication.
System Care: Monthly cleaning of spray cooling and regular CNC parameter backups.
Packaging & Delivery
| Package Size | 500.00cm * 200.00cm * 240.00cm |
| Gross Weight | 2500.000kg |
| Lead Time | 20 days (1 - 10 Pieces); >10 Pieces (Negotiable) |
| Transport Package | Professional Wood Packaging |
Frequently Asked Questions
Q1: What materials can this CNC machining center handle?
This equipment is specifically designed for industrial aluminum alloy profiles, uPVC profiles, and other light alloy materials used in windows, doors, and curtain walls.
Q2: What kind of processing tasks can be performed?
The machine integrates multiple functions including high-precision drilling, milling, tapping, slotting, and special-shaped hole processing in a single setup.
Q3: How does the 180-degree flip table benefit production?
The servo-controlled table allows for three-sided processing (-90°, 0°, +90°) without needing to re-clamp the profile, significantly increasing efficiency and machining accuracy.
Q4: What is the machining accuracy of this CNC center?
With its full servo drive control and high-precision helical gear/rack system, the machine achieves a machining accuracy of ±0.05mm.
Q5: Is specialized programming knowledge required?
The machine comes with professional CAD-CAM software that automatically converts designs into G-code, making operation simple even for those with minimal programming experience.
Q6: What are the options for after-sales service?
Options include on-site installation and worker training by engineers, or comprehensive online support including detailed documentation and training videos for setup and operation.
