Zhixing Machine
Zhixing Machine

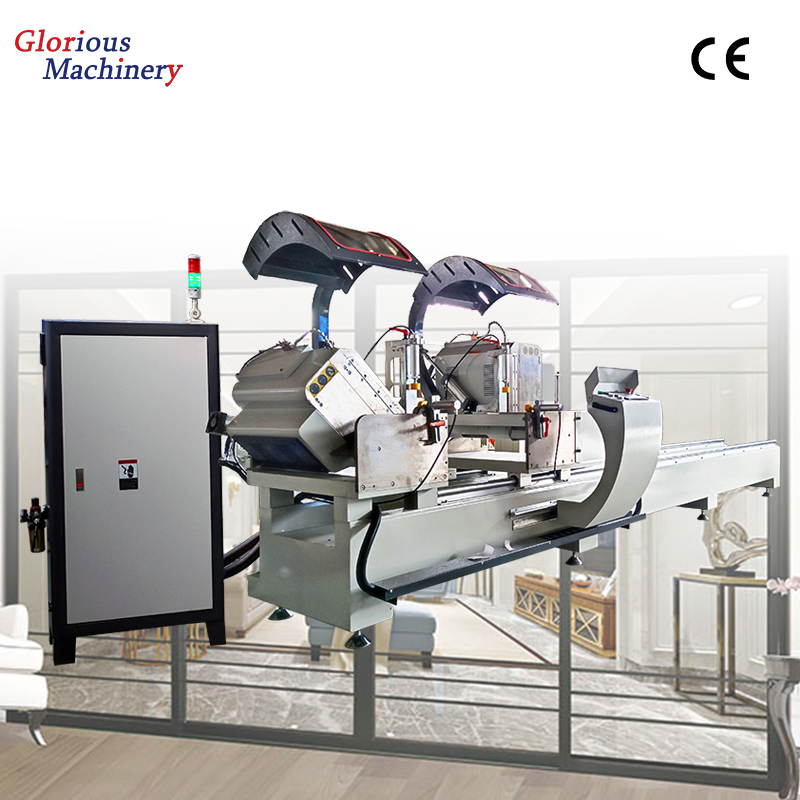

| Product Name | Double-head cutting saw with CNC |
| Machine Model | LJZ2-450×4200-CNC |

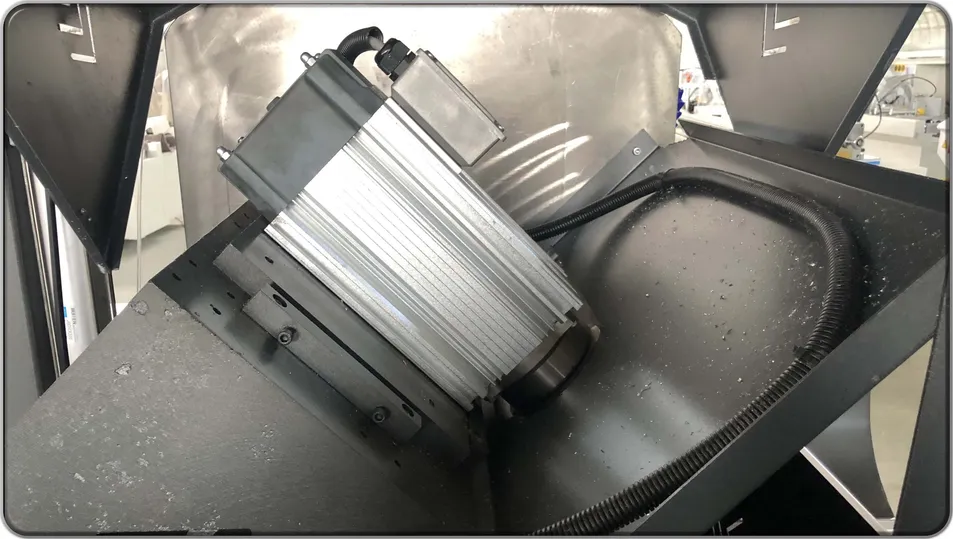

| Input Power | 4.4KW (2.2kw*2) |
| Working Air Pressure | 0.5~0.8MPa |
| Saw Blade Speed | 2800r/min |
| Cutting Angle | 45º / 90º |
| 90° Maximum Length | 3700mm |
| 45° Maximum Length | 3700mm |
| Weight | 800KG |

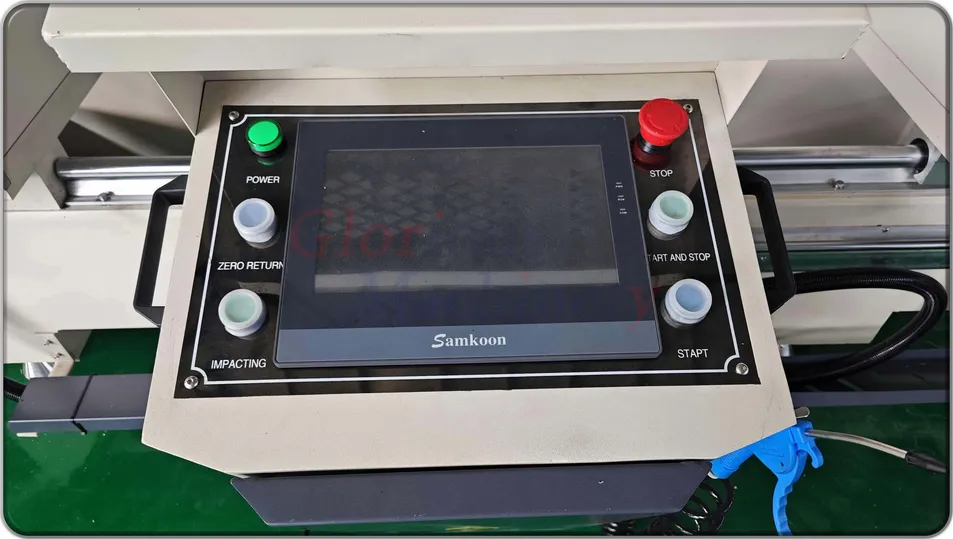

Core Application & CNC Control: Used for 45°~90° cutting of aluminum and plastic profiles. Equipped with CNC numerical control system, it realizes automatic positioning and precise control, reducing manual operation errors and improving cutting accuracy.

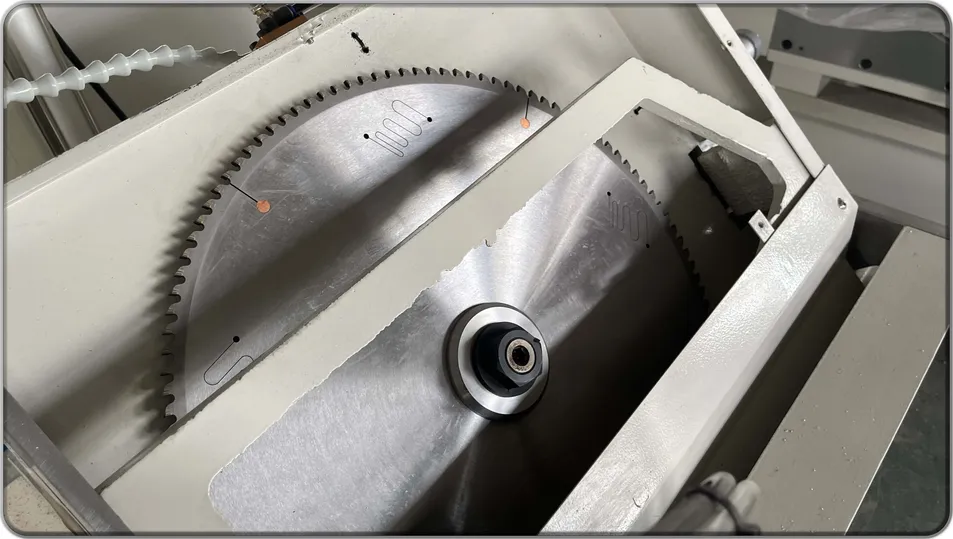

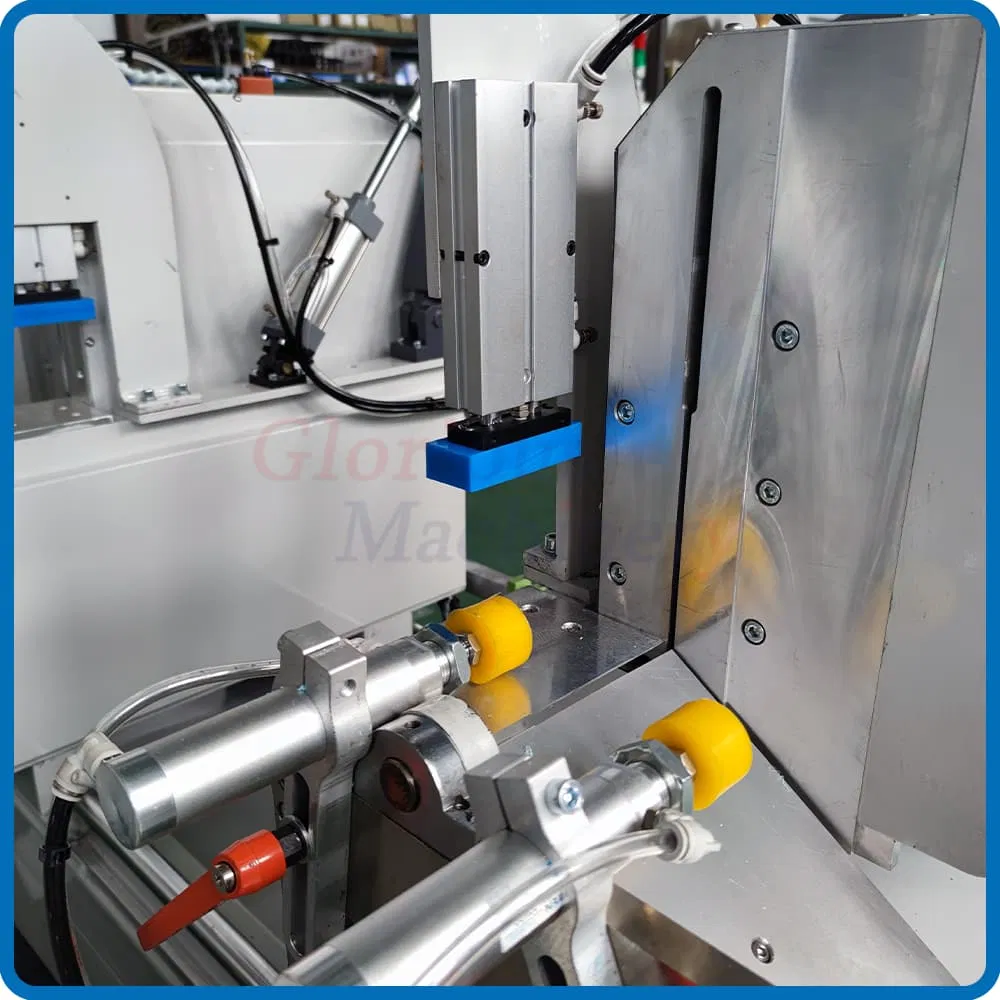

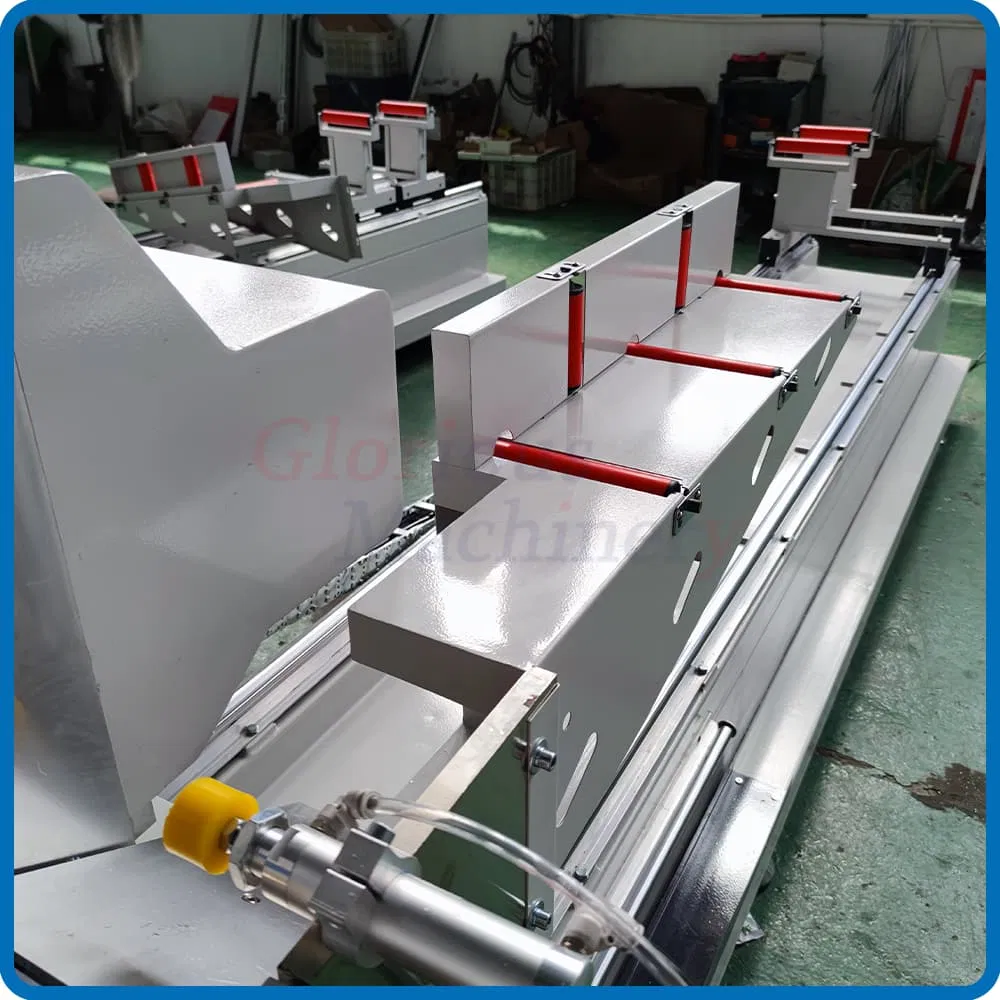

Stable Transmission & High Precision: Adopts pneumatic transmission and linear feed mode, ensuring stable and smooth feed. The cutting tool is a cemented carbide circular saw blade, which guarantees high cutting precision and a neat cutting surface.
Core Cutting Parameters:
• Maximum Cutting Height: 200 mm
• Standard Cutting Angles: 45º, 90º (Custom angles available)
• 90° Range: Max Height 250mm; Max Length 3700mm; Min Length 285mm
• 45° Range: Max Height 180mm; Max Length 3700mm; Min Length 405mm

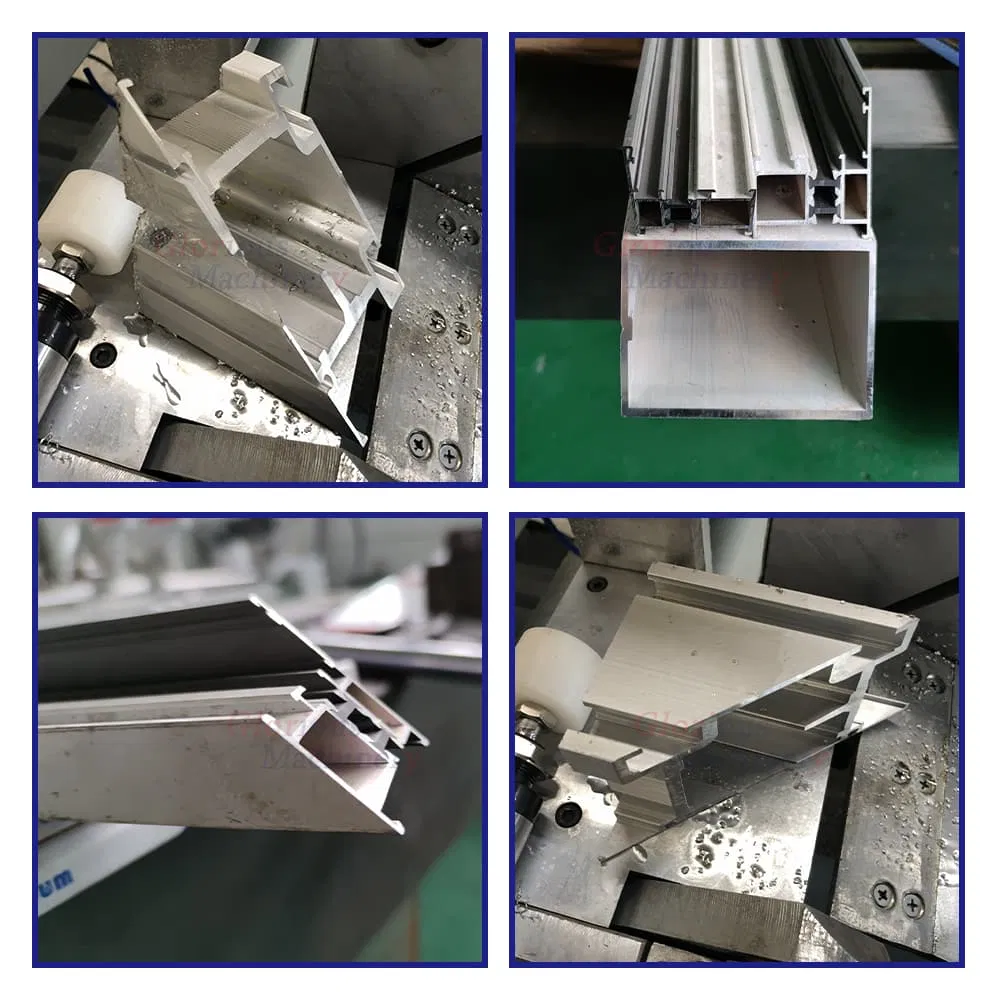

1. Precision Cutting: Foundational step to cut profiles to exact dimensions.
2. Milling & Drilling: Processing functional holes for hardware and drainage.
3. Structural End Milling: Precisely process connecting ends of mullion profiles.
4. Cleat Cutting: Accurately cut internal metal connectors.
5. Corner Crimping: High-pressure bonding for rigid 90-degree corners.
6. Finished Frame: Inspection of the robust, airtight window frame unit.

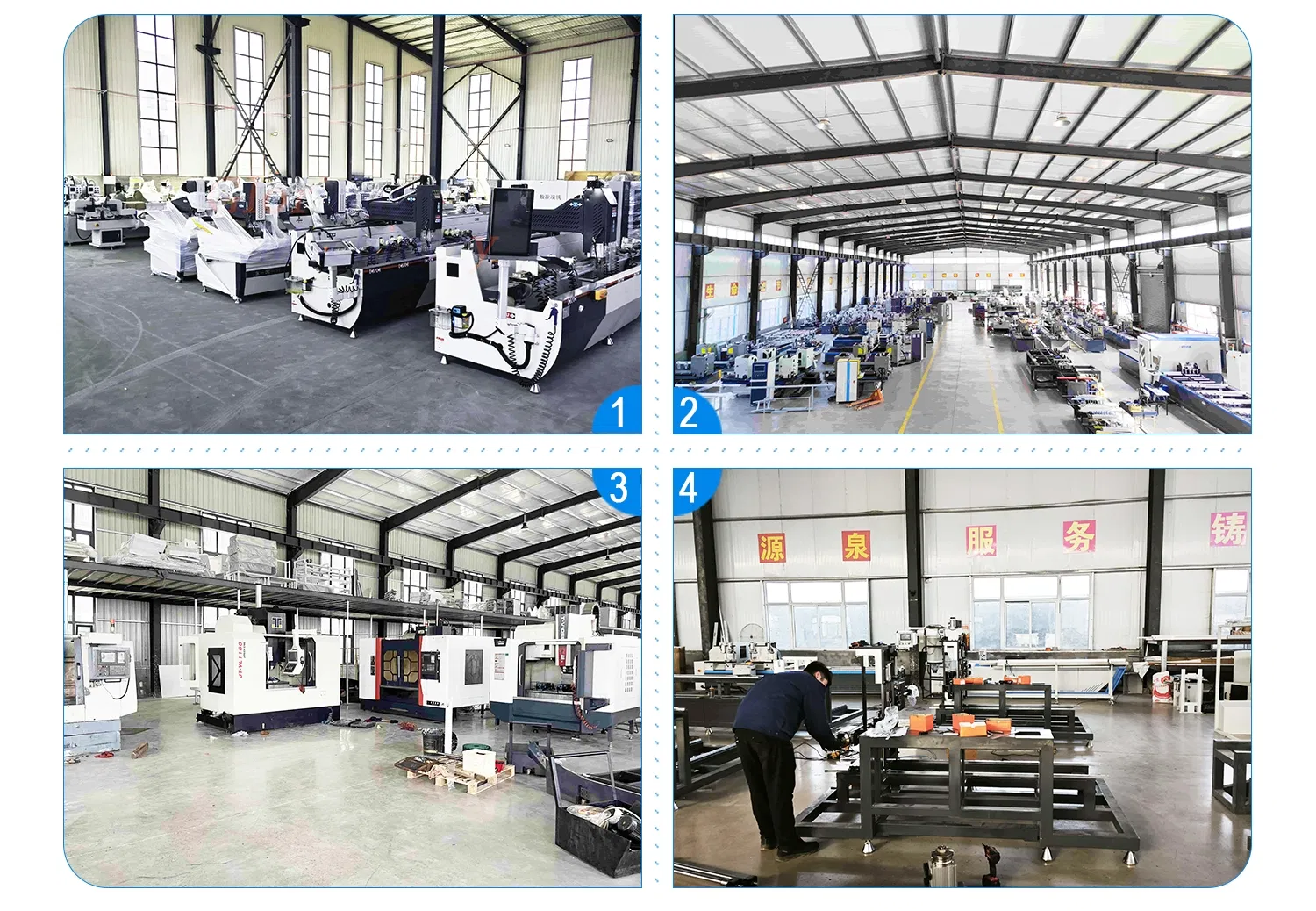

We are an innovative manufacturing enterprise with independent R&D, professional design and large-scale production capabilities. We focus on middle and high-end aluminum & PVC window and door processing equipment, providing global customers with practical and reliable mechanical solutions.
Our equipment has been successfully exported to many countries and regions including the United States, Canada, Russia, India, and Malaysia, building a professional sales and service network globally.
