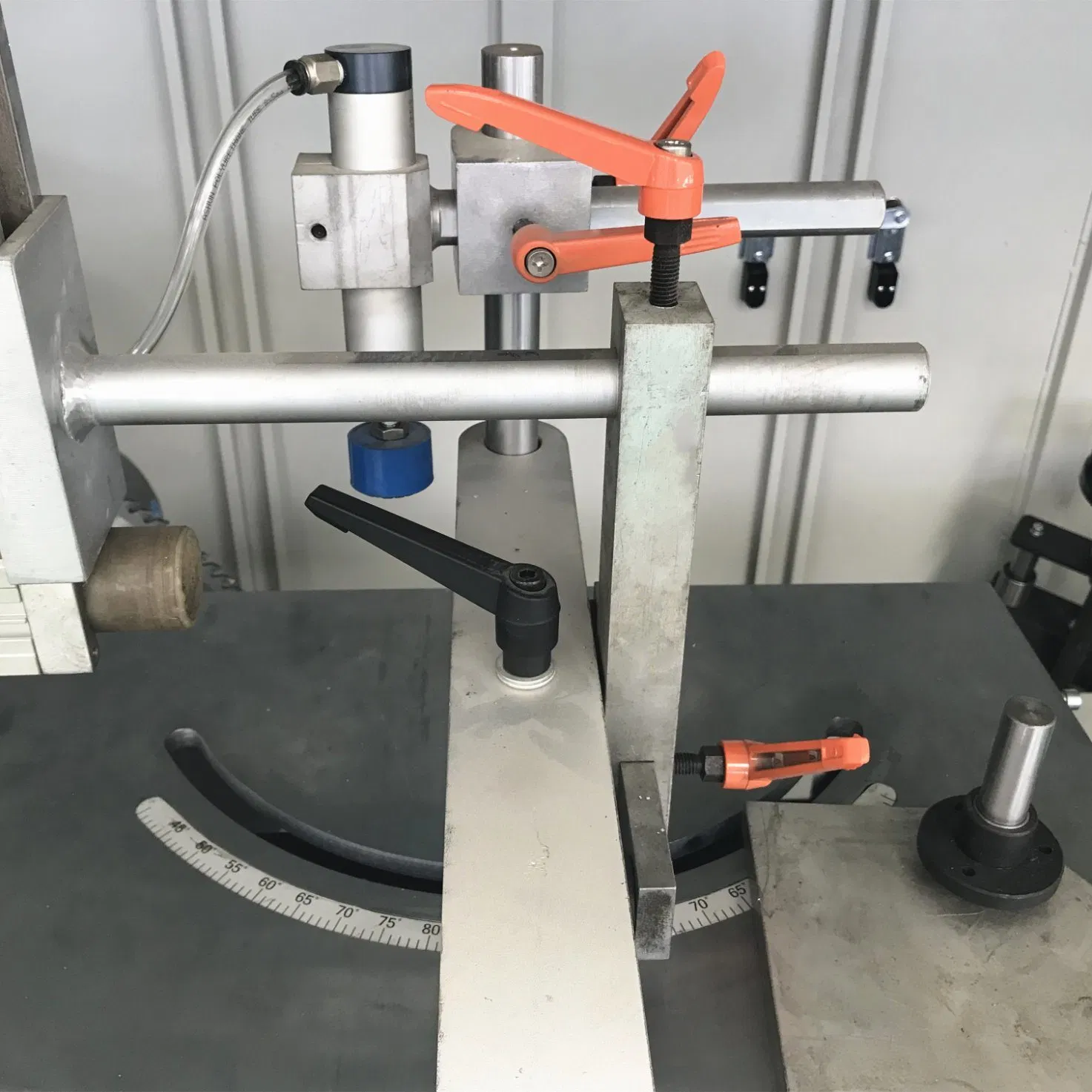

Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
1 / 5
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems
Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems

Advanced Notching Saw for Aluminum Profiles in Curtain Wall Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Information
Model NO.
LJKA-600
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
Customized
Motor Rotary Speed
2800r/Min
Swinging Range
0-45 Degree
Weight
1500kg
Production Capacity
200 Sets Per Month
HS Code
8461409000
After-Sale Service
Online Support
✔
Aluminum Profile End Surface Notching Saw
Aluminum Profile End Surface Notching Saw
Specialized Design: Designed for aluminum curtain-wall and lighting skylight processing with special angle requirements at the profile end surface.

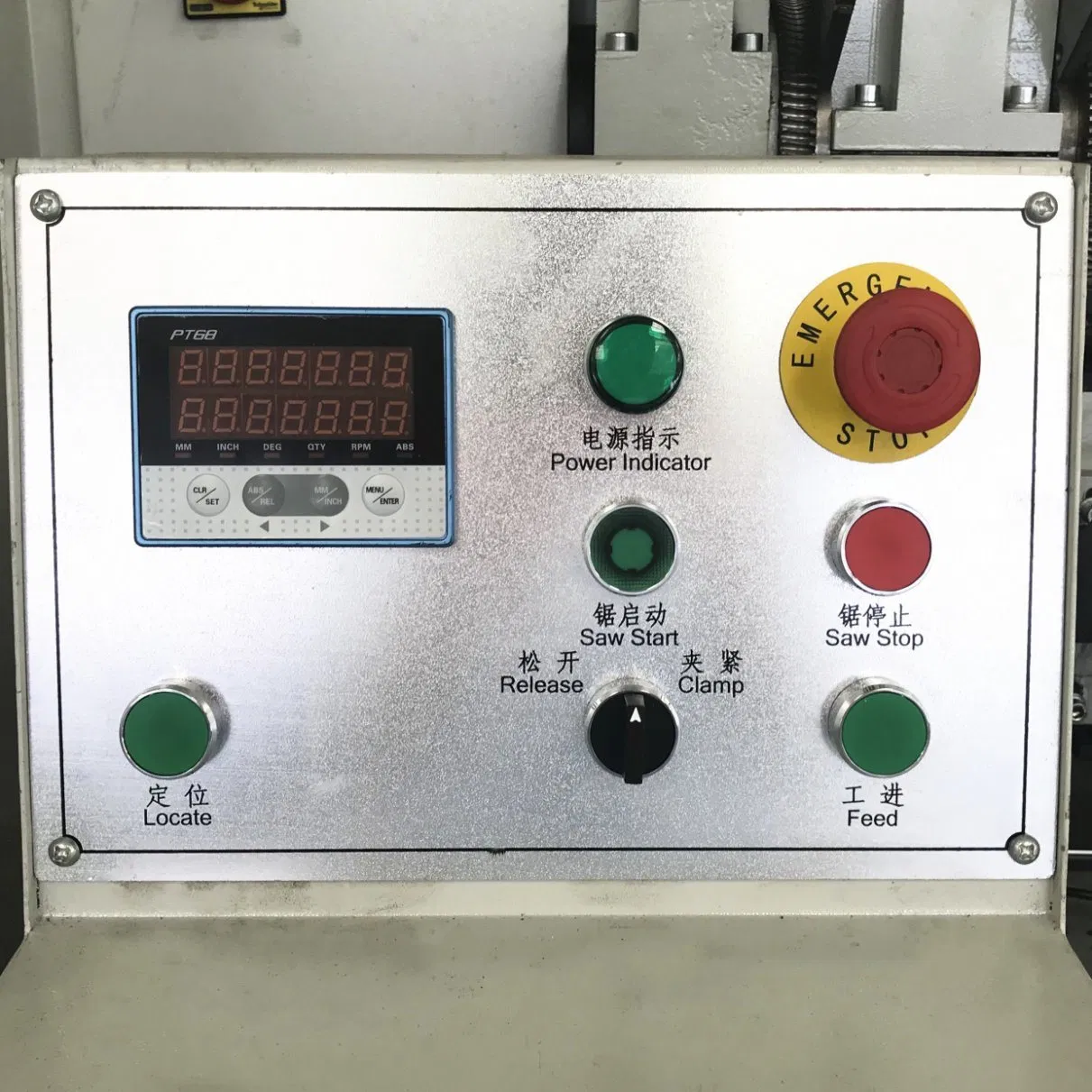

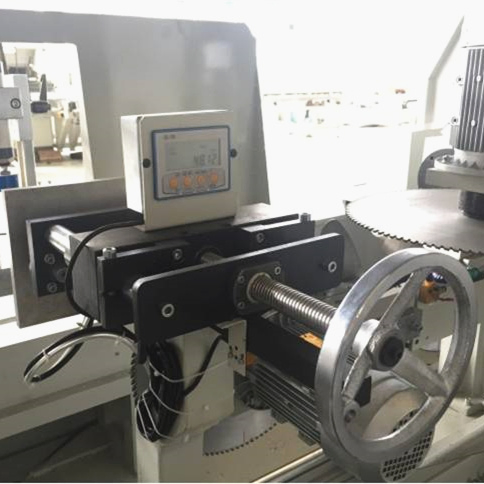

Precision Control: Equipped with a magnetic ruler control system for digital display of cutting angle and worktable height.
Adjustable Table: Convenient worktable and locating device adjustment for special end surface angle processing.

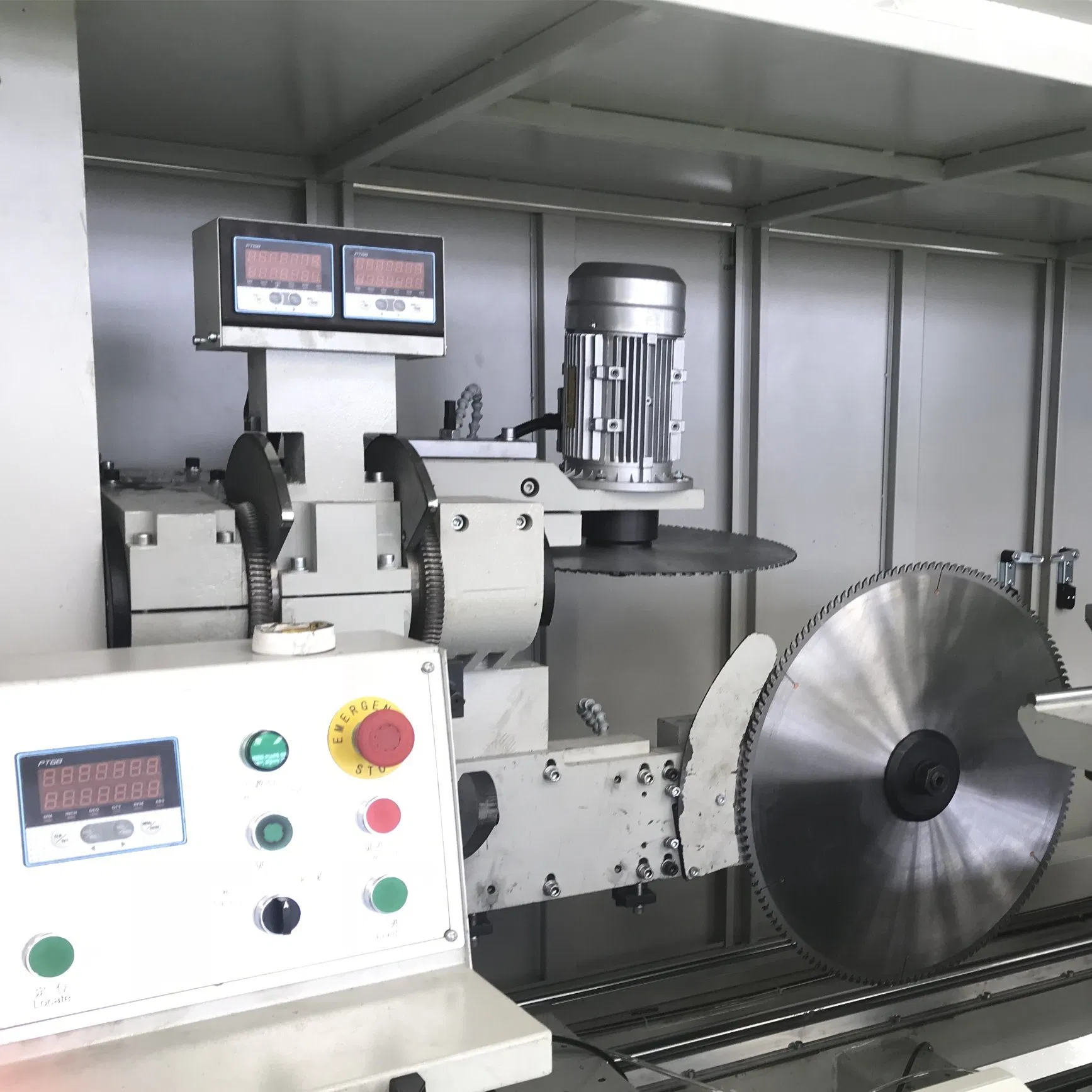

Flexible Sawing: Two saw blades can swing freely between 0° and 45°.
⚙
Technical Parameters
Item Specification
Cutting Motor Power3.0kW * 2
Motor Rotating Speed2800 r/min
Saw Blade Swinging Range0° ~ 45°
Cutting Depth (Vertical & Horizontal)220 * 180mm
Cutting Width300mm
Cutter Feeding SpeedStepless speed regulation 0 ~ 3m/min
Saw Blade Specification∮600 * ∮30* 4.8 * 4.2mm Z=144
Contour Dimension3500 X 1550 X 1800 mm
WeightAbout 1500kg
P
Product Presentation

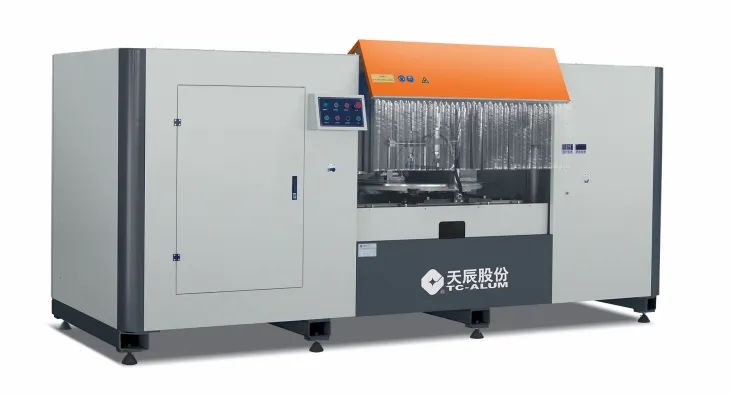

Machine Features

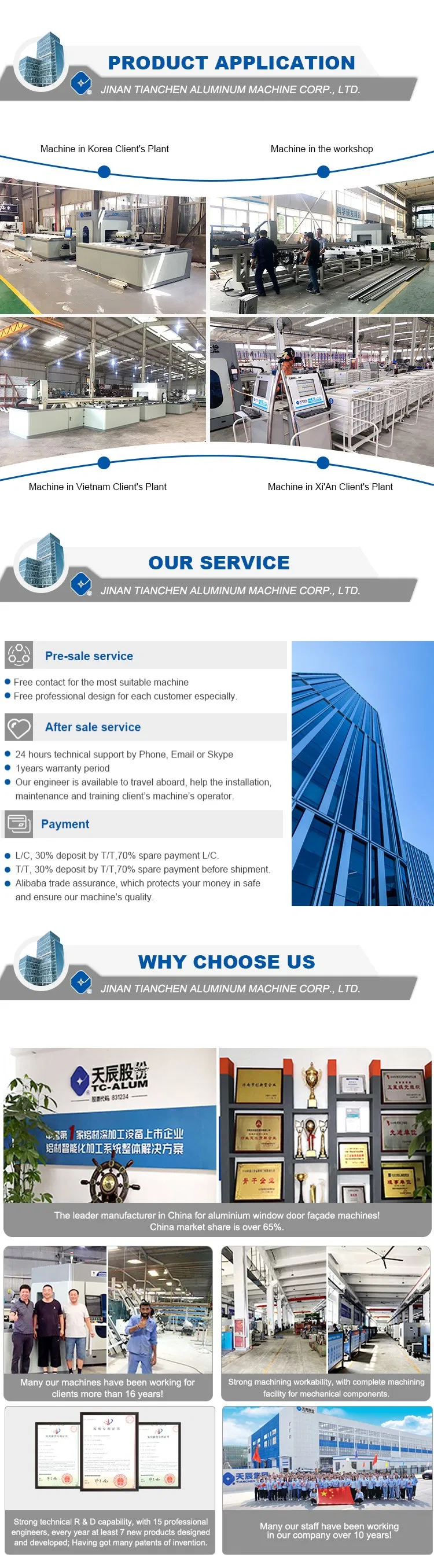

Process Detail 1

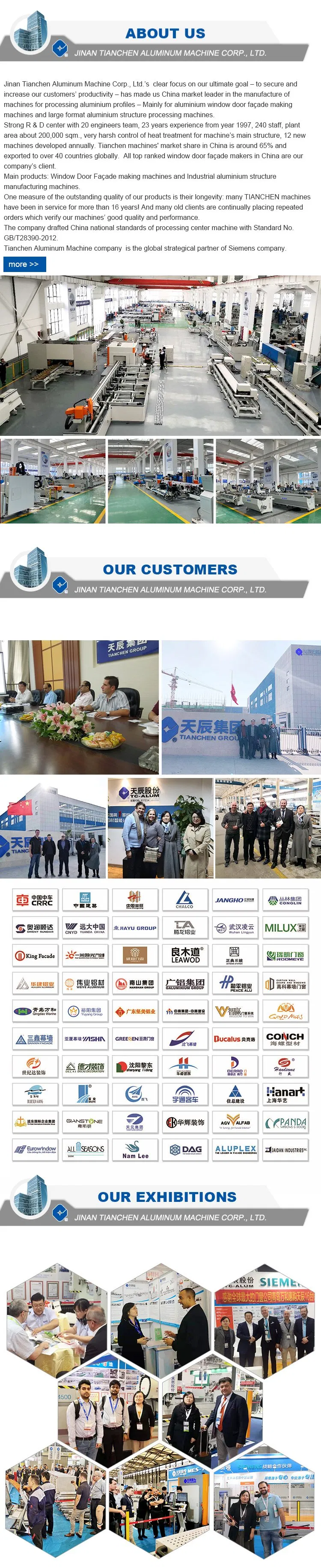

Process Detail 2

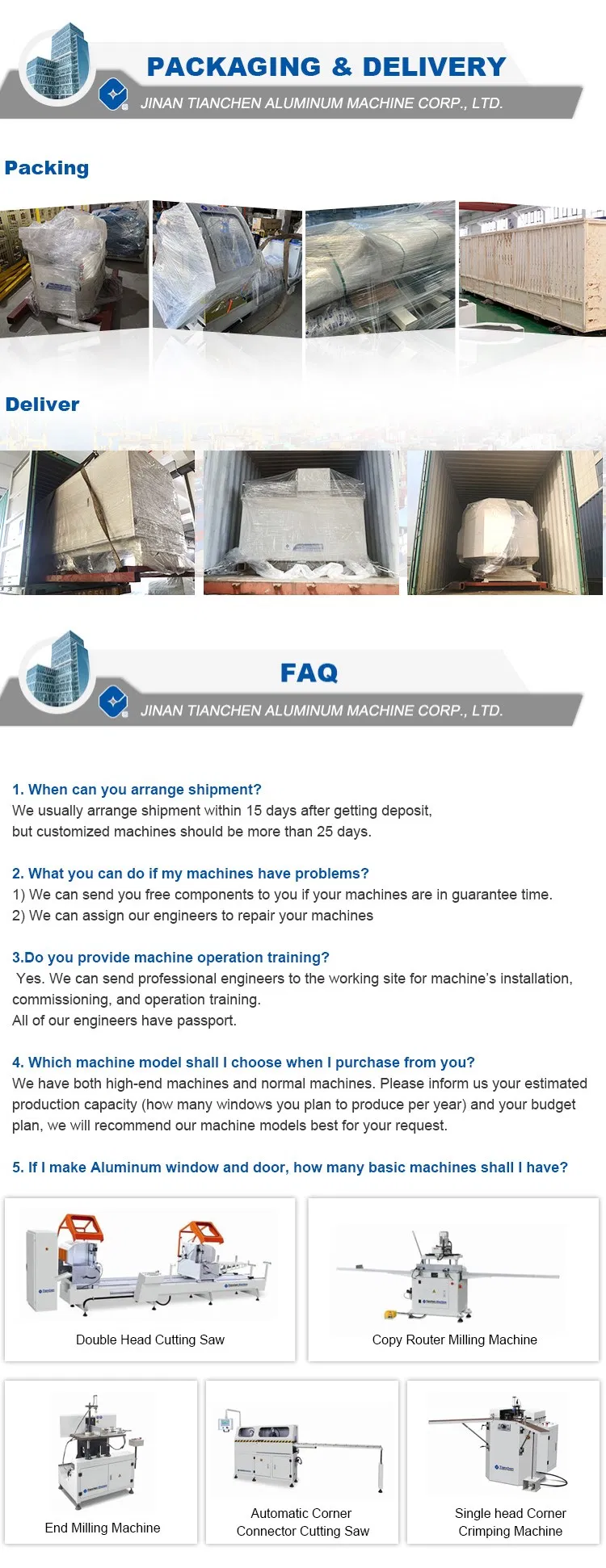

Process Detail 3
Frequently Asked Questions
What is the primary application of the LJKA-600?
The LJKA-600 is specifically designed for processing aluminum curtain walls and lighting skylights, particularly for handling special angles on profile end surfaces.
What is the swinging range of the saw blades?
The machine features two saw blades that can swing freely within a range of 0° to 45°, allowing for versatile angle cutting.
How is the cutting accuracy monitored?
It is equipped with a magnetic ruler control system that provides a digital display for both the cutting angle and the worktable height for high precision.
What is the motor power and speed for this machine?
The machine utilizes two cutting motors, each with 3.0kW of power, reaching a rotating speed of 2800 r/min.
Can the feeding speed be adjusted?
Yes, the cutter feeding speed features stepless speed regulation, ranging from 0 to 3 meters per minute to suit different processing needs.
