Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
1 / 5
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine
Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine

Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine

Customization: Available
After-sales Service: Remote Guidance, Door-to-Door Service, Operation V
Warranty: 18 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SSPJ-500X5000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Function
Cutting UPVC Window Profiles
Application
Making UPVC Window Door
Blade Diameter
500mm
Cutting Angle
45 Degrees
🛠️ Product Description

Large Cutting Range 45 Degree UPVC Window Door Making Double Head PVC Window Cutting Machine

Model: SSPJ-500X5000

Function: Specialized for cutting 45° angles of UPVC window and door profiles with high precision and large range capacity.

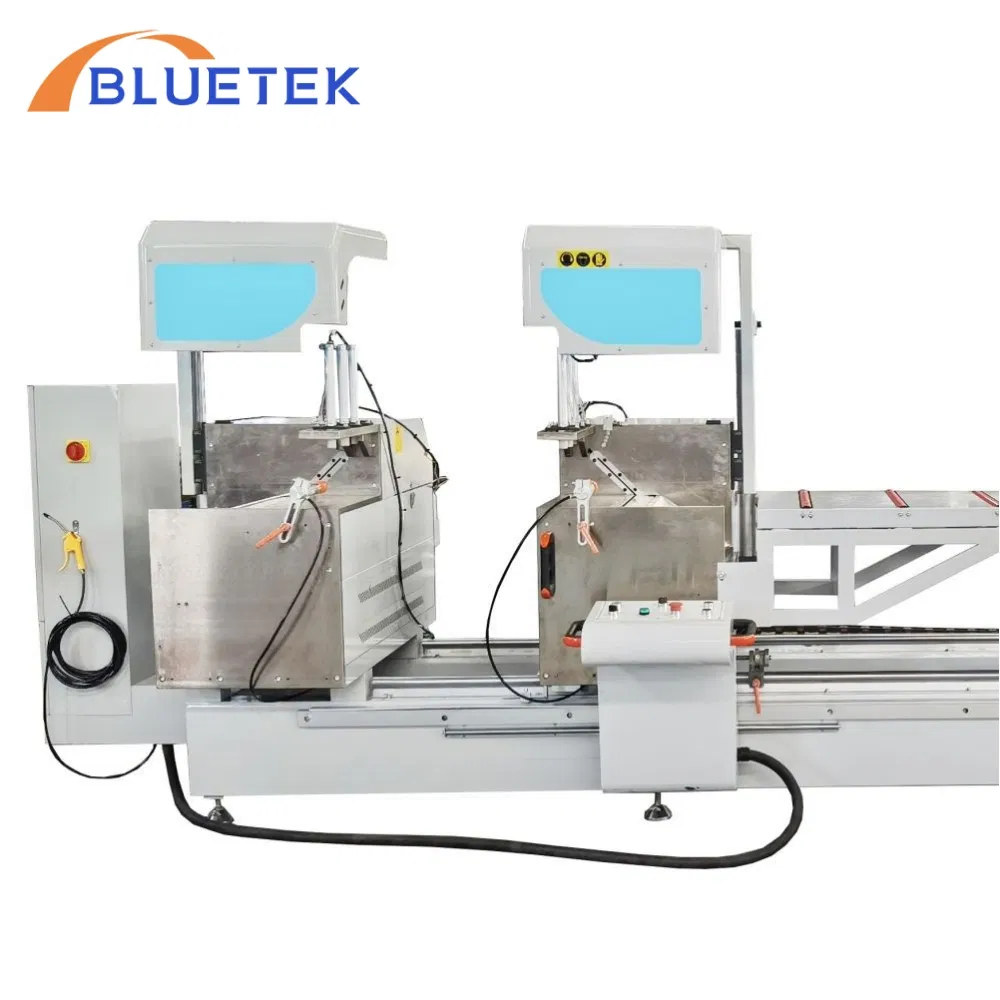

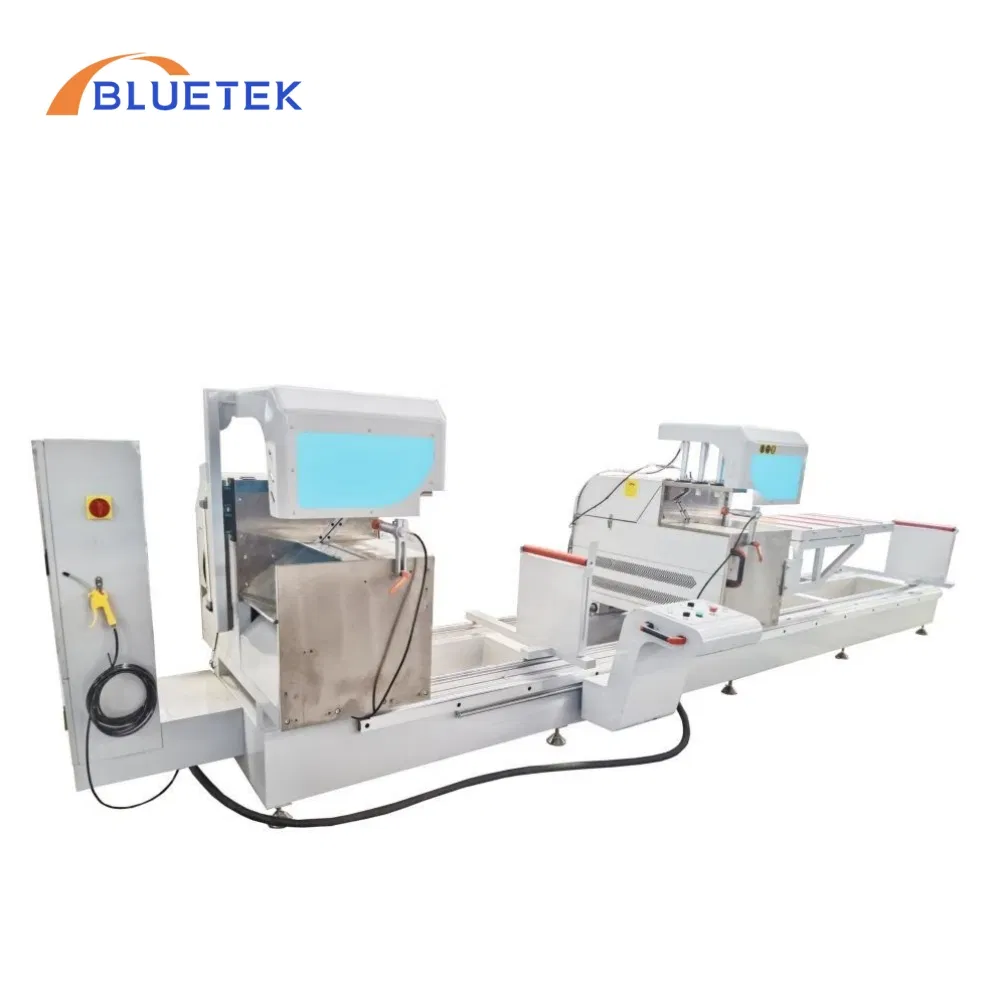

PVC Window Cutting Machine Front View

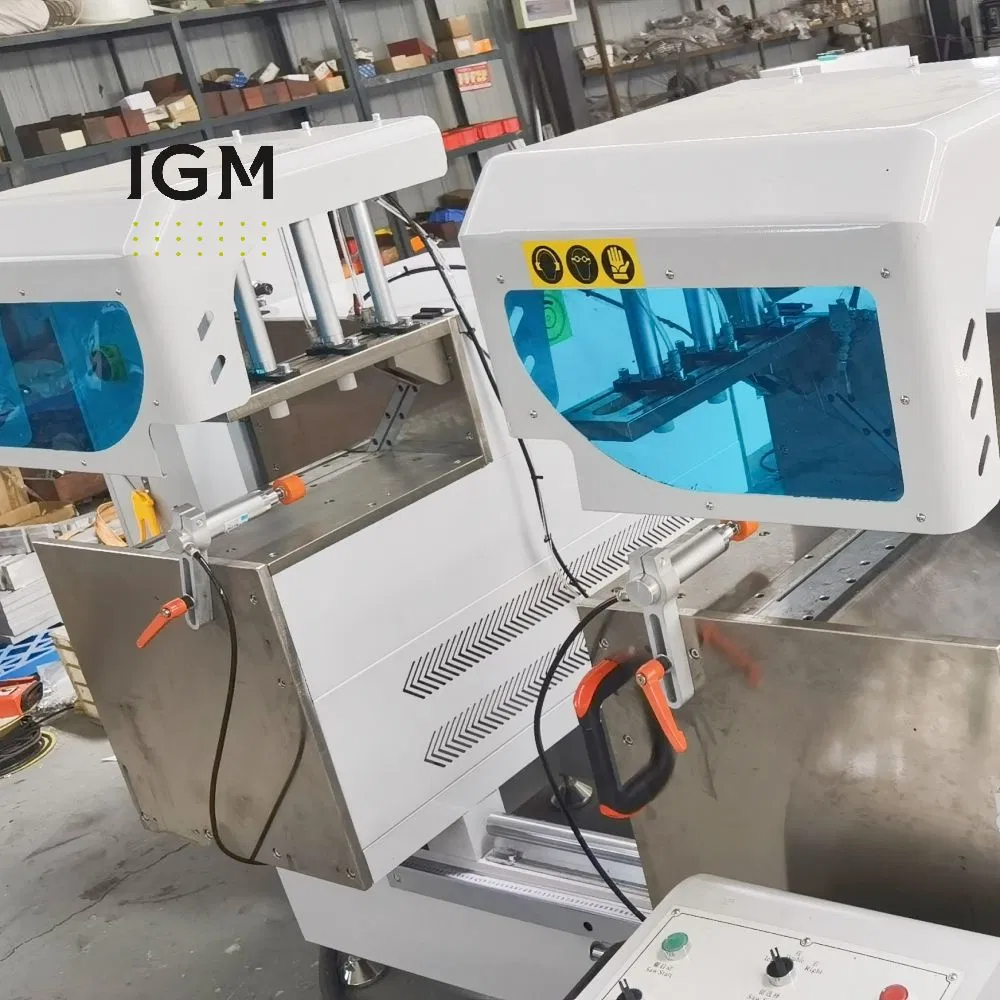

PVC Window Cutting Machine Side View

Main Features

  • Processing 45 degree double-head cutting for PVC windows and light metals.
  • Pneumatic swing angles; the saw blade feeds from Back to Front for stability.
  • Super large cutting range, with width capacity up to 350 mm.
  • Equipped with Diamond saw blade for significantly longer service life.
  • Two-handed operation mode for enhanced operator safety.
  • Vertical and horizontal cylinder clamping system ensures profile stability.
  • Integrated air gun and cooling spray device for maintenance and blade cooling.
📊 Technical Specification
Parameter Item Technical Data
ModelSSPJ-500X5000
Total Power4.4kw
Input Power380V 50Hz 3Phase
Motor Speed2840 r/min
Air Pressure0.6-0.8 MPa
Diameter of BladesΦ500mm×φ30mm
Cutting Angles45°
Max. Cutting Width350 mm
Cutting Height (45°/90°)115 mm / 150mm
Cutting Length300 ~ 5000mm
Overall Dimension6000*1700*1800 mm
Weight1500kgs
🔍 Details Photo

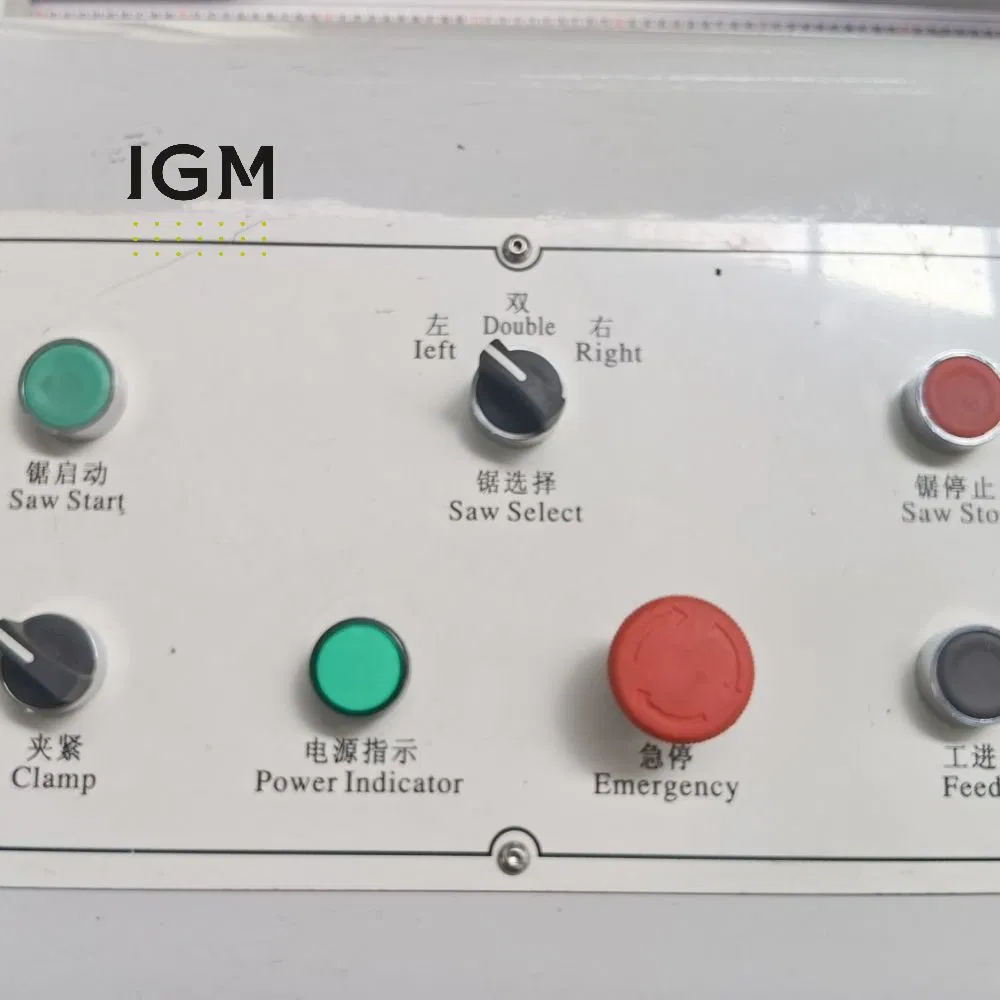

Control Panel
Control Panel - Easy to operate

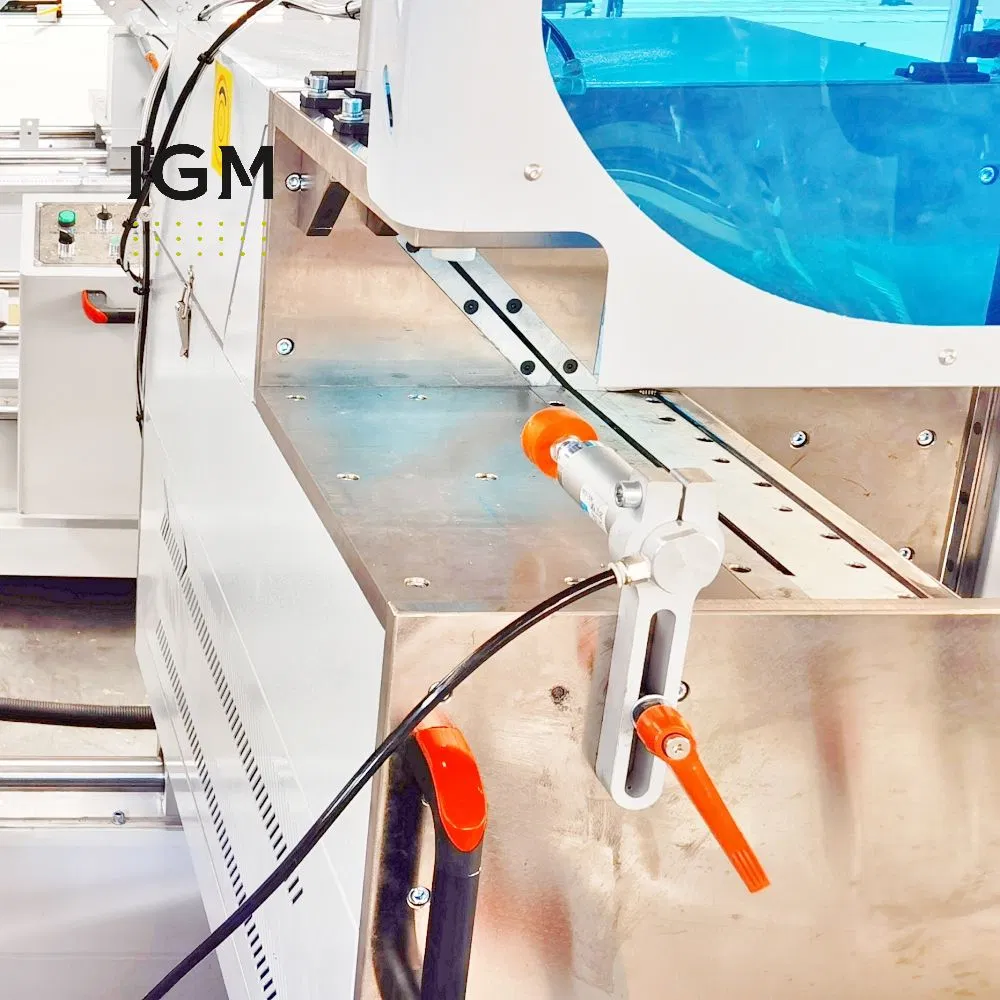

Cylinder clamping
Dual Cylinder Clamping Device

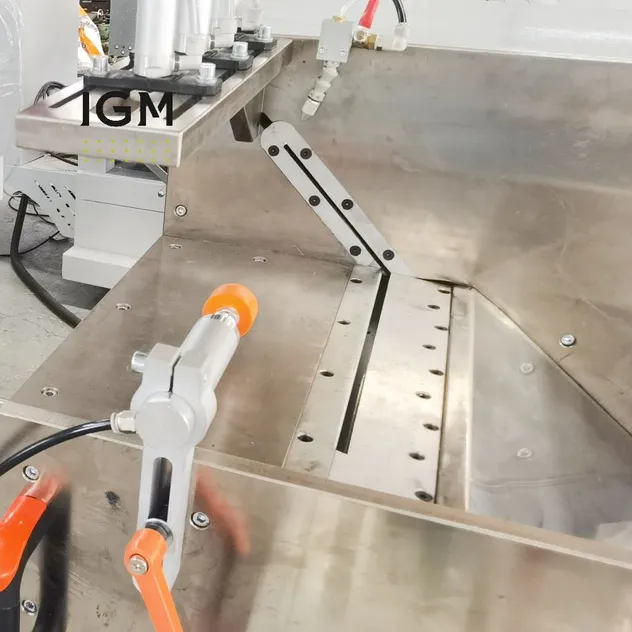

45 Angle Cutting
45° Precision Cutting Head

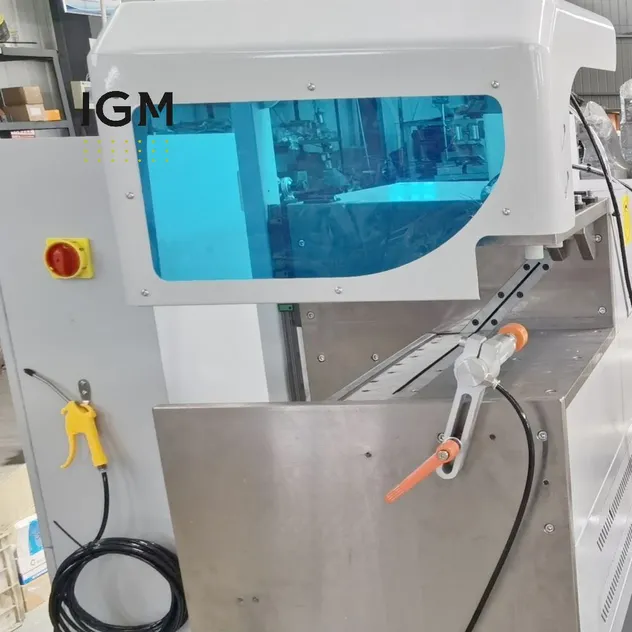

Safety Cover
Pneumatic Safety Cover

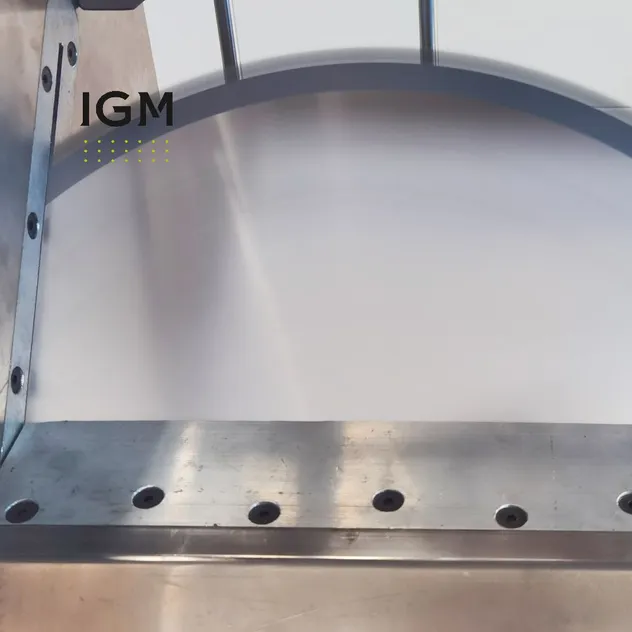

Diamond Blade
500mm Diamond Saw Blade

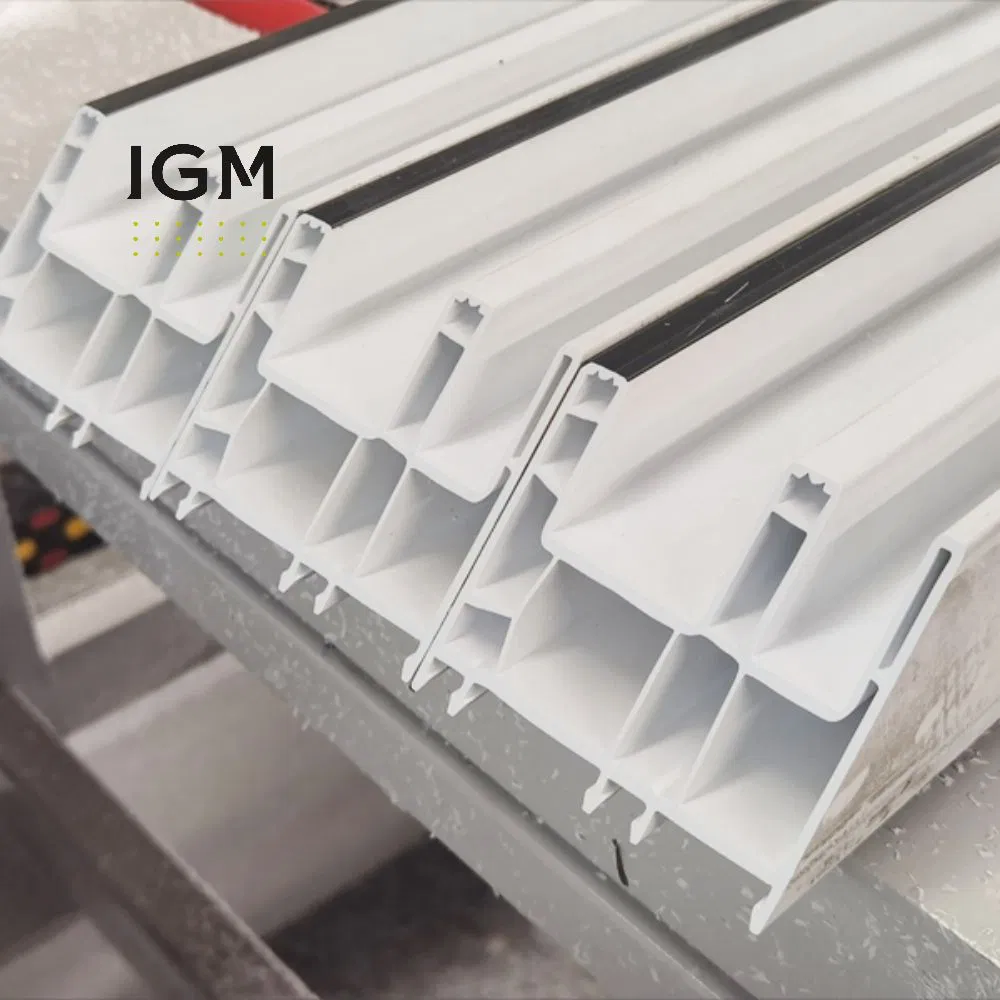

Cutting Effect
Final Cutting Effect
📦 Packaging & Shipping

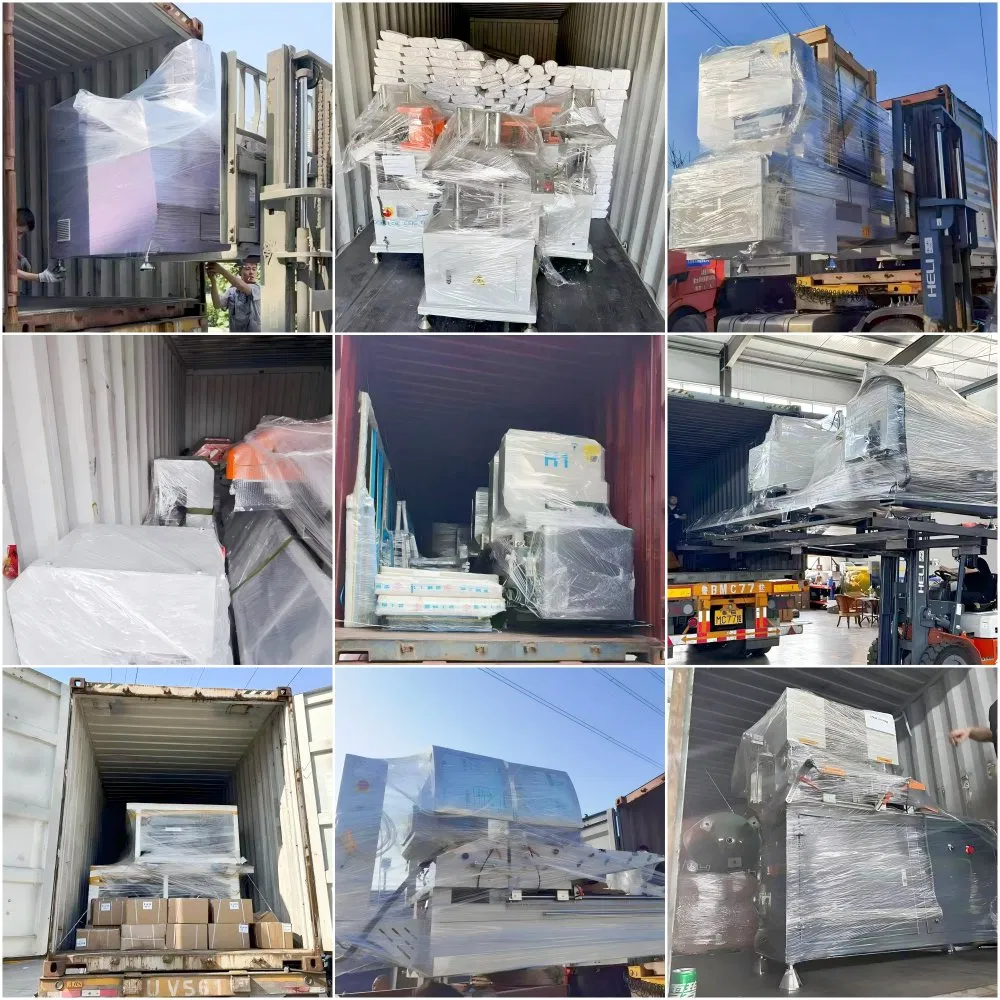

Packaging

LCL (Less than Container Load): Equipment is packed in fumigation-free plywood cases. The pallet is thickened and raised, and the machine base is securely fixed with steel wire.

FCL (Full Container Load): Standard packaging uses plastic film. The machine is fixed within a 20/40-foot container using steel wire or specialized packaging tape. Custom wooden boxes are available upon request.

👨‍🔧 After Sales Service

✓ Installation: On-site technician support for setup and commissioning.

✓ Training: Comprehensive operation and maintenance training for your staff.

✓ Warranty: 18 months extended warranty with lifelong technical support.

✓ Support: 24/7 remote technical assistance via video and telephone.

Frequently Asked Questions
What is the maximum profile width this machine can cut?
The SSPJ-500X5000 is designed for a super large cutting range, allowing for a maximum cutting width of up to 350mm.
Does the machine support automatic angle switching?
Yes, it features pneumatic swing angles for high-efficiency operation, specifically optimized for 45-degree precision cutting.
What kind of saw blade does the machine use?
The machine is equipped with a high-quality 500mm Diamond saw blade, which provides a much longer service life compared to standard alloy blades.
How do you ensure the safety of the operator?
Safety is our priority. The machine includes a two-handed operation mode and a pneumatically raised safety cover to protect the operator during the cutting cycle.
What is the warranty period for this PVC cutting machine?
We provide an industry-leading 18-month warranty period along with lifelong after-sales technical service and spare parts supply.
Can this machine cut multiple profiles at once?
Yes, depending on the profile dimensions, it can cut multiple pieces (e.g., up to 4 pieces of 60 series UPVC) simultaneously to improve production efficiency.
