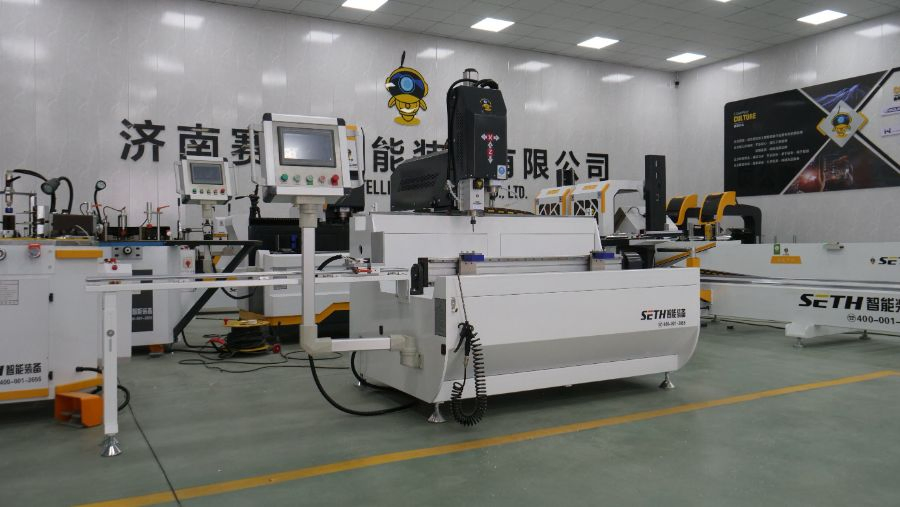

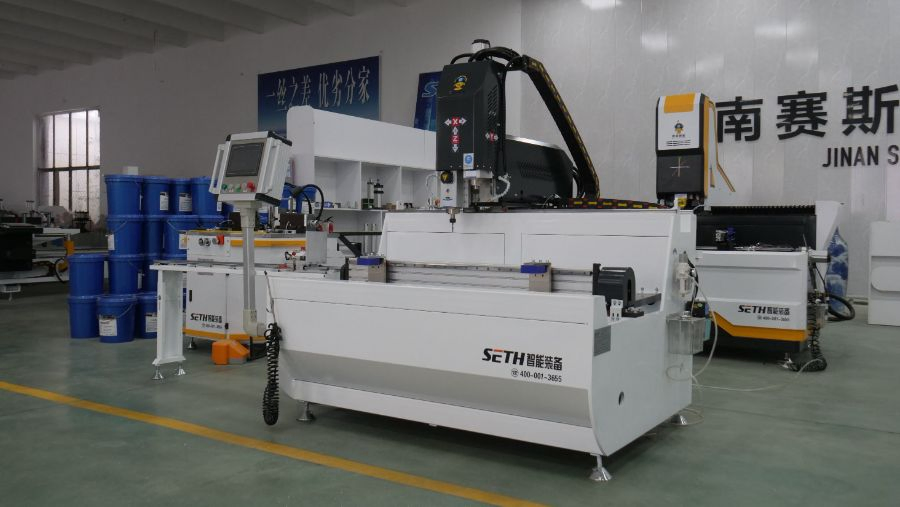

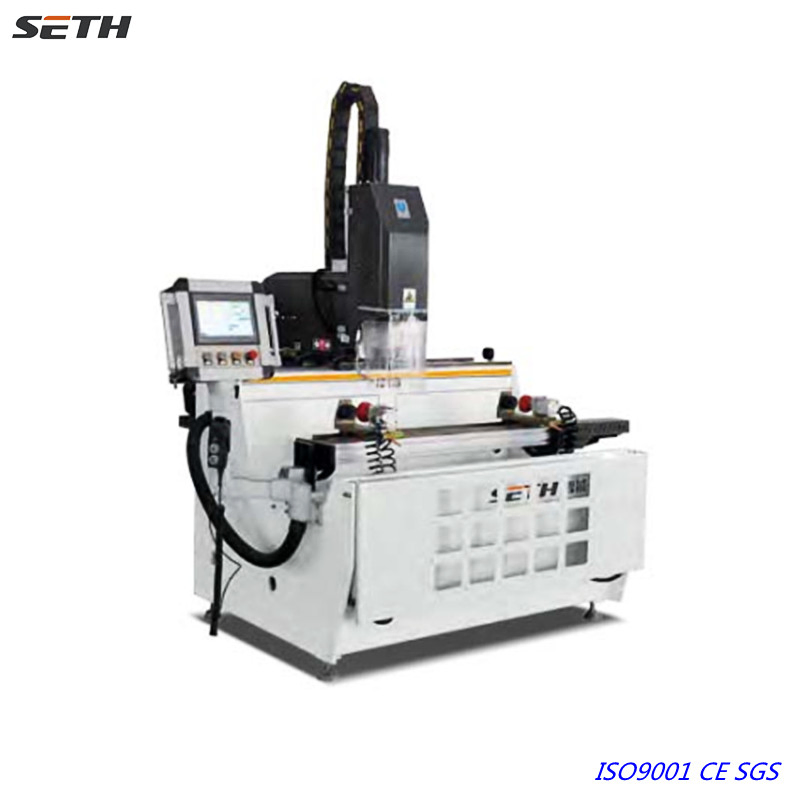

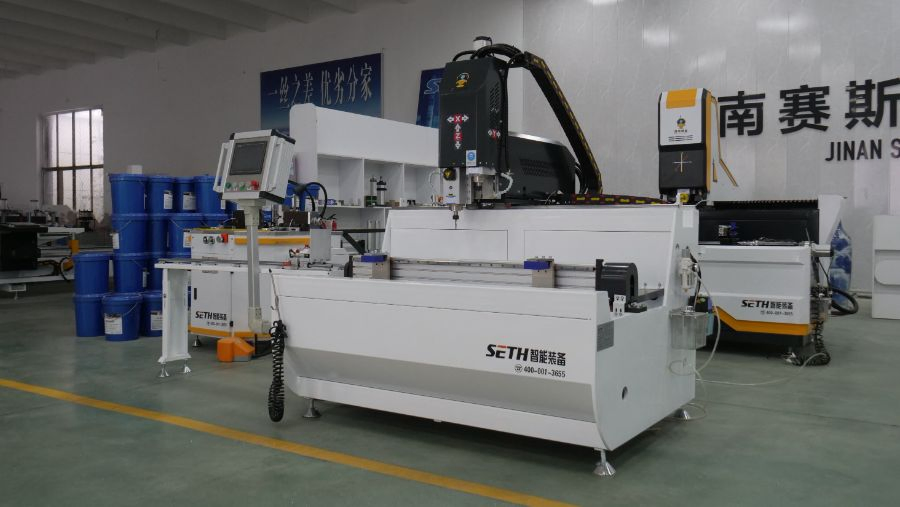

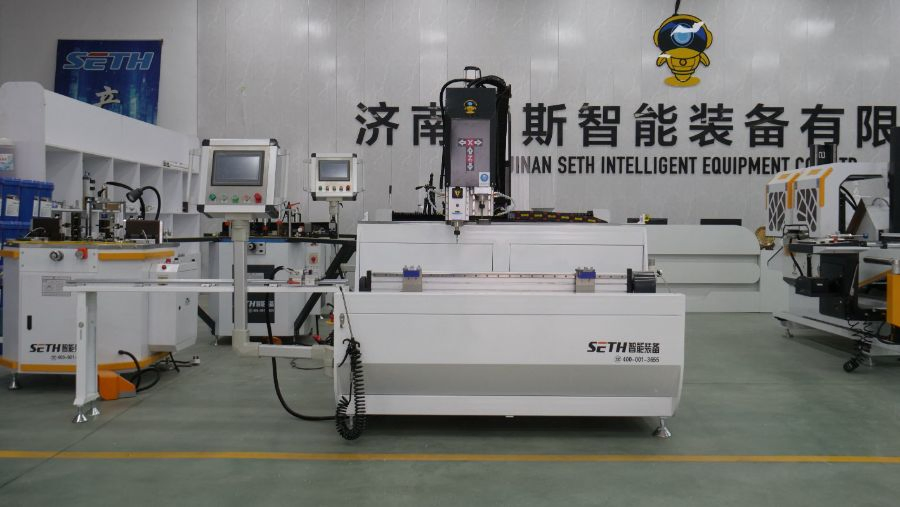

1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1 / 5
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary
1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary

1200mm 3 Axis CNC Milling and Drilling Machine for Aluminum Profile with Table Rotary

Customization: Available
After-sales Service: Video Online Instruction
Warranty: 24 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.SKX3+1-CNC-1200
ConditionNew
CertificationISO, CE, SGS
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V/50Hz
Air Pressure0.5-0.8MPa
Total Power6.0kw
Main Axis Power3.0kw
Max. Rotary Speed18000r/Min
X Axis Travel1200mm
Y Axis Travel300mm
Z Axis Travel280mm
X Axis Speed50m/Min
Overall Dimension2200X1600X1950mm
⚙️ Product Description
CNC Milling Machine
🔹 Designed for aluminum profile, window-door, and curtain wall industries. Suitable for milling, chamfering, and engraving plane surfaces.
🔹 Equipped with an air-cooling electric main axis (3kW, 18000r/min) for high precision and reliability.
🔹 Utilizes Taiwan SYNTEC CNC control system with CAD/CAM programming software for automatic G-code transformation.
🔹 High precision components: X-axis adopts oblique gear and rack drive; Y and Z axes use high precision ball screw drives.
🔹 Rotary worktable (180°-90°~0°~+90°) allows for three-face processing with a single clamping, significantly improving efficiency.
🔹 Features an electric pump oil supply system and spray cooling device for cutting tools.
🔹 Main components use steel structure with aging treatment for long-term stability.
📊 Technical Parameters
Power Supply380V/50Hz
Air Pressure0.5~0.8MPa
Total Power6.5kW
Main Axis Power3.0kW
Max Rotary Speed18000r/min
X-axis Travel1200mm
Y-axis Travel300mm
Z-axis Travel280mm
Y-axis Speed50m/min
Z-axis Speed15m/min

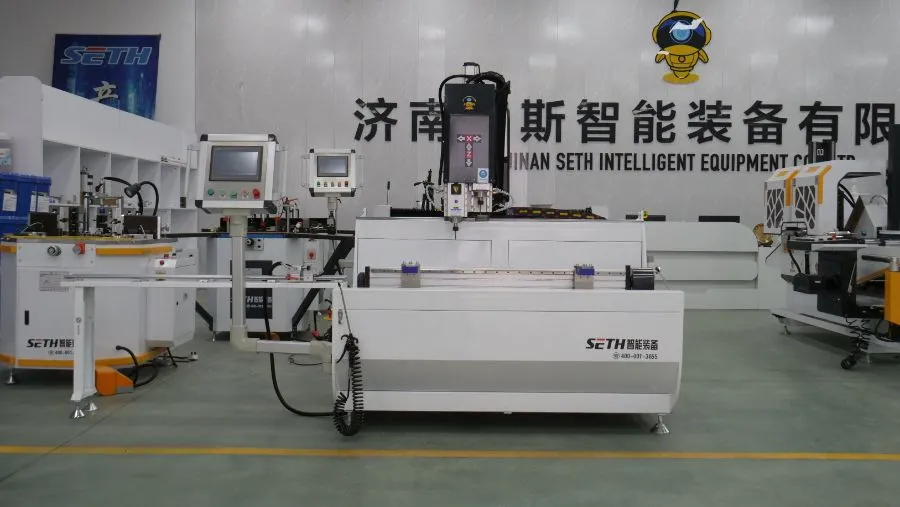

Machine Detail 1
Machine Detail 2

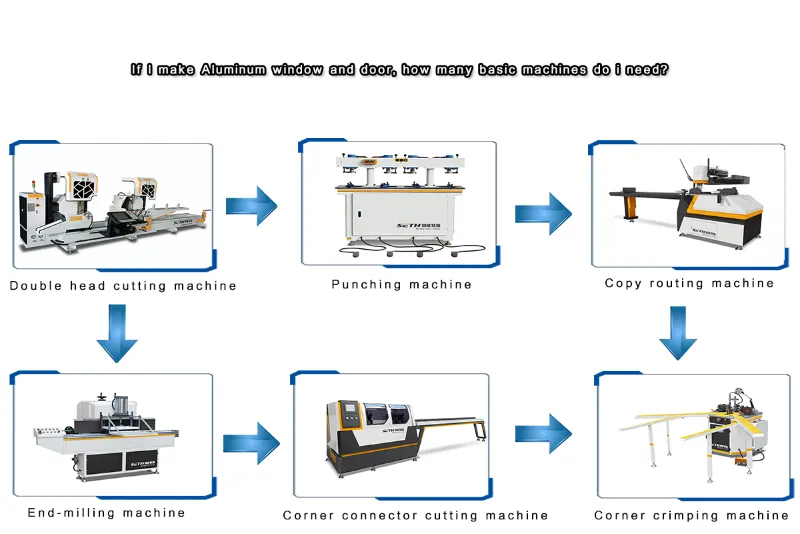

Machine Detail 3
🔥 Hot Sale Products

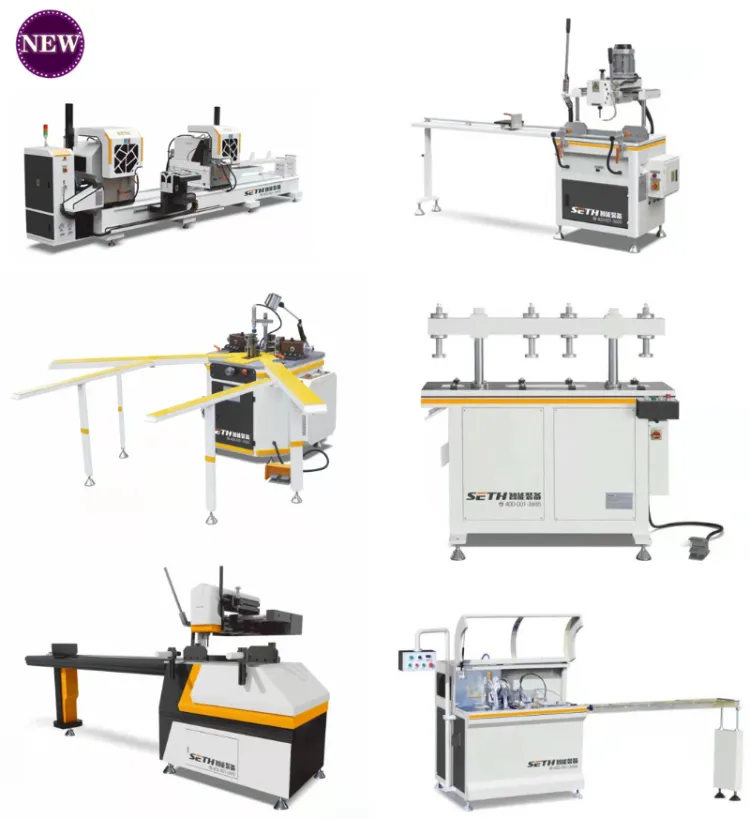

Product Hot 1

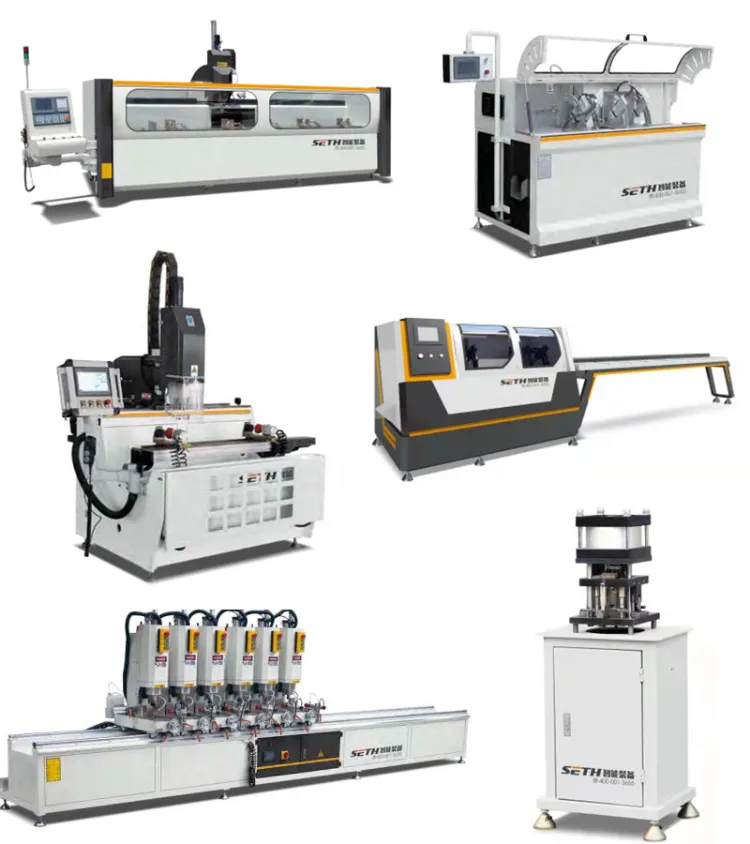

Product Hot 2
🏗️ Factory & Production

We specialize in the production of aluminum and UPVC window/door machines, curtain wall processing equipment, and hollow glass processing tools. Our facility includes specialized workshops for processing, assembly, and quality inspection, ensuring one-stop flow operations from design to testing.

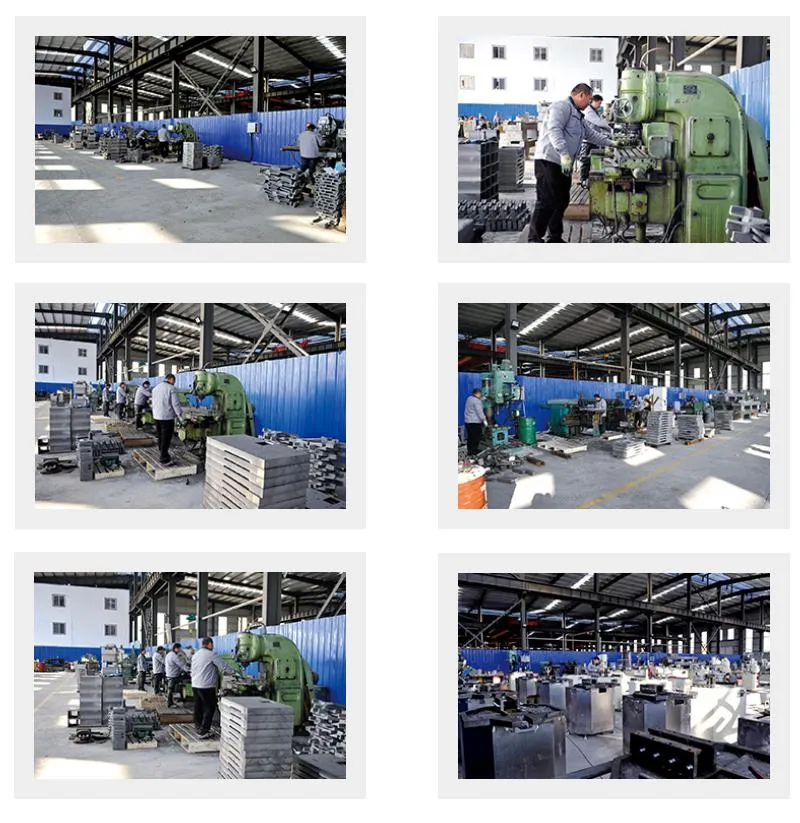

Workshop
Quality Control
📦 Packaging & Shipping
Shipping Packaging
Logistics
❓ Frequently Asked Questions
1. What materials and industries is this CNC machine suitable for? This machine is specifically designed for the aluminum profile, window-door, and curtain wall industries. It can process milling, chamfering, and engraving on various plane surfaces.
2. How does the rotary worktable improve processing efficiency? The worktable can overturn between 180°, -90°, 0°, and +90°. This allows the machine to process three different faces of a profile with only one clamping operation.
3. What kind of control system and software does the machine use? It utilizes the professional Taiwan SYNTEC CNC control system combined with CAD/CAM programming software that can automatically transform processing into G-code.
4. What are the specifications of the main spindle? The machine features an air-cooling electric main axis with 3.0kW power and a maximum rotary speed of 18000r/min, ensuring high precision and safety.
5. What after-sales service options are available? We offer two options: 1) On-site installation and worker training by our engineers. 2) Comprehensive online service including all necessary documentation and videos for installation and operation.
6. What ensures the long-term durability of the machine structure? The main components adopt a heavy-duty steel structure that has undergone professional aging treatment to ensure stability and precision over time.
Machine Specifications
Machine Overview
